AI-native GPU frame debugging for RenderDoc
English | 简体中文
---
renderdoc-mcp is an MCP server and CLI that wraps the RenderDoc replay API into **59 structured tools**, letting AI assistants (Claude, Codex, etc.) open `.rdc` captures, inspect GPU frames, debug shaders/pixels, compare captures, and export evidence — all without manual UI.

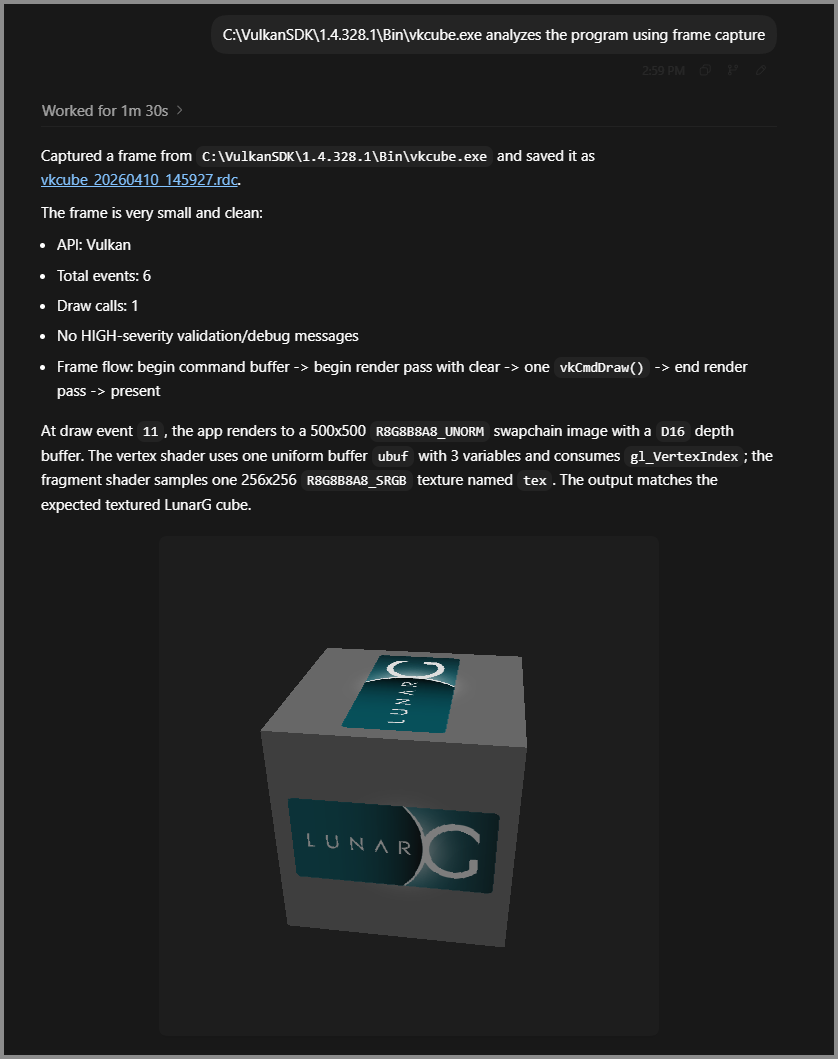

## Demo
## Features
| Area | What you can do |
|------|----------------|
| Session & Capture | Open captures, live-capture frames, inspect metadata |
| Frame Navigation | List events/draws, jump to any event |
| Pipeline & Shaders | Inspect pipeline state, bindings, shader source, constant buffers |
| Resources & Passes | Analyze frame structure, pass dependencies, resource usage |
| Pixel & Shader Debug | Pixel history, pick pixel, debug pixel/vertex/thread |
| Export | Render targets, textures, buffers, meshes, snapshots |
| Diff & Assertions | Compare captures, assert pixels/state/images for CI |
## Download
Get the latest package from [GitHub Releases](https://github.com/JiaboLi-GitHub/renderdoc-mcp/releases). The zip contains:
| File | Description |
|------|-------------|
| `bin/renderdoc-mcp.exe` | MCP server (stdio) |
| `bin/renderdoc-cli.exe` | CLI for shell & CI |
| `bin/renderdoc.dll` / `renderdoc.json` | Bundled RenderDoc runtime |
| `skills/renderdoc-mcp/` | Codex workflow skill |
| `install-codex.ps1` | One-click Codex Desktop installer |
## Client Configuration
### Codex Desktop
The installer auto-configures `~/.codex/config.toml`. Or add manually:
```toml
[mcp_servers.renderdoc-mcp]
command = 'renderdoc-mcp.exe'
args = []
```
### Claude Code
```json
{
"mcpServers": {
"renderdoc-mcp": {
"command": "renderdoc-mcp.exe",
"args": []
}
}
}
```
## Build From Source
```bash
cmake -B build -DRENDERDOC_DIR=
cmake --build build --config Release
```
| Variable | Required | Description |
|----------|----------|-------------|
| `RENDERDOC_DIR` | Yes | RenderDoc source root |
| `RENDERDOC_BUILD_DIR` | No | RenderDoc build output (if non-standard location) |

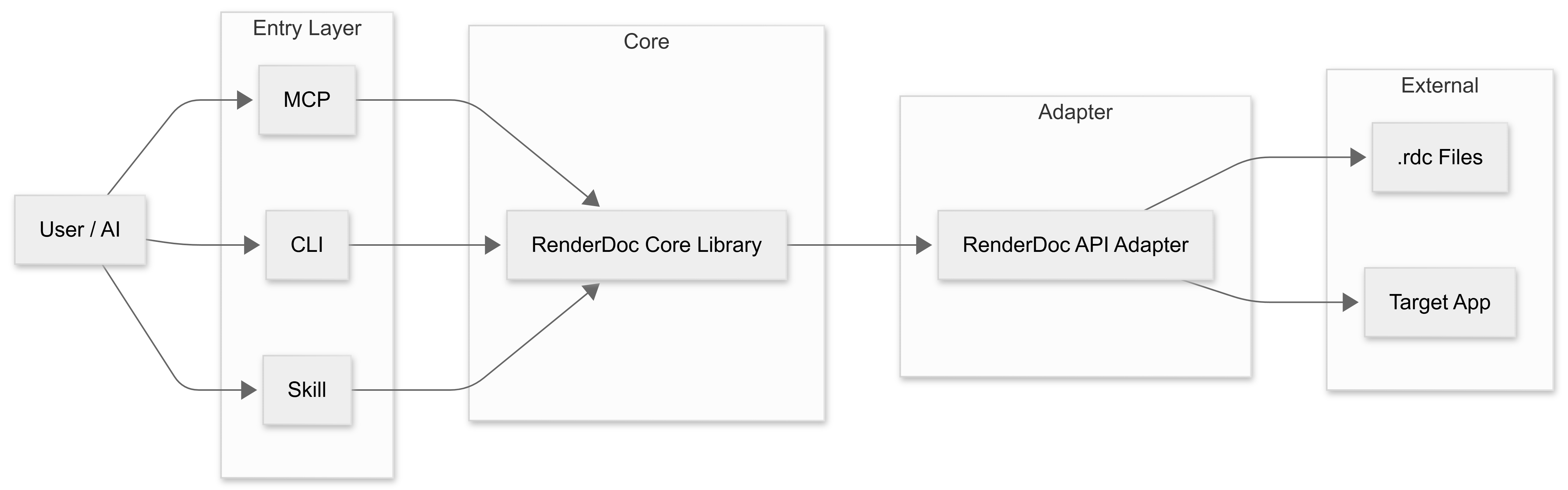

## Architecture
## License
[MIT](LICENSE). RenderDoc itself is under its [own license](https://github.com/baldurk/renderdoc/blob/v1.x/LICENSE.md).
