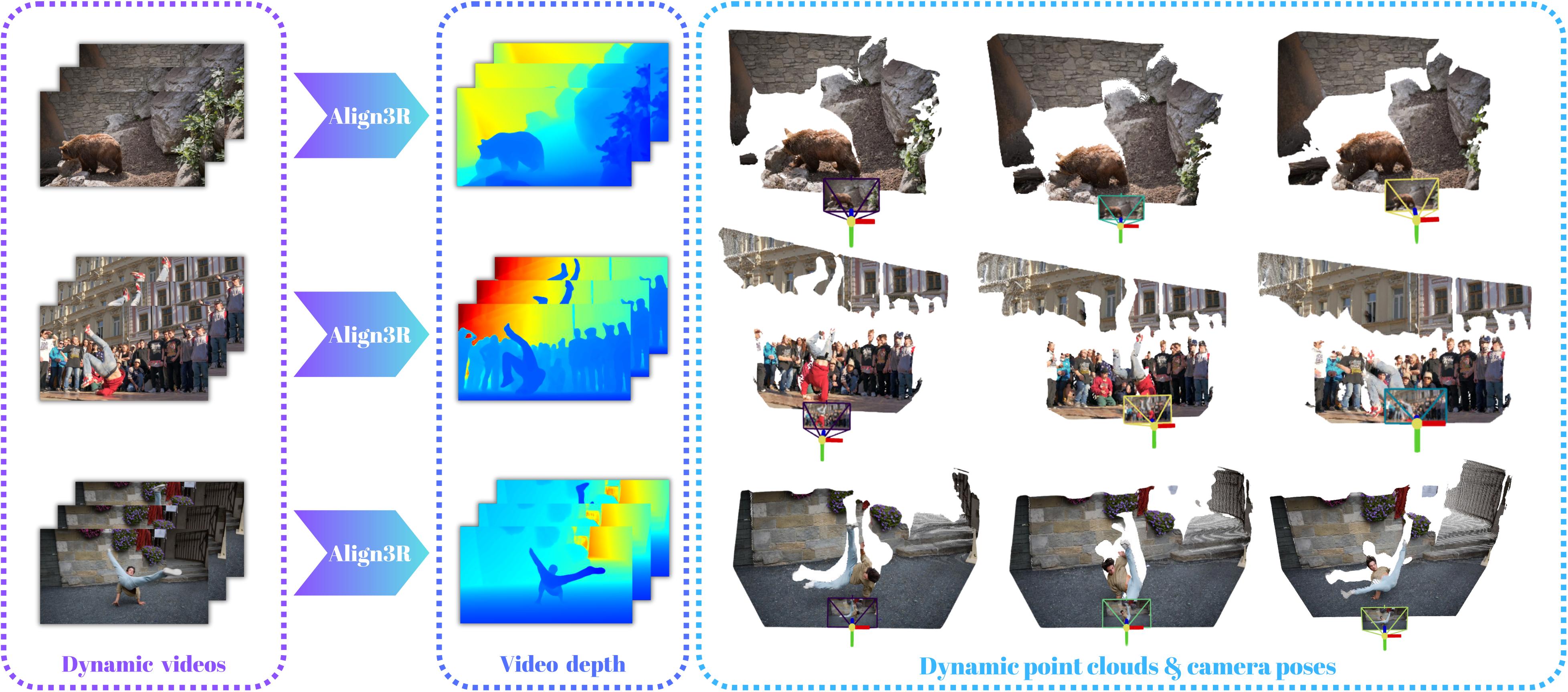

## ___***[CVPR2025] Align3R: Aligned Monocular Depth Estimation for Dynamic Videos***___ ![Version](https://img.shields.io/badge/version-1.0.2-blue)

[![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa] [![Hugging Face Model](https://img.shields.io/badge/🤗%20Hugging%20Face-Model-green)](https://huggingface.co/cyun9286/Align3R_DepthPro_ViTLarge_BaseDecoder_512_dpt) [![Hugging Face Spaces](https://img.shields.io/badge/🤗%20Hugging%20Face-Spaces-blue)](https://huggingface.co/spaces/cyun9286/Align3R) [cc-by-nc-sa]: http://creativecommons.org/licenses/by-nc-sa/4.0/ [cc-by-nc-sa-image]: https://licensebuttons.net/l/by-nc-sa/4.0/88x31.png [cc-by-nc-sa-shield]: https://img.shields.io/badge/License-CC%20BY--NC--SA%204.0-lightgrey.svg [**Align3R: Aligned Monocular Depth Estimation for Dynamic Videos**](https://arxiv.org/abs/2412.03079) [*Jiahao Lu*\*](https://github.com/jiah-cloud), [*Tianyu Huang*\*](https://scholar.google.com/citations?view_op=list_works&hl=en&user=nhbSplwAAAAJ), [*Peng Li*](https://scholar.google.com/citations?user=8eTLCkwAAAAJ&hl=zh-CN), [*Zhiyang Dou*](https://frank-zy-dou.github.io/), [*Cheng Lin*](https://clinplayer.github.io/), [*Zhiming Cui*](), [*Zhen Dong*](https://dongzhenwhu.github.io/index.html), [*Sai-Kit Yeung*](https://saikit.org/index.html), [*Wenping Wang*](https://scholar.google.com/citations?user=28shvv0AAAAJ&hl=en), [*Yuan Liu*](https://liuyuan-pal.github.io/) Arxiv, 2024. **Align3R** estimates temporally consistent video depth, dynamic point clouds, and camera poses from monocular videos. [![Watch the video](assets/teaser_00.jpg)](https://igl-hkust.github.io/Align3R.github.io/static/video/converted/Align3R_video.mp4) ## 🔨TODO List: - [x] Incorporate PromptDA to restore original resolution and achieve better details. - [ ] Add evaluation for static scenes. - [ ] Add more real dataset for training. - [ ] Add camera pose and point correspondence prediction. ## 🚀 Quick Start

🛠️ Installation

1. Clone this repo: ```bash git clone git@github.com:jiah-cloud/Align3R.git ``` 2. Install dependencies: ```bash conda create -n align3r python=3.11 cmake=3.14.0 conda activate align3r conda install pytorch torchvision pytorch-cuda=12.1 -c pytorch -c nvidia # use the correct version of cuda for your system pip install -r requirements.txt # Optional: you can also install additional packages to: # - add support for HEIC images # - add pyrender, used to render depthmap in some datasets preprocessing # - add required packages for visloc.py pip install -r requirements_optional.txt ``` 3. Compile the cuda kernels for RoPE (as in CroCo v2): ```bash cd croco/models/curope/ python setup.py build_ext --inplace cd ../../../ ``` 4. Install the monocular depth estimation model [Depth Pro](https://github.com/apple/ml-depth-pro) and [Depth Anything V2](https://github.com/DepthAnything/Depth-Anything-V2): ```bash # Depth Pro cd third_party/ml-depth-pro pip install -e . source get_pretrained_models.sh # Depth Anything V2 pip install transformers==4.41.2 ``` 5. Download the corresponding model weights: 🔥🔥🔥 We upload our model weights to the Hugging Face, now you can download them via [Align3R (Depth Pro)](https://huggingface.co/cyun9286/Align3R_DepthPro_ViTLarge_BaseDecoder_512_dpt) and [Align3R (Depth Anything V2)](https://huggingface.co/cyun9286/Align3R_DepthAnythingV2_ViTLarge_BaseDecoder_512_dpt/settings). ```bash # DUSt3R wget https://download.europe.naverlabs.com/ComputerVision/DUSt3R/DUSt3R_ViTLarge_BaseDecoder_512_dpt.pth # Align3R # If you cannot download the weights using the following scripts, please download them locally. gdown --fuzzy https://drive.google.com/file/d/1-qhRtgH7rcJMYZ5sWRdkrc2_9wsR1BBG/view?usp=sharing gdown --fuzzy https://drive.google.com/file/d/1PPmpbASVbFdjXnD3iea-MRIHGmKsS8Vh/view?usp=sharing # Depth Pro cd third_party/ml-depth-pro source get_pretrained_models.sh # Raft gdown --fuzzy https://drive.google.com/file/d/1KJxQ7KPuGHlSftsBCV1h2aYpeqQv3OI-/view?usp=drive_link -O models/ ```

🔧 Dataset Preparation

To train Align3R, you should download the following dataset: * [SceneFlow](https://lmb.informatik.uni-freiburg.de/resources/datasets/SceneFlowDatasets.en.html) (Includes FlyingThings3D, Driving & Monkaa) * [VKITTI](https://europe.naverlabs.com/research/computer-vision/proxy-virtual-worlds-vkitti-2/) * [TartanAir](https://github.com/castacks/tartanair_tools.git) * [Spring](https://darus.uni-stuttgart.de/dataset.xhtml?persistentId=doi:10.18419/darus-3376) * [PointOdyssey](https://huggingface.co/datasets/aharley/pointodyssey) Then use the following script to preprocess the training datasets: ```bash bash datasets_preprocess/preprocess_trainingset.sh ``` After preprocessing, our folder structure is as follows: ```shell ├── data ├── PointOdyssey_proc │ ├── train │ └── val ├── spring_proc │ └── train ├── Tartanair_proc ├── vkitti_2.0.3_proc └── SceneFlow ├── FlyingThings3D_proc │ ├── TRAIN │ │ ├── A │ │ ├── B │ │ └── C │ └── TEST │ ├── A │ ├── B │ └── C ├── Driving_proc │ ├── 35mm_focallength │ └── 15mm_focallength └── Monkaa_proc ``` To evaluate, you should download the following dataset: * [Sintel](http://sintel.is.tue.mpg.de/depth) * [DAVIS](https://davischallenge.org/davis2016/code.html) * [Bonn](https://www.ipb.uni-bonn.de/html/projects/rgbd_dynamic2019/rgbd_bonn_dataset.zip) * [TUM dynamics](https://cvg.cit.tum.de/rgbd/dataset/) (Dynamic Objects: freiburg3) For Bonn and TUM dynamics, you should use the following script to preprocess them: ```bash bash datasets_preprocess/preprocess_testset.sh ``` Our folder structure is as follows: ```shell ├── data ├── bonn │ └── rgbd_bonn_dataset ├── davis │ └── DAVIS │ ├── JPEGImages │ │ ├── 480P │ │ └── 1080P │ ├── Annotations │ │ ├── 480P │ │ └── 1080P │ └── ImageSets │ ├── 480P │ └── 1080P ├── MPI-Sintel │ ├── MPI-Sintel-training_images │ │ └── training │ │ └── final │ └── MPI-Sintel-depth-training │ └── training │ ├── camdata_left │ └── depth └── tum ``` To generate monocular depth maps, you should use the following script: ```shell cd third_party/ml-depth-pro bash infer.sh ```

🎇 Demo

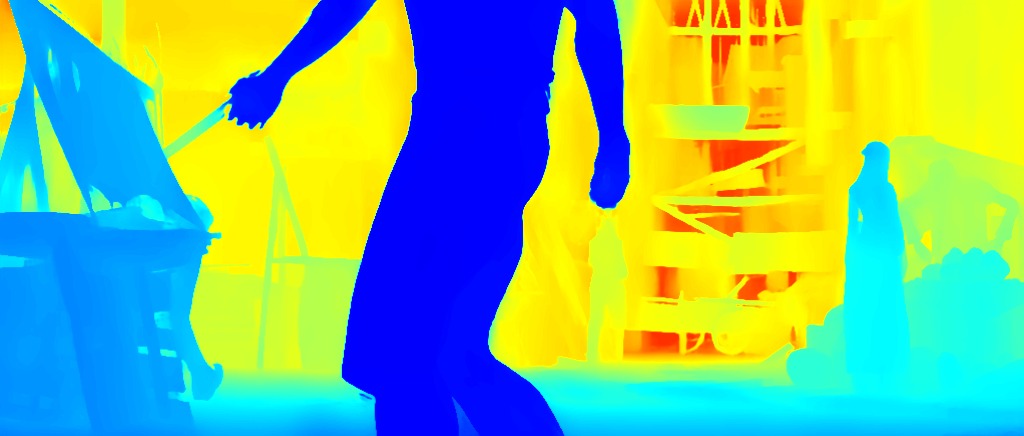

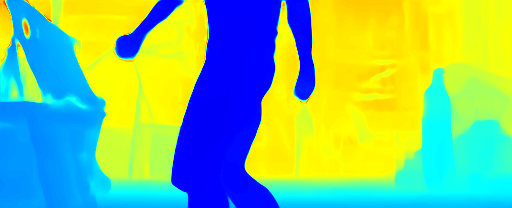

You can run the following demo code on any video. The input path can be either a mp4 video or an image folder. ```bash bash demo.sh ``` ![Demo GIF](assets/_depth_maps.gif) To produce results with the original resolution and enhanced details, you can try the following demo, which leverages [PromptDA](https://github.com/DepthAnything/PromptDA) for depth map upsampling and refinement. To get started, first install [PromptDA](https://github.com/DepthAnything/PromptDA) by following their provided instructions, then proceed to run the demo below. ```bash bash demo_refine.sh ``` ![Refined Demo GIF](assets/_depth_maps_refine.gif)

🎥 Visualization

Please use the `viser` to visualize the point cloud results, you can acquire the code from [MonST3R](https://github.com/Junyi42/viser.git). Thanks for their excellent work! ```bash python viser/visualizer_monst3r.py --data path/dataset/video --init_conf --fg_conf_thre 1.0 --no_mask --wxyz ```

🌟 Training

Please download the pretrained DUSt3R [weight](https://download.europe.naverlabs.com/ComputerVision/DUSt3R/DUSt3R_ViTLarge_BaseDecoder_512_dpt.pth) before training. ```bash bash train.sh ```

🎇 Evaluation

#### Video Depth ```bash bash depth_test.sh ``` Please change the _--dust3r_dynamic_model_path_, _--output_postfix_, _--dataset_name_, _--depth_prior_name_. ##### Sintel ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthpro --dataset_name=sintel --eval --output_postfix="results/sintel_depth_ours_depthpro" # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthanything --dataset_name=sintel --eval --output_postfix="results/sintel_depth_ours_depthanything" ``` ##### PointOdyssey ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthpro --dataset_name=PointOdyssey --eval --output_postfix="results/PointOdyssey_depth_ours_depthpro" # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthanything --dataset_name=PointOdyssey --eval --output_postfix="results/PointOdyssey_depth_ours_depthanything" ``` ##### FlyingThings3D ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthpro --dataset_name=FlyingThings3D --eval --output_postfix="results/FlyingThings3D_depth_ours_depthpro" # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthanything --dataset_name=FlyingThings3D --eval --output_postfix="results/FlyingThings3D_depth_ours_depthanything" ``` ##### Bonn ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthpro --dataset_name=bonn --eval --output_postfix="results/Bonn_depth_ours_depthpro" # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthanything --dataset_name=bonn --eval --output_postfix="results/Bonn_depth_ours_depthanything" ``` ##### TUM dynamics ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthpro --dataset_name=tum --eval --output_postfix="results/tum_depth_ours_depthpro" # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/depth_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --align_with_lad --depth_max=70 --depth_prior_name=depthanything --dataset_name=tum --eval --output_postfix="results/tum_depth_ours_depthanything" ``` #### Camera Pose We find that the flow loss proposed in MonST3R is crucial for pose estimation, so we have incorporated it into our implementation. We sincerely thank the authors of MonST3R for sharing the code for their outstanding work. ```bash bash pose_test.sh ``` Please change the _--dust3r_dynamic_model_path_, _--output_postfix_, _--dataset_name_, _--depth_prior_name_. ##### Sintel ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --output_postfix="results/sintel_pose_ours_depthpro" --dataset_name=sintel --depth_prior_name=depthpro --start_frame=0 --interval_frame=3000 --mode=eval_pose --scene_graph_type=swinstride-5-noncyclic # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --output_postfix="results/sintel_pose_ours_depthanything" --dataset_name=sintel --depth_prior_name=depthanything --start_frame=0 --interval_frame=3000 --mode=eval_pose --scene_graph_type=swin-5-noncyclic ``` ##### Bonn ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --output_postfix="results/bonn_pose_ours_depthpro" --dataset_name=bonn --depth_prior_name=depthpro --start_frame=0 --interval_frame=30 --mode=eval_pose --scene_graph_type=swin-5-noncyclic # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --output_postfix="results/bonn_pose_ours_depthanything" --dataset_name=bonn --depth_prior_name=depthanything --start_frame=0 --interval_frame=30 --mode=eval_pose --scene_graph_type=swin-5-noncyclic ``` ##### TUM dynamics ```bash # Depth Pro CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthpro.pth" --output_postfix="results/tum_pose_ours_depthpro" --dataset_name=tum --depth_prior_name=depthpro --start_frame=0 --interval_frame=30 --mode=eval_pose --scene_graph_type=swin-5-noncyclic # Depth Anything V2 CUDA_VISIBLE_DEVICES='0' python tool/pose_test.py --dust3r_dynamic_model_path="align3r_depthanything.pth" --output_postfix="results/tum_pose_ours_depthanything" --dataset_name=tum --depth_prior_name=depthanything --start_frame=0 --interval_frame=30 --mode=eval_pose --scene_graph_type=swin-5-noncyclic ```

### 📜 Citation If you find our work useful, please cite: ```bibtex @article{lu2024align3r, title={Align3r: Aligned monocular depth estimation for dynamic videos}, author={Lu, Jiahao and Huang, Tianyu and Li, Peng and Dou, Zhiyang and Lin, Cheng and Cui, Zhiming and Dong, Zhen and Yeung, Sai-Kit and Wang, Wenping and Liu, Yuan}, journal={arXiv preprint arXiv:2412.03079}, year={2024} } ``` ### 🤝 Acknowledgements Our code is based on [DUSt3R](https://github.com/naver/dust3r), [MonST3R](https://github.com/Junyi42/monst3r), [Depth Pro](https://github.com/apple/ml-depth-pro), [Depth Anything V2](https://github.com/DepthAnything/Depth-Anything-V2) and [ControlNet](https://github.com/lllyasviel/ControlNet). Our visualization code can acquired from [MonST3R](https://github.com/Junyi42/viser.git). We thank the authors for their excellent work!
