# Manufacturer SDK integration

This plugin supports 4 brands through their native SDKs: **Star, Epson, Brother, Zebra**.
All of them are **optional**: the plugin **compiles and installs without any manufacturer
SDK**, and each adapter activates **automatically** as soon as the matching binary is
present in your app. If it's absent, the adapter is skipped and the plugin falls back to
generic ESC/POS (TCP/Bluetooth/USB/BLE).

## TL;DR — which ones download themselves, and which don't?

| Brand | Android | iOS |
|---|---|---|
| **Star** | ✅ **auto** (Maven Central) | ✅ **auto** (Swift Package Manager) |
| **Brother** | ⛔ manual binary (`.aar`) | ✅ **auto** (CocoaPods) |
| **Epson** | ⛔ manual binary (`.jar` + `.so`) | ⛔ manual xcframework |
| **Zebra** | ⛔ manual binaries (`.jar` + dependency jars) | ⛔ manual xcframework |

> ### Why isn't everything auto-downloaded?
> Only SDKs published to a **standard package repository** (Maven Central for Android,
> CocoaPods/SPM for iOS) download automatically. Epson, Zebra, and Brother-Android are
> distributed **only through the manufacturer's portal**, and their **license forbids
> redistribution** (so they can't be put on Maven Central / CocoaPods, nor committed into
> the plugin's repo). This is a **legal** constraint imposed by the manufacturers, not a
> technical limitation of the plugin.
>
> ✅ **Compliant**: your app downloads the binary itself (accepting the license) and bundles
> it. The plugin ships all the code needed to drive it.

---

## Official download links

| Brand | Download page / SDK | Notes |
|---|---|---|
| **Star** | Android: [StarXpand-SDK-Android](https://github.com/star-micronics/StarXpand-SDK-Android) (Maven Central `com.starmicronics:stario10`) · iOS: [StarXpand-SDK-iOS](https://github.com/star-micronics/StarXpand-SDK-iOS) (SPM) | [StarXpand docs/manual](https://www.star-m.jp/products/s_print/sdk/starxpand/manual/en/index.html) |
| **Epson** | [Epson Developers – POS products](https://epson.com/developers-products) · [ePOS SDK (reference)](https://download4.epson.biz/sec_pubs/pos/reference_en/technology/epson_epos_sdk.html) | iOS Bluetooth MFi: see [MFi / ePOS SDK support](https://global.epson.com/products_and_drivers/tm/en/mfi.html) (account + license acceptance) |
| **Brother** | [Mobile SDK – download](https://support.brother.com/g/s/es/dev/en/mobilesdk/download/index.html) · US: [Brother Developer Program](https://developerprogram.brother-usa.com/sdk-download) | iOS: pod [BRLMPrinterKit](https://cocoapods.org/pods/BRLMPrinterKit) · [SDK manual](https://support.brother.com/g/s/es/htmldoc/mobilesdk/) |
| **Zebra** | [Link-OS Multiplatform SDK (dev portal)](https://developer.zebra.com/products/printers/link-os-multiplatform-sdk) · [Downloads & support](https://www.zebra.com/us/en/support-downloads/software/printer-software/link-os-multiplatform-sdk.html) | [Link-OS TechDocs](https://techdocs.zebra.com/link-os/) (a Zebra account is required) |

> The Epson / Brother / Zebra downloads require a free **developer account** and **acceptance
> of the manufacturer's license**. Star requires nothing (public Maven Central / SPM).

---

## Where to put the binaries (and never commit them)

The proprietary binaries are **git-ignored** (see `.gitignore`). To **test locally**, you can
drop them in:

```
android/libs/            # .aar / .jar / .so   (Android)
ios/Frameworks/          # .xcframework         (iOS)
sdk-binaries/            # free-form test folder, git-ignored
```

In production, place them in **your own app project** (see the per-brand sections below).

---

## ⭐ Star (no manual binary)

> The SDK comes from a public package repository (Maven Central on Android, SPM on iOS), so
> there's no binary to download by hand. Android is fully automatic; on iOS you just add the
> SPM package once.

### Android ✅ automatic — nothing to do
The Star dependency ships with the plugin and Gradle pulls it from Maven Central for you.

### iOS (one manual step: add the SPM package)
The Star iOS SDK is distributed via **Swift Package Manager** (there is no official pod).
Follow the official StarXpand steps, in your Xcode app project:
1. Select your **project** in the navigator, then **File ▸ Add Package Dependencies…**
   (older Xcode labels it **Add Packages…**). This is the item near the top of the File menu —
   *not* the **File ▸ Packages ▸** submenu (Reset/Resolve only).
2. Paste `https://github.com/star-micronics/StarXpand-SDK-iOS` into the **search field at the
   top-right** of the window, and wait for it to resolve.
3. Select **`StarXpand-SDK-iOS`** and press **Add Package**, then add the **`StarIO10`**
   product to your app target.

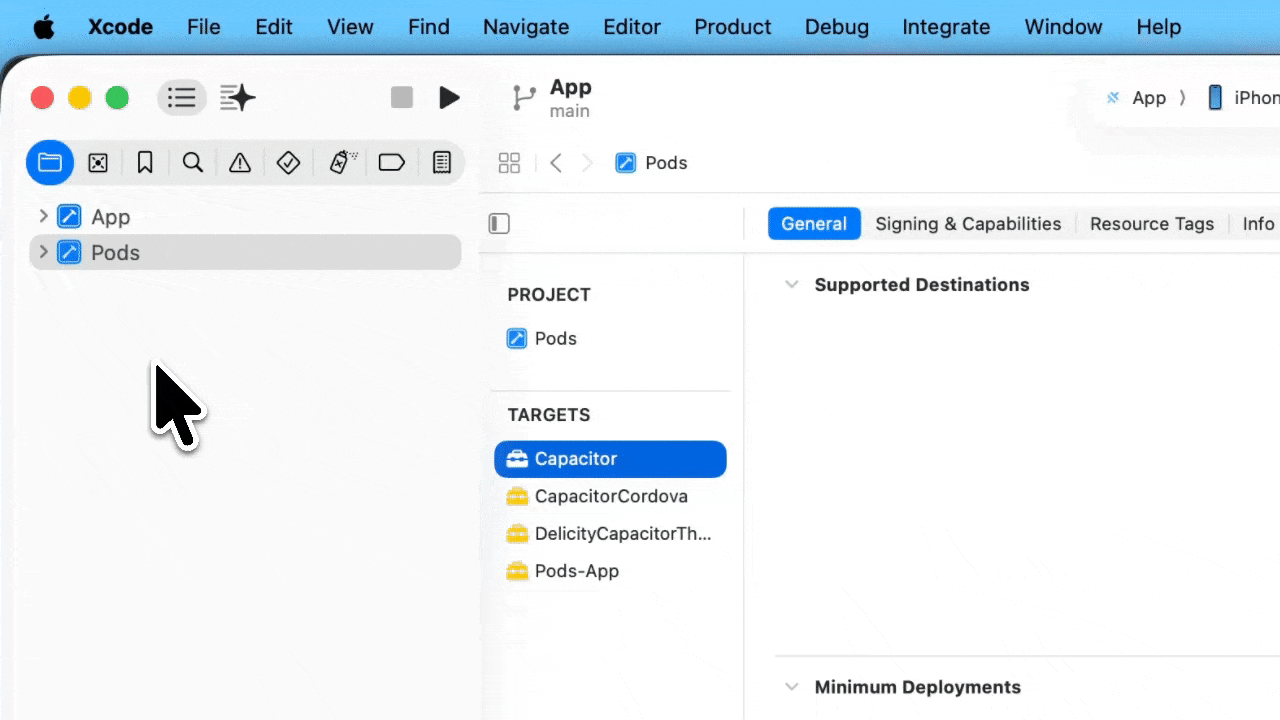

![Adding the Star iOS package via Swift Package Manager](add_star_ios.gif)

4. Run `npx cap sync ios` (or `pod install`) and rebuild. **That's it — no Podfile edit.**

> ℹ️ You don't need to touch the `Podfile`: just adding the SPM package to your app is
> enough for the plugin to pick Star up — Star support turns on by itself.

5. **For Bluetooth (MFi) Star printers**, add the Star **protocol string** to your app's
   `Info.plist` — otherwise iOS never surfaces the paired Star printer and discovery finds
   **nothing over Bluetooth** (even though `getActiveSdks()` already reports
   `star: available=true`). This is the #1 cause of "SDK installed but no Star printer found":
   ```xml
   <key>UISupportedExternalAccessoryProtocols</key>
   <array><string>jp.star-m.starpro</string></array>
   <key>NSBluetoothAlwaysUsageDescription</key>
   <string>Discover and print to Bluetooth printers.</string>
   ```
   `jp.star-m.starpro` covers both **Bluetooth (classic MFi)** and **USB** Star printers
   (required by StarXpand). If you already declare the key for another brand (Epson/Zebra),
   just **add** `jp.star-m.starpro` to the existing `<array>` — don't replace the others.
   Wi-Fi/LAN Star printers also need `NSLocalNetworkUsageDescription` + `NSBonjourServices`
   (see the network-discovery note). Then **pair the printer in iOS Settings ▸ Bluetooth**
   first, grant the Bluetooth prompt on first launch, and relaunch.

   > ℹ️ Star is the **only** brand whose SDK auto-installs on iOS, so it's easy to forget the
   > `Info.plist` step — the SDK compiles in and `getActiveSdks()` says `available=true`, yet
   > Bluetooth discovery silently returns empty until this key is present.

> ✅ Verified on a Capacitor 7 app + iOS simulator: after adding the SPM package,
> `getActiveSdks()` reports `star: available=true` and Star discovery routes through the SDK.

---

## 🟦 Brother

### Android (manual binary)
1. Download the **Brother Print SDK v4.x.x** (Android) from the
   [Brother Mobile SDK portal](https://support.brother.com/g/s/es/dev/en/mobilesdk/download/index.html)
   (or the [Brother Developer Program US](https://developerprogram.brother-usa.com/sdk-download)) — license acceptance required.
2. **Unzip the download to get the `.aar`.** The portal gives you an outer archive that
   contains another zip — you have to unzip **twice**:
   ```
   BrotherPrintSDK_v4.x.x.zip      ← outer archive you downloaded
     └─ bpsdka4xxx.zip             ← the Android SDK archive (unzip this one too)
          └─ libs/
               └─ BrotherPrintLibrary.aar   ← the file you need
   ```
   > ℹ️ Exact names vary by version (e.g. `bpsdka4120.zip` for v4.12.0). The `.aar` always
   > lives in the **`libs/`** folder inside the inner `bpsdka4xxx.zip`.
3. In your Capacitor app, **create the `libs/` folder** if it doesn't exist yet
   (`android/app/libs/`), then drop the `.aar` in it:
   ```
   android/app/libs/BrotherPrintLibrary.aar
   ```
   > ℹ️ The `android/app/libs/` folder isn't created by `npx cap add android` — you make it
   > yourself, then place the `.aar` inside.
4. In your app's `android/app/build.gradle`, add the **dependency** line inside the
   `dependencies { … }` block:
   ```gradle
   dependencies {
       // … existing Capacitor / AndroidX deps …
       implementation(name: 'BrotherPrintLibrary', ext: 'aar')
   }
   ```
   > ⚠️ **The explicit line is required** — don't rely on the template's
   > `implementation fileTree(include: ['*.jar'], dir: 'libs')`: it only matches `*.jar`, so
   > the `.aar` is **silently ignored** without this line (build succeeds, but Brother classes
   > never make it into the APK).
   >
   > ℹ️ The Capacitor app template already declares `flatDir { dirs … , 'libs' }` in its
   > `repositories { … }` block, so you normally **don't** need to touch `repositories`. If
   > yours doesn't have it, add `flatDir { dirs 'libs' }` there:
   > ```gradle
   > repositories { flatDir { dirs 'libs' } }
   > ```
5. Done — Brother support turns on by itself once the `.aar` is present.
   > ✅ **Verified** on a Capacitor 7 test app (JDK 21): with the `.aar` in `app/libs/` and the
   > `implementation(name: …)` line, `./gradlew :app:assembleDebug` succeeds and the APK
   > bundles the Brother classes (`com/brother/…`) plus the native lib `libcreatedata.so` for
   > all ABIs.

### iOS (one manual step: add the pod)
Add the pod to your app's `Podfile` (it's published on CocoaPods, so no binary to download).
In a Capacitor app the Podfile lives at `ios/App/Podfile`; add the line **inside the
`target 'App'` block**, where the `# Add your Pods here` comment is:

```ruby
target 'App' do
  capacitor_pods
  # Add your Pods here
  pod 'BRLMPrinterKit', '~> 4.12'
end
```

Then run `pod install` from `ios/App/` (or `npx cap sync ios`) — Brother support turns on by itself.

---

## 🟧 Epson (manual binary on both platforms)

### Android
1. Download the **ePOS SDK for Android** — [direct download (Epson Download Center)](https://download-center.epson.com/softwares/?device_id=TM-T83II-i&os=ARD)
   (or browse from [Epson Developers](https://epson.com/developers-products) /
   [ePOS SDK ref.](https://download4.epson.biz/sec_pubs/pos/reference_en/technology/epson_epos_sdk.html)) — license acceptance required.
2. Unzip the archive (e.g. `ePOS_SDK_Android_v2.37.0`). At its root you'll find:
   ```
   ePOS_SDK_Android_v2.37.0/
     ├─ ePOS2.jar            ← the SDK (required)
     ├─ ePOSEasySelect.jar   ← optional printer-selection helper
     ├─ arm64-v8a/           ┐
     ├─ armeabi-v7a/         │  native libs (.so) — one folder per ABI
     ├─ x86/                 │
     └─ x86_64/              ┘
   ```
   (the rest — `*_Sample_*.zip`, the `*_um_*` user-manual PDFs, `EULA.txt`, `OPOS_CCOs*.msi`,
   etc. — is documentation/samples you don't need.)
3. Copy the binaries into your Capacitor app:
   - `ePOS2.jar` → `android/app/libs/` (create the `libs/` folder if needed; add
     `ePOSEasySelect.jar` too only if you use the easy-select helper).
   - the **whole ABI folders** (`arm64-v8a`, `armeabi-v7a`, `x86`, `x86_64`) → into
     `android/app/src/main/jniLibs/` (create it if needed), keeping the per-ABI folder
     structure — they hold the native `.so` the JAR loads at runtime. Without them the SDK
     compiles but throws `UnsatisfiedLinkError` at connect time.
4. `build.gradle` — usually **nothing to add**. The Capacitor app template already declares
   `implementation fileTree(include: ['*.jar'], dir: 'libs')`, which **automatically** picks up
   `ePOS2.jar` (and `ePOSEasySelect.jar`). Only if your `build.gradle` lacks that `fileTree`
   line, add the jars explicitly:
   ```gradle
   dependencies { implementation files('libs/ePOS2.jar') }   // + 'libs/ePOSEasySelect.jar' if used
   ```
   > ℹ️ Unlike Brother's `.aar` (which `fileTree(['*.jar'])` ignores, so it needs an explicit
   > line), Epson ships **`.jar`** files — the template's `fileTree` already covers them.
5. **ProGuard/R8 rules (release builds only).** *Skip this for debug builds — it only matters
   when you ship a release/minified build.* R8 is the Android tool that, in `release` builds,
   **shrinks and renames** (obfuscates) unused/private code to make the APK smaller. It can't
   tell that the Epson SDK is reached partly via reflection/JNI, so it may **strip or rename
   classes the SDK still needs**, causing crashes like `ClassNotFoundException` /
   `NoSuchMethodError` at runtime — even though the app compiled fine. The two rules below tell
   R8 to leave the Epson SDK alone:
   ```
   # Keep every class/method/field under com.epson.* exactly as-is (no removal, no renaming)
   -keep class com.epson.** { *; }
   # Don't fail the build over R8's warnings about optional refs inside the Epson SDK
   -dontwarn com.epson.**
   ```
   Add them to your app's `android/app/proguard-rules.pro` (the file the Capacitor template
   already references via `proguardFiles … 'proguard-rules.pro'`). If you never enable
   minification (`minifyEnabled false`, the Capacitor default), these rules are harmless but
   unnecessary.
6. Done — Epson support turns on by itself once `ePOS2.jar` is present.
   > ✅ **Verified** on a Capacitor 7 test app (JDK 21): with both jars in `app/libs/` and the
   > four ABI folders in `app/src/main/jniLibs/`, `./gradlew :app:assembleDebug` succeeds and
   > the APK bundles the Epson classes (`com/epson/…`) plus `libepos2.so` /
   > `libeposeasyselect.so` for all ABIs.

### iOS
1. Download the **ePOS SDK for iOS** — [direct download (Epson Download Center)](https://download-center.epson.com/download/?module_id=e5fde6cb-2f38-4bb3-b920-e53ee5b3190f%3A2.37.0&device_id=TM-m10&os=IOS&region=FR&language=fr)
   (or browse from [Epson Developers](https://epson.com/developers-products); Bluetooth MFi: see [MFi / ePOS SDK support](https://global.epson.com/products_and_drivers/tm/en/mfi.html)).
2. The SDK archive contains three frameworks — take the **dynamic** one,
   **`libepos2.xcframework`** (optionally also `libeposeasyselect.xcframework`, the
   printer-selection helper). In Xcode, **drag and drop** it onto the **`App` ▸ Frameworks**
   group, and in the dialog **tick "Copy items if needed"** so the framework is copied into
   the project (not just referenced from your Downloads folder). Leave it on **Embed & Sign**.
   > ⚠️ Do **not** also add `libepos2-static.xcframework` — it's the *static* variant of
   > `libepos2` (an alternative, not a complement). Since the Capacitor Podfile uses
   > `use_frameworks!`, use the dynamic `libepos2.xcframework`; adding both causes duplicate
   > symbols.
3. That's all on the app side: once `libepos2.xcframework` is on the `App` target, Epson
   support turns on by itself.
   > ⚠️ If your SDK version exposes a **different module name**, adjust it in
   > `EpsonAdapter.swift` (the two lines `canImport(libepos2)` and `import libepos2`).

![Adding the Epson iOS xcframework in Xcode](epson_sdk.gif)

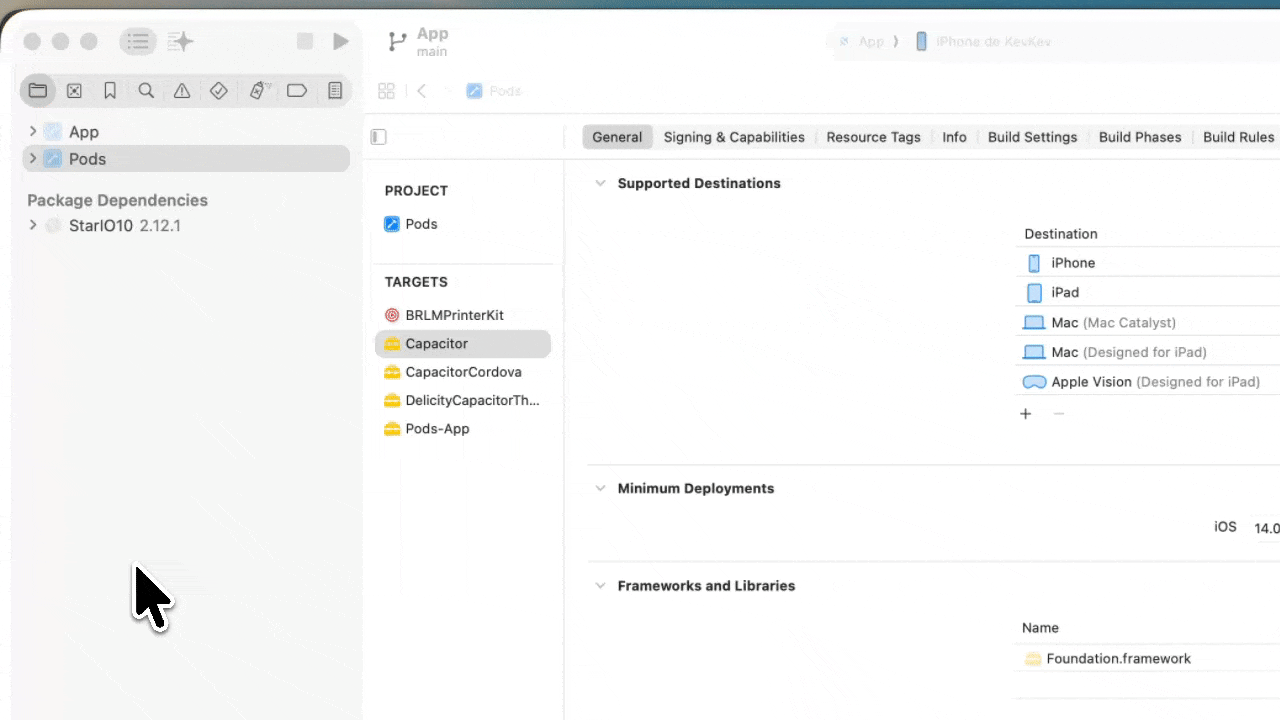

4. **Enable signing for the embedded framework(s)** — see
   [Enable framework signing (iOS)](#enable-framework-signing-ios).
5. **For Bluetooth (MFi) Epson printers**, add to your app's `Info.plist` (otherwise iOS
   won't surface the paired printer and discovery finds nothing):
   ```xml
   <key>UISupportedExternalAccessoryProtocols</key>
   <array><string>com.epson.escpos</string></array>
   <key>NSBluetoothAlwaysUsageDescription</key>
   <string>Discover and print to Bluetooth printers.</string>
   ```
   Wi-Fi/network Epson printers also need `NSLocalNetworkUsageDescription` +
   `NSBonjourServices` (see the network-discovery note). Grant the Bluetooth / Local Network
   prompts on first launch, then relaunch — `discoverPrinters()` then returns the Epson over
   Bluetooth/Wi-Fi and `connectPrinter` / `printImage` / `printText` work.

---

## 🟨 Zebra (Link-OS — ZPL/CPCL, never ESC/POS)

### Android (manual binary)
1. Download the **Link-OS Multiplatform SDK** (Android) from the
   [Zebra dev portal](https://developer.zebra.com/products/printers/link-os-multiplatform-sdk)
   ([downloads & support](https://www.zebra.com/us/en/support-downloads/software/printer-software/link-os-multiplatform-sdk.html)) —
   a free Zebra account + license acceptance required.
2. Unzip it and open the SDK's **`lib/`** folder
   (`Link-OS_SDK/Android/v<version>/lib/`). It contains `ZSDK_ANDROID_API.jar` **plus its
   third-party dependency jars** — the SDK jar alone won't run, it needs all of them:
   ```
   ZSDK_ANDROID_API.jar       ← the Zebra SDK
   jackson-core / jackson-databind / jackson-annotations   ← JSON
   commons-io / commons-lang3 / commons-net / commons-validator
   core / prov / pkix         ← BouncyCastle (crypto)
   httpcore / httpmime        ← Apache HttpComponents
   opencsv, snmp6_1z
   ```
   > ℹ️ Exact filenames/versions vary by SDK release. There are **no `.so` native libs** in the
   > Android SDK (pure Java/JAR), so nothing goes into `jniLibs/`.
3. In your Capacitor app, **create the `libs/` folder** if needed (`android/app/libs/`) and
   copy **every `.jar` from the SDK's `lib/` folder** into it (not just `ZSDK_ANDROID_API.jar`).
4. `build.gradle` — the Capacitor template's `implementation fileTree(include: ['*.jar'], dir: 'libs')`
   already picks up all those jars, so there's **no `implementation` line to add**. But two of
   the bundled Apache jars (`httpcore`, `httpmime`) each ship a `META-INF/DEPENDENCIES` file,
   which collides at packaging (`2 files found with path 'META-INF/DEPENDENCIES'`). Add a
   `packaging` block inside `android { … }` in `android/app/build.gradle` to drop those
   duplicate metadata files:
   ```gradle
   android {
       // …
       packaging {
           resources {
               excludes += ['META-INF/DEPENDENCIES', 'META-INF/NOTICE', 'META-INF/NOTICE.txt',
                            'META-INF/LICENSE', 'META-INF/LICENSE.txt', 'META-INF/INDEX.LIST']
           }
       }
   }
   ```
5. Done — Zebra support turns on by itself once the jars are present.
   > ✅ **Verified** on a Capacitor 7 test app (JDK 21) with Link-OS SDK v2.16.5518: with all
   > `lib/` jars in `app/libs/` and the `packaging` block above, `./gradlew :app:assembleDebug`
   > succeeds and the APK bundles the Zebra classes (`com/zebra/sdk/…`).

### iOS (manual xcframework)
1. Download the **Link-OS Multiplatform SDK** (iOS) from the
   [Zebra portal](https://developer.zebra.com/products/printers/link-os-multiplatform-sdk)
   ([downloads & support](https://www.zebra.com/us/en/support-downloads/software/printer-software/link-os-multiplatform-sdk.html)).
2. In Xcode, **drag and drop** `ZSDK_API.xcframework` onto the **`App` ▸ Frameworks** group,
   and **tick "Copy items if needed"** so it's copied into the project.
3. Run `npx cap sync ios` (or `pod install`) and rebuild. **That's it** — Zebra support turns
   on by itself, no Podfile edit needed.

![Adding the Zebra iOS xcframework in Xcode](zebra.gif)

4. In the **`App`** target ▸ **General** ▸ **Frameworks, Libraries, and Embedded Content**,
   leave `ZSDK_API.xcframework` on **Do Not Embed**. Unlike Epson, Zebra is a **static**
   library — it's linked into your app, so there's **nothing to embed or sign separately**
   (see [Framework embedding & signing (iOS)](#enable-framework-signing-ios)).

> Using Zebra over **Bluetooth** (MFi)? Add `com.zebra.rawport` under **Supported external
> accessory protocols** in your app's `Info.plist`. (Wi-Fi/network needs nothing extra.)

---

## Enable framework signing (iOS)

After adding a manufacturer `.xcframework` to the `App` target, make sure the framework is
**signed** by your app. In Xcode, open the **`App`** target ▸ **General** ▸ **Frameworks,
Libraries, and Embedded Content**, and set the framework's dropdown to **Embed & Sign**
(not "Do Not Embed" / "Embed Without Signing"). Otherwise the build can fail code-signing or
the app may be rejected at install.

![Enabling framework signing in Xcode](enable_singin.gif)
