Flint: A Visualization Language for the AI Era

[![npm: flint-chart](https://img.shields.io/npm/v/flint-chart.svg?label=npm%3A%20flint-chart)](https://www.npmjs.com/package/flint-chart) [![npm: flint-chart-mcp](https://img.shields.io/npm/v/flint-chart-mcp.svg?label=npm%3A%20flint-chart-mcp)](https://www.npmjs.com/package/flint-chart-mcp) [![arXiv: 2607.20775](https://img.shields.io/badge/arXiv-2607.20775-b31b1b.svg)](https://arxiv.org/abs/2607.20775) [![CI](https://github.com/microsoft/flint-chart/actions/workflows/ci.yml/badge.svg)](https://github.com/microsoft/flint-chart/actions/workflows/ci.yml) [![License: MIT](https://img.shields.io/badge/License-MIT-yellow.svg)](LICENSE) [![Discord](https://img.shields.io/badge/discord-chat-green?logo=discord)](https://discord.gg/hnm4Y8YX8) [![WeChat](https://img.shields.io/badge/wechat-group-07C160?logo=wechat&logoColor=white)](#community) [**Project site**](https://microsoft.github.io/flint-chart/) · [**中文主页**](https://microsoft.github.io/flint-chart/#/zh) · [**MCP server**](https://microsoft.github.io/flint-chart/#/mcp)

A wall of charts produced by Flint across its supported visualization backends.

Flint is a visualization language that lets **AI agents reliably create expressive, good-looking and interactive charts from simple, human-editable chart specs**. It is available as an [MCP server](https://microsoft.github.io/flint-chart/#/mcp) for everyday use with your agent, and as an [npm library](https://www.npmjs.com/package/flint-chart) for building interactive applications. Flint supports **52 chart types across 5 rendering backends** — [Vega-Lite](https://vega.github.io/vega-lite/), [ECharts](https://echarts.apache.org/), [Chart.js](https://www.chartjs.org/), [Plotly](https://plotly.com/javascript/), and native Excel charts — through one unified interface, with **14 themes and 23 interaction presets**. To create bespoke visualizations, design custom themes in the [Theme Lab](https://microsoft.github.io/flint-chart/#/theme-lab) and build [advanced interactions](https://microsoft.github.io/flint-chart/#/interactions/advanced) with the Flint API. https://github.com/user-attachments/assets/c1cda0fa-3ea7-41af-b3fd-a127bc83d641

_{🔊 Click the speaker icon for sound}

## Updates - **October 19, 2026** — Flint 1.0 introduces [Flint Interactive](https://microsoft.github.io/flint-chart/#/interactions): interaction presets, semantic events, and an interaction API that connects charts to your app. ([changelog](CHANGELOG.md)) - **August 12, 2026** — Flint 0.5.1 extends visual themes to the Plotly backend and adds Vega-Lite Calendar Heatmap. - **August 5, 2026** — Flint 0.5.0 introduces formal visual themes with preset themes, custom ThemeSpec authoring, and preset inheritance. ([v0.5.0](https://github.com/microsoft/flint-chart/releases/tag/0.5.0)) - **July 24, 2026** — Flint 0.4.0 adds 38 Plotly chart types and 18 native, editable Excel chart templates. ([v0.4.0](https://github.com/microsoft/flint-chart/releases/tag/0.4.0)) See the [changelog](CHANGELOG.md) for every release. ## Get started ### In your agent app (MCP server) Chart right in the conversation with any MCP client, such as [GitHub Copilot in VS Code](https://code.visualstudio.com/docs/copilot/chat/mcp-servers), [Claude](https://support.claude.com/en/articles/11175166-get-started-with-custom-connectors-using-remote-mcp), Claude Code, Codex, or Cursor. ⚡ **Quick start:** paste this setup request into your agent and let it configure Flint for the current project. For manual setup, see the [MCP server guide](https://microsoft.github.io/flint-chart/#/mcp). ```text Help me set up Flint as an MCP server named "flint"! 1. Add it to my client config, using whichever option my client supports: - a local (stdio) server: npx -y flint-chart-mcp - the hosted server over HTTP: https://flint.data-formulator.ai/mcp 2. Verify the setup by listing the available Flint chart types. 3. Show me a fun first chart: how many moons each planet has, in a Flint theme you like. ``` Then ask your agent for a chart, for example: ```text Go to Yahoo Finance, find today's percentage change for the Magnificent Seven tech stocks, and compare their performance with Flint in Economist style. Let me hover to read each stock's change. ``` The agent can open an interactive chart right in the conversation, return a static PNG or SVG, or produce a backend-native spec.

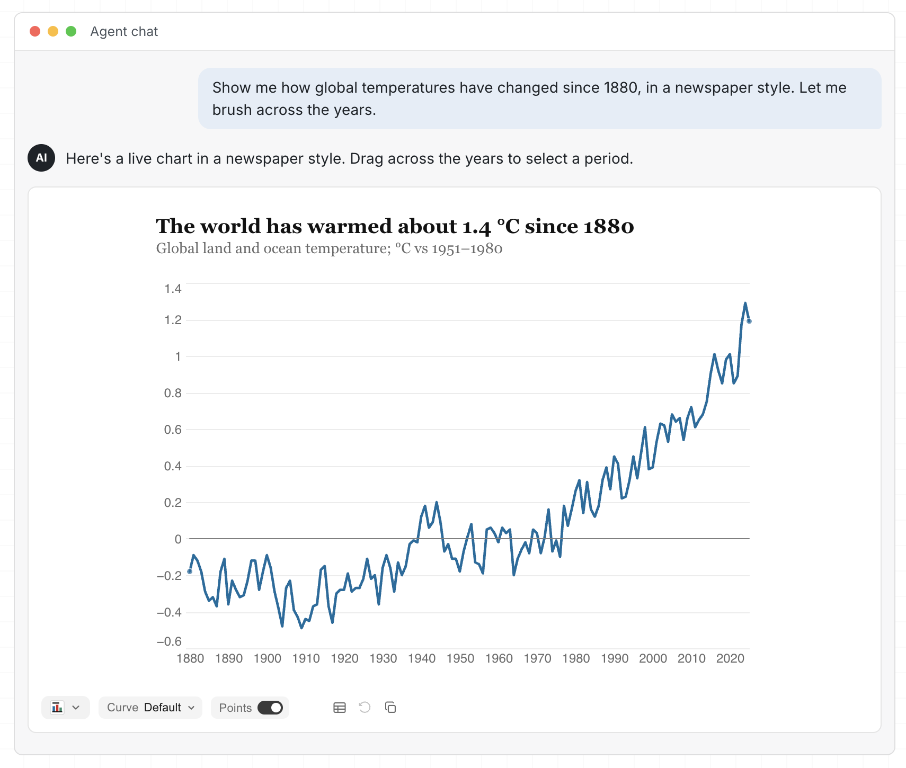

An agent chat where the user asks for global temperatures since 1880 in a newspaper style with brushing, and Flint answers with a live, interactive line chart.

### Build with your coding agent Are you a developer building agent apps? Use [`flint-chart`](https://www.npmjs.com/package/flint-chart), Flint's npm library, to bring charts into your apps, dashboards, and data stories: ```bash npm install flint-chart ``` The library compiles Flint specs into backend-native chart specs and provides React and vanilla JavaScript APIs for embedding interactive charts. A Flint spec describes the data, semantic types, and field mappings, with optional theme and interaction settings. In React, pass it to `` to embed an interactive chart: ```tsx import type { ChartAssemblyInput } from 'flint-chart'; import { FlintChart } from 'flint-chart/react'; const spec: ChartAssemblyInput = { data: { values: [ { Month: '2026-01', Users: 1200 }, { Month: '2026-02', Users: 1800 }, ] }, semantic_types: { Month: 'YearMonth', Users: 'Quantity' }, chart_spec: { chartType: 'Line Chart', encodings: { x: 'Month', y: 'Users' }, }, theme_spec: 'economist', interaction_spec: { interactions: [{ type: 'inspect-index' }] }, }; ``` You can copy the following instruction to your coding agent to build a chart with Flint, then adapt it to your data and app: ```text Read Flint's chart authoring and interaction skills: https://github.com/microsoft/flint-chart/blob/main/agent-skills/flint-chart-author/SKILL.md https://github.com/microsoft/flint-chart/blob/main/agent-skills/flint-interaction-author/SKILL.md Use these skills to add a chart to this app. Install flint-chart and the renderer dependencies needed for this project. Plot monthly users by region from our data in Economist style. Let readers hover to compare regions at each month, and add a region selector that updates the chart. Integrate it with the app's existing layout and verify it works. ``` The agent can also generate backend-native specs or editable Excel charts for reports and documents. See the [API reference](docs/api-reference.md), [interaction API](docs/interaction-api.md), and [live editor](https://microsoft.github.io/flint-chart/#/editor) for the underlying APIs and examples. ## How it works A Flint spec consists of the data, semantic types, the chart spec, and optional theme and interaction specs. Instead of relying on complex user-side logic to glue them together, the compiler resolves each part against the others and composes a complete backend-native spec. ### 1. Describe data with semantic types Fields are described with semantic types such as `Rank`, `YearMonth`, `Delta`, or `Temperature`, along with their domains and units. The compiler uses them to infer parsing, scales, axes, formatting, and colors — a short Flint spec becomes a complete backend spec.

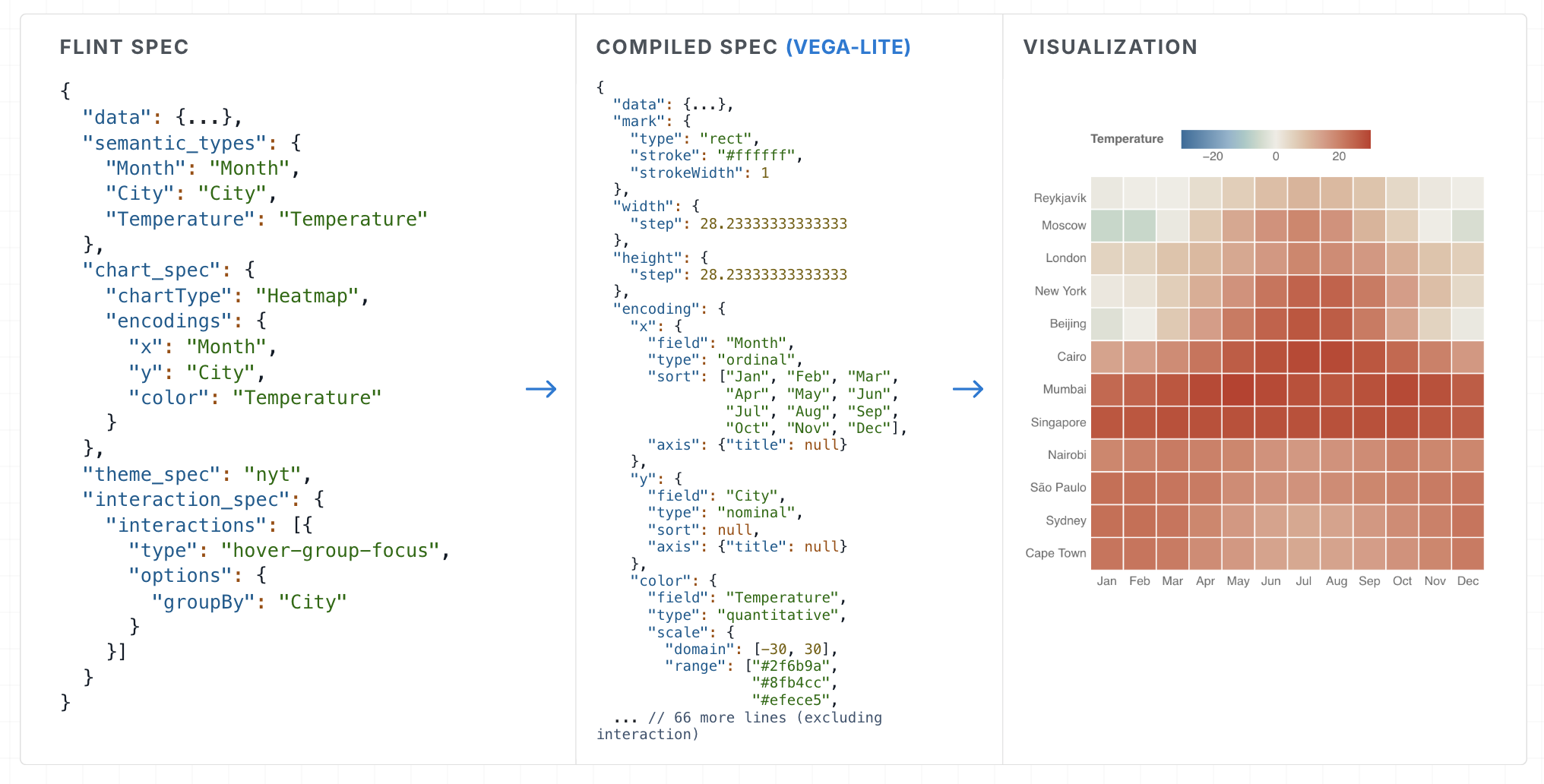

A Flint spec with semantic types, theme and interaction compiled into a Vega-Lite spec and rendered as a temperature heatmap.

### 2. Build charts once, render on any backend Charts are defined with high-level chart types and encodings. The compiler adapts sizing, spacing, labels, and legends to the data, for example as it gets denser, and the same spec renders across Vega-Lite, ECharts, Chart.js, and Plotly, or as native Excel charts. See the [API reference](docs/api-reference.md) and the [gallery](https://microsoft.github.io/flint-chart/#/gallery). ### 3. Unify the look with a theme spec Geometry, typography, and color are reusable formal specs that apply across a whole chart library, independent of the data and chart type. Pick one of 14 preset themes, such as the New York Times, the Economist, Swiss, or McKinsey, or inherit one and override only what belongs to your brand: ```ts theme_spec: { extends: 'economist', id: 'our-brand', ink: { series: { single: '#6b3fa0' } } } ``` Compare every preset in the [theme explorer](https://microsoft.github.io/flint-chart/#/themes), design your own in the [Theme Lab](https://microsoft.github.io/flint-chart/#/theme-lab), and see the [theme guide](docs/theme-spec.md) for the full reference.

### 4. Add interactions with an interaction spec Flint provides 23 interaction presets and a programming API for building interactive charts into applications. The compiler resolves user interaction events into semantic information, so your app only answers with high-level chart updates: ```tsx import { FlintChart } from 'flint-chart/react'; { if (phase === 'commit') table.filter(state.selected); }} /> ```

Try the presets in the [interaction gallery](https://microsoft.github.io/flint-chart/#/interactions/gallery), see bespoke ones in [advanced interactions](https://microsoft.github.io/flint-chart/#/interactions/advanced), and read the [interaction spec](docs/interaction-spec.md) and [programming API](docs/interaction-api.md). ## Documentation - [Project site](https://microsoft.github.io/flint-chart/) — gallery, live editor, themes, and interactions - [API reference](docs/api-reference.md) and backend references for [Vega-Lite](docs/reference-vegalite.md), [ECharts](docs/reference-echarts.md), [Chart.js](docs/reference-chartjs.md), [Plotly](docs/reference-plotly.md), and [Excel](docs/reference-excel.md) - [Theme guide](docs/theme-spec.md), [interaction spec](docs/interaction-spec.md), and [interaction programming API](docs/interaction-api.md) - [MCP server guide](https://microsoft.github.io/flint-chart/#/mcp) and [agent skills](agent-skills/) - [Paper on arXiv](https://arxiv.org/abs/2607.20775) A Python port is in preview as source in [`packages/flint-py`](packages/flint-py); its package is not yet released. ## Contributing Contributions are welcome — especially new [chart templates](docs/adding-a-chart-template.md) and [rendering backends](docs/adding-a-backend.md). See [CONTRIBUTING](.github/CONTRIBUTING.md) and the [development guide](docs/DEVELOPMENT.md). ```bash git clone https://github.com/microsoft/flint-chart cd flint-chart npm install # workspaces: packages/flint-js, packages/flint-mcp, site npm run typecheck # typecheck flint-chart and flint-chart-mcp npm run test # Vitest for both packages npm run build # build both packages npm run site # project site, gallery, and editor at http://localhost:5274/ ``` Node 18+ is required. The site aliases `flint-chart` to `packages/flint-js/src`, so library edits hot-reload without rebuilding.

Repository layout

``` flint-chart/ ├── packages/ │ ├── flint-js/ npm package `flint-chart` (TypeScript) │ │ └── src/ │ │ ├── core/ semantics, themes, layout, decisions, shared types │ │ ├── chart-types/ shared chart definitions and template metadata │ │ ├── interactive/ interaction presets and runtime │ │ ├── react/ the `` React component │ │ ├── vegalite/ Vega-Lite backend │ │ ├── echarts/ ECharts backend │ │ ├── chartjs/ Chart.js backend │ │ ├── plotly/ Plotly backend │ │ ├── excel/ native Excel backend │ │ └── test-data/ fixtures and stress-test generators │ ├── flint-mcp/ MCP server `flint-chart-mcp`, MCP App UI, and tests │ └── flint-py/ Python port preview ├── site/ Vite + React project site, gallery, editor, and docs ├── agent-skills/ chart, theme, and interaction authoring skills for agents ├── docs/ user, API, backend, and architecture documentation └── design-docs/ design proposals and implementation research ```

This project has adopted the [Microsoft Open Source Code of Conduct](.github/CODE_OF_CONDUCT.md). See [SECURITY.md](.github/SECURITY.md) to report vulnerabilities. ## Community

Join the Flint Discord
Ask questions, share your charts, and follow releases with Flint users everywhere.

Join Discord

Join the Flint WeChat group
Scan the QR code to join the Flint user WeChat group.

Flint WeChat user group QR code

## Contributors

We'd love to have you join us! Pick up an issue, add a chart template or a theme, or share what you build in the community. See Contributing to get started, and everyone on the contributors graph.
