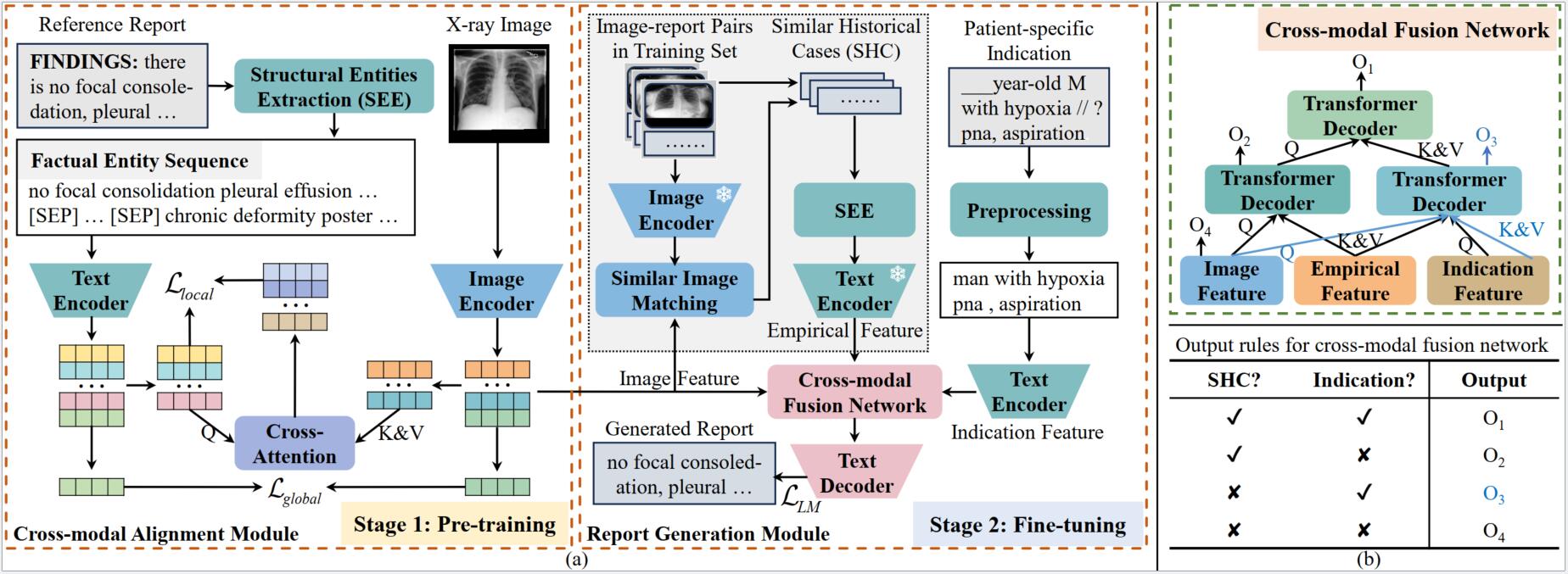

# SEI [Structural Entities Extraction and Patient Indications Incorporation for Chest X-ray Report Generation](https://link.springer.com/chapter/10.1007/978-3-031-72384-1_41) The automated generation of imaging reports proves invaluable in alleviating the workload of radiologists. A clinically applicable reports generation algorithm should demonstrate its effectiveness in producing reports that accurately describe radiology findings and attend to patient-specific indications. In this paper, we introduce a novel method, **S**tructural **E**ntities extraction and patient indications **I**ncorporation (SEI) for chest X-ray report generation. Specifically, we employ a structural entities extraction (SEE) approach to eliminate presentation-style vocabulary in reports and improve the quality of factual entity sequences. This reduces the noise in the following cross-modal alignment module by aligning X-ray images with factual entity sequences in reports, thereby enhancing the precision of cross-modal alignment and further aiding the model in gradient-free retrieval of similar historical cases. Subsequently, we propose a cross-modal fusion network to integrate information from X-ray images, similar historical cases, and patient-specific indications. This process allows the text decoder to attend to discriminative features of X-ray images, assimilate historical diagnostic information from similar cases, and understand the examination intention of patients. This, in turn, assists in triggering the text decoder to produce high-quality reports. Experiments conducted on MIMIC-CXR validate the superiority of SEI over state-of-the-art approaches on both natural language generation and clinical efficacy metrics.

# Update - **2024-09-09**, Upload the [Poster](Poster.pdf) - **2024-09-19**, Update the repository to make it easy. - **2024-09-19**, Update the [generated reports](scripts/results/mimic_cxr/test/ft_100_top1/) for the MIMIC-CXR test set. ## Requirements - `torch==2.1.2+cu118` - `transformers==4.23.1` - `torchvision==0.16.2+cu118` - `radgraph==0.09` - Due to the specific environment of RadGraph, please refer to `knowledge_encoder/factual serialization. py` for the environment of the structural entities approach. ## Checkpoints You can download checkpoints of SEI as follows: - For `MIMIC-CXR`, you can download checkpoints from [Baidu Netdisk](https://pan.baidu.com/s/15SW1k3xZ57S06FUeqpclAA) (its code is `MK13`) and [huggingface 🤗](https://huggingface.co/MK-runner/SEI/tree/main). ## MIMIC-CXR Datasets - For `MIMIC-CXR`, you can download medical images from [PhysioNet](https://physionet.org/content/mimic-cxr/2.0.0/). - You can download `medical reports` from [Google Drive](https://drive.google.com/file/d/1iWdFINSAJ7F97I4rTGddIziJAb-1sL3l/view?usp=drive_link). Note that you can apply with your license of [PhysioNet](https://physionet.org/content/mimic-cxr-jpg/2.0.0/), and its `toy case` is in `knowledge_encoder/case.json` ## Reproducibility on MIMIC-CXR (SEI-1) ### Structural entities extraction (SEE) approach 1. Config RadGraph environment based on `knowledge_encoder/factual_serialization.py` ===================environmental setting================= Basic Setup (One-time activity) a. Clone the DYGIE++ repository from [here](https://github.com/dwadden/dygiepp). This repository is managed by Wadden et al., authors of the paper [Entity, Relation, and Event Extraction with Contextualized Span Representations](https://www.aclweb.org/anthology/D19-1585.pdf). ```bash git clone https://github.com/dwadden/dygiepp.git ``` b. Navigate to the root of the repo in your system and use the following commands to set the conda environment: ```bash conda create --name dygiepp python=3.7 conda activate dygiepp cd dygiepp pip install -r requirements.txt conda develop . # Adds DyGIE to your PYTHONPATH ``` c. Activate the conda environment: ```bash conda activate dygiepp ``` Notably, for our RadGraph environment, you can refer to `knowledge_encoder/radgraph_requirements.yml`. 2. Configure `radgraph_path` and `ann_path` in `knowledge_encoder/see.py`. The `ann_path` corresponds to the local file path to the medical reports. The `radgraph_path` can be obtained directly from [PhysioNet](https://physionet.org/content/radgraph/1\.0.0/). 3. Run the `knowledge_encoder/see.py` to extract the factual entity sequence for each report. 4. Finally, the `annotation.json` becomes `mimic_cxr_annotation_sen.json` that is identical to `new_ann_file_name` variable in `see.py` ### Conducting the first stage (i.e., training cross-modal alignment module) 1. Run `bash pretrain_mimic_cxr.sh` to pretrain a model on the MIMIC-CXR data (Note that the `mimic_cxr_ann_path` is `mimic_cxr_annotation_sen.json`). ### Retrieval of similar historical cases for each sample 1. Config `--load` argument in `pretrain_inference_mimic_cxr.sh`. Note that the argument is the pre-trained model from the first stage. 2. Run `bash pretrain_inference_mimic_cxr.sh` to retrieve similar historical cases for each sample, forming `mimic_cxr_annotation_sen_best_reports_keywords_20.json` (i.e., the `mimic_cxr_annotation_sen.json` becomes this `*.json` file). ### Conducting the second stage (i.e., training report generation module) 1. Extract and preprocess the `indication section` in the radiology report. a. Config `ann_path` and `report_dir` in `knowledge_encoder/preprocessing_indication_section.py`, and its value is `mimic_cxr_annotation_sen_best_reports_keywords_20.json`. Note that `report_dir` can be downloaded from [PhysioNet](https://physionet.org/content/mimic-cxr/2.0.0/). b. Run `knowledge_encoder/preprocessing_indication_section.py`, forming `mimic_cxr_annotation_sen_best_reports_keywords_20_all_components_with_fs_v0227.json` 2. Config `--load` argument in `finetune_mimic_cxr.sh`. Note that the argument is the pre-trained model from the first stage. Furthermore, `mimic_cxr_ann_path` is `mimic_cxr_annotation_sen_best_reports_keywords_20_all_components_with_fs_v0227.json` 3. Download these checkpoints. Notably, the `chexbert.pth` and `radgraph` are used to calculate CE metrics, and `bert-base-uncased` and `scibert_scivocab_uncased ` are pre-trained models for cross-modal fusion network and text encoder. Then put these checkpoints in the same local dir (e.g., "/home/data/checkpoints"), and configure the `--ckpt_zoo_dir /home/data/checkpoints` argument in `finetune_mimic_cxr.sh`

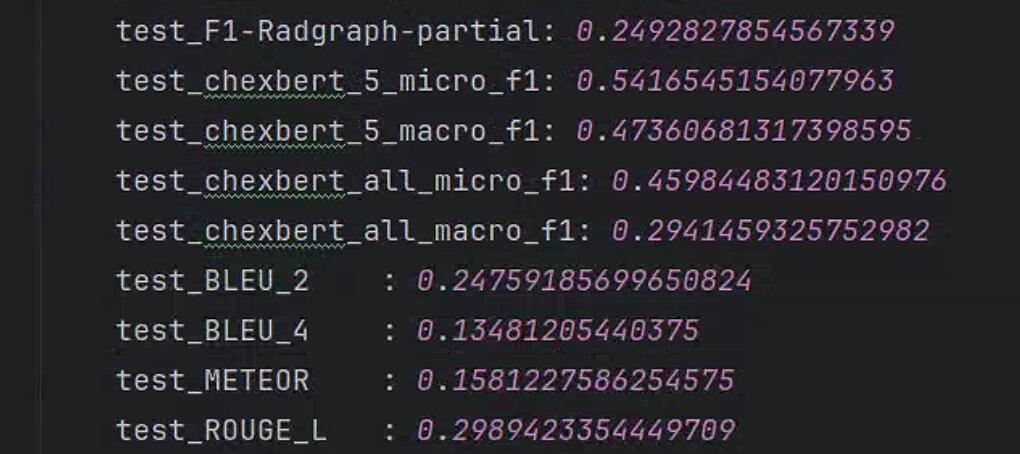

4. Run `bash finetune_mimic_cxr.sh` to generate reports based on similar historical cases. ### Test 1. You must download the medical images, their corresponding reports (i.e., `mimic_cxr_annotation_sen_best_reports_keywords_20_all_components_with_fs_v0227.json`), and checkpoints (i.e., `SEI-1-finetune-model-best.pth`) in Section Datasets and Section Checkpoints, respectively. 2. Config `--load` and `--mimic_cxr_ann_path`arguments in `test_mimic_cxr.sh` 3. Run `bash test_mimic_cxr.sh` to generate reports based on similar historical cases. 4. Results on MIMIC-CXR are presented as follows:

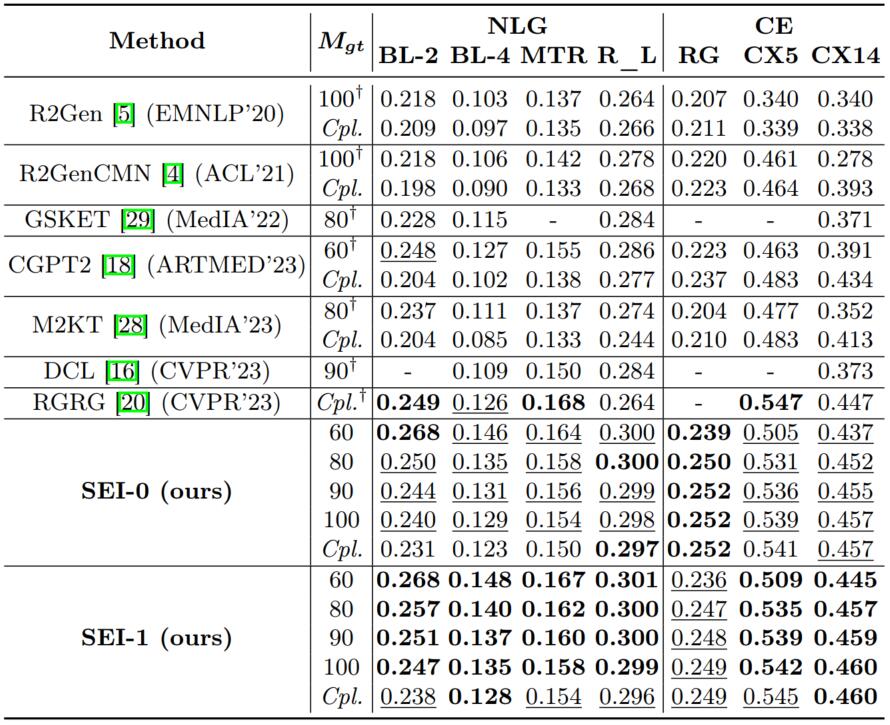

5. Next, the code for this project will be streamlined. # Experiments ## Main Results

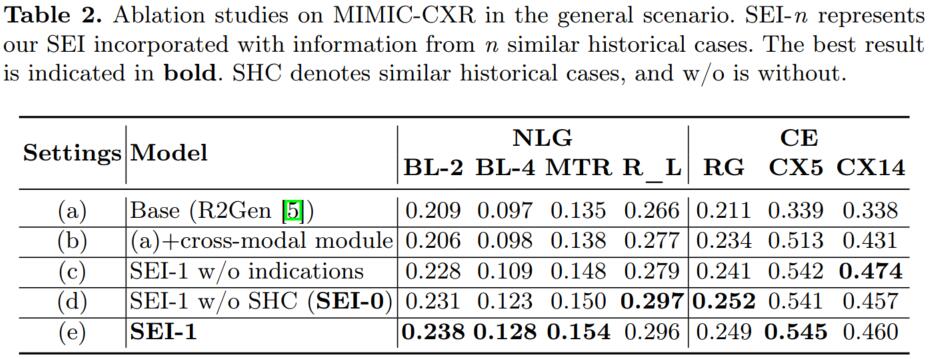

## Ablation Study

## Citations If you use or extend our work, please cite our paper at MICCAI 2024. ``` @InProceedings{liu-sei-miccai-2024, author={Liu, Kang and Ma, Zhuoqi and Kang, Xiaolu and Zhong, Zhusi and Jiao, Zhicheng and Baird, Grayson and Bai, Harrison and Miao, Qiguang}, title={Structural Entities Extraction and Patient Indications Incorporation for Chest X-Ray Report Generation}, booktitle={Medical Image Computing and Computer Assisted Intervention -- MICCAI 2024}, year={2024}, publisher={Springer Nature Switzerland}, address={Cham}, pages={433--443}, isbn={978-3-031-72384-1}, doi={10.1007/978-3-031-72384-1_41} } ``` ## Acknowledgement - [R2Gen](https://github.com/zhjohnchan/R2Gen) Some codes are adapted based on R2Gen. - [R2GenCMN](https://github.com/zhjohnchan/R2GenCMN) Some codes are adapted based on R2GenCMN. - [MGCA](https://github.com/HKU-MedAI/MGCA) Some codes are adapted based on MGCA. ## References [1] Chen, Z., Song, Y., Chang, T.H., Wan, X., 2020. Generating radiology reports via memory-driven transformer, in: EMNLP, pp. 1439–1449. [2] Chen, Z., Shen, Y., Song, Y., Wan, X., 2021. Cross-modal memory networks for radiology report generation, in: ACL, pp. 5904–5914. [3] Wang, F., Zhou, Y., Wang, S., Vardhanabhuti, V., Yu, L., 2022. Multigranularity cross-modal alignment for generalized medical visual representation learning, in: NeurIPS, pp. 33536–33549.
