# Basic PCB

OSHWLab page: [https://oshwlab.com/ganzevich/PowMr-Hybrid-Inverter](https://oshwlab.com/ganzevich/PowMr-Hybrid-Inverter)

## PSU module connection
Using standard XL4005 module:

| Main board | XL4005 PSU        |
|------------|-------------------|
| GND pad    | PSU  ` - ` input  |
| 12V pad    | PSU `+` input     |
| 5V pad     | PSU  `+`  output  |

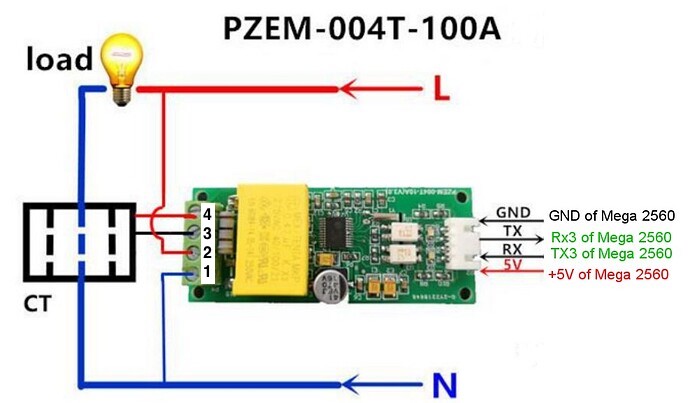

## PZEM module connection

| Inverter               | PZEM module |
|------------------------|-------------|
| AC IN (N)              | Pin 1       |
| AC IN (L)              | Pin 2       |
| PZEM coil (black wire) | Pin 3       |
| PZEM coil (red wire)   | Pin 4       |

<img src="photos/pzem_ac_connection.jpeg" alt="PZEM AC connection diagram" width="600" height="auto">

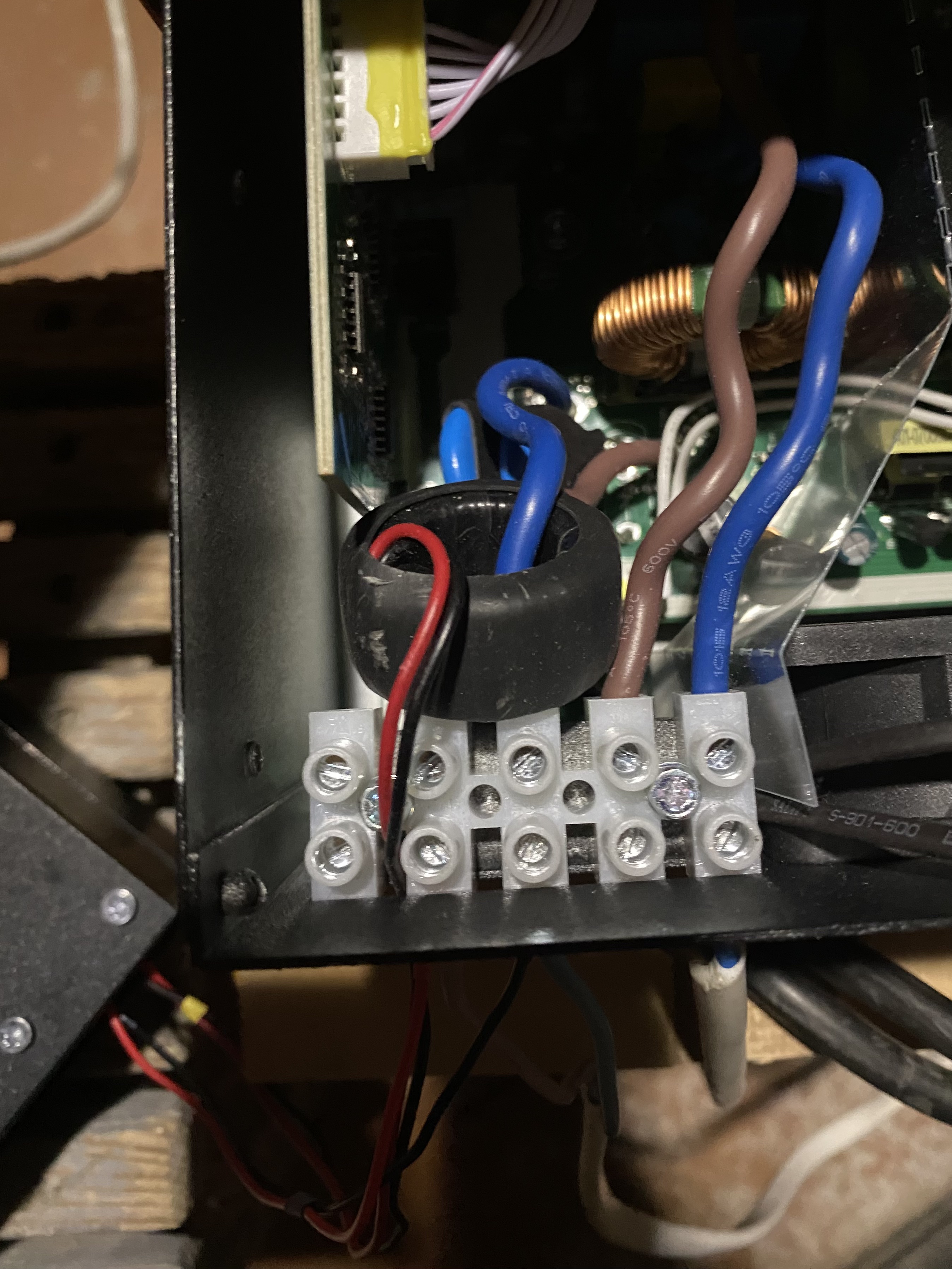

<img src="photos/pzem_installation_example.jpeg" alt="PZEM module connection example" width="600" height="auto">

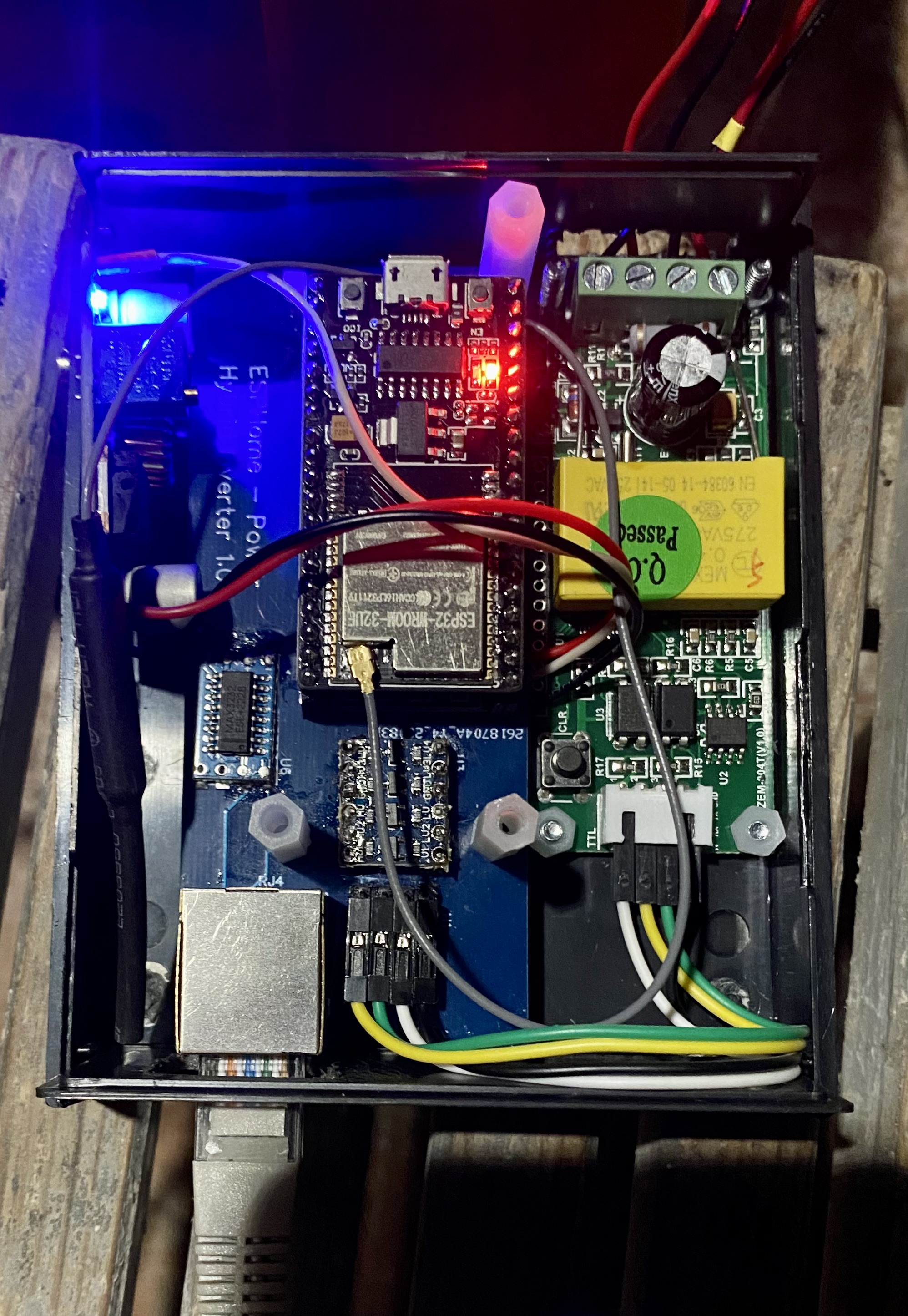

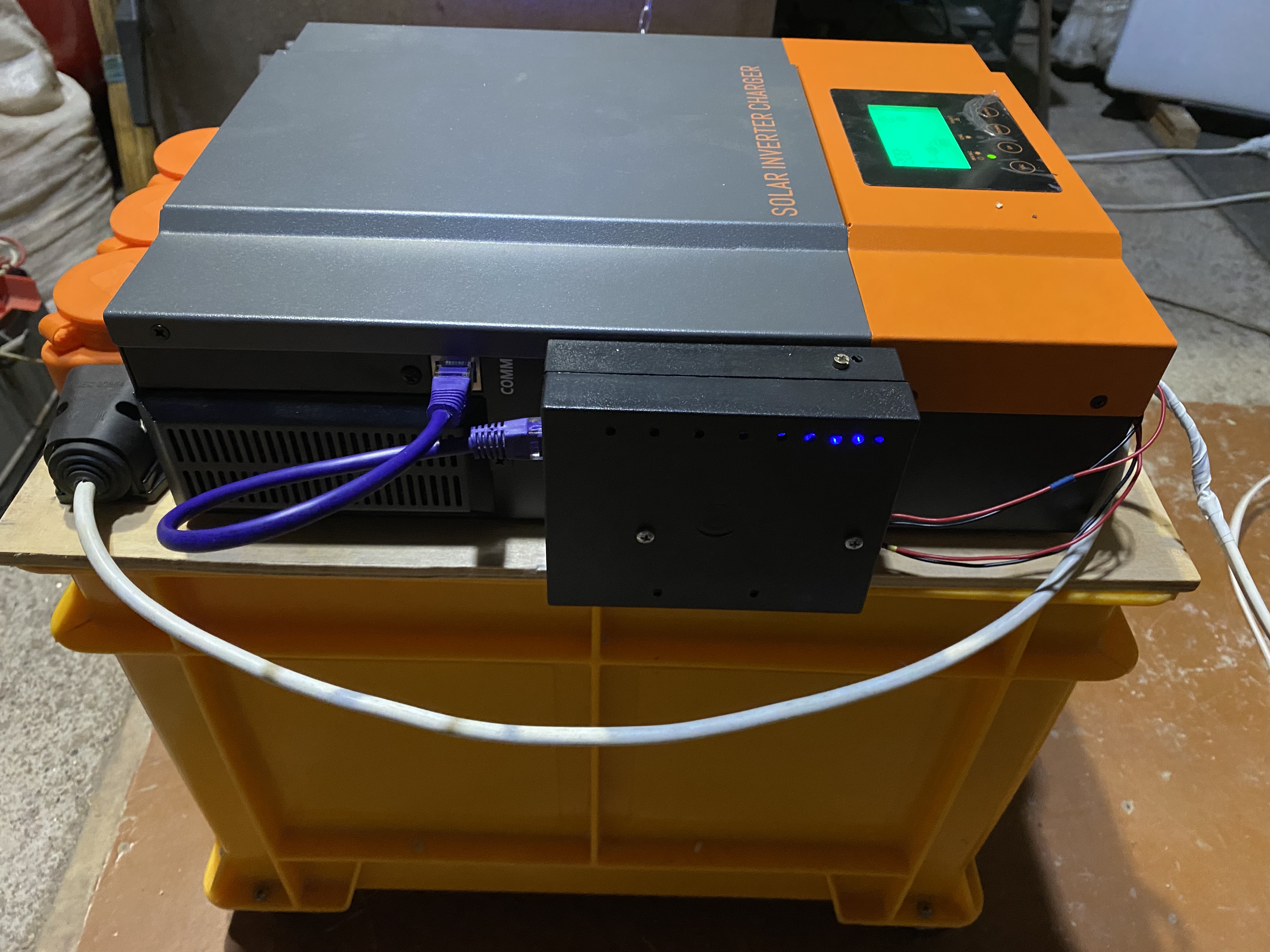

## Case examples
*Using old 1.0 board version*
<img src="photos/case_composition_example.jpeg" alt="Case composition example" width="600" height="auto">
<img src="photos/case_mount_example.jpeg" alt="Case mount example" width="600" height="auto">

## Resources
- [BOM](BOM_PowMr%20Inverter.csv)
- [Schematics](Schematic_PowMr%20Inverter.pdf)
- [Gerber](Gerber_PCB_PowMr%20Inverter.zip)
- [EasyEDA project backup](easyeda_project_backup.zip)

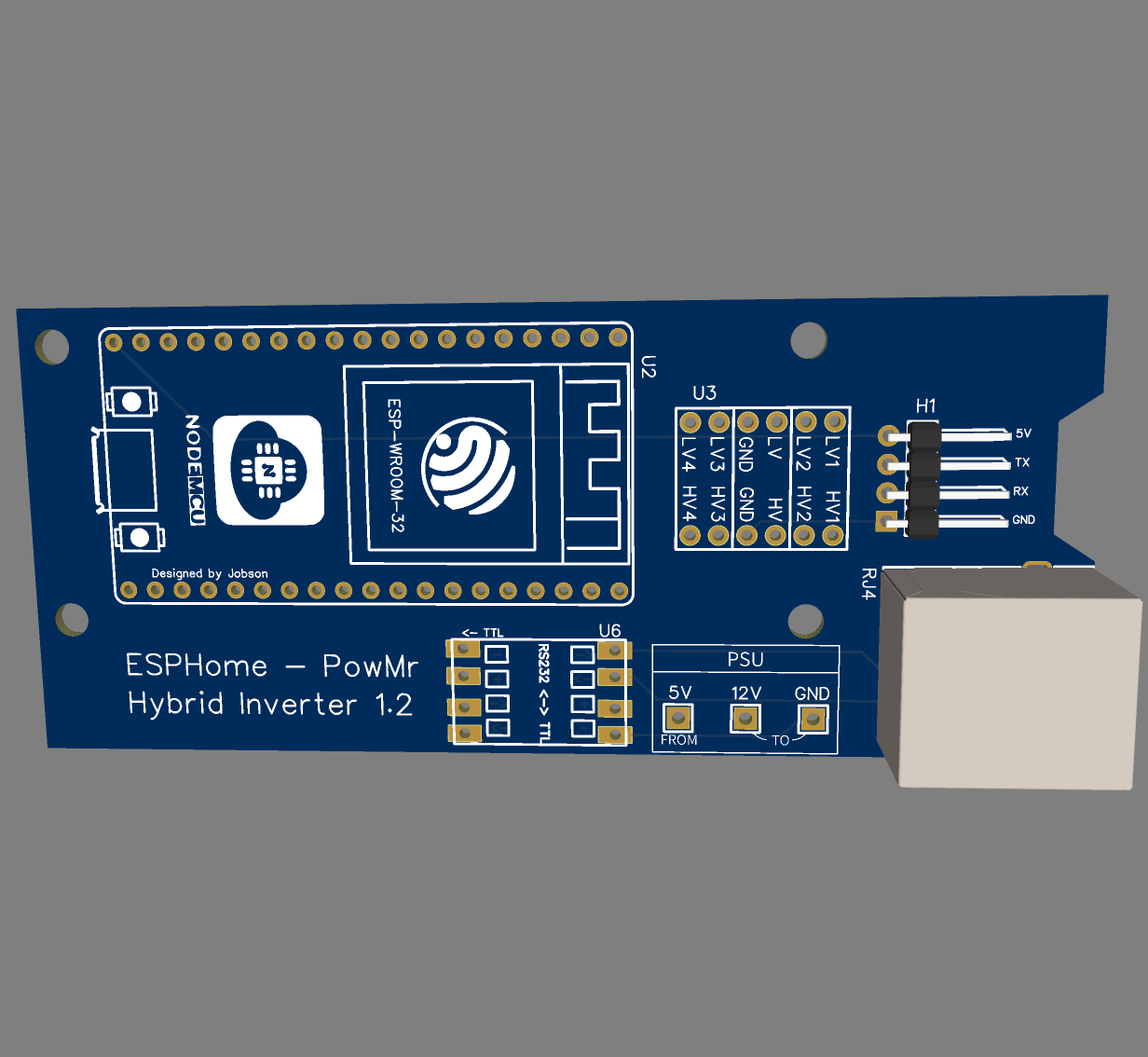

- PCB Top
![PCB Top layer](pcb_top.png)

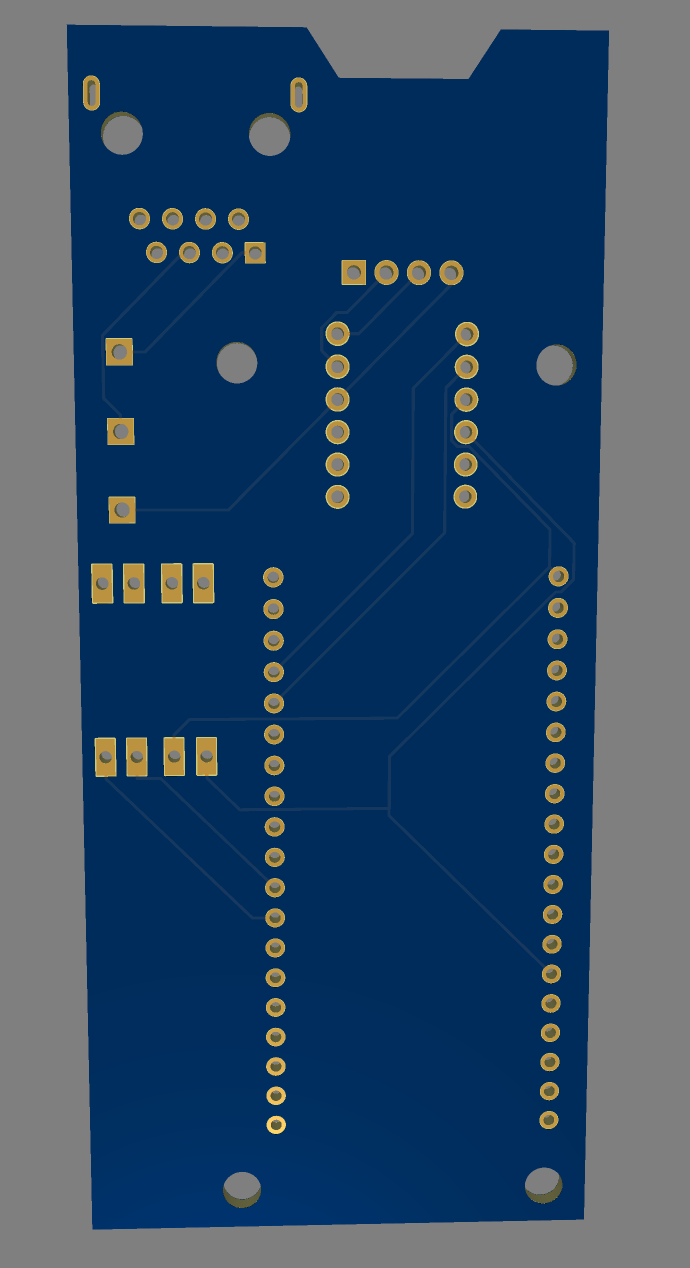

- PCB Bottom
![PCB Bottom layer](pcb_bottom.png)
