# Foot Contact Switch v1
<img src="images/foot_sensor_principle_1.jpg" width="400"> <br>*Working principle of the optical foot contact switch*

## Description
We designed simple, low cost, lightweight and robust optical foot contact switch for our [quadruped robot.](../quadruped_robot_8dof_v1#quadruped-robot-8dof-v1)
The contact switch consists of a spring loaded aperture that is located between a led light source and a light sensor.
External loads displace the aperture and change the light intensity measured by the sensor.
For centering the foot we use 12 elastic silicone elements (6 on each side).

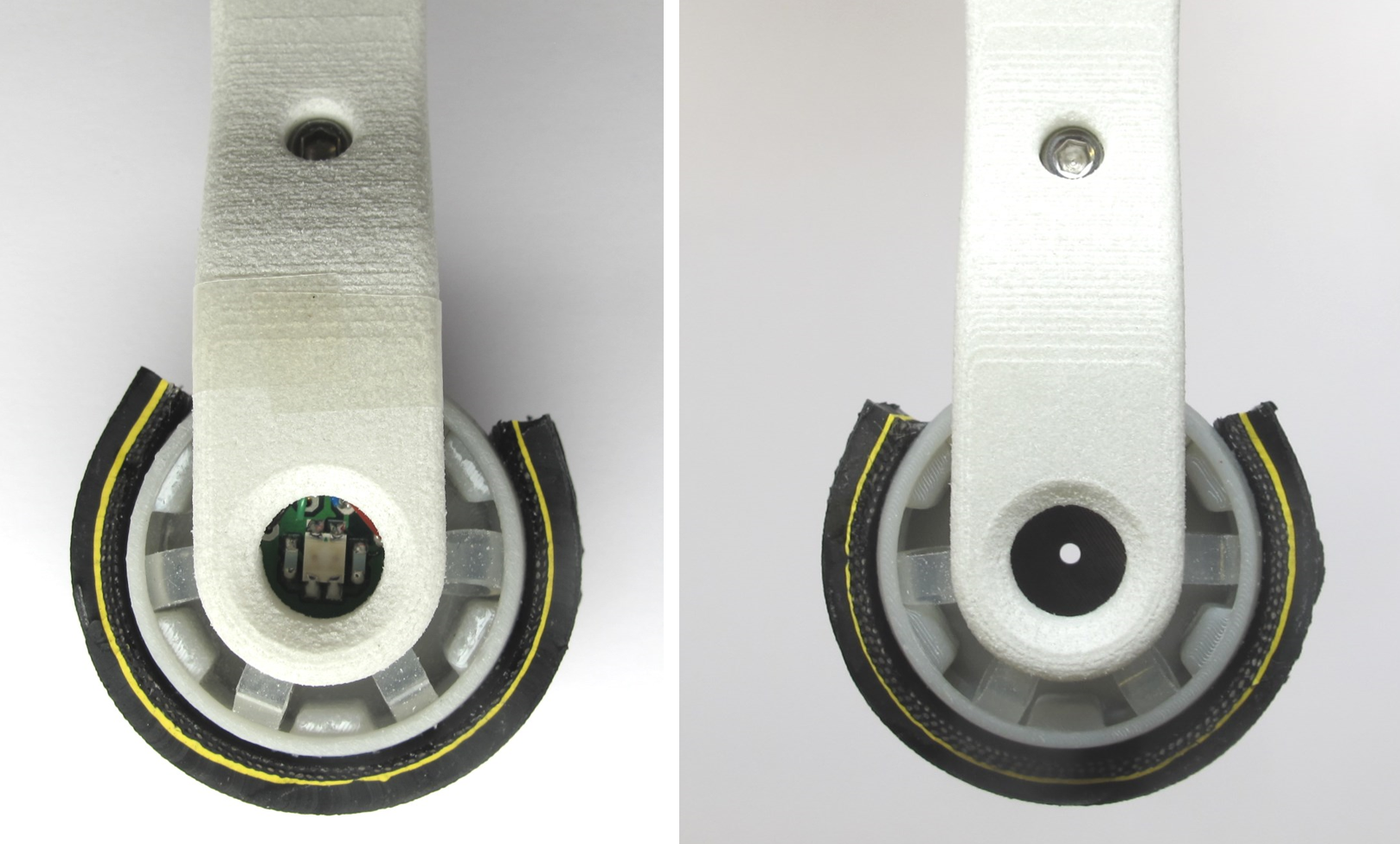

<img src="images/foot_sensor_2.png" width="400">

The foot contact switch is symmetric and can detect forces from a wide range of different angles (270 degrees).
For visual feedback and monitoring there are bi-color leds mounted on each side of the foot.

<img src="images/foot_sensor_1.png" width="400"><br>*Left side: Foot Contact Switch loaded / Right side: Foot Contact Switch unloaded*

## Lower Leg and Foot Contact Switch
<img src="images/lower_leg_1.jpg" width="500"> <br>*Lower Leg and Foot Contact Switch Component Overview*

<img src="images/lower_leg_2.jpg" width="500"> <br>*Lower Leg and Foot Contact Switch assembled - weight: 35g*

The weight of the foot, the contact switch electronics and the silicone elements is about 10g.
To prevent the foot from rotating we use a steel pin that is guided by the lower leg structure.
Under load the foot deflects up to 2mm from its neutral position.
The electronics are supplied with 3.3V and generate an analog output signal between 3V and 0V.
The signal is converted by the microcontroller ADC and transmitted over CAN at 1kHz.
We measured the delay of the foot contact switch with respect to a ATI Mini40 force sensor for a drop of the 2dof leg from a height of 8cm.
The measured delay between the ATI force sensor signal and the foot contact signal was 2ms.
The data was logged at 1kHz using a Realtime Linux PC.

<img src="images/foot_sensor_4.jpg" width="350"><br>*Foot Contact Switch Electronics*

## Video
[![Foot Sensor Video](https://img.youtube.com/vi/1TluBZRFed8/0.jpg)](https://www.youtube.com/watch?v=1TluBZRFed8)

## Sensor Characteristics
<img src="images/measurement_foot_contact_sensor.png" width="500"> <br>
* x-axis -> vertical force [N] measured with ATI Mini40 Sensor
* y-axis -> foot contact sensor ouput signal inverted and normalized
* 0-1 on the y-axis corresponds to 3V - 0V range

## Off-the-shelf Components
### Silicone Tube
<img src="images/elastic_elements_1.jpg" width="250"><br>

* Silicone tube - outer diameter: 6mm / inner diameter: 4mm / length: 3mm
* 12 elements / 6 on each side
* a [tube cutter](../actuator_module_v1/details/details_tools.md#tube-cutter) can be used to prepare the segments

### Bicycle Tire
<img src="../general/images/lower_leg_preparation_3.jpg" width="300"><br>

* a bicycle tire segment is bonded to the surface of the foot
* we use Schwalbe Lugano 28" 23-622 tire
* cut to 65mm x 10mm pieces
* bond to the foot with [Loctite 406](../actuator_module_v1/details/details_tools.md#loctite)
* [Instructions Foot Preparation](../general/lower_legs.md#preparing-the-lower-legs)

### Fasteners
<img src="images/fasteners.jpg" width="250"><br>

* Steel Pin 1,5mm x 12mm
* Socket Head Cap Screws M2,5x6
* Helicoil Thread Inserts M2,5 x 3.75mm

## 3D Printed Parts
<img src="../general/images/printing_direction.png" width="400"> <br>

`The recommended printing direction for all the parts below is the positive z direction of the stl files.`

The STL files for 3d printing the parts are available in the [STL folder](stl_files).

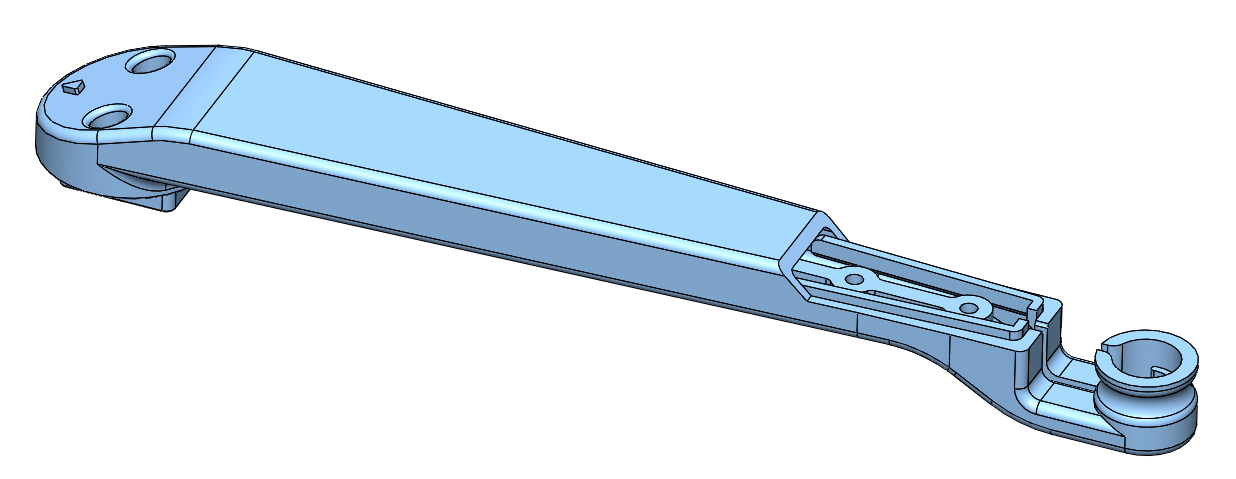

<img src="images/lower_leg_base.png" width="450"> <br>
* [Lower Leg Structure Base - 18g](stl_files/lower_leg_structure_base.STL)
* FDM or SLS printer

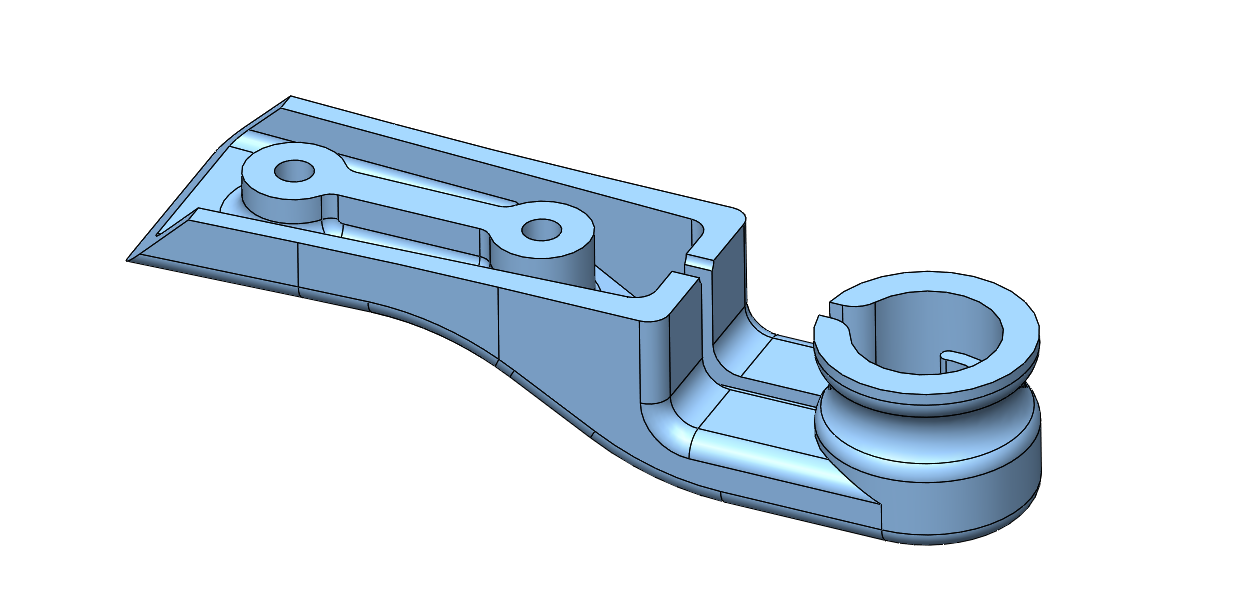

<img src="images/lower_leg_fork.png" width="300"> <br>
* [Lower Leg Structure Fork - 5g](stl_files/lower_leg_structure_fork.STL)
* FDM or SLS printer

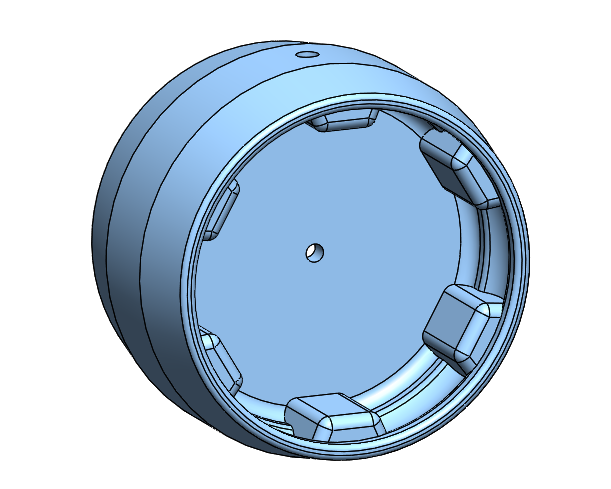

<img src="images/foot.png" width="200"> <br>
* [Foot Structure - 3.4g](stl_files/foot_structure.STL)
* SLA printer - Accura Extreme Gray

## Custom Electronic Boards
The foot contact switch consists of two boards with traces and components on all four sides.
The diameter of the electronics boards is 10mm.

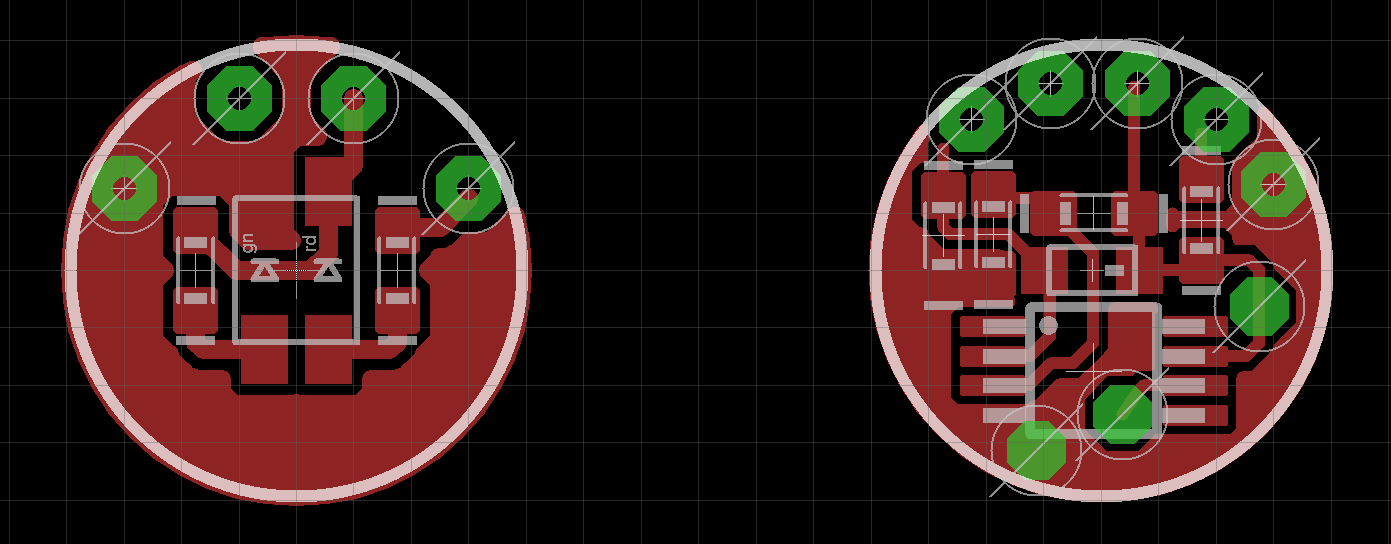

<img src="images/foot_contact_switch_main_v1.png" width="600"> <br>*Foot Contact Switch Main Board  - Left: Outer side / Right: Inner Side*

<img src="images/foot_contact_switch_satellite_v1.png" width="600"> <br>*Foot Contact Switch Satellite Board  - Left: Outer side / Right: Inner Side*

## Light Sensor Offset

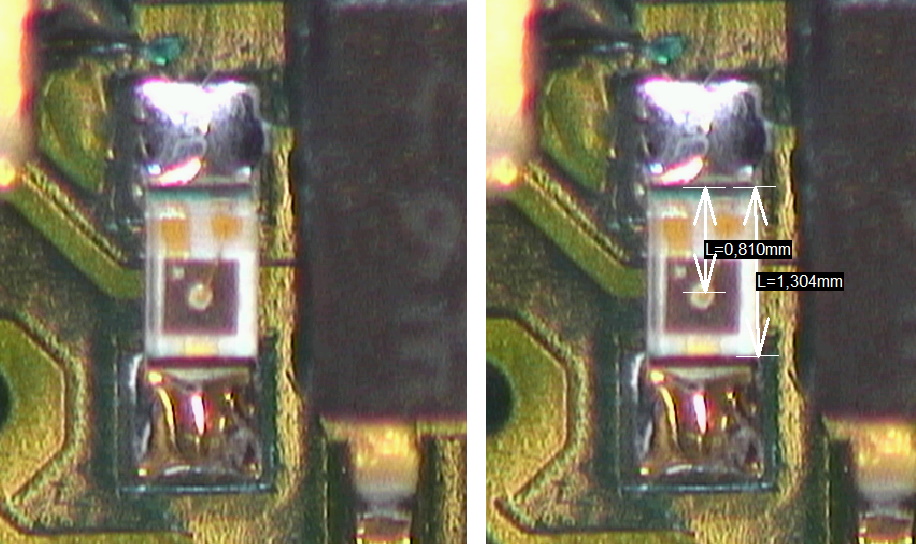

<img src="images/light_sensor_offset.jpg" width="600"> <br>*Picture Light Sensor - the sensitive area is not in the center of the component*
* note that the sensing area of the light sensor is not in the geometrical center of the component
* when we solder the light sensor we use a microscope to align the sensing area of the sensor with the center of the board

## Switching Voltage for the Indicator Leds

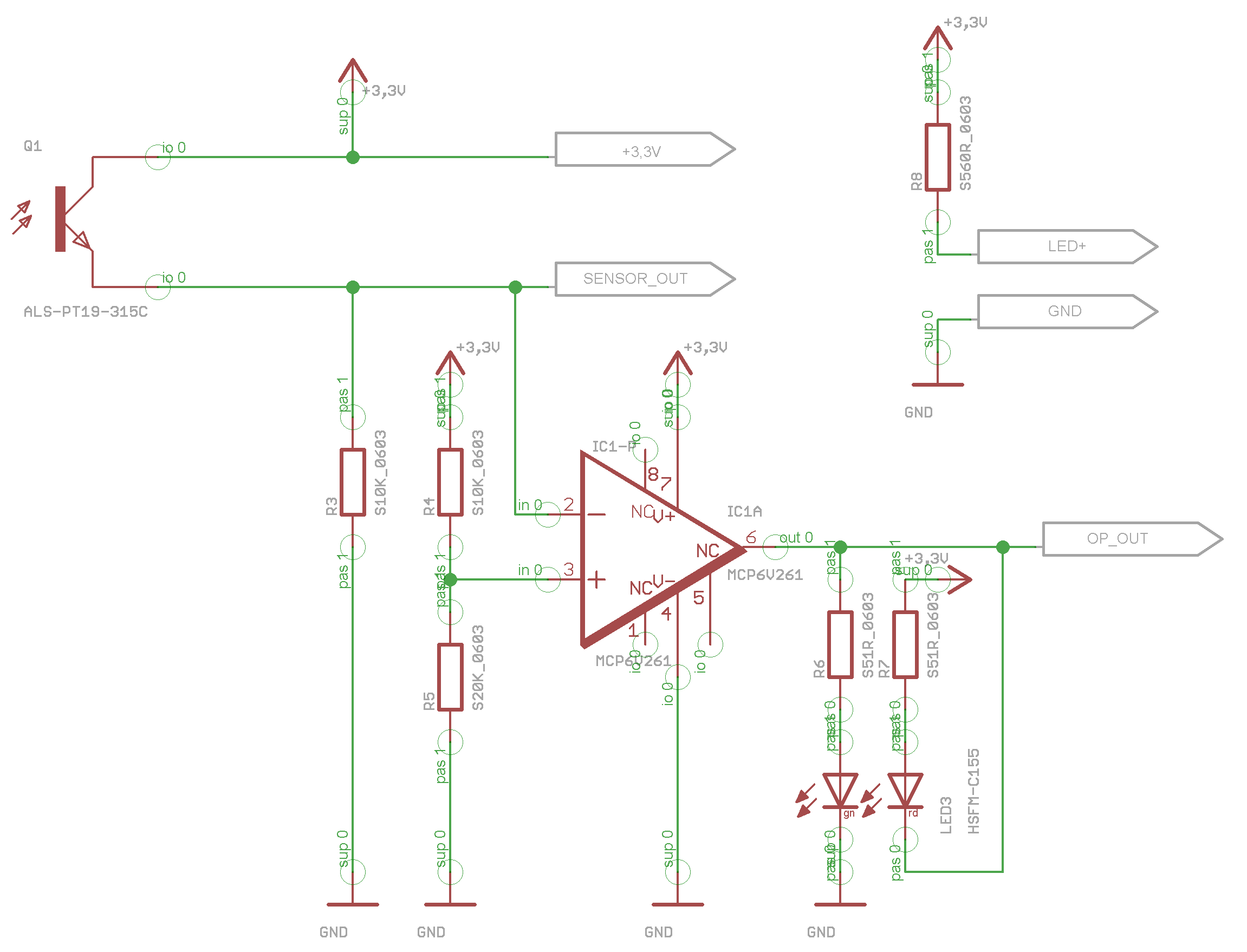

<img src="images/footsensor_schematic.png" width="600"> <br>*Schematic - voltage divider for switching the indicator leds*

* the switching voltage for the indicator leds on the foot is set by the voltage divider R4 and R5
* we use 10kΩ for R4 and 20kΩ for R5 resulting in a switching voltage of 2.2V
* you can adjust the switching voltage by changing the ratio of the voltage divider
* the switching voltage threshold is only used for the indicator leds
* the microcontroller receives the full range analog signal
* that means that you can set the threshold on the software side independently

## Details Foot Contact Switch
Special thanks to Joshi Walzog for designing and manufacturing the electronics boards!

* [Bill Of Materials Foot Contact Switch - PDF Document](documentation/bom_foot_contact_switch_v1.pdf)
* [Bill Of Materials - Excel Document](documentation/bom_foot_contact_switch_v1.xlsx)
* [Eagle Files - Zipped Folder](documentation/eagle_files.zip)
* [Gerber Files - Zipped Folder](documentation/gerber_files.zip)

To view the Eagle files you need to download the free [Eagle PCB Design Software](https://www.autodesk.com/products/eagle/free-download#) for Windows, Mac and Linux.

## Foot Contact Switch Wiring
<img src="../../electronics/images/foot_sensor_wiring.jpg" width="600"> <br>*Foot Contact Switch Connectors and Wiring*

## Alternative Lower Leg Versions

<img src="../general/images/lower_legs_1.jpg" width="400"> <br>

* alternative lower leg versions without contact sensor are documented here: [Lower Leg Documentation](../general/lower_legs.md#lower-legs)

## PDF Drawing
<a href="lower_leg.PDF"><img src="images/foot_contact_switch_pdf.png" width="400"></a><br> *Foot Contact Switch Overview - Click on the picture to view the PDF drawing*

## View the foot contact switch cad model in your web browser
<a href="https://open-dynamic-robot-initiative.github.io/cad_files/foot_contact_switch_v1"><img src="images/foot_contact_switch_cad_1.png" width="400"></a><br> *Foot Contact Switch - Click on the picture to view the cad model in your browser*

## More Information
