# Leg 3dof v1

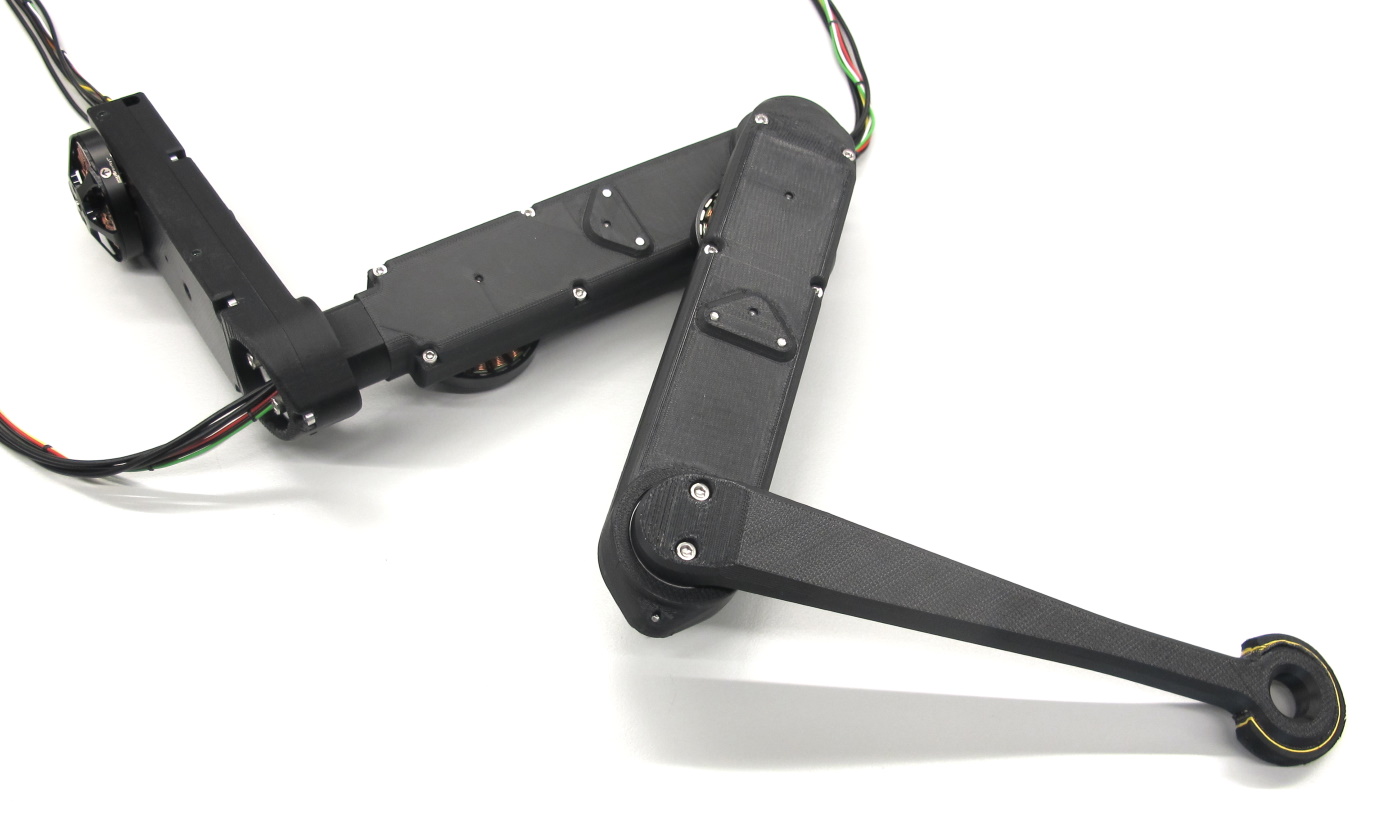

<img src="images/3dof_leg_1.jpg" width="450"><br>*Leg 3dof - weight: 485g*<br>

<img src="images/3dof_leg_cad_1.png" width="400"><br>*CAD Model Leg 3dof*

## Description

* this page describes the 3dof leg that is used for the [Quadruped Robot 12dof](../quadruped_robot_12dof_v1#quadruped-robot-12dof-v1)
* the same actuator modules are also used for the [FingerEdu](../finger_edu_v1/README.md#fingeredu-v1) and the [NYU Finger](../nyu_finger_v1/README.md#nyu-finger-v1)
* the internal components of all the actuator modules are identical: [Core Components](../actuator_module_v1#core-components)

<img src="images/3dof_actuator_modules_1.jpg" width="400"><br>*Submodules: Hip AA, Hip FE, Upper Leg and Lower Leg*

## Core Components

<img src="images/actuator_module_core_component_overview_1.jpg" width="350"> <br>*Actuator Module Core Components - weight: 95g*<br>

The internal components of the actuator modules are described here:
* [Actuator Module Core v1](../actuator_module_v1/README.md#brushless-actuator-module-core-v1)
* [Actuator Module Core v1.1](../actuator_module_v1/actuator_module_v1.1.md#brushless-actuator-module-core-v11)

## Lower Leg

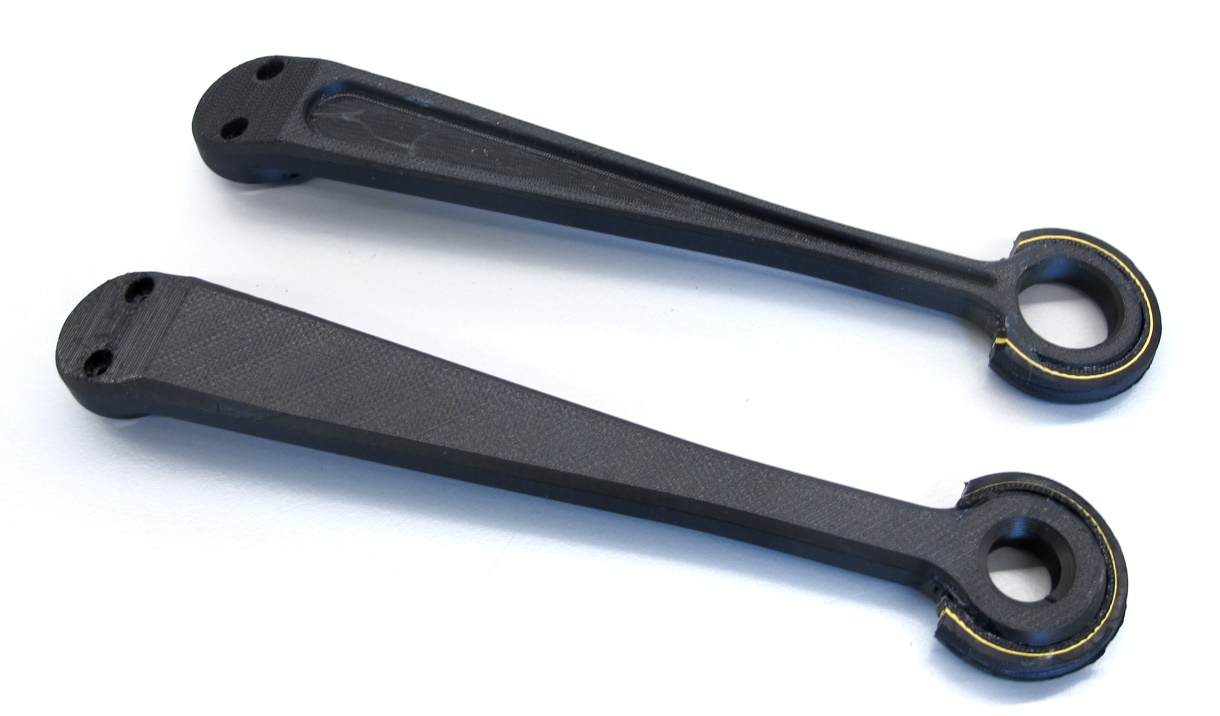

<img src="images/lower_legs_1.jpg" width="350"> <br>*Lower Leg Version v2 and v3 - weight: 22g each*<br>

* the Lower Legs are describes here: [Lower Leg Documentation](../general/lower_legs.md#lower-legs)

## 3D Printed Parts

<img src="images/3d_printed_parts.jpg" width="450"><br>*3D Printed Parts Leg 3dof - weight: 139g*

<img src="images/printing_direction.png" width="400"> <br>

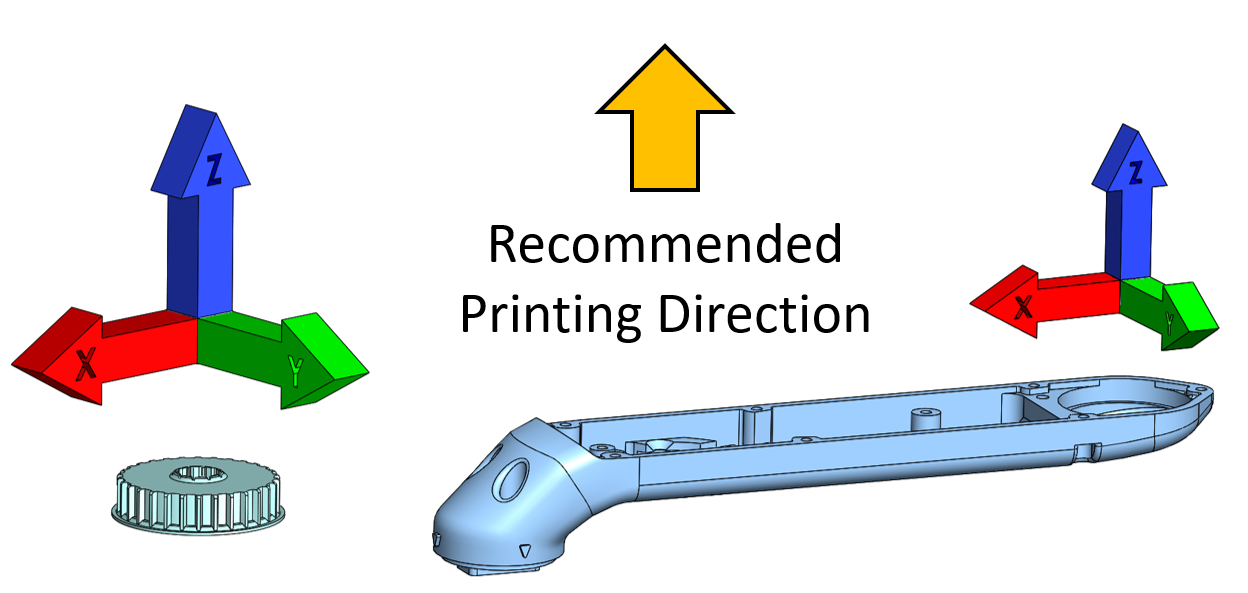

`The recommended printing direction for all the parts below is the positive z direction of the stl files.`

* The STL files for 3d printing the shells of the 3dof leg can be found here: [STL files 3dof leg](stl_files).
---

<img src="images/hip_aa_module_shell_base_1.png" width="400"><br>

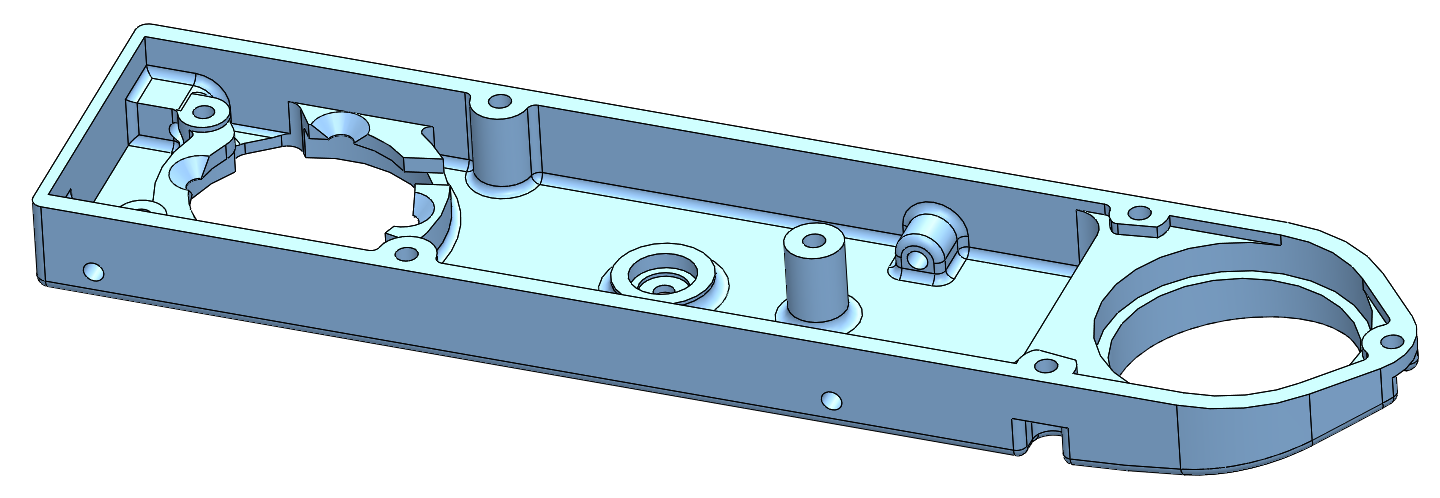

* [Hip AA Module Shell Base - STL file](stl_files/hip_aa_module_shell_base.STL)<br>
* weight: 21g
---
<img src="images/hip_aa_module_shell_cover_1.png" width="400"><br>

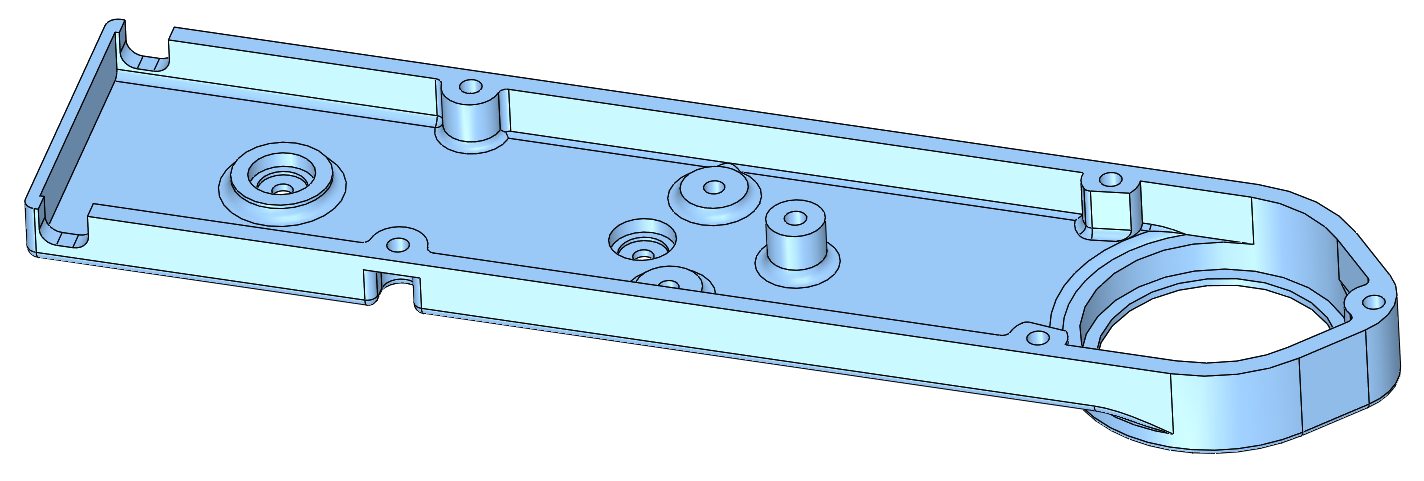

* [Hip AA Module Shell Cover - STL file](stl_files/hip_aa_module_shell_cover.STL)<br>
* weight: 16g
---
<img src="images/hip_fe_module_shell_base_1.png" width="400"><br>

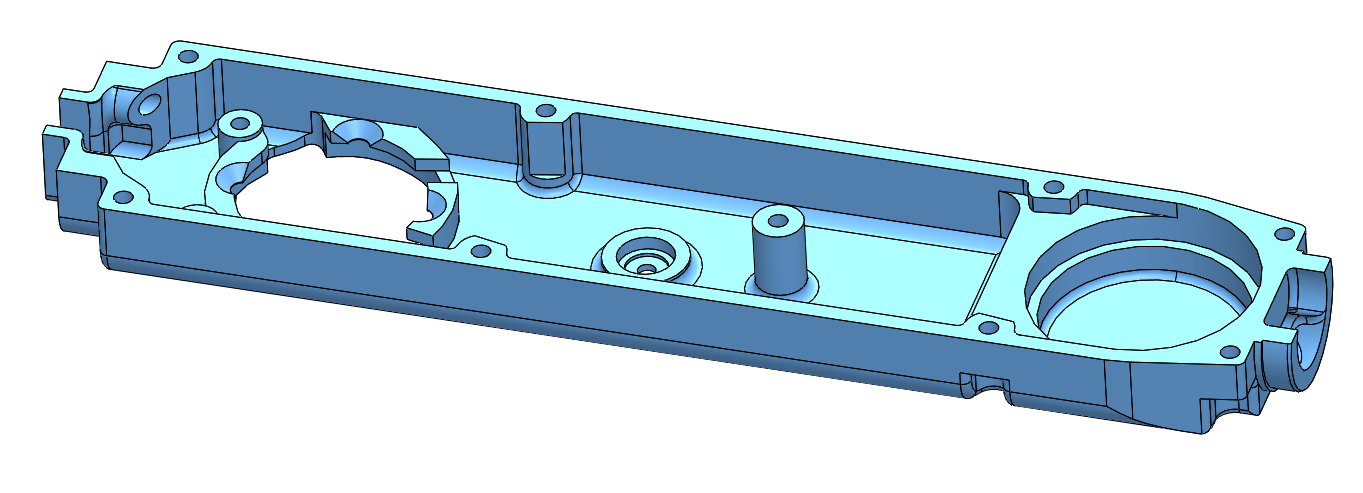

* [Hip FE Module Shell Base - STL file](stl_files/hip_fe_module_shell_base.STL)<br>
* weight: 25g
---
<img src="images/hip_fe_module_shell_base_alt_a.png" width="400"><br>

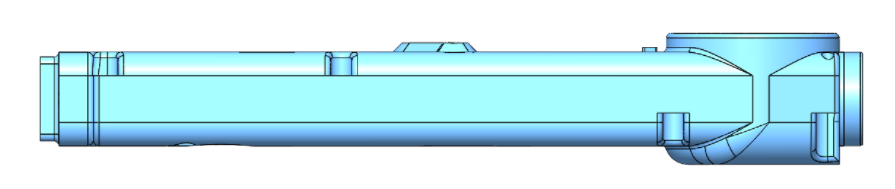

* Alternative version of the Hip FE Base shell to simplify the wire routing
* Credit: [Pau Martinez](https://github.com/nitrostormbcn)
* More information: [GitHub Issue - Cable Routing Improving Proposal](https://github.com/open-dynamic-robot-initiative/open_robot_actuator_hardware/issues/38#issuecomment-851453403)
* [Hip FE Module Shell Base Alternative A - STL file](stl_files/hip_fe_module_shell_base_alt_a.STL)<br>
* weight: 26g
---

<img src="images/hip_fe_module_shell_cover_1.png" width="400"><br>
* [Hip FE Module Shell Cover - STL file](stl_files/hip_fe_module_shell_cover.STL)<br>
* weight: 16g
---
<img src="images/upper_leg_module_shell_base_1.png" width="400"><br>

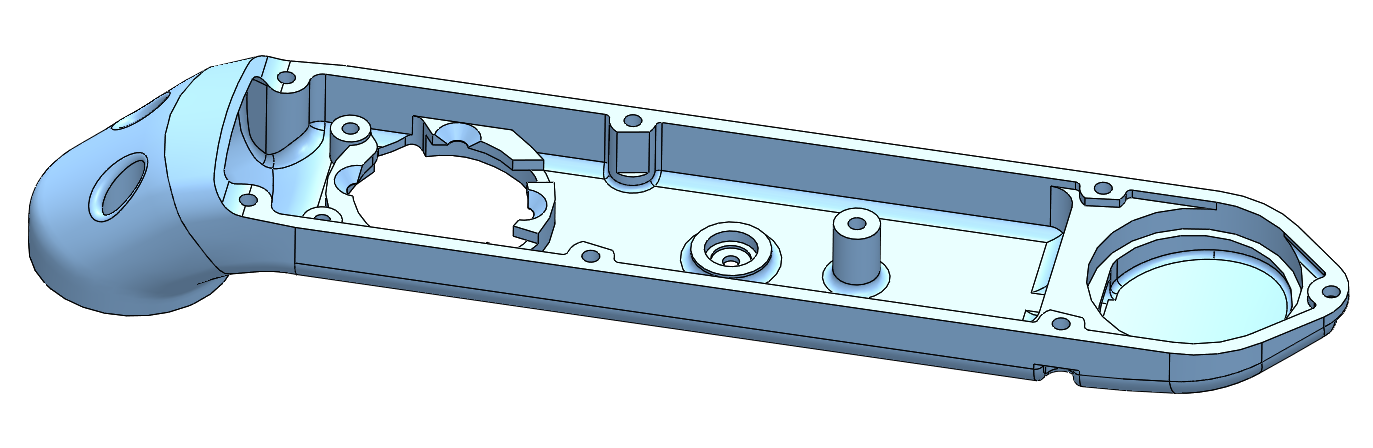

* [Upper Leg Module Shell Base - STL file](stl_files/upper_leg_module_shell_base.STL)<br>
* weight: 27g
---
<img src="images/upper_leg_module_shell_cover_1.png" width="400"><br>

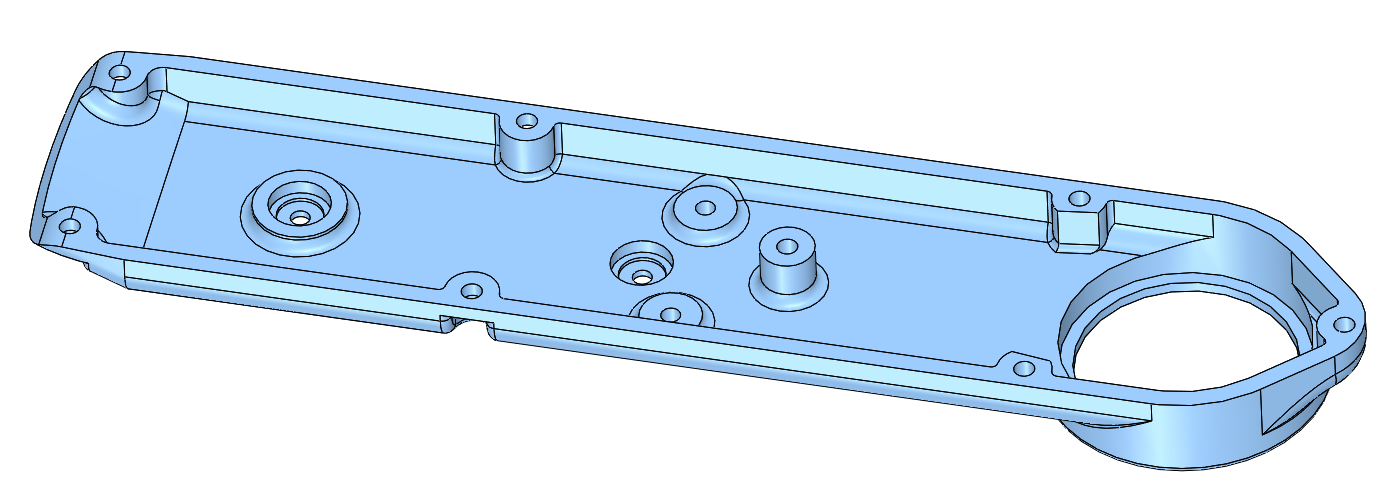

* [Upper Leg Module Shell Cover - STL file](stl_files/upper_leg_module_shell_cover.STL)<br>
* weight: 15g
---
<img src="images/lower_leg_1.png" width="400"><br>
* [Lower Leg v2 - STL file](stl_files/lower_leg_v2.STL)<br>
* we print the lower leg on a FDM printer using the "sparse double dense" setting
* alternative Lower Leg Version 3 below
* [Lower Leg Documentation](../general/lower_legs.md#lower-leg-v2)
* weight: 20g
---
<img src="images/lower_leg_2.png" width="400"> <br>
* [Lower Leg v3 - STL file](stl_files/lower_leg_v3.STL)<br>
* this lower leg is meant for printing as a solid part
* [Lower Leg Documentation](../general/lower_legs.md#lower-leg-v3)
* weight: 20g

## Off-the-shelf Components

### Fasteners

<img src="images/fasteners.jpg" width="290"> <br>

* M2,5 and M3 fasteners
* we use stainless steel fasteners

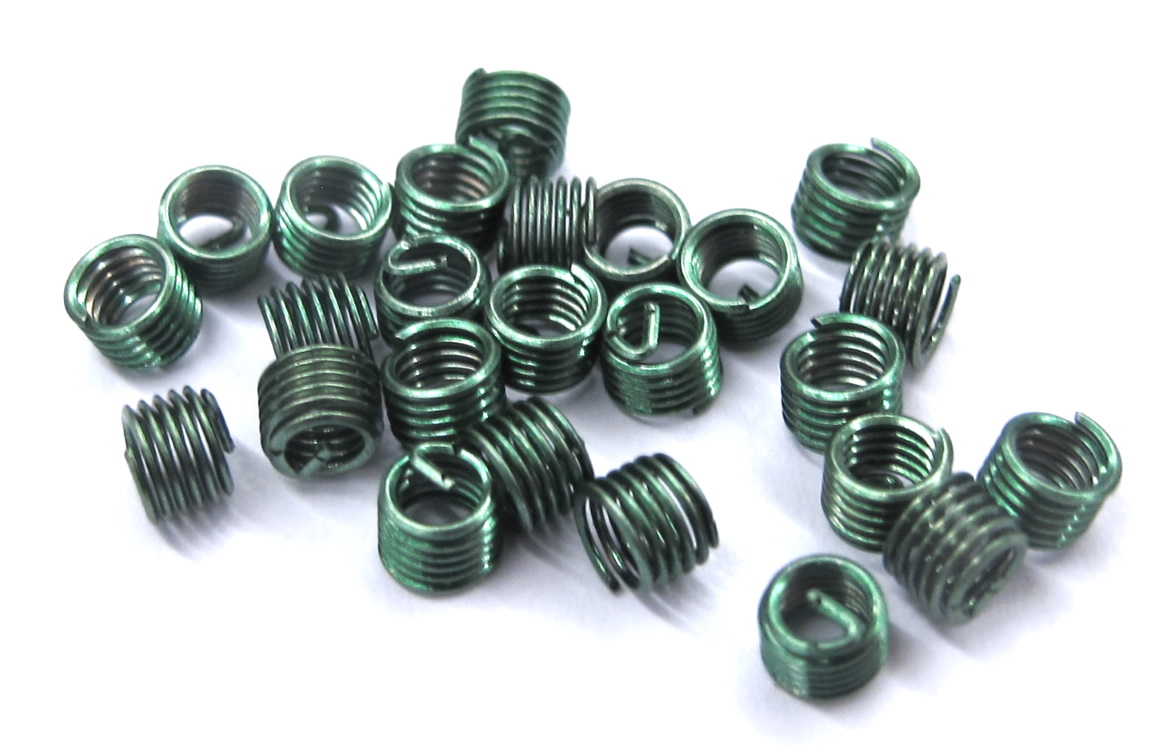

### Helicoil Thread Inserts

<img src="images/helicoils.jpg" width="240"> <br>

* we use Helicoil inserts to reinforce the threads of the 3d printed parts
* you need the [Helicoil Tools](../actuator_module_v1/details/details_tools.md#helicoil-tools) to install the threaded inserts
* Helicoil ordering information [below](#bill-of-materials---leg-3dof)

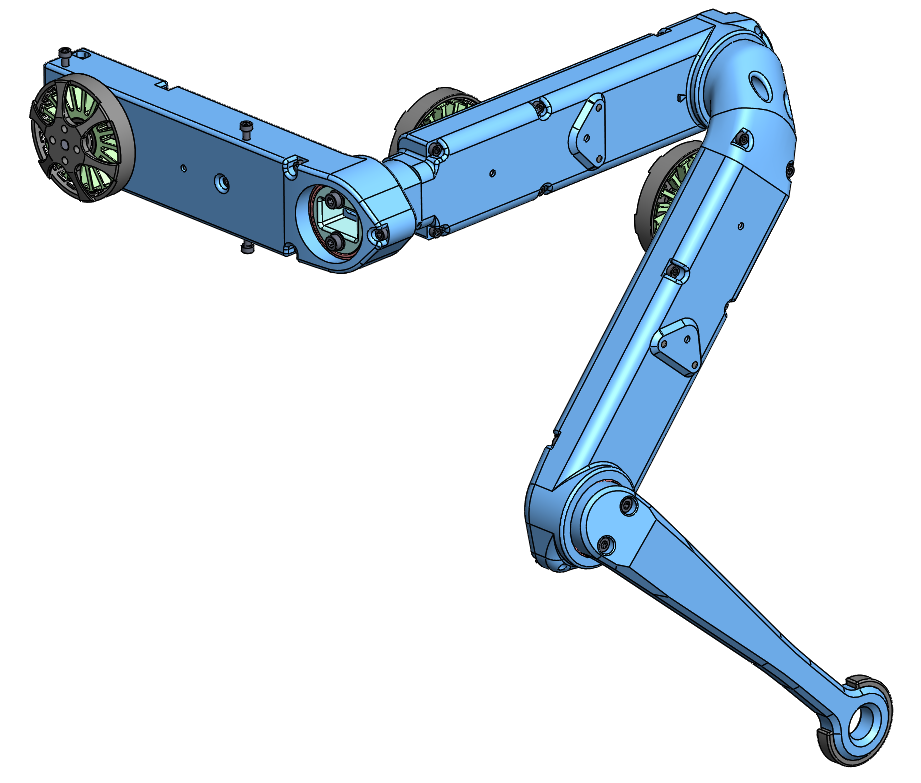

## Bill of Materials - Leg 3dof
<img src="images/3dof_leg_cad_2.png" width="250"><br>

| Description | Quantity | Ordering Information | Comments |
| --- | --- | --- | --- |
|Core Components|3|[Actuator Module Core v1](../actuator_module_v1/README.md#brushless-actuator-module-core-v1)<br><br>[Actuator Module Core v1.1](../actuator_module_v1/actuator_module_v1.1.md#brushless-actuator-module-core-v11)||
|Hip AA Module Shell Base |1|[STL file](stl_files/hip_aa_module_shell_base.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Hip AA Module Shell Cover |1|[STL file](stl_files/hip_aa_module_shell_cover.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Hip FE Module Shell Base |1|[STL file](stl_files/hip_fe_module_shell_base.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Hip FE Module Shell Cover |1|[STL file](stl_files/hip_fe_module_shell_cover.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Upper Leg Module Shell Base |1|[STL file](stl_files/upper_leg_module_shell_base.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Upper Leg Module Shell Cover |1|[STL file](stl_files/upper_leg_module_shell_cover.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Lower Leg v2|1|[STL file](stl_files/lower_leg_v2.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)<br>FDM printer setting: sparse double dense|
|Lower Leg v3 |1|[STL file](stl_files/lower_leg_v3.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)<br>Print as a solid part.<br>Alternative for Lower Leg v2|
|Rubber Foot ||Bicycle tire - for example: Schwalbe Lugano 28" 23-622 |Cut 75mm x 7mm segments|
|Fasteners M3x35|2|M3x35 Socket Head Cap Screw|Stainless Steel<br>For Hip AA to Hip FE connection with adapter.|
|Fasteners M3x22|2|M3x22 Socket Head Cap Screw|Stainless Steel<br>For Hip AA to Hip FE connection without adapter.|
|Fasteners M3x16|2|M3x16 Socket Head Cap Screw|Stainless Steel|
|Fasteners M3x12|2|M3x12 Socket Head Cap Screw|Stainless Steel|
|Washer M3|2||Stainless Steel|
|Fasteners M2,5x6|12|M2,5x6 Socket Head Cap Screw|Stainless Steel|
|Fasteners M2,5x10|15|M2,5x10 Socket Head Cap Screw|Stainless Steel|
|Helical Inserts M2,5x3,75|27|Hoffmann 082814 M2,5<br>McMaster 91732A767|M2,5 Helicoil tools required|

## View the 3dof Leg Cad Model in your Web Browser

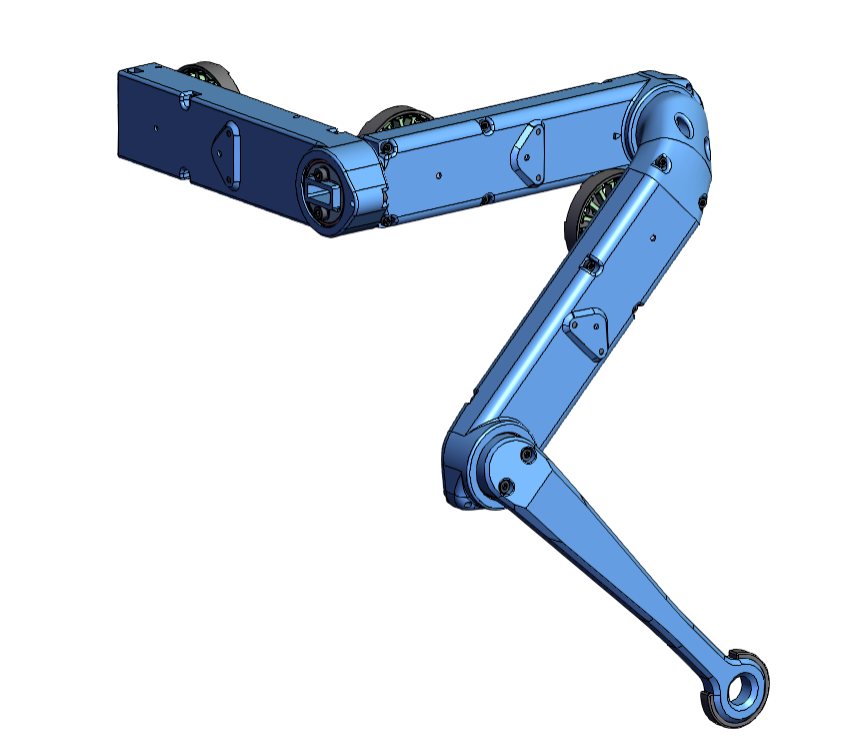

<a href="https://open-dynamic-robot-initiative.github.io/cad_files/leg_3dof_v1"><img src="images/3dof_leg_cad_3.png" width="350"></a><br> *Leg 3dof v1 - Click on the picture to view the cad model in your browser*<br>

## Joint Rotation Limiters

<img src="images/single_stoppers_1.jpg" width="400"><br><br>*Joint Rotation Limiters - weight: 14g each*<br>

* the lower leg and the upper leg can perform multiple rotations
* to prevent multiple rotations and winding up the wires you can install a stopper on the upper leg
* we use silicone tube sections to soften impacts

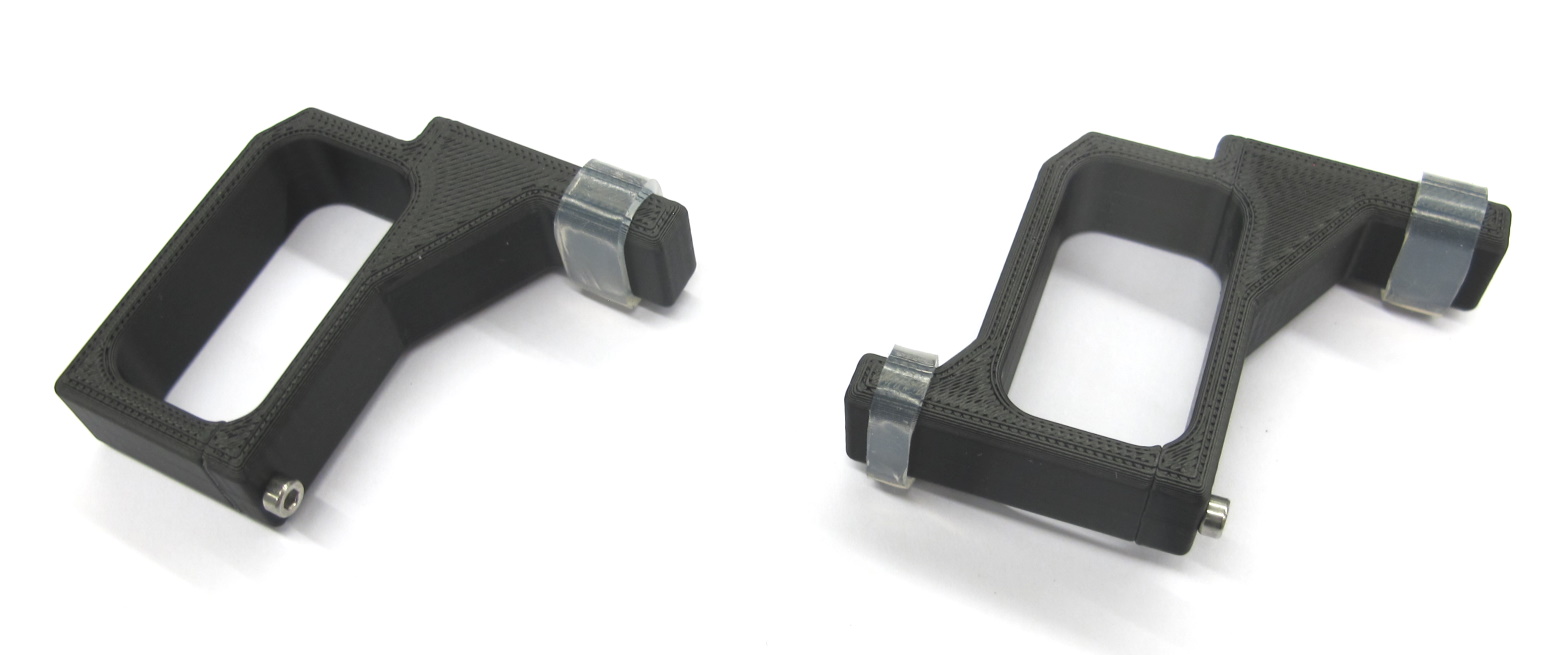

<img src="images/stoppers_comparison_1.jpg" width="400"><br><br>*Comparision Single Stopper and Double Stopper*<br>

* there's an alternative version that also prevents the lower leg from performing multiple rotations
* that version can be installed if a foot-switch is used

All the STL files for 3d printing can be found here: [STL Files Leg 3dof](stl_files)<br>

### 3D Printed Parts

<img src="images/stopper_upper_leg_base.png" width="200"><br>
* [Stopper Upper Leg Base - STL file](stl_files/stopper_upper_leg_base.STL)<br>
* weight: 5g
----

<img src="images/stopper_upper_leg_cover.png" width="200"><br>
* [Stopper Upper Leg Cover - STL file](stl_files/stopper_upper_leg_cover.STL)<br>
* weight: 7g

### Bill of Materials - Joint Rotation Limiter

<img src="images/stopper_cad_1.png" width="300"><br>

| Description | Quantity | Ordering Information | Comments |
| --- | --- | --- | --- |
|Stopper Upper Leg Base|1|[STL file](stl_files/stopper_upper_leg_base.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|Stopper Upper Leg Cover|1|[STL file](stl_files/stopper_upper_leg_cover.STL)|[3d printed part](../actuator_module_v1/details/details_3d_printed_parts.md#details-3d-printed-parts)|
|M2,5x6 Socket Head Cap Screw|1|[Online Schrauben](https://online-schrauben.de/shop/Schrauben/Innensechskantschrauben/ISO-4762-DIN-912-Zylinderkopfschrauben-mit-Innensechskant-aehnl.-DIN-912/Edelstahl-Rostfrei-A2/M-2,5-Gewinde-M-metrisches-Regelgewinde)|Stainless steel.<br>Online Schrauben ships within Europe.|
|M2,5x10 Socket Head Cap Screw|1|[Online Schrauben](https://online-schrauben.de/shop/Schrauben/Innensechskantschrauben/ISO-4762-DIN-912-Zylinderkopfschrauben-mit-Innensechskant-aehnl.-DIN-912/Edelstahl-Rostfrei-A2/M-2,5-Gewinde-M-metrisches-Regelgewinde)|Stainless steel.<br>Online Schrauben ships within Europe.|
|Silicone Tube 10mm Segment|1|O.D. 12mm I.D. 8mm|[Tube Cutter](../actuator_module_v1/details/details_tools.md#tube-cutter)|

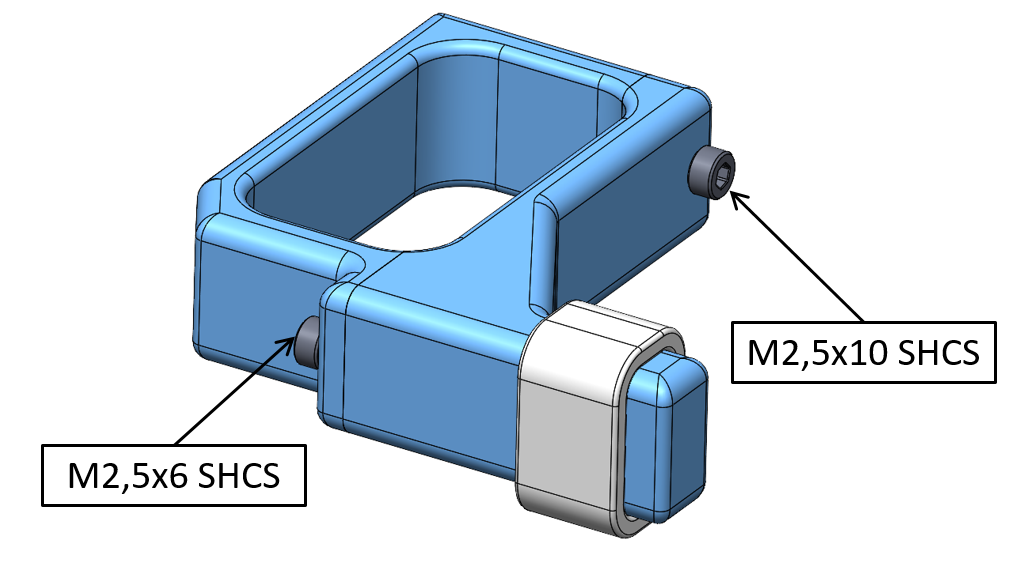

## Preparing the 3d Printed Parts

<img src="images/stopper_preparation_1.png" width="400"><br>

<img src="images/stopper_preparation_2.png" width="400"><br>

<img src="images/stopper_preparation_3.png" width="400"><br>

<img src="images/stopper_upper_leg_1.jpg" width="350"><br>*Joint Rotation Limiter installed on the Upper Leg.*<br>
