Tuigram

Crates.io Downloads

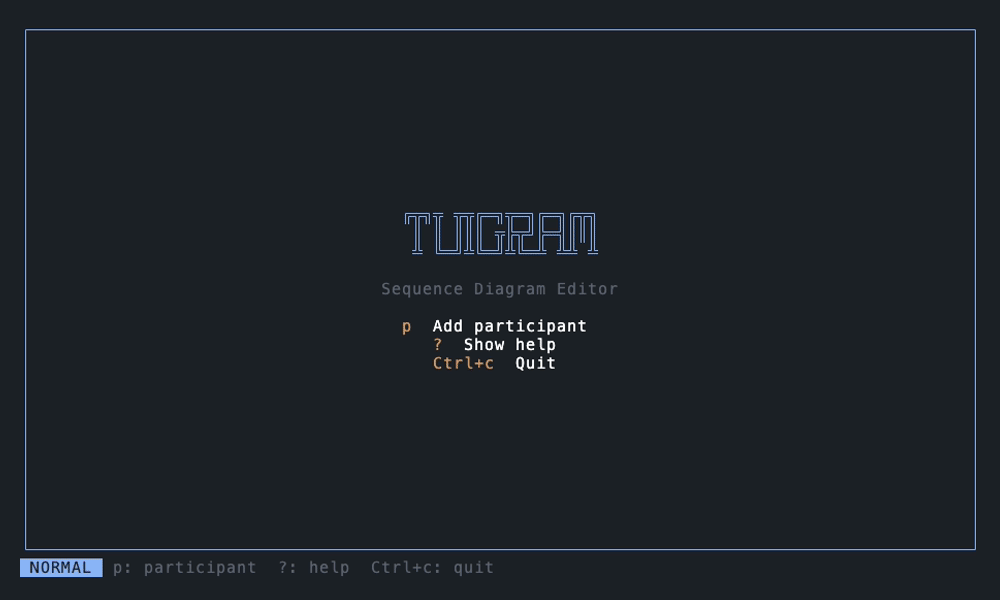

Demo

A TUI sequence diagram editor.

## Installation

Homebrew

``` brew install preiter93/tuigram/tuigram ```

Cargo

``` cargo install tuigram ```

Nix

``` nix run github:preiter93/tuigram ```

Pre-built binaries

Download from [GitHub Releases](https://github.com/preiter93/tuigram/releases)

## Keybindings | Key | Action | |-----|--------| | `p` | Add participant | | `m/M` | Insert message after/before selected | | `n/N` | Insert note after/before selected | | `b/B` | Add/remove box around participants | | `h/l` or `←/→` | Navigate left/right (participants) | | `j/k` or `↓/↑` | Navigate down/up (messages/notes) | | `H/L` or `Shift+←/→` | Move participant left/right, reverse message arrow | | `J/K` or `Shift+↓/↑` | Move message/note up/down* | | `Enter` | Edit selected | | `r` | Rename selected | | `d` | Delete selected | | `C` | Clear diagram | | `E` | Export to Mermaid | | `?` | Help | | `Ctrl+c` | Quit | > \* `Shift+↑/↓` may not work in all terminals, some intercept these for scrollback. Use `J`/`K` instead. ## Mermaid ### Export Press `M` to export the diagram to `diagram.mmd`. ### Import ``` tuigram --import diagram.mmd ```
