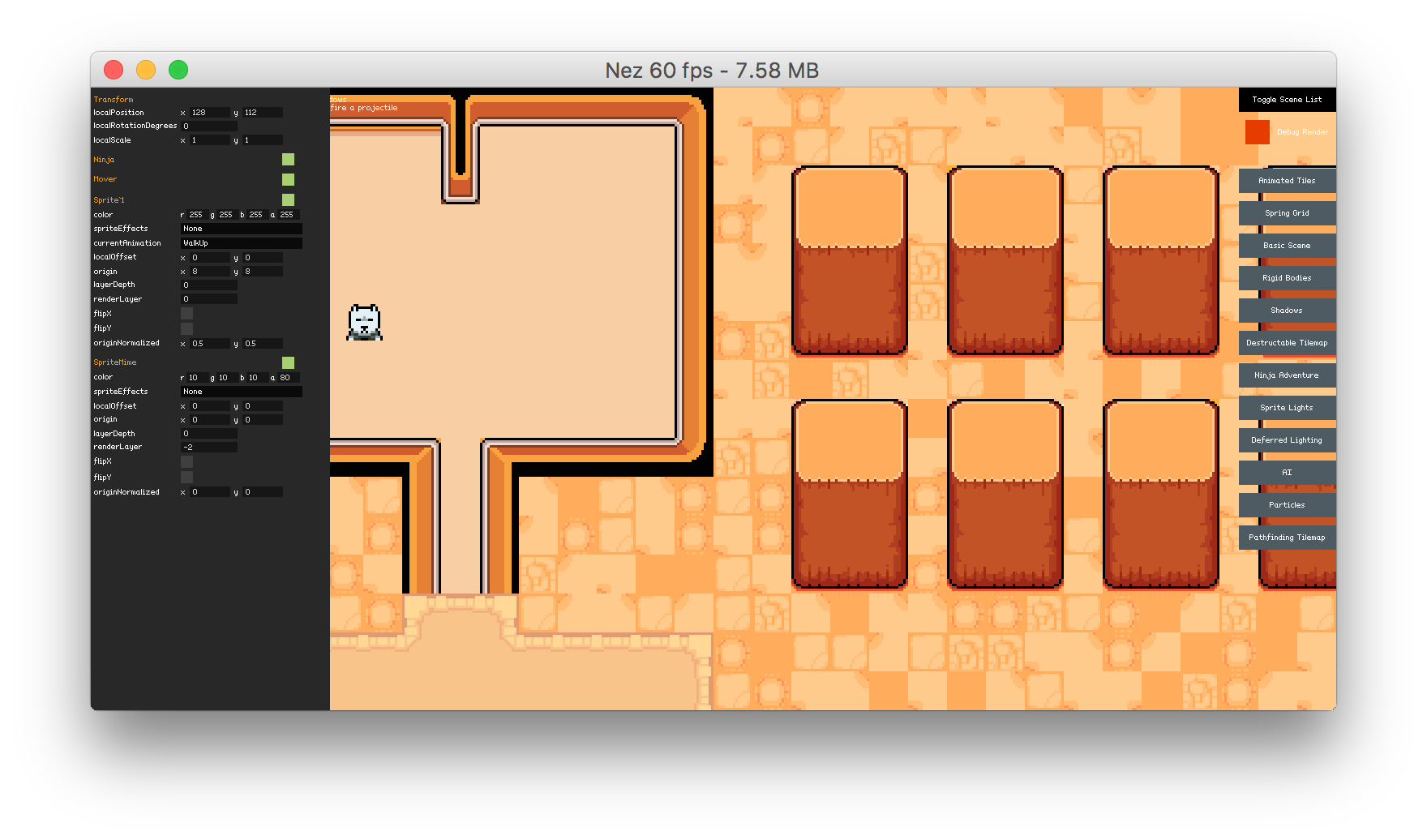

Runtime Inspector ========== Nez includes some really handy runtime Entity and PostProcessor inspection facilities. You can access the inspector by opening the debug console (via the tilde key) and then using the `inspect` command. Out of the box the inspector can inspect the following types: int, float, string, bool, enum, Color, some structs, Effect subclasses and Transform. When you use the `inspect` command you can either pass in an Entity name or `pp`, the latter will inspect all the PostProcessors in the Scene.  ## Exposing Properties and Fields in the Inspector By default, the inspector will display any public properties/fields that are of a supported type. It will also check Materials for non-null Effects and it will display any valid properties from the Effect. The inspector can also display private fields/properties by just adding the `Inspectable` attribute: ```csharp [Inspectable] string myPrivateField; ``` Int and float fields/properties can optionally be displayed with a slider by adding the `Range` attribute. Note that you do not have to add both the `Inspectable` and `Range` attributes for private fields/properties. Just the `Range` attribute is enough to let the inspector know you want it displayed. ```csharp [Range( 0.1f, 100 )] float groundAccel; // the third, optional parameter lets you specify the sliders step value [Range( 0.1f, 100, 5 )] float airAccel; ``` ## Exposing Methods in the Inspector The inspector also has the ability to expose a button to call methods. Methods must have 0 to 1 parameters and if they have a parameter it must be of type int, float, bool or string. To expose a method in the inspector add the `InspectorCallable` attribute to the method. An example is below: ```csharp [InspectorCallable] public void DoSomething() {} [InspectorCallable] public void DoSomethingWithParameter( bool isDone ) {} [InspectorCallable] public void ThisWontWorkBecauseItHasTwoParameters( bool isDone, int stuff ) {} ``` ## Tooltips You can add tooltips to the inspector via the `TooltipAttribute`. Tooltips will appear when you hover over the label for an inspected field. ```csharp [Tooltip( "Acceleration when on the ground" )] float groundAccel = 1.0f; ``` ## Extending the Inspector You can display any custom types in the inspector as well by writing your own custom inspectors. You can do this by adding the `CustomInspector` attribute on the class that you want to make a custom inspector for (YourClass in the example below). The attribute takes in a single parameter which is the Type of the `Inspector` subclass that manages the UI for the class (YourClassInspector in the example). Note that the `Inspector` subclass is wrapped in *#*if/*#*endif so that it is only compiled into debug builds. The `Inspector` class provides several helpers to assist with making custom inspectors. It will cache access to the getter/setter for the field/property for easy access. It wraps access to the getter/setter via the `GetValue` and `SetValue` methods which are generic and take care of casting for you. If you want to add your own custom attributes on the field/property they are accessible via the `GetFieldOrPropertyAttribute` generic method. ```csharp [CustomInspector( typeof( YourClassInspector ) )] public class YourClass { bool _isBlue { get; set; } float _friction; // the rest of your class } #if DEBUG public class YourClassInspector : Inspector { // this is where you setup your UI and add it to the table public override void Initialize( Table table, Skin skin ) {} // this is where you update the UI public override void Update() {} } #endif ```
