# [VaultSync](https://apps.apple.com/app/vaultsync/id6761845197) **Self-hosted Obsidian vault sync for iPhone and iPad.**
Your notes sync peer-to-peer over Syncthing, straight into Obsidian's iOS sandbox — no note cloud, no account, no tracking.

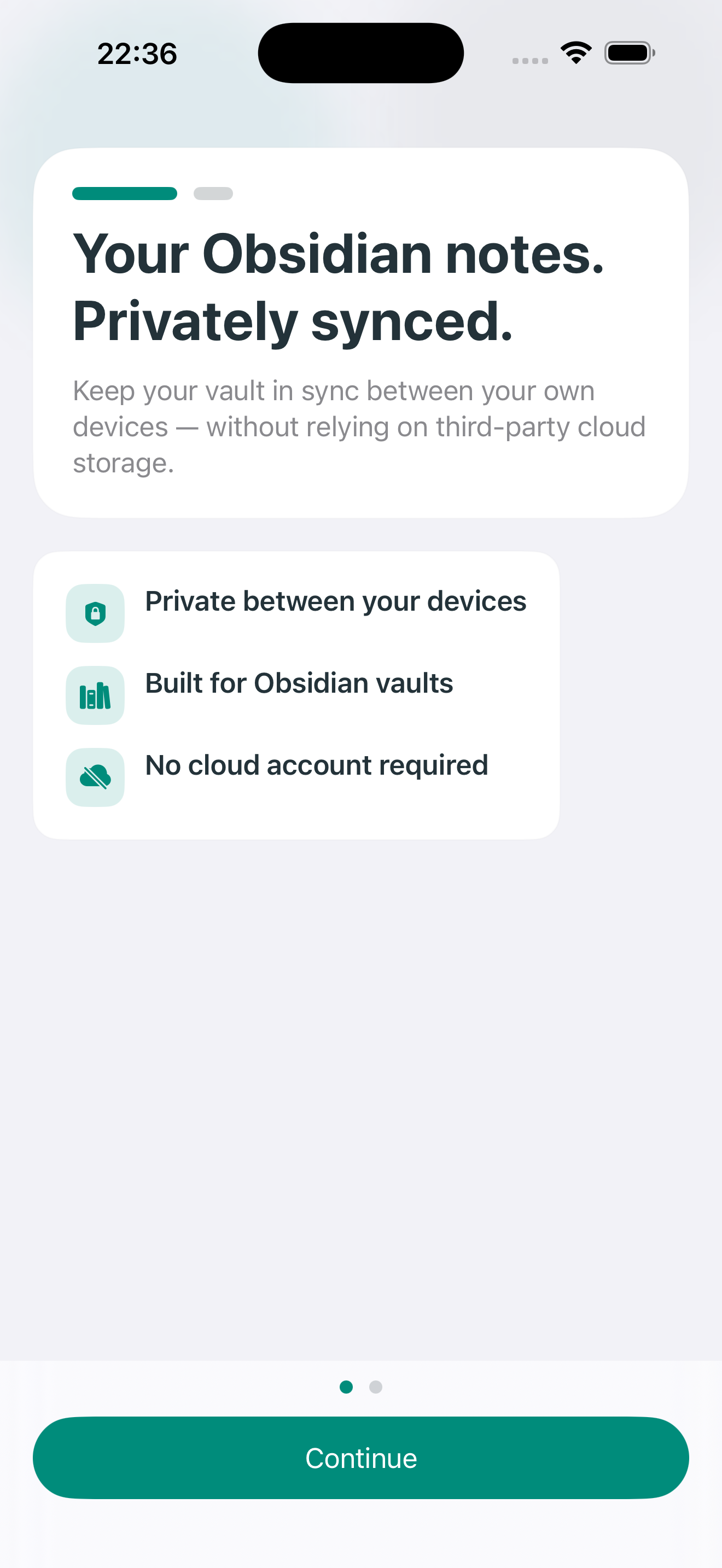

[![Stars](https://img.shields.io/github/stars/psimaker/vaultsync?style=flat-square&logo=github&color=2AB5B3&label=Stars)](https://github.com/psimaker/vaultsync/stargazers) [![License: MPL-2.0](https://img.shields.io/badge/License-MPL_2.0-blue.svg?style=flat-square)](LICENSE) [![iOS 18+](https://img.shields.io/badge/iOS-18%2B-007AFF?style=flat-square&logo=apple&logoColor=white)](https://developer.apple.com/ios/) [![CI](https://img.shields.io/github/actions/workflow/status/psimaker/vaultsync/ci.yml?style=flat-square&logo=github-actions&logoColor=white&label=Build)](https://github.com/psimaker/vaultsync/actions/workflows/ci.yml) VaultSync welcome screen

--- ## 🔭 Why VaultSync - **Peer-to-peer & private** — syncs directly between your own devices over [Syncthing](https://syncthing.net/). No note cloud, no account, no tracking. - **Lands in Obsidian** — files sync into Obsidian's iOS sandbox, where the app already looks for them. - **Pair by QR, resolve conflicts** — connect your server in seconds; settle Markdown conflicts with side-by-side diffs. - **Server changes can wake your iPhone** — optional Cloud Relay asks iOS to wake the app after the helper observes a server change. The activity timeline shows local sync activity, while Diagnostics keeps Relay, delivery, and local-data evidence separate. *VoiceOver and Dynamic Type throughout. Localized in English, German, Spanish, and Simplified Chinese. Independent project — not affiliated with Obsidian or Syncthing.* --- ## 🧭 How it works

VaultSync architecture: your server with Syncthing syncs peer-to-peer with the VaultSync iOS app, which writes notes into your Obsidian vault. An optional Cloud Relay sends silent push wake-ups.

Syncthing runs on a machine you keep on; VaultSync joins as a peer and syncs into Obsidian. After a server change, the optional sidecar + Cloud Relay can request an iOS background wake-up; iOS decides whether and when VaultSync runs. --- ## 🚀 Quick start 1. **Install** VaultSync from the [App Store](https://apps.apple.com/app/vaultsync/id6761845197). 2. **Pair your server** — scan its Syncthing Device ID by QR (or paste it), then accept the connection in that Syncthing instance. 3. **Sync your vault** — VaultSync detects your Obsidian vaults, connects the share, and runs the first sync. Open Obsidian; your notes are there. 4. **(Optional)** Enable **Cloud Relay** for faster server→iPhone updates — see below. --- ## ☁️ Cloud Relay (optional) Without it, VaultSync syncs server changes when you open the app. **With it, Cloud Relay can request a background wake-up after your server changes** — iOS still decides whether and when to run the app. ### ⚡ One-step setup Subscribe in the app (monthly or yearly, at your local App Store price), then run this one line on the computer or NAS that runs Syncthing — the app shows it with a **Copy** button:

```bash curl -fsSL https://vaultsync.eu/notify.sh | sh ``` **That's the whole setup — nothing to edit, no API key to copy.**

The installer finds your Syncthing config, sets the right permissions, and starts the helper. The helper sends one startup wake-up request. Relay Diagnostics reports Relay-side request observation and wake-ups received on this iPhone as separate evidence; one does not prove the other. iOS controls delivery, and sending edits *from* your iPhone stays most reliable with the app open. The relay receives the routing data and StoreKit proof needed to verify access and route a wake-up — never your notes, file or folder names, or vault structure ([PRIVACY.md](PRIVACY.md)).

🔧 Manual & advanced setup — Docker Compose, docker run, prebuilt binaries, NAS notes, --dry-run

- **Skeptical of `curl | sh`?** Append `-s -- --dry-run` to preview every action without changing anything, or read [the script](notify/scripts/install.sh) first. - **Syncthing config in a non-standard place** (typical on Synology/QNAP)? Prefix the installer with the path: `curl -fsSL https://vaultsync.eu/notify.sh | SYNCTHING_CONFIG=/path/to/config.xml sh` - **Prefer to run things yourself?** The [manual & advanced guide](notify/README.md#-manual--advanced-setup) covers Docker Compose, a paste-and-go `docker run`, prebuilt binaries for Linux/macOS/Windows, every environment variable, and NAS specifics.

--- ## 📋 Requirements | Requirement | Details | |---|---| | iPhone / iPad | iOS / iPadOS 18 or later | | Obsidian | Installed on iOS / iPadOS | | Syncthing | Running on a Mac, Linux machine, NAS, or homeserver | | Cloud Relay | Optional — monthly or yearly in-app subscription | | vaultsync-notify | Optional Docker sidecar for server-side wake-ups | --- ## 🔨 Build from source Requires **Xcode 26+**, **Go 1.26+**, **gomobile**, **XcodeGen**, **Make**. ```bash git clone https://github.com/psimaker/vaultsync.git && cd vaultsync cd go && make patch && make xcframework && cd .. # Go xcframework (~160 MB, bundles Syncthing) cd ios && xcodegen generate && open VaultSync.xcodeproj ``` Full build, signing, and test steps: [docs/setup.md](docs/setup.md). | | | |---|---| | Platform | iOS / iPadOS 18+ | | Language | Swift 6, SwiftUI | | Sync engine | Syncthing 2.x via Go/gomobile `.xcframework` | | Background | `BGAppRefreshTask` + `BGContinuedProcessingTask` (iOS 26+ when available) | | Push | APNs silent push via Cloud Relay | | License | [MPL-2.0](LICENSE) | --- ## 📚 Documentation | Doc | What it covers | |---|---| | [docs/setup.md](docs/setup.md) | Build and development setup | | [docs/troubleshooting.md](docs/troubleshooting.md) | Common failures and exact fixes | | [docs/architecture.md](docs/architecture.md) | Codebase structure and sync strategy | | [docs/relay-spec.md](docs/relay-spec.md) | Cloud Relay protocol reference | | [docs/instant-upload.md](docs/instant-upload.md) | Instant iPhone → server uploads via a Shortcuts automation | | [notify/README.md](notify/README.md) | Notify sidecar setup and diagnostics | | [PRIVACY.md](PRIVACY.md) · [TERMS.md](TERMS.md) | Privacy policy and license terms | | [CONTRIBUTING.md](CONTRIBUTING.md) | How to contribute — setup, tests, and PR conventions | | [SECURITY.md](SECURITY.md) · [CODE_OF_CONDUCT.md](CODE_OF_CONDUCT.md) | Vulnerability reporting and community standards | Filing a bug? Include your iOS and VaultSync versions, your server's Syncthing version, whether Cloud Relay and `vaultsync-notify` are running, and relevant logs or screenshots. --- ## License & acknowledgments [MPL-2.0](LICENSE) — use, modify, and distribute under the Mozilla Public License 2.0. Built on [Syncthing](https://syncthing.net/) (the file-sync engine) and [gomobile](https://github.com/golang/mobile) (which embeds it on iOS), for [Obsidian](https://obsidian.md). VaultSync is independent and not affiliated with, endorsed by, or sponsored by Obsidian or Syncthing.
