"cells": [
{
"cell_type": "markdown",
"metadata": {},
"source": [
"<!--<div class=\"alert alert-block alert-info\">\n",
"<span style=\"font-size:xx-large;\"><center>Avanced Python</center></span>\n",
"</div>-->\n",
"\n",
"# Avanced Python"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Tips\n",
"- On all your script : \n",
" - shebang ``` #!/usr/bin/env python3 ```\n",
" - encoding ``` # -*- coding: utf-8 -*- ```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- underscore have a lot of different meanings\n",
" - separator in number ``` 10_000 ``` (only python 3.6)\n",
" - last result in the interpreter ``` _ ```\n",
" - I don't care ``` _ = f() ``` (dangerous with internationnaization)\n",
" - weakly private ``` _something ``` (won't be imported with ```import *```)\n",
" - avoid conflict ``` list_ ```\n",
" - more private (mangled) ```__stuff``` -> `_ClassName__mangled_stuff`\n",
" - magic methods (also mangled) ``` __init__```\n",
" - for internationnalization ```_()```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- I/O\n",
" - **Always** decode in input \n",
" - **Always** encode in output"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- modules : import involve execution! \n",
"Use\n",
"```python\n",
"if __name__ == '__main__':\n",
" some_computation()\n",
"```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- unpacking dans les boucles \n",
" - zip:\n",
"```python\n",
"for name, surname in zip(names, surnames):\n",
" ...\n",
"```\n",
" - enumerate\n",
"```python\n",
"for index, prime in enumerate(primes):\n",
" ...\n",
"```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- False tests :\n",
"```python\n",
"False, 0, None, __nonzero__(), __len__()\n",
"```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- lambda functions"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"square1 = lambda x: x ** 2\n",
"\n",
"def square2(x):\n",
" return x ** 2\n",
"\n",
"print(square1(5))\n",
"print(square2(5))"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [

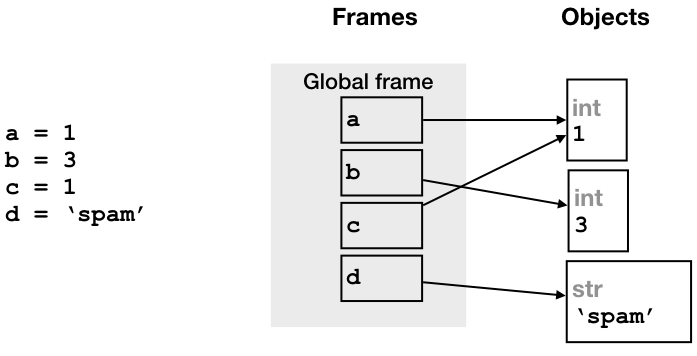

"- Be carefull with shared references\n",
"```python\n",
"a is b # a and b are references to the same object\n",
"```"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
""
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"a = 2\n",
"b = a\n",
"print(a, b)\n",
"a = 3\n",
"print(a, b)\n",
"l1 = [1, 2, 3]\n",
"l2 = l1\n",
"l3 = l1[:]\n",
"print(l1, l2, l3)\n",
"l1[1] = 4\n",
"print(l1, l2, l3)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- **never** use a mutable optionnal arg"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def good(a_list=None):\n",
" if a_list is None:\n",
" a_list = []\n",
" a_list.append(1)\n",
" return a_list\n",
"print(good())\n",
"print(good())\n",
"print(good([2]))\n",
"print(good())"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def wrong(a_list=[]): # never use a mutable optionnal argument\n",
" a_list.append(1)\n",
" return a_list\n",
"print(wrong())\n",
"print(wrong())\n",
"print(wrong([2]))\n",
"print(wrong())"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- use a shallow copy to modify a list in a loop (or be very carefull)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from copy import copy\n",
"\n",
"def good(my_set):\n",
" for value in copy(my_set):\n",
" if 'bert' in value:\n",
" my_set.remove(value)\n",
" return(my_set)\n",
" \n",
"print(\"list ok \", good([\"einstein\", \"albert\", \"bert\", \"curie\"]))\n",
"print(\"set ok \", good({\"einstein\", \"albert\", \"bert\", \"curie\"}))"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def wrong(my_set):\n",
" for value in my_set:\n",
" if 'bert' in value:\n",
" my_set.remove(value)\n",
" return(my_set)\n",
"\n",
"print(\"list Nok \", wrong([\"einstein\", \"albert\", \"bert\", \"curie\"]))\n",
"print(\"set Nok \", wrong({\"einstein\", \"albert\", \"bert\", \"curie\"}))\n",
"print(\"END\")"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- use exceptions\n",
" - try is very fast but except is very slow\n",
" - nice way to get out of multiples loops/functions at the same time\n",
" - Allows you to be sure that an error had been taken care of"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"try:\n",
" print(\"set Nok \", wrong({\"einstein\", \"albert\", \"bert\", \"curie\"}))\n",
"\n",
"except RuntimeError as e:\n",
" print()\n",
" print(\"Oups, something went wrong:\")\n",
" print(e)\n",
" print(\"Continuing anyway\")\n",
" print()\n",
" \n",
"print(\"I'm continuing\")"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import sys\n",
"class MyException(Exception):\n",
" pass\n",
"\n",
"try:\n",
" for i in range(10):\n",
" for j in range(10):\n",
" if i == j == 5:\n",
" raise MyException(\"Found it\")\n",
"except MyException as e:\n",
" print(\"Out of the loop\")\n",
" print(e)\n",
" print(\"Stop\")\n",
" \n",
" # In a script, use a non-zero return code\n",
" # exit(1) \n",
" \n",
" # In jupyter you can do\n",
" raise\n",
" \n",
"print(\"I will never appear\")"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- Use decorator\n",
" - debugging, timing, ..."
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from functools import wraps\n",
"from time import time\n",
"\n",
"def PrintAppel(f):\n",
" def before_f():\n",
" new_f.NbAppels += 1\n",
" print(\"Entering {}\".format(f.__name__))\n",
" new_f.tin = time()\n",
" \n",
" def after_f():\n",
" new_f.tout = time()\n",
" new_f.tcum += new_f.tout - new_f.tin\n",
" print(\"Exiting {}\".format(f.__name__))\n",
" print(\"This was the call n° {}\".format(new_f.NbAppels))\n",
" print(\"It took {} s\".format(new_f.tout - new_f.tin))\n",
" print(\"in average {} s\".format(new_f.tcum / new_f.NbAppels))\n",
" \n",
" @wraps(f)\n",
" def new_f(*args, **xargs):\n",
" before_f()\n",
" res = f(*args, **xargs)\n",
" after_f()\n",
" return res\n",
" \n",
" new_f.NbAppels = 0\n",
" new_f.tcum = 0.\n",
"\n",
" return new_f\n"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import numpy as np\n",
"from time import sleep\n",
"import numpy as np\n",
"@PrintAppel\n",
"def a_function(x):\n",
" np.random.rand()\n",
" sleep(np.random.rand())\n",
" return 2 * x"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"res = a_function(2)\n",
"print(res)\n",
"\n",
"print(a_function.tcum / a_function.NbAppels)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- Make use of classes in order to isolate your work (and your bugs)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"class egg(object): # All objects derived from the same object \"object\"\n",
" \"\"\" Full exemple of a class in python \"\"\"\n",
" total_number = 0 # shared attribut between all instances **DANGER** ! \n",
" \n",
" def __init__(self, number=1): # constructor\n",
" \"\"\" constructor from number \"\"\"\n",
" self.number = number # Good way of defining attributes\n",
" egg.total_number += number\n",
" \n",
" @classmethod\n",
" def from_recipe(cls, recipe): # Alternative constructor\n",
" \"\"\" constructor from recipe \"\"\"\n",
" return cls(recipe[\"oeufs\"])\n",
" \n",
" def __del__(self): # destructor (rare)\n",
" \"\"\" destructor \"\"\"\n",
" egg.total_number -= self.number\n",
"\n",
" def __str__(self): # convert your object into printable string\n",
" \"\"\" egg to str convertor \"\"\"\n",
" return \"On a total of {} eggs, I own {}\".format(egg.total_number, self.number)\n",
" \n",
" def how_many(self): # a function of the instance\n",
" \"\"\" Return the current number of eggs in the recipe \"\"\"\n",
" return self.number\n",
"\n",
" @staticmethod\n",
" def how_many_egg(): # a function on the class (rare)\n",
" \"\"\" Return the total number of eggs for all recipes \"\"\"\n",
" return egg.total_number"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"fried_egg = egg()\n",
"omelette = egg(3)\n",
"recipe_pancake = {\"oeufs\":2, \"lait\":0.5, \"farine\":300}\n",
"pancake = egg.from_recipe(recipe_pancake)\n",
"print(\"Fried egg : \", fried_egg)\n",
"print(\"Omelette : \", omelette)\n",
"print(\"Pancake : \", pancake)\n",
"print()\n",
"print(\"{:<12} : {:>5} | {}\".format(\"egg\",\n",
" \"NaN\",\n",
" egg.how_many_egg()))\n",
"print(\"{:<12} : {:>5} | {}\".format(\"fried_egg\",\n",
" fried_egg.how_many(),\n",
" fried_egg.how_many_egg()))\n",
"print(\"{:<12} : {:>5} | {}\".format(\"omelette\",\n",
" omelette.how_many(), omelette.how_many_egg()))\n",
"print(\"{:<12} : {:>5} | {}\".format(\"pancake\",\n",
" pancake.how_many(),\n",
" pancake.how_many_egg()))"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"del omelette\n",
"print(\"{:<12} : {:>5} | {}\".format(\"egg\",\n",
" \"NaN\",\n",
" egg.how_many_egg()))\n",
"print(\"{:<12} : {:>5} | {}\".format(\"fried_egg\",\n",
" fried_egg.how_many(),\n",
" fried_egg.how_many_egg()))\n",
"print(\"{:<12} : {:>5} | {}\".format(\"pancake\",\n",
" pancake.how_many(),\n",
" pancake.how_many_egg()))\n",
"del fried_egg\n",
"del pancake\n",
"\n",
"print()\n",
"help(egg)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- For launching external program :\n",
" - If you don't care about the output of the program\n",
" ```python\n",
" subprocess.check_call([\"cmd\", \"arg1\", \"arg2\"])\n",
" # or in jupyter\n",
" !cmd arg1 arg2\n",
" ``` \n",
" - otherwise (remember to decode)\n",
" ```python\n",
" data = subprocess.check_output([\"cmd\", \"arg1\", \"arg2\"]).decode('utf-8')\n",
" ``` \n"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"!python3 script.py Marc\n",
"\n",
"import subprocess\n",
"import sys\n",
"data = subprocess.check_output([sys.executable, \"script.py\", \"Marc\"]).decode('utf-8')\n",
"print(data)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"Packaging\n",
"---------\n",
"- respect PEP (not only for prettyness)\n",
"- docstring (auto-documentation)\n",
" - All fonctions\n",
" - All classes\n",
" - All modules (```__init__.py```)\n",
" - All files\n",
"- type hinting (that's new)\n",
" - Almost totally ignored during execution\n",
" - mypy (and more and more IDE) are capable of checking consistency\n",
" - The typing module allows you to define complex types\n",
" - More and more package are complient with this"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def greeting(name: str) -> str:\n",
" var = \"Hello\" # type: str\n",
" # python 3.7 : var = \"Hello\" : str\n",
" \n",
" return var + \" \" + name"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- pytest (unit-testing)\n",
" - auto discovery (use tests folders, test_truc function, and TestMachin classes)\n",
" - allow parametrization"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"#ONLY for ipython\n",
"import ipytest.magics\n",
"import pytest\n",
"__file__ = '04.advanced.ipynb'"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%run_pytest[clean] -qq\n",
"#this was only for ipython\n",
"\n",
"def test_sorted():\n",
" assert sorted([5, 1, 4, 2, 3]) == [1, 2, 3, 4, 5]\n",
" \n",
"# as does parametrize\n",
"@pytest.mark.parametrize('input, expected', [\n",
" ([2, 1], [1, 2]),\n",
" ('zasdqw', list('adqswz')),\n",
" ]\n",
" )\n",
"def test_exemples(input, expected):\n",
" actual = sorted(input)\n",
" assert actual == expected"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- gettext (auto-internationnalization) ?\n",
"- argparse\n",
"- configParser\n",
"- logging\n",
" - print -> go to console (for ordinary usage)\n",
" - warning.warn -> go to console (usually once : for signaling a something the user should fix)\n",
" - logging.level -> go anywhere you want (for detailled output and/or diagnostic)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import logging\n",
"import warnings\n",
"\n",
"\n",
"def prepare_logging():\n",
" \"\"\"\n",
" Prepare all logging facilities\n",
" \n",
" This should be done in a separate module\n",
" \"\"\"\n",
"\n",
" # if not already done, initialize logging facilities\n",
" logging.basicConfig()\n",
"\n",
" # create a logger for the current module\n",
" logger = logging.getLogger(__name__)\n",
"\n",
" ## ONLY FOR IPYTHON\n",
" # clean logger (ipython + multiple call)\n",
" from copy import copy\n",
" for handler in copy(logger.handlers):\n",
" logger.removeHandler(handler)\n",
" # Do not propagate message to ipython (or else thy will be printed twice)\n",
" logger.propagate=False\n",
" ## ONLY FOR IPYTHON\n",
"\n",
"\n",
" # optionnal : change format of the log\n",
" logFormatter = logging.Formatter(\"%(asctime)s [%(threadName)-12.12s] [%(levelname)-5.5s] %(message)s\")\n",
"\n",
" # optionnal : create a handler for file output\n",
" fileHandler = logging.FileHandler(\"{logPath}/{fileName}.log\".format(logPath=\".\", fileName=\"test\"))\n",
" # optionnal : create a handler for console output\n",
" consoleHandler = logging.StreamHandler()\n",
"\n",
" # optionnal : Apply formatter to both handles\n",
" fileHandler.setFormatter(logFormatter)\n",
" consoleHandler.setFormatter(logFormatter)\n",
"\n",
" # optionnal : attach handler to the logger\n",
" logger.addHandler(fileHandler)\n",
" logger.addHandler(consoleHandler)\n",
"\n",
" # what severity to log (default is NOTSET, i.e. all)\n",
" logger.setLevel(logging.DEBUG) # ALL\n",
" fileHandler.setLevel(logging.INFO) # NO DEBUG\n",
" consoleHandler.setLevel(logging.WARNING) # ONLY WARNING AND ERRORS\n",
"\n",
" return logger"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def egg():\n",
" warnings.warn(\"A warning only once\")\n",
"\n",
"logger = prepare_logging()\n",
"\n",
"egg()\n",
"\n",
"logger.info('Start reading database')\n",
"\n",
"records = {'john': 55, 'tom': 66}\n",
"\n",
"logger.debug('Records: {}'.format(records))\n",
"logger.info('Updating records ...')\n",
"logger.warning(\"There is only 2 record !\")\n",
"logger.info('Saving records ...')\n",
"logger.error(\"Something happend, impossible to save the records\")\n",
"logger.info('Restoring records ...')\n",
"logger.critical(\"Database corrupted !\")\n",
"logger.info('End of program')\n",
"\n",
"egg()"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"\n",
"# Performance\n",
"\n",
"- profiling : Only optimize the bottlenecks !\n",
" - timeit (for small snippets of code)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%timeit [1 + i for i in range(1,10000)]\n",
"%timeit [1 * i for i in range(1,10000)]\n",
"%timeit [1 / i for i in range(1,10000)]\n",
"%timeit [1 // i for i in range(1,10000)]"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%timeit [1. + float(i) for i in range(1,10000)]\n",
"%timeit [1. * float(i) for i in range(1,10000)]\n",
"%timeit [1. / float(i) for i in range(1,10000)]\n",
"%timeit [1. // float(i) for i in range(1,10000)]"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
" - cProfile (for real code) "
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import numpy as np\n",
"import cProfile\n",
"import re\n",
"\n",
"def function2(array):\n",
" for i in range(500):\n",
" array += 3\n",
" array = array * 2\n",
" return array\n",
"\n",
"def function1():\n",
" array = np.random.randint(500000, size=5000000)\n",
" array = function2(array)\n",
" return sorted(array)\n",
"\n",
"cProfile.run('function1()', sort=\"tottime\")\n",
"\n",
"# or in jupyter\n",
"\n",
"%prun function1()"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"Or, for a beautifull call graph of a complex program: \n",
" ```bash\n",
" python3 -m cProfile -o profile.pstats script.py\n",
" gprof2dot -f pstats profile.pstats | dot -Tpng -o profile.png\n",
" ```"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from IPython.display import Image\n",
"Image(filename='images/profile.png') "
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## In sequential and in Python\n",
"- small is beautifull (PEP 20)\n",
"- IO cost a lot (avoid reading and writing into files)\n",
"- choose the right data structure / algorithm\n",
"- prefere numpy based array\n",
"- avoid loops (vectorization using slice)\n",
"- avoid copy of array\n",
"- changing size of an array\n",
"> Stop optimizing your Python code here (and compile it)\n",
"- inline manually\n",
"- local is faster than global (and avoid dots)\n",
"- use the out argument in numpy"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def init_copy(f, g):\n",
" \"\"\"\n",
" Just to be sure that the arguments are constant\n",
" \"\"\"\n",
" return f.copy(), g.copy()"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def finish(res):\n",
" \"\"\"\n",
" A dummy function that does nothing\n",
" \"\"\"\n",
" return res"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import textwrap\n",
"\n",
"def checker(ref, res):\n",
" \"\"\"\n",
" A function that, given two results, check that they are identical\n",
" \"\"\"\n",
" if (type(ref) is not type(res) or\n",
" ref.dtype != res.dtype or\n",
" not np.array_equal(res, ref)):\n",
"\n",
" print(\"Failed\")\n",
"\n",
" print(\"types: \",type(ref), type(res))\n",
" print(\"dtypes: \",ref.dtype, res.dtype)\n",
"\n",
" differ = np.where(np.logical_not(np.isclose(ref,res)))\n",
"\n",
" print(textwrap.dedent(\"\"\"results:\n",
" ref shape: {}\n",
" res shape: {}\n",
"\n",
" idx\n",
" {}\n",
"\n",
" ref\n",
" {}\n",
"\n",
" res\n",
" {}\"\"\".format(ref.shape,\n",
" res.shape,\n",
" differ,\n",
" ref[differ],\n",
" res[differ])\n",
" ))\n",
" return False\n",
" return True"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def instrument(check=None, setup=init_copy, finish=finish, timing=True):\n",
" \"\"\"\n",
" A decorator that will time a function, and if given,\n",
" check it's result with a reference function\n",
" \n",
" setup and finish are part of the function not timed\n",
" \"\"\"\n",
" def _check(function):\n",
" def wrapped(*arg, check=check, timing=timing):\n",
" \n",
" # Our result\n",
" a, b = setup(*arg)\n",
" res = function(a, b)\n",
" res = finish(res)\n",
" \n",
" if check is not None:\n",
" print(\"Testing \", function.__name__, \" ... \",end=\"\")\n",
" \n",
" # The reference (might not be decorated)\n",
" try:\n",
" ref = check(*arg, check=None, timing=False)\n",
" except TypeError:\n",
" ref = check(*arg)\n",
"\n",
" if not checker(ref, res):\n",
" raise RuntimeError\n",
" else:\n",
" print(\"OK\")\n",
" \n",
" if timing:\n",
" print(\"Timing \", function.__name__, \" ...\")\n",
" %timeit function(a, b)\n",
" return res\n",
" return wrapped\n",
" return _check"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"# Create data\n",
"a = np.arange(1,1e6)\n",
"b = np.arange(1,1e6)\n",
"\n",
"n = 4\n",
"s = 2 * n + 1\n",
"g = np.arange(s ** 2, dtype=np.int).reshape((s, s))\n",
"\n",
"N = 200\n",
"small_f = np.arange(N * N, dtype=np.int).reshape((N, N))\n",
"N = 2000\n",
"large_f = np.arange(N * N, dtype=np.int).reshape((N, N))"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Python code (reference)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument()\n",
"def py_simple_operations_with_tmparrays_and_loops(a, b):\n",
" n = len(a)\n",
" \n",
" c = np.empty_like(a) \n",
" for i in range(n):\n",
" c[i] = a[i] * b[i]\n",
" \n",
" d = np.empty_like(a)\n",
" for i in range(n):\n",
" d[i] = 4.1 * a[i]\n",
" \n",
" e = np.empty_like(a)\n",
" for i in range(n):\n",
" e[i] = c[i] - d[i]\n",
" \n",
" f = np.empty_like(a)\n",
" for i in range(n):\n",
" f[i] = 2.5 * b[i]\n",
" \n",
" g = np.empty_like(a, dtype=np.bool)\n",
" for i in range(n):\n",
" g[i] = e[i] > f[i]\n",
" \n",
" return g\n",
"\n",
"py_simple_operations_with_tmparrays_and_loops(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=py_simple_operations_with_tmparrays_and_loops)\n",
"def py_simple_operations_with_loops(a, b):\n",
" n = len(a)\n",
" \n",
" g = np.empty_like(a, dtype=np.bool)\n",
" for i in range(n):\n",
" c = a[i] * b[i]\n",
" d = 4.1 * a[i]\n",
" e = c - d\n",
" f = 2.5 * b[i]\n",
" g[i] = e > f\n",
" \n",
" return g\n",
"py_simple_operations_with_loops(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=py_simple_operations_with_loops)\n",
"def py_simple_operations(a, b):\n",
" return a * b - 4.1 * a > 2.5 * b\n",
"\n",
"py_simple_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def py_tough_operations(a, b):\n",
" return np.sin(a) + np.arcsinh(a / b)\n",
"\n",
"i_py_tough_operations = instrument()(py_tough_operations)\n",
"i_py_tough_operations(a, b);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### We can look at the bytecode (halfway to assembly)\n",
"And use it to optimize some things"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": true
},
"outputs": [],
"source": [
"import dis\n",
"print(dis.code_info(py_tough_operations))\n",
"print()\n",
"print(\"Code :\")\n",
"dis.dis(py_tough_operations)\n",
"print()"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from numpy import sin, arcsinh\n",
"\n",
"# We can avoid the step 0 and 12\n",
"def py_tough_operations_with_localsin(a, b):\n",
" return sin(a) + arcsinh(a / b)\n",
"\n",
"i_py_tough_operations_with_localsin = instrument()(py_tough_operations_with_localsin)\n",
"i_py_tough_operations_with_localsin(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": true
},
"outputs": [],
"source": [
"import dis\n",
"print(dis.code_info(py_tough_operations_with_localsin))\n",
"print()\n",
"print(\"Code :\")\n",
"dis.dis(py_tough_operations_with_localsin)\n",
"print()"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from numpy import sum as npsum\n",
"\n",
"@instrument()\n",
"def convolve_python(f, g):\n",
" # f is an image and is indexed by (v, w)\n",
" # g is a filter kernel and is indexed by (s, t),\n",
" # it needs odd dimensions\n",
" # h is the output image and is indexed by (x, y),\n",
"\n",
" if g.shape[0] % 2 != 1 or g.shape[1] % 2 != 1:\n",
" raise ValueError(\"Only odd dimensions on filter supported\")\n",
" \n",
" # smid and tmid are number of pixels between the center pixel\n",
" # and the edge, ie for a 5x5 filter they will be 2.\n",
" vmax, wmax = f.shape\n",
" smax, tmax = g.shape\n",
" \n",
" smid = smax // 2\n",
" tmid = tmax // 2\n",
"\n",
" # Allocate result image.\n",
" h = np.zeros_like(f)\n",
" \n",
" # Do convolution\n",
" for x in range(smid, vmax - smid):\n",
" for y in range(tmid, wmax - tmid):\n",
" \n",
" v1 = x - smid\n",
" v2 = v1 + smax\n",
" w1 = y - tmid\n",
" w2 = w1 + tmax\n",
"\n",
" h[x, y] = npsum(g * f[v1:v2, w1:w2])\n",
" \n",
" return h\n",
"\n",
"convolve_python(small_f, g);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## When possible use already available function"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from scipy.signal import convolve2d\n",
" \n",
"def scipy_setup(f, g):\n",
" # for some reason, scipy take the filter in reverse...\n",
" gr = g[::-1,::-1]\n",
" return f.copy(), gr.copy()\n",
"\n",
"@instrument(check=convolve_python, setup=scipy_setup)\n",
"def scipy_convolve(f, g):\n",
" \n",
" vmax, wmax = f.shape\n",
" smax, tmax = g.shape\n",
" \n",
" smid = smax // 2\n",
" tmid = tmax // 2\n",
" \n",
" h = np.zeros_like(f)\n",
" h[smid:vmax - smid, tmid:wmax - tmid] = convolve2d(f, g, mode=\"valid\")\n",
"\n",
" return h"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"scipy_convolve(small_f, g);\n",
"scipy_convolve(large_f, g, check=None);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## numexpr allows compilation of very simple code\n",
"And is multithreaded"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import numexpr as ne\n",
"\n",
"@instrument(check=py_simple_operations)\n",
"def ne_simple_operations(a, b):\n",
" return ne.evaluate('a * b - 4.1 * a > 2.5 * b')\n",
"\n",
"ne_simple_operations(a,b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=py_tough_operations_with_localsin)\n",
"def ne_tough_operations(a, b):\n",
" return ne.evaluate(\"sin(a) + arcsinh(a / b)\")\n",
"\n",
"ne_tough_operations(a,b);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Numba allows compilation of more complex code using only decorators\n",
"And can parallelize part of your code \n",
"But it doesn't work everytime"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import numba as nb\n",
"\n",
"@instrument(check=ne_simple_operations)\n",
"@nb.jit(nopython=True, nogil=True, cache=False, parallel=True)\n",
"def nb_simple_operations(a, b):\n",
" return a * b - 4.1 * a > 2.5 * b\n",
"\n",
"nb_simple_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=ne_tough_operations)\n",
"@nb.jit(nopython=True, nogil=True, cache=False, parallel=True)\n",
"def nb_tough_operations(a, b):\n",
" return np.sin(a) + np.arcsinh(a / b)\n",
"\n",
"nb_tough_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": false
},
"outputs": [],
"source": [
"@instrument(check=scipy_convolve)\n",
"@nb.jit(nopython=True, nogil=True, cache=False, parallel=True)\n",
"def convolve_numba(f, g):\n",
" # smid and tmid are number of pixels between the center pixel\n",
" # and the edge, ie for a 5x5 filter they will be 2.\n",
" vmax, wmax = f.shape\n",
" smax, tmax = g.shape\n",
"\n",
" if smax % 2 != 1 or tmax % 2 != 1:\n",
" raise ValueError(\"Only odd dimensions on filter supported\")\n",
" \n",
" smid = smax // 2\n",
" tmid = tmax // 2\n",
"\n",
" # Allocate result image.\n",
" h = np.zeros_like(f)\n",
" \n",
" # Do convolution\n",
" for x in range(smid, vmax - smid):\n",
" for y in range(tmid, wmax - tmid):\n",
" # Calculate pixel value for h at (x,y). Sum one component\n",
" # for each pixel (s, t) of the filter g.\n",
" \n",
" value = 0\n",
" for s in range(smax):\n",
" for t in range(tmax):\n",
" v = x - smid + s\n",
" w = y - tmid + t\n",
" value += g[s, t] * f[v, w]\n",
" h[x, y] = value\n",
" return h\n",
"\n",
"convolve_numba(small_f, g);\n",
"convolve_numba(large_f, g);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"# Stencil contains implicit loops\n",
"@nb.stencil(standard_indexing=(\"g\",),neighborhood=((-4, 4),(-4, 4)))\n",
"def convolve_kernel(f, g):\n",
"\n",
" smax, tmax = g.shape\n",
"\n",
" smid = smax // 2\n",
" tmid = tmax // 2\n",
" \n",
" h = 0\n",
" for s in range(smax):\n",
" for t in range(tmax):\n",
" h += g[s, t] * f[s - smid, t - tmid]\n",
" \n",
" return h\n",
"\n",
"@instrument(check=convolve_numba)\n",
"@nb.jit(nopython=True, nogil=True, cache=False, parallel=True)\n",
"def convolve_numba_with_stencil(f, g):\n",
"\n",
" if g.shape[0] % 2 != 1 or g.shape[1] % 2 != 1:\n",
" raise ValueError(\"Only odd dimensions on filter supported\")\n",
"\n",
" return convolve_kernel(f, g).astype(f.dtype)\n",
"\n",
"convolve_numba_with_stencil(small_f, g);\n",
"convolve_numba_with_stencil(large_f, g);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Cython is the most efficient way to optimize your code\n",
"But you have to:\n",
"- type *every* variable\n",
"- explicit all loops\n",
"- parallelize manually\n",
"- compile it separately (or use ipython magic)\n",
"- dependencies\n",
" - Windows : \n",
" - Visual studio build tools\n",
" - or Mingw\n",
" - or Windows Subsystem for Linux\n",
" - Linux :\n",
" - gcc\n",
" - or icc"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%load_ext Cython\n",
"%set_env CFLAGS=\"-Ofast -march=native -fvect-cost-model=cheap\" \\\n",
" \"-fopenmp -Wno-unused-variable -Wno-cpp -Wno-maybe-uninitialized\""
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%cython\n",
"# cython: language_level=3\n",
"# cython: initializedcheck=False\n",
"# cython: binding=True\n",
"# cython: nonecheck=False\n",
"# distutils: extra_link_args = -fopenmp\n",
"\n",
"import numpy as np\n",
"cimport numpy as np\n",
"cimport cython\n",
"from cython.parallel cimport parallel, prange\n",
"\n",
"@cython.boundscheck(False) # turn off bounds-checking for entire function\n",
"@cython.wraparound(False) # turn off negative index wrapping for entire function\n",
"def csimple_operations(const double[::1]& a, const double[::1]& b):\n",
" cdef long n = a.shape[0]\n",
"\n",
" cdef long[:] res = np.empty([n], dtype=long)\n",
" \n",
" cdef Py_ssize_t i\n",
" for i in prange(n, nogil=True, num_threads=8):\n",
" res[i] = a[i] * b[i] - 4.1 * a[i] > 2.5 * b[i]\n",
" return np.asarray(res, dtype=bool)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"i_csimple_operations = instrument(check=nb_simple_operations)(csimple_operations)\n",
"i_csimple_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%cython\n",
"# cython: language_level=3\n",
"# cython: initializedcheck=False\n",
"# cython: binding=True\n",
"# cython: nonecheck=False\n",
"# cython: boundscheck=False\n",
"# cython: wraparound=False\n",
"# distutils: extra_link_args = -fopenmp\n",
"\n",
"import numpy as np\n",
"cimport numpy as np\n",
"from libc.math cimport sin, asinh\n",
"from cython.parallel cimport parallel, prange\n",
"\n",
"def ctough_operations(const double[::1]& a, const double[::1]& b):\n",
" cdef long n = a.shape[0]\n",
"\n",
" cdef double[:] res = np.empty([n], dtype=np.double)\n",
" \n",
" cdef Py_ssize_t i\n",
" for i in prange(n, nogil=True, num_threads=8):\n",
" res[i] = sin(a[i]) + asinh(a[i] / b[i])\n",
" return np.asarray(res)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"i_ctough_operations = instrument(check=nb_tough_operations)(ctough_operations)\n",
"i_ctough_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": true
},
"outputs": [],
"source": [
"%%cython\n",
"# cython: language_level=3\n",
"# cython: initializedcheck=False\n",
"# cython: binding=True\n",
"# cython: nonecheck=False\n",
"# cython: boundscheck=False\n",
"# cython: wraparound=False\n",
"# distutils: extra_link_args = -fopenmp\n",
"\n",
"import numpy as np\n",
"cimport numpy as np\n",
"from cython.parallel cimport parallel, prange\n",
"\n",
"def convolve_cython(const long[:,::1]& f, const long[:,::1]& g):\n",
" cdef long vmax = f.shape[0]\n",
" cdef long wmax = f.shape[1]\n",
" cdef long smax = g.shape[0]\n",
" cdef long tmax = g.shape[1]\n",
" \n",
" # f is an image and is indexed by (v, w)\n",
" # g is a filter kernel and is indexed by (s, t),\n",
" # it needs odd dimensions\n",
" # h is the output image and is indexed by (x, y),\n",
" if smax % 2 != 1 or tmax % 2 != 1:\n",
" raise ValueError(\"Only odd dimensions on filter supported\")\n",
"\n",
" # smid and tmid are number of pixels between the center pixel\n",
" # and the edge, ie for a 5x5 filter they will be 2.\n",
" \n",
" cdef long smid = smax // 2\n",
" cdef long tmid = tmax // 2\n",
" \n",
" # Allocate result image.\n",
" cdef long[:,::1] h = np.zeros([vmax, wmax], dtype=long)\n",
"\n",
" cdef long value\n",
" cdef long x, y, s, t, v, w\n",
"\n",
" # Do convolution\n",
" for x in prange(smid, vmax - smid, nogil=True, num_threads=8):\n",
" for y in range(tmid, wmax - tmid):\n",
" # Calculate pixel value for h at (x,y). Sum one component\n",
" # for each pixel (s, t) of the filter g.\n",
"\n",
" value = 0\n",
" for s in range(smax):\n",
" for t in range(tmax):\n",
" v = x - smid + s\n",
" w = y - tmid + t\n",
" value = value + g[s, t] * f[v, w]\n",
" h[x, y] = value\n",
" \n",
" return np.asarray(h)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"i_convolve_cython = instrument(check=convolve_numba_with_stencil)(convolve_cython)\n",
"i_convolve_cython(small_f, g);\n",
"i_convolve_cython(large_f, g);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%writefile CModule.h\n",
"#include <stddef.h>\n",
"\n",
"void convolve_c (const long f[],\n",
" const long g[],\n",
" long h[],\n",
" const size_t vmax,\n",
" const size_t wmax,\n",
" const size_t smax,\n",
" const size_t tmax); "
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%writefile CModule.c\n",
"#include \"CModule.h\"\n",
"\n",
"void convolve_c (const long f[],\n",
" const long g[],\n",
" long h[],\n",
" const size_t vmax,\n",
" const size_t wmax,\n",
" const size_t smax,\n",
" const size_t tmax) \n",
"{\n",
"\n",
" const size_t smid = smax / 2;\n",
" const size_t tmid = tmax / 2;\n",
"\n",
" for(size_t s = 0; s < vmax * wmax; ++s) {\n",
" h[s] = 0;\n",
" }\n",
"\n",
" // Do convolution\n",
" #pragma omp parallel for default(shared) num_threads(8)\n",
" for(size_t x = smid; x < vmax - smid; ++x) {\n",
" for(size_t y = tmid; y < wmax - tmid; ++y) {\n",
" // Calculate pixel value for h at (x,y).\n",
" // Sum one component for each pixel (s, t) of the filter g.\n",
"\n",
" long value = 0;\n",
" for(size_t s = 0; s < smax; ++s) {\n",
" for(size_t t = 0; t < tmax; ++t) {\n",
" size_t v = x - smid + s;\n",
" size_t w = y - tmid + t;\n",
" value = value + g[s*tmax + t] * f[v*wmax + w];\n",
" }\n",
" }\n",
" h[x*wmax + y] = value;\n",
" }\n",
" }\n",
"}"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": true
},
"outputs": [],
"source": [
"%%cython\n",
"# cython: language_level=3\n",
"# cython: initializedcheck=False\n",
"# cython: binding=True\n",
"# cython: nonecheck=False\n",
"# cython: boundscheck=False\n",
"# cython: wraparound=False\n",
"# distutils: extra_link_args = -fopenmp\n",
"# distutils: sources = CModule.c\n",
"\n",
"import numpy as np\n",
"cimport numpy as np\n",
"from cython.parallel cimport parallel, prange\n",
"\n",
"cdef extern from \"CModule.h\":\n",
" long* convolve_c (const long f[],\n",
" const long g[],\n",
" long h[],\n",
" const size_t vmax,\n",
" const size_t wmax,\n",
" const size_t smax,\n",
" const size_t tmax) nogil\n",
"\n",
"def convolve_cython_pure(const long[:,::1]& f, const long[:,::1]& g):\n",
" # f is an image and is indexed by (v, w)\n",
" # g is a filter kernel and is indexed by (s, t),\n",
" # it needs odd dimensions\n",
" # h is the output image and is indexed by (x, y),\n",
" \n",
" cdef long vmax = f.shape[0]\n",
" cdef long wmax = f.shape[1]\n",
" cdef long smax = g.shape[0]\n",
" cdef long tmax = g.shape[1]\n",
" \n",
" if smax % 2 != 1 or tmax % 2 != 1:\n",
" raise ValueError(\"Only odd dimensions on filter supported\")\n",
" \n",
" cdef long[:,::1] h = np.empty([vmax, wmax], dtype=long)\n",
" \n",
" # Do convolution\n",
" with nogil:\n",
" convolve_c(&f[0,0],\n",
" &g[0,0],\n",
" &h[0,0], vmax, wmax, smax, tmax)\n",
" \n",
" \n",
" return np.asarray(h)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"i_convolve_cython_pure = instrument(check=i_convolve_cython)(convolve_cython_pure)\n",
"i_convolve_cython_pure(small_f, g);\n",
"i_convolve_cython_pure(large_f, g);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"!gcc CModule.c main.c -o full_c -Ofast -march=native -fopenmp -fvect-cost-model=cheap\n",
"!./full_c"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Fortran through f2py is also very efficient\n",
"But you have to\n",
"- rewrite your code\n",
"- be carefull with memory organization\n",
"- compile it separately"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%load_ext fortranmagic\n",
"%set_env F90FLAGS=\"-Ofast -march=native -fvect-cost-model=cheap -fopenmp\"\n",
"%fortran_config --extra=\"-lgomp\" --extra=\"--noarch\""
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%fortran\n",
"subroutine fsimple_operations(a, b, c, n)\n",
" implicit none\n",
" integer(kind=8), intent(in) :: n\n",
" double precision,intent(in) :: a(n)\n",
" double precision,intent(in) :: b(n)\n",
"\n",
" logical,intent(out) :: c(n)\n",
"\n",
" !$OMP PARALLEL WORKSHARE NUM_THREADS(8)\n",
" c = a * b - 4.1 * a > 2.5 * b\n",
" !$OMP END PARALLEL WORKSHARE\n",
"\n",
"end subroutine fsimple_operations"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=i_csimple_operations)\n",
"def i_fsimple_operations(a ,b):\n",
" return fsimple_operations(a, b).astype(bool)\n",
"\n",
"i_fsimple_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%fortran\n",
"subroutine ftough_operations(a, b, c, n)\n",
" implicit none\n",
" integer(kind=8), intent(in) :: n\n",
" double precision,intent(in) :: a(n)\n",
" double precision,intent(in) :: b(n)\n",
" \n",
" double precision,intent(out) :: c(n)\n",
"\n",
" !$OMP PARALLEL WORKSHARE NUM_THREADS(8)\n",
" c = sin(a) + asinh(a / b)\n",
" !$OMP END PARALLEL WORKSHARE\n",
"\n",
"end subroutine ftough_operations"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"@instrument(check=i_ctough_operations)\n",
"def i_ftough_operations(a ,b):\n",
" return ftough_operations(a, b)\n",
"\n",
"i_ftough_operations(a, b);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%fortran\n",
"subroutine convolve_fortran(f, g, vmax, wmax, smax, tmax, h, err)\n",
" implicit none\n",
" integer(kind=8),intent(in) :: vmax,wmax,smax,tmax\n",
" integer(kind=8),intent(in) :: f(vmax, wmax), g(smax, tmax)\n",
" \n",
" integer(kind=8),intent(out) :: h(vmax, wmax)\n",
" integer(kind=8),intent(out) :: err\n",
" \n",
" integer(kind=8) :: smid,tmid\n",
" integer(kind=8) :: x, y\n",
" integer(kind=8) :: v1,v2,w1,w2\n",
" \n",
" ! f is an image and is indexed by (v, w)\n",
" ! g is a filter kernel and is indexed by (s, t),\n",
" ! it needs odd dimensions\n",
" ! h is the output image and is indexed by (v, w),\n",
"\n",
" err = 0\n",
" if (modulo(smax, 2) /= 1 .or. modulo(tmax, 2) /= 1) then\n",
" err = 1\n",
" return\n",
" endif\n",
" \n",
" ! smid and tmid are number of pixels between the center pixel\n",
" ! and the edge, ie for a 5x5 filter they will be 2. \n",
" smid = smax / 2\n",
" tmid = tmax / 2\n",
" \n",
" h = 0\n",
" ! Do convolution\n",
" ! warning : memory layout is different in fortran\n",
" ! warning : array start at 1 in fortran\n",
"\n",
" !$OMP PARALLEL DO DEFAULT(SHARED) COLLAPSE(1) &\n",
" !$OMP PRIVATE(v1,v2,w1,w2) NUM_THREADS(8)\n",
" do y = tmid + 1,wmax - tmid\n",
" do x = smid + 1,vmax - smid\n",
" ! Calculate pixel value for h at (x,y). Sum one component\n",
" ! for each pixel (s, t) of the filter g.\n",
"\n",
" v1 = x - smid\n",
" v2 = v1 + smax\n",
" w1 = y - tmid\n",
" w2 = w1 + tmax\n",
" h(x, y) = sum(g(1:smax,1:tmax) * f(v1:v2,w1:w2))\n",
" enddo\n",
" enddo\n",
" !$OMP END PARALLEL DO\n",
" return\n",
"end subroutine convolve_fortran"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def fortran_setup(f, g):\n",
" # memory ordering for fortran\n",
" ft = np.asfortranarray(f.copy())\n",
" gt = np.asfortranarray(g.copy())\n",
" return ft, gt\n",
"\n",
"@instrument(check=i_convolve_cython_pure, setup=fortran_setup)\n",
"def i_convolve_fortran(f, g):\n",
" h, err = convolve_fortran(f, g)\n",
" if err:\n",
" print(err)\n",
" raise ValueError(\"FORTRAN ERROR ! (Probably : Only odd dimensions on filter supported)\")\n",
" return h\n",
"\n",
"i_convolve_fortran(small_f, g);\n",
"i_convolve_fortran(large_f, g);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%%writefile fortranModule.f90\n",
"module fortranmodule\n",
" implicit none\n",
" contains\n",
"\n",
" subroutine convolve_fortran_pure(f, g, vmax, wmax, smax, tmax, h, err)\n",
" implicit none\n",
" integer(kind=8),intent(in) :: vmax,wmax,smax,tmax\n",
" integer(kind=8),intent(in) :: f(vmax, wmax), g(smax, tmax)\n",
"\n",
" integer(kind=8),intent(out) :: h(vmax, wmax)\n",
" integer(kind=8),intent(out) :: err\n",
"\n",
" integer(kind=8) :: smid,tmid\n",
" integer(kind=8) :: x, y\n",
" integer(kind=8) :: v1,v2,w1,w2\n",
"\n",
" ! f is an image and is indexed by (v, w)\n",
" ! g is a filter kernel and is indexed by (s, t),\n",
" ! it needs odd dimensions\n",
" ! h is the output image and is indexed by (v, w),\n",
"\n",
" err = 0\n",
" if (modulo(smax, 2) /= 1 .or. modulo(tmax, 2) /= 1) then\n",
" err = 1\n",
" return\n",
" endif\n",
"\n",
" ! smid and tmid are number of pixels between the center pixel\n",
" ! and the edge, ie for a 5x5 filter they will be 2. \n",
" smid = smax / 2\n",
" tmid = tmax / 2\n",
"\n",
" h = 0\n",
" ! Do convolution\n",
" ! warning : memory layout is different in fortran\n",
" ! warning : array start at 1 in fortran\n",
"\n",
" !$OMP PARALLEL DO DEFAULT(SHARED) COLLAPSE(1) &\n",
" !$OMP PRIVATE(v1,v2,w1,w2) NUM_THREADS(8)\n",
" do y = tmid + 1,wmax - tmid\n",
" do x = smid + 1,vmax - smid\n",
" ! Calculate pixel value for h at (x,y). Sum one component\n",
" ! for each pixel (s, t) of the filter g.\n",
"\n",
" v1 = x - smid\n",
" v2 = v1 + smax\n",
" w1 = y - tmid\n",
" w2 = w1 + tmax\n",
" h(x, y) = sum(g(1:smax,1:tmax) * f(v1:v2,w1:w2))\n",
" enddo\n",
" enddo\n",
" !$OMP END PARALLEL DO\n",
" return\n",
" end subroutine convolve_fortran_pure\n",
"end module fortranmodule"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"!gfortran fortranModule.f90 main.f90 -o full_f -Ofast -march=native -fopenmp -fvect-cost-model=cheap\n",
"!./full_f"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- parallelism\n",
" - cuda"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"\"\"\"\n",
"CUDA DOESN'T WORK ON THE VIRTUAL MACHINE\n",
"YOU ARE WELCOME TO TRY THIS ON YOU OWN COMPUTER\n",
"\"\"\"\n",
"from string import Template\n",
"\n",
"cuda_src_template = Template(\"\"\"\n",
"// Cuda splitting\n",
"#define MTB ${max_threads_per_block}\n",
"#define MBP ${max_blocks_per_grid}\n",
"\n",
"// Array size\n",
"#define fx ${fx}\n",
"#define fy ${fy}\n",
"#define gx ${gx}\n",
"#define gy ${gy}\n",
"\n",
"// Macro for converting subscripts to linear index:\n",
"#define f_INDEX(i, j) (i) * (fy) + (j)\n",
"\n",
"// Macro for converting subscripts to linear index:\n",
"#define g_INDEX(i, j) (i) * (gy) + (j)\n",
"\n",
"__global__ void convolve_cuda(long *f, long *g, long *h) {\n",
"\n",
" unsigned int idx = blockIdx.y * MTB * MBP + blockIdx.x * MTB + threadIdx.x;\n",
"\n",
" // Convert the linear index to subscripts:\n",
" unsigned int i = idx / fy;\n",
" unsigned int j = idx % fy;\n",
"\n",
" long smax = gx;\n",
" long tmax = gy;\n",
"\n",
" long smid = smax / 2;\n",
" long tmid = tmax / 2;\n",
"\n",
" if (smid <= i && i < fx - smid) {\n",
" if (tmid <= j && j < fy - tmid) {\n",
"\n",
" h[f_INDEX(i, j)] = 0.;\n",
" \n",
" for (long s = 0; s < smax; s++)\n",
" for (long t = 0; t < tmax; t++)\n",
" h[f_INDEX(i, j)] += g[g_INDEX(s, t)] * f[f_INDEX(i + s - smid, j + t - tmid)];\n",
" \n",
" }\n",
" }\n",
"}\n",
"\"\"\")"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"\"\"\"\n",
"CUDA DOESN'T WORK ON THE VIRTUAL MACHINE\n",
"YOU ARE WELCOME TO TRY THIS ON YOU OWN COMPUTER\n",
"\"\"\"\n",
"import skcuda.misc as misc\n",
"import pycuda.autoinit\n",
"device = pycuda.autoinit.device\n",
"max_threads_per_block, _, max_grid_dim = misc.get_dev_attrs(device)\n",
"max_blocks_per_grid = max(max_grid_dim)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"\"\"\"\n",
"CUDA DOESN'T WORK ON THE VIRTUAL MACHINE\n",
"YOU ARE WELCOME TO TRY THIS ON YOU OWN COMPUTER\n",
"\"\"\"\n",
"from functools import partial\n",
"from pycuda.compiler import SourceModule\n",
"\n",
"cuda_src = cuda_src_template.substitute(max_threads_per_block=max_threads_per_block,\n",
" max_blocks_per_grid=max_blocks_per_grid,\n",
" fx=large_f.shape[0], fy=large_f.shape[1],\n",
" gx=g.shape[0], gy=g.shape[1]\n",
" )\n",
"cuda_module = SourceModule(cuda_src, options= [\"-O3\", \"-use_fast_math\", \"-default-stream=per-thread\"])\n",
"print(\"Compilation OK\")\n",
"\n",
"__convolve_cuda = cuda_module.get_function('convolve_cuda')\n",
"\n",
"block_dim, grid_dim = misc.select_block_grid_sizes(device, large_f.shape)\n",
"_convolve_cuda = partial(__convolve_cuda,\n",
" block=block_dim,\n",
" grid=grid_dim)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"\"\"\"\n",
"CUDA DOESN'T WORK ON THE VIRTUAL MACHINE\n",
"YOU ARE WELCOME TO TRY THIS ON YOU OWN COMPUTER\n",
"\"\"\"\n",
"import pycuda.gpuarray as gpuarray\n",
"\n",
"def cuda_setup(f, g):\n",
" f_gpu = gpuarray.to_gpu(f)\n",
" g_gpu = gpuarray.to_gpu(g)\n",
" return f_gpu, g_gpu\n",
"\n",
"def cuda_finish(h_gpu):\n",
" return h_gpu.get()\n",
"\n",
"@instrument(check=i_convolve_cython_pure)\n",
"def convolve_cuda(f, g):\n",
" f_gpu, g_gpu = cuda_setup(f, g)\n",
" h_gpu = gpuarray.zeros_like(f_gpu)\n",
" _convolve_cuda(f_gpu, g_gpu, h_gpu)\n",
" return cuda_finish(h_gpu)\n",
"\n",
"convolve_cuda(large_f, g);"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"\"\"\"\n",
"CUDA DOESN'T WORK ON THE VIRTUAL MACHINE\n",
"YOU ARE WELCOME TO TRY THIS ON YOU OWN COMPUTER\n",
"\"\"\"\n",
"@instrument(check=i_convolve_cython_pure, setup=cuda_setup, finish=cuda_finish)\n",
"def convolve_cuda2(f_gpu, g_gpu):\n",
" h_gpu = gpuarray.zeros_like(f_gpu)\n",
" _convolve_cuda(f_gpu, g_gpu, h_gpu)\n",
" return h_gpu\n",
"\n",
"convolve_cuda2(large_f, g);"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"# Conclusion on optimisation\n",
"(values may be different as before)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Simple operations\n",
"\n",
"context | time | comment\n",
":-------|-------:|:----------\n",
"Python | 1040ms | naive implementation\n",
"Python | 578ms | removing tmparrays\n",
"Python | 4.67ms | using implicit loops\n",
"numexpr | 1.02ms |\n",
"numba | **793us** |\n",
"cython | 2.36ms |\n",
"f2py | 1.28ms |\n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Tough operations\n",
"\n",
"context | time | comment\n",
"--------|--------|-----------\n",
"Python | 58.8ms | naive implementation\n",
"Python | 58.6ms | using local sin\n",
"numexpr | **11.7ms** |\n",
"numba | 14.2ms |\n",
"cython | 15ms |\n",
"f2py | 12ms |"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Convolution\n",
"\n",
"context | time<br>small case | time<br>large case | comment\n",
"--------|------------|------------|--------\n",
"Python | 169ms | | naive implementation\n",
"scipy | 6.19ms | 693ms |\n",
"numba | 2.34ms | 253ms |\n",
"numba | 1.50ms | 103ms | using stencil\n",
"cython | 748us | 81.2ms | using numpy datastructure\n",
"cython | 731us | 64.8ms | using c datastructure\n",
"c | | 57.2ms |\n",
"f2py | **707ms** | 70ms |\n",
"fortran | | 61.9ms |\n",
"cuda | | 42.1ms | including communication\n",
"cuda | | **31.9ms** | excluding communication"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import time\n",
"import numpy as np\n",
"def heavy_fonction(i):\n",
" t = np.random.rand() / 10\n",
" time.sleep(t)\n",
" return i, t\n",
" "
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- asyncio\n",
" - not a real parallelism\n",
" - effective for io-bound tasks (web)\n",
" - not very interesting here"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- joblib\n",
" - real parallelism\n",
" - limited to one computer\n",
" - relatively easy to use\n",
" - multithreading of multiprocessing"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from joblib import Parallel, delayed\n",
"\n",
"if __name__ == \"__main__\":\n",
"\n",
" tic = time.time()\n",
" res = Parallel(n_jobs=-1, backend='threading')(delayed(heavy_fonction)(i) \\\n",
" for i in range(2000))\n",
" tac = time.time()\n",
" index, times = np.asarray(res).T\n",
" print(tac - tic)\n",
" print(times.sum())"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- multithreading\n",
" - real parallelism\n",
" - limited to one computer\n",
" - shared memory"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"from threading import Thread, RLock\n",
"\n",
"N = 2000\n",
"N_t = 10\n",
"current = 0\n",
"nprocs = 8\n",
"output_list = np.empty(N)\n",
"\n",
"lock = RLock()\n",
"\n",
"class ThreadJob(Thread):\n",
" def run(self):\n",
" \"\"\"This code will be executed by each thread\"\"\"\n",
" global current\n",
" \n",
" while current < N:\n",
" \n",
" with lock:\n",
" position = current\n",
" current += N_t\n",
" \n",
" fin = min(position + N_t + 1, N)\n",
" \n",
" for i in range(position, fin):\n",
" j, t = heavy_fonction(i)\n",
" output_list[j] = t\n",
"\n",
"if __name__ == \"__main__\":\n",
"\n",
" # Threads creation\n",
" threads = [ThreadJob() for i in range(nprocs)]\n",
"\n",
" tic = time.time()\n",
" # Threads starts\n",
" for thread in threads:\n",
" thread.start()\n",
"\n",
" # Waiting that all thread have finish\n",
" for thread in threads:\n",
" thread.join()\n",
" tac = time.time()\n",
"\n",
"\n",
" print(tac - tic)\n",
" print(output_list.sum())"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- multiprocessing\n",
" - real parallelism\n",
" - limited to one computer"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import multiprocessing as mp\n",
"from queue import Empty\n",
"\n",
"def process_job(q,r):\n",
" \"\"\"This code will be executed by each process\"\"\"\n",
" while True:\n",
" try:\n",
" i = q.get(block=False)\n",
" r.put(heavy_fonction(i))\n",
" except Empty:\n",
" if q.empty():\n",
" if q.qsize() == 0:\n",
" break\n",
"\n",
"if __name__ == \"__main__\":\n",
"\n",
" # Define an output queue\n",
" r = mp.Queue()\n",
"\n",
" # Define an input queue\n",
" q = mp.Queue()\n",
"\n",
" for i in range(2000):\n",
" q.put(i)\n",
"\n",
" nprocs = 8\n",
" # Setup a list of processes that we want to run\n",
" processes = [mp.Process(target=process_job, args=(q, r)) for i in range(nprocs)]\n",
"\n",
" tic = time.time()\n",
"\n",
" # Run processes\n",
" for p in processes:\n",
" p.start()\n",
"\n",
" # Get process results from the output queue\n",
" results = np.empty(2000)\n",
" for i in range(2000):\n",
" j, t = r.get()\n",
" results[j] = t\n",
"\n",
" tac = time.time()\n",
"\n",
" # Exit the completed processes\n",
" for p in processes:\n",
" p.join()\n",
"\n",
" print(tac - tic)\n",
" print(results.sum())"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"- mpi (mpi4py)\n",
" - real parallelism\n",
" - unlimited\n",
" - relatively complex to use (same as in C, fortran, ...)"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"### Exercise\n",
"The following code read an image in pgm format (ascii) and store it in a 2D list. \n",
"For each pixel of the image a kernel get all neighbors (9 counting the pixel itself) and apply a computation. \n",
"Analyse the performance of the code, identify bottleneck and try to optimize it."
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"You can apply your code on the following images :\n",
"- data/test.pgm\n",
"- data/test32.pgm\n",
"- data/brain_604.ascii.pgm\n",
"- data/apollonian_gasket.ascii.pgm\n",
"- data/dla.ascii.pgm\n",
"\n",
"For reference, the timing on my computer are : \n",
"For data/test.pgm\n",
"\n",
"On my computer :\n",
"```\n",
"Reading Files\n",
"6.67 ms ± 262 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)\n",
"Computing\n",
"503 µs ± 5.41 µs per loop (mean ± std. dev. of 7 runs, 1000 loops each)\n",
"```\n",
"\n",
"My solution\n",
"```\n",
"Reading Files\n",
"65.3 µs ± 1.58 µs per loop (mean ± std. dev. of 7 runs, 10000 loops each)\n",
"Computing\n",
"66.2 µs ± 1.02 µs per loop (mean ± std. dev. of 7 runs, 10000 loops each)\n",
"```\n",
"\n",
"And, the bigger the image, the bigger the gain !"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"<!--REMOVE BUTTON FOR GITHUB\n",
"<button data-toggle=\"collapse\" data-target=\"#hints\">Hints</button>\n",
"<div id=\"hints\" class=\"collapse\">-->\n",
"\n",
"### Hints\n",
" \n",
"Part 1\n",
"- Open input file only once\n",
"- Avoid appending data\n",
"- Use numpy array for data storage\n",
"- What is really doing the compute_wtf function ?\n",
"\n",
"Part 2\n",
"- compile the compute part\n",
"\n",
"Part 3\n",
"- parallelize the work on each image\n"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def get_description(filename):\n",
" \"\"\"\n",
" Read the header part of the file\n",
" \"\"\"\n",
" f = open(filename, 'r')\n",
" nline = 0\n",
" description = {}\n",
" while nline < 3:\n",
" line = f.readline()\n",
" if line[0] == '#':\n",
" continue\n",
" nline += 1\n",
" if nline == 1:\n",
" description['format'] = line.strip()\n",
" elif nline == 2:\n",
" description['dimension'] = int(line.split()[1]), int(line.split()[0])\n",
" elif nline ==3:\n",
" description['deep'] = int(line.strip())\n",
" f.close()\n",
" return description\n"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def get_value(filename, coord):\n",
" \"\"\"\n",
" Get value at coord in an image in the PGM format\n",
" \n",
" The main problem here is that the file have a limited width, and the values are wrapped\n",
" Thus, the value at coord 12,32 might be in the 24,6 in the file\n",
" \"\"\"\n",
" description = get_description(filename)\n",
" xdim, ydim = description['dimension']\n",
" i = coord[0]\n",
" j = coord[1]\n",
" f = open(filename, 'r', encoding='utf-8')\n",
" nline = 0\n",
" while nline < 3:\n",
" line = f.readline()\n",
" if line[0] == '#':\n",
" continue\n",
" nline += 1\n",
" #here we are at coordinate (0,0)\n",
" icur, jcur = 0,0\n",
" test = True\n",
" while(test):\n",
" values = f.readline().split()\n",
" nvalues = len(values)\n",
" if (icur == i):\n",
" if (jcur + nvalues > j):\n",
" jvalues = j - jcur\n",
" value = values[jvalues]\n",
" test=False\n",
" else:\n",
" jcur += nvalues\n",
" else:\n",
" jcur += nvalues\n",
" if (jcur >= ydim):\n",
" icur += jcur // ydim\n",
" jcur = jcur % ydim\n",
" f.close()\n",
" return int(value)\n"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def read_values(filename, description):\n",
" \"\"\"\n",
" Read all the values\n",
" \"\"\"\n",
" values = []\n",
" for i in range(description['dimension'][0]):\n",
" values.append([])\n",
" for j in range(description['dimension'][1]):\n",
" values[i].append(get_value(filename, (i, j)))\n",
"\n",
" return values"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def read_file(filename):\n",
" \"\"\"\n",
" Read an image in the PGM format\n",
" \"\"\"\n",
" # read the header part\n",
" description = get_description(filename)\n",
"\n",
" # read the values\n",
" values = read_values(filename, description)\n",
" return values"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def init(files):\n",
" \"\"\"\n",
" Read all files\n",
" \"\"\"\n",
" data = []\n",
" for file in files:\n",
" data.append(read_file(file))\n",
" \n",
" return data "
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def get_neighbors(tab, i, j):\n",
" \"\"\"\n",
" Extract from the array the neighbors of a pixel\n",
" \"\"\"\n",
" neigh = []\n",
" for jrange in [-1, 0, 1]:\n",
" for irange in [-1, 0, 1]:\n",
" neigh.append(tab[i + irange][j + jrange])\n",
" return neigh"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"import math\n",
"\n",
"def compute_wtf(neigh):\n",
" \"\"\"\n",
" Apply a reduction operation on the array neigh\n",
" \"\"\"\n",
" value = 1.\n",
" for i in range(len(neigh)):\n",
" value *= math.exp(neigh[i]) ** (1 / len(neigh))\n",
" value = math.log(value)\n",
" \n",
" return float(value)"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def kernel(tab):\n",
" \"\"\"\n",
" Apply compute_wtf on each pixel except boundary\n",
" \"\"\"\n",
" xdim = len(tab)\n",
" ydim = len(tab[0])\n",
" \n",
" # create the result list\n",
" result = []\n",
" \n",
" #1st line contains only 0\n",
" result.append([0])\n",
" for jrange in range(1, ydim):\n",
" result[0].append(0)\n",
" \n",
" for irange in range(1, xdim - 1):\n",
" #1st column contains only 0\n",
" result.append([0])\n",
" \n",
" # For each pixel inside the image\n",
" for jrange in range(1, ydim - 1):\n",
" # Extract the neighboring pixels\n",
" neigh = get_neighbors(tab, irange, jrange)\n",
" \n",
" # Apply compute_wtf on it\n",
" res = compute_wtf(neigh)\n",
" \n",
" # Store the result\n",
" result[irange].append(res)\n",
" \n",
" #last colum contains only 0\n",
" result[irange].append(0)\n",
" \n",
" #last line contains only 0\n",
" result.append([])\n",
" for jrange in range(ydim):\n",
" result[xdim - 1].append(0)\n",
" \n",
" return result"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"def job(data):\n",
" \"\"\"\n",
" Apply kernel of each image\n",
" \"\"\"\n",
" results = []\n",
" for image in data:\n",
" results.append(kernel(image))\n",
" return results"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {},
"outputs": [],
"source": [
"%matplotlib notebook \n",
"import matplotlib.pyplot as plt\n",
"\n",
"def plot(data):\n",
" nimages = len(data)\n",
" \n",
" if nimages > 1:\n",
" fig, axes = plt.subplots(nimages, 1)\n",
" for image, ax in zip(data, axes):\n",
" ax.imshow(image)\n",
" else:\n",
" plt.figure()\n",
" plt.imshow(data[0])\n",
" \n",
" plt.show()"
]
},
{
"cell_type": "code",
"execution_count": null,
"metadata": {
"scrolled": false
},
"outputs": [],
"source": [
"files = [\"data/test.pgm\"] #,\n",
" #\"data/test32.pgm\",\n",
" #\"data/brain_604.ascii.pgm\",\n",
" #\"data/apollonian_gasket.ascii.pgm\",\n",
" #\"data/dla.ascii.pgm\",\n",
" #]\n",
" \n",
"if __name__ == \"__main__\":\n",
" print(\"Reading Files\")\n",
" data = init(files)\n",
" %timeit init(files)\n",
"\n",
" print(\"Computing\")\n",
" result = job(data)\n",
" %timeit job(data)\n",
"\n",
" plot(data)\n",
" plot(result)\n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"<!--REMOVE BUTTON FOR GITHUB\n",
"<button data-toggle=\"collapse\" data-target=\"#optimfull\">Solution</button>\n",
"<div id=\"optimfull\" class=\"collapse\">-->\n",
"\n",
"### Solution\n",
"\n",
"#### Cell 1:\n",
"```\n",
"%load_ext Cython\n",
"%set_env CFLAGS=\"-Ofast -march=native -fvect-cost-model=cheap -fopenmp -Wno-unused-variable -Wno-cpp -Wno-maybe-uninitialized\"\n",
"```\n",
"\n",
"#### Cell 2:\n",
"```cython\n",
"%%cython --link-args=-fopenmp\n",
"# cython: language_level=3\n",
"# cython: initializedcheck=False\n",
"# cython: binding=True\n",
"# cython: nonecheck=False\n",
"# cython: boundscheck=False\n",
"# cython: wraparound=False\n",
"# distutils: extra_link_args = -fopenmp\n",
"\n",
"import numpy as np\n",
"cimport numpy as np\n",
"cimport cython\n",
"from cython.parallel cimport parallel, prange\n",
"\n",
"def ckernel(const double[:,::1] &data, const long nt):\n",
" cdef long n = data.shape[0]\n",
" cdef long m = data.shape[1]\n",
" \n",
" cdef double[:,::1] res = np.zeros([n, m], dtype=np.double)\n",
"\n",
" cdef double value\n",
" cdef long i, j, s, t\n",
"\n",
" with nogil, parallel(num_threads=nt):\n",
" for i in prange(1, n - 1):\n",
" for j in range(1, m - 1):\n",
" value = 0\n",
" for s in range(-1, 2):\n",
" for t in range(-1, 2):\n",
" value += data[i + s, j + t]\n",
" res[i, j] += value / 9\n",
" return np.asarray(res)\n",
"```\n",
"\n",
"#### Cell 3 :\n",
"```python\n",
"%matplotlib notebook \n",
"\n",
"import numpy as np\n",
"import matplotlib.pyplot as plt\n",
"from threading import Thread, RLock\n",
"from copy import deepcopy\n",
"import os\n",
"\n",
"nprocs = os.cpu_count()\n",
"\n",
"result = []\n",
"data = []\n",
"\n",
"current = 0\n",
"\n",
"verrou = RLock()\n",
"\n",
"class ThreadJob(Thread):\n",
" def run(self):\n",
" global current, verrou\n",
" \"\"\"Code à exécuter pendant l'exécution du thread.\"\"\"\n",
" while current < len(data):\n",
" \n",
" with verrou:\n",
" position = current\n",
" current += 1\n",
" \n",
" kernel(position)\n",
"\n",
"def get_description(file):\n",
" \"\"\"\n",
" Read the header part of the file\n",
" \n",
" if file is an opened file:\n",
" go back the the begining of the file\n",
" read the header\n",
" leave the file at the end of header (start of values)\n",
" else:\n",
" call itself with the file openened\n",
" (this should be never called)\n",
" \"\"\"\n",
" if isinstance(file, str):\n",
" with open(file,'r', encoding=\"utf-8\") as opened_file:\n",
" return get_description(opened_file)\n",
"\n",
" # return to begining\n",
" file.seek(0)\n",
" nline = 0\n",
" description = {}\n",
" while nline < 3:\n",
" line = file.readline()\n",
" if line[0] == '#':\n",
" continue\n",
" nline += 1\n",
" if nline == 1:\n",
" description['format']=line.strip()\n",
" elif nline == 2:\n",
" description['dimension']=int(line.split()[1]), int(line.split()[0])\n",
" elif nline == 3:\n",
" description['deep']=int(line.strip())\n",
" return description\n",
" \n",
"def read_values(file, description):\n",
" \"\"\"\n",
" Read all the values directly\n",
" The file must be already opened\n",
" The values are stored in a numpy array\n",
" \"\"\"\n",
" # pre-allocate the array\n",
" nx, ny = description['dimension']\n",
" values = np.empty((nx * ny))\n",
" \n",
" i = 0\n",
" for line in file:\n",
" if line[0] == '#':\n",
" continue\n",
" vals = line.split()\n",
" nvals = len(vals)\n",
" values[i:i + nvals] = vals\n",
" i += nvals\n",
" return values.reshape((nx, ny))\n",
"\n",
"def read_file(filename):\n",
" \"\"\"\n",
" Read an image in the PGM format\n",
" \n",
" Open the file *once*\n",
" \"\"\"\n",
" # open the file once\n",
" with open(filename, 'r', encoding=\"utf-8\") as file:\n",
"\n",
" # read the header part\n",
" description = get_description(file)\n",
"\n",
" # read the values\n",
" values = read_values(file, description)\n",
" return values\n",
"\n",
"def kernel(i):\n",
" \"\"\"\n",
" Apply compute_wtf on each pixel except boundary\n",
" \"\"\"\n",
" global data, result, nt_omp, nt_job\n",
" if data[i].size < 1000:\n",
" result[i] = ckernel(data[i], 1)\n",
" else:\n",
" result[i] = ckernel(data[i], nt_job)\n",
"\n",
"def job(data):\n",
" \"\"\"\n",
" Apply kernel of each image\n",
" \"\"\"\n",
" global current, nt_job\n",
" \n",
" current = 0\n",
" # Création des threads\n",
" threads = [ThreadJob() for i in range(nt_job)]\n",
"\n",
" # Lancement des threads\n",
" for thread in threads:\n",
" thread.start()\n",
"\n",
" # Attend que les threads se terminent\n",
" for thread in threads:\n",
" thread.join()\n",
"\n",
"def init(files):\n",
" \"\"\"\n",
" Read all files\n",
" \"\"\"\n",
" data = []\n",
" for file in files:\n",
" data.append(read_file(file))\n",
" \n",
" return data\n",
"\n",
"def plot(data):\n",
" nimages = len(data)\n",
" if nimages > 1:\n",
" fig, axes = plt.subplots(nimages, 1)\n",
" for image, ax in zip(data, axes):\n",
" ax.imshow(image)\n",
" else:\n",
" plt.figure()\n",
" plt.imshow(data[0])\n",
" \n",
" plt.show()\n",
" \n",
"\n",
"files = [\"data/test.pgm\"] #,\n",
" #\"data/test32.pgm\",\n",
" #\"data/brain_604.ascii.pgm\",\n",
" #\"data/apollonian_gasket.ascii.pgm\",\n",
" #\"data/dla.ascii.pgm\",\n",
" #]\n",
"\n",
"nt_job = min(nprocs // 2, len(files))\n",
"nt_omp = nprocs - nt_job\n",
"\n",
"if __name__ == \"__main__\":\n",
" \n",
" print(\"Reading Files\")\n",
" data = init(files)\n",
" %timeit init(files)\n",
" \n",
" print(\"Computing\")\n",
" #sort data: biggest images first for better equilibrium in parallel\n",
" data = sorted(data, key=np.size, reverse=True)\n",
"\n",
" #prepare result array\n",
" result = deepcopy(data)\n",
"\n",
" job(data)\n",
" %timeit job(data)\n",
" \n",
" plot(data)\n",
" plot(result)\n",
"```"
]
}
],
"metadata": {
"kernelspec": {
"display_name": "Python 3",
"language": "python",
"name": "python3"
},
"language_info": {
"codemirror_mode": {
"name": "ipython",
"version": 3
},
"file_extension": ".py",
"mimetype": "text/x-python",
"name": "python",
"nbconvert_exporter": "python",
"pygments_lexer": "ipython3",
"version": "3.5.2"
}
},
"nbformat": 4,
"nbformat_minor": 1
}
