# SAIL: Sparse Autoencoders for Interpretable Medical Image Representation Learning The **SAIL** repository provides a pipeline to train Matryoshka SAEs on BiomedParse (1536-dim) and DINOv3 (1024-dim) embeddings from the TotalSegmentator CT/MRI dataset, evaluate sparse features along two axes (monosemanticity and downstream utility), and run three interpretability demonstrations: sparse fingerprint retrieval, VLM-based feature autointerpretation, and zero-shot language-driven image retrieval. ([MICCAI 2026 Paper](https://papers.miccai.org/miccai-2026/paper/4497_paper.pdf)) --- ## 🔬 Background Vision foundation models (FMs) achieve state-of-the-art performance in medical imaging, but encode information in abstract latent representations that clinicians cannot interrogate or verify. **SAIL** extracts sparse, monosemantic features from self-supervised FM embeddings using Sparse Autoencoders (SAEs), replacing opaque image representations with *human-interpretable concepts*.

SAIL overview figure

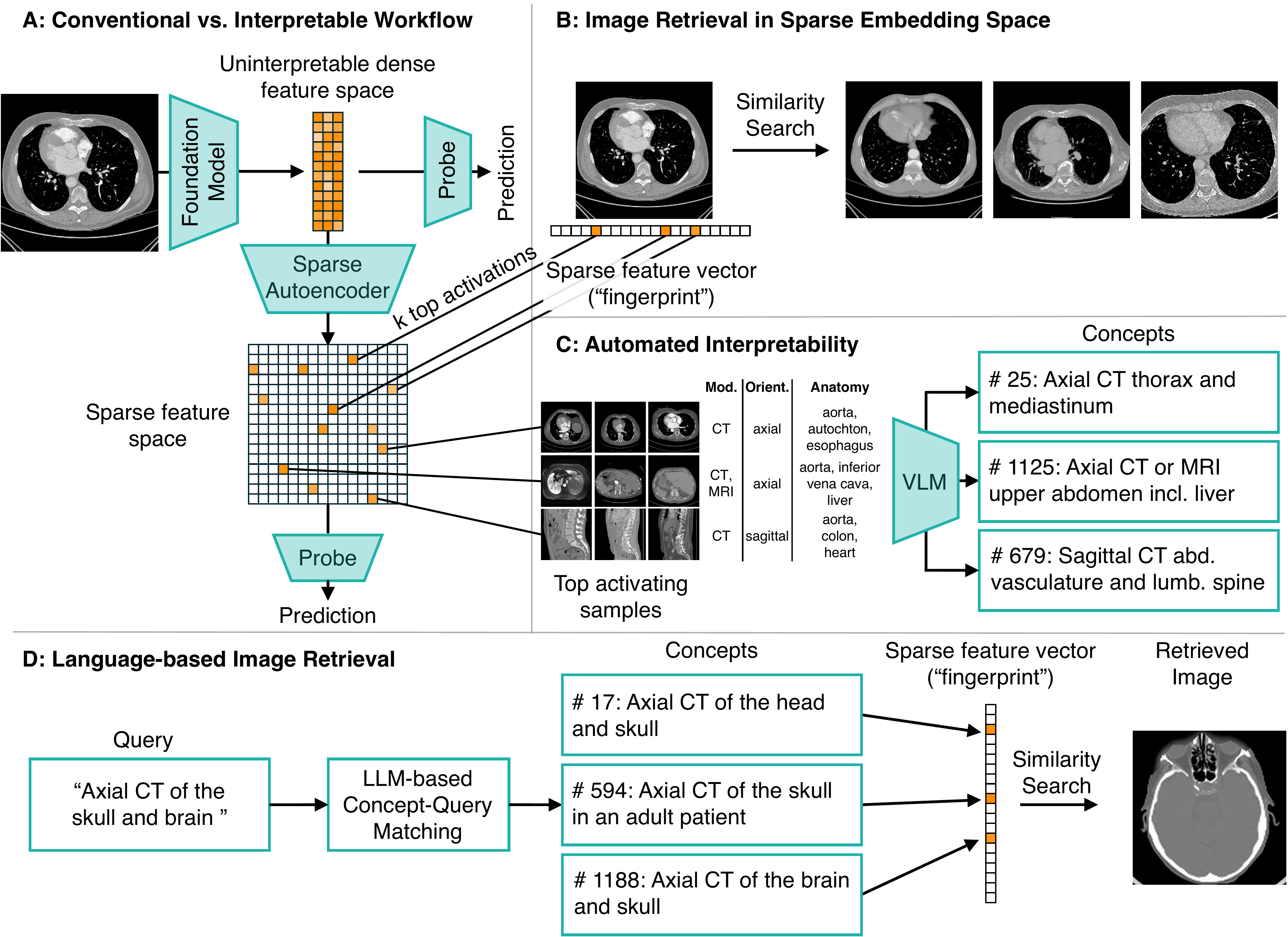

**Fig. 1.** (A) A Sparse Autoencoder replaces opaque dense FM embeddings with a sparse feature space. (B) Sparse fingerprint retrieval matches images by cosine similarity over *k* top-activated features. (C) A VLM generates a concept description for each feature from its top-activating images and metadata. (D) An LLM maps a clinical text query to matching feature concepts for zero-shot image retrieval. --- ## ⚙️ Installation Two separate python environments are required. We use conda to manage dependencies. ### SAIL environment (Python 3.12), main environment ```bash conda create -n sail python=3.12 conda activate sail pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu130 pip install -r requirements_sail.txt ``` ### BiomedParse environment (Python 3.10), embedding extraction only BiomedParse requirements are more complex and are based on older versions of Python, so we use a separate environment. ```bash conda create -n biomedparse python=3.10 conda activate biomedparse pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu130 pip install --no-build-isolation git+https://github.com/MaureenZOU/detectron2-xyz.git # Clone BiomedParse into BiomedParse/ and comment out detectron2-xyz in its requirements git clone https://github.com/microsoft/BiomedParse.git # Edit BiomedParse/assets/requirements/requirements.txt to comment out detectron2-xyz pip install -r BiomedParse/assets/requirements/requirements.txt pip install -r requirements_biomedparse.txt ``` --- ## 📂 Data Download the [TotalSegmentator dataset](https://github.com/wasserth/TotalSegmentator) (CT v2.0.1 and MRI v2.0.0) and place it under `TotalSegmentator/`: ``` TotalSegmentator/ ├── CT_Dataset_v201/ │ ├── meta.csv │ └── s0000/ ... └── MRI_Dataset_v200/ ├── meta.csv └── s0001/ ... ``` All processed data and embeddings will be written to `data/` (created automatically). --- ## ⬇️ Pretrained Weights To skip SAE training, download the pretrained weights from [Hugging Face](https://huggingface.co/pwesp/sail) for the two models analyzed in the paper: ```bash bash pretrained/download_weights.sh ``` This places checkpoints into `lightning_logs/` with the `hparams.yaml` files needed by Step 5, so `compute_sparse_feature_activations.py` discovers them automatically. Only the two optimal configurations analyzed in the paper are provided. --- ## 🚀 Pipeline Run the following steps (1-12) in order to reproduce our results from the paper. All scripts are to be run from the repository root. Unless noted, use the `sail` environment: ```bash conda activate sail ``` --- ### Phase 1: Data Preparation Raw TotalSegmentator CT and MRI scans are converted to 2D slices, passed through two foundation models to extract embeddings, and partitioned into reproducible train/val/test splits. These outputs are the inputs to all subsequent phases. #### Process TotalSegmentator dataset (Step 1) Extracts 2D axial, coronal, and sagittal slices from the CT and MRI volumes and writes them as PNG images with accompanying metadata. ```bash python scripts/process_total_segmentator_ct_dataset.py python scripts/process_total_segmentator_mri_dataset.py ``` Outputs to `data/total_seg_ct/` and `data/total_seg_mri/`. #### Extract foundation model embeddings (Step 2) Runs each slice through BiomedParse and DINOv3 and saves the resulting embedding vectors as Parquet files. A randomly initialized BiomedParse model is included as a baseline. ```bash # BiomedParse (requires biomedparse environment) conda activate biomedparse python scripts/encode_totalseg_embeddings.py --model biomedparse python scripts/encode_totalseg_embeddings.py --model biomedparse_random # DINOv3 (sail environment) conda activate sail python scripts/encode_totalseg_embeddings.py --model dinov3 ``` Outputs to `data/total_seg_{biomedparse,biomedparse_random,dinov3}_encodings/`. #### Create train/val/test splits (Step 3) Partitions the dataset into train, validation, and test sets and writes a split index that is shared across all three embedding datasets, ensuring identical assignments. ```bash python scripts/create_datasplit_for_totalseg.py --model biomedparse python scripts/create_datasplit_for_totalseg.py --model biomedparse_random python scripts/create_datasplit_for_totalseg.py --model dinov3 ``` The test set holds out institutions A, D, and E entirely. This institution-based split is stricter than a random split: scans from the same institution share acquisition protocols, scanner characteristics, and patient demographics, so a random split would risk the model exploiting these patterns rather than learning generalizable features. The remaining scans are split 80/20, stratified by modality, sex, and age group. The first run writes the split index to `data/totalseg_split_index.csv`. Subsequent runs for other models load this index directly. --- ### Phase 2: SAE Training Matryoshka Sparse Autoencoders are trained on the frozen foundation model embeddings. A grid search over dictionary sizes and sparsity levels produces a family of SAE configurations for each model, from which the best-performing configurations are selected in Phase 3. #### Train Matryoshka SAE (Step 4) Runs a grid search over dictionary sizes `[128, 512, 2048, 8192]` and sparsity levels for BiomedParse and DINOv3 embeddings. Checkpoints and hyperparameters are saved to `lightning_logs/`. ```bash python scripts/train_matryoshka_sae.py ``` > To skip training, download pretrained weights for the two configurations analyzed in the paper (see [Pretrained Weights](#pretrained-weights)). #### Compute sparse feature activations (Step 5) Runs inference with all trained SAE checkpoints to produce sparse feature activation vectors for each slice in the train, val, and test sets. ```bash python scripts/compute_sparse_feature_activations.py ``` Outputs to `results/total_seg_sparse_features/`. --- ### Phase 3: SAE Evaluation SAE configurations are evaluated along two complementary axes: monosemanticity (do features encode single, coherent concepts?) and downstream utility (how much of the dense model's classification performance can sparse features recover?). The final step synthesizes both axes into a ranking that identifies the optimal configuration per foundation model. #### Train linear probes (Step 6) Fits logistic regression classifiers on both dense embeddings and sparse features for five classification tasks: imaging modality, slice orientation, patient sex, age group, and anatomical structure presence. These results feed into the performance recovery evaluation. ```bash python scripts/train_linear_probes.py ``` Results saved to `results/linear_probes/`. #### Evaluate monosemanticity (Step 7) Scores every feature in every SAE configuration on two axes: semantic coherence (do the top-activating images share the same concepts?) and specificity (how narrow is the encoded concept?). The product of both scores gives a per-feature monosemanticity score, which is aggregated to configuration level. ```bash python scripts/evaluate_monosemanticity.py ``` Outputs to `results/monosemanticity/`. #### Evaluate performance recovery (Step 8) Measures how downstream classification performance scales with the number of sparse features used, from a single feature up to the full dictionary. This quantifies how efficiently sparse features capture task-relevant information compared to the dense baseline. ```bash python scripts/evaluate_performance_recovery.py ``` Outputs to `results/performance_recovery/`. #### Rank SAE configurations (Step 9) Combines the monosemanticity and performance recovery scores into a single ranking per foundation model. This produces Table 1 in the paper and identifies the optimal configuration used in all Phase 4 analyses. ```bash python scripts/evaluate_sae_configs.py ``` Outputs to `results/config_ranking.csv`. --- ### Phase 4: Feature Interpretability Analysis Using the optimal SAE configuration from Phase 3, three interpretability analyses are run. Together they show that sparse features can serve as a bridge between raw medical images and human-understandable concepts: they support image retrieval, can be described in natural language, and enable zero-shot language-to-image search. #### Fingerprint-based image retrieval (Step 10) Represents each image as a sparse fingerprint (top-K activated features and their values) over the SAE dictionary and evaluates retrieval quality by comparing fingerprint similarity against dense embedding similarity. ```bash python scripts/evaluate_fingerprint_retrieval.py ``` Outputs to `results/fingerprint_retrieval/`. #### Feature autointerpretation (Step 11) Sends the top-activating images for each feature to a vision-language model, which generates a natural language description of what the feature detects. Features are ranked by combined monosemanticity and task importance before VLM calls begin, so the most interpretable features are described first. ```bash # Requires a HuggingFace token with access to google/medgemma-27b-it # Accept the license at https://huggingface.co/google/medgemma-27b-it export HF_TOKEN=your_huggingface_token_here python scripts/evaluate_autointerp.py ``` Outputs to `results/auto_interpretation/`. #### Language-based image retrieval (Step 12) Matches natural language clinical queries to sparse features using the descriptions from Step 11, then retrieves images by composing the matched features. Demonstrates zero-shot language-to-image retrieval without any retrieval-specific training. ```bash python scripts/evaluate_language_retrieval.py ``` Requires autointerp outputs from Step 11. Also requires `HF_TOKEN` when `RUN_MATCHING=True` (first run). Outputs to `results/language_retrieval/`. --- ### Phase 5: Generate Figures Reproduces the main manuscript figures from the precomputed results of Phases 3 and 4. ```bash python scripts/plot_sae_quality_and_perf_rec.py python scripts/plot_fingerprint_retrieval.py ``` Figures are saved to `results/`. --- ## 🗂️ Repository Structure ``` sail/ ├── TotalSegmentator/ ← download separately (see Data section), gitignored │ ├── CT_Dataset_v201/ │ └── MRI_Dataset_v200/ ├── data/ ← generated by scripts, gitignored │ ├── total_seg_ct/ │ ├── total_seg_mri/ │ ├── total_seg_biomedparse_encodings/ │ ├── total_seg_biomedparse_random_encodings/ │ ├── total_seg_dinov3_encodings/ │ └── totalseg_split_index.csv ├── lightning_logs/ ← generated by training, gitignored ├── pretrained/ ← run download_weights.sh to populate, or train from scratch │ └── download_weights.sh ├── results/ ← generated by evaluation scripts (most of our results are provided) │ ├── auto_interpretation/ │ ├── fingerprint_retrieval/ │ ├── language_retrieval/ │ ├── linear_probes/ │ ├── monosemanticity/ │ ├── performance_recovery/ │ └── *.pdf / *.csv ← figures and summary tables ├── scripts/ ← main pipeline scripts │ ├── ... ├── src/ ← utility scripts │ ├── ... ├── requirements_sail.txt └── requirements_biomedparse.txt ``` --- ## 📚 References - **TotalSegmentator CT**: Wasserthal et al. (2023). Robust segmentation of 104 anatomic structures in CT images. *Radiology: Artificial Intelligence* 5(5), e230024. [DOI](https://doi.org/10.1148/ryai.230024) - **TotalSegmentator MRI**: Akinci D'Antonoli et al. (2025). Robust sequence-independent segmentation of multiple anatomic structures in MRI. *Radiology* 314(2), e241613. [DOI](https://doi.org/10.1148/radiol.241613) - **BiomedParse**: Zhao et al. (2025). A biomedical foundation model for image parsing of everything everywhere all at once. *Nature Methods* 22(1), 166–176. [DOI](https://doi.org/10.1038/s41592-024-02499-w) - **DINOv3**: Siméoni et al. (2025). DINOv3. [arXiv:2508.10104](https://arxiv.org/abs/2508.10104) - **BatchTopK SAEs**: Bussmann et al. (2024). Flexible per-sample sparsity for sparse autoencoders. [arXiv:2412.06410](https://arxiv.org/abs/2412.06410) - **Matryoshka SAEs**: Bussmann et al. (2025). Hierarchical nested dictionaries for multi-level feature learning. [arXiv:2503.17547](https://arxiv.org/abs/2503.17547) --- ## 📝 Citation If you find this work useful, please cite our paper: ```bibtex @misc{sail2026, title = {Sparse Autoencoders for Interpretable Medical Image Representation Learning}, author = {Wesp, Philipp and Holland, Robbie and Sideri-Lampretsa, Vasiliki and Gatidis, Sergios}, year = 2026, journal = {arXiv.org}, howpublished = {https://arxiv.org/abs/2603.23794v1} } ```
