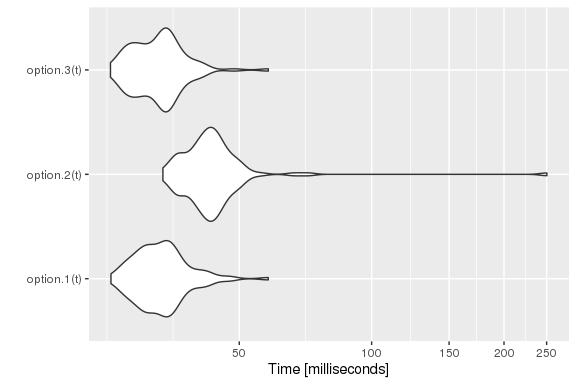

--- title: "Continuous-Time Markov Chains" author: "IƱaki Ucar" description: > Learn how to implement general continuous-time Markov chain models with simmer. date: "`r Sys.Date()`" output: rmarkdown::html_vignette: toc: yes vignette: > %\VignetteIndexEntry{07. Continuous-Time Markov Chains} %\VignetteEngine{knitr::rmarkdown} %\VignetteEncoding{UTF-8} --- ```{r, cache = FALSE, include=FALSE} knitr::opts_chunk$set(collapse = T, comment = "#>", fig.width = 6, fig.height = 4, fig.align = "center") required <- c("simmer.plot") if (!all(sapply(required, requireNamespace, quietly = TRUE))) knitr::opts_chunk$set(eval = FALSE) ``` ```{r, message=FALSE} library(simmer) library(simmer.plot) set.seed(1234) ``` ## Example 1 A gas station has a single pump and no space for vehicles to wait (if a vehicle arrives and the pump is not available, it leaves). Vehicles arrive to the gas station following a Poisson process with a rate of $\lambda=3/20$ vehicles per minute, of which 75% are cars and 25% are motorcycles. The refuelling time can be modelled with an exponential random variable with mean 8 minutes for cars and 3 minutes for motorcycles, that is, the services rates are $\mu_\mathrm{c}=1/8$ cars and $\mu_\mathrm{m}=1/3$ motorcycles per minute respectively. This problem is described by the following continuous-time Markov chain: $$\xymatrix{ *=<15mm,8mm>[o][F]{car} \ar@/^/[r]^{\mu_\mathrm{c}} & *=<15mm,8mm>[o][F]{empty} \ar@/^/[l]^{p\lambda} \ar@/^/[r]^{(1-p)\lambda} & *=<15mm,8mm>[o][F]{m/cycle} \ar@/^/[l]^{\mu_\mathrm{m}} }\qquad\qquad Q = \begin{pmatrix} -\mu_\mathrm{c} & \mu_\mathrm{c} & 0 \\ p\lambda & -\lambda & (1-p) \lambda \\ 0 & \mu_\mathrm{m} & -\mu_\mathrm{m} \end{pmatrix}$$ with $p=0.75$. The chain is irreducible and recurrent. To theoretically find the steady state distribution, we have to solve the balance equations $$pQ = 0$$ with the constraint $$\sum_i p_i = 1$$ There are $\operatorname{dim}(Q)-1$ independent columns, so the latter constraint is equivalent to substitute any column by ones and match it to one at the other side of the equation, that is: $$p\cdot\begin{pmatrix} 1 & 1/8 & 0 \\ 1 & -3/20 & 0.25\cdot 3/20 \\ 1 & 1/3 & -1/3 \end{pmatrix} = (1, 0, 0)$$ The solution $p$ represents the probability of being at each state in the long-term. Therefore, we can calculate the average number of vehicles in the system by summing these probabilities multiplied by the number of vehicles at each state. In our case, $$N = 1\cdot p_1 + 0\cdot p_2 + 1\cdot p_3$$ ```{r} # Arrival rate lambda <- 3/20 # Service rate (cars, motorcycles) mu <- c(1/8, 1/3) # Probability of car p <- 0.75 # Theoretical resolution A <- matrix(c(1, mu[1], 0, 1, -lambda, (1-p)*lambda, 1, mu[2], -mu[2]), byrow=T, ncol=3) B <- c(1, 0, 0) P <- solve(t(A), B) N_average_theor <- sum(P * c(1, 0, 1)) ; N_average_theor ``` Now, we are going to simulate the system with `simmer` and verify that it converges to the theoretical solution. There are various options for selecting the model. As a first approach, due to the properties of Poisson processes, we can break down the problem into two trajectories (one for each type of vehicle), which differ in their service time only, and therefore two generators with rates $\lambda_\mathrm{c} = p\lambda$ and $\lambda_\mathrm{m} = (1-p)\lambda$. ```{r} option.1 <- function(t) { car <- trajectory() %>% seize("pump", amount=1) %>% timeout(function() rexp(1, mu[1])) %>% release("pump", amount=1) mcycle <- trajectory() %>% seize("pump", amount=1) %>% timeout(function() rexp(1, mu[2])) %>% release("pump", amount=1) simmer() %>% add_resource("pump", capacity=1, queue_size=0) %>% add_generator("car", car, function() rexp(1, p*lambda)) %>% add_generator("mcycle", mcycle, function() rexp(1, (1-p)*lambda)) %>% run(until=t) } ``` Other arrival processes may not have this property, so we would define a single generator for all kind of vehicles and a single trajectory as follows. In order to distinguish between cars and motorcycles, we could define a branch after seizing the resource to select the proper service time. ```{r} option.2 <- function(t) { vehicle <- trajectory() %>% seize("pump", amount=1) %>% branch(function() sample(c(1, 2), 1, prob=c(p, 1-p)), c(T, T), trajectory("car") %>% timeout(function() rexp(1, mu[1])), trajectory("mcycle") %>% timeout(function() rexp(1, mu[2]))) %>% release("pump", amount=1) simmer() %>% add_resource("pump", capacity=1, queue_size=0) %>% add_generator("vehicle", vehicle, function() rexp(1, lambda)) %>% run(until=t) } ``` But this option adds an unnecessary overhead since there is an additional call to an R function to select the branch, and therefore performance decreases. A much better option is to select the service time directly inside the `timeout` function. ```{r} option.3 <- function(t) { vehicle <- trajectory() %>% seize("pump", amount=1) %>% timeout(function() { if (runif(1) < p) rexp(1, mu[1]) # car else rexp(1, mu[2]) # mcycle }) %>% release("pump", amount=1) simmer() %>% add_resource("pump", capacity=1, queue_size=0) %>% add_generator("vehicle", vehicle, function() rexp(1, lambda)) %>% run(until=t) } ``` This `option.3` is equivalent to `option.1` in terms of performance. But, of course, the three of them lead us to the same result. For instance, ```{r} gas.station <- option.3(5000) # Evolution + theoretical value plot(get_mon_resources(gas.station), "usage", "pump", items="system") + geom_hline(yintercept=N_average_theor) ``` And these are some performance results: ```{r, eval=FALSE} library(microbenchmark) t <- 1000/lambda tm <- microbenchmark(option.1(t), option.2(t), option.3(t)) autoplot(tm) + scale_y_log10(breaks=function(limits) pretty(limits, 5)) + ylab("Time [milliseconds]") ```
![](includes/ctmc-1.png)

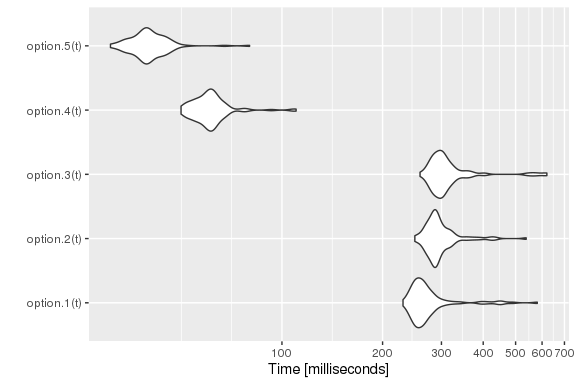

## Example 2 Let us complicate things a bit. Consider the previous example, but, this time, there is space for one motorcycle to wait while the pump is being used by another vehicle. In other words, cars see a queue size of 0 and motorcycles see a queue size of 1. The new Markov chain is the following: $$\vcenter{\xymatrix{ *=<15mm,8mm>[o][F]{car+} \ar@(r,u)[drr]^{\mu_\mathrm{c}} \\ *=<15mm,8mm>[o][F]{car} \ar@/_/[r]_{\mu_\mathrm{c}} \ar@/^/[u]^{(1-p)\lambda} & *=<15mm,8mm>[o][F]{empty} \ar@/_/[l]_{p\lambda} \ar@/^/[r]^{(1-p)\lambda} & *=<15mm,8mm>[o][F]{m/cycle} \ar@/^/[l]^{\mu_\mathrm{m}} \ar@/_/[d]_{(1-p)\lambda} \\ & & *=<15mm,8mm>[o][F]{m/c+} \ar@/_/[u]_{\mu_\mathrm{m}} }}$$ $$Q = \begin{pmatrix} -\mu_\mathrm{c} & 0 & 0 & \mu_\mathrm{c} & 0 \\ (1-p)\lambda & -(1-p)\lambda-\mu_\mathrm{c} & \mu_\mathrm{c} & 0 & 0 \\ 0 & p\lambda & -\lambda & (1-p)\lambda & 0 \\ 0 & 0 & \mu_\mathrm{m} & -(1-p)\lambda-\mu_\mathrm{m} & (1-p)\lambda \\ 0 & 0 & 0 & \mu_\mathrm{m} & -\mu_\mathrm{m} \\ \end{pmatrix}$$ where the states _car+_ and _m/c+_ represent _car + waiting motorcycle_ and _motorcycle + waiting motorcycle_ respectively. With $p$ the steady state distribution, the average number of vehicles in the system is given by $$N = 2(p_1 + p_5) + p_2 + p_4$$ ```{r} # Theoretical resolution A <- matrix(c(1, 0, 0, mu[1], 0, 1, -(1-p)*lambda-mu[1], mu[1], 0, 0, 1, p*lambda, -lambda, (1-p)*lambda, 0, 1, 0, mu[2], -(1-p)*lambda-mu[2], (1-p)*lambda, 1, 0, 0, mu[2], -mu[2]), byrow=T, ncol=5) B <- c(1, 0, 0, 0, 0) P <- solve(t(A), B) N_average_theor <- sum(P * c(2, 1, 0, 1, 2)) ; N_average_theor ``` As in the first example, we can simulate this chain by breaking down the problem into two trajectories (one for each type of vehicle and service rate) and two generators. But in order to disallow cars to stay in the pump's queue, we need to introduce a little trick in the cars' `seize`: the argument `amount` is a function that returns 1 if the pump is vacant and 2 otherwise. This implies that the car gets rejected, because there is only one position in queue and that `seize` is requesting two positions. Note also that the environment `env` must be defined __before__ running, as it is needed inside the trajectory. ```{r} option.1 <- function(t) { car <- trajectory() %>% seize("pump", amount=function() { if (env %>% get_server_count("pump")) 2 # rejection else 1 # serve }) %>% timeout(function() rexp(1, mu[1])) %>% release("pump", amount=1) mcycle <- trajectory() %>% seize("pump", amount=1) %>% timeout(function() rexp(1, mu[2])) %>% release("pump", amount=1) env <- simmer() %>% add_resource("pump", capacity=1, queue_size=1) %>% add_generator("car", car, function() rexp(1, p*lambda)) %>% add_generator("mcycle", mcycle, function() rexp(1, (1-p)*lambda)) env %>% run(until=t) } ``` The same idea using a branch, with a single generator and a single trajectory. ```{r} option.2 <- function(t) { vehicle <- trajectory() %>% branch(function() sample(c(1, 2), 1, prob=c(p, 1-p)), c(F, F), trajectory("car") %>% seize("pump", amount=function() { if (env %>% get_server_count("pump")) 2 # rejection else 1 # serve }) %>% timeout(function() rexp(1, mu[1])) %>% release("pump", amount=1), # always 1 trajectory("mcycle") %>% seize("pump", amount=1) %>% timeout(function() rexp(1, mu[2])) %>% release("pump", amount=1)) env <- simmer() %>% add_resource("pump", capacity=1, queue_size=1) %>% add_generator("vehicle", vehicle, function() rexp(1, lambda)) env %>% run(until=t) } ``` We may also avoid messing up things with branches and subtrajectories. We can decide the type of vehicle and set it as an attribute of the arrival with `set_attribute()`. Then, those attributes can be retrieved using `get_attribute()`. Although the branch option is a little bit faster, this one is nicer, because there are no subtrajectories involved. ```{r} option.3 <- function(t) { vehicle <- trajectory("car") %>% set_attribute("vehicle", function() sample(c(1, 2), 1, prob=c(p, 1-p))) %>% seize("pump", amount=function() { if (get_attribute(env, "vehicle") == 1 && env %>% get_server_count("pump")) 2 # car rejection else 1 # serve }) %>% timeout(function() rexp(1, mu[get_attribute(env, "vehicle")])) %>% release("pump", amount=1) # always 1 env <- simmer() %>% add_resource("pump", capacity=1, queue_size=1) %>% add_generator("vehicle", vehicle, function() rexp(1, lambda)) env %>% run(until=t) } ``` But if performance is a requirement, we can play cleverly with the resource capacity and the queue size, and with the amounts requested in each `seize`, in order to model the problem without checking the status of the resource. Think about this: * A resource with `capacity=3` and `queue_size=2`. * A car always tries to seize `amount=3`. * A motorcycle always tries to seize `amount=2`. In these conditions, we have the following possibilities: * Pump empty. * One car (3 units) in the server [and optionally one motorcycle (2 units) in the queue]. * One motorcycle (2 units) in the server [and optionally one motorcycle (2 units) in the queue]. Just as expected! So, let's try: ```{r} option.4 <- function(t) { vehicle <- trajectory() %>% branch(function() sample(c(1, 2), 1, prob=c(p, 1-p)), c(F, F), trajectory("car") %>% seize("pump", amount=3) %>% timeout(function() rexp(1, mu[1])) %>% release("pump", amount=3), trajectory("mcycle") %>% seize("pump", amount=2) %>% timeout(function() rexp(1, mu[2])) %>% release("pump", amount=2)) simmer() %>% add_resource("pump", capacity=3, queue_size=2) %>% add_generator("vehicle", vehicle, function() rexp(1, lambda)) %>% run(until=t) } ``` We are still wasting time in the `branch` decision. We can mix this solution above with the `option.1` to gain extra performance: ```{r} option.5 <- function(t) { car <- trajectory() %>% seize("pump", amount=3) %>% timeout(function() rexp(1, mu[1])) %>% release("pump", amount=3) mcycle <- trajectory() %>% seize("pump", amount=2) %>% timeout(function() rexp(1, mu[2])) %>% release("pump", amount=2) simmer() %>% add_resource("pump", capacity=3, queue_size=2) %>% add_generator("car", car, function() rexp(1, p*lambda)) %>% add_generator("mcycle", mcycle, function() rexp(1, (1-p)*lambda)) %>% run(until=t) } ``` Options 1, 2 and 3 are slower, but they give us the correct numbers, because the parameters (capacity, queue size, amounts) in the model remain unchanged compared to the problem. For instance, ```{r} gas.station <- option.1(5000) # Evolution + theoretical value plot(get_mon_resources(gas.station), "usage", "pump", items="system") + geom_hline(yintercept=N_average_theor) ``` However, it is not the case in options 4 and 5. The parameters of these models are _adulterated_ to fit our performance purposes. Therefore, we need to extract the RAW data, rescale the numbers and plot them. And, of course, we get the same figure: ```{r} gas.station <- option.5(5000) get_mon_resources(gas.station) %>% transform(system = round(system * 2/5)) %>% # rescaling transform(avg = c(0, cumsum(head(system, -1) * diff(time))) / time) %>% ggplot(aes(time, avg)) + geom_line(color="red") + expand_limits(y=0) + labs(title="Resource usage: pump", x="time", y="in use") + geom_hline(yintercept=2, lty=2, color="red") + geom_hline(yintercept=N_average_theor) ``` Finally, these are some performance results: ```{r, eval=FALSE} library(microbenchmark) t <- 1000/lambda tm <- microbenchmark(option.1(t), option.2(t), option.3(t), option.4(t), option.5(t)) autoplot(tm) + scale_y_log10(breaks=function(limits) pretty(limits, 5)) + ylab("Time [milliseconds]") ```
![](includes/ctmc-2.png)
