# YBLINK HPM5301 Firmware

Chinese: [README.zh.md](README.zh.md).

Yet Better Link(YBLINK) is a pure-Rust CMSIS-DAP v2 probe firmware for HPM5301. The stable build
uses USB high speed, FGPIO bit-banged SWD/JTAG, and a CDC ACM USB-to-UART bridge.

Current stable USB identity:

| Field | Value |
| --- | --- |
| VID:PID | `1209:5301` |
| Product | `YBLINK CMSIS-DAP` |
| Serial | `YBLINK` |
| Firmware version | `0.1.0` |

## Pin Map

The firmware drives the HPM5301EVKLite J3 GPIO header. The target board must be
powered normally and must share ground with YBLINK.

### SWD

| YBLINK signal | HPM5301 pin | J3 pin | Target signal |
| --- | --- | ---: | --- |
| SWCLK | PA27 | 23 | SWCLK |
| SWDIO | PA28 | 21 | SWDIO |
| nRESET | PB10 | 26 | NRST |
| GND | GND | 25/30/34/39 | GND |

Leave PA26 and PA29 disconnected for normal SWD.

### JTAG

| YBLINK signal | HPM5301 pin | J3 pin | Target signal |
| --- | --- | ---: | --- |
| TCK | PA27 | 23 | TCK |
| TMS | PA28 | 21 | TMS |
| TDI | PA29 | 19 | TDI |
| TDO | PA26 | 24 | TDO |
| nRESET | PB10 | 26 | NRST |
| GND | GND | 25/30/34/39 | GND |

### Serial Bridge

| YBLINK signal | HPM5301 pin | J3 pin | External signal |
| --- | --- | ---: | --- |
| UART0 TXD | PA00 | 36 | Target RXD |
| UART0 RXD | PA01 | 38 | Target TXD |
| GND | GND | 25/30/34/39 | GND |

For a loopback smoke test, connect PA00/J3-36 directly to PA01/J3-38.

## Build

```bash
cargo build -p yblink --release
```

## Customized Board

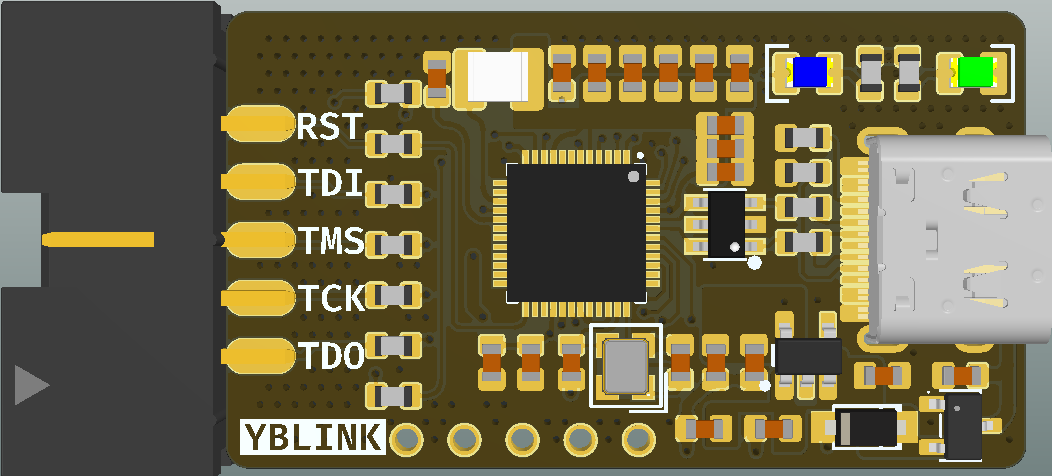

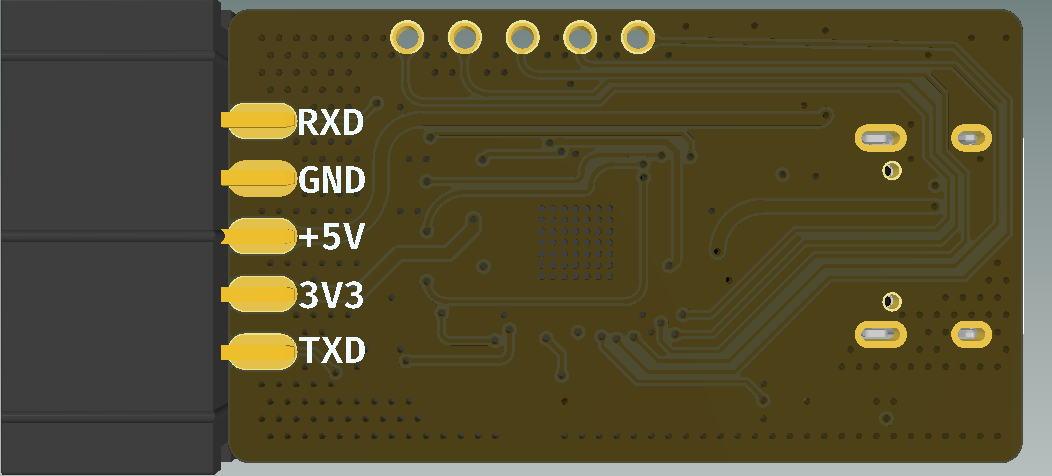

| <img src="hardware_altium_project/YBLINK_TOP.png" width="480"> | <img src="hardware_altium_project/YBLINK_BOTTOM.png" width="480"> |
| :-----------------------------------------------------: | :-----------------------------------------------------: |

A customized board is also hand-soldered and tested ok, and you can find the `sch`, `pcb` and gerber file in [hardware_altium_project](hardware_altium_project) directory. The five vias are for flashing the firmware(left to the right order: TMS, TCK, TDI, TDO, TRST).

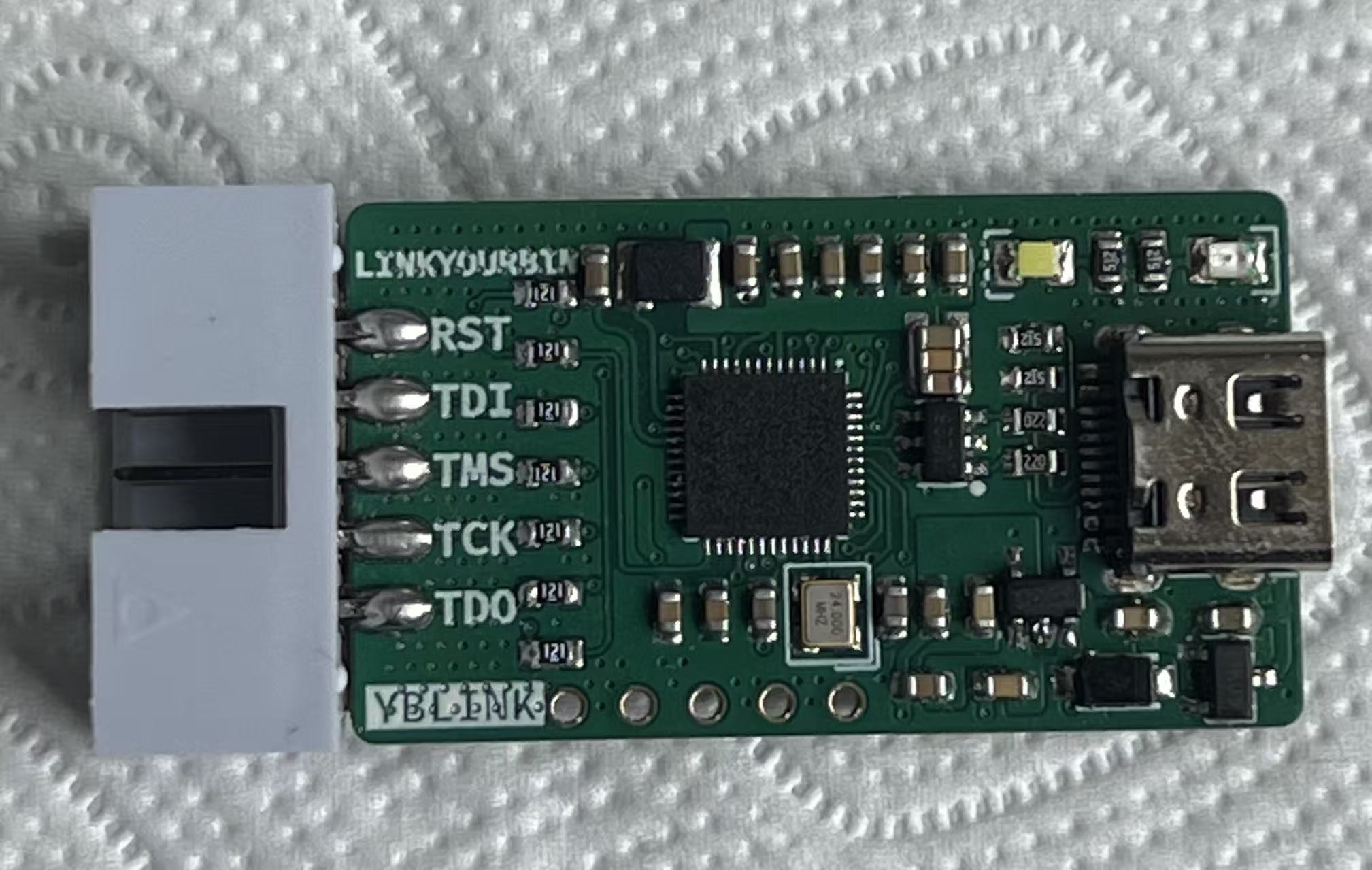

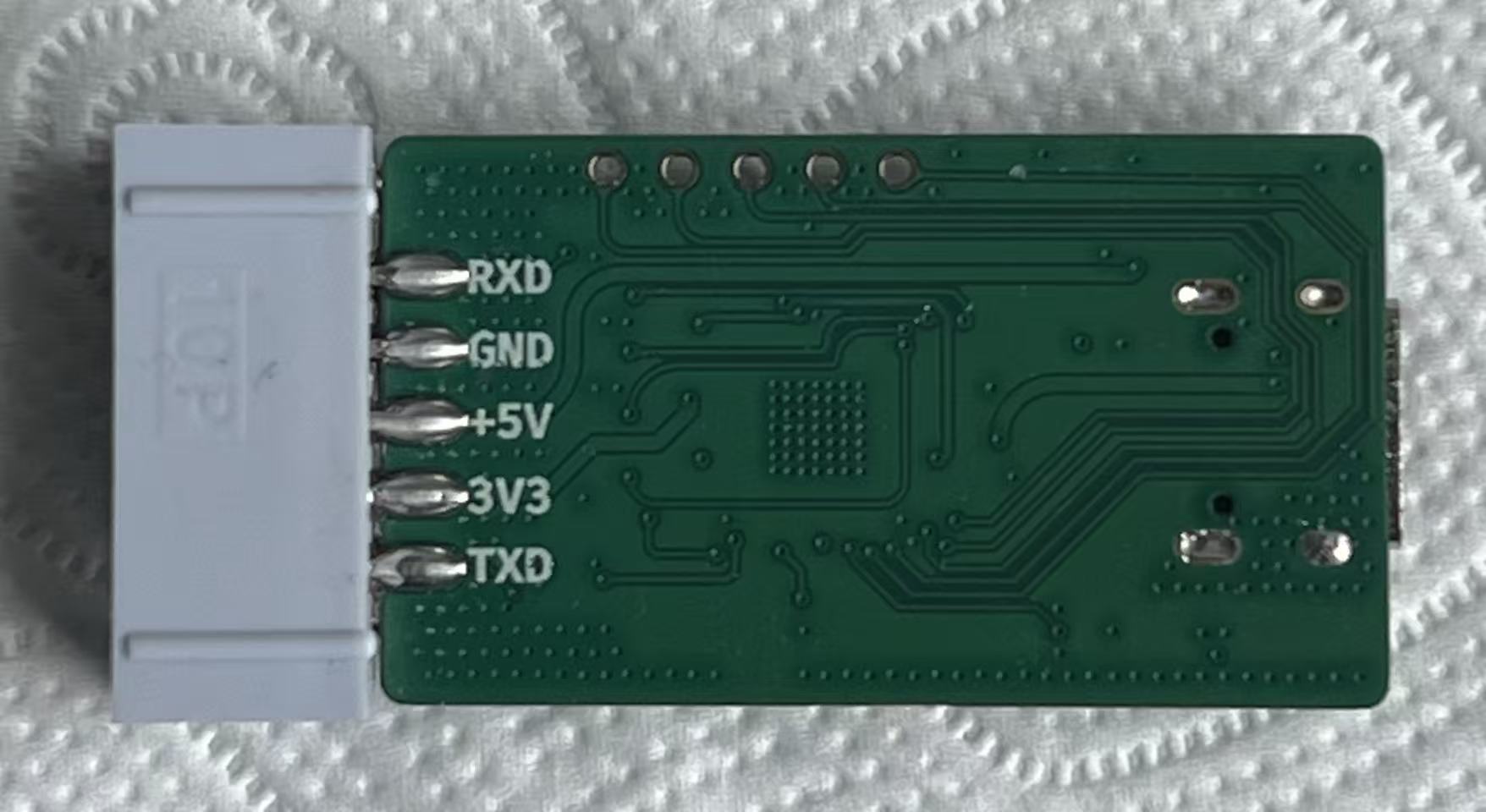

| <img src="images/top.jpg" width="480"> | <img src="images/bottom.jpg" width="480"> |
| :-----------------------------------------------------: | :-----------------------------------------------------: |

## Fresh Clone Build Steps

Install the Rust RISC-V target once:

```bash
rustup target add riscv32imafc-unknown-none-elf
```

Build the release firmware:

```bash
cargo build -p yblink --release
```

The output ELF is:

```text
target/riscv32imafc-unknown-none-elf/release/yblink
```

Flash it with an external probe:

```bash
probe-rs download --chip HPM5301 --protocol jtag target/riscv32imafc-unknown-none-elf/release/yblink
```

## Just Flash

A prebuilt firmware is `firmware/yblink`, you can use `probe-rs` to download it.
