# Kabootar

**Proudly Made in India** ### Chat that works with **no internet, no servers, no SIM.** Messages hop **phone-to-phone over Bluetooth and Wi-Fi** and are delivered whenever the other person comes back in range. An offline, serverless mesh messenger built on a delay-tolerant network with epidemic routing, **end-to-end encryption**, private groups, and image and file sharing.
[![CI](https://github.com/royalpinto007/Kabootar/actions/workflows/ci.yml/badge.svg)](https://github.com/royalpinto007/Kabootar/actions/workflows/ci.yml) [![Build APK](https://github.com/royalpinto007/Kabootar/actions/workflows/build-apk.yml/badge.svg)](https://github.com/royalpinto007/Kabootar/actions/workflows/build-apk.yml) [![mesh engine: 32 invariants](https://img.shields.io/badge/mesh_engine-32_invariants_green-2ea44f)](tool/engine_check.dart)
[![Flutter](https://img.shields.io/badge/Flutter-3.22%2B-02569B?logo=flutter&logoColor=white)](https://flutter.dev) [![Platform](https://img.shields.io/badge/platform-Android%20%7C%20iOS-lightgrey)](docs/PLATFORM_SETUP.md) [![License: MIT](https://img.shields.io/badge/license-MIT-blue)](LICENSE) [![PRs welcome](https://img.shields.io/badge/PRs-welcome-brightgreen)](CONTRIBUTING.md) [![Made in India](https://img.shields.io/badge/Made%20in-India%20%F0%9F%87%AE%F0%9F%87%B3-FF9933)](#-made-in-india)
**[What it is](#what-it-is) · [How it works](#-how-your-message-travels) · [Architecture](#-architecture) · [Try it](#-try-it) · [Roadmap](#-roadmap) · [Contributing](#-contributing)**

--- > [!NOTE] > **Why this exists.** When the network is down or jammed but people are nearby, > Kabootar still gets your message through. Dead-zone buildings, basements, exam > halls, festivals, protests, stadiums, trains, remote areas, roaming with no > plan. Proximity is available even when the internet is not. ## Screenshots

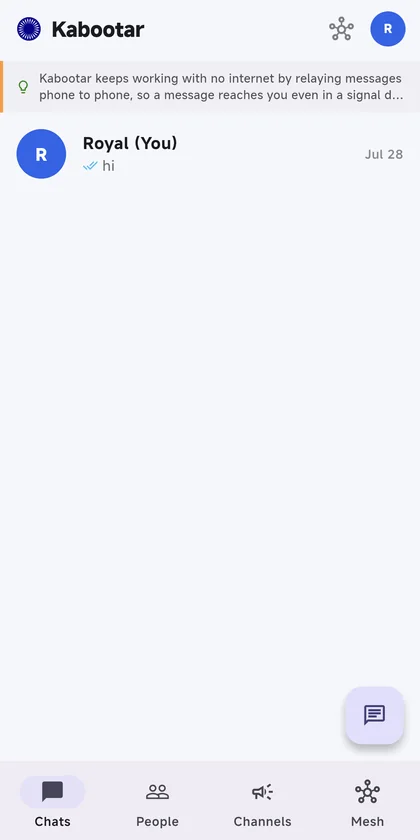

Chats, with delivery receipts that travelled back through the mesh.

_{Chats. Receipts travel back the same way the message went.}

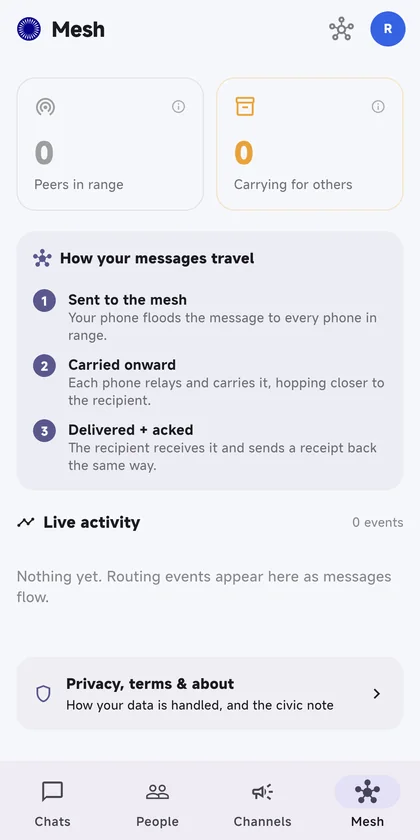

The mesh: peers in range, messages carried for others, and live routing events.

_{Mesh. Peers in range, what you are carrying for other people, and routing as it happens.}

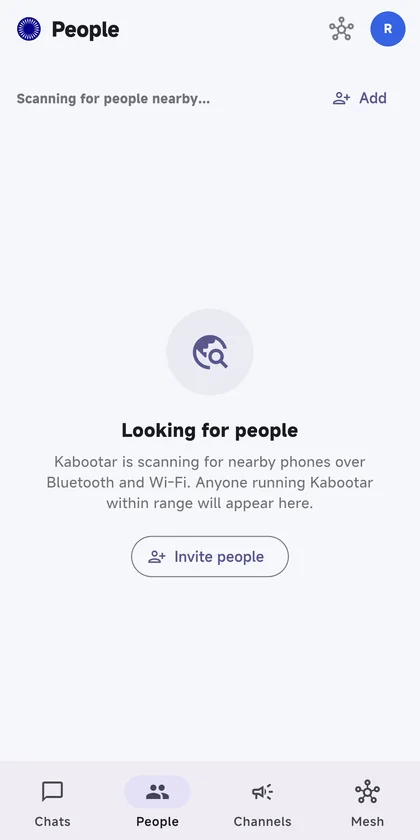

Scanning for nearby phones over Bluetooth and Wi-Fi.

_{People. Whoever is running Kabootar within range.}

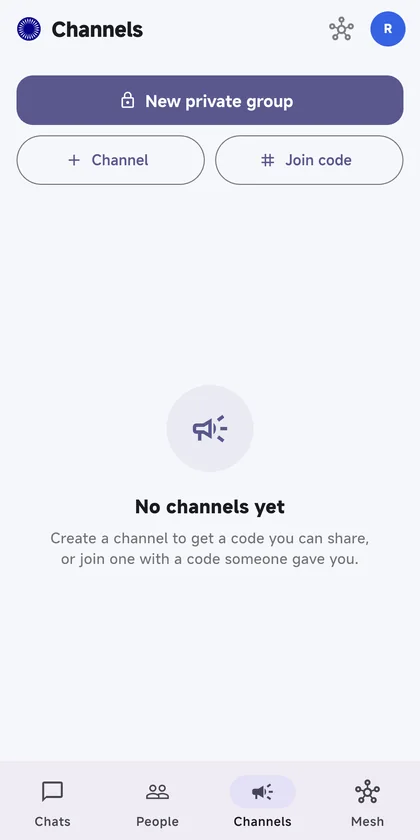

Channels and private groups, joined with a code.

_{Channels. Private groups, joined with a code you share in person.}

_{Captured from the app running on a physical device, with the status and
navigation bars cropped out. Peer counts read zero because only one device was
in range for the capture.} ## What it is Kabootar is a private **messenger with no backend at all**. Instead of routing through a server, your phone forms a peer-to-peer **mesh** with other phones nearby. A message you send is flooded to everyone in range, **carried onward** by each device it reaches, and delivered the moment a chain of carriers connects you to the recipient, even if that is minutes later after you have both walked away. It feels like a normal chat app, a contact list, saved history, sent/delivered receipts, end-to-end encrypted 1:1 chats and private groups, image and file sharing, but the transport underneath is a **store-and-forward mesh** rather than the cloud. | | Kabootar | Normal messenger | | --- | --- | --- | | Needs internet / cell data | **No** | Yes | | Needs a server or account | **No** | Yes | | Works in a signal dead-zone | **Yes** | No | | Your data leaves the device | **No** | Yes | | Delivers to someone offline-then-back | **Yes**, via carriers | No | ## ✨ Features - 📡 **Truly offline** — Bluetooth + Wi-Fi peer links, zero infrastructure. - 🕓 **Store-and-forward** — messages wait and ride other phones until delivered. - 🔐 **End-to-end encrypted** — X25519 + Ed25519 + AES-GCM, with signed messages and a safety code to verify a contact. Relays only ever see ciphertext. - 👥 **Private groups** — invite-only, encrypted with a shared group key. - 🖼️ **Image & file sharing** — photos are compressed and thumbnailed; any file (up to 8 MB) is chunked and carried across the mesh just like text. - 🔔 **Notifications** — local alerts when a message arrives (no push server). - 🌗 **Light / dark theme**, archive / hide / block, delete-for-everyone, mark-as-unread — the everyday chat controls. - ✅ **Delivery receipts** — end-to-end acks, WhatsApp-style ticks you can trust. - 🔁 **Self-healing routing** — epidemic flooding with idempotent de-duplication. - 📶 **Live mesh view** — watch peers, carried messages, and routing events. - 🧪 **Provably correct core** — 32 routing invariants verified in plain Dart. - 🇮🇳 **Made in India** — open source, no foreign backend. ## 📨 How your message travels Alice sends a message to Bob, who is **out of range**. A relay carries it and delivers it later, then the receipt makes the return trip the same way. ```mermaid sequenceDiagram autonumber participant A as Alice participant R as Relay (a stranger's phone) participant B as Bob (offline, then back) A->>R: msg "hey Bob" (flood) Note over R: Bob not in range —
R carries the message A--xB: no path yet Note over A,R: time passes, Alice walks away R->>B: link comes up → flush carry B->>B: deliver + show message B->>R: ack (delivery receipt) R->>A: ack carried back Note over A: message flips to "delivered" ✓✓ ``` Every phone applies the **same six rules** to each envelope it sees: | # | Rule | Why it matters | |---|------|----------------| | 1 | **De-dup** by message id | Idempotency; stops loops and flood storms | | 2 | **Learn** from a `hello` | Builds the contact list from whoever is near | | 3 | **Deliver** if it is for me | Save, show, and send an `ack` | | 4 | **Receipt** on an `ack` for me | Flip my message to *delivered* | | 5 | **Relay + carry** otherwise | Decrement TTL, cache, re-flood; carry onward | | 6 | **Cap** everything | TTL + max-age + cache size bound battery and storage |

Why this is interesting (the systems angle)

This is a **delay-tolerant network (DTN)** using **epidemic routing with end-to-end acknowledgements**, the same shape as a durable, at-least-once message queue, but running across a swarm of phones instead of a datacenter: - **Idempotency by id** — a message can arrive by many paths but is acted on once. - **At-least-once delivery** made exactly-once at the edges via de-dup on the id. - **Persisted de-dup set** — survives restarts, so a reboot cannot re-flood. - **Bounded resources** — TTL, max-age, and cache-size caps keep a carrier honest. The whole routing brain is **framework-free Dart** (no Flutter, no radio, no DB), which is why its behaviour is pinned down by tests that run on a laptop. See [`docs/ARCHITECTURE.md`](docs/ARCHITECTURE.md).

## 🧱 Architecture ```mermaid flowchart TD UI["UI · Flutter Material 3
onboarding · chats · people · mesh"] SVC["ChatService
the seam: state · hello handshake · ticks"] ENG["MeshEngine
DTN routing · pure Dart"] DB[("SQLite
messages · contacts · seen")] TX["Transport
Nearby / Multipeer P2P"] UI --> SVC SVC --> ENG SVC --> DB SVC --> TX ENG -. ports .-> SVC TX <-->|"Bluetooth + Wi-Fi"| PEERS(("nearby phones")) classDef core fill:#4F46E5,stroke:#3730A3,color:#fff; class ENG core; ``` - **`lib/core/mesh`** — the engine, envelope, config, ports. **Zero framework imports.** - **`lib/data`** — SQLite persistence + identity; the `seen` set is persisted. - **`lib/transport`** — `MeshTransport` interface + `flutter_nearby_connections`. - **`lib/services/chat_service.dart`** — the single source of truth the UI binds to. - **`lib/ui`** — a polished Material 3 messenger, including a live **Mesh** tab. ## 🚀 Try it > [!IMPORTANT] > The mesh needs **two physical phones on the same OS family** (Android⇄Android > or iOS⇄iOS). Emulators have no real Bluetooth/Wi-Fi radio.

Build & run from source

```bash git clone https://github.com/royalpinto007/Kabootar.git cd Kabootar # The Android native shell is committed, so no `flutter create` is needed. flutter pub get dart run flutter_launcher_icons # launcher icon bash tool/patch_nearby_plugin.sh # modernise the 2021-era mesh plugin bash tool/patch_gradle.sh # core-library desugaring (notifications) flutter run # on a connected Android device ``` iOS needs a one-time `flutter create . --platforms=ios --org dev.studchat` to generate its Xcode shell. Full platform notes (permissions, minimum SDKs) are in [`docs/PLATFORM_SETUP.md`](docs/PLATFORM_SETUP.md).

Grab a prebuilt APK

Grab a signed-per-ABI APK from [Releases](https://github.com/royalpinto007/Kabootar/releases) (pick `kabootar-vX.Y.Z-arm64-v8a.apk` for most phones). Every push also builds one via the [**Build APK** workflow](https://github.com/royalpinto007/Kabootar/actions/workflows/build-apk.yml) (open the newest run → **Artifacts** → `kabootar-apks`).

Verify the routing engine without a phone

The store-and-forward core is provable on a laptop with just the Dart SDK: ```bash dart run tool/engine_check.dart ``` ``` ── Store-and-forward across time (recipient offline, then returns) ✓ nobody delivered yet (C never in range) ✓ R is carrying the message for later ✓ C finally received it after coming back in range ✓ A eventually learns it was delivered ... 32 passed, 0 failed — all mesh-engine invariants hold ✓ ```

## 🧭 Honest constraints Designed in up front, so nothing surprises you: - **Cross-platform wall** — one codebase runs on both, but a message cannot hop across the OS boundary (Android and iOS use different peer radios). v1 meshes within an OS family. - **Range and density** — delivery needs a chain of carriers to exist. Sparse crowds mean slow or no delivery. Inherent to any mesh. - **No forward secrecy yet** — encryption uses long-term static keys; a ratcheting scheme is future work. Open channels stay plaintext by design. - **Battery** — continuous advertise + scan is not free; duty-cycling is planned. ## 🗺 Roadmap - [x] Onboarding, live peer discovery, 1:1 text chat - [x] Store-and-forward with de-dup, TTL, and end-to-end acks - [x] Persistent history and contacts; resume undelivered on restart - [x] Live mesh diagnostics view - [x] 📢 Channels (broadcast group rooms, joined by code) - [x] 🔐 End-to-end encryption (X25519 + Ed25519 + AES-GCM) + message signing - [x] 👥 Private groups with membership (encrypted, invite-only) - [x] 🖼 Image sharing (compressed, chunked, carried like text) - [x] 📎 Arbitrary file sharing over the same chunk path - [x] 🔔 Local notifications, 🌗 theme, and full chat management - [ ] 🔒 Forward secrecy (a message ratchet on top of the static keys) - [ ] 🔋 Battery duty-cycling - [ ] 🌉 Online bridge: any node with internet relays onward ## 🇮🇳 Made in India Built in India, open source, privacy-first. No servers, no foreign backend, no account: your messages and identity **never leave your device**. Kabootar is the kind of resilient, self-reliant tech that works in India's dead-zones, trains, and crowds, and it belongs to everyone who runs it. The app carries a tricolour identity and the **Ashoka Chakra**, and an in-app **"India & Kabootar"** screen with the **Preamble** and the **Fundamental Duties (Article 51A)** for civic reference, plus friendly facts about how the mesh works. > [!NOTE] > Kabootar is an **independent, citizen-built** project. It is **not affiliated > with or endorsed by** any government or political party. National symbols are > used respectfully; we deliberately never use the restricted State Emblem (the > Lion Capital). See [DISCLAIMER.md](DISCLAIMER.md). **Legal:** [Privacy Policy](PRIVACY.md) · [Terms of Use](TERMS.md) · [Disclaimer](DISCLAIMER.md). Direct chats and private groups are end-to-end encrypted; open channels are public by design and there is no forward secrecy yet, so use your judgement for highly sensitive information. ## 🤝 Contributing Contributions are welcome. Good first steps: - Read [`CONTRIBUTING.md`](CONTRIBUTING.md) and [`docs/ARCHITECTURE.md`](docs/ARCHITECTURE.md) - Keep the mesh engine framework-free and add tests for routing changes - Open an [issue](https://github.com/royalpinto007/Kabootar/issues/new/choose) or a PR By participating you agree to the [Code of Conduct](CODE_OF_CONDUCT.md). Security issues: see [SECURITY.md](SECURITY.md). ## ⭐ Star this project If Kabootar is useful or interesting, a star genuinely helps others find it.

Once the project gathers a few stars, a growth chart will render here via [star-history.com](https://star-history.com/#royalpinto007/Kabootar&Date). ## 📄 License [MIT](LICENSE) © royalpinto007
