MSDF Atlas Studio
**MSDF Atlas Studio** is an open-source, high-performance desktop workstation for generating **Multi-channel Signed Distance Field (MSDF)** font texture atlases. Built with Godot 4 and C++ GDExtension, it wraps Viktor Chlumský's industry-standard `msdf-atlas-gen` and FreeType into an intuitive, responsive graphical studio.
---
## Download Prebuilt Binaries
Portable, zero-installation executables are available for all major desktop platforms:
| Platform | Download Link | Details |
| :--- | :--- | :--- |
| **Linux** | [**Linux x86_64 (.tar.gz)**](https://github.com/sachinthankachan/msdf-atlas-studio/releases/latest) | Standalone portable binary (Ubuntu, Fedora, Arch) |
| **Windows** | [**Windows x64 (.zip)**](https://github.com/sachinthankachan/msdf-atlas-studio/releases/latest) | Standalone portable `.exe` |
| **macOS** | [**macOS Universal (.zip)**](https://github.com/sachinthankachan/msdf-atlas-studio/releases/latest) | Apple Silicon (M-series) & Intel universal `.app` |
Visit the [**Latest GitHub Release**](https://github.com/sachinthankachan/msdf-atlas-studio/releases/latest) for release notes and standalone GDExtension bundles.
---
## Features
* **Multi-Format Distance Field Generation:**
* **MSDF** (3-channel RGB): Razor-sharp corner reconstruction.
* **MTSDF** (4-channel RGBA): MSDF with soft alpha transparency contour.
* **SDF** (1-channel Grayscale): Standard signed distance fields.
* **PSDF** (1-channel): Pseudo-distance field representation.
* **Smart Fallback Font Chain:**
* Define a primary typeface with an unlimited chain of fallback fonts.
* Missing Unicode characters automatically resolve from fallback fonts.
* **Unicode Range Matrix & Presets:**
* Quick presets for Basic Latin (ASCII), Latin-1 Supplement, Latin Extended-A, Cyrillic, and Greek & Coptic.
* Interactive custom range selector with hex (`0x0020`) and decimal support.
* **Interactive Glyph Inspection Matrix:**
* Live visual matrix of every packed glyph.
* Real-time metrics inspector: Unicode, advance, plane bounds, and normalized UV atlas coordinates.
* **Kerning Pair Extraction:**
* Comprehensive kerning table extraction powered directly by FreeType.

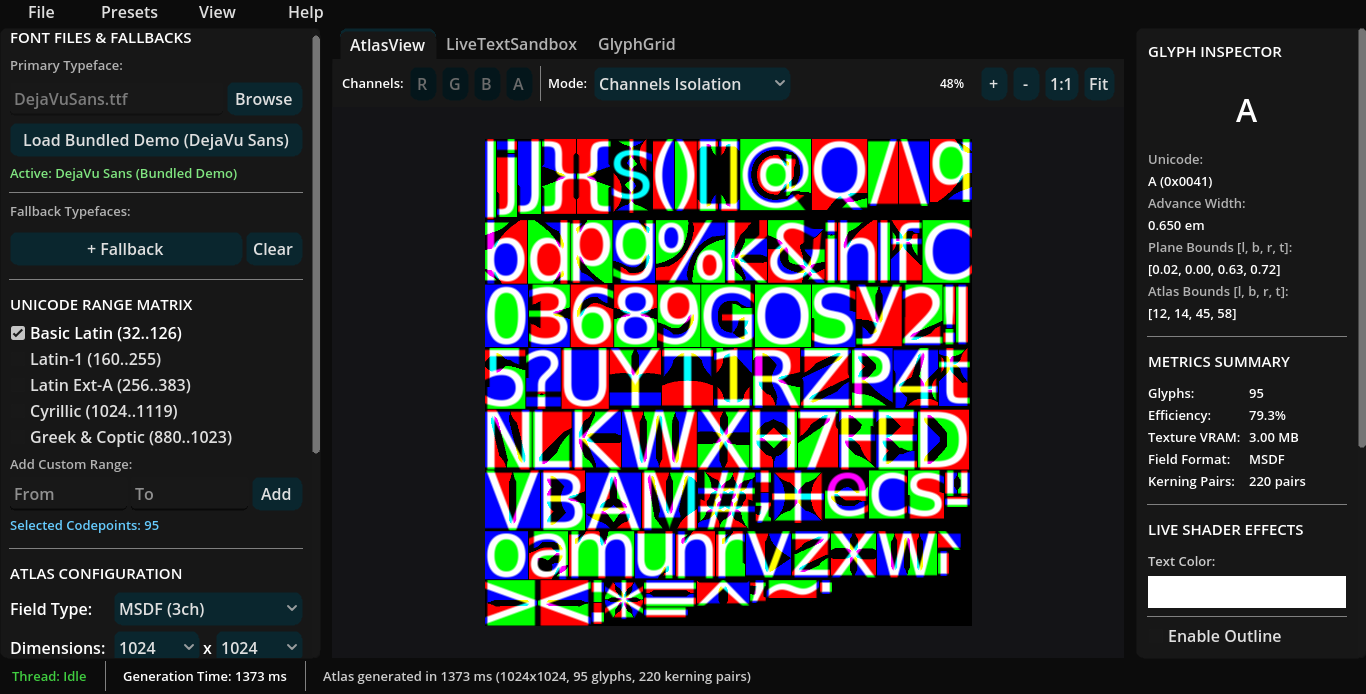

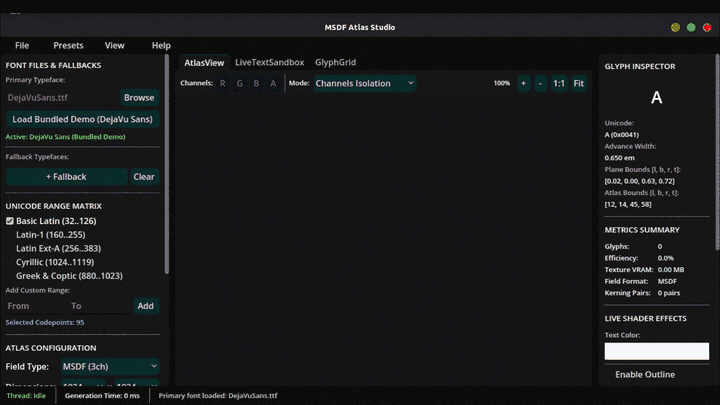

* **Live MSDF Shader Viewport:**
* Real-time interactive text preview running the actual MSDF fragment shader.
* Interactive controls for text color, outline color/thickness (with inward/outward expansion toggle), directional drop-shadow (polar angle & distance), and edge softness.
* Context-aware sidebar prioritizing live shader controls in preview mode.
* Infinite smooth canvas pan & zoom controls.
* **Multi-Target Exporters:**
* **AngelCode BMFont:** Standard `.fnt` + `.png` descriptor pairs supported by most 2D/3D engines.
* **JSON Atlas:** Rich metadata specification compatible with WebGL, Three.js, and custom renderers.
* **Godot 4 Font Resources (`.tres`):** Native Godot `FontFile`, `LabelSettings`, and `ShaderMaterial` resources ready for direct drag-and-drop into Godot projects.
* **C Header Bundle (`.h`):** Zero-dependency static C structs for embedded systems, Raylib, or custom C/C++ graphics pipelines.
* **Studio Project Management:**
* Non-destructive `.msdfproj` save/load format to resume workflows at any time.
---
## Getting Started
### Prerequisites
* [Godot Engine 4.3+](https://godotengine.org/download)
* [SCons](https://scons.org/) build tool (`pip install scons` or `sudo apt install scons`)
* A C++17 compatible compiler:
* **Linux:** `g++` (GCC 9+) or `clang++`
* **Windows:** Visual Studio 2022 / MSVC or MinGW-w64
* **macOS:** Xcode Command Line Tools (`clang`)
---
### Cloning
This repository uses Git submodules for `godot-cpp`, `msdf-atlas-gen`, `msdfgen`, and `freetype`. Clone recursively:
```bash
git clone --recursive https://github.com/sachinthankachan/msdf-atlas-studio.git
cd msdf-atlas-studio
```
If you already cloned without `--recursive`, initialize submodules with:
```bash
git submodule update --init --recursive
```
---
### Building the C++ GDExtension Backend
Compile the native C++ GDExtension library using SCons:
#### Linux:
```bash
cd src_cpp
scons platform=linux target=template_release
```
#### Windows:
```bash
cd src_cpp
scons platform=windows target=template_release
```
#### macOS:
```bash
cd src_cpp
scons platform=macos target=template_release
```
The compiled shared library (`.so`, `.dll`, or `.dylib`) will be automatically placed in `bin/` alongside `msdf_atlas_studio.gdextension`.
---
### Running the Application
Open the project folder in Godot 4.3+ or launch it directly via the Godot executable:
```bash
godot --path .
```
---
## Project Structure
```text
msdf-atlas-studio/
├── assets/ # Bundled demo fonts, icons, and UI assets
├── bin/ # GDExtension configuration and compiled binaries
├── scenes/ # Godot UI scene layouts (.tscn) and logic (.gd)
│ └── components/ # Modular studio panels (font loader, range picker, atlas settings)
├── scripts/ # Exporters, project managers, and state autoloads
├── shaders/ # MSDF real-time fragment preview shaders
├── src_cpp/ # C++ GDExtension source code and SConstruct build scripts
│ └── thirdparty/ # Submodules: godot-cpp, freetype, msdf-atlas-gen, msdfgen
├── .gitignore # Production Git ignore rules
├── CONTRIBUTING.md # Contribution guidelines and setup instructions
├── CONTRIBUTORS.md # Author and contributor credits
├── LICENSE # MIT License
├── README.md # Documentation
└── THIRDPARTY.md # Attribution for third-party libraries and fonts
```
---
## Author
Created and maintained by **Sachin Thankachan** ([@sachinthankachan](https://github.com/sachinthankachan)).
See [CONTRIBUTORS.md](CONTRIBUTORS.md) for the full list of contributors and library acknowledgments.
---
## Contributing
Contributions are welcome! Please read [CONTRIBUTING.md](CONTRIBUTING.md) for details on code style, build instructions, and the pull request workflow.
---
## License
This project is licensed under the **MIT License** - see the [LICENSE](LICENSE) file for details.
### Third-Party Attribution
* **msdf-atlas-gen** & **msdfgen** © Viktor Chlumský (MIT License)
* **The FreeType Project** © David Turner, Robert Wilhelm, Werner Lemberg (FreeType License)
* **godot-cpp** © Godot Engine contributors (MIT License)
* **DejaVu Sans Font** © Bitstream, Inc. & Tavmjong Bah (Bitstream Vera / Free Font License)
See [THIRDPARTY.md](THIRDPARTY.md) for full license texts and copyright notices.
