WorldGUI: An Interactive Benchmark for Desktop GUI Automation from Any Starting Point
Welcome to WorldGUI! If you find this repo useful, please give a star β for encouragement.
English | [δΈζ](README_zh.md)
[](https://arxiv.org/abs/2502.08047)
[](https://showlab.github.io/WorldGUI)
[](https://github.com/showlab/Awesome-GUI-Agent)
##
Overview
**WorldGUI-Agent** has highly adaptive self-reflection capabilities in dynamic GUI envs.
**No Docker or Virtual Machine** for deployment.
Visit our study WorldGUI in [project page](https://showlab.github.io/WorldGUI).π

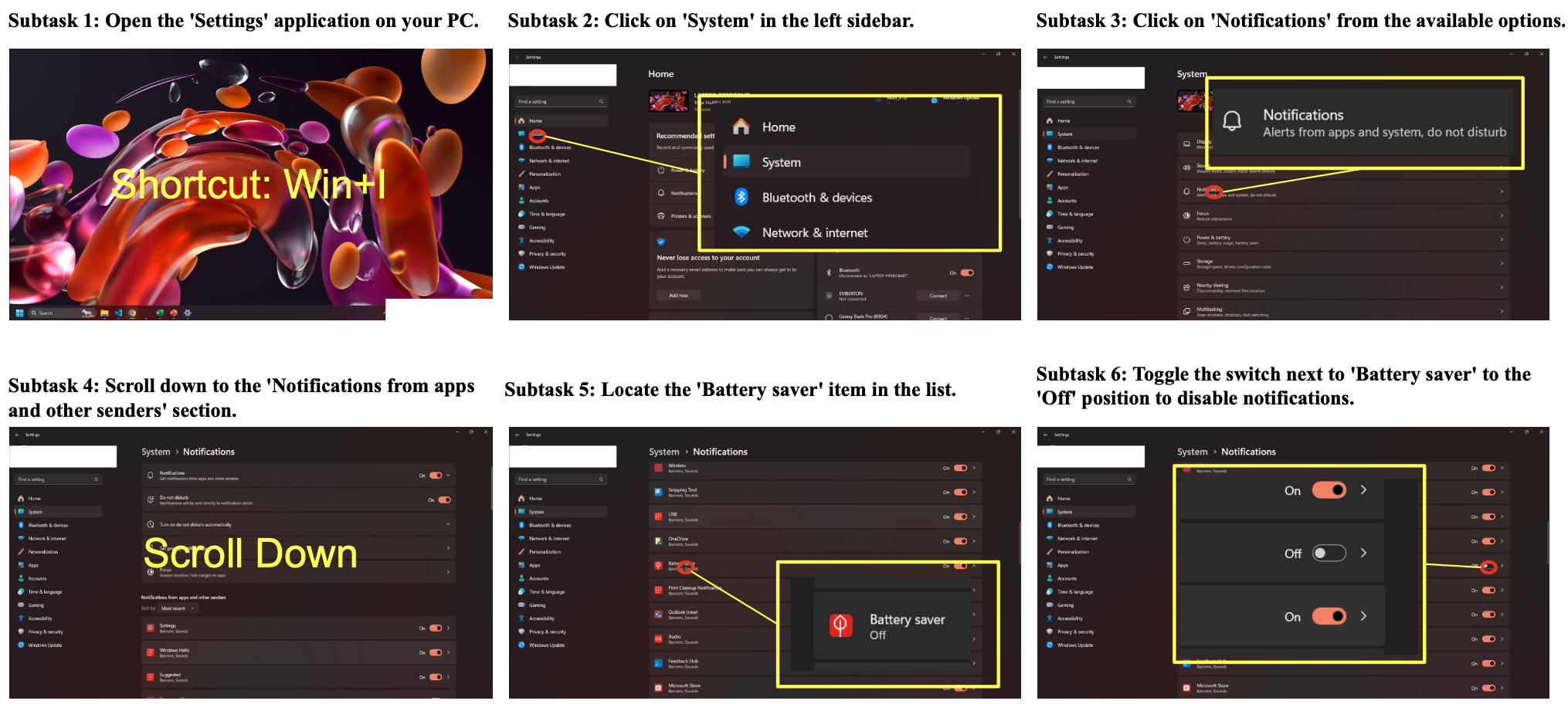

User Query: Disable the 'Battery saver' Notifications
WorldGUI-Agent:
## Introduction
What's new in WorldGUI-Agent?
**WorldGUI-Agent** is a newly developed GUI agent based on a self-reflection mechanism. We systematically investigate GUI automation and establish the following workflow, incorporating three key self-reflection modules:
- Planner-Critic (Post-Planning Critique): Self-corrects the initial plans to ensure their accuracy
- Step-Check (Pre-Execution Validation): Remove redundant steps or modify them if necessary.
- Actor-Critic (Post-Action Evaluation): Review the task completion status and apply necessary corrections.
### Technique Details

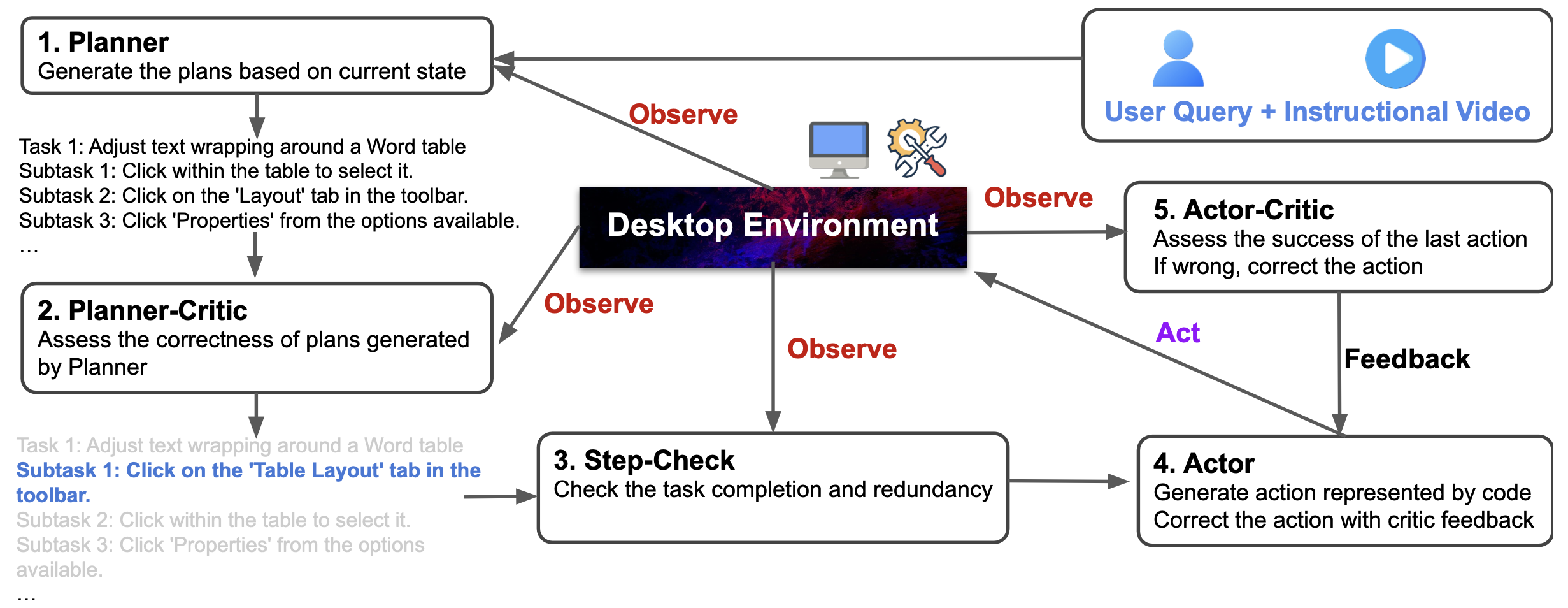

Overall framework of WorldGUI-Agent.

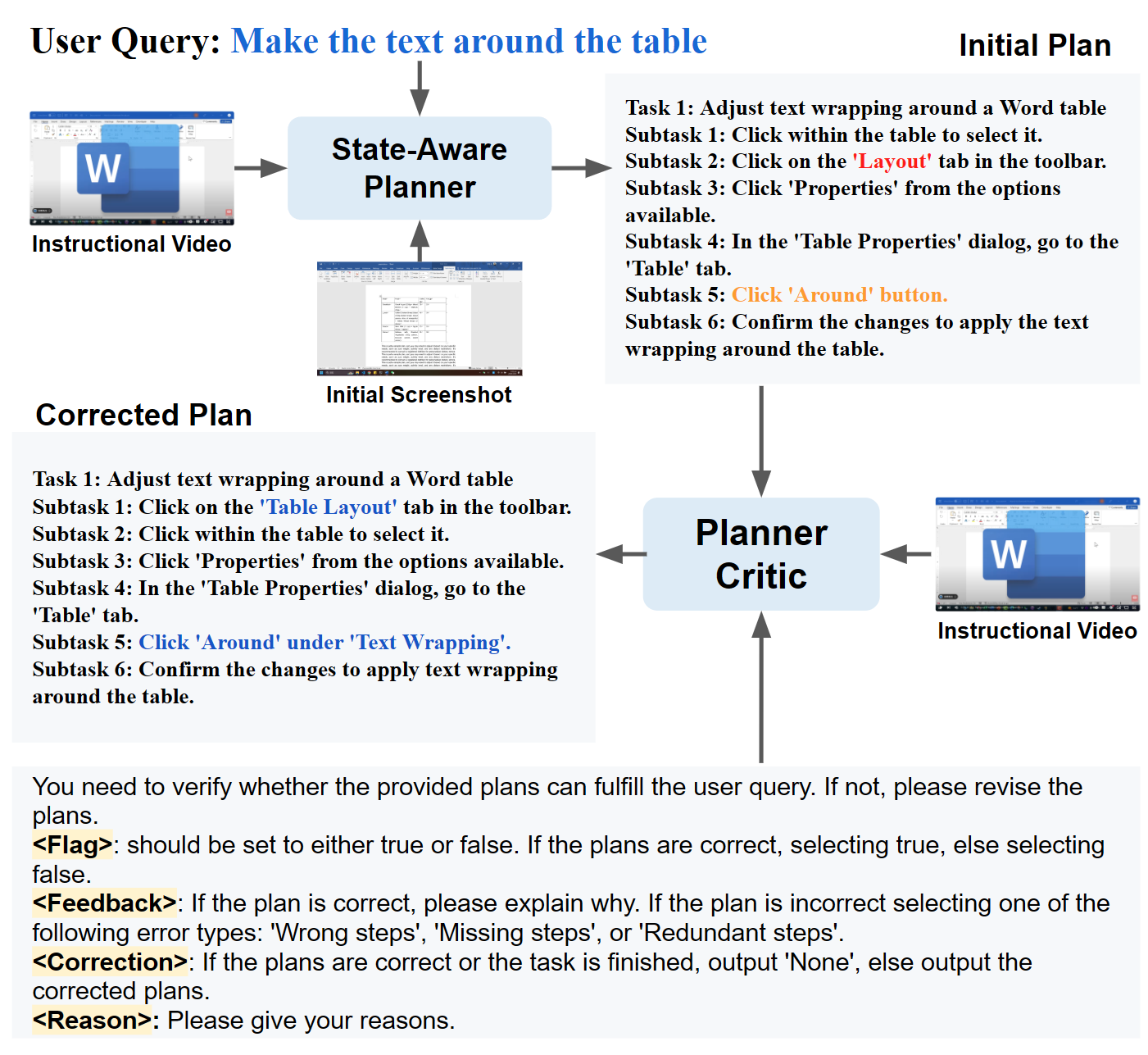

State-Aware Planner and Planner-Critic modules.

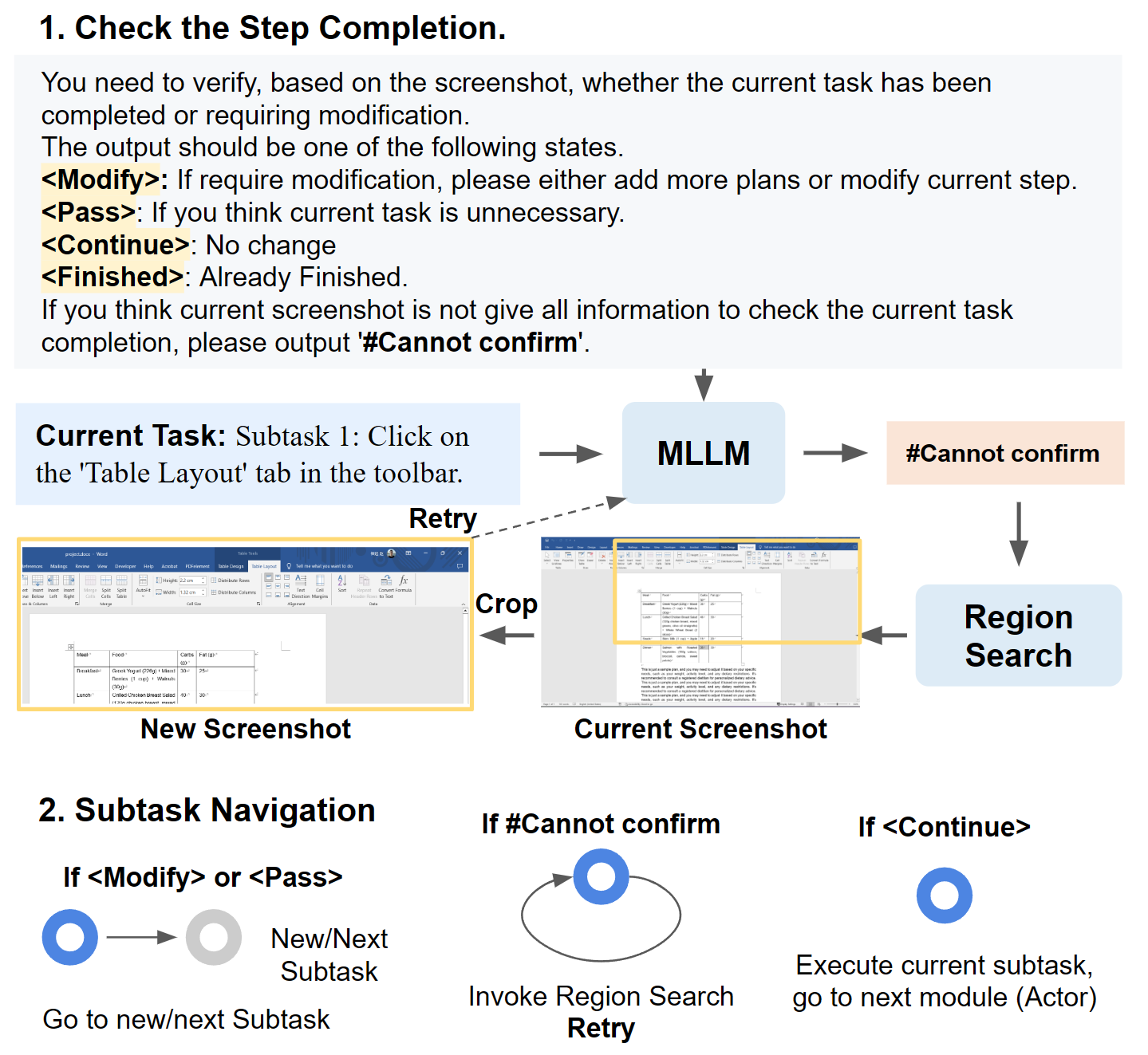

Step-Check module.

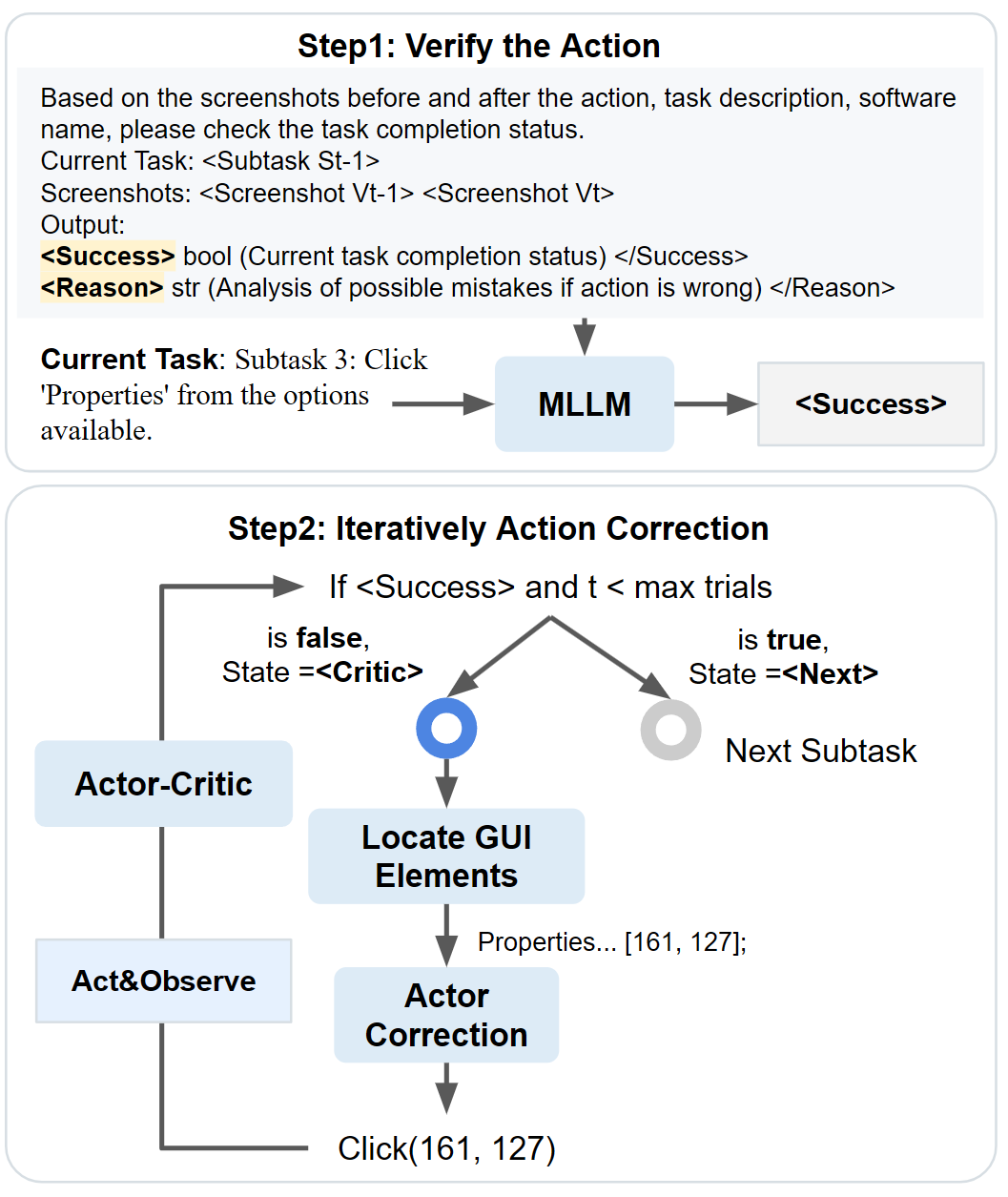

Actor-Critic module.
### Comparing with SOTA Desktop GUI Agent

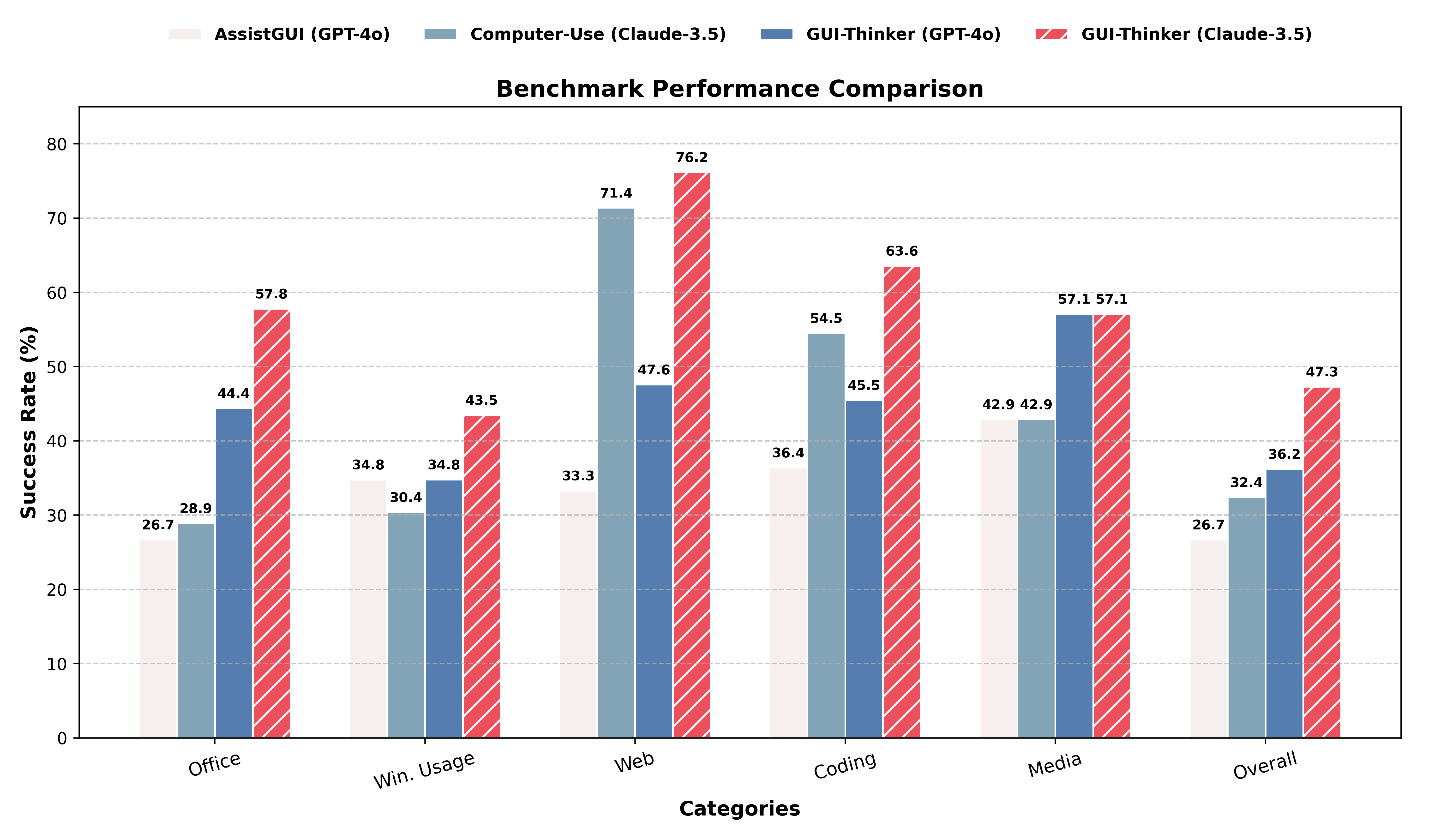

Comparison of various agents on the WorldGUI Benchmark (meta task).
## π’ Update
* [2025.06.29] π We are happy to release our dataset WorldGUI at https://huggingface.co/datasets/hhenryz/WorldGUI-Bench. It contains the user query, the instructional video, the project file, the augmented task, and comprehensive details of our benchmark. Enjoy!
* [2025.06.10] We are excited to introduce our improved version of [WolrdGUI](https://arxiv.org/abs/2502.08047). We increased the amount of the task from 315 to 611 and revised the technique reports for better understanding. We also provided the agent performance on WindowsAgentArena Benchmark, check it.
* [2025.03.11] β‘ We are excited to introduce **a fast version of WorldGUI-Agent** powered by the base models [Claude-3.5-Sonnet](https://www.anthropic.com/news/3-5-models-and-computer-use) and [Claude-3.7-Sonnet](https://www.anthropic.com/news/claude-3-7-sonnet). In this release, the Claude models serve as the Actor without relying on the GUI Parser. This setup delivers impressive speed. Try with [test_guithinker_fast.py](./test_guithinker_fast.py).
* [2025.03.08] We made a demo for showing the WorldGUI-Agent.
* [2025.03.05] β‘ Our WorldGUI-Agent now supports both [instructional video](https://github.com/showlab/WorldGUI/tree/main?tab=readme-ov-file#-test-with-a-prepared-demo-case-under-the-folder-data) and [non-video](https://github.com/showlab/WorldGUI/tree/main?tab=readme-ov-file#-test-with-your-own-user-query) inputs. Enjoy!
* [2025.03.05] π We release the code of WorldGUI-Agent. Now, we support running our GUI agent on your Windows computer locally [Getting started](https://github.com/showlab/WorldGUI/tree/main?tab=readme-ov-file#-getting-started-with-computer-use-agent-WorldGUI-Agent). WorldGUI-Agent now supports various base LMMs through API calling, including GPT-4o, Gemini-2.0, and Claude-3.5-Sonnet. Local model support will be available soon.
* [2025.02.13] We release the WorldGUI in [arxiv](https://arxiv.org/abs/2502.08047).
## β¨Key Features
- π **High Performance**: Our WorldGUI-Agent surpasses Cluade-3.5 Computer Use by 14.9% on our WorldGUI Benchmark.
- π **Universal LMM Support**: Seamlessly integrates with **A Wide Range** of LMMs (e.g., OpenAI, Anthropic, Gemini)
- π **Flexible Interaction**: Supports both **intructional video input** and **non-instructional video input**.
- π **Easy Deployment**: Get started instantly with a simple `.\shells\start_server.bat` command and `python test_guithinker_custom.py` without the need of Docker or Virtual Machine.
## π€ Core Components:
Our codebases includes:
- [x] **GUI Parser:** Utilizes Google OCR and PyAutoGUI to extract element grounding information.
- [x] **State-Aware Planner:** Accepts screenshots and instructional videos to generate plans.
- [x] **Planner-Critic:** Refines the initial plan generated by the planner.
- [x] **Step-Check:** Verifies task completion and redundancy using various output statuses (e.g., ``, ``, ``, ``). It also implements an LLM-driven region search module to locate target elements.
- [x] **Actor:** Translates action descriptions into executable code (e.g., `click(100, 200)`). It can be any API models or locally running models.
- [x] **Actor-Critic:** Checks task completion status by comparing before and after screenshots and uses an iterative action correction algorithm to gradually verify and correct actions.
- [x] **Input with Instructional Video:** Supports the execution with instructional video.
- [x] **Input without Instructional Video:** Supports the direct execution with user query.
- [x] **Frontend-backend communication system:** Supports seperate the frontend and backend for flexible deploying the locally running model and user interfaces.
See our [paper](https://arxiv.org/abs/2502.08047) for detail. Our WorldGUI-Agent is along with a newly curted Desktop GUI benchmark WorldGUI.
## π₯οΈ Demo of Computer Using
Demo Video (The video has been sped up):
https://github.com/user-attachments/assets/5d25c079-4c84-4435-8280-591f32f89700
See 1080p version from https://www.youtube.com/watch?v=RoJ-cbjfZmg
## π Getting Started
See [Get Started](./Get%20Started.md) for local computer running.
## β€ Acknowledgement
- Special thanks to [Difei Gao](https://scholar.google.com/citations?user=No9OsocAAAAJ&hl=en) for his hard work on devleoping the codebase.
- We express our great thanks to Kaiming Yang, Mingyi Yan, Wendi Yu for their hard work for data ananotation and baseline testing.
- [OOTB (Computer Use)](https://github.com/showlab/computer_use_ootb?tab=readme-ov-file): Computer Use OOTB is an out-of-the-box (OOTB) solution for Desktop GUI Agent, including API-based (Claude 3.5 Computer Use) and locally-running models (ShowUI, UI-TARS).
- [ShowUI](https://github.com/showlab/ShowUI): Open-source, End-to-end, Lightweight, Vision-Language-Action model for GUI Agent & Computer Use.
- [AssistGUI](https://arxiv.org/pdf/2312.13108): AssistGUI is the first work that focuses on desktop productivity software usage with over 100 realistic GUI tasks.
- [VideoGUI](https://github.com/showlab/videogui): A Benchmark for GUI Automation from Instructional Videos. Can a GUI agent behave like a human when giving an image-style effect and a user query?
- [SWE-bench Multimodal](https://www.swebench.com/multimodal.html): SWE-bench Multimodal is a dataset for evaluating AI systems on visual software engineering tasks.
## π BibTeX
If you find WorldGUI useful, please cite using this BibTeX:
```bibtex
@misc{zhao2025worldguiinteractivebenchmarkdesktop,
title={WorldGUI: An Interactive Benchmark for Desktop GUI Automation from Any Starting Point},
author={Henry Hengyuan Zhao and Kaiming Yang and Wendi Yu and Difei Gao and Mike Zheng Shou},
year={2025},
eprint={2502.08047},
archivePrefix={arXiv},
primaryClass={cs.AI},
url={https://arxiv.org/abs/2502.08047},
}
```
## π Contact
If you have any questions or suggestions, please don't hesitate to let us know. You can directly email [Henry Hengyuan Zhao](https://zhaohengyuan1.github.io/) at NUS using the email address hubylidayuan@gmail.com, or post an issue on this repository. We welcome contributions. Feel free to submit pull requests if you have suggestions for improvement.
