# Academic Commercialization Assessment Agent
> **Turn any research paper or topic into a commercialization readiness report in minutes** — six AI agents gather academic, patent, and market evidence, then produce a scored report with verifiable citations.
[](https://github.com/shuxiachai/academic-commercialization-agent/actions/workflows/test.yml)
[](LICENSE)
[](https://www.python.org/downloads/)
[](https://github.com/crewAIInc/crewAI)
[English](#english) | [中文](#chinese)
---
## English
A multi-agent system built on [CrewAI](https://github.com/crewAIInc/crewAI) that evaluates the commercialization readiness of academic research.
Input a research direction or paper topic. Six specialized AI agents automatically gather evidence from academic literature, patent databases, and market intelligence sources, then produce a structured commercialization assessment report with verifiable citations and a quantitative scorecard.
---
### Screenshots

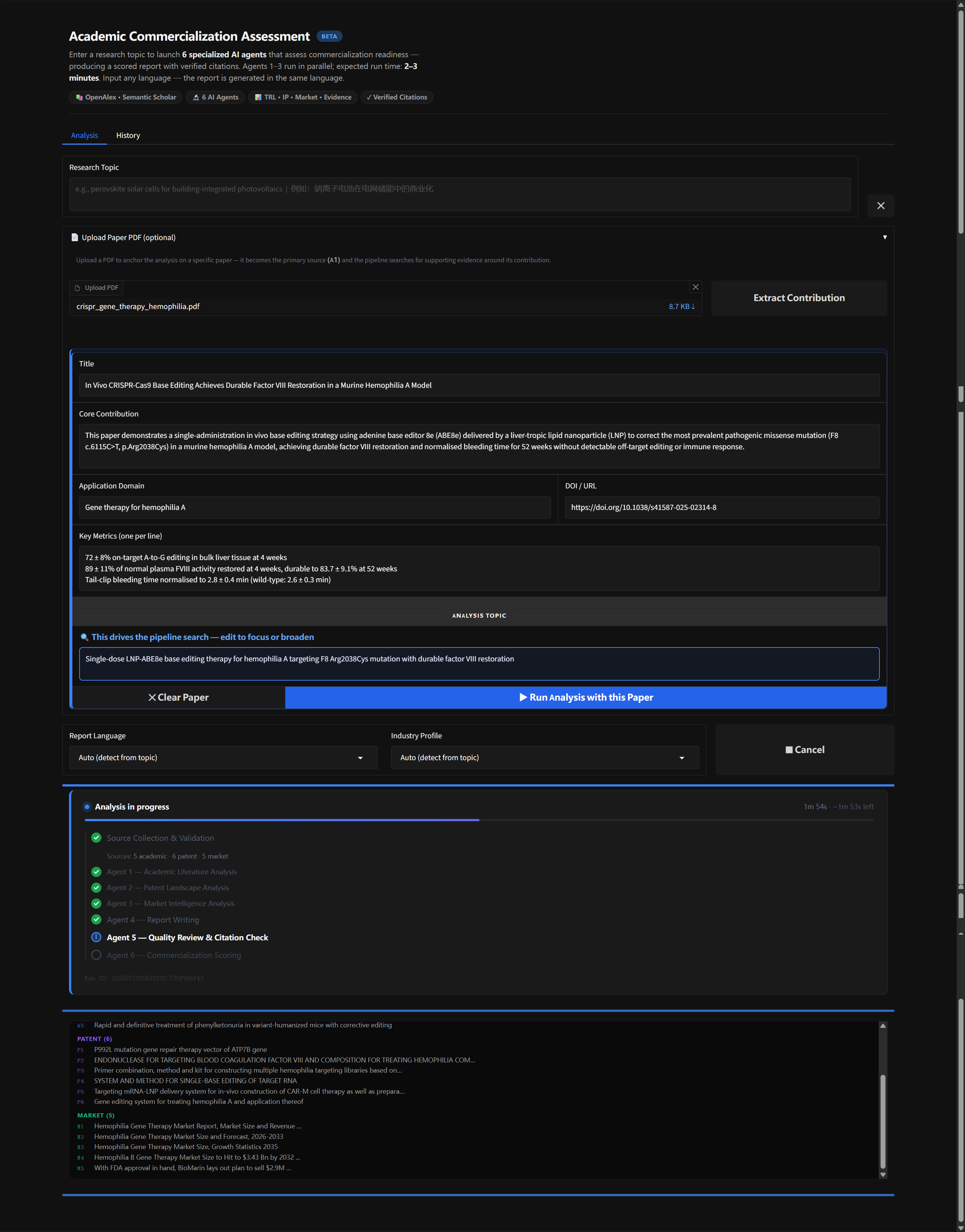

▶ Analysis in progress — live agent status + source list
▶ Full results — scorecard, radar chart, and complete report
---
### What's different from the CrewAI starter template
| | Original demo | This project |
|---|---|---|
| Agents | 2 (researcher + reporting_analyst) | 6 (specialized roles) |
| Tasks | 2 | 6 (sequential + guardrail validation) |
| Tools | None | OpenAlex + Semantic Scholar + SerperDevTool + Crossref |
| Source collection | None | Deterministic pre-run retrieval with URL reachability check |
| Output format | Free-form text | Markdown report with `[A1][P2][M3]` inline citations + References block + JSON scorecard |
| Output management | Fixed filename (overwritten) | Unique run ID per execution, stored in `outputs/` |
| Data quality | None | Structured evidence + citation integrity check + minimum summary length filter + auto-retry |
| Score reproducibility | — | JSON-mode agents all at `temperature=0`; same topic produces stable results across runs |
| Score traceability | — | Each dimension records source IDs (`trl_source_ids`, `patent_source_ids`, etc.) |
---
### Agent architecture
```
Agent 1: Academic Literature Analyst
Sources: OpenAlex / Semantic Scholar papers (pre-validated in Step 0)
Output: Structured EvidenceReport JSON — maturity, breakthroughs, citations (A1/A2/…)
Agent 2: Patent Landscape Analyst
Sources: Google Patents / WIPO records (Serper search + URL validation)
Output: Structured EvidenceReport JSON — holders, white spaces (P1/P2/…)
Agent 3: Market & Competitive Intelligence Analyst
Sources: Domain-allowlisted market reports (Serper search)
Output: Structured EvidenceReport JSON — players, target industries, opportunities (M1/M2/…)
Agent 4: Technology Commercialization Report Writer
Tools: None (uses Agents 1–3 output as context only)
Output: Markdown draft with inline citations [A1][P2][M3] and References block
Guard: Section structure + citation integrity; auto-retries up to 2×
Agent 5: Report Reviewer
Tools: None (uses Agent 4 draft as input)
Rules: 6 rules — citation integrity, unsupported numeric claims, overconfident
language, patent legal framing, evidence consistency, TRL label consistency
Output: Corrected final report; Reviewer Notes saved separately (only actual changes logged)
Agent 6: Commercialization Readiness Scorer
Tools: None (reads Tasks 1–3 evidence JSON directly, independent of the report)
Output: CommercializationScore JSON — TRL / MRL / Patent / Market / Evidence confidence
Guard: JSON format validation + hallucinated source ID check + weighted formula
correction; auto-retries up to 2×
```
Agents 1–3 run in **parallel** (`async_execution=True`), reducing total pipeline time.
---
### Execution flow
```
Step 0 Source collection & validation (subprocess, deterministic)
Academic: OpenAlex Works API (filter=title.search, sorted by citation count)
→ Semantic Scholar supplement (when OpenAlex count is below target)
→ DOI deduplication; summaries < 100 chars auto-rejected
→ Concurrent Crossref citation-count backfill (ThreadPoolExecutor)
Patent: Serper (3-attempt retry with exponential backoff) → Google Patents / WIPO;
URL reachability verified; patent hosts short-circuited
Market: Serper + domain allowlist (30+ approved institutions); low-quality sites removed
Metadata: Crossref API for DOI, journal name, publication date
Output: validated_sources.json + status.json passed to subprocess pipeline
Steps 1–3 Agents 1/2/3 — Academic / Patent / Market analysis (parallel)
Step 4 Agent 4 — Comprehensive report writing (guardrail validates citations)
Step 5 Agent 5 — Quality review (Reviewer Notes saved separately)
Step 6 Agent 6 — Quantitative scoring (independent of report; formula auto-corrected)
```
The pipeline runs in a **subprocess** (`pipeline_worker.py`) so the Gradio UI can cancel it immediately via `proc.terminate()`.
---
### Report structure
```
# Academic Commercialization Assessment:
## Executive Summary
## 1. Technology Overview & Maturity
## 2. Patent Landscape & White Spaces
## 3. Target Industries & Use Cases
## 4. Competitive Landscape
## 5. Commercialization Opportunities & Recommendations
## Evidence Limitations
## References
*Reference codes: A = Academic paper · P = Patent · M = Market/industry source*
[A1] … [P1] … [M1] …
```
> **Multilingual support**: Language is auto-detected from the topic string. Reports in Simplified/Traditional Chinese, Japanese, Korean, German, French, and 6 more languages are fully localized — section headings, citation legend, and patent disclaimers all adapt automatically.
The scorecard (`commercialization_scores.json`) additionally contains: TRL score, patent strength, market accessibility, evidence confidence, overall score, key risks, and key opportunities.
See the [`examples/`](examples/) folder for three complete real reports across different industries.
---
### Sample output
▶ Example report excerpt — CRISPR base editing for hemophilia A (overall score: 41.3 / 100)
---
**Overall Score: 41.3 / 100** · Biotech profile · TRL 3.3/9 · MRL 2.0/10 · Patent 4.0/5 · Market 2.0/5 · Evidence 3.0/5
---
**Executive Summary**
This assessment evaluates single-dose LNP-ABE8e base editing therapy for hemophilia A targeting the F8 Arg2038Cys mutation. The technology demonstrates strong preclinical proof-of-concept with durable factor VIII restoration (83.7 ± 9.1% at 52 weeks, no detectable immune response [A1]) but remains at an early readiness stage with significant clinical development milestones ahead.
**1. Technology Overview & Maturity**
In vivo adenine base editing via LNP delivery achieved 72 ± 8% on-target A-to-G correction in bulk liver tissue at 4 weeks, with FVIII activity restoration confirmed durable to 52 weeks [A1]. Tail-clip bleeding time normalised to 2.8 ± 0.4 min (wild-type: 2.6 ± 0.3 min) [A1][A2]. No off-target editing or immune response was detected.
> **TRL 3.3 / 9** — Active R&D with in vivo animal model proof-of-concept; no IND filing or human data available.
**2. Patent Landscape & White Spaces**
LNP-mediated liver delivery for in vivo base editing is actively patented by Beam Therapeutics, Intellia Therapeutics, and Precision BioSciences [P2][P4]. The specific F8 Arg2038Cys correction approach may represent a differentiated white space, but freedom-to-operate analysis is required before clinical or commercial use [P1][P3].
**Evidence Limitations**
- Academic: All efficacy data from a single murine model; primate or human data absent [A1]
- Patent: USPTO PatentsView API retired — patent search via Google Patents / WIPO only [P1–P6]
- Market: Hemophilia A gene therapy market projections vary widely ($2.9B–$4.3B by 2032) [M1][M3]
**References**
- [A1] Kim et al. (2025). *In Vivo CRISPR-Cas9 Base Editing Achieves Durable Factor VIII Restoration…* https://doi.org/10.1038/s41587-025-02314-8
- [P1] ENDONUCLEASE FOR TARGETING BLOOD COAGULATION FACTOR VIII — Google Patents
- [M1] *Hemophilia Gene Therapy Market Report, Market Size and Revenue…* — Market Research Future
---
---
### Quick start
#### 1. Install dependencies
```bash
uv sync
```
#### 2. Configure environment variables
Copy `.env.example` to `.env` and fill in your keys:
```bash
cp .env.example .env
```
LLM — pick **one** of:
| Variable | Provider | Default model |
|---|---|---|
| `DEEPSEEK_API_KEY` | DeepSeek ([get key](https://platform.deepseek.com/api-keys)) | `deepseek-chat` |
| `ANTHROPIC_API_KEY` | Anthropic Claude ([get key](https://console.anthropic.com/)) | `claude-sonnet-5` |
| `OPENAI_API_KEY` | OpenAI ([get key](https://platform.openai.com/api-keys)) | `gpt-4o` |
Also required:
| Variable | Where to get it |
|---|---|
| `SERPER_API_KEY` | [serper.dev/api-key](https://serper.dev/api-key) (free tier: 2 500 queries/month) |
Optional:
| Variable | Purpose |
|---|---|
| `LLM_PROVIDER` | Override auto-detection: `deepseek` / `anthropic` / `openai` |
| `MAX_RPM` | API requests per minute (default `6`; raise to `20`+ for OpenAI/Anthropic) |
| `SEMANTIC_SCHOLAR_API_KEY` | Raises S2 rate limit from 1 req/s → 10 req/s; system works without it |
#### 3. Run
**Option A — Gradio web UI (recommended)**
```bash
uv run python app.py
```
Open `http://localhost:7860` in your browser, enter a research topic, and click **Run Analysis**.
UI features:
- **Live progress**: Per-agent status rows for Phase 1 (parallel agents) + elapsed time
- **Scorecard**: Overall score (0–100) + five-dimension radar chart + bar chart with source ID chips (e.g. `A2` `M1`) traceable to validated sources; weight profile badge shows which scoring profile was applied
- **Source warning**: Amber banner when any domain has fewer sources than the recommended minimum
- **Report**: Full Markdown render + `.md` / `.pdf` download (PDF generated in background; report appears immediately)
- **History tab**: Browse all past runs; click any row to fill the Run ID field automatically; Run ID column for easy copy
**Option B — HTTP API**
```bash
uv run uvicorn api.main:app --port 8000
```
Interactive docs at `http://localhost:8000/docs`. Submit a run, poll for progress, fetch the result:
```bash
# Submit — returns immediately with a run_id
curl -X POST http://localhost:8000/api/runs \
-H 'Content-Type: application/json' \
-d '{"topic": "solid-state batteries for electric vehicles"}'
# → {"run_id": "20260729T031500Z-a1b2c3d4e5", "state": "running", ...}
# Poll — state is running | completed | failed | cancelled | timeout
curl http://localhost:8000/api/runs/20260729T031500Z-a1b2c3d4e5
# Fetch the report once state is "completed"
curl http://localhost:8000/api/runs/20260729T031500Z-a1b2c3d4e5/report
```
| Method | Path | Purpose |
|---|---|---|
| `GET` | `/health` | Liveness, active-run count, resolved LLM provider |
| `POST` | `/api/runs` | Queue an assessment (`202`, or `429` at capacity) |
| `GET` | `/api/runs` | List runs, newest first |
| `GET` | `/api/runs/{id}` | Stage, state, elapsed time, available artifacts |
| `DELETE` | `/api/runs/{id}` | Terminate a running assessment |
| `GET` | `/api/runs/{id}/report` | Final report as Markdown |
| `GET` | `/api/runs/{id}/{artifact}` | `scores`, `sources`, `notes`, or `steps` |
Concurrency is capped at 2 runs (`API_MAX_CONCURRENT` to change) — the binding
constraint is upstream API rate limits, not local CPU. Runs exceeding 30 minutes
are terminated automatically.
The API and the Gradio UI share the same `outputs/` directory and launch the
same worker, so a run started from one is visible to the other.
**Option C — Command line**
```bash
uv run crewai run
```
Set the topic via `_DEFAULT_TOPIC` in `src/academic_agent/main.py`.
#### 4. Output
Each run creates an isolated directory that never overwrites previous results:
```
outputs/
└── 20260625T120000Z-a1b2c3d4e5/
├── commercialization_report.md # Final report (Markdown)
├── commercialization_report.pdf # Final report (PDF, CJK-font-aware)
├── commercialization_scores.json # Quantitative scorecard
├── validated_sources.json # Pre-validated source list
├── academic_evidence.json # Task 1 findings, with source IDs and claim types
├── patent_evidence.json # Task 2 findings
├── market_evidence.json # Task 3 findings
├── reviewer_notes.md # Reviewer change log (separated from main report)
├── status.json # Pipeline stage + source counts (polled by UI)
└── steps.jsonl # Per-agent step events (polled for live progress)
```
The three `*_evidence.json` files are what the report writer and scorer actually
read — neither sees the raw source registry. They record how a validated source
became a cited finding, each carrying `source_ids`, a `claim_type` of
`observed_fact` / `estimate` / `analyst_inference`, a confidence level, and its
own limitations.
---
### Docker
```bash
mkdir -p outputs # bind-mounted; create it first so it is not root-owned
cp .env.example .env # add your keys
docker compose up --build
```
The UI is then on http://localhost:7860.
Three things in the image are specific to this project rather than boilerplate:
| Choice | Why |
|---|---|
| `fonts-noto-cjk` | The PDF exporter embeds a CJK font instead of trusting the reader to have one. None ship in `python:slim`, and the fallback chain degrades silently — Chinese reports would render as blank boxes with nothing logged. The build runs `scripts/verify_container_fonts.py` and fails if no embedded font resolves. |
| `tini` as PID 1 | Each run is a `subprocess.Popen` that the UI cancels with `proc.terminate()`. A bare Python PID 1 neither forwards signals nor reaps children, so cancelled runs would accumulate as zombies and `docker stop` would block until it timed out. |
| `GRADIO_SERVER_NAME=0.0.0.0` | Gradio binds loopback by default, which is unreachable from outside a container. Setting it in the environment keeps `app.py` unchanged, so local development retains its loopback-only default. |
`outputs/` is a bind mount because run history, reports and status files are
state. API keys come from `.env` at runtime and are never baked into a layer.
---
### Benchmark
`benchmark.py` ships with 10 preset topics spanning different industries and expected TRL ranges, for validating scoring accuracy and consistency.
```bash
# Run all 10 topics serially (already-succeeded runs are skipped, so an
# interrupted batch resumes where it left off)
uv run python benchmark.py
# Run 3 topics at a time — cuts a full pass from ~30 min to roughly a third
uv run python benchmark.py --concurrency 3
# Re-measure after changing the pipeline. Without --force every completed
# topic is skipped and nothing new is produced.
uv run python benchmark.py --force --concurrency 3
# Re-run one topic
uv run python benchmark.py --only 03 --force
# Check the scheduling without spending any API credit
uv run python benchmark.py --dry-run --concurrency 3
# Generate summary table and CSV
uv run python benchmark_check.py
```
Topics run in **separate processes**, not threads — CrewAI keeps global state
(notably the event bus), so two crews in one interpreter risk cross-talk.
The limit on concurrency is upstream API rate limits, not local CPU: each topic
issues LLM requests at up to `MAX_RPM` (default 6) plus bursts to OpenAlex,
Serper and Crossref, so the aggregate is roughly `concurrency × MAX_RPM`. Every
run records a `rate_limit_hits` count in its `meta.json`, and the summary line
reports the total — **raise `--concurrency` only while that stays at 0**. Starts
are staggered by 10 s (`--stagger`) because every topic opens with the same
burst of source-collection requests.
| # | Topic | Expected TRL | Industry |
|---|-------|-------------|---------|
| 01 | CAR-T cell therapy for solid tumors | 6–8 | Biotech |
| 02 | mRNA vaccines for non-infectious disease | 6–8 | Pharma |
| 03 | CRISPR base editing for monogenic disorders | 4–6 | Biotech |
| 04 | Perovskite solar cells for building-integrated PV | 5–7 | CleanTech |
| 05 | Solid-state batteries for EV | 5–7 | Energy |
| 06 | Green hydrogen via proton exchange membrane electrolysis | 5–7 | Energy |
| 07 | Cultivated meat for food manufacturing | 4–6 | FoodTech |
| 08 | Quantum key distribution for enterprise networks | 4–6 | Cybersecurity |
| 09 | Biodegradable microplastic alternatives for packaging | 5–7 | Materials |
| 10 | Room temperature superconductors | 1–3 | Materials |
`benchmark_check.py` produces `outputs/benchmark/benchmark_summary.csv` and auto-checks:
- 10/10 run success rate
- TRL scores within expected range (pass / flag)
- Weighted formula correctness
- Report section completeness
- Unsupported numeric claim count (hallucination-risk indicator)
---
### Project structure
```
academic_agent/
├── src/academic_agent/
│ ├── crew.py # Crew definition (6 agents / tasks wired together)
│ ├── pipeline_worker.py # Subprocess worker: runs pipeline, writes status.json + steps.jsonl
│ ├── main.py # CLI entry point (--topic "your topic" flag)
│ ├── evidence.py # Evidence models, guardrail validators, CommercializationScore
│ ├── source_pipeline.py # Pre-run deterministic source collection & validation
│ ├── source_clients.py # API clients (OpenAlex, S2, PubMed, arXiv, Lens, Crossref, Serper)
│ ├── pdf_extractor.py # Uploaded-paper contribution extraction
│ ├── language.py # Language detection, translation, synonym generation
│ ├── llm_config.py # Multi-LLM config (DeepSeek / OpenAI / Anthropic; JSON mode)
│ ├── run_output.py # Run ID, report & scorecard persistence; StepEntry TypedDict
│ └── config/
│ ├── agents.yaml # Agent role definitions + scoring rubrics (6 agents)
│ └── tasks.yaml # Task requirements & citation rules (6 tasks)
├── ui/ # Gradio front-end package
│ ├── ui.py # Blocks definition and all callbacks
│ ├── runner.py # Analysis entry points (subprocess + streaming)
│ ├── history.py # Run history tab
│ ├── i18n.py # All UI / scorecard / warning strings (12 languages)
│ ├── html_scorecard.py # Score card rendering
│ ├── html_sources.py # Source list and detail panel
│ ├── html_progress.py # Progress steps and stage constants
│ ├── html_misc.py # Header, reviewer notes, paper divider
│ ├── pdf_export.py # reportlab PDF export
│ └── run_reader.py # Run directory metadata readers
├── api/ # FastAPI HTTP layer
│ ├── main.py # Endpoints, OpenAPI docs, timeout reaper
│ ├── runs.py # Worker process registry, concurrency cap, state derivation
│ └── models.py # Request / response schemas
├── tests/ # Unit tests and integration tests
├── app.py # 10-line entry point — imports and launches Gradio
├── benchmark.py # 10-topic benchmark runner
├── benchmark_check.py # Benchmark result analyzer (CSV + terminal table)
├── outputs/
│ ├── / # Per-run output directory
│ └── benchmark/ # benchmark.py outputs (includes benchmark_summary.csv)
├── .env.example # Environment variable template
├── pyproject.toml # Project dependencies
└── README.md
```
---
### Tech stack
- **Framework**: CrewAI 1.14.x
- **LLM**: DeepSeek-V3 / OpenAI GPT-4o / Anthropic Claude — auto-detected from API key, or set `LLM_PROVIDER` explicitly
- **Academic sources**: OpenAlex Works API (primary) + Semantic Scholar Academic Graph API (supplement)
- **Patent / market search**: SerperDevTool (3-attempt retry with exponential backoff)
- **Academic metadata**: Crossref API (DOI verification and abstract retrieval)
- **Data validation**: Pydantic v2 + custom guardrails (source structure, citation integrity, report structure, scoring formula, hallucinated source ID detection)
- **Web UI**: Gradio 6.x
- **HTTP API**: FastAPI + Uvicorn (OpenAPI docs at `/docs`)
- **PDF export**: reportlab Platypus (embedded TTFont for CJK; falls back to CID fonts)
- **Container**: Docker multi-stage build (dependency layer cached separately from source), `tini` as PID 1 for subprocess reaping, non-root user, build-time CJK font verification
- **Python**: 3.11+
Invalid or unreachable URLs/DOIs, mismatched citation IDs, References inconsistencies, malformed report sections, hallucinated source IDs in scoring, and scoring JSON format errors all block the task and trigger automatic retries.
---
### Scoring dimensions & weight profiles
Scores are computed using a **weight profile** selected automatically based on the topic's industry domain. The profile is stored in `validated_sources.json` and shown as a badge in the UI scorecard.
| Profile | Market | TRL | MRL | Patent | Evidence | Typical domain |
|---|---|---|---|---|---|---|
| `industrial` | 35% | 20% | 15% | 20% | 10% | Default — general manufacturing and anything unmatched |
| `biomedical` | 25% | 20% | **30%** | 15% | 10% | Therapy, vaccine, gene editing, medical device, cultivated meat |
| `material_science` | 20% | **30%** | 20% | 20% | 10% | Perovskite, graphene, electrolyte, solid-state battery, fuel cell |
| `clean_tech` | 25% | **30%** | 20% | 15% | 10% | Green hydrogen, offshore wind, grid storage, direct air capture |
| `software_ai` | **40%** | 30% | 10% | 10% | 10% | LLM, computer vision, SaaS / cloud platform |
Rationale for the weightings: MRL dominates in `biomedical` because manufacturing scale-up is the main gate for biologics; TRL leads in `material_science` and `clean_tech` because lab-to-production cycles are long; `software_ai` puts weight on market traction since distribution cost is near zero and patent moats are weak relative to trade secrets.
Detection runs in priority order — biomedical → material_science → clean_tech → software_ai → industrial — by matching keyword markers against the (English-translated) topic string. The selected profile is stored in `validated_sources.json` and shown as a badge in the UI scorecard.
All profiles sum to 100%, enforced by an `assert` at module load. The `overall_score` is computed by the system from dimension scores and the active profile — the LLM always writes `overall_score: 0` and the formula corrects it automatically.
| Dimension | Field | Max | Description |
|-----------|-------|-----|-------------|
| Technology readiness | `trl_score` | 9 | NASA TRL 1–9 |
| Manufacturing readiness | `mrl_score` | 10 | DoD MRL 1–10 |
| IP landscape navigability | `patent_strength` | 5 | 1 = highly contested, 5 = minimal coverage |
| Market accessibility | `market_accessibility` | 5 | 1 = no commercial activity, 5 = mature market |
| Evidence confidence | `evidence_confidence` | 5 | Cross-validation across source types |
| **Overall score** | `overall_score` | **100** | Weighted formula, profile-dependent |
Each dimension records its supporting source IDs visible in the Gradio scorecard.
---
---
## 中文
基于 [CrewAI](https://github.com/crewAIInc/crewAI) 框架开发的学术成果商业化评估智能体系统。
输入一个研究方向或论文主题，系统将自动调度多个专职 AI Agent，从学术文献、专利图谱、市场竞争三个维度完成分析，最终生成一份带可验证引用的结构化商业化评估报告和量化评分卡。
---
### 界面截图
▶ 分析运行中 — 实时 Agent 进度 + 来源列表
▶ 完整结果 — 评分卡、雷达图与完整报告
---
### 改造说明
本项目基于 CrewAI 官方模板（researcher + reporting_analyst 两个 Agent）改造而来。
| | 原始 Demo | 本项目 |
|---|---|---|
| Agent 数量 | 2（researcher + reporting_analyst） | 6（专职分工） |
| Task 数量 | 2（research_task + reporting_task） | 6（顺序执行 + guardrail 验证） |
| 工具 | 无 | OpenAlex + Semantic Scholar + SerperDevTool + Crossref |
| 输入变量 | topic + current_year | research_topic |
| 来源收集 | 无 | 运行前确定性预检索，URL 可达性验证 |
| 输出格式 | 自由文本报告 | 带 [A1][P2][M3] 行内引用 + References 区块的 Markdown 报告 + JSON 评分卡 |
| 输出管理 | 固定文件名（覆盖） | 每次运行生成唯一 ID，存入 outputs/ 目录 |
| 数据质量保障 | 无 | 结构化证据 + 引用完整性校验 + 来源最低字数过滤 + 自动重试 |
| 评分确定性 | — | JSON 模式 Agent 全部 temperature=0，同一话题多次运行结果稳定 |
| 评分可追溯性 | — | 每个评分维度标注来源 ID（trl_source_ids / patent_source_ids 等） |
---
### Agent 架构
```
Agent 1: Academic Literature Analyst（学术前沿分析师）
来源：Step 0 预验证的 OpenAlex / Semantic Scholar 学术论文
输出：结构化 EvidenceReport JSON，含技术成熟度、研究突破、引用来源（A1/A2/…）
Agent 2: Patent Landscape Analyst（专利图谱分析师）
来源：Google Patents / WIPO 专利记录（经 Serper 检索 + URL 验证）
输出：结构化 EvidenceReport JSON，含专利持有人、空白领域（P1/P2/…）
Agent 3: Market & Competitive Intelligence Analyst（市场情报分析师）
来源：域名白名单过滤的市场报告（Serper 检索）
输出：结构化 EvidenceReport JSON，含商业玩家、目标行业、市场机会（M1/M2/…）
Agent 4: Technology Commercialization Report Writer（报告撰写师）
工具：无（以前三个 Agent 输出作为上下文）
输出：Markdown 报告草稿，含行内引用标注 [A1][P2][M3] 和 References 区块
校验：章节、正文引用、References 和数字引用完整性，不通过则自动重试（最多 2 次）
Agent 5: Report Reviewer（质量审查员）
工具：无（以 Agent 4 草稿作为输入）
规则：6 条规则——引用完整性、无来源数字声明、过度乐观语言、
专利法律免责措辞、证据一致性、TRL 标签与正文一致性
输出：修正后的最终报告；Reviewer Notes 仅记录实际修改条目，自动保存至 reviewer_notes.md
Agent 6: Commercialization Readiness Scorer（量化评分员）
工具：无（以 Task 1/2/3 结构化证据为输入，独立于报告流程）
输出：CommercializationScore JSON 评分卡，含 TRL / MRL / 专利 / 市场 / 证据置信度五维评分
校验：JSON 格式 + 幻觉来源 ID 检测 + 加权公式自动修正，不通过则自动重试（最多 2 次）
```
Agent 1/2/3 并行执行（`async_execution=True`），显著缩短总运行时间。
---
### 执行流程
```
Step 0 来源收集与验证（子进程，确定性）
学术：OpenAlex Works API（filter=title.search，按引用数降序）
→ Semantic Scholar 补充（当 OpenAlex 不足最大来源数时触发）
→ 按 DOI 去重，摘要 <100 字符的记录自动剔除
→ 并发 Crossref 引用数补全（ThreadPoolExecutor）
专利：Serper（3 次重试 + 指数退避）→ Google Patents / WIPO，验证 URL 可达性
市场：Serper 检索 + 域名白名单过滤（30+ 认可机构），剔除低质量站点
元数据：Crossref API 补充 DOI、期刊名、发表日期
输出 validated_sources.json + status.json 传入子进程流水线
Steps 1–3 Agent 1/2/3 — 学术 / 专利 / 市场分析（并行）
Step 4 Agent 4 — 综合报告撰写（guardrail 校验引用完整性）
Step 5 Agent 5 — 质量审查（Reviewer Notes 单独保存）
Step 6 Agent 6 — 量化评分（独立于报告；公式自动修正）
```
流水线在 **子进程**（`pipeline_worker.py`）中运行，Gradio UI 可通过 `proc.terminate()` 即时取消。
---
### 报告结构
```
# Academic Commercialization Assessment:
## Executive Summary
## 1. Technology Overview & Maturity
## 2. Patent Landscape & White Spaces
## 3. Target Industries & Use Cases
## 4. Competitive Landscape
## 5. Commercialization Opportunities & Recommendations
## Evidence Limitations
## References
*文献编码说明：A = 学术论文 · P = 专利 · M = 市场/行业来源*
[A1] … [P1] … [M1] …
```
> **多语言支持**：系统根据研究主题自动检测输出语言（支持中文简体/繁体、日文、韩文、德文、法文等 12 种语言）。各语言版本的报告结构、章节标题、引用图例（A/P/M 说明行）及专利免责声明均自动本地化。
评分卡（`commercialization_scores.json`）额外包含：TRL 评分、专利强度、市场可及性、证据置信度、综合评分、关键风险和机遇列表。
完整报告示例见 [`examples/`](examples/) 文件夹（钙钛矿太阳能 / CAR-T 疗法 / 固态电池，三个行业）。
---
### 示例输出
▶ 报告节选示例 — CRISPR 碱基编辑治疗血友病 A（综合评分：41.3 / 100）
---
**综合评分：41.3 / 100** · 生物技术权重方案 · TRL 3.3/9 · MRL 2.0/10 · 专利强度 4.0/5 · 市场可及性 2.0/5 · 证据置信度 3.0/5
---
**执行摘要**
本次评估针对靶向 F8 Arg2038Cys 突变的单次给药 LNP-ABE8e 碱基编辑疗法（血友病 A）。该技术在动物模型中展现出强有力的概念验证，FVIII 活性恢复可持续 52 周且无免疫反应 [A1]，但距离临床转化仍有较大距离（TRL 3.3/9）。
**1. 技术概览与成熟度**
体内腺嘌呤碱基编辑通过 LNP 递送，在小鼠肝脏组织中实现 72 ± 8% 的靶向 A-to-G 编辑，FVIII 活性恢复率在 52 周时仍维持在 83.7 ± 9.1%，止血时间恢复正常 [A1][A2]。
> **TRL 3.3 / 9** — 已完成动物模型概念验证；尚无 IND 申请或人体数据。
**2. 专利图谱与空白领域**
LNP 体内碱基编辑递送领域专利竞争激烈，Beam Therapeutics、Intellia Therapeutics 等公司已布局核心专利 [P2][P4]。针对 F8 Arg2038Cys 特定位点的修正策略或存在差异化空间，但商业化前须完成自由实施分析 [P1][P3]。
**证据局限性**
- 学术：所有有效性数据来自单一小鼠模型，缺乏灵长类或人体数据 [A1]
- 专利：USPTO PatentsView API 已退役，仅通过 Google Patents / WIPO 检索 [P1–P6]
- 市场：血友病 A 基因疗法市场规模预测差异较大（2032 年 $29 亿–$43 亿）[M1][M3]
---
---
### 快速开始
#### 1. 安装依赖
```bash
uv sync
```
#### 2. 配置环境变量
将 `.env.example` 复制为 `.env` 并填入你的 API Key：
```bash
cp .env.example .env
```
LLM — 三选一填入：
| 变量 | Provider | 默认模型 |
|---|---|---|
| `DEEPSEEK_API_KEY` | DeepSeek（[申请](https://platform.deepseek.com/api-keys)） | `deepseek-chat` |
| `ANTHROPIC_API_KEY` | Anthropic Claude（[申请](https://console.anthropic.com/)） | `claude-sonnet-5` |
| `OPENAI_API_KEY` | OpenAI（[申请](https://platform.openai.com/api-keys)） | `gpt-4o` |
必填：
| 变量 | 申请地址 |
|---|---|
| `SERPER_API_KEY` | [serper.dev/api-key](https://serper.dev/api-key)（免费额度：2500 次/月） |
可选项：
| 变量 | 用途 |
|---|---|
| `LLM_PROVIDER` | 手动指定 provider：`deepseek` / `anthropic` / `openai` |
| `MAX_RPM` | API 每分钟请求数（默认 `6`；使用 OpenAI/Anthropic 可调高至 `20`+） |
| `SEMANTIC_SCHOLAR_API_KEY` | 将 S2 速率限制从 1 req/s 提升至 10 req/s；不填也可正常运行 |
#### 3. 运行
**方式一：Gradio 网页界面（推荐）**
```bash
uv run python app.py
```
浏览器打开 `http://localhost:7860`，在输入框填写研究方向，点击 Run Analysis。
界面功能：
- **实时进度**：Phase 1 并行三个 Agent 的独立状态行 + 已用时间
- **评分卡**：综合分（0–100）+ 五维雷达图 + 条形图，每个维度展示支撑来源 ID 标签（如 `A2` `M1`）；Weight Profile 徽章显示当前使用的评分权重方案
- **来源警告**：任一域名来源不足时显示橙色提示横幅
- **报告**：Markdown 全文渲染 + `.md` / `.pdf` 双格式下载（PDF 后台生成，报告立即显示）
- **History 标签页**：浏览所有历史运行；点击任意行自动填入 Run ID；包含 Run ID 列便于复制
**方式二：HTTP API**
```bash
uv run uvicorn api.main:app --port 8000
```
交互式文档：`http://localhost:8000/docs`。提交任务、轮询进度、获取结果：
```bash
# 提交 —— 立即返回 run_id，不阻塞
curl -X POST http://localhost:8000/api/runs \
-H 'Content-Type: application/json' \
-d '{"topic": "solid-state batteries for electric vehicles"}'
# → {"run_id": "20260729T031500Z-a1b2c3d4e5", "state": "running", ...}
# 轮询 —— state 取值：running | completed | failed | cancelled | timeout
curl http://localhost:8000/api/runs/20260729T031500Z-a1b2c3d4e5
# state 变为 completed 后获取报告
curl http://localhost:8000/api/runs/20260729T031500Z-a1b2c3d4e5/report
```
| 方法 | 路径 | 用途 |
|---|---|---|
| `GET` | `/health` | 存活检查、当前运行数、已解析的 LLM provider |
| `POST` | `/api/runs` | 提交评估任务（`202`，达到并发上限时 `429`） |
| `GET` | `/api/runs` | 列出历史运行，最新在前 |
| `GET` | `/api/runs/{id}` | 阶段、状态、已用时长、可用产物清单 |
| `DELETE` | `/api/runs/{id}` | 终止运行中的任务 |
| `GET` | `/api/runs/{id}/report` | Markdown 格式的最终报告 |
| `GET` | `/api/runs/{id}/{artifact}` | `scores` / `sources` / `notes` / `steps` |
并发上限默认为 2（通过 `API_MAX_CONCURRENT` 调整）——真正的瓶颈是上游 API 限速而非本机 CPU。
超过 30 分钟的运行会被自动终止。
API 与 Gradio 界面共享同一个 `outputs/` 目录、启动同一个 worker，因此从任一入口发起的运行在另一侧都可见。
**方式三：命令行**
```bash
uv run crewai run
```
研究主题在 `src/academic_agent/main.py` 中修改 `_DEFAULT_TOPIC` 字段。
#### 4. 查看报告
每次运行生成独立目录，不会覆盖历史结果：
```
outputs/
└── 20260625T120000Z-a1b2c3d4e5/
├── commercialization_report.md # 最终报告（Markdown）
├── commercialization_report.pdf # 最终报告（PDF，支持 CJK 字体）
├── commercialization_scores.json # 量化评分卡
├── validated_sources.json # 预验证来源清单
├── reviewer_notes.md # 审查员修改记录（与正文分离）
├── status.json # 流水线阶段 + 来源数量（UI 轮询用）
└── steps.jsonl # 每个 Agent 的步骤事件（实时进度用）
```
---
### 基准测试
`benchmark.py` 包含 10 个预设话题，覆盖不同行业和预期 TRL 范围，用于验证系统的评分准确性和一致性。
```bash
# 串行运行全部 10 个话题（已成功的自动跳过，因此中断后可续跑）
uv run python benchmark.py
# 并发 3 个话题 —— 完整一轮从约 30 分钟压缩到三分之一左右
uv run python benchmark.py --concurrency 3
# 改动流水线后重新测量。不加 --force 的话，已完成的话题会全部跳过、不产生新结果
uv run python benchmark.py --force --concurrency 3
# 重跑单个话题
uv run python benchmark.py --only 03 --force
# 仅验证调度逻辑，不消耗任何 API 额度
uv run python benchmark.py --dry-run --concurrency 3
# 生成摘要表格并输出 CSV
uv run python benchmark_check.py
```
话题运行在**独立进程**而非线程中 —— CrewAI 持有全局状态（尤其是 event bus），
同一解释器内跑两个 crew 存在事件流串扰的风险。
并发上限取决于上游 API 限速而非本机 CPU：每个话题以最高 `MAX_RPM`（默认 6）的速率
调用 LLM，外加对 OpenAlex、Serper、Crossref 的突发请求，因此总速率约为
`并发数 × MAX_RPM`。每次运行都会在 `meta.json` 中记录 `rate_limit_hits`，汇总行输出总数
——**只有该值保持为 0 时才可以继续调高 `--concurrency`**。任务启动默认错开 10 秒
（`--stagger`），因为每个话题开头都是同一批来源检索请求的突发。
| # | 话题 | 预期 TRL | 行业 |
|---|------|---------|------|
| 01 | CAR-T cell therapy for solid tumors | 6–8 | Biotech |
| 02 | mRNA vaccines for non-infectious disease | 6–8 | Pharma |
| 03 | CRISPR base editing for monogenic disorders | 4–6 | Biotech |
| 04 | Perovskite solar cells for building-integrated PV | 5–7 | CleanTech |
| 05 | Solid-state batteries for EV | 5–7 | Energy |
| 06 | Green hydrogen via proton exchange membrane electrolysis | 5–7 | Energy |
| 07 | Cultivated meat for food manufacturing | 4–6 | FoodTech |
| 08 | Quantum key distribution for enterprise networks | 4–6 | Cybersecurity |
| 09 | Biodegradable microplastic alternatives for packaging | 5–7 | Materials |
| 10 | Room temperature superconductors | 1–3 | Materials |
`benchmark_check.py` 生成 `outputs/benchmark/benchmark_summary.csv`，自动校验：
- 10/10 运行成功率
- TRL 评分是否落在预期范围（pass / flag）
- 加权公式正确性
- 报告章节完整性
- 悬空数字行数（幻觉风险指标）
---
### 项目文件结构
```
academic_agent/
├── src/academic_agent/
│ ├── crew.py # Crew 定义（6 个 Agent / Task 接线）
│ ├── pipeline_worker.py # 子进程 Worker：运行流水线，写入 status.json + steps.jsonl
│ ├── main.py # 命令行入口（支持 --topic 参数）
│ ├── evidence.py # 证据模型、guardrail 校验、CommercializationScore 模型
│ ├── source_pipeline.py # 运行前确定性来源收集与验证
│ ├── source_clients.py # API 客户端（OpenAlex / S2 / PubMed / arXiv / Lens / Crossref / Serper）
│ ├── pdf_extractor.py # 上传论文的核心贡献提取
│ ├── language.py # 语言检测、翻译、同义词生成
│ ├── llm_config.py # 多 LLM 配置（DeepSeek / OpenAI / Anthropic；JSON 模式）
│ ├── run_output.py # 运行 ID、报告与评分 JSON 持久化；StepEntry TypedDict
│ └── config/
│ ├── agents.yaml # Agent 角色配置 + 评分 rubric（6 个）
│ └── tasks.yaml # Task 需求与引用规则（6 个）
├── ui/ # Gradio 前端包
│ ├── ui.py # Blocks 定义与全部回调
│ ├── runner.py # 分析入口（子进程 + 流式输出）
│ ├── history.py # 历史运行标签页
│ ├── i18n.py # 全部 UI / 评分卡 / 警告文案（12 种语言）
│ ├── html_scorecard.py # 评分卡渲染
│ ├── html_sources.py # 来源列表与详情面板
│ ├── html_progress.py # 进度步骤与阶段常量
│ ├── html_misc.py # 页头、审查记录、论文分隔线
│ ├── pdf_export.py # reportlab PDF 导出
│ └── run_reader.py # 运行目录元数据读取
├── api/ # FastAPI HTTP 层
│ ├── main.py # 端点定义、OpenAPI 文档、超时回收
│ ├── runs.py # Worker 进程注册表、并发控制、状态推导
│ └── models.py # 请求 / 响应模型
├── tests/ # 单元测试与集成测试
├── app.py # 10 行入口文件 —— 导入并启动 Gradio
├── benchmark.py # 10 话题基准测试运行器
├── benchmark_check.py # 基准结果分析器（生成 CSV + 终端表格）
├── outputs/
│ ├── / # 每次正常运行的输出目录
│ └── benchmark/ # benchmark.py 输出目录（含 benchmark_summary.csv）
├── .env.example # 环境变量模板
├── pyproject.toml # 项目依赖
└── README.md
```
---
### 技术栈
- **框架**：CrewAI 1.14.x
- **LLM**：DeepSeek-V3 / OpenAI GPT-4o / Anthropic Claude — 自动从 API Key 检测，或通过 `LLM_PROVIDER` 显式指定
- **学术来源**：OpenAlex Works API（主力）+ Semantic Scholar Academic Graph API（补充）
- **专利 / 市场搜索**：SerperDevTool（3 次重试 + 指数退避）
- **学术元数据**：Crossref API（DOI 验证与摘要检索）+ 并发引用数补全
- **数据校验**：Pydantic v2 + 自定义 guardrail（来源结构、引用完整性、报告结构、幻觉来源 ID 检测、评分算法验证）
- **网页界面**：Gradio 6.x
- **HTTP API**：FastAPI + Uvicorn（OpenAPI 文档位于 `/docs`）
- **PDF 导出**：reportlab Platypus（嵌入式 TTFont，支持 CJK；回退至 CID 字体）
- **Python**：3.11+
URL/DOI 无效或不可达、引用编号错误、References 不一致、报告结构错误、幻觉来源 ID 和评分 JSON 格式错误都会阻止任务并触发重试。
---
### 评分维度与权重方案
评分使用**权重方案（weight profile）**，系统根据话题所属行业自动选择，并存入 `validated_sources.json`，在 UI 评分卡中以徽章显示。
| 方案 | 市场 | TRL | MRL | 专利 | 证据 | 典型领域 |
|---|---|---|---|---|---|---|
| `industrial` | 35% | 20% | 15% | 20% | 10% | 默认方案 —— 通用制造业及未匹配到其他方案的话题 |
| `biomedical` | 25% | 20% | **30%** | 15% | 10% | 疗法、疫苗、基因编辑、医疗器械、培养肉 |
| `material_science` | 20% | **30%** | 20% | 20% | 10% | 钙钛矿、石墨烯、电解质、固态电池、燃料电池 |
| `clean_tech` | 25% | **30%** | 20% | 15% | 10% | 绿氢、海上风电、电网储能、直接空气捕集 |
| `software_ai` | **40%** | 30% | 10% | 10% | 10% | 大语言模型、计算机视觉、SaaS / 云平台 |
权重设计依据：`biomedical` 中 MRL 占比最高，因为生物制品的量产工艺是商业化的主要瓶颈；`material_science` 与 `clean_tech` 以 TRL 为主，因为从实验室到量产的周期极长；`software_ai` 侧重市场牵引，因为分发成本接近于零，且专利护城河相对商业秘密更弱。
方案检测按优先级顺序进行——biomedical → material_science → clean_tech → software_ai → industrial，通过关键词标记匹配（已翻译为英文的）话题字符串。选中的方案存入 `validated_sources.json`，并在 UI 评分卡中以徽章显示。
所有方案权重之和为 100%，由模块加载时的 `assert` 强制校验。`overall_score` 由系统根据维度分数和当前方案自动计算——LLM 始终输出 `overall_score: 0`，系统公式自动修正。
| 维度 | 字段 | 满分 | 说明 |
|------|------|------|------|
| 技术成熟度 | `trl_score` | 9 | NASA TRL 1–9 |
| 制造成熟度 | `mrl_score` | 10 | DoD MRL 1–10 |
| IP 景观可导航性 | `patent_strength` | 5 | 1=高度竞争，5=几乎无专利保护 |
| 市场可及性 | `market_accessibility` | 5 | 1=无商业活动，5=成熟市场有收入数据 |
| 证据置信度 | `evidence_confidence` | 5 | 多维来源交叉验证程度（元维度） |
| **综合分** | `overall_score` | **100** | 加权公式，因方案而异 |
每个维度评分同时记录支撑来源 ID，可在 Gradio 评分卡中直接查看并追溯至原始文献。
