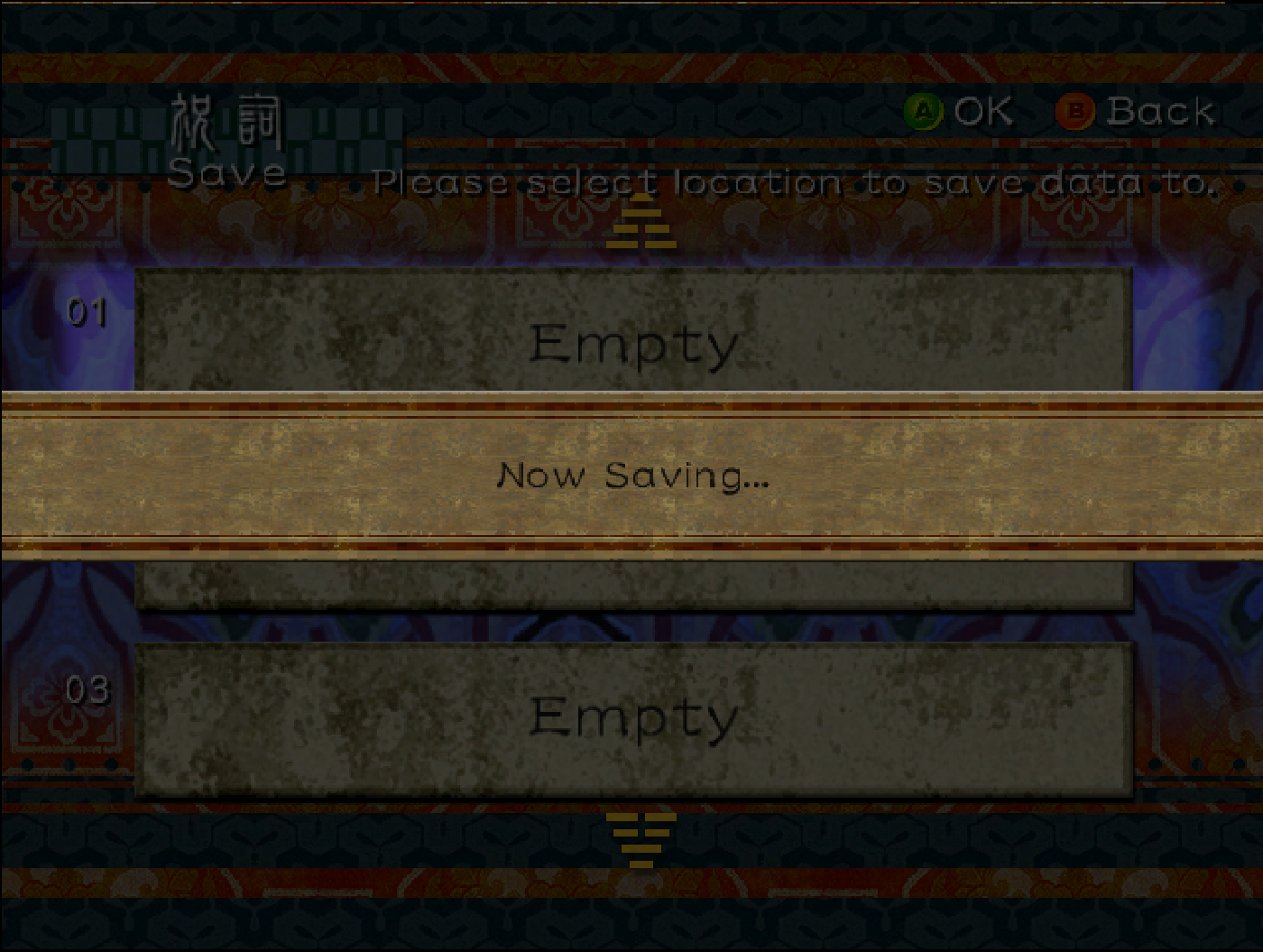

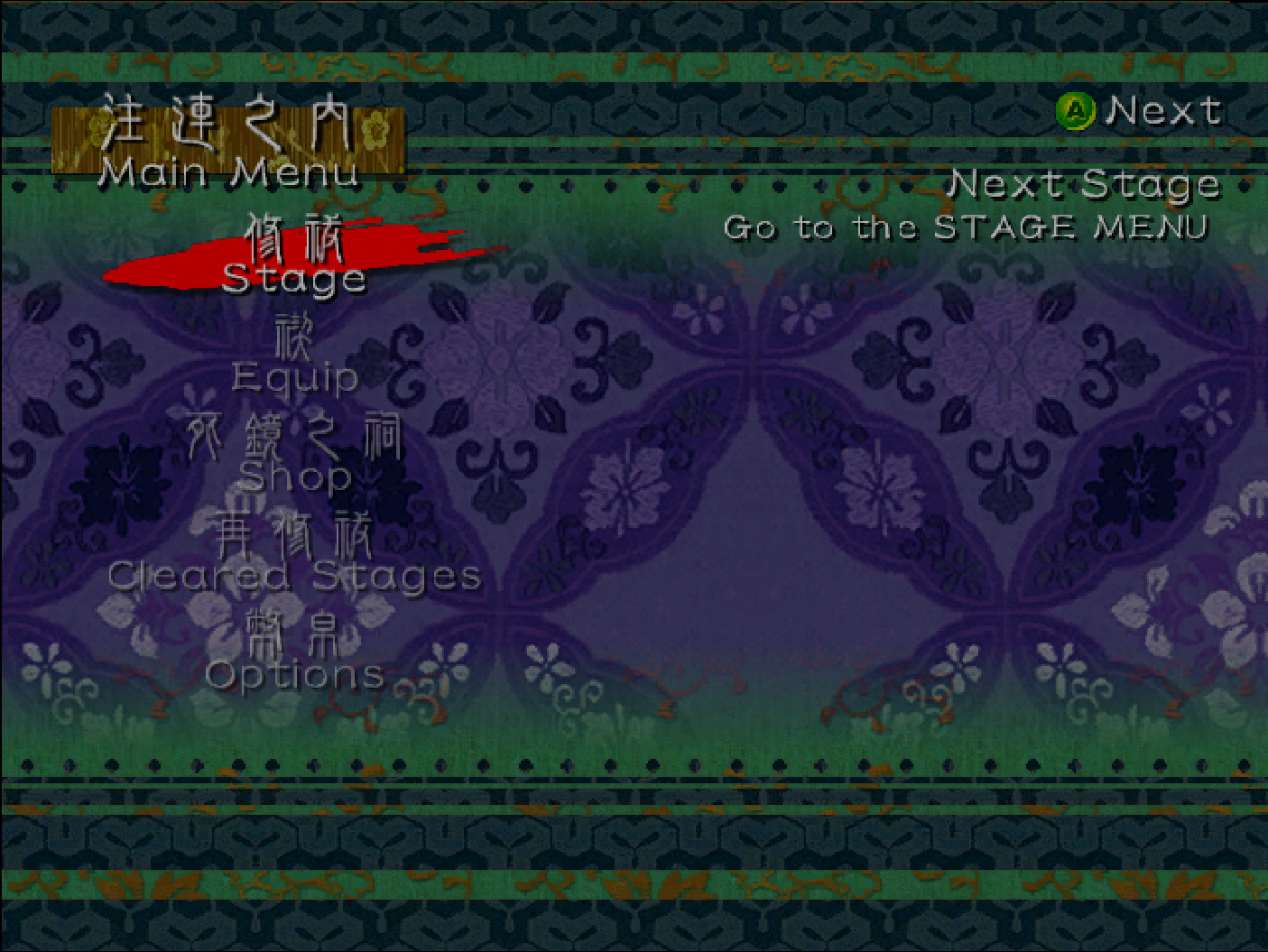

| **Save creation.** Loading a save also works in the maintainer's runs; no load-screen capture yet. | **Main menu.** Reached after save creation or loading. |
|
|
|

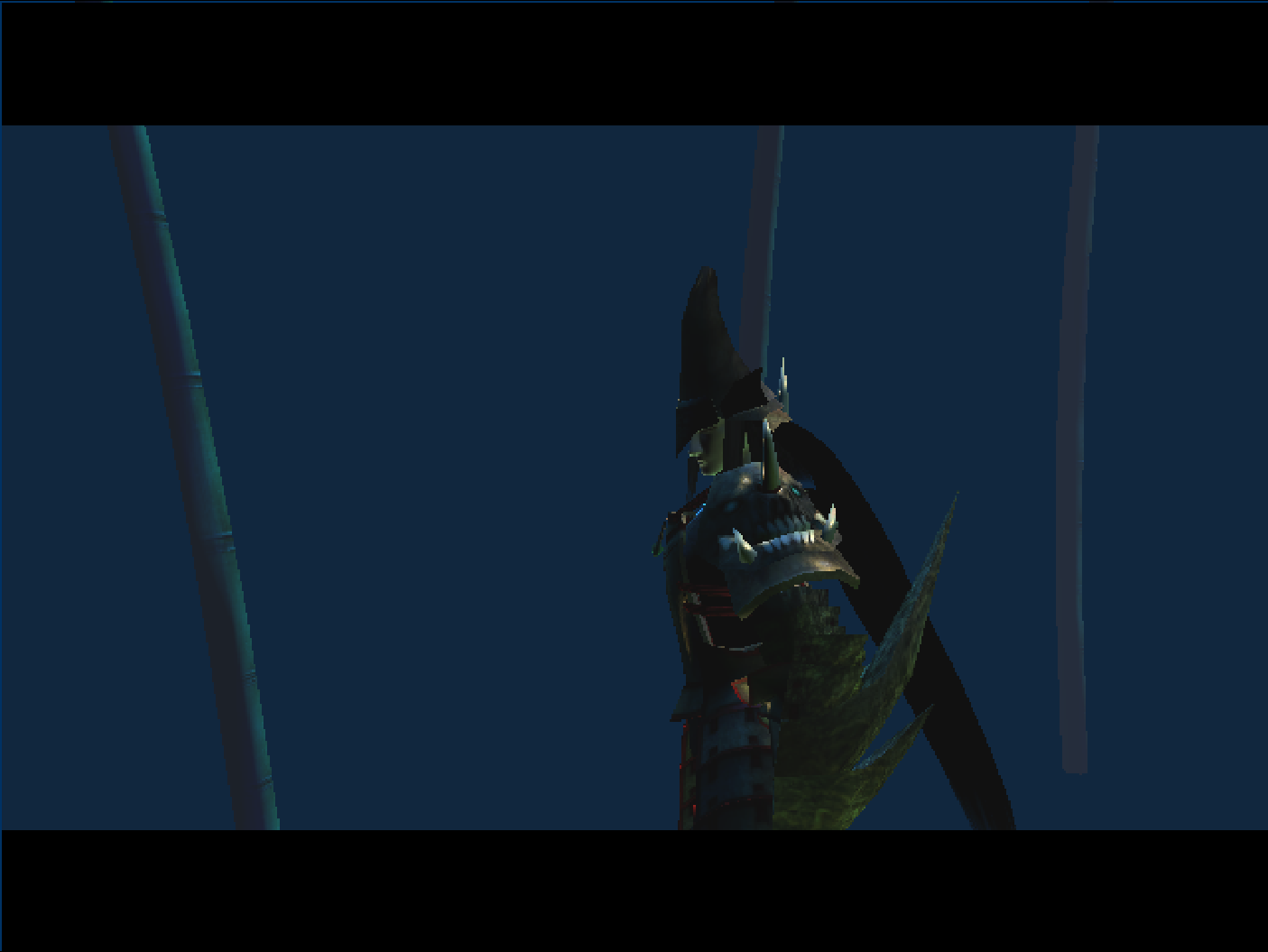

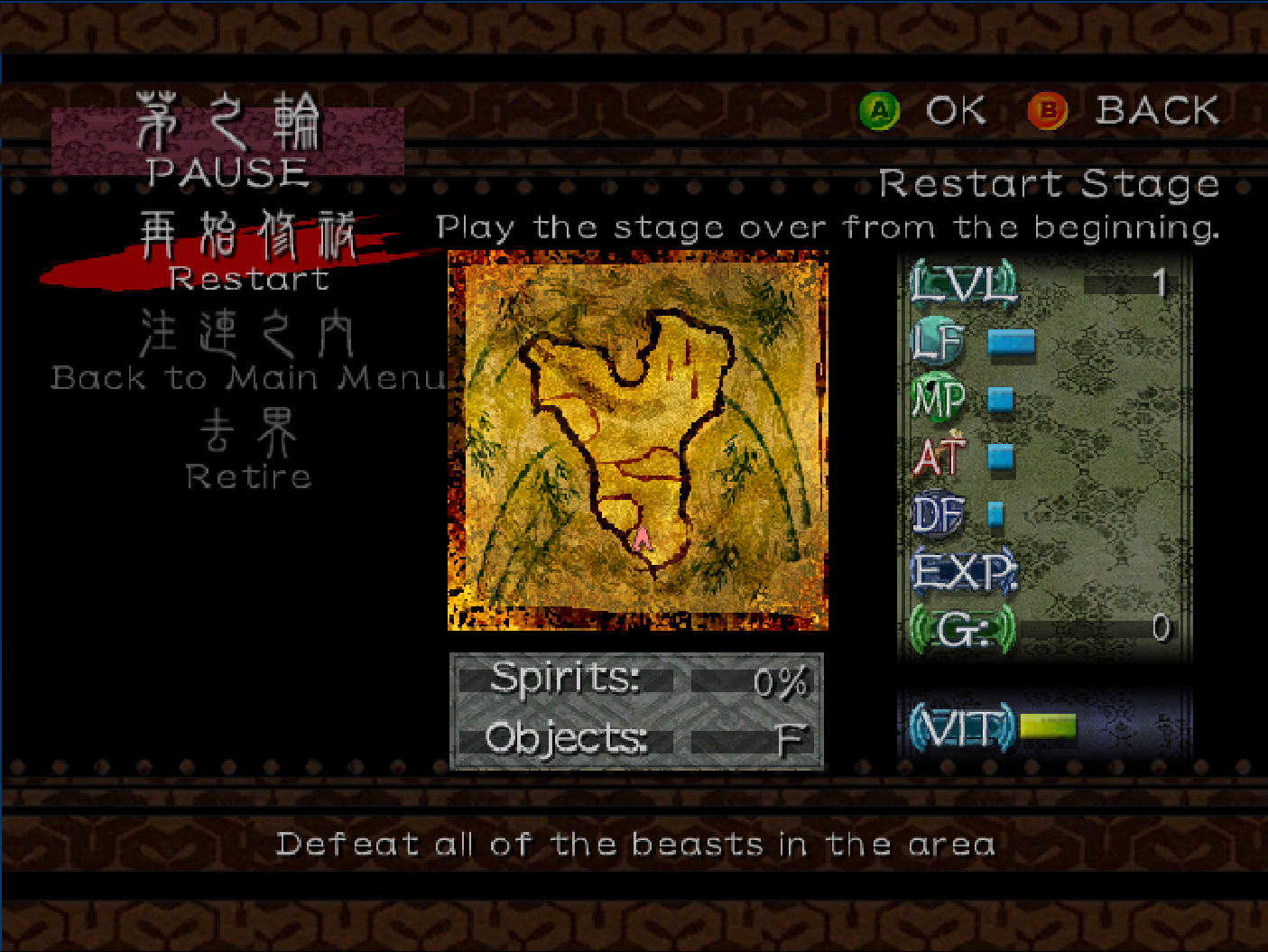

| **Start-game stage.** The player's 3D model is drawn. The stage world is not: the only scenery visible is bamboo. | **Pause menu.** Opened from the start-game stage. |
The open blockers behind these limits are tracked in [`docs/KNOWN_ISSUES.md`](docs/KNOWN_ISSUES.md).
## Known limitations
- **The stage world is not drawn.** The player's 3D model is drawn on the start-game stage; only bamboo is visible as scenery. There is no playable level.
- **Black screen after New Game.** Two runs on 2026-10-24 showed a black screen after the menu pan-out delay: one plain, one with `RECOMP_GUEST_LOCK=1`. Neither had `RECOMP_AC97_READY=1`. Repeated maintainer runs with `RECOMP_AC97_READY=1` did not show it. That switch is the only difference recorded, so it is a correlation, not an established cause. Stderr from a black-screen run has not been captured. See [`docs/KNOWN_ISSUES.md`](docs/KNOWN_ISSUES.md).
- **No recorded cause for the input fix.** The 2026-10-22 input stall has not been seen since 2026-10-24, but no record names the change that cleared it.
- **The save file is not documented.** Creating and loading a save work. The file's location and format are not recorded yet.
- **No DSP effects.** The DSP is a passthrough stub, so the mixed output is produced but the title's audio effects are not emulated.
- **The MSVC 2022 path is untested.** The MinGW-w64 cross-build is the verified Windows path.
## Requirements
- Linux x86-64, or Windows x86-64 (the MinGW cross-build is the verified Windows path; MSVC 2022 is supported but untested).
- CMake 3.20+, a C11 compiler, and Ninja. The build commands below pass `-G Ninja`; drop that flag to use CMake's default generator.
- On Linux only: SDL2 and libepoxy for the video, audio and window path. Windows uses Direct3D 11 and XAudio2 from the Windows SDK instead.
- Python 3.10+ with `capstone` — `regen.sh` drives the toolkit's Python tools.
- Your own legally obtained copy of the game, as an Xbox disc image (`.iso`). Step 3 unpacks it into `game/`; its `default.xbe` is what `regen.sh` reads.
- The recompiled C in `src/game/recomp/gen/`, produced by `regen.sh`. It is generated, not tracked.
The runtime toolkit is a submodule at `xboxrecomp/`; no separate checkout is needed.
## Step by step
The same steps this project is developed against, in order. Commands are for a
POSIX shell — Linux, or Git Bash on Windows.
1. **Install the prerequisites.**
| Tool | Version | Notes |
|---|---|---|
| Python | 3.10 or newer | runs the toolkit's Python tools |
| capstone | 5.x | `python3 -m pip install --user capstone` |
| CMake | 3.20 or newer | |
| C compiler | C11 | GCC or Clang on Linux; MinGW-w64 for the verified Windows build |
| Ninja | recommended | the commands below pass `-G Ninja`; drop it to use the default generator |
| SDL2, libepoxy | Linux only | video, audio and window path |
```
$ python3 -c "import capstone; print(capstone.__version__)"
5.0.1
$ cmake --version | head -1
cmake version 3.31.6
```
2. **Clone the repository.** The toolkit is a submodule pinned to this project's fork — no second checkout, no patch to apply.
```
git clone --recursive https://github.com/sigods/otogi1
cd otogi1
```
3. **Unpack your disc image** into `game/`, using the toolkit's own XDVDFS reader. Otogi's USA image carries a video partition in front of the filesystem, so tools that assume the filesystem starts at offset 0 fail; this reader probes the known partition bases.
```
$ cd xboxrecomp
$ python3 -m tools.xiso unpack "/path/to/Otogi - Myth of Demons (USA).iso" -o ../game
$ cd ..
```
You should end up with `game/default.xbe` next to `chr/`, `map/`, `sfx/`, `movie/` and the rest — 1,121 files, about 2.2 GB.
4. **Regenerate the C.**
```
$ ./regen.sh
==> xbe_parser
==> disasm
==> func_id
==> abi_analysis (never skip: silent wrong signatures otherwise)
==> recomp (--split 250: prevents OOM)
==> done. Now: cmake --build build-linux
```
This writes `src/game/recomp/gen/`, which is gitignored. It takes a while: the recompile step alone is 5–15 minutes ([`docs/PIPELINE.md`](docs/PIPELINE.md)). It is only needed once per disc. It generates C and stops — the `cmake --build` in its closing line is a suggestion, and step 5 does the configure that makes it work.
5. **Build.**
```
$ cmake -S . -B build-linux -G Ninja
$ cmake --build build-linux -j8
```
The executable is `build-linux/bin/otogi1`, about 19 MB.
6. **Run it from the project root.**
```
$ ./build-linux/bin/otogi1
```
The binary opens `game/default.xbe` relative to the current directory. Within a few seconds the log shows the title's own display-mode call and the kernel event it builds for the GPU fence:
```
[AV] SetDisplayMode mode=0x080F0D12 format=0x00000012 pitch=2560 fb=0x00404000
[KERNEL] event 0x00106B6C built by the title: host event created (notification)
```
After that it sits in the title's main loop. `Ctrl+C` ends it.
`./tools/smoke.sh build-linux` re-checks the claims above against an existing build. It runs the title twice. The plain run captures audio, and it asserts that the title reaches `[AV] SetDisplayMode`, that it is still running when the timeout stops it (no early exit, no segmentation fault), that the audio is non-silent, and that the OHCI controllers stay off. The `RECOMP_USB=1` run asserts that the OHCI controllers come up and that there is no segmentation fault.
7. **Turn on the implemented parts.** Each is opt-in. The first line is the reference run, with a physical gamepad:
```
$ RECOMP_USB=1 RECOMP_FB_WINDOW=1 RECOMP_PB_EXEC=1 RECOMP_AC97_READY=1 ./build-linux/bin/otogi1
$ RECOMP_FB_WINDOW=1 RECOMP_AC97_READY=1 ./build-linux/bin/otogi1 # window + BGM
$ RECOMP_PB_EXEC=1 ./build-linux/bin/otogi1 # GPU command stream
$ RECOMP_USB=1 RECOMP_AUTOPRESS=1 ./build-linux/bin/otogi1 # sends START+A through the emulated pad
```
On a headless box, run the window under `Xvfb`. These are the switches the README relies on; [`AGENTS.md`](AGENTS.md) § 7 lists the rest, including the diagnostic ones added during bring-up.
### Windows
Steps 1–3 are the same. `regen.sh` is a POSIX shell script, so run step 4 once from Git Bash or WSL. Then pick a toolchain:
- **MinGW-w64 cross-build — verified.** It links, and under Wine it reaches the title's display-mode call without faulting:
```
$ cmake -S . -B build-win -G Ninja \
-DCMAKE_SYSTEM_NAME=Windows \
-DCMAKE_C_COMPILER=x86_64-w64-mingw32-gcc \
-DCMAKE_FIND_ROOT_PATH=/usr/x86_64-w64-mingw32 \
-DCMAKE_FIND_ROOT_PATH_MODE_PROGRAM=NEVER
$ cmake --build build-win -j8
```
The result is `build-win/bin/otogi1.exe`.
- **MSVC 2022 — supported, untested.** Needs the *Desktop development with C++* workload; the Windows SDK supplies Direct3D 11, DXGI, `d3dcompiler` and XAudio2, so no SDL2 is required:
```
cmake -S . -B build -G "Visual Studio 17 2022" -A x64
cmake --build build --config Release --parallel
```
The result is `build\bin\Release\otogi1.exe`.
Run from the project root, like on Linux:
```
./build-win/bin/otogi1.exe # MinGW cross-build
.\build\bin\Release\otogi1.exe # MSVC
```
## Switches
Every switch is an environment variable, read once at startup. The table below lists the switches these instructions use; [`AGENTS.md`](AGENTS.md) § 7 has the complete set, including the diagnostics added during bring-up.
| Variable | Effect |
|---|---|
| `RECOMP_FB_WINDOW=1` | Open the SDL framebuffer window and present frames — Linux only, off by default |
| `RECOMP_PB_EXEC=1` | Software NV2A push-buffer executor |
| `RECOMP_USB=1` | OHCI controller and emulated pad (`RECOMP_AUTOPRESS=1` sends START+A) |
| `RECOMP_AC97_READY=1` | MCPX APU and host audio output (SDL2 on Linux, XAudio2 on Windows) |
| `RECOMP_AUDIO_WAV=path` | Capture the mixed output to a WAV file |
| `RECOMP_SYNC_IO=1` | Complete `NtReadFile` inline (pre-audio-fix behaviour) |
## Documentation
- [`docs/INDEX.md`](docs/INDEX.md) — start here: which document to read, and when.
- [`docs/FAQ.md`](docs/FAQ.md) — the short answers, if you want them first.
- [`docs/ARCHITECTURE.md`](docs/ARCHITECTURE.md) — which layer owns a behaviour.
- [`docs/PIPELINE.md`](docs/PIPELINE.md) — the toolchain, step by step.
- [`docs/RUNNING.md`](docs/RUNNING.md) — building, running and recording the executable, in long form.
- [`docs/TITLE_OTOGI.md`](docs/TITLE_OTOGI.md) — title facts and open unknowns.
- [`docs/KNOWN_ISSUES.md`](docs/KNOWN_ISSUES.md) — what is blocking progress now.
- [`docs/BOOT_LOG.md`](docs/BOOT_LOG.md) — the append-only findings ledger.
- [`ROADMAP.md`](ROADMAP.md) — milestone status.
- [`CHANGELOG.md`](CHANGELOG.md) — what changed, and when.
## How to help
- If the black screen after New Game appears, capture stderr (`./build-linux/bin/otogi1 2>stderr.txt`) and send the lines around `[KERNEL] ordinal 175` ([`docs/KNOWN_ISSUES.md`](docs/KNOWN_ISSUES.md)).
- Name kernel ordinal 175 from the toolkit's export table under `xboxrecomp/` and record it in [`docs/BOOT_LOG.md`](docs/BOOT_LOG.md).
- Build with MSVC 2022 and report the result — that path is supported but has never been run.
- Run `./tools/smoke.sh` on another distribution and report any assertion that fails.
- Correct or extend a page in [`docs/`](docs/INDEX.md).
- Pick a milestone in [`ROADMAP.md`](ROADMAP.md) and open an issue naming it.
Read [`CONTRIBUTING.md`](CONTRIBUTING.md) first; it has the two rules that matter.
## Contributing
Corrections, bug reports and pull requests are welcome — read
[`CONTRIBUTING.md`](CONTRIBUTING.md) first. Two rules matter most: never commit
game data (the `repo hygiene` workflow, `.github/workflows/hygiene.yml`, fails if
`game/`, `.iso`, `.xbe`, `.xmv` or `.xps` files are tracked), and back every claim
with the evidence behind it.
Credits, the AI assistance disclosure and upstream attribution are in
[`CONTRIBUTORS.md`](CONTRIBUTORS.md). Working with an AI agent? Point it at
[`AGENTS.md`](AGENTS.md) first; it lists the pipeline gates that fail silently.
## Licensing
This project's own source is **GPL-3.0-only** — see [`LICENSE`](LICENSE). No game
data, disc image, XBE or generated recompiled source is distributed here; you
supply your own copy (see Requirements).
`xboxrecomp/` is a submodule pinned to this project's fork of the toolkit,
carrying local changes; `xboxrecomp/UPSTREAM.md` records the upstream base. Most
of the toolkit is MIT-licensed. Some files derived from xemu are
**LGPL-2.1-or-later**, not MIT: the MCPX APU sources in `xboxrecomp/src/apu/` and
the NV2A register header `xboxrecomp/src/nv2a/nv2a_regs.h`. Not every file in
those directories is xemu-derived. [`NOTICE`](NOTICE) lists them with their
copyright holders; the per-file list is in `xboxrecomp/NOTICE`, and the licence
text is in `xboxrecomp/LICENSES/LGPL-2.1.txt`.
