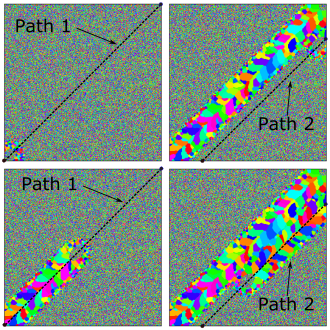

<HTML> <CENTER><A HREF = "https://spparks.github.io">SPPARKS Website</A> - <A HREF = "Manual.html">SPPARKS Documentation</A> - <A HREF = "Section_commands.html#comm">SPPARKS Commands</A> </CENTER> <HR> <H3>am path command </H3> <P><B>Syntax:</B> </P> <PRE>am path id start x0 y0 end x1 y1 speed V </PRE> <UL><LI>id = integer identification number for this path <LI>start = required keyword <LI>x0 y0 = starting point x-y plane for straight line path <LI>end = required keyword <LI>x1 y1 = end point x-y plane for straight line path <LI>speed = required keyword <LI>V = scan speed of the pass in sites/Monte-Carlo-sweep </UL> <P><B>Example </B> </P> <P>This snippet is taken from SPPARKS repository: <I>examples/am_path/path_raster_a</I> </P> <PRE># Convenience; define set of points to be used in path commands variable X0 equal 0.0 variable Y0 equal 0.0 variable X1 equal 500.0 variable Y1 equal 500.0 variable X2 equal 106.1 variable Y2 equal 0.0 variable X3 equal 500.0 variable Y3 equal 393.9 </PRE> <PRE>am path 1 start $<I>X0</I> $<I>Y0</I> end $<I>X1</I> $<I>Y1</I> speed 9 am path 2 start $<I>X3</I> $<I>Y3</I> end $<I>X2</I> $<I>Y2</I> speed 9 am path_layer 1 num_paths 2 path_ids 1 2 thickness 1 </PRE> <P><B>Description:</B> </P> <P>This command is used by <A HREF = "app_am_ellipsoid.html">am/ellipsoid</A>, and <A HREF = "app_potts_am_weld.html">potts/am_weld</A> to specify raster scans in a very general way. This <I>am path</I> command specifies a line in the x-y plane using <I>start x,y</I> and <I>end x,y</I> points; path scan <I>speed V</I> is also part of the specification. Any number of <I>am path</I>s can be specified in a script; an <I>am path</I> can be associated with multiple <I>am path_layer</I>s. The direction of travel is implied by starting and ending points. </P> <P>The example commands above define two paths both each of which are associated with <I>am path_layer 1</I>. See depiction of simulation below. </P> <IMG SRC = "JPG/path_schematic.png"> <P><B>Restrictions:</B> </P> <P>This rastering command can be used with <A HREF = "app_potts_am_weld.html">app_style potts/am/weld</A> or <A HREF = "app_am_ellipsoid.html">app_style am/ellipsoid</A>. </P> <P><B>Related commands:</B> </P> <P>The <I>am path</I> is a required element of <A HREF = "am_path_layer.html">am_path_layer</A> </P> <P><B>Default:</B> none </P> </HTML>
