## Data modeling: Basic regression
As scientists and engineers (or anyone else who deals with data) we seek to better understand the processes recorded by our data.  Throughout the term, we have been exploring, summarizing, and visualizing data to help gain insight into the topic of interest and to understand the relationship between variables in our datasets.

Now we are at the point where we can advance into data modeling.  The ModernDive text (_excerpt below_), does a great job at describing the concept of data modeling:

> The fundamental premise of data modeling is to make explicit the relationship between:

>  + an outcome variable $y$, also called a dependent variable and
   + an explanatory/predictor variable $x$, also called an independent variable or covariate.

>Another way to state this is using mathematical terminology: we will model the outcome variable
$y$ as a function of the explanatory/predictor variable $x$. Why do we have two different labels, explanatory and predictor, for the variable $x$? That’s because roughly speaking data modeling can be used for two purposes:


1. **Modeling for prediction:**  When we model for prediction we are interested in predicting the outcome of $y$ based on the information contained in the predictor variable(s).  Here we care less about understanding the fundamental relationship between $x$ and $y$ and more about making predictions of $y$ based on information from $x$.  For example, imagine you are a public health official in Bangladesh and you would like to be able to predict arsenic concentrations in wells based on the depth of the well -- this will help you identify at risk wells.  Here you don't really care about the fundamental reasons why arsenic might vary with depth, though you care very much about making accurate predictions of groundwater arsenic based on the depth of the well.

2. **Modeling for explanation:** When modeling for explanation you want to describe and understand the conceptual/fundamental implications of the relationship between the outcome variable $y$ and the explanatory variable $x$.  Imagine the scenario in Bangladesh, however in this situation you are a hydrologist and would like to understand the scientific reasons why arsenic concentrations depend on depth.  Here you would like to interpret the significance of the relationship and what it might imply with regards to the physical/chemical processes driving arsenic release.

There are many techniques and approaches to data modeling, though in today's lecture we will focus first on **linear regression** and then move onto non-parametric regression.


<br/>


### Linear regression
Linear regression is one of the most commonly-used data models and is relatively easy to understand.  We will focus on _simple linear regression_ which is when we have a single numeric explanatory variable $x$ that we will use to explain/predict the outcome of the numeric dependent variable $y$.

A linear model is of the following form:

$y = \beta_0 + \beta_1*x$


Where $\beta_0$ represents the intercept and $\beta_1$ is the slope.

A linear regression finds the slope and intercept parameters that generate the best predictions (_i.e._ result in the minimum possible difference between the observed values of $y$ and the predicted values of $\hat{y}$).


We'll use the BGS Bangladesh groundwater chemistry data to test out linear regressions.

First let's load in the packages we'll use today.
```{r message = FALSE, warning = FALSE}
library(tidyverse)
library(lubridate)
library(moderndive)
```

<br/>

Now let's load in the BGS Bangladesh groundwater chemistry data to use in the analysis to follow.
```{r warning=FALSE, message=FALSE}
bangladesh_gw <- read_csv("https://stahlm.github.io/ENS_215/Data/NationalSurveyData_DPHE_BGS_LabData.csv") %>%
  drop_na()
```

<br/>

Right now you are a hydrologist and you are interested in the understanding how phosphate PO~4~ concentrations affect arsenic concentrations in the groundwaters of Bangladesh.  You know theory suggests that phosphate can desorb (knock-off of solid minerals and put into the water) arsenic from the solid aquifer material and thus lead to increases in the concentration of arsenic in the groundwater.  You would like to conduct a regression to better understand if there is in fact a relationship between phosphate and arsenic concentrations in the groundwater and what this might imply scientifically.

Let's first generate a scatter plot to see how the two variables relate to one another.  Let's focus on just shallow wells from the Dhaka division in our analysis.
```{r}
Dhaka_gw <- bangladesh_gw %>%
  filter(DIVISION == "Dhaka", WELL_DEPTH_m < 40)

Dhaka_gw %>%
  ggplot(aes(x = P__mgL, y = As_ugL)) +
  geom_point(alpha = 0.5) +
  theme_classic()
```

So it looks like there might be a relationship between the two variables.  Let's fit a regression line to the data and plot the fitted line on our graphic.

To plot a regression line we can use the `geom_smooth()` function and specify that we want the fitted line to be a **linear model**.  We specify this by setting `method = "lm"` in the `geom_smooth()` function call.

```{r}
Dhaka_gw %>%
  ggplot(aes(x = P__mgL, y = As_ugL)) +
  geom_point(alpha = 0.5) +
  geom_smooth(method = "lm") +
  theme_classic()


```

You can see that there is a positive relationship between phosphate and arsenic in the groundwater.  Thus, higher concentrations of phosphate generally indicate higher concentrations of arsenic.  As hydrologists we are interested in understanding the fundamental relationship between phosphate and arsenic -- in this case the positive relationship (i.e. the positive slope of the linear fit) is consistent with geochemical theory.

Note that our linear model is indicated by the blue line.  The gray band around the line is the _standard error_, which is a measure of the uncertianty of the model fit.  You can remove the standard error by specifying `se = FALSE` in the `geom_smooth()` function call.

Now that we've created a graphic showing the linear regression fit to our data, we would like to actually know the slope and intercept of our model fit.  To get this information we can use the `lm()` function to perform a linear regression.  The `lm()` function does the exact same thing that `geom_smooth(method = "lm")` does, except the `lm()` function allows us to save the model output as opposed to simply plotting the results.

<br/>

Using `lm()` to perform a linear regression is relatively straightforward -- the sytax is as follows:

  > `lm(data = your_dataframe, formula = y ~ x)`

Where, `y` is the dependent variable, `x` is the explanatory/predictive variable and `your_dataframe` is the data frame that contains your `x` and `y` data.

Let's compute the linear regression to determine the relationship between arsenic and phosphorus.  In mathematical terms we are solving for the slope ($\beta_1$) and intercept ($\beta_0$) of the following equation:

$Arsenic = \beta_0 + \beta_1 * phosphorus$

```{r}
lm(data = Dhaka_gw, formula = As_ugL ~ P__mgL)
```

```{r echo=FALSE, message=FALSE}
lm_1 <- lm(data = Dhaka_gw, formula = As_ugL ~ P__mgL)
```

<br/>

You can see from out linear regression that the intercept $\beta_0$ = `r round(lm_1$coefficients[1],2)` and the slope $\beta_1$ = `r round(lm_1$coefficients[2],2)`

Thus the equation is:

$Arsenic = `r round(lm_1$coefficients[1],2)` +`r round(lm_1$coefficients[2],2)` * phosphorus$

This means that for every increase of 1 mg/L phosphorus, there is a `r round(lm_1$coefficients[2],2)` ug/L increase in arsenic.  As hydrologists this is useful from a _modeling for explanation_ perspective as it can help provide insight into the fundamental understanding of arsenic mobilization.  The linear model is also useful from a _modeling for prediction_ perspective as it can help us to predict arsenic concentrations if we know the phosphorus concentration and it can also help us to predict how arsenic concentrations will change with any changes in phosphorus.

<br/>

#### Exercises

+ Examine the relationship between several other pairs of variables in the `bangladesh_gw` dataset.
    + Create scatter plots and add a linear fit to the graphic.  In some cases you may find it helpful to perform a linear fit to the log of both variables.
    + Examine the slope and intercept of your fit and think about and discuss what they imply.




<br/>

### Regression -- continued

Let's load in some data of atmospheric CO~2~ concentrations that have been recorded at Mauna Loa, Hawaii since the late-1950s.  The dataset has monthly average concentrations.
```{r message=FALSE, warning=FALSE}
mauna_loa <- read_csv("https://stahlm.github.io/ENS_215/Data/Mauna_Loa_CO2.csv", skip = 2) %>%
  mutate(Date = decimal_date(make_date(Year, Month, 15)))  # add a column that has the date information in decimal date format

```


Let's plot the data and add a linear fit to the data.  This will help us to characterize the change in CO~2~ concentrations with time.
```{r}
mauna_loa %>%
  ggplot(aes(x = Date, y = CO2_ppm)) +
  geom_line() +
  geom_smooth(method = "lm") +
  theme_classic()
```

+ What do you observe with respect to atmospheric CO~2~ concentrations over time?
+ Does the rate of change of CO~2~ with time look constant?  If not, does the rate of change appear to be increasing or decreasing?  What does this imply with respect to using a linear model?


<br/>

So we've seen how to generate a linear fit to the data using the `lm()` function as well as the `geom_smooth()` function, which allows us to easily plot the fitted model.  Now let's learn how to get a bit more information about our fitted model using a few functions from the `moderndive` package.  First, we'll fit a linear model to the Mauna Loa CO~2~ data and save the fitted model to an R data object.
```{r}
lm_mauna_loa <- lm(CO2_ppm ~ Date, data = mauna_loa)
```

Mathematically, our model is represented as:

$CO_2 = \beta_0 + \beta_1*Date$

The slope $\beta_0$ tells us how the concentration of CO~2~ (in ppm) in the atmosphere changes with time.  Since the `Date` variable is in units if years, a slope of 2 would tell us that the CO~2~ concentration increases by 2 ppm each year.

To get the coefficients $\beta_0$ and $\beta_1$ along with information about how confident (mathematically speaking) we are in these estimates, we can use the `get_regression_table()` function from the `moderndive` package.
```{r}
get_regression_table(lm_mauna_loa, digits = 5)
```

The table output by `get_regression_table()` gives us the intercept and slope estimates from the fitted linear model.  We see that the slope is 1.55 -- meaning that the linear model predicts a 1.55 ppm change in CO~2~ concentration each year.  The other columns in the table provide information about the mathematical confidence of these slope and intercept estimates.  We don't have sufficient time in this class to dive into the meaning of the the *p-value*, but generally speaking it tells us how confident we are that the computed estimate is different from zero -- a smaller *p-value* means we are more confident in this fact.  Typically a p-value < 0.05 is considered to be a "good" indication that the estimate differs from zero.  The `lower_ci` and `upper_ci` are confidence intervals on the estimate -- loosely speaking they provide a set of reasonable bounds on the "true" value of the parameter.

The `get_regression_summaries()`function from the `moderndive` package provides summary statistics that tell us how well our modeled (fitted) values match the observations.  While we don't have time in this class to cover the details of these statistics, they are nonetheless worth being aware of.  The *r-squared* statistic is one that you will commonly hear reference to -- it tells us how well our explanatory variable (in this example the year) explains the dependent variable (in this example CO~2~).  An r-squared of 1 means the explanatory variable perfectly explains the variablity in the dependent variable and a value of 0 means that the explanatory variable has no explanatory power.
```{r}
get_regression_summaries(lm_mauna_loa)
```

<br/>


#### Residuals
Once you've fit a model to data you should examine the residuals.  A residual is the difference between an observation and the model predicted value.  Conceptually, when looking at a graph that has both the observed and modeled data plotted, the distance between a given point and the model estimated value (i.e. a vertical line from the observed point to the modeled line) is a points residual.

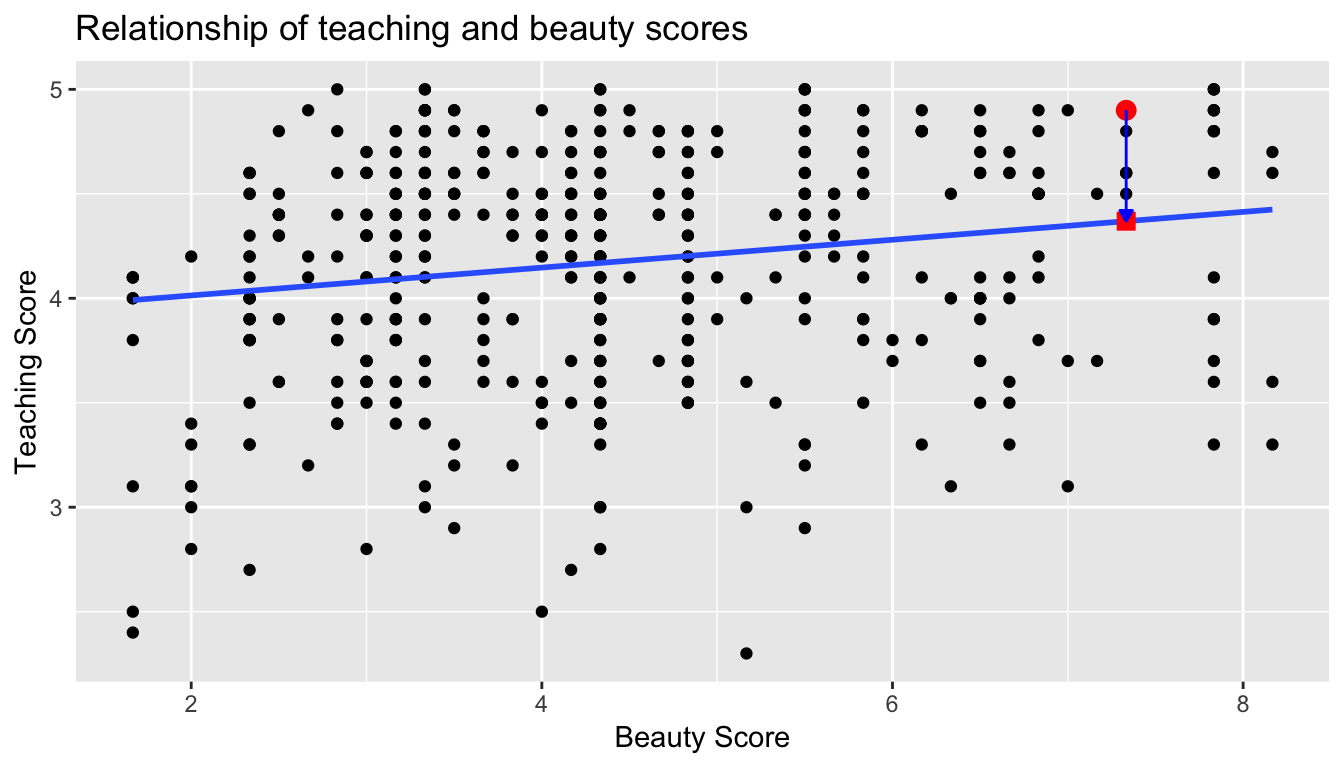

Below is a graphic showing a linear model fit to teaching score data, where the explanatory variable is the instructors beauty score.  The residual for a single observation is depicted as the vertical distance between the observation (red circle) and the linear model.  You can find this example in your ModernDive text.

![Image source: _ModernDive_](https://stahlm.github.io/ENS_215/Lectures/Images/numxplot5-1.png)

<br/>

Let's explore the residuals for our linear model model fit to the Mauna Loa data.  We can use the `get_regression_points()` function from the `moderndive` package to obtain a data frame with both the observed and modeled results, along with the residuals.
```{r}
lm_mauna_loa_points <- get_regression_points(lm_mauna_loa)

head(lm_mauna_loa_points)
```

You can see that `lm_mauna_loa_points` has `Date` and observed CO~2 (`CO2_ppm`) as well as the estimated CO~2~ from the linear model (`CO2_ppm_hat`) and the residuals (`residual`).

Now, that we have a data frame with the residuals, let's create a **residual-dependence plot**.  A **residual-dependence plot** displays the residuals as a function of our explanatory variable, which in this case is the `Date`.  This type of plot is useful as it helps us to identify any patterns in the residuals.
```{r}
lm_mauna_loa_points %>%
  ggplot(aes(x = Date, y = residual)) +
  geom_point() +
  theme_classic()
```

A good model fit should have small residuals, which are centered and symmetrically distributed around zero.  You can see from the above plot that there is a clear "U-shaped" pattern to the residuals from our linear model fit to the Mauna Loa data.  In particular the linear model under-predicts CO~2~ concentrations (_i.e._ positive residual) for early times (~ pre-1970) and late times (~ post 2000) and over-predicts from approximately 1970-2000.

The fact that the residuals show a dependence on our explanatory variable (Date) indicates that the model we have chosen is not able to fully capture the features of the data.  You likely already suspected this just by looking at our original plot of the observed and modeled data. You probably observed that while the linear model did a good job at capturing the general trend of increasing CO~2~ concentrations, it wasn't able to capture the curved (_i.e._ non-linear) nature of the data.

To better represent the Mauna Loa data we will need to rely something other than a linear model.

<br/>

#### Non-parameteric regression
There are many other types of models that we could choose from other than a linear model.  Here we are going to apply a **non-parametric** model.  Non-parametric models do not impose a structure on the data.  Consider a linear fit, which is a **parametric model** -- this type of model imposes a function of the form $y = \beta_0 + \beta_1*x$, where there is a finite set of fixed parameters (e.g. $\beta_0$ and $\beta_1$).  A **non-parametric** model does not take a predetermined form and there is not a fixed set of parameters that describes the model.

**LOESS** is a commonly used non-parametric regression model.  LOESS (locally estimated scatterplotr smoothing) fits a regression across small segments of the data and links these fits together to create a smooth curve.  A LOESS curve is an excellent method for teasing out structure and features in a dataset -- especially when there is not a known parametric equation to describe the data.


To plot a LOESS regression we can use the `geom_smooth()` function and specify `method = loess`.  You can see in the code below that we've specified `span = 1/4`.  This tells the LOESS smoothing algorithm to consider 1/4 (25%) of the points at each of the local regressions.  Thus, the regression computed at each point along the x-axis will consider the a span of data (around that local point) that covers 25% of the all of the points in the dataset.  The larger the span the smoother the line.  A smaller span value will capture more local features and will result in a wigglier line.  Since the span used below is relatively large, our LOESS fit will capture long-term trends but will smooth out the seasonal oscillations.
```{r}
mauna_loa %>%
  ggplot(aes(x = Date, y = CO2_ppm)) +
  geom_line() +
  geom_smooth(method = "loess", span = 1/4) +
  theme_classic()
```

You can see that the LOESS fit appears to capture overall trend of the data much better the the linear model.  Let's now examine the residuals from our LOESS model to examine how it performs (and to compare it's performance to the linear model we fit earlier).

We can compute a LOESS estimate using the `loess()` function and then save the results to a data object.
```{r}
loess_mauna_loa <- loess(CO2_ppm ~ Date, data = mauna_loa, span = 1/4)
```


Next, let's save the residuals at each point to a data frame `loess_mauna_loa_residuals` and then plot the residuals as a function of the `Date`.
```{r}

loess_mauna_loa_residuals <- bind_cols(as.tibble(loess_mauna_loa$x), as.tibble(loess_mauna_loa$residuals)) %>%
  rename(residual = value)


loess_mauna_loa_residuals %>%
  ggplot(aes(x = Date, y = residual)) +
  geom_point() +
  theme_classic()
```

Unlike with our linear model we can see that the residuals from the LOESS fit are centered about zero and do not display any dependence on the explanatory variable `Date`.  This is an excellent sign and indicates that are model performs well across the whole range of x-values (Dates).

<br/>

Since our LOESS fit has a relatively large span (25%), the local regressions at each point considered points within about a 15 yr span ($\pm 7.5$).  Therefore, the LOESS fit captured the long-term trends but smoothed out the seasonal trends.  Since the LOESS fit modeled the long-term trend, but did not model the seasonal oscillations, the residuals should reflect the season component in the Mauna Loa CO~2~ data.

This is actually very useful as examining the residuals of the LOESS fit should allow us to characterize the seasonal variations (i.e. variations within a given year) of atmospheric CO~2~.  Let's create a boxplot of the monthly residuals.
```{r}
loess_mauna_loa_residuals %>%
  ggplot(aes(x = factor(month(date_decimal(Date), label = TRUE)), y = residual)) +
  geom_boxplot() +
  labs(x = "") +
  theme_classic()
```

From the boxplot of the monthly residuals we have clearly characterized the seasonal patterns in the data.  We can see that each year CO~2~ peaks around May and reaches a minimum around Sept-Oct.  This peak in CO~2~ is due to decreased primary production during the winter months (in the northern hemisphere) which allows CO~2~ to accumulate in the atmosphere.  At the onset of spring, increased primary production helps to draw down CO~2~ and this drawdown continues until the onset of fall in Sept-Oct.
