微處理器 - Altera EPM240T100C5N - VHDL - LED

main.vhd

library ieee;
use ieee.std_logic_1164.all;

entity main is
    port(
        clk : in std_logic;
        led : out std_logic
    );
end main;

architecture logic of main is
    signal val: std_logic;
    signal clk_cnt : integer := 0;

begin
    process(clk) is
    begin
        if (clk'event and clk = '1') then
            clk_cnt <= clk_cnt + 1;

            if (clk_cnt = 25000000) then
                clk_cnt <= 0;
                led <= val;
                val <= not val;
            end if;
        end if;
    end process;
end logic;

開啟Quartus Prime


New Project Wizard


Empty Project


加入main.vhd

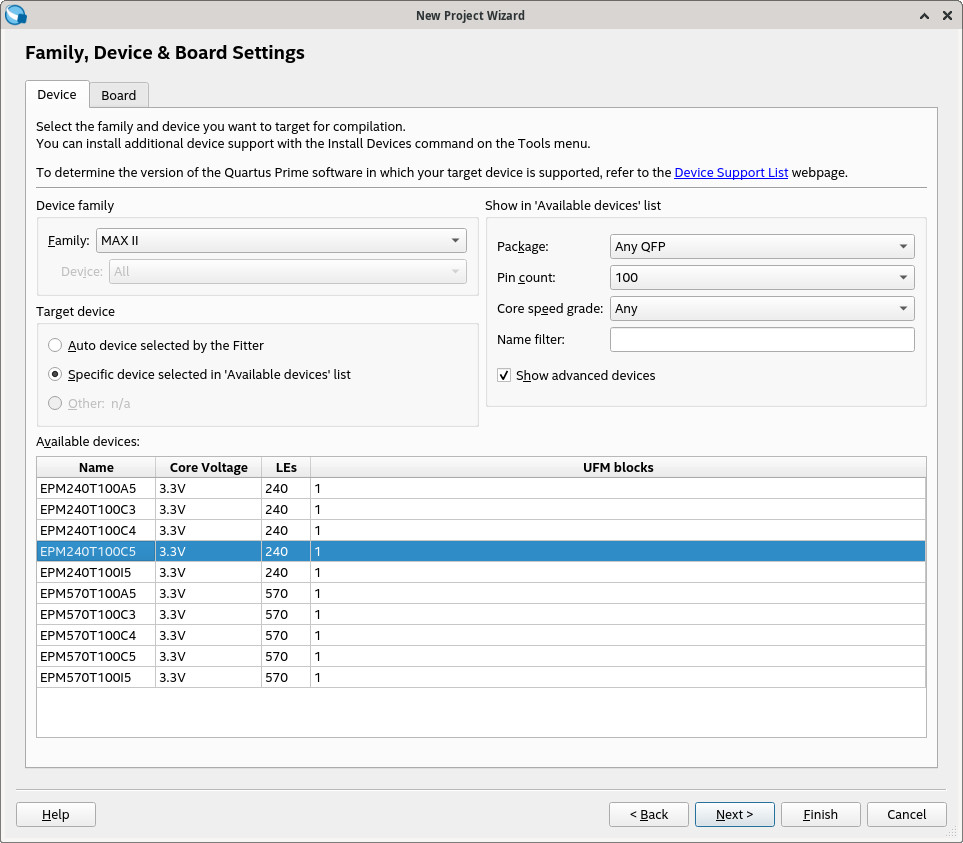

選擇型號


Next

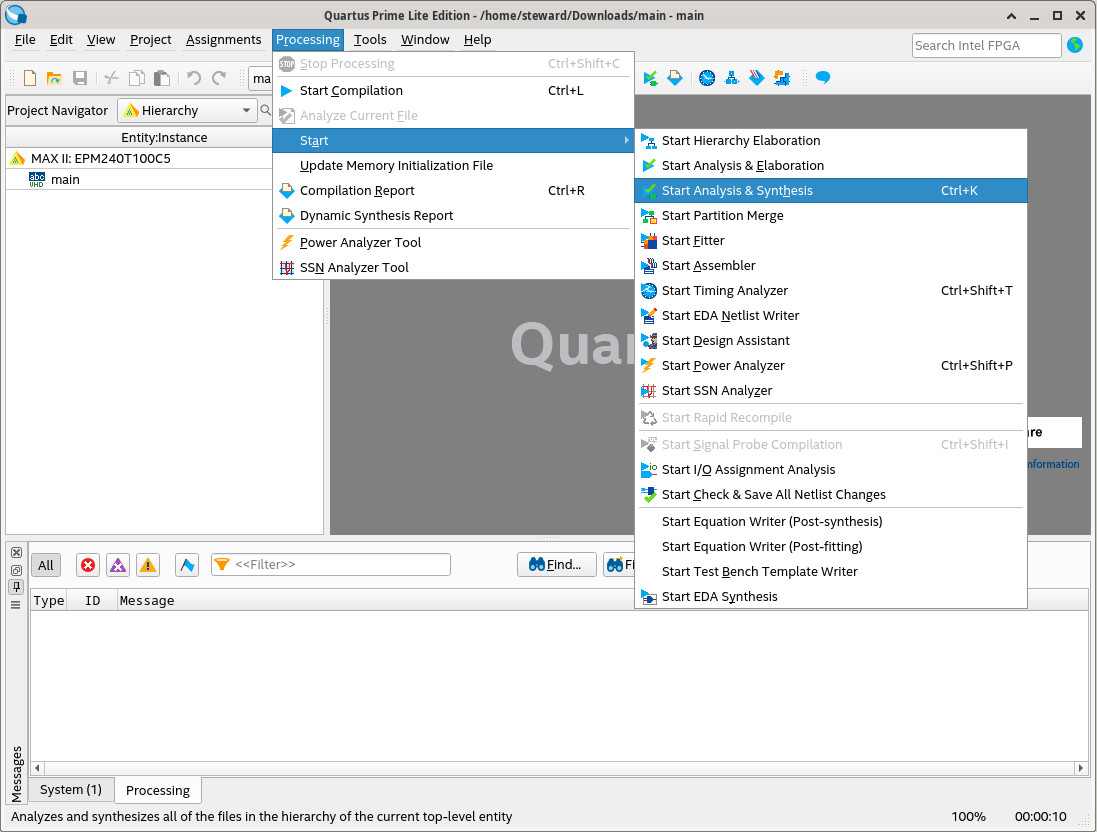

電路合成

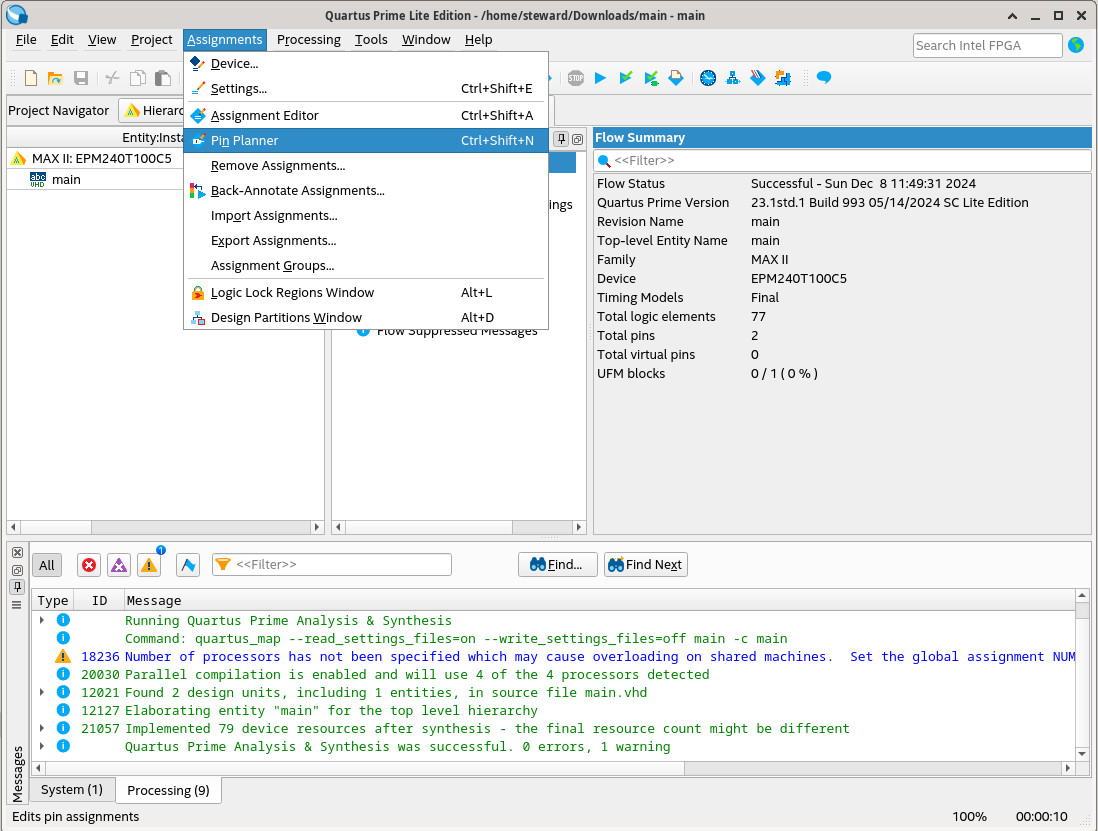

編輯腳位



編譯


Programmer


選擇Start



完成
