微處理器 - Anlogic EG4S20BG256 (Lichee Tang Primer) - Verilog - LED

GUI模式

$ /opt/td/bin/td -gui

New Project


EG4 EG4S20B256

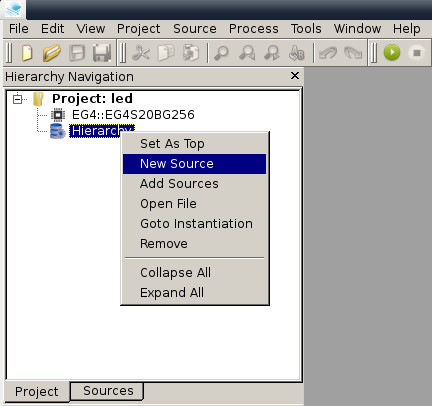

New Source


main.v

module main(clk, led);

input clk;
output reg led;
reg [25:0] clk_cnt;

initial begin
    led = 0;
    clk_cnt = 0;
end

always @(posedge clk) begin
    clk_cnt = clk_cnt + 1;
    if (clk_cnt > 24000000) begin
        clk_cnt = 0;
        led = ~led;
    end
end
endmodule

存檔


New


main.adc

set_pin_assignment { clk } { location = k14; }
set_pin_assignment { led } { location = r3;  }

存檔


添加ADC


main.adc


Run



Download


燒錄頁面


接著滑鼠點一下main.bit，讓Run按鈕可以顯示


按下Run下載

P.S. 如果要燒錄到Flash記憶體，Mode要改成PROGRAM FLASH

完成
