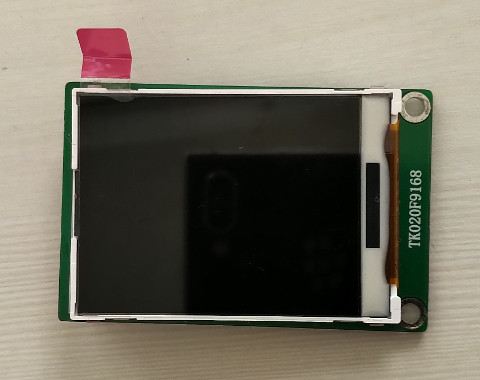

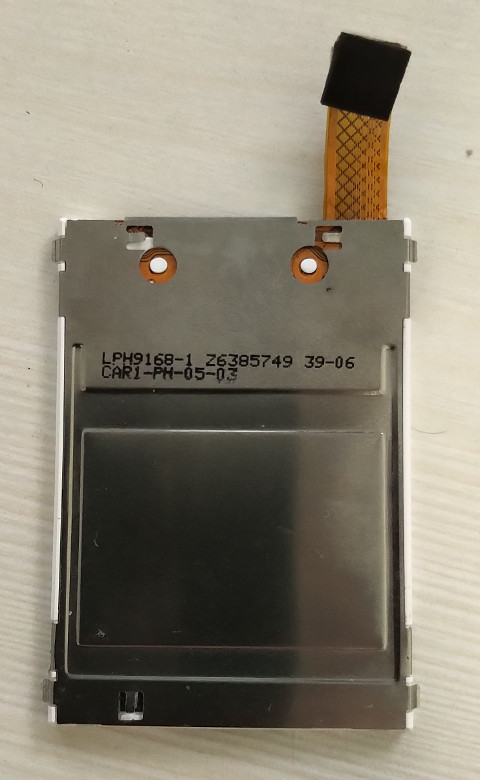

微處理器 - STCmicro STC15W4K56S4 - C/C++ - 2.00" IPS 320x240 JBT6K71-AS

屏




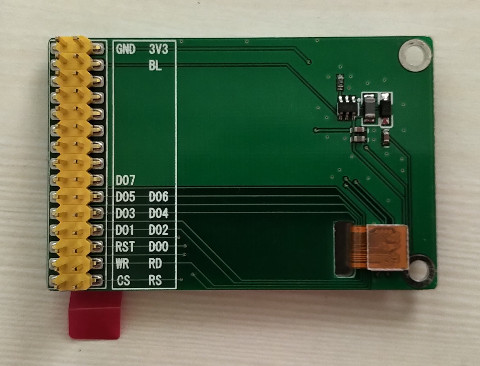

main.c

#include "stc15w4k56s4.h"

#define BL   P05
#define RS   P04
#define CS   P03
#define RD   P02
#define WR   P01
#define RST  P00

void delayms(unsigned int ms)
{
    unsigned int cnt = 0;

    while (ms--) {
        for (cnt = 0; cnt < 1000; cnt++) {
        }
    }
}

void lcd_write(unsigned char rs, unsigned int val)
{
    CS = 0;
    if (rs) {
        RS = 1;
    }
    else {
        RS = 0;
    }
    RD = 1;
    WR = 1;

    P2 = (val >> 8);
    WR = 0;
    WR = 1;
    P2 = val;
    WR = 0;
    WR = 1;
    CS = 1;
}

void lcd_write_cmd(unsigned int val)
{
    lcd_write(0, val);
}

void lcd_write_data(unsigned int val)
{
    lcd_write(1, val);
}

void lcd_set_color(void)
{
    unsigned int i = 0;
    unsigned int j = 0;
    unsigned int color[] = { 0xf800, 0x7e0, 0x1f, 0 };

    for (i = 0; i < 240; i++) {
        for (j = 0; j < 320; j++) {
            lcd_write_data(color[i / 80]);
        }
    }
}

void lcd_init(void)
{
    lcd_write_cmd(0x0000);
    delayms(10);
    lcd_write_cmd(0x0000);
    delayms(10);
    lcd_write_cmd(0x0000);
    delayms(10);

    lcd_write_cmd(0x05ff);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x001d);
    lcd_write_data(0x0005);
    delayms(100);

    lcd_write_cmd(0x0000);
    lcd_write_data(0x0001);
    delayms(100);

    lcd_write_cmd(0x0001);
    lcd_write_data(0x0027);
    lcd_write_cmd(0x0002);
    lcd_write_data(0x0200);
    lcd_write_cmd(0x0003);
    lcd_write_data(0x0038);

    lcd_write_cmd(0x0007);
    lcd_write_data(0x4004);
    lcd_write_cmd(0x000d);
    lcd_write_data(0x0011);
    delayms(100);

    lcd_write_cmd(0x0012);
    lcd_write_data(0x0303);
    lcd_write_cmd(0x0013);
    lcd_write_data(0x0102);
    lcd_write_cmd(0x001c);
    lcd_write_data(0x0000);

    lcd_write_cmd(0x0102);
    lcd_write_data(0x00f6);
    delayms(500);

    lcd_write_cmd(0x0103);
    lcd_write_data(0x0007);
    delayms(100);

    lcd_write_cmd(0x0105);
    lcd_write_data(0x0111);
    delayms(100);

    lcd_write_cmd(0x0300);
    lcd_write_data(0x0200);
    lcd_write_cmd(0x0301);
    lcd_write_data(0x0002);
    lcd_write_cmd(0x0302);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x0303);
    lcd_write_data(0x0300);
    lcd_write_cmd(0x0304);
    lcd_write_data(0x0700);
    lcd_write_cmd(0x0305);
    lcd_write_data(0x0070);

    lcd_write_cmd(0x0402);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x0403);
    lcd_write_data(0x013f);

    lcd_write_cmd(0x0406);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x0407);
    lcd_write_data(0x00ef);
    lcd_write_cmd(0x0408);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x0409);
    lcd_write_data(0x013f);

    lcd_write_cmd(0x0200);
    lcd_write_data(0x0000);
    lcd_write_cmd(0x0201);
    lcd_write_data(0x0000);

    lcd_write_cmd(0x0100);
    lcd_write_data(0xC010);
    delayms(500);
    lcd_write_cmd(0x0101);
    lcd_write_data(0x0001);
    lcd_write_cmd(0x0100);
    lcd_write_data(0xf7fe);
    delayms(800);

    lcd_write_cmd(0x202);
}

void gpio_init(void)
{
    P0M0 = 0x00;
    P0M1 = 0x00;
    P1M0 = 0x00;
    P1M1 = 0x00;
    P2M0 = 0x00;
    P2M1 = 0x00;
    P3M0 = 0x00;
    P3M1 = 0x00;
    P4M0 = 0x00;
    P4M1 = 0x00;
    P5M0 = 0x00;
    P5M1 = 0x00;
}

void main(void)
{
    gpio_init();
    AUXR |= 0x80;

    BL = 1;
    RST = 0;
    delayms(150);
    RST = 1;
    delayms(150);

    lcd_init();
    lcd_set_color();
    while (1) {
        P55 = 0;
        delayms(1000);
        P55 = 1;
        delayms(1000);
    }
}

Makefile

all:
	sdcc main.c
	packihx main.ihx > main.hex

flash:
	sudo stcgal -p /dev/ttyO2 -P stc15 -o clock_source=external main.hex

clean:
	rm -rf main.ihx main.lst main.mem main.rst main.lk main.map main.rel main.sym main.hex

完成
