微處理器 - Lattice LCMXO2-4000HC-4MG132CC (STEP-MXO2 V2) - 如何使用iverilog、vvp、gtkwave

參考資訊：
https://www.chipverify.com/verilog/verilog-4-bit-counter

main.v

module main (
    input clk,
    output reg led
);

integer cnt = 0;

always @(posedge clk) begin
    if (cnt == 0) begin
        led <= 0;
    end if (cnt == 3) begin
        cnt = 0;
        led <= !led;
    end else
        cnt = cnt + 1;

    $monitor("%t | clk = %d | cnt = %d | led = %d", $time, clk, cnt, led);
end
endmodule

module test();

reg clk;
wire led;

main ut(.clk(clk), .led(led));

always #1 clk = ~clk;

initial begin
    $dumpfile("main.vcd");
    $dumpvars(0, test);

    clk <= 0;
    #10 $finish;
end
endmodule

編譯

$ iverilog main.v -o main
$ vvp main
     1 | clk = 1 | cnt =           1 | led = 0
     2 | clk = 0 | cnt =           1 | led = 0
     3 | clk = 1 | cnt =           2 | led = 0
     4 | clk = 0 | cnt =           2 | led = 0
     5 | clk = 1 | cnt =           3 | led = 0
     6 | clk = 0 | cnt =           3 | led = 0
     7 | clk = 1 | cnt =           0 | led = 1
     8 | clk = 0 | cnt =           0 | led = 1
     9 | clk = 1 | cnt =           1 | led = 0
    10 | clk = 0 | cnt =           1 | led = 0

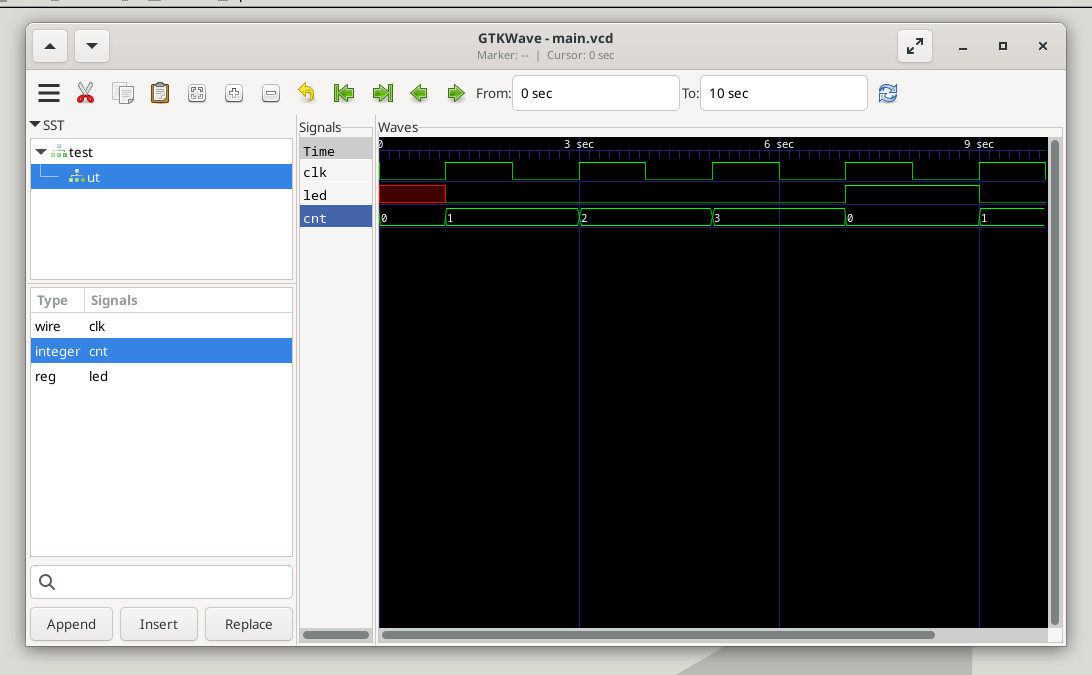

$ gtkwave main.vcd

P.S. 如果訊號沒有明確初始化，則會顯示X(紅色線條)
