# dependency-cruiser command line interface The command line interface is a straightforward affair - you pass it a bunch of files, and dependency-cruiser will start cruising them: ```sh depcruise [options] ``` Below you'll find a list of command line options you can use, divided into ones that are only available as options on the command line and into those also available in dependency-cruiser configurations. ## Contents ### Command line only options 1. [arguments - files and/ or directories](#arguments---files-and-or-directories) 1. [`--output-type`: specify the output format](#--output-type-specify-the-output-format) 1. [`--config`/ `--validate`: use a configuration with rules and/or options](#--config---validate) 1. [`--no-config`: do not use a configuration file](#--no-config) 1. [`--init`](#--init) 1. [`--metrics`: calculate stability metrics](#--metrics) 1. [`--no-metrics`: do not calculate stability metrics](#--no-metrics) 1. [`--info`: show what alt-js are supported](#--info-show-what-alt-js-are-supported) 1. [`--ignore-known`: ignore known violations](#--ignore-known-ignore-known-violations) 1. [`--no-ignore-known`: don't ignore known violations](#--no-ignore-known) 1. [`--help`/ no parameters: get help](#--help--no-parameters) ### Options also available in dependency-cruiser configurations 1. [`--do-not-follow`: don't cruise modules adhering to this pattern any further](#--do-not-follow-dont-cruise-modules-adhering-to-this-pattern-any-further) 1. [`--include-only`: only include modules satisfying a pattern](#--include-only-only-include-modules-satisfying-a-pattern) 1. [`--focus`: show modules and their neighbours](#--focus-show-modules-and-their-neighbours) 1. [`--focus-depth`: influence how many layers of neighbors --focus shows](#--focus-depth-influence-how-many-layers-of-neighbors---focus-shows) 1. [`--reaches`: show modules and their transitive dependents](#--reaches-show-modules-and-their-transitive-dependents) 1. [`--affected`: show modules and their transitive dependents since a git `revision`](#--affected-show-modules-and-their-transitive-dependents-since-a-git-revision) 1. [`--highlight`: highlight modules](#--highlight-highlight-modules) 1. [`--collapse`: summarize to folder depth or pattern](#--collapse-summarize-to-folder-depth-or-pattern) 1. [`--exclude`: exclude dependencies from being cruised](#--exclude-exclude-dependencies-from-being-cruised) 1. [`--max-depth`](#--max-depth) 1. [`--progress`: get feedback on what dependency-cruiser is doing while it's running](#--progress-get-feedback-on-what-dependency-cruiser-is-doing-while-its-running) 1. [`--no-progress`: don't show feedback on what dependency-cruiser is doing](#--no-progress-dont-show-feedback-on-what-dependency-cruiser-is-doing) 1. [`--prefix` prefixing links](#--prefix-prefixing-links) 1. [`--module-systems`](#--module-systems) 1. [`--ts-pre-compilation-deps` (typescript only)](#--ts-pre-compilation-deps-typescript-only) 1. [`--ts-config`: use a typescript configuration file ('project')](#--ts-config-use-a-typescript-configuration-file-project) 1. [`--webpack-config`: use (the resolution options of) a webpack configuration`](#--webpack-config-use-the-resolution-options-of-a-webpack-configuration) 1. [`--preserve-symlinks`](#--preserve-symlinks) 1. [`--cache`: use a cache to speed up cruising](#--cache-use-a-cache-to-speed-up-cruising) 1. [`--cache-strategy`: influence how the cache functionality detects changes](#--cache-strategy-influence-how-the-cache-functionality-detects-changes) 1. [`--no-cache`: switch off caching](#--no-cache-switch-off-caching) ### Standalone formatting of dependency graphs: [depcruise-fmt](#depcruise-fmt) ### Baseline dependencies: [depcruise-baseline](#depcruise-baseline) ### Make GraphViz output more interactive: [depcruise-wrap-stream-in-html](#depcruise-wrap-stream-in-html) ## Command line only options ### arguments - files and/ or directories You can pass a bunch of files, directories and 'glob' patterns. dependency-cruiser will - resolve the glob patterns (if any) to files and directories - scan directories (if any) for files with supported extensions - add the passed files to that ... and start the cruise with the files thus found. #### Cruising multiple files and directories in one go Just pass them as arguments. This, e.g. will cruise every file in the folders src, test and lib (recursively) + the file called index.ts in the root. ```sh depcruise --output-type dot src test lib index.ts ``` #### passing globs as parameters dependency-cruiser uses [picomatch](https://github.com/micromatch/picomatch) to make sure globs work the same across platforms. It cannot prevent the environment from expanding globs before it can process it, however. As each environment interprets globs slightly differently, a pattern like `packages/**/src/**/*.js` will yield different results. To make sure glob expansion works _exactly_ the same across platforms slap some quotes around them, so it's not the environment (/ shell) expanding the glob, but dependency-cruiser itself: ```sh depcruise "packages/**/src/**/*.js" ``` ### `--output-type`: specify the output format #### err For use in build scripts, in combination with `--config`. It's also the default reporter. Sample use: ```sh dependency-cruise --config my-depcruise-rules.json src ``` This will: - ... print nothing and exit with code 0 if dependency-cruiser didn't find any violations of the rules in the configuration file (e.g. .dependency-cruiser.js or .dependency-cruiser.json). - ... print the violating dependencies if there is any. Moreover it will exit with exit code _number of violations with severity `error` found_ in the same fashion linters and test tools do. See the _depcruise_ target in the [package.json](https://github.com/sverweij/dependency-cruiser/blob/main/package.json#L55) for a real world example. #### err-long Similar to `err`, but in addition for each violation it emits the _comment_ that went with the violated rule, so it's easier to put the rule into context (and if the comment contains that information: why the rule is there, and how to fix it). If you use dependency-cruiser in a lint-staged like setup, this might be a useful format, ```sh dependency-cruise --output-type err-long --config my-depcruise-rules.json src ``` #### dot Supplying `dot` as output type will make dependency-cruiser write a GraphViz dot format directed graph. Typical use is in concert with _GraphViz dot_ (`-T` is the short form of `--output-type`:) ```shell dependency-cruise -x "^node_modules" -T dot src | dot -T svg > dependencygraph.svg ``` You can customise the look of these graphs. See the [theming](./options-reference.md#theme-dot-ddot-and-archi-reporters) and [summarising](./options-reference.md#summarising-collapsepattern-dot-and-archi-reporters) sections in the options reference for details. You can also use [`depcruise-wrap-stream-in-html`](#depcruise-wrap-stream-in-html) to make the graphs more interactive. When dependency-cruiser calculcated instability metrics (command line option [`--metrics`](#--metrics)), these will show up in the modules so it's easy to verify whether the _stable dependency principle_ holds. #### ddot - summarise on folder level The `ddot` reporter is a variant on the `dot` output. It summarises modules on folder level. You can customise it with [themes](./options-reference.md#theme-dot-ddot-and-archi-reporters) and [filters](./options-reference.md#filtering-dot-ddot-and-archi-reporters) just like you can the dot reporter output. #### archi/ cdot The archi is a variant on the `dot` output. The archi reporter can summarise (or 'collapse') dependencies to folders of your own choosing. Great if you want to have a high level overview of your app's dependencies. By default it collapses to one folder below folders named _node_modules_, _packages_, _src_, _lib_ and _test_, but you can pass your own patterns as well in the `options.reporterOptions.archi` section of your dependency-cruiser configuration. See the [summarising section in the options reference](./options-reference.md#summarising-collapsepattern-dot-and-archi-reporters) for details.
Sample output ![high level dependency graph of react](./real-world-samples/react-high-level-dependencies.svg)
#### flat/ fdot Also a variant on the `dot` output. Where all other graphical reporters group modules into the folders they reside in, this shows all modules on the same level. It is still possible to apply a theme, though.
Sample output This flat graph of the report folder in dependency cruiser and all things it direct ![flat graph of the report folder in dependency cruiser](./assets/flat-report-example.svg) As a comparison, this is the default dot report for the same folder(s) ![default dot graph of the same folder](./assets/flat-report-counter-example.svg)
This too is a reporter that shows the modules' instability metrics when they have been calculated ([--metrics](#--metrics) command line switch). #### x-dot-webpage Reporter that runs the dot reporter and pipes it through the GraphViz `dot` command and wraps the result in an html page. It's the same thing as running ... ```sh dependency-cruise -T dot src | dot -T svg | depcruise-wrap-stream-in-html > dependencygraph.html ``` ... but less typing & easier to remember. > [!NOTE] > The `x` in front of the name of the reporter means it is experimental and > might change or be removed in the future. See the > [pull request that introduced the reporter](https://github.com/sverweij/dependency-cruiser/pull/907) > for the rationale. #### mermaid Generates a graph in mermaid format - which can be convenient as e.g. GitHub and GitLab support this out of the box in their on-line rendering of markdown. Both due to limitations in the mermaid format and to the relative newness of this reporter the graph cannot be (made as) feature rich as those produced by the `dot` or `d2` reporters. By default the mermaid reporter 'minifies' its output to circumvent mermaid's input size limits. There's an [option](./options-reference.md#mermaid) to make it emit fully named nodes, though, might you need them for legibility. ```sh dependency-cruiser --output-type mermaid src --output-to dependency-graph.mmd ```
Sample output ```mermaid flowchart LR subgraph src["src"] subgraph src_main["main"] subgraph src_main_rule_set["rule-set"] src_main_rule_set_normalize_js["normalize.js"] end src_main_index_js["index.js"] subgraph src_main_utl["utl"] src_main_utl_normalize_re_properties_js["normalize-re-properties.js"] end end end subgraph test["test"] subgraph test_enrich["enrich"] subgraph test_enrich_derive["derive"] subgraph test_enrich_derive_reachable["reachable"] test_enrich_derive_reachable_index_spec_mjs["index.spec.mjs"] end end end subgraph test_main["main"] subgraph test_main_rule_set["rule-set"] test_main_rule_set_normalize_spec_mjs["normalize.spec.mjs"] end end subgraph test_validate["validate"] test_validate_parse_ruleset_utl_mjs["parse-ruleset.utl.mjs"] end end subgraph node_modules["node_modules"] subgraph node_modules_lodash["lodash"] node_modules_lodash_has_js["has.js"] node_modules_lodash_cloneDeep_js["cloneDeep.js"] end end src_main_rule_set_normalize_js-->src_main_utl_normalize_re_properties_js src_main_rule_set_normalize_js-->node_modules_lodash_cloneDeep_js src_main_rule_set_normalize_js-->node_modules_lodash_has_js src_main_index_js-->src_main_rule_set_normalize_js test_enrich_derive_reachable_index_spec_mjs-->src_main_rule_set_normalize_js test_main_rule_set_normalize_spec_mjs-->src_main_rule_set_normalize_js test_validate_parse_ruleset_utl_mjs-->src_main_rule_set_normalize_js style src_main_rule_set_normalize_js fill:lime,color:black ```
#### d2 Generates a graph in [d2](https://d2lang.com/) format. D2 is a nice, well thought out alternative to mermaid. It supports a several layout engines, of which ELK looks especially pleasing. The current trade-off between D2 and dot is that its graphs tend to take up more space than the dot ones. Sample use: ```sh dependency-cruise src/cache --include-only "^src/cache" -T d2 | d2 --layout elk --scale 1 - > dependencygraph.svg ```
Sample output ![d2 representation of dependency-cruiser's caching feature, with d2 set to use the 'ELK' layout](./assets/d2.svg)

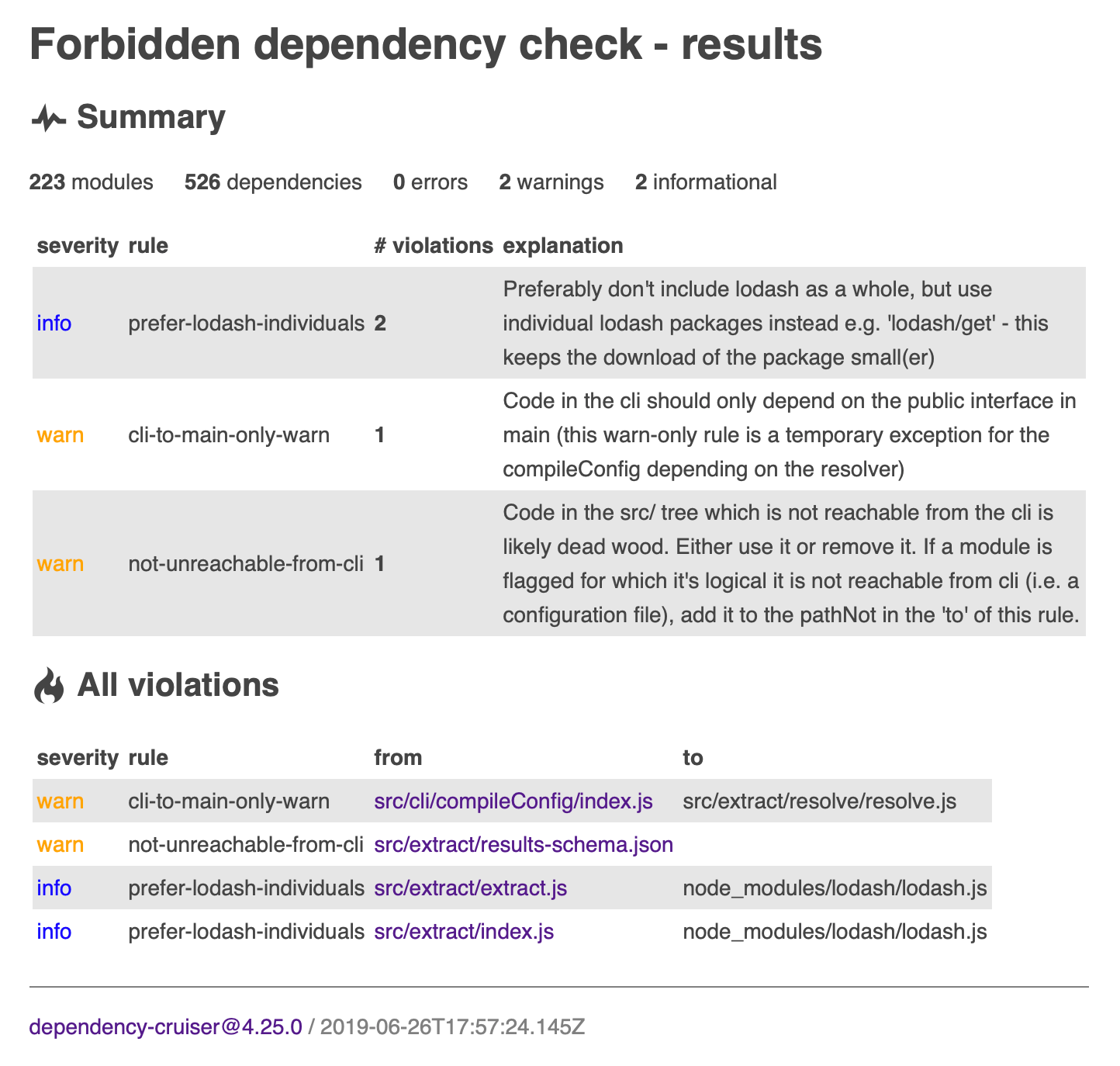

#### err-html Generates a stand-alone html report with: - a summary with files & dependencies cruised and the number of errors and warnings found - all rules, ordered by the number of violations (un-violated ones are hidden by default) - a list of all dependency and module violations, ordered by severity, rule name, from module, to module. ```shell dependency-cruise --validate --output-type err-html -f dependency-report.html src test configs ``` screen shot of an err-html report - the real one is accessible #### markdown Approximately the same content as the `err-html` reporter, but instead in markdown format, which can be useful in a.o. GitHub actions action summaries or to show results in a PR - potentially along with the mermaid reporter. The markdown reporter is fairly configurable - see the [markdown](./options-reference.md#markdown) section in the options reference for details. > [!NOTE] > As compared to the `err-html` reporter this one doesn't emit links or show > a complete list of all run validations. If you need that: create a feature > request in the dependency-cruiser repo. #### html Write it to html with a dependency matrix instead: ```shell dependency-cruise -T html -f dependencies.html src ``` #### csv If you supply `csv` it will write the dependency matrix to a comma separated file - so you can import it into a spreadsheet program and analyse from there. #### teamcity Write the output in [TeamCity service message format](https://www.jetbrains.com/help/teamcity/build-script-interaction-with-teamcity.html). E.g. to cruise src (using the .dependency-cruiser config) and emit TeamCity messages to stdout: ```shell dependency-cruise src -T teamcity ```
Sample output ``` ##teamcity[inspectionType id='not-to-dev-dep' name='not-to-dev-dep' description='Don|'t allow dependencies from src/app/lib to a development only package' category='dependency-cruiser' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspectionType id='no-orphans' name='no-orphans' description='Modules without any incoming or outgoing dependencies are might indicate unused code.' category='dependency-cruiser' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspectionType id='not-to-unresolvable' name='not-to-unresolvable' description='' category='dependency-cruiser' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspection typeId='not-to-dev-dep' message='src/asneeze.js -> node_modules/eslint/lib/api.js' file='src/asneeze.js' SEVERITY='ERROR' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspection typeId='not-to-unresolvable' message='src/index.js -> ./medontexist.json' file='src/index.js' SEVERITY='ERROR' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspection typeId='not-to-dev-dep' message='src/index.js -> node_modules/dependency-cruiser/src/main/index.js' file='src/index.js' SEVERITY='ERROR' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspection typeId='not-to-dev-dep' message='src/index.js -> node_modules/eslint/lib/api.js' file='src/index.js' SEVERITY='ERROR' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ##teamcity[inspection typeId='no-orphans' message='src/orphan.js -> src/orphan.js' file='src/orphan.js' SEVERITY='ERROR' flowId='8970869134' timestamp='2019-06-02T10:37:56.812'] ```
Just like the `err` reporter the TeamCity reporter has an empty output when there's no violations - and a non-zero exit code when there's errors. #### azure-devops Write the output in [Azure DevOps logging command format](https://docs.microsoft.com/en-us/azure/devops/pipelines/scripts/logging-commands?view=azure-devops&tabs=bash). E.g. to cruise src (using the .dependency-cruiser config) and emit Azure DevOps logging commands to stdout: ```shell dependency-cruise src -T azure-devops ```
Sample output ``` ##vso[task.logissue type=error;sourcepath=src/asneeze.js;code=not-to-dev-dep;]src/asneeze.js -> node_modules/eslint/lib/api.js ##vso[task.logissue type=error;sourcepath=src/index.js;code=not-to-unresolvable;]src/index.js -> ./medontexist.json ##vso[task.logissue type=error;sourcepath=src/index.js;code=not-to-dev-dep;]src/index.js -> node_modules/eslint/lib/api.js ##vso[task.logissue type=warning;sourcepath=src/orphan.js;code=no-orphans;]src/orphan.js ##vso[task.complete result=Failed;]4 dependency violations (3 error, 1 warning/ informational). 8 modules, 7 dependencies cruised ```
When there is no violations, the reporter only emits a `##vso[task.complete result=Succeeded;]` line with the number of modules and dependencies cruised. #### text This reporter makes a straight, flat dump of all dependencies found in a cruise. Useful for grepping. There's an [option](./options-reference.md#text) to highlight 'focused' modules by underlining them. ```sh dependency-cruise -T text --include-only src/report src/report ```
output ``` src/report/anon/anonymize-path-element.js → src/report/anon/random-string.js src/report/anon/anonymize-path.js → src/report/anon/anonymize-path-element.js src/report/anon/index.js → src/report/anon/anonymize-path.js src/report/csv/index.js → src/report/utl/dependency-to-incidence-transformer.js src/report/dot/index.js → src/report/dot/dot.template.js src/report/dot/index.js → src/report/dot/module-utl.js src/report/dot/index.js → src/report/dot/prepare-custom-level.js src/report/dot/index.js → src/report/dot/prepare-folder-level.js src/report/dot/index.js → src/report/dot/theming.js src/report/dot/module-utl.js → src/report/dot/theming.js src/report/dot/theming.js → src/report/dot/default-theme.js src/report/dot/prepare-custom-level.js → src/report/utl/consolidate-to-pattern.js src/report/dot/prepare-custom-level.js → src/report/dot/module-utl.js src/report/utl/consolidate-to-pattern.js → src/report/utl/consolidate-module-dependencies.js src/report/utl/consolidate-to-pattern.js → src/report/utl/consolidate-modules.js src/report/utl/consolidate-module-dependencies.js → src/report/utl/compare-rules.js src/report/utl/consolidate-modules.js → src/report/utl/compare-rules.js src/report/dot/prepare-folder-level.js → src/report/utl/consolidate-to-folder.js src/report/dot/prepare-folder-level.js → src/report/dot/module-utl.js src/report/utl/consolidate-to-folder.js → src/report/utl/consolidate-module-dependencies.js src/report/utl/consolidate-to-folder.js → src/report/utl/consolidate-modules.js src/report/error-html/index.js → src/report/error-html/error-html.template.js src/report/error-html/index.js → src/report/error-html/utl.js src/report/html/index.js → src/report/utl/dependency-to-incidence-transformer.js src/report/html/index.js → src/report/html/html.template.js src/report/index.js → src/report/anon/index.js src/report/index.js → src/report/csv/index.js src/report/index.js → src/report/dot/index.js src/report/index.js → src/report/error.js src/report/index.js → src/report/error-html/index.js src/report/index.js → src/report/html/index.js src/report/index.js → src/report/identity.js src/report/index.js → src/report/json.js src/report/index.js → src/report/teamcity.js src/report/index.js → src/report/text.js ```
... or to find everything connected to the `meta` module, in combination with `grep`: ```sh dependency-cruise -v -T text src | grep transpile/meta.js ```
output ``` src/main/resolve-options/normalize.js → src/extract/transpile/meta.js src/extract/transpile/meta.js → package.json src/extract/transpile/meta.js → src/extract/transpile/coffeescript-wrap.js src/extract/transpile/meta.js → src/extract/transpile/javascript-wrap.js src/extract/transpile/meta.js → src/extract/transpile/livescript-wrap.js src/extract/transpile/meta.js → src/extract/transpile/typescript-wrap.js src/extract/transpile/meta.js → src/extract/transpile/vue-template-wrap.js src/main/index.js → src/extract/transpile/meta.js src/extract/transpile/index.js → src/extract/transpile/meta.js src/extract/gather-initial-sources.js → src/extract/transpile/meta.js ```
#### json This emits the internal representation of a cruise as json. It's the input format for [depcruise-fmt](#depcruise-fmt), and is useful for debugging. See [output-format](output-format.md) for more information #### anon - obfuscated json The same as json - but with all paths obfuscated. This enables you to share the result of a cruise for troubleshooting purposes without showing what the source code is about. To save an anonymized dependency graph to `anonymized-result.json` do this: ```sh depcruise --validate --output-type anon --output-to anonymized-result.json bin src ``` e.g. to save an anonymized graph into and svg: ```sh depcruise --validate --output-type anon bin src | depcruise-fmt --output-type dot - | dot -T svg > anonymized_graph.svg ```

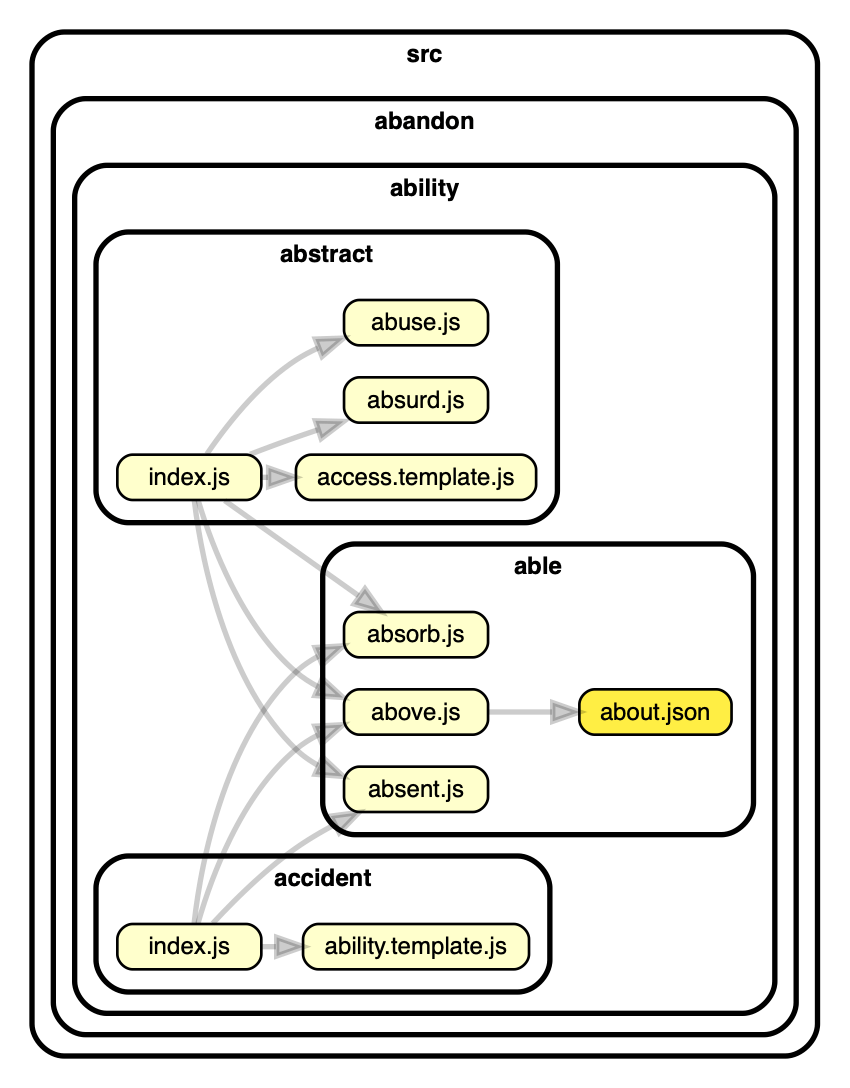

Sample output Here's a part of dependency-cruiser's own dependency graph both original and obfuscated (after converting it to a graph via depcruise-fmt and dot - so it's easier to compare than the two json's): ##### Original original ##### Obfuscated obfuscated
How does the obfuscation work? - It uses the list of words you pass in `options.reporterOptions.anon.wordlist` to replace non-common path elements with (`src/search/dragonfly-algorithm.js` -> `src/animal/announce.js`, `src/search/dragonfly-algorithm.spec.js` -> `src/animal/announce.spec.js`) (see [options](/options-reference.md#wordlist---anon-reporter) - (You can use any array of strings here - a good one is Sindre Sorhus' [mnemonic-words](https://www.npmjs.com/package/mnemonic-words), which you can require into the option if you're using JavaScript as the config file format): ```javascript ... options: { reporterOptions: anon: { wordlist: require('mnemonic-words') } } ... ``` - It will retain name similarities (like the `announce.js`/ `announce.spec.js` above). - When there's more path elements in your dependency graph than in the corpus the algorithm falls back to random strings that have the same length and pattern as the original one (`secretService-record.ts` -> `fnwarqVboiuvq-pugnmh.ts`). - The algorithm considers some patterns to be 'common'. It leaves those alone to retain some readability. 'Common' patterns include `src`, `test`, `node_modules`, `.`, `index` etc. You can find the full regexp in [anonymize-path.js](../src/report/anon/anonymize-path.js#3). - The algorithm obfuscates _within_ node_modules is obfuscated as well, so it won't become apparent from the dependency graph which ones your app uses either.
#### baseline - generate known violations Generates a list of all current violations you can use as input for the [`--ignore-known`](#--ignore-known-ignore-known-violations) option. #### metrics - generate a report with stability metrics for each folder Shows for each module and each folder (but only when dependency-cruiser was asked to calculate it): | metric | abbreviation | description | | -------------------- | ------------ | -------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Type of component | type | The type of the component: 'module' or 'folder' | | Number of modules | N | The number of modules in the component (for modules this will always be 1) | | Afferent couplings | Ca | The number of modules outside this folder that depend on this folder ("coming in") | | Efferent couplings | Ce | The number of modules this folder depends on _outside_ the current folder ("going out") | | Instability | I | Ce / (Ca + Ce) a number between 0 and 1 that indicates how 'stable' the folder with 0: wholy stable; and 1 wholy unstable | | Size | size | The size in bytes of the module - only available when the [experimentalStats](./options-reference.md#experimentalstats) option is set to true | | Top level statements | #tls | The number of top level statements in the module - only available when the [experimentalStats](./options-reference.md#experimentalstats) option is set to true | While the term 'instability' has a negative connotation it's also unavoidable in any meaningful system. It's the basis of Martin's variable component stability principle: 'the instability of a folder should be larger than the folders it depends on'. With [options for the metrics reporter](./options-reference.md#metrics) you can show or hide 'module' or 'folder' components, and sort by the name or by any of the metrics/ stats.
Typical output ``` type name N Ca Ce I (%) size #tls ------- ----------------------------------------------- ------ ------ ------ ------ ----------- ------ folder src 13 0 0 0 % 36.125 99 folder src/cache 6 0 6 100 % 25.367 54 module src/cache/cache.mjs 1 0 5 100 % 5.817 12 module src/cache/content-strategy.mjs 1 1 2 67 % 3.948 7 module src/cache/find-content-changes.mjs 1 1 3 75 % 3.663 6 module src/cache/helpers.mjs 1 3 1 25 % 3.612 16 module src/cache/metadata-strategy.mjs 1 1 2 67 % 3.720 5 module src/cache/options-compatible.mjs 1 1 0 0 % 4.607 8 folder src/extract 2 1 1 50 % 4.985 20 folder src/extract/transpile 2 1 1 50 % 4.985 20 module src/extract/transpile/meta.mjs 1 1 2 67 % 3.519 10 module src/extract/transpile/try-import-available.mjs 1 1 0 0 % 1.466 10 folder src/graph-utl 1 1 0 0 % 382 3 module src/graph-utl/match-facade.mjs 1 1 0 0 % 382 3 module src/meta.cjs 1 1 0 0 % 467 1 folder src/utl 3 4 0 0 % 4.924 21 module src/utl/bus.mjs 1 3 0 0 % 766 10 module src/utl/find-all-files.mjs 1 1 1 50 % 3.040 9 module src/utl/path-to-posix.mjs 1 1 0 0 % 1.118 2 ```
#### null - no output, just an exit code This dummy 'reporter' will print _nothing_, not even when there are errors. It will exit with the exit code _number of violations with severity `error` found_, though. This reporter primarily exists to help in the development of dependency-cruiser. ### `--config`/ `--validate` Validates against a list of rules in a configuration file. This defaults to a file called `.dependency-cruiser.js` (/ `.dependency-cruiser.cjs`/ `.dependency-cruiser.json`), but you can specify your own rules file, which can be in json format or a valid node module returning a rules object literal. ```shell dependency-cruise -x node_modules --config my.rules.json src spec ``` > _Caveat_: up to version 12, you needed to specify the `--config` command line > option in order for a config file to be used at all. As of version 13 picking > up a config file is the default, so you don't need to specify `--config` anymore > _unless_ you want to have an alternate name or location for it. > If you want to run _without_ a configuration file use --no-config > _Tip_: usually you don't need to specify the rules file after --config. However > if you run `depcruise --config src`, _src_ will be interpreted as the rules file. > Which is probably is not what you want. To prevent this, place `--` > after the last option, like so: > > ``` > dependency-cruise --config -- src > ``` The configuration specifies a bunch of regular expressions pairs your dependencies should adhere tom as well as configuration options that tweak what is cruised and how. A simple validation configuration that forbids modules in `src` to use stuff in the `test` folder and allows everything else: ```json { "forbidden": [ { "from": { "path": "^src" }, "to": { "path": "^test" } } ] } ``` You can optionally specify a name and an error severity ('error', 'warn' (the default) and 'info') with them that will appear in some reporters: ```json { "forbidden": [ { "name": "no-src-to-test", "severity": "error", "from": { "path": "^src" }, "to": { "path": "^test" } } ] } ``` For more information about writing rules see the [tutorial](rules-tutorial.md) and the [rules-reference](rules-reference.md). For options check out the [options reference](options-reference.md). For an easy set up of both use [--init](#--init) ### `--no-config` Use this if you don't want to use a configuration file. Also overrides earlier specified --config (or --validate) options. > If you actually use this, I'm interested in your use case. Please drop an > [issue on GitHub](https://github.com/sverweij/dependency-cruiser/issues/new?assignees=&labels=&template=use-without-config.md&title=I+use+dependency-cruiser+without+a+configuration+file.+This+is+why:) or contact me on mastodon > ([@mcmeadow@mstdn.social](https://mstdn.social/@mcmeadow)) or twitter > ([@mcmeadow](https://twitter.com/mcmeadow)). ### `--init` This asks some questions and - depending on the answers - creates a dependency-cruiser configuration with some useful rules to the current folder and exits. The configuration file is larded with documentation to make it easy to tweak. If you specified a non-default configuration file name, use `--config` to have dependency-cruiser take the configuration file into account. If you left the default name in place, dependency-cruiser will pick it up automatically.
Some of the rules that will be in the configuration (either directly or from a preset): | Rule | Description | | ------------------------ | ---------------------------------------------------------------------------------------------------------------- | | `no-circular` | flags all circular dependencies | | `no-orphans` | flags orphan modules (except typescript `.d.ts` files) | | `no-deprecated-core` | flags dependencies on deprecated node 'core' modules | | `no-deprecated-npm` | flags dependencies on deprecated npm modules | | `no-non-package-json` | flags (npm) dependencies that don't occur in package.json | | `not-to-unresolvable` | flags dependencies that can't be resolved | | `no-duplicate-dep-types` | flags dependencies that occur more than once in package.json | | `not-to-test` | Don't allow dependencies from outside test folders to test folders | | `not-to-spec` | Don't allow dependencies to (typescript/ JavaScript/ CoffeeScript) spec files | | `not-to-dev-dep` | Don't allow dependencies from src/app/lib to a development only package | | `optional-deps-used` | Inform about the use of 'optional' dependencies (so you can ensure their imports a are sufficiently managed) | | `peer-deps-used` | Warn about the use of a peer dependency (they might be OK for you, but it's not typical you have them). | | `no-duplicate-dep-types` | Warn if a dependency occurs in your package.json more than once (technically: has more than one dependency type) |
### `--metrics` Makes dependency-cruiser calculate stability metrics (number of dependents, number of dependencies and 'instability' (`# dependencies/ (# dependencies + # dependents)`)) for all folders. These metrics are adapted from _Agile software development: principles, patterns, and practices_ by Robert C Martin (ISBN 0-13-597444-5). Currently this output is only reflected in the `json` and the `metrics` reporter. Some other reporters will follow suit later. - These metrics substitute 'components' and 'classes' from that Martin's book with 'folders' and 'modules'; the closest relatives, that work for the most programming styles in JavaScript (and its derivative languages). - For output-type `metrics` this command line switch is implied, so there's no need to specify it there. - Not on by default as it's relatively resource intensive (especially when dependency-cruiser doesn't already derives dependents of folders.) ### `--no-metrics` Do not calculate metrics. You can use this to override an earlier set `--metrics` command line option or `metrics` option in a .dependency-cruiser.js configuration file. ### `--info` show what alt-js are supported Which alt-js languages dependency-cruiser supports depends on the availability it has to them. To see how dependency-cruiser perceives its environment use `depcruise --info` (any arguments are ignored).
Typical output ``` dependency-cruiser@17.0.0 node version supported : ^20.12||^22||>=24 node version found : v24.4.0 os version found : arm64 darwin@24.5.0 If you need a supported, but not enabled transpiler ('x' below), just install it in the same folder dependency-cruiser is installed. E.g. 'npm i livescript' will enable livescript support if it's installed in your project folder. ✔ transpiler versions supported version found - ---------------------- ------------------- ------------------------ ✔ javascript * acorn@8.15.0 ✔ babel >=7.0.0 <8.0.0 @babel/core@7.28.0 ✔ coffee-script >=1.0.0 <2.0.0 coffeescript@2.7.0 ✔ coffeescript >=1.0.0 <3.0.0 coffeescript@2.7.0 x livescript >=1.0.0 <2.0.0 - ✔ svelte >=3.0.0 <6.0.0 svelte/compiler@5.36.13 ✔ swc >=1.0.0 <2.0.0 @swc/core@1.13.1 ✔ typescript >=2.0.0 <6.0.0 typescript@5.8.3 ✔ vue-template-compiler >=2.0.0 <3.0.0 vue-template-compiler ✔ @vue/compiler-sfc >=3.0.0 <4.0.0 vue-template-compiler ✔ extension - --------- ✔ .js ✔ .cjs ✔ .mjs ✔ .jsx ✔ .ts ✔ .tsx ✔ .d.ts ✔ .cts ✔ .d.cts ✔ .mts ✔ .d.mts ✔ .vue ✔ .svelte x .ls ✔ .coffee ✔ .litcoffee ✔ .coffee.md ✔ .csx ✔ .cjsx ```
### `--ignore-known`: ignore known violations > This feature was recently (september 2021) introduced. It is useful, well > tested, stable and it will stay. However, the file format and the ergonomics of > the command(s) to deal with known violations might still shift a bit _without_ > dependency-cruiser getting a major version bump. > > The `err`, `err-long` and `err-html` reporters have been adapted to reflect > the results of this feature well. Other reporters to which it is relevant (e.g. > all of the `dot` family, `html`, `teamcity`) will follow in releases after > dependency-cruiser v10.3.0. With this option engaged dependency-cruiser will ignore known violations as saved in the file you pass it as a parameter. If you don't pass a filename dependency-cruiser will assume the known violations to live in a file called `.dependency-cruiser-known-violations.json`. You can generate a known violations file with the `baseline` reporter e.g. like so: ```sh dependency-cruiser src --config --output-type baseline --output-to .dependency-cruiser-known-violations.json ``` ... or with the [`depcruise-baseline`](#depcruise-baseline) command which simplifies this a bit: ```sh # will assume a .dependency-cruiser.{js,cjs,json} to exist and will write # the baseline output to .dependency-cruiser-known-violations.json depcruise-baseline src ``` #### How dependency-cruiser ignores known violations For all violations dependency-cruiser finds in the known violations file it will lower the severity to `ignore`. It depends on the reporter how these show up. E.g. the `err`/ `err-long` reporters will hide all ignored violations, but add a warning if there's violations ignored: ``` ✔ no dependency violations found (454 modules, 1078 dependencies cruised) ⚠ 20 known violations ignored. Run with --no-ignore-known to see them. ``` #### When is this useful? When you first deploy dependency-cruiser in a large code base chances are it will detect quite some violations - even when it only uses the default set of rules that comes with `--init`. It will not always possible to fix all the violations right away. This means that any run of dependency-cruiser will show violations you already decided to fix later - possibly burying any new violations (which you probably want to avoid). With this option you can avoid that. ### `--no-ignore-known` Don't ignore known violations. Use this if you want to override an `--ignore-known` option set earlier on the command line. ### `--help` / no parameters Running with no parameters or with `--help` gets you help. It doesn't show all options documented here in order to keep it inviting to use. The ones left out are: - the _implied_ ones (e.g. `--config` implies the existence of a `--no-config` option). - ones that have an _alias_ to prevent a breaking change (`--validate` is an alias for `--config`). - ones that have been superseded by better options but were left in for backwards compatibility. E.g. `--max-depth` has been superseded by the `--focus`/ `--focus-depth` and `--collapse` which are both more powerful and mor to the point for most use cases. - those that better live in the configuration file, but are still cli options for backwards compatibility (e.g. `--ts-config`, `--webpack-config`, `--ts-pre-compilation-deps`, `--module-systems`, `--preserve-symlinks`) ## Options also available in dependency-cruiser configurations Some of the `options` in dependency-cruiser configurations are also available as command line options. They _override_ what's in the configuration, so they're great if you need to quickly experiment with an option, or when you want to use one configuration for multiple purposes. The first four options below will be of use when you want to tame the size of the visual representation of a big dependency graph. For the rest of the options you're typically best off setting in a configuration file (generate one with `depcruise --init`). ### `--do-not-follow`: don't cruise modules adhering to this pattern any further If you _do_ want to see certain modules in your reports, but are not interested in these modules' dependencies, you'd pass the regular expression for those modules to the `--do-not-follow` (short: `-X`) option. A typical pattern you'd use with this is "node_modules" (but be sure to check out the possibilities you have with the [`doNotFollow` option](#./options-reference.md#donotfollow-dont-cruise-modules-any-further)) ```sh dependency-cruise -X "^node_modules" -T html -f deps-with-unfollowed-node_modules.html src ``` Details and more ways to limit dependency-cruiser from following things: check out the [doNotFollow](./options-reference.md#donotfollow-dont-cruise-modules-any-further) option in the options reference. ### `--include-only`: only include modules satisfying a pattern E.g. to only take modules into account that are in the `src` tree (and exclude all node_modules, core modules and modules otherwise outside it): ```sh dependency-cruise --include-only "^src" -T dot src | dot -T svg > internal-dependency-graph.svg ``` See [includeOnly](./options-reference.md#includeonly-only-include-modules-satisfying-a-pattern) in the options reference for more details. ### `--focus`: show modules and their neighbours You can use this e.g. to inspect one module or folder and see what the direct dependencies are and which modules are direct dependents. Takes a regular expression in the same fashion `--include-only`, `--exclude` and `--do-not-follow` do. ```sh dependency-cruise src --include-only "^src" --focus "^src/main" -T dot | dot -T svg > focus-on-main-dir-graph.svg ``` See [focus](./options-reference.md#focus-show-modules-matching-a-pattern---with-their-neighbours) in the options reference for more details. ### `--focus-depth`: influence how many layers of neighbors --focus shows If you want to increase the number of layers of neighbors (transitive dependencies & dependents) the focus option shows as context, you can specify that with this command line switch. A value of 1 (which is also the default) means _direct neighbours only_. 2 also shows the neighbour's neighbours, etc. The value 0 means 'infinite'. ```sh dependency-cruise src --include-only "^src" --focus "^src/main" --focus-depth 0 -T dot |\ dot -T svg > focus-on-main-dir-graph.svg ``` See [focus depth](./options-reference.md#adding-depth) in the options reference for more details ### `--reaches`: show modules and their transitive dependents If you want to e.g. analyze what modules will directly or indirectly be affected by a change you make in one or modules you can use this option. > [!NOTE] > If you're using `git` for revision control the `--affected` option might be > a better fit for you. Just like the filter options above, takes a regular expression: ```sh dependency-cruise src --include-only "^src/report" --reaches "^src/report/utl/index.js" -T dot | dot -T svg > reaches-example.svg ``` See [reaches](./options-reference.md#reaches-show-modules-matching-a-pattern---with-everything-that-can-reach-them) in the options reference for more details. ### `--affected`: show modules and their transitive dependents since a git `revision` Only include modules changed since the revision + all modules that can reach them. For 'revision' you can use everything git understands as a revision (e.g. a commit hash, a branch name, a tag, HEAD~1, etc.). When not specified, _revision_ defaults to `main`. This can be useful when you want to see the modules that are impacted by a change you made. ```sh dependency-cruise src --affected main -T dot | dot -T svg > affected-example.svg ``` In combination with the `mermaid` reporter you can use it in your github action workflow to generate a graph of the affected modules and put it in a PR comment or in the workflow summary: ````yaml - name: on pull requests emit the affected graph to the step summary with changed modules highlighted if: always() && github.event_name == 'pull_request' && github.ref_name != github.event.repository.default_branch run: | echo '## Modules changed and affected by this PR' >> $GITHUB_STEP_SUMMARY echo Modules changed in this PR have a fluorescent green color. All other modules in the graph are those directly or indirectly affected by changes in the green modules. >> $GITHUB_STEP_SUMMARY echo '```mermaid' >> $GITHUB_STEP_SUMMARY npx dependency-cruiser src test --output-type mermaid --affected ${{github.event.pull_request.base.sha}} >> $GITHUB_STEP_SUMMARY echo '' >> $GITHUB_STEP_SUMMARY echo '```' >> $GITHUB_STEP_SUMMARY ```` > This option is 'syntactic sugar' around the `--reaches` option. These invocations > are equivalent: > > ```sh > dependency-cruise src --affected -T dot | dot -T svg > affected-with-affectd.svg > dependency-cruise src --reaches "$(watskeburt main)" -T dot | dot -T svg > affected-with-reaches.svg > ``` ### `--highlight`: highlight modules This option takes a regular expression and reporters that recognize the highlight option[^1] will highlight the modules that match that regular expression. [^1]: Currently only _dot_ (and its variants) and _mermaid_. ```sh dependency-cruise src --include-only "^src/report" --highlight "^src/report/utl/index.js" -T dot | dot -T svg > highlight-example.svg ``` This can be useful when you want to display what modules have changed since the last commit[^2]. Especially when the number of modules of your project is limited this can be more effective than using the `--reaches` option for the same. [^2]: This uses [watskeburt](https://github.com/sverweij/watskeburt) which by default generates a regular expression that includes all modules changed since the last commit. Here we pass the `main` branch to it so we can see all modules that make up the diff between that branch and wherever we are currently in the git history. ```sh dependency-cruise src --highlight "$(watskeburt main)" -T dot | dot -T svg > highlight-diff-example.svg ```
Example output With --highlight it shows the whole code base (suitable when your codebase is not that big). Command used: ``` npx depcruise src types --include-only '^(src|types)' --highlight "$(watskeburt main)" --config --output-type dot | dot -T svg > with-highlight.svg ``` ![shows all modules that make up watskeburt with changes to one module](./assets/with-highlight.svg) With --reaches it shows only part of the code base (suitable when your codebase is large). Command used: ``` npx depcruise src types --include-only '^(src|types)' --highlight "$(watskeburt main)" --config --output-type dot | dot -T svg > with-highlight.svg ``` ![shows the one changed module, with all modules that can reach it](./assets/with-reaches.svg)
See [highlight](./options-reference.md#highlight-highlight-modules) in the options reference for more details, like how to adjust the attributes used for highlighting in the dot-like reporters. ### `--collapse`: summarize to folder depth or pattern If you feel the need for reporting on a higher level (e.g. on packages in a mono repo, or the main folders in `src`) you can use the `--collapse` option. It takes either a single digit or a regular expression. #### --collapse: single digit The most typical use for collapsing is to limit the folder depth. It is possible to do this with regular expressions (see below, and in the [options reference](./options-reference.md#reporteroptions)). As this case occurs a lot you can pass ```sh depcruise src --include-only ^src --collapse 2 -T dot | dot -T svg > collapsed.svg ``` > Under water dependency-cruiser translates the single digit into a regular > expression again. For `2` e.g. it generates `/node_modules/[^/]+|^[^/]+\/[^/]+\//` ### --collapse: regular expression If you need more flexibility, you can also pass a regular expression to --collapse. E.g. to only collapse stuff under `node_modules` and `lib` (but not under e.g. `test` and `src`) you can pass this: ```sh depcruise src --do-not-follow node_modules --collapse "^(node_modules|lib)/[^/]+" -T dot | dot -T svg > collapsed.svg ``` `--collapse` works the same as the [dot/ archi specific collapsePattern option](#summarising-collapsepattern-dot-and-archi-reporters), except it works for all reports instead of for only the dot and archi reporters. This means you can not only use it to make graphical output look better, but also to show simple textual output of relations between high level components e.g. ```sh depcruise packages --include-only ^packages --collapse "^packages/[^/]+" -T text ``` ### `--exclude`: exclude dependencies from being cruised If you don't want to see certain modules in your report (or not have them validated), you can exclude them by passing a regular expression to the `--exclude` (short: `-x`) option. Two examples: ```sh dependency-cruise -x "node_modules" -T html -f deps-without-node_modules.html src ``` ```sh dependency-cruise -x "^(coverage|test|node_modules)" -T html -f deps-without-stuffs.html src ``` See the [exclude](./options-reference.md#exclude-exclude-dependencies-from-being-cruised) option in the options reference for details. ### `--max-depth` > [!NOTE] > > Using max-depth is typically a terrible idea. It only exists for > backwards compatibility. Instead consider one of these > options; they serve the same goal, look better and are more accurate: > > - the [`--collapse`](#--collapse-summarize-to-folder-depth-or-pattern) option > - use a [collapsePattern](./options-reference#summarising-collapsepattern-dot-and-archi-reporters) > in conjunction with your dot reporter to hide details you don't want to see > right now > - use filters like --include-only and --focus to only show a relevant part of your graph > - use the `archi` reporter that produces a high level dependency-graph based on > heuristics. Only cruise the specified depth, counting from the specified root-module(s). This command was mostly useful in combination with visualisation output like _dot_ to keep the generated output to a manageable size. ```sh dependency-cruise --max-depth 2 -T dot src/main/index.ts | dot -T svg > depth-limited-dependency-graph.svg ``` See [maxDepth](./options-reference.md#maxdepth) > This will only be effective when you pass _one_ file as an argument. ### `--progress`: get feedback on what dependency-cruiser is doing while it's running If the number of files dependency-cruiser needs to analyse is large, it can be busy for awhile. To get an impression of what dependency-cruiser is doing you can pass the `--progress` option. #### cli-feedback (the default when you pass --progress without an option) Gives a one-line summary of what dependency-cruiser is currently doing (e.g. parsing input, reading files, analyzing them, making a report about them). When dependency-cruiser is done it erases that feedback again so it doesn't clutter your logs. It also writes to stderr, so you can still safely redirect without the progress messages ending up in your output.
Typical output ``` ◼◼◼◼◼◻◻◻◻ 60% reading files ... ```
#### none (the default when you don't pass --progress ) Make sure dependency-cruiser doesn't print any feedback. Useful if you want to override the progress option configured in a configuration file. #### performance-log Writes a detailed overview of the time and memory each step in dependency-cruiser's processing takes to stderr. The main purpose is to get a quick high-level overview of what dependency-cruiser is spending its time (and memory) on, so the results stay in view when dependency-cruiser is done.
Typical output ``` ∆ rss ∆ heapTotal ∆ heapUsed ∆ external ⏱ system ⏱ user ⏱ real after step... ------------- ------------- ------------- ------------- ------------- ------------- ------------- ------------------------------------------ +198,656kB +101,760kB +64,202kB +11,242kB 48ms 375ms 298ms startup: nodejs loading +1,184kB +1,792kB +571kB 0kB 0ms 8ms 3ms startup: parse options +1,376kB +1,440kB +4,739kB +469kB 2ms 10ms 11ms startup: import analytical modules +13,248kB +11,776kB +11,926kB 0kB 2ms 30ms 17ms startup: parse rule set +32kB 0kB +29kB 0kB 0ms 0ms 0ms startup: get resolve options +152,320kB +144,224kB +75,456kB -8,777kB 43ms 537ms 301ms extract +18,864kB +18,432kB +1,970kB 0kB 4ms 73ms 44ms analyze +48kB 0kB +1,942kB +8kB 0ms 3ms 3ms report 0kB 0kB +255kB 0kB 0ms 0ms 0ms end: really done ------------- ------------- ------------- ------------- ------------- ------------- ------------- ------------------------------------------ +385,728kB +279,424kB +160,840kB +2,942kB 99ms 1,037ms 677ms ``` Number formatting takes place with the `Intl` API, so in your locale the numbers and units might look slightly different.
#### ndjson Emits roughly the same data as [_performance-log_](#performance-log) to stderr, but in ndjson format so it's easy to process. It's designed for running detailed performance tests of each individual step in dependency-cruiser's processing with statistical significance, and as such the format can and will change without dependency-cruiser getting a major bump.
Typical output ``` dependency-cruiser src bin test configs types tools --no-cache -Tnull --progress ndjson 2>> performance-log.ndjson ``` ```json {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"startup: nodejs loading","time":297855,"elapsedTime":297855,"user":366111,"elapsedUser":366111,"system":48490,"elapsedSystem":48490,"rss":196329472,"heapUsed":78937168,"heapTotal":97124352,"external":11581186} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"startup: parse options","time":300133,"elapsedTime":2278,"user":368517,"elapsedUser":2406,"system":48671,"elapsedSystem":181,"rss":196706304,"heapUsed":79231160,"heapTotal":97124352,"external":11581226} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"startup: import analytical modules","time":315104,"elapsedTime":14971,"user":409243,"elapsedUser":40726,"system":52464,"elapsedSystem":3793,"rss":205144064,"heapUsed":57310320,"heapTotal":104366080,"external":2748843} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"startup: parse rule set","time":326651,"elapsedTime":11547,"user":430393,"elapsedUser":21150,"system":52820,"elapsedSystem":356,"rss":205635584,"heapUsed":70138952,"heapTotal":104366080,"external":2757035} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"startup: get resolve options","time":326741,"elapsedTime":90,"user":430467,"elapsedUser":74,"system":52836,"elapsedSystem":16,"rss":205635584,"heapUsed":70199840,"heapTotal":104366080,"external":2757035} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"extract","time":523713,"elapsedTime":196971,"user":803754,"elapsedUser":373287,"system":77658,"elapsedSystem":24822,"rss":333938688,"heapUsed":121507992,"heapTotal":227934208,"external":2688354} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"analyze","time":548901,"elapsedTime":25189,"user":843483,"elapsedUser":39729,"system":78831,"elapsedSystem":1173,"rss":336887808,"heapUsed":96978728,"heapTotal":230031360,"external":2688354} {"runStartTime":"2025-12-24T19:25:50.037Z","runId":213435185128416,"message":"report","time":551008,"elapsedTime":2107,"user":847523,"elapsedUser":4040,"system":78948,"elapsedSystem":117,"rss":336904192,"heapUsed":99378056,"heapTotal":230031360,"external":2688354} ```
### `--no-progress`: don't show feedback on what dependency-cruiser is doing The equivalent of `--progress none`. As showing no progress is dependency-cruiser's default the only use for this option is to override a `progress` setting from a configuration file or a `--progress` command line option set earlier on the command line. ### `--prefix` prefixing links In the dot output prefix links to the source files with a string - useful to link to e.g. an on line repository. ```sh dependency-cruise --prefix "https://github.com/you/yourrepo/tree/master/" -T dot src | dot -T svg > dependency-graph-with-links-to-gh.svg ``` See [prefix](./options-reference.md#prefix-prefix-links-in-reports) in the options reference for details. ### `--module-systems` Here you can pass a list of module systems dependency-cruiser should use to detect dependencies. It defaults to `amd, cjs, es6`. See [moduleSystems](./options-reference.md#modulesystems) in the options reference. ### `--ts-pre-compilation-deps` (typescript only) By default dependency-cruiser does not take dependencies between typescript modules that don't exist after compilation to JavaScript. Pass this command line switch to do take them into account. For details see [tsPreCompilationDeps](./options-reference.md#tsprecompilationdeps) in the options reference. ### `--ts-config`: use a typescript configuration file ('project') If you use typescript and want dependency-cruiser to take the `baseDir`'s and/ or `paths` in your tsconfig.json into account- can pass it with this option. Although it's possible to pass it as a command line option, you typically want to do this in a configuration file - see [tsConfig](./options-reference.md#tsconfig-use-a-typescript-configuration-file-project) section in the options reference for details. > [!tip] > If you happen to use a [`jsconfig.json`](https://code.visualstudio.com/docs/languages/jsconfig) > you can pass that as well - the syntax for tsconfig.json and jsconfig.json > is identical for all practical purposes. ### `--webpack-config`: use (the resolution options of) a webpack configuration With a webpack config you can drastically alter how module names resolve to files on disk, a.o. with aliases. If you want dependency-cruiser to take that into account (you probably do), you can pass the webpack config here. However, just like with tsconfigs, you probably want to put this in a configuration file - see the [webpackConfig](./options-reference.md#webpackconfig-use-the-resolution-options-of-a-webpack-configuration) section in the options reference. ### `--preserve-symlinks` Whether to leave symlinks as is or resolve them to their realpath. This option defaults to `false` (which is also nodejs' default behavior since release 6). You'll typically want to set this in the configuration file with the [preserveSymlinks](./options-reference.md#preservesymlinks) option. ### `--cache`: use a cache to speed up cruising > Available from version 11.14.0. With `--cache` you instruct dependency-cruiser to use a cache. When you don't specify a location it uses `node_modules/.cache/dependency-cruiser` as the folder for the cache. Dependency-cruiser will use the cache as long as it's not invalidated, which happens when - changes to files that would be part of a cruise have happened. This includes modifications of files already included in the earlier cruise, new files, file deletions and file renaming. By default dependency-cruiser uses `git` to do this (see `--cache-strategy` below for other options). - The parameters/ options of the cruises are still "compatible". The rule of thumb is that if the _existing_ cache has a broader scope than the _new_ one, the cruises are compatible and the new cruise can use the cache. Currently dependency-cruiser takes a simplified approach to this: - if the arguments are not equal the cache is not valid anymore - if the cache was created as the result of a filter (e.g. _includeOnly_, _reaches_ or _collapse_) the new cruise can be served from the cache when the filters are exactly the same. - if the cache was created without a filter, but the new cruise includes one, the new cruise _can_ be served from the cache. ### `--cache-strategy`: influence how the cache functionality detects changes > Available from version 12.5.0 With this option you can tell dependency-cruiser how it should detect whether files have changed. The default (`metadata`) uses git for this. The other one (`content`) is there in case you don't have git available or are working on a shallow clone of your repository (which might be the only practical way on a continuous integration server). The `content` strategy looks at the content of the files. When you don't pass --cache-strategy (and don't specify a `strategy` in the `cache` option in you .dependency-cruiser.js) the strategy defaults to `metadata`. > [!tip] > The _checking cache freshness_ steop with the `metadata` strategy is about > 7x slower when dependency-cruiser is run from a script from within package.json > as when dependency-cruiser is run directly with nodejs (265ms vs 37ms on a > MacBook Pro with an M4 processor). Note that _even then_ a run-from cache > is still significantly faster than a non-cached run. > > The `content` strategy doesn't suffer from this 'running from package.json' > penalty, so in some scenarios it might be unexpectedly faster than the > `metadata` strategy. ### `--no-cache`: switch off caching This overrides any `--cache`, `--cache-strategy` options set earlier on the command line as well as the [`cache`](./options-reference.md#cache) configuration option. ## depcruise-fmt `depcruise-fmt` is a separate command line program, that takes the (json) output of a dependency-cruise and runs one of the reporters over it. This could be useful if you want to display the results of the same cruise in different ways, without having to run the cruise repeatedly. Especially on bigger code bases this can save time. Cruising all code can sometimes take more than a minute, while formatting usually takes well below a second. For instance, to report any violations to console, create a distributable report _and_ generate a dependency graph. With only the `depcruise` command this would look like ```sh depcruise -v -T err-long src depcruise -v -T err-html src -f violation-report.html depcruise -v -T dot src | dot -T svg > dependency-graph.svg ``` With depcruise-fmt there's one cruise and three quick depcruise-fmt commands ```sh depcruise -v -T json src -f cruise_result.json depcruise-fmt -T err-long cruise_result.json depcruise-fmt -T err-html -f violation-report.html cruise_result.json depcruise-fmt -T dot cruise_result.json | dot -T svg > dependency-graph.svg ``` ### filters You can also use the filters `--focus`, `--include-only` and `--exclude` to peruse parts of the dependency-graph. This could be useful for chopping up humongous graphs efficiently, or to quickly find the uses of a module: ```sh depcruise -v -T json src -f cruise_result.json depcruise-fmt -T dot --focus "^src/main" cruise_result.json | dot -T svg > main.svg depcruise-fmt -T dot --focus "^src/juggle" cruise_result.json | dot -T svg > juggle.svg depcruise-fmt -T dot --include-only "^src/the-law" cruise_result.json | dot -T svg > the-law.svg ## or to find dependencies going into or departing from the spelunk-me module ## and emitting them to stdout: depcruise-fmt -T text --focus "^src/main/spelunk-me\\.ts$" cruise_result.json ``` ### highlight The `--highlight` option is also available in case you want to just highlight modules without filtering them. See the [--highlight](#highlight-highlight-modules) documentation of the regular depcruise command for more information. ### collapse/ summarize Summarize or collapse to either a folder depth or (if you're feeling fancy) a regular expression. It works the same as the regular depcruise command's [`--collapse`](#--collapse-summarize-to-folder-depth-or-pattern) option. ### prefix To enable different prefixes on the same depcruise run, you can uses the `--prefix` option to set (or override) the prefix used in e.g. the `err-html` and the `dot`-like reporters. It works the same as depcruise's [option of the same name](https://github.com/sverweij/dependency-cruiser/blob/main/doc/cli.md#--prefix-prefixing-links) See [prefix](./options-reference.md#prefix-prefix-links-in-reports) in the options reference for details. ### getting non-zero exit codes If you want to see non-zero exit codes when there's error level dependency violations, you can use the `--exit-code` (short: `-e`). This only works for the output types that support non-zero exit codes (_err_, _err-long_ and _TeamCity_). Example for the default output type (_err_): ```sh depcruise-fmt -e cruise_result.json ``` ### What --help will tell you ``` Usage: depcruise-fmt [options] Format dependency-cruiser output json. Details: https://github.com/sverweij/dependency-cruiser Options: -f, --output-to file to write output to; - for stdout (default: "-") -T, --output-type output type; e.g. err, err-html, dot, ddot, archi, flat, baseline or json (default: "err") -I, --include-only only include modules matching the regex -F, --focus only include modules matching the regex + their direct neighbours -x, --exclude exclude all modules matching the regex -S, --collapse collapse the modules to the regex pattern E.g. ^packages/[^/]+/ collapses to modules/ folders directly under your packages folder. Or pass a single digit (e.g. 2) to collapse to a folder depth. -e, --exit-code exit with a non-zero exit code when the input json contains error level dependency violations. Works for err, err-long and teamcity output types -V, --version output the version number -h, --help display help for command ``` ### depcruise-baseline To create a baseline of known violations. You can use the resulting file to tell regular dependency-cruiser you want to ignore them for now and to only focus on new ones. > Shortcut for `depcruise -c -T baseline -f .dependency-cruiser-known-violations.json` > which might be a bit of an elaborate incantation for generating a list > of known violations. If your sources & test live in `src`, `test` and you use the default filenames for the dependency-cruiser configuration and known violations (recommended) then... ``` depcruise-baseline src test ``` ... will generate the baseline of known violations to .dependency-cruiser-known-violations.json. The two command line options exist in case you want these files to live in different spots; `--config` to specify where the config file lives, `--output-to` to write to an alternative output location. ## depcruise-wrap-stream-in-html With `depcruise-wrap-stream-in-html` you can wrap the graphical output of GraphViz dot into html that is geared to make the graph easier to use. It adds a.o.: - highlighting dependencies on hover - the ability to 'pin' that highlight with a left mouse click ("on context menu"). Can be cleared with a left mouse click on something not a module or dependency or by pressing the _Escape_ key. highlight on hover Typical use: ```console $ depcruise -v -T dot src | dot -T svg | depcruise-wrap-stream-in-html > dependency-graph.html ``` This works for all dot-based reporters, including `archi` and `ddot` Some examples: - [Dependency-cruiser's own dependency graph](https://sverweij.github.io/dependency-cruiser/dependency-cruiser-dependency-graph.html) - [yarn v2's high level dependency graph](https://sverweij.github.io/dependency-cruiser/assets/berry-high-level-dependencies.html) (`archi` reporter) - [state-machine-cat's dependency graph](https://state-machine-cat.js.org/dependency-cruiser-graph.html) ## Daphne's dependencies - a gentle introduction **[Daphne's dependencies](sample-output.md)** sport a visual overview of all the output formats. It also shows how Daphne and her colleagues use them in their workflow.
