--- title: Add Points Extension Dataset in Walksheds tags: - Tutorial - External - User --- ## Add Points Extension Dataset in Walksheds This tutorial explains how to convert a GTFS feed's bus stop points to OpenSidewalks (OSW) format, upload it to the TDEI Portal, and display it as an extension (overlay) dataset in Walksheds. _For a list of all guides on the TCAT Wiki, refer to the [Guides List](../../guides-list/index.md)._{ .guides-list-ref } --- ### Step 1: Acquire GTFS Data Download a GTFS feed that includes the bus stops (`stops.txt`) you want to display. As an example, this guide will use the [King County Metro GTFS feed](https://www.soundtransit.org/GTFS-KCM/google_transit.zip) from [Sound Transit's Open Transit Data](https://www.soundtransit.org/help-contacts/business-information/open-transit-data-otd/otd-downloads) page. --- ### Step 2: Convert GTFS Data to OSW Format Convert the `stops.txt` into OpenSidewalks [Points](../../opensidewalks/schema/index.md#points). 1. Use the [GTFS-to-TDEI Converter](https://github.com/TaskarCenterAtUW/tdei-tools/blob/main/utilities/gtfs_to_tdei_converter.py) utility. 2. Run the converter with the GTFS ZIP file as the input: ```text python utilities/gtfs_to_tdei_converter.py "C:/data/google_transit.zip" ``` To save the output in a specific directory, add the `-o` option: ```text python utilities/gtfs_to_tdei_converter.py "C:/data/google_transit.zip" --o "C:/data/output" ``` The converter creates a dated OSW ZIP package named `YYYY-MM-DD_GTFS_OSW.zip`. This package contains the bus stop points as an OSW GeoJSON file. --- ### Step 3: Upload the OSW Dataset to TDEI 1. Open the [Upload Dataset](https://portal.tdei.us/UploadDataset) page in the TDEI Portal after signing in. 2. Follow the upload workflow to attach the generated `YYYY-MM-DD_GTFS_OSW.zip` file, provide the required dataset information, and submit the upload. ![TDEI Portal Upload Dataset page with the generated GTFS OSW ZIP file attached](../../resources/images/walksheds/tutorial/extension-dataset/01-tdei-portal-upload-light.avif#only-light) ![TDEI Portal Upload Dataset page with the generated GTFS OSW ZIP file attached](../../resources/images/walksheds/tutorial/extension-dataset/01-tdei-portal-upload-dark.avif#only-dark) 3. Open [Datasets](https://portal.tdei.us/datasets) and confirm that the uploaded dataset appears in the dataset list. ![TDEI Portal Datasets page showing the uploaded KCM GTFS OSW dataset](../../resources/images/walksheds/tutorial/extension-dataset/02-tdei-portal-datasets-light.avif#only-light) ![TDEI Portal Datasets page showing the uploaded KCM GTFS OSW dataset](../../resources/images/walksheds/tutorial/extension-dataset/02-tdei-portal-datasets-dark.avif#only-dark) --- ### Step 4: Select the Extension Dataset in Walksheds 1. Open [Walksheds](https://walkshed.tdei.us/) and sign in. 2. Open the Walksheds settings and select the base TDEI dataset for your analysis. 3. Under **Select an extension TDEI dataset (overlay)**, select the uploaded GTFS dataset. Confirm that **Points** is checked under **Available extensions**. ![Walksheds settings showing a selected base dataset, the KCM GTFS extension dataset, and Points listed as an available extension](../../resources/images/walksheds/tutorial/extension-dataset/03-walksheds-settings-light.avif#only-light) ![Walksheds settings showing a selected base dataset, the KCM GTFS extension dataset, and Points listed as an available extension](../../resources/images/walksheds/tutorial/extension-dataset/03-walksheds-settings-dark.avif#only-dark) 4. Select **Build Router** and wait for the router to finish building, then reload the page when instructed. !!! info "This job may take a while!" Depending on the size of your selected datasets, this step may take anywhere from a few seconds to 15+ minutes to complete. --- ### Step 5: Display the Bus Stop Points 1. Open **Map Legend** and expand **Points**. 2. Select the visibility control for **Points** to display the extension dataset on the map.

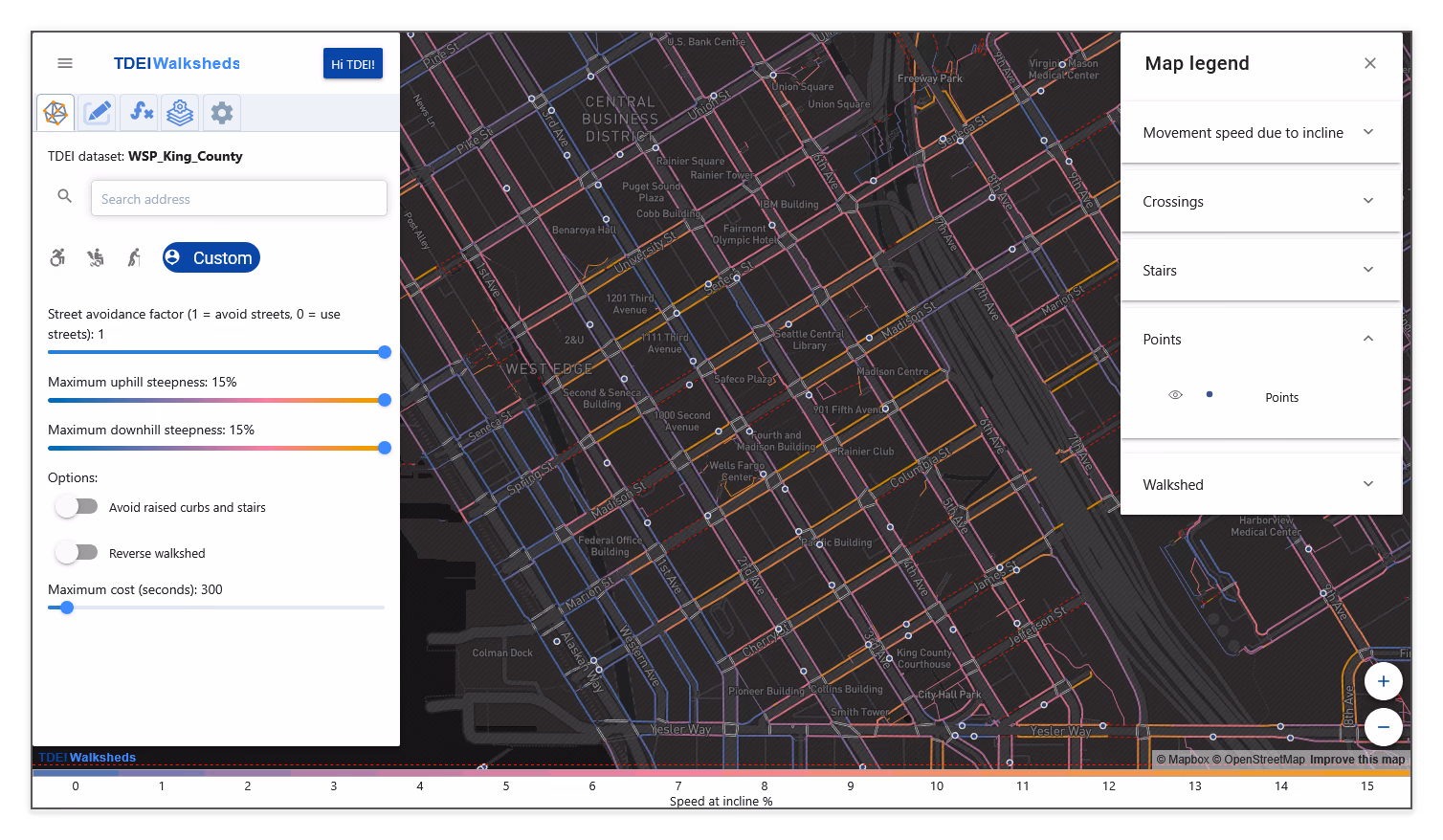

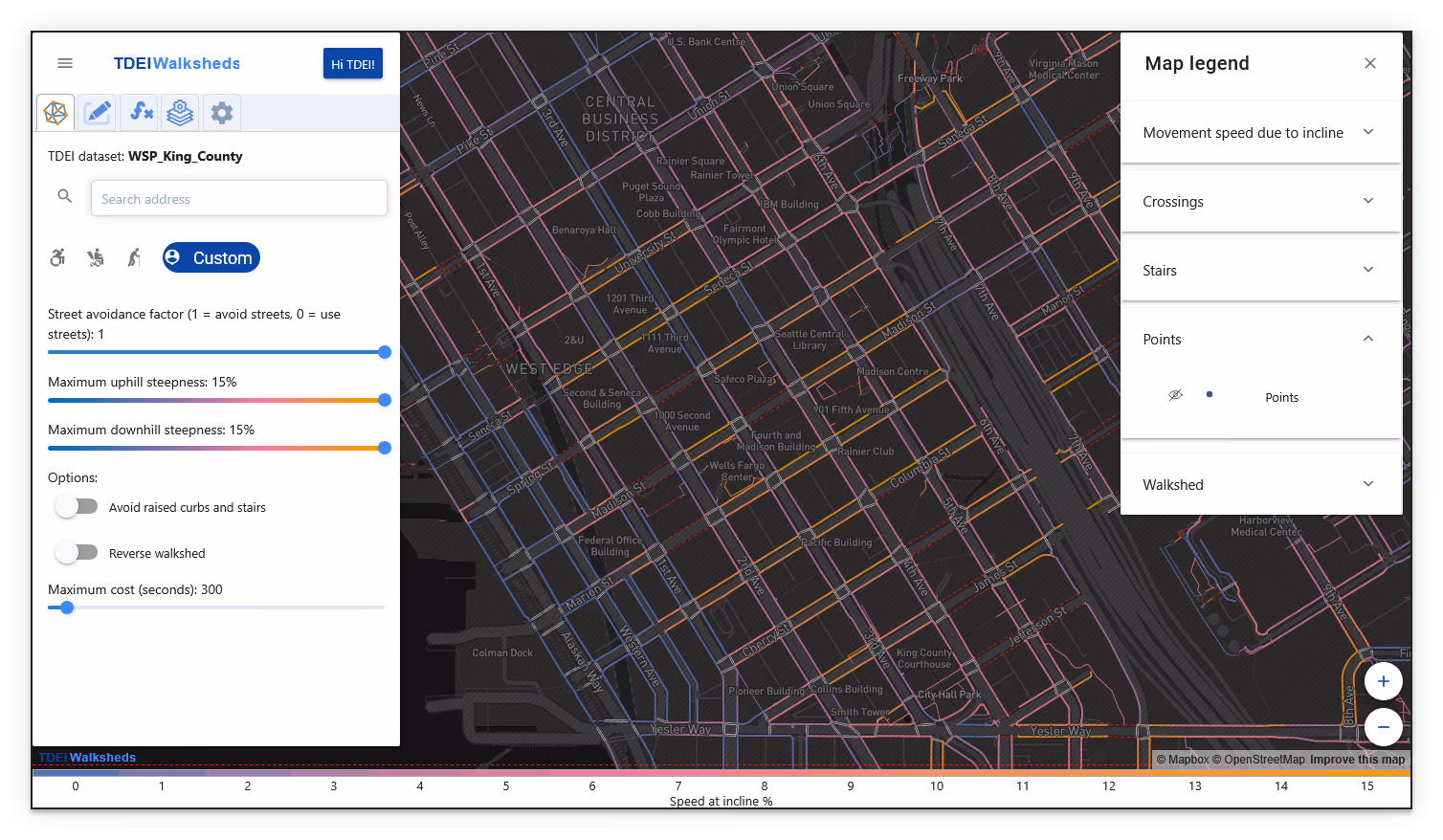

Walksheds map with the Points extension overlay hidden Walksheds map with the Points extension overlay visible
Walksheds map with the Points extension overlay hidden Walksheds map with the Points extension overlay visible
3. Confirm that the bus stop points from the extension dataset appear on the map. !!! success "The bus stop extension dataset's points are now displayed in Walksheds."
