# ARES 2.0: Robustness Evaluation for Object Detection
## Overview Adversarial attacks impact not just image classification but also object detection tasks. In this project, we've introduced both global perturbation and patch-based adversarial attacks to assess the robustness of object detection models. Our framework seamlessly integrates with the widely-used [mmdet](https://github.com/open-mmlab/mmdetection) library, providing an accessible platform for researchers and developers. ## Features - **Integrated with [mmdet](https://github.com/open-mmlab/mmdetection)** - Compatible with plenty of models from mmdet. Assess their adversarial robustness using the provided config and weight files. - **Global perturbation attack** - Employ FGSM, BIM, and PGD techniques to test adversarial robustness. - **Patch-based attack** - Adversarial patches optimized gradient descent. - Shared patch for objects of the same class. - Each object receives a central patch. - **Visualization** - Adversarial images can be saved easily for comparison, analysis, and data augmentation. - **Distributed training and testing** - Pytorch distributed data-parallel training and testing are supported for faster training and testing. ## Preparation **Dataset** - We evaluate the robustness of detection models on the coco2017 val dataset. Please download [coco2017](https://cocodataset.org) dataset first. The validation set `val2017` folder and annotations are needed by default. If you want to use your datasets, please convert them to coco-style with the corresponding metainfo. **Detection Model** - Train object detectors using [mmdet](https://github.com/open-mmlab/mmdetection) or directly download the detector weight files and config files provided by [mmdet](https://github.com/open-mmlab/mmdetection). You'd better use the complete config file generated by mmdet itself. ## Getting Started - **Modify detector config files** - Modify all the `data_root` attributes in detector config files to your correct path, for example, `data_root=/path_to_your_datasets/coco2017/`. There are multiple `data_root` attributes in a mmdet-style config file. Please make sure that all `data_root` attributes are modified correctly. - Modify the `ann_file` attribute in the `test_evaluator` attribute to your correct path, for example, `ann_file= /path_to_your_dataset/coco2017/annotations/instances_val2017.json`. - If you use your datasets, the config files generated in the training process can usually be directly used. Specifically, please make sure that you have provided `metainfo` attribute for the attribute `dataset` in `train_dataloader` and `test_dataloader`as follows: ```python metainfo = {'classes': ['cls_1', 'cls_2', '...', 'cls_n']} train_dataloader = dict(batch_size=4, num_workers=4, dataset=dict(data_root='/path_to_your_datasets/coco2017/', metainfo=metainfo, ann_file='annotations/instances_val2017.json', data_prefix=dict(img='images') )) test_dataloader = dict(batch_size=4, num_workers=4, dataset=dict(data_root='/path_to_your_datasets/coco2017/', metainfo=metainfo, ann_file='annotations/instances_val2017.json', data_prefix=dict(img='images') )) ``` - **Global perturbation attack** * Modify the `detector` attribute in the [configs/global_demo.py](configs/global_demo.py) file according to your detector config file and weight file paths. * Run the following command to start: ```bash CUDA_VISIBLE_DEVICES=0 python run.py --cfg configs/global_demo.py ``` Besides, you can also overwrite the `detector` attribute in the console and start by the following command: ```bash CUDA_VISIBLE_DEVICES=0 python run.py --cfg configs/demo.py --cfg-options detector.cfg_file=/path_to_your_detector_cfg_file detector.weight_file=/path_to_your_detector_weight_file ``` * For more attack configurations, please refer to [configs/global/base.py](configs/global/base.py). Your can overwrite them in the `global_demo.py` file as you want . Up to now, FGSM, BIM, MIM, TIM, DI_FGSM, SI_NI_FGSM, VMI_FGSM and PGD attack methods are supported for the global perturbation attack. - **Patch-based attack** * Modify the `detector` attribute in the [configs/patch_demo.py](configs/patch_demo.py) file according to your detector config file and weight file paths. * Run the following command to start: ```bash CUDA_VISIBLE_DEVICES=0 python run.py --cfg configs/patch_demo.py ``` * For more attack configurations, please refer to [configs/patch/base.py](configs/patch/base.py). You can overwrite them in the `global_demo.py` file as you want. - **Distributed training and testing** Pytorch distributed dataparallel (DDP) is supported. To start DDP training or testing, please refer to the [run_dist.sh](run_dist.sh) for details. - **Evaluating non-mmdet detectors** If you want to evalute non-mmdet detectors, you may try following steps: * Convert dataset to coco-style. * Generate a mmdet-style config file containing a `test_dataloader`, `train_dataloader` (if needed), and a `test_evaluator`. * Modify your detection model code. Specifically, you are required to add a data_preprocessor, a loss function and a predict function. See `ares.attack.detection.custom.detector.CustomDetector` for details. * Replace `detector = MODELS.build(detector_cfg.model)` in the `run.py` file with your detector initialization code. ## Results - **Evaluation of some object detection models** Attack settings: global perturbation attack using PGD with eps=2 under L $\infty$ norm | Detector | Config | Weight | IoU | Area | MaxDets | AP (clean) | AP (attacked) | |:---------------:|:-----------------------------------------------------------------------------------------------------------------------------------------------------:|:---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------:|:----------:|:----:|:-------:|:----------:|:-------------:| | Faster R-CNN | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/faster_rcnn/faster-rcnn_x101-64x4d_fpn_1x_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/faster_rcnn/faster_rcnn_x101_64x4d_fpn_1x_coco/faster_rcnn_x101_64x4d_fpn_1x_coco_20200204-833ee192.pth) | 0.50:0.95 | all | 100 | 0.422 | 0.041 | | YOLO v3 | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/yolo/yolov3_d53_8xb8-ms-608-273e_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/yolo/yolov3_d53_mstrain-608_273e_coco/yolov3_d53_mstrain-608_273e_coco_20210518_115020-a2c3acb8.pth) | 0.50:0.95 | all | 100 | 0.337 | 0.062 | | SSD | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/ssd/ssd512_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/ssd/ssd512_coco/ssd512_coco_20210803_022849-0a47a1ca.pth) | 0.50:0.95 | all | 100 | 0.295 | 0.039 | | RetinaNet | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/retinanet/retinanet_r50_fpn_1x_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/retinanet/retinanet_r50_fpn_1x_coco/retinanet_r50_fpn_1x_coco_20200130-c2398f9e.pth) | 0.50:0.95 | all | 100 | 0.365 | 0.027 | | CenterNet | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/centernet/centernet-update_r50-caffe_fpn_ms-1x_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v3.0/centernet/centernet-update_r50-caffe_fpn_ms-1x_coco/centernet-update_r50-caffe_fpn_ms-1x_coco_20230512_203845-8306baf2.pth) | 0.50:0.95 | all | 100 | 0.401 | 0.070 | | FCOS | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/fcos/fcos_r50-dcn-caffe_fpn_gn-head-center-normbbox-centeronreg-giou_1x_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/fcos/fcos_center-normbbox-centeronreg-giou_r50_caffe_fpn_gn-head_dcn_1x_coco/fcos_center-normbbox-centeronreg-giou_r50_caffe_fpn_gn-head_dcn_1x_coco-ae4d8b3d.pth) | 0.50:0.95 | all | 100 | 0.422 | 0.045 | | DETR | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/detr/detr_r50_8xb2-150e_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v3.0/detr/detr_r50_8xb2-150e_coco/detr_r50_8xb2-150e_coco_20221023_153551-436d03e8.pth) | 0.50:0.95 | all | 100 | 0.397 | 0.074 | | Deformable DETR | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/deformable_detr/deformable-detr-refine-twostage_r50_16xb2-50e_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v3.0/deformable_detr/deformable-detr-refine-twostage_r50_16xb2-50e_coco/deformable-detr-refine-twostage_r50_16xb2-50e_coco_20221021_184714-acc8a5ff.pth) | 0.50:0.95 | all | 100 | 0.469 | 0.067 | | DINO | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/dino/dino-5scale_swin-l_8xb2-12e_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v3.0/dino/dino-5scale_swin-l_8xb2-12e_coco/dino-5scale_swin-l_8xb2-12e_coco_20230228_072924-a654145f.pth) | 0.50:0.95 | all | 100 | 0.570 | 0.086 | | YOLOX | [config](https://github.com/open-mmlab/mmdetection/blob/main/configs/yolox/yolox_l_8xb8-300e_coco.py) | [weight](https://download.openmmlab.com/mmdetection/v2.0/yolox/yolox_l_8x8_300e_coco/yolox_l_8x8_300e_coco_20211126_140236-d3bd2b23.pth) | 0.50:0.95 | all | 100 | 0.491 | 0.098 | - **Visualizations** Detector: FCOS Adversarial image: PGD attack with eps=5/255 under L $\infty$ setting

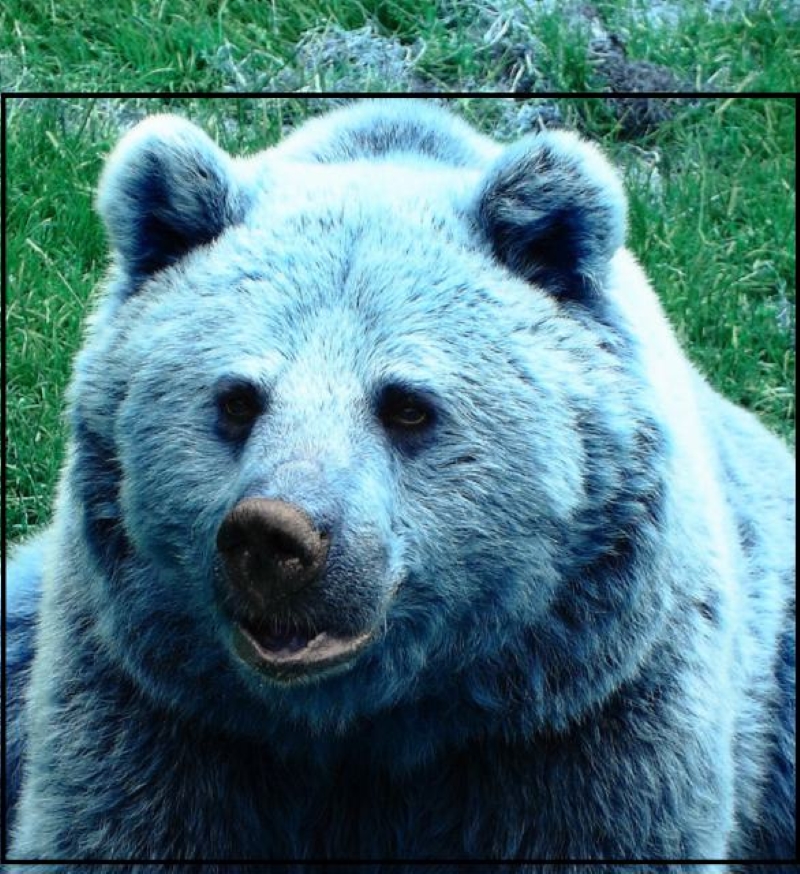

GT bboxes
(clean image)

predicted bboxes
(clean image)

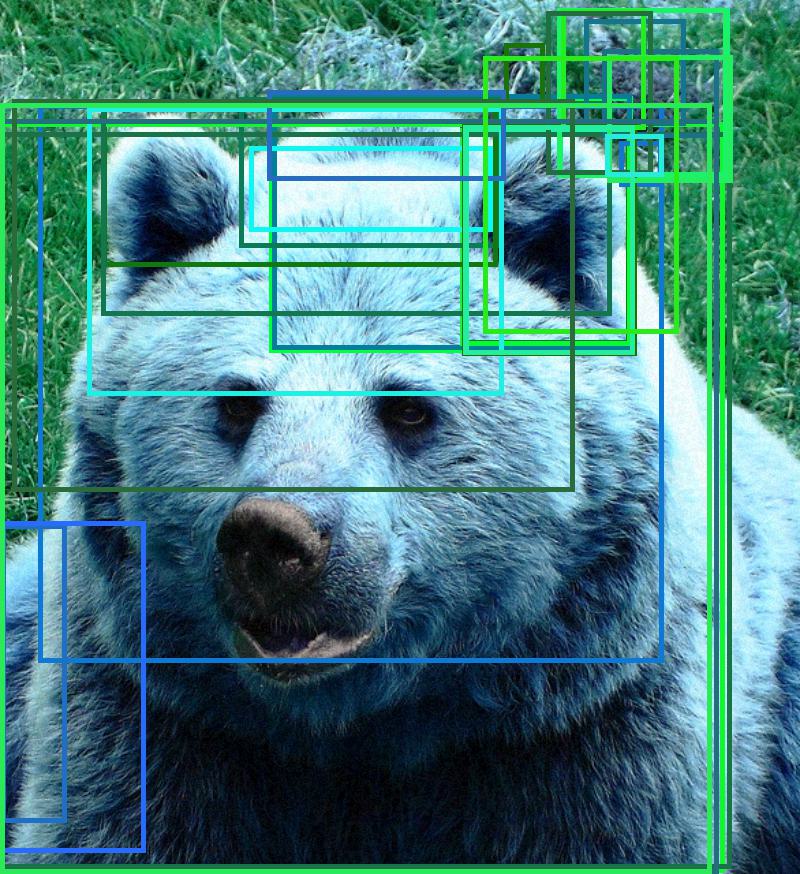

predicted bboxes
(adversarial image)
## Acknowledgement Many thanks to these excellent open-source projects: - [mmdet](https://github.com/open-mmlab/mmdetection) - [AdvPatch](https://gitlab.com/EAVISE/adversarial-yolo) - [Paper ](http://openaccess.thecvf.com/content_CVPRW_2019/papers/CV-COPS/Thys_Fooling_Automated_Surveillance_Cameras_Adversarial_Patches_to_Attack_Person_Detection_CVPRW_2019_paper.pdf)
