title: "Cloud Computing"
subtitle: Biostat 203B
author: "Dr. Hua Zhou @ UCLA"
date: "`r format(Sys.time(), '%d %B, %Y')`"
format:
  html:
    theme: cosmo
    embed-resources: true
    number-sections: true
    toc: true
    toc-depth: 4
    toc-location: left
    code-fold: false
bibliography: "../bib-HZ.bib"
csl: "../apa.csl"
knitr:
  opts_chunk:
    fig.align: 'center'
    fig.width: 6
    fig.height: 4
    message: FALSE
    cache: false
---

## What is cloud computing

<p align="center">
<img src="./cloud_computing_meme.jpg" width="350">
</p>
Image source: <https://towardsdatascience.com/how-to-start-a-data-science-project-using-google-cloud-platform-6618b7c6edd2>.

- Using a collection of remote servers for computation, data
storage/manipulation, etc.

- Pay for clock-cycles, storage, and network flow rather than hardware.

- Computing when you need it:
    - Scalable computing
    - Scalable storage

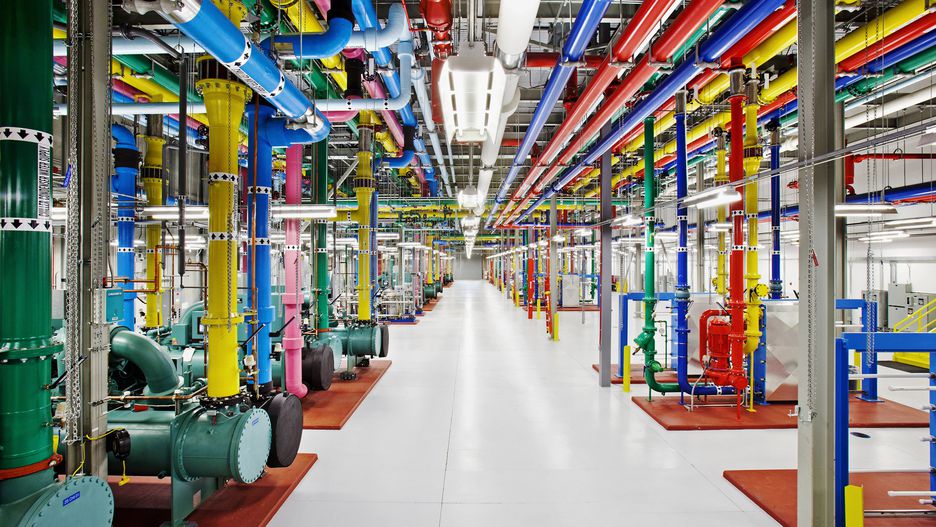

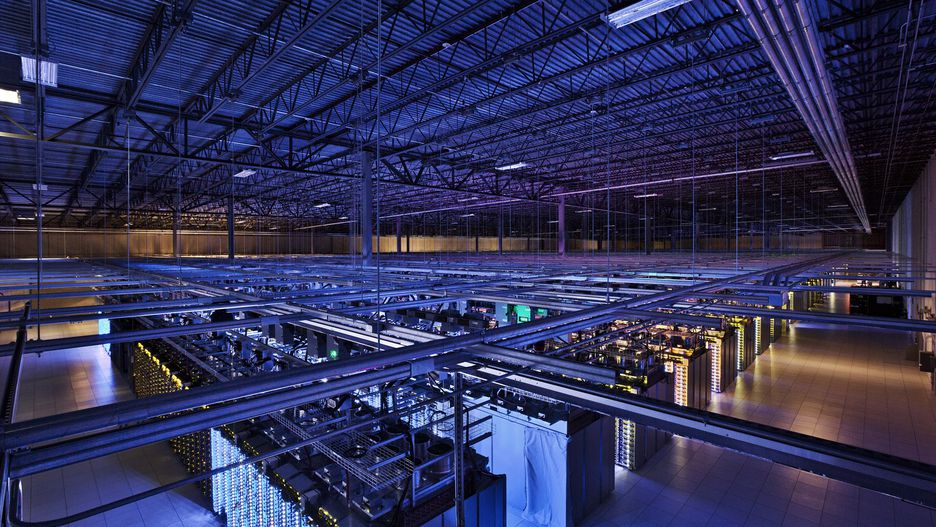

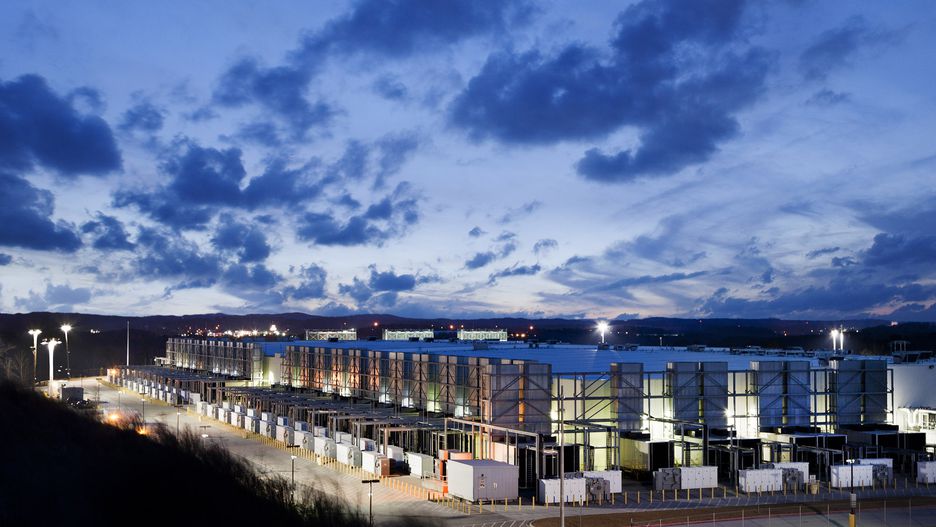

## It's not in cloud

<p align="center">
![](./google-datacenter-georgia.jpg){width=400px}
![](./google-datacenter-iowa.jpg){width=400px}
![](./google-datacenter-cooling.jpg){width=400px}
![](./google-dalles-datacenter.jpg){width=400px}
</p>


## Why cloud computing is so popular

- Scalability!

- Adapt to fluctuating demand:

    - Websites with fluctuating traffic.

    - Large corporations use much more computing during business hours than off-business hours.

- Efficiency:

    - Pay for what you need.

    - No need for hardware maintenance.

    - Less waiting for fixed compute-time jobs.

## Why _we_ (students, researchers) care about cloud computing

- Our computational demands often fluctuate dramatically.

- Grant resource management.
    - Old style: buy computer with grant X money, must use computer **only** for grant X research.
    - New style: buy computing time for grant X research with grant X money.

- Massive computing when you need it
    - On the cloud you can run your job on 10,000 machines for one hour for the same price as running it on one machine for 10,000 hours!
    - Using AWS EC2 spot instances, this can be done for $700 an hour, and gets you super-computer performance.
    - It may be more compelling to know that you can get 8 cores
for around $0.27 an hour.

## Vendors

<p align="center">
<img src="./cloud-market-share.jpeg" height="350">
</p>

There are many vendors out there. Good for customers (us). They all work similarly.
- Amazon web services (AWS).

- Google cloud platform (GCP).

- Microsoft Azure.

- IBM cloud.

- Oracle Cloud Infrastructure (OCI).

We will demonstrate how to start using GCP.

## Using GCP Compute Engine: basic workflow

0. Set up GCP account.

0. Configure and launch VM instance(s).

0. Set up connection (SSH key).

0. Install software you need.

0. Run your jobs.

0. Transfer result.

0. Terminate instance(s).

## Step 0: set up GCP account

<p align="center">
<img src="./gcp_signup.png" height="350">
</p>

- Go to <https://cloud.google.com>.

- Choose the Google account you want to use for GCP.

- If you click `Try it free` at <https://cloud.google.com> and fill out requisite information, you will get $300 credit **which expires in ~~1 year~~ 3 months**. You do **not** need to use it for this course.

- After email verification and redeeming the coupon, a project `My First Project` is created in GCP.

**GCP free trial**:

- Some resources are always free: 1 f1-micro VM instance, 30GB of standard persistent disk storage, etc.

- General pricing can be found on this [page](https://cloud.google.com/compute/pricing?hl=en_US&_ga=2.155132024.-1106292436.1515381586).

## Step 1: configure and launch a VM instance

<p align="center">
<img src="./gcp_createinstance.png" height="350">
</p>

- Go to GCP console, create a project.

- Go to Compute Engine, click `CREATE INSTANCE`.

    - Give a meaningful name, e.g, `biostat-203b`.

    - Choose `us-west2` zone (Los Angeles).

    - Machine type: 2 vCPUs, 7.5GB memory should suffice for this course.

    - Boot disk: CentOS 7, standard persistent disk (or SSD) 50GB should sufficie for the kind of copmuting in this course.

    - These settings can be changed anytime. **Typical paradigm**: develop code using an inexpensive machine type and switch to a powerful one when running computation intensive tasks.

    - Click `Create`.

- At the `VM Instances` page, you can see a list of all instances in your project and their IP addresses. We use the external IP address, e.g., `XX.XXX.XXX.XXX`, for SSH connection.

<p align="center">
<img src="./gcp_vminstances.png" height="350">
</p>

- Note if we stop the instance and start again. The external IP address may change. To keep a fixed external IP address, go to `VPC network` then `External IP addresses` and make the desired external IP address `static` (vs ephemeral). Note that if no instance is using a `static` IP address, you will be charged for the idle `static` IP.

<p align="center">
<img src="./gcp_external_ip.png" height="350">
</p>


## Step 2: set up SSH keys

There are several ways to connect to the VM instance you just created. Most often we want to be able to SSH into the VM instance from other machines, e.g., your own laptop. By default, VM instance only accept key authentication. So it's necessary to set up the SSH key first.

**Option 1: SSH in browser**

- Click the `SSH` button on `VM Instances` page will bring out a terminal in browser as super user, e.g., `huazhou` (my gmail account name).

**Option 2: Manually set up SSH**

- First use browser SSH to set up your own SSH keys:
```{bash, eval = FALSE}
cd
mkdir .ssh
chmod go-rx .ssh/
cd .ssh
vi authorized_keys
```
Copy your public key to `authorized_keys` and set permission
```{bash, eval = FALSE}
chmod go-rwx authorized_keys
```

- Now you should be able to connect to the VM instance from any machine with the matching private key:
```{bash, eval = FALSE}
ssh username@XX.XXX.XXX.XXX
```

**Option 3: Set up instance specific key in GCP**

- On the VM Instances page, click the instance you want to set up key. Click Edit.

- We can enter public key in the SSH Keys section.

<p align="center">
<img src="./gcp_instancekey.png" height="350">
</p>

**Option 4: Set up project-wide key in GCP**

- Click the Metadata tab on the left.

- Enter public key in the SSH Keys section. This will apply to all instances in the project.

<p align="center">
<img src="./gcp_metadata.png" height="350">
</p>

## Step 3: install software

`yum` is the default package management tool on CentOS. Most software can be installed via `sudo yum`. `sudo` executes a command as a superuser (or root).

### Install R/R Studio Server

-  Install the epel-repository (if not yet)
```{bash, eval = FALSE}
sudo yum install epel-release -y
```

- Install R (it takes a couple minutes)
```{bash, eval = FALSE}
sudo yum install R -y
```

- Install `wget`, which is a command line tool for downloading files from internet.
```{bash, eval = FALSE}
sudo yum install wget -y
```

- Download and install the most recent [R Studio Server](https://www.rstudio.com/products/rstudio/download-server/).
```{bash, eval = FALSE}
wget https://download2.rstudio.org/server/centos7/x86_64/rstudio-server-rhel-2022.12.0-353-x86_64.rpm
sudo yum install rstudio-server-rhel-2022.12.0-353-x86_64.rpm
```

- The R Studio service starts immediately. Let's check if it is running  properly by triggering the following command.
```{bash, eval = FALSE}
sudo systemctl status rstudio-server.service
```

- By default, port 8787 used by R Studio Server is blocked by VM firewall. On GCP console, go to `VPC network` and then `Firewall rules`, create a rule for R Studio Server (tcp: 8787), apply that rule to your VM instance.

<p align="center">
<img src="./gcp_firewall_rules.png" height="350">
</p>

<p align="center">
<img src="./gcp_firewall_tags.png" height="350">
</p>

- Now you should be able to access R Studio Server on the VM instance by pointing your browser to address `http://XX.XXX.XXX.XXX:8787`.

### Set up a regular user

- Key authentication suffices for most applications.

- Unfortunately R Studio Server (open source edition) does not support key authentication. That implies if you want to use R Studio Server on the VM Instance, you need to enable username/password authentication.

- You can set password for a user by
```{r, eval = FALSE}
passwd
```

- Now you should be able to log in the R Studio Server from browser `http://XX.XXX.XXX.XXX:8787` using your username and corresponding password.

- To SSH into VM instance as the regular user, you need to set up the key (similar to set up key for superuser).

- If you want to enable a regular user as a sudoer, add it into the `wheel` group:
```{bash, eval = FALSE}
su - huazhou
sudo usermod -aG wheel username
su - username
```

### Install R packages

- Install R packages using `install.packages()` function in R. Install as superuser will make packages availalbe to all users on this instance. For example,
```{r, eval = FALSE}
sudo R -e 'install.packages("tidyverse")'
```

- To set the CRAN mirror globally, we write following lines into the `/usr/lib64/R/etc/Rprofile.site` file: `options(repos = c(CRAN = "https://cran.rstudio.com"))`.

- When installing R packages, it often fails because certain Linux libraries are absent.

- Pay attention to the error messages, and install those libraries using `yum`.

- E.g., try installing `tidyverse` may yield following errors
```{r, eval = FALSE}
ERROR: dependencies ‘httr’, ‘rvest’, ‘xml2’ are not available for package ‘tidyverse’
* removing ‘/usr/lib64/R/library/tidyverse’
```
You can install these Linux dependencies `curl`, `openssl`, and `libxml2` by:
```{bash, eval = FALSE}
sudo yum install curl curl-devel -y
sudo yum install openssl openssl-devel -y
sudo yum install libxml2 libxml2-devel -y
```

### Install Git

- Install Git on VM instance:
```{bash, eval = FALSE}
sudo yum install git -y
```

- For smooth Gitting, you need to put the private key matching the public key in your GitHub account in the `~/.ssh` folder on the VM instance.

- Now you can `git clone` any repo to the VM instance to start working on a project. E.g.,
```{bash, eval = FALSE}
git clone https://github.com/ucla-biostat203b-2020winter/ucla-biostat203b-2020winter.github.io.git
```

### (Optional) Install Julia

```{bash, eval = FALSE}
sudo yum install yum-utils -y
sudo yum-config-manager --add-repo https://copr.fedorainfracloud.org/coprs/nalimilan/julia/repo/epel-7/nalimilan-julia-epel-7.repo
sudo yum install julia -y
```

## Step 4: run your jobs

- Now you have R and R Studio on the VM instance.

- The simpliest way to synchronize your project files across machines is Git, e.g.,
```{bash, eval = FALSE}
git clone https://github.com/ucla-biostat-203b/2022winter.git
```

- Set up and run your jobs as usual.

- You can check CPU usage on the GCP console.

- You can set notification when CPU usage falls below a threshold (so you know the job is done).

## Step 5: transfer results

- Transfer results as usual: Git, scp, sftp.

## Step 6: terminate instance(s)

- Don't forget to terminate your instance(s)!

## Go forth and use the cloud

- Using cloud (AWS, Azure, GCP, ...) is easy, as far as we master the fundamentals such as Linux, scripting, SSH, keys, and so on.

- Easy to launch cluster instances or other heavily customized instances (SQL server, BigQuery, ML engine, Genomics, ...).

- Massive computing at your fingertips.

    - Amazon EC2 [P2 instances](https://aws.amazon.com/ec2/instance-types/p2) offer on a single virtual machine 16 GPUs, with 40,000 parallel processing cores, and 732 GB memory, yielding **70 teraflops** of single precision floating point performance or **23 teraflops** of double-precision.

    <p align="center">
    <img src="./amazon_p2.jpg" height="350">
    </p>

    - GCP offers [TPU (tensor processing units)](https://cloud.google.com/tpu/) for deep learning. Each Cloud TPU offers up to **180 teraflops** of computing performance as well as 64 gigabytes of ultra-high-bandwidth memory.

    <p align="center">
    <img src="./gcp_tpu.png" height="350">
    </p>

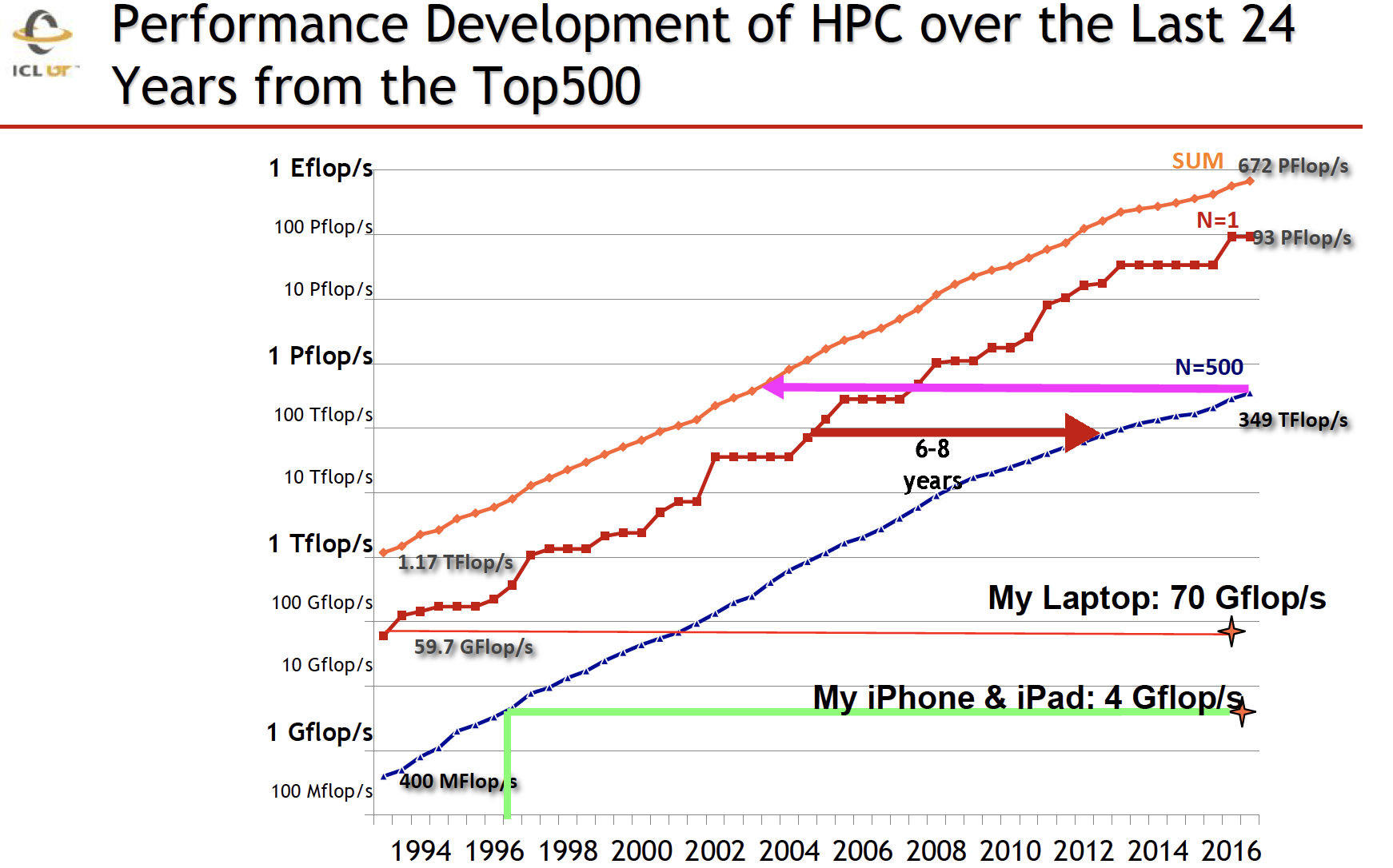

    - To put it in perspective, 180 teraflops is equivalent to the most powerful high performance cluster (HPC) in 2005, according to following [slide](https://www.samsi.info/wp-content/uploads/2017/02/SAMSI-0217_Dongarra.pdf) by Jack Dongarra.

    <p align="center">
    ![](./hpc_top500.png){width=500px}
    </p>


## Final word

> Before requesting massive computing resources, always examine your code and algorithm. Most likely you can gain order of magnitude efficiency (say 100 folder speedup) by educated choice of algorithms and careful coding. You'll see a dozen examples in Spring (Biostat 257).
