## Overview

- Neural networks became popular in the 1980s.

- Lots of successes, hype, and great conferences: NeurIPS, Snowbird.

- Then along came SVMs, Random Forests and Boosting in the 1990s, and Neural Networks took a back seat.

- Re-emerged around 2010 as Deep Learning. By 2020s very dominant and successful.

- Part of success due to vast improvements in computing power, larger training sets, and software: Tensorflow and PyTorch.

- Much of the credit goes to three pioneers and their students: Yann LeCun, Geoffrey Hinton, and Yoshua Bengio, who received the [2018 ACM Turing Award](https://awards.acm.org/about/2018-turing) for their work in Neural Networks.

## History and recent surge

From [Wang and Raj (2017)](https://arxiv.org/pdf/1702.07800.pdf):

<p align="center">
![](./wangraj-table1.png){width=600px}
</p>

The current AI wave came in 2012 when AlexNet (60 million parameters) cuts the error rate of ImageNet competition (classify 1.2 million natural images) by half.

## Canonical datasets for computer vision tasks

- [MNIST](http://yann.lecun.com/exdb/mnist/)

<p align="center">
![](./esl-fig-11-9.png){width=500px}
</p>

- [Fashion MNIST](https://github.com/zalandoresearch/fashion-mnist#fashion-mnist)

<p align="center">
![](./fashion-mnist-sprite.png){width=500px}
</p>

- [CIFAR10 and CIFAR100](https://www.cs.toronto.edu/~kriz/cifar.html)

<p align="center">
![](./cifar10.png){width=500px}
</p>

- [ImageNet](https://www.image-net.org/)

<p align="center">
![](./colah-KSH-results.png){width=500px}
</p>

- [Microsoft COCO](https://cocodataset.org/#home) (object detection, segmentation, and captioning)

<p align="center">
![](./coco-examples.jpeg){width=500px}
</p>

- [ADE20K](http://groups.csail.mit.edu/vision/datasets/ADE20K/) (scene parsing)

<p align="center">
![](./ade20k_examples.png){width=500px}
</p>

## Single layer neural network

::: {#fig-slp}

<p align="center">
![](ISL_fig_10_1.png){width=400px height=400px}
</p>

Neural network with a single hidden layer. The hidden layer computes activations $A_k = h_k(X)$ that are nonlinear transformations of linear combinations of the inputs $X_1, X_2, \ldots, X_p$. Hence these $A_k$ are not directly observed. The functions $h_k(\cdot)$ are not fixed in advance, but are learned during the training of the network. The output layer is a linear model that uses these activations $A_k$ as inputs, resulting in a function $f(X)$.

:::

- Inspired by the biological neuron model.

<p align="center">
![](./mcp_neuron_model.png){width=500px}
</p>

- Model:

\begin{eqnarray*}
f(X) &=& \beta_0 + \sum_{k=1}^K \beta_k h_k(X) \\
&=& \beta_0 + \sum_{k=1}^K \beta_k g(w_{k0} + \sum_{j=1}^p w_{kj} X_j).
\end{eqnarray*}

### Activation functions

- **Activations** in the **hidden layer**:
$$
A_k = h_k(X) = g(w_{k0} + \sum_{j=1}^p w_{kj} X_j)
$$

- $g(z)$ is called the **activation function**. Popular are the **sigmoid** and **rectified linear**, shown in figure.

    - Sigmoid activation:
    $$
    g(z) = \frac{e^z}{1 + e^z} = \frac{1}{1 + e^{-z}}.
    $$

    - ReLU (rectified linear unit):
    $$
    g(z) = (z)_+ = \begin{cases}
    0 & \text{if } z<0 \\
    z & \text{otherwise}
    \end{cases}.
    $$
    According to Wikipedia: _The rectifier is, as of 2017, the most popular activation function for deep neural networks._

::: {#fig-activation}

<p align="center">
![](ISL_fig_10_2.pdf){width=600px height=450px}
</p>

Activation functions. The piecewise-linear ReLU function is popular for its efficiency and computability. We have scaled it down by a factor of five for ease of comparison.

:::

- Activation functions in hidden layers are typically **nonlinear**, otherwise the model collapses to a linear model.

- So the activations are like derived features. Nonlinear transformations of linear combinations of the features.

- Consider a simple example with 2 input variables $X=(X_1,X_2)$ and $K=2$ hidden units $h_1(X)$ and $h_2(X)$ with $g(z) = z^2$. Assumings specific parameter values
\begin{eqnarray*}
\beta_0 = 0, \beta_1 &=& \frac 14, \beta_2 = - \frac 14 \\
w_{10} = 0, w_{11} &=& 1, w_{12} = 1 \\
w_{20} = 0, w_{21} &=& 1, w_{22} = -1.
\end{eqnarray*}
Then
\begin{eqnarray*}
h_1(X) &=& (0 + X_1 + X_2)^2, \\
h_2(X) &=& (0 + X_1 - X_2)^2.
\end{eqnarray*}
Plugging, we get
\begin{eqnarray*}
f(X) &=& 0 + \frac 14 \cdot (0 + X_1 + X_2)^2 - \frac 14 \cdot (0 + X_1 - X_2)^2 \\
&=& \frac 14[(X_1 + X_2)^2 - (X_1 - X_2)^2] \\
&=& X_1 X_2.
\end{eqnarray*}
So the sum of two nonlinear transformations of linear functions can give us an interaction!

### Loss function

- The model is fit by minimizing
$$
\sum_{i=1}^n (y_{i} - f(x_i))^2.
$$
for **regression**.

## Multiple layer neural network

::: {#fig-mnist}

<p align="center">
![](ISL_fig_10_3a.pdf){width=600px height=300px}
</p>

<p align="center">
![](ISL_fig_10_3b.pdf){width=600px height=200px}
</p>

Examples of handwritten digits from the MNIST corpus. Each grayscale image has $28 \times 28$ pixels, each of which is an eight-bit number (0-255) which represents how dark that pixel is. The first 3, 5, and 8 are enlarged to show their 784 individual pixel values.

:::

- Example: MNIST digits. Handwritten digits $28 \times 28$ grayscale images. 60K train, 10K test images. Features are the 784 pixel grayscale values in [0,255]. Labels are the digit class 0-9.

    Goal: build a classifier to predict the image class.

- We build a two-layer network with 256 units at first layer, 128 units at second layer, and 10 units at output layer.

- Along with intercepts (called **biases**) there are 235,146 parameters (referred to as **weights**).

::: {#fig-mlp}

<p align="center">
![](ISL_fig_10_4.png){width=400px height=400px}
</p>

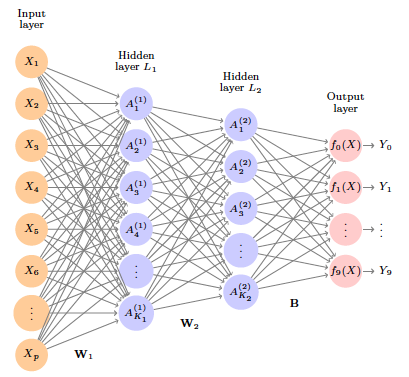

Neural network diagram with two hidden layers and multiple outputs, suitable for the MNIST handwritten-digit problem. The input layer has $p = 784$ units, the two hidden layers $K_1 = 256$ and $K_2 = 128$ units respectively, and the output layer 10 units. Along with intercepts (referred to as **biases** in the deep-learning community) this network has 235,146 parameters (referred to as **weights**).

:::

- **Output layer**: Let
$$
Z_m = \beta_{m0} + \sum_{\ell=1}^{K_2} \beta_{m\ell} A_{\ell}^{(2)}, m = 0,1,\ldots,9
$$
be 10 linear combinations of activations at second layer.

- Output activation function encodes the **softmax** function
$$
f_m(X) = \operatorname{Pr}(Y = m \mid X) = \frac{e^{Z_m}}{\sum_{\ell=0}^9 e^{Z_{\ell}}}.
$$

- We fit the model by minimizing the negative multinomial log-likelihood (or **cross-entropy**):
$$
\, - \sum_{i=1}^n \sum_{m=0}^9 y_{im} \log (f_m(x_i)).
$$
$y_{im}=1$ if true class for observation $i$ is $m$, else 0 (one-hot encoded).

- Results:

| Method                                  | Test Error |
|-----------------------------------------|------------|
| Neural Network + Ridge Regularization   | 2.3%       |
| Neural Network + Dropout Regularization | 1.8%       |
| Multinomial Logistic Regression         | 7.2%       |
| Linear Discriminant Analysis            | 12.7%      |

- Early success for neural networks in the 1990s.

- With so many parameters, regularization is essential.

- Very overworked problem -- best reported rates are <0.5%!

    Human error rate is reported to be around 0.2%, or 20 of the 10K test images.

## Expressivity of neural network

- Playground: <http://playground.tensorflow.org>

- Sources:
    - [On the expressive power of deep neural network](https://arxiv.org/abs/1606.05336).
    - [On the number of response regions of deep feed forward networks with piece-wise linear activations](https://arxiv.org/abs/1312.6098).

- Consider the function $F: \mathbb{R}^m \mapsto \mathbb{R}^n$
$$
F(\mathbf{v}) = \text{ReLU}(\mathbf{A} \mathbf{v} + \mathbf{b}).
$$
Each equation
$$
\mathbf{a}_i^T \mathbf{v} + b_i = 0
$$
creates a hyperplane in $\mathbb{R}^m$. ReLU creates a _fold_ along that hyperplane. There are a total of $n$ folds.
    - When there are $n=2$ hyperplanes in $\mathbb{R}^2$, 2 folds create 4 pieces.
    - When there are $n=3$ hyperplanes in $\mathbb{R}^2$, 3 folds create 7 pieces.

- The number of linear pieces of $\mathbb{R}^m$ sliced by $n$ hyperplanes is
$$
r(n, m) = \sum_{i=0}^m \binom{n}{i} = \binom{n}{0} + \cdots + \binom{n}{m}.
$$

    Proof: Induction using the recursion
$$
r(n, m) = r(n-1, m) + r(n-1, m-1).
$$

- Corollary:
    - When there are relatively few neurons $n \ll m$,
$$
r(n,m) \approx 2^n.
$$
    - When there are many neurons $n \gg m$,
$$
r(n,m) \approx \frac{n^m}{m!}.
$$

- Counting the number of flat pieces with more hidden layers is much harder.

## Universal approximation properties

- Boolean Approximation: an MLP of one hidden layer can represent any Boolean function exactly.

- Continuous Approximation: an MLP of one hidden layer can approximate any bounded continuous function with arbitrary accuracy.

- Arbitrary Approximation: an MLP of two hidden layers can approximate any function with arbitrary accuracy.

## Convolutional neural network (CNN)

- Major success story for classifying images.

::: {#fig-cifar}

<p align="center">
![](ISL_fig_10_5.jpg){width=600px height=300px}
</p>

A sample of images from the CIFAR100 database: a collection of natural images from everyday life, with 100 different classes represented. $32 \times 32$ color natural images, with 100 classes.

:::

- CIFAR100: 50K training images, 10K test images.

    Each image is a three-dimensional array or feature map: $32 \times 32 \times 3$ array of 8-bit numbers. The last dimension represents the three color channels for red, green and blue.


::: {#fig-cifar}

<p align="center">
![](ISL_fig_10_6.jpg){width=600px height=400px}
</p>

Schematic showing how a convolutional neural network classifies an image of a tiger. The network takes in the image and identifies local features. It then combines the local features in order to create compound features, which in this example include eyes and ears. These compound features are used to output the label _tiger_.

:::

- The CNN builds up an image in a hierarchical fashion.

- Edges and shapes are recognized and pieced together to form more complex shapes, eventually assembling the target image.

- This hierarchical construction is achieved using **convolution** and **pooling** layers.

### Convolution

- The convolution filter is itself an image, and represents a small shape, edge, etc.

- We slide it around the input image, scoring for matches.

- The scoring is done via **dot-products**, illustrated above.
$$
\text{Input image} = \begin{pmatrix}
a & b & c \\
d & e & f \\
g & h & i \\
j & k & l
\end{pmatrix}
$$
$$
\text{Convolution Filter} = \begin{pmatrix}
\alpha & \beta \\
\gamma & \delta
\end{pmatrix}
$$
$$
\text{Convolved Image} = \begin{pmatrix}
a \alpha + b \beta + d \gamma + e \delta & b \alpha + c \beta + e \gamma + f \delta \\
d \alpha + e \beta + g \gamma + h \delta & e \alpha + f \beta + h \gamma + i \delta \\
g \alpha + h \beta + j \gamma + k \delta & h \alpha + i \beta + k \gamma + l \delta
\end{pmatrix}
$$

<p align="center">
![](./ufldl-convolution-schematic.gif){width=400px}
</p>

- If the subimage of the input image is similar to the filter, the score is high, otherwise low.

::: {#fig-convolution}

<p align="center">
![](ISL_fig_10_7.pdf){width=600px height=400px}
</p>

The two filters shown here highlight vertical and horizontal stripes.

:::

- Interactive visualization: <https://setosa.io/ev/image-kernels/>

- The filters are **learned** during training.

- The idea of convolution with a filter is to find common patterns that occur in different parts of the image.

- The result of the convolution is a new feature map.

- Since images have three colors channels, the filter does as well: one filter per channel, and dot-products are summed.

<p align="center">
![](./convolution-with-multiple-filters2.png){width=400px}
</p>
Source: <https://indoml.com/2018/03/07/student-notes-convolutional-neural-networks-cnn-introduction/>

### Pooling

<p align="center">
![](./ufldl-pooling-schematic.gif){width=400px}
</p>

- Max pool:
$$
\begin{pmatrix}
1 & 2 & 5 & 3 \\
3 & 0 & 1 & 2 \\
2 & 1 & 3 & 4 \\
1 & 1 & 2 & 0
\end{pmatrix} \to \begin{pmatrix}
3 & 5 \\
2 & 4
\end{pmatrix}
$$

- Each non-overlapping $2 \times 2$ block is replaced by its maximum.

- This sharpens the feature identification.

- Allows for locational invariance.

- Reduces the dimension by a factor of 4.

### CNN architecture

::: {#fig-cnn-arch}

<p align="center">
![](ISL_fig_10_8.pdf){width=600px height=200px}
</p>

Architecture of a deep CNN for the CIFAR100 classification task. Convolution layers are interspersed with $2 \times 2$ max-pool layers, which reduce the size by a factor of 2 in both dimensions.

:::

- Many convolve + pool layers.

- Filters are typically small, e.g. each channel $3 \times 3$.

- Each filter creates a new channel in convolution layer.

- As pooling reduces size, the number of filters/channels is typically increased.

- Number of layers can be very large. E.g. resnet50 trained on ImageNet 1000-class image data base has 50 layers!

### Results using pre-trained resnet50

::: {#fig-cnn-arch}

<p align="center">
![](ISL_fig_10_10.png){width=600px height=600px}
</p>

Classification of six photographs using the resnet50 CNN
trained on the ImageNet corpus.

:::

## Popular architectures for image classification

<p align="center">
![](./imagenet_top_performers.png){width=500px}
</p>
Source: [Architecture comparison of AlexNet, VGGNet, ResNet, Inception, DenseNet](https://towardsdatascience.com/architecture-comparison-of-alexnet-vggnet-resnet-inception-densenet-beb8b116866d)

### AlexNet

Source: <http://cs231n.github.io/convolutional-networks/>

- [ImageNet](http://www.image-net.org) dataset. Classify 1.2 million high-resolution images ($224 \times 224 \times 3$) into 1000 classes.

- **AlexNet**: [Krizhevsky, Sutskever, Hinton (2012)](http://www.cs.toronto.edu/~fritz/absps/imagenet.pdf)

- A combination of techniques: GPU, ReLU, DropOut (0.5), SGD + Momentum with 0.9, initial learning rate 0.01 and again reduced by 10 when validation accuracy become flat.

- 5 convolutional layers, pooling interspersed, 3 fully connected layers. $\sim 60$ million parameters, 650,000 neurons.
<p align="center">
![](./colah-KSH-arch.png){width=500px}
</p>

<p align="center">
![](./alexnet.png){width=500px}
</p>

- AlexNet was the winner of the ImageNet Large Scale Visual Recognition Challenge (ILSVRC) classification the benchmark in 2012.

- Achieved 62.5% accuracy:
<p align="center">
![](./colah-KSH-results.png){width=500px}
</p>
96 learnt filters:
<p align="center">
![](./krizhevsky-weights.jpg){width=500px}
</p>

### VGG

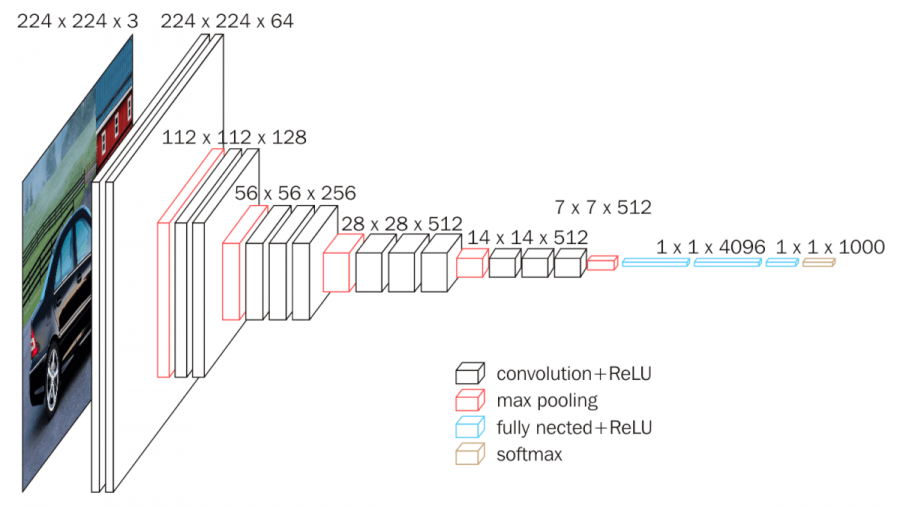

[**VGG-16**](https://arxiv.org/abs/1409.1556) and VGG-19 (2014). The numbers 16 and 19 refer to the number of trainable layers. VGG-16 has $\sim 138$ million parameters. **VGGNet** was the runner up of the ImageNet Large Scale Visual Recognition Challenge (ILSVRC) classification the benchmark in 2014.

<p align="center">
![](./vgg16.png){width=400px}
</p>

<p align="center">
![](./vgg1619.jpg){height=400px}
</p>

<p align="center">
![](./vgg16params.jpg){width=400px}
</p>

### ResNet

[**ResNet**](https://arxiv.org/abs/1512.03385) secured 1st Position in ILSVRC and COCO 2015 competition with an error rate of 3.6% (Better than Human Performance !!!) Batch Normalization after every conv layer. It also uses Xavier initialization with SGD + Momentum. The learning rate is 0.1 and is divided by 10 as validation error becomes constant. Moreover, batch-size is 256 and weight decay is 1e-5. The important part is there is no dropout is used in ResNet.

<p align="center">
![](./resnet.jpg){width=400px}
</p>

### Inception

Inception-v3 with 144 crops and 4 models ensembled, the top-5 error rate of 3.58% is obtained, and finally obtained 1st Runner Up (image classification) in ILSVRC 2015. The motivation of the inception network is, rather than requiring us to pick the filter size manually, let the network decide what is best to put in a layer. [GoogLeNet](https://arxiv.org/abs/1409.4842) has 9 inception modules.

<p align="center">
![](./inception.png){width=600px}
</p>

<p align="center">
![](./inception-module1.png){width=500px}
</p>

## Document classification: IMDB movie reviews.

- The `IMDB` corpus consists of user-supplied movie ratings for a large collection of movies. Each has been labeled for sentiment as **positive** or **negative**. Here is the beginning of a negative review:

> This has to be one of the worst films of the 1990s. When my friends
& I were watching this film (being the target audience it was aimed at) we just sat & watched the first half an hour with our jaws touching the floor at how bad it really was. The rest of the time, everyone else in the theater just started talking to each other, leaving or generally crying into their popcorn...

- We have labeled training and test sets, each consisting of 25,000 reviews, and each balanced with regard to sentiment.

    We wish to build a classifier to predict the sentiment of a review.

### Feature extraction: bag of words

- Documents have different lengths, and consist of sequences of words. How do we create features $X$ to characterize a document?

- From a dictionary, identify the 10K most frequently occurring words.

- Create a binary vector of length $p = 10K$ for each document, and score a 1 in every position that the corresponding word occurred.

- With $n$ documents, we now have an $n \times p$ sparse feature matrix $X$.

- **Bag-of-n-grams** model. Bag-of-words are **unigrams**. We can instead use **bigrams** (occurrences of adjacent word pairs), and in general **$m$-grams**.

- For more complicated feature extraction from text data, see the book [_Text Mining with R: A Tidy Approach_](https://www.tidytextmining.com/)

### Lasso versus neural network: IMDB reviews

ISL textbook compares a lasso logistic regression model to a two-hidden-layer neural network. (No convolutions here!)

::: {#fig-cnn-arch}

<p align="center">
![](ISL_fig_10_11.pdf){width=600px height=450px}
</p>

Accuracy of the lasso and a two-hidden-layer neural network on the IMDB data. For the lasso, the x-axis displays $−\log(\lambda)$, while for the neural network it displays **epochs** (number of times the fitting algorithm passes through the training set). Both show a tendency to overfit, and achieve approximately the same test accuracy.

:::

## Recurrent neural network (RNN)

- Data often arise as sequences:

    - Documents are sequences of words, and their relative positions have meaning.

    - Time-series such as weather data or financial indices.

    - Recorded speech or music.

    - Handwriting, such as doctor's notes.

- RNNs build models that take into account this sequential nature of the data, and build a memory of the past.

- The feature for each observation is a sequence of vectors $X = \{X_1, X_2, \ldots, X_L\}$.

- The target $Y$ is often of the usual kind. For example, a single variable such as **Sentiment**, or a one-hot vector for multiclass.

- However, $Y$ can also be a sequence, such as the same document in a different language.

- Schematic of a simple recurrent neural network.

::: {#fig-cnn-arch}

<p align="center">
![](ISL_fig_10_12.pdf){width=600px height=300px}
</p>

The input is a sequence of vectors $\{X_\ell\}_{\ell=1}^L$, and here the target is a single response. The network processes the input sequence $X$ sequentially; each $X_\ell$ feeds into the hidden layer, which also has as input the activation vector $A_{\ell-1}$ from the previous element in the sequence, and produces the current activation vector $A_{\ell}$. The **same** collections of weights $W$, $U$ and $B$ are used as each element of the sequence is processed. The output layer produces a sequence of predictions $O_\ell$ from the current  activation $A_\ell$, but typically only the last of these, $O_\ell$, is of relevance. To the left of the equal sign is a concise representation of the network, which is unrolled into a more
explicit version on the right.

:::

- In detail, suppose $X_\ell = (X_{\ell 1}, X_{\ell 2}, \ldots, X_{\ell p})$ has $p$ components, and $A_\ell = (A_{\ell 1}, A_{\ell 2}, \ldots, A_{\ell K})$ has $K$ components. Then the computation at the $k$th components of hidden unit $A_\ell$ is
\begin{eqnarray*}
  A_{\ell k} &=& g(w_{k0} + \sum_{j=1}^p w_{kj} X_{\ell j} + \sum_{s=1}^K u_{ks} A_{\ell-1,s}) \\
  O_\ell &=& \beta_0 + \sum_{k=1}^K \beta_k A_{\ell k}.
\end{eqnarray*}

- Often we are concerned only with the prediction $O_L$ at the last
unit. For squared error loss, and $n$ sequence/response pairs, we would minimize
$$
\sum_{i=1}^n (y_i - o_{iL})^2 = \sum_{i=1}^n (y_i - (\beta_0 + \sum_{k=1}^K \beta_kg(w_{k0} + \sum_{j=1}^p w_{ij} x_{iLj} + \sum_{s=1}^K u_{ks}A_{i,L-1,s})))^2.
$$

- RNN and IMDB reviews.

    - The document feature is a sequence of words $\{\mathcal{W}_\ell\}_1^L$. We typically truncate/pad the documents to the same number $L$ of words (we use $L = 80$).

    - Each word $\mathcal{W}_\ell$ is represented as a one-hot encoded binary vector $X_\ell$ (dummy variable) of length 10K, with all zeros and a single one in the position for that word in the dictionary.

    - This results in an extremely sparse feature representation, and would not work well.

    - Instead we use a lower-dimensional pretrained word embedding matrix $E$ ($m \times 10K$).

    - This reduces the binary feature vector of length 10K to a real feature vector of dimension $m \ll 10K$ (e.g. $m$ in the low hundreds.)

::: {#fig-word-embedding}

<p align="center">
![](ISL_fig_10_13a.pdf){width=600px height=300px}
</p>

<p align="center">
![](ISL_fig_10_13b.pdf){width=600px height=80px}
</p>

Depiction of a sequence of 20 words representing a single document: one-hot encoded using a dictionary of 16 words (top panel) and embedded in an $m$-dimensional space with $m = 5$ (bottom panel). Embeddings are pretrained on very large corpora of documents, using methods similar to principal components. `word2vec` and `GloVe` are popular.

:::

- After a lot of work, the results are a disappointing 76% accuracy.

- We then fit a more exotic RNN, an LSTM with long and short term memory. Here $A_\ell$ receives input from $A_{\ell-1}$ (short term memory) as well as from a version that reaches further back in time (long term memory). Now we get 87% accuracy, slightly less than the
88% achieved by glmnet.

- Leaderboard for IMDb sentiment analysis: <https://paperswithcode.com/sota/sentiment-analysis-on-imdb>.

## LSTM

- Short-term dependencies: to predict the last word in "the clouds are in the _sky_":
<p align="center">
![](./colah-rnn-shorttermdepdencies.png){width=500px}
</p>

- Long-term dependencies: to predict the last word in "I grew up in France... I speek fluent _French_":
<p align="center">
![](./colah-rnn-longtermdependencies.png){width=500px}
</p>

- Typical RNNs are having trouble with learning long-term dependencies.
<p align="center">
![](./colah-lstm3-simplernn.png){width=500px}
</p>

- **Long Short-Term Memory networks (LSTM)** are a special kind of RNN capable of learning long-term dependencies.
<p align="center">
![](./colah-lstm3-chain.png){width=500px}
![](./colah-lstm2-notation.png){width=500px}
</p>

    The **cell state** allows information to flow along it unchanged.
    <p align="center">
    ![](./colah-lstm3-c-line.png){width=500px}
    </p>
    The **gates** give the ability to remove or add information to the cell state.
    <p align="center">
    ![](./colah-lstm3-gate.png){width=100px}
    </p>

## Transformers

More recent large language models (LMMs) such at ChatGPT extensively use transformers, which are capable of capturing even longer memory than LSTM.

- Visual Guide to Transformer Neural Networks (Youtube)
    - [Episode 1: Position Embeddings](https://youtu.be/dichIcUZfOw)
    - [Episode 2: Multi-Head & Self-Attention](https://youtu.be/mMa2PmYJlCo)
    - [Episode 3: Decoder’s Masked Attention](https://youtu.be/gJ9kaJsE78k)

- [Transformer Models 101 (Towards Data Science)](https://towardsdatascience.com/transformer-models-101-getting-started-part-1-b3a77ccfa14d)

- [LSTM is dead. Long live Transformers! (Youtube)](https://youtu.be/S27pHKBEp30)

## Summary of RNNs

- We have presented the simplest of RNNs. Many more complex variations exist.

- One variation treats the sequence as a one-dimensional image, and uses CNNs for fitting. For example, a sequence of words using an embedding representation can be viewed as an image, and the CNN convolves by sliding a convolutional filter along the sequence.

- Can have additional hidden layers, where each hidden layer is a sequence, and treats the previous hidden layer as an input sequence.

- Can have output also be a sequence, and input and output share the hidden units. So called `seq2seq` learning are used for language translation.

## Generative deep learning

### Generative Adversarial Networks (GANs)

<p align="center">
![](./ian_goodfellow.png){width=400px}
</p>

> The coolest idea in deep learning in the last 20 years.
> - Yann LeCun on GANs.

- Sources:
    - <https://sites.google.com/view/cvpr2018tutorialongans/>
    - <https://medium.com/ai-society/gans-from-scratch-1-a-deep-introduction-with-code-in-pytorch-and-tensorflow-cb03cdcdba0f>
    - <https://skymind.ai/wiki/generative-adversarial-network-gan>

- Applications:

    * AI-generated celebrity photos: <https://www.youtube.com/watch?v=G06dEcZ-QTg>

    * Digital art: [Edmond de Belamy](https://en.wikipedia.org/wiki/Edmond_de_Belamy)

    * Image-to-image translation

    <p align="center">
    ![](./image-to-image-translation.jpg){width=600px}
    </p>

    * Self play

<p align="center">
![](./alpha-go.png){width=600px}
</p>

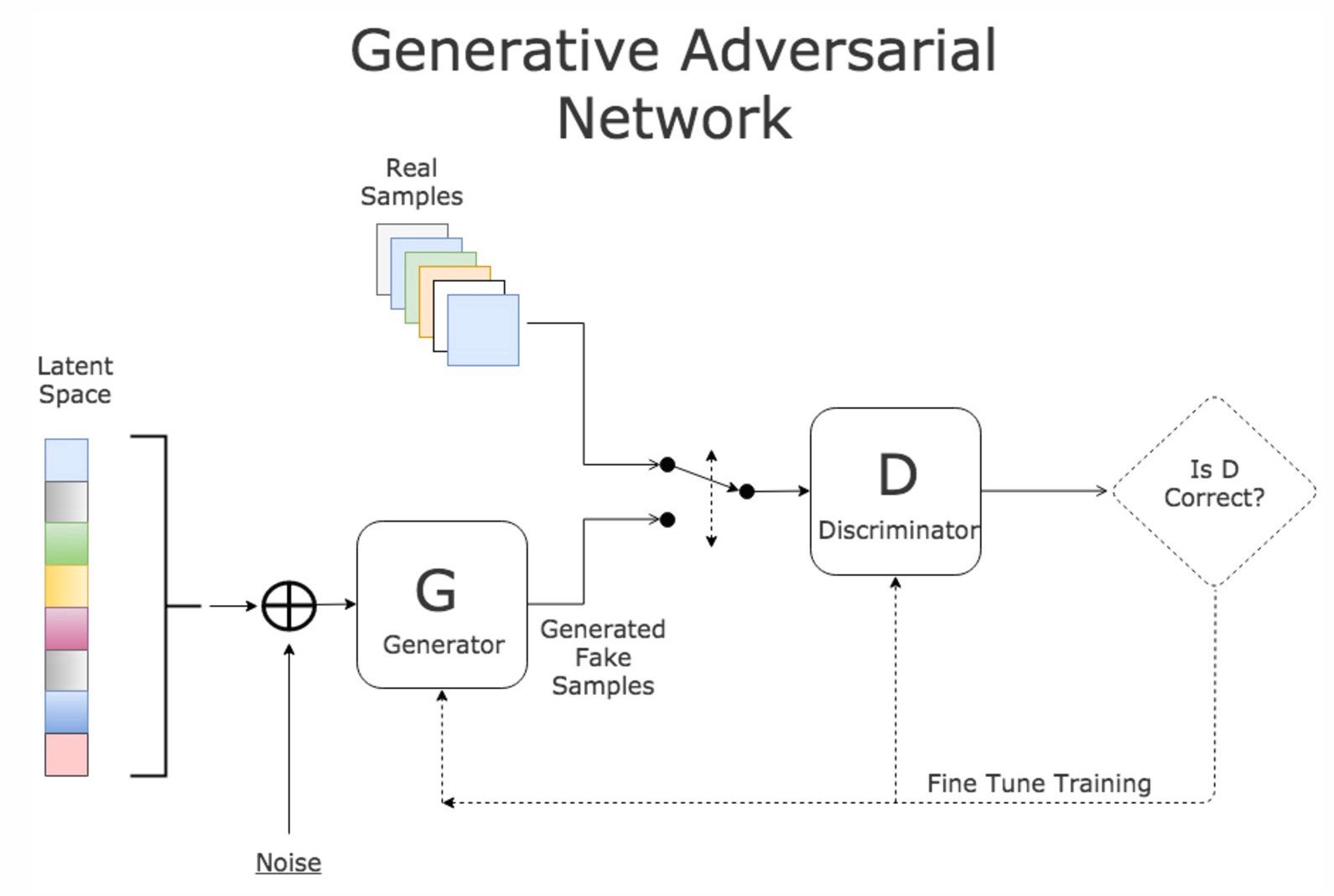

* GAN:

<p align="center">
![](./gan.jpg){width=600px}
</p>

<p align="center">
![](./gan_illustration.png){width=600px}
</p>

* Value function of GAN
$$
\min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{\text{data}}(x)} [\log D(x)] + \mathbb{E}_{z \sim p_z(z)} [\log (1 - D(G(z)))].
$$

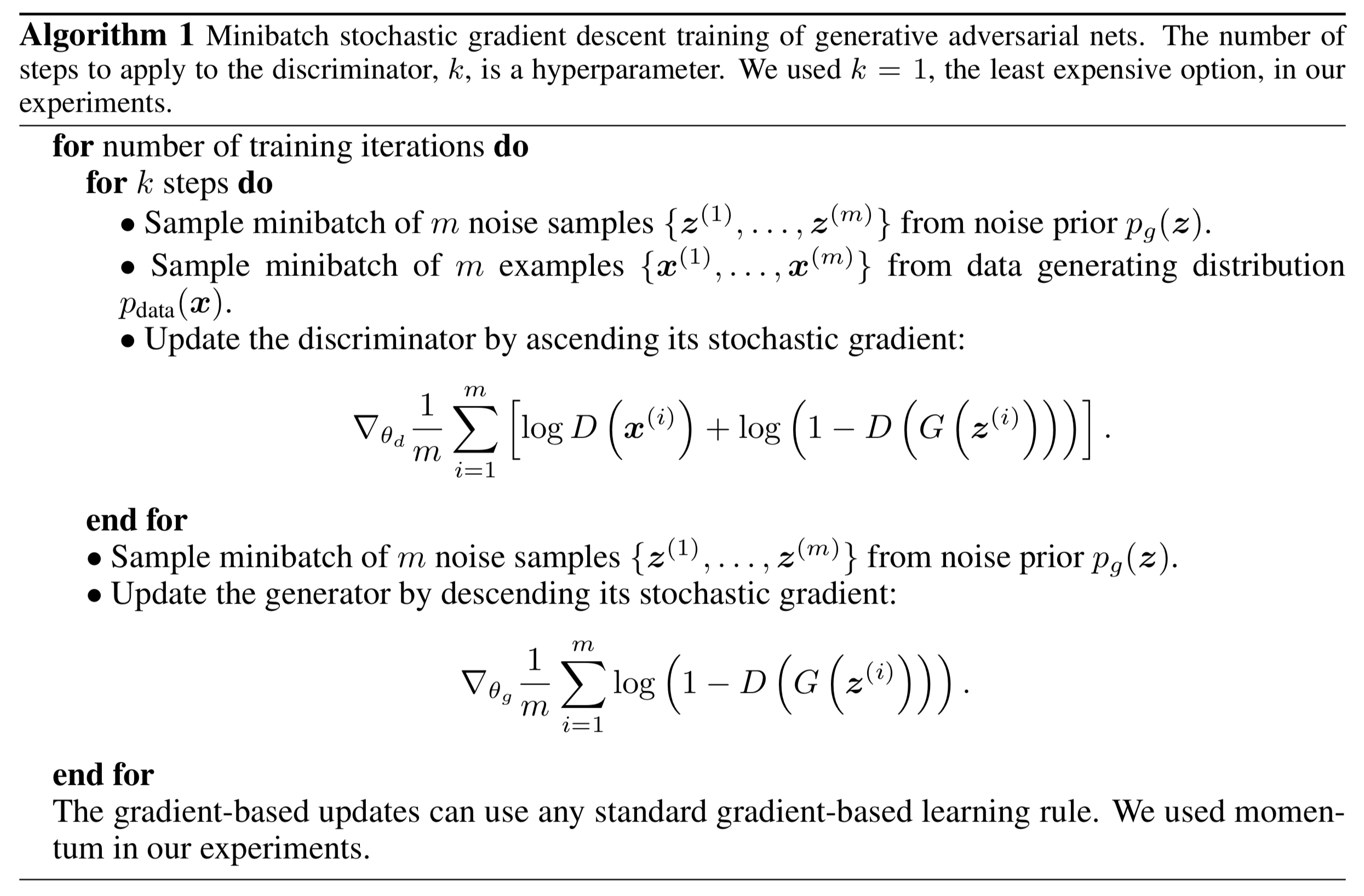

* Training GAN

<p align="center">
![](./training-gan.png){width=600px}
</p>



## When to use deep learning

- CNNs have had enormous successes in image classification and modeling, and are starting to be used in medical diagnosis. Examples include digital mammography, ophthalmology, MRI scans, and digital X-rays.

- RNNs have had big wins in speech modeling, language translation, and forecasting.

- Often the big successes occur when the signal to noise ratio is high, e.g., image recognition and language translation. Datasets are large, and overfitting is not a big problem.

- For noisier data, simpler models can often work better.

    - On the `NYSE` data, the AR(5) model is much simpler than a RNN, and performed as well.

    - On the `IMDB` review data, the linear model fit by glmnet did as well as the neural network, and better than the RNN.

- We endorse the **Occam's razor** principal. We prefer simpler models if they work as well. More interpretable!

## Fitting neural networks

<p align="center">
![](ISL_fig_10_1.png){width=400px height=400px}
</p>

$$
\min_{w_1,\ldots,w_K,\beta} \quad \frac 12 \sum_{i=1}^n (y_i - f(x_i))^2,
$$
where
$$
f(x_i) = \beta_0 + \sum_{k=1}^K \beta_k g(w_{k0} + \sum_{j=1}^p w_{kj} x_{ij}).
$$

- This problem is difficult because the objective is **non-convex**.

- Despite this, effective algorithms have evolved that can optimize complex neural network problems efficiently.

### Gradient descent

::: {#fig-gd}

<p align="center">
![](ISL_fig_10_17.pdf){width=600px height=450px}
</p>

Illustration of gradient descent for one-dimensional $\theta$. The objective function $R(\theta)$ is not convex, and has two minima, one at $\theta = −0.46$ (local), the other at $\theta = 1.02$ (global). Starting at some value $\theta^0$ (typically randomly chosen), each step in $\theta$ moves downhill - against the gradient - until it cannot go down any further. Here gradient descent reached the global minimum in 7 steps.

:::

- Let
$$
R(\theta) = \frac 12 \sum_{i=1}^n (y_i - f_\theta(x_i))^2
$$
with $\theta = (w_1,\ldots,w_K,\beta)$.

    1. Start with a guess $\theta_0$ for all the parameters in $\theta$, and set $t = 0$.

    2. Iterate until the objective $R(\theta)$ fails to decrease:

        (a). Find a vector $\delta$ that reflects a small change in $\theta$ such that $\theta^{t+1} = \theta^t + \delta$ reduces the objective; i.e. $R(\theta^{t+1}) < R(\theta^t)$.

        (b). Set $t \gets t+1$.

- In this simple example we reached the **global minimum**.

- If we had started a little to the left of $\theta^0$ we would have gone in the other direction, and ended up in a local minimum.

- Although $\theta$ is multi-dimensional, we have depicted the process as one-dimensional. It is much harder to identify whether one is in a local minimum in high dimensions.

- How to find a direction $\delta$ that points downhill? We compute the gradient vector
$$
\nabla R(\theta^t) = \frac{\partial R(\theta)}{\partial \theta} \mid_{\theta = \theta^t}
$$
and set
$$
\theta^{t+1} \gets \theta^t - \rho \nabla R(\theta^t),
$$
where $\rho$ is the **learning rate** (typically small, e.g., $\rho=0.001$).

- Since $R(\theta) = \sum_{i=1}^n R_i(\theta)$ is a sum, so gradient is sum of gradients.
$$
R_i(\theta) = \frac 12 (y_i - f_\theta(x_i))^2 = \frac 12 (y_i - \beta_0 - \sum_{k=1}^K \beta_k g(w_{k0} + \sum_{j=1}^p w_{kj} x_{ij}))^2.
$$
For ease of notation, let
$$
z_{ik} = w_{k0} + \sum_{j=1}^p w_{kj} x_{ij}.
$$

- **Backpropagation** uses the chain rule for differentiation:
\begin{eqnarray*}
\frac{\partial R_i(\theta)}{\partial \beta_k} &=& \frac{\partial R_i(\theta)}{\partial f_\theta(x_i)} \cdot \frac{\partial f_\theta(x_i)}{\partial \beta_k} \\
&=& - (y_i - f_\theta(x_i)) \cdot g(z_{ik}) \\
\frac{\partial R_i(\theta)}{\partial w_{kj}} &=& \frac{\partial R_i(\theta)}{\partial f_\theta(x_i)} \cdot \frac{\partial f_\theta(x_i)}{\partial g(z_{ik})} \cdot \frac{\partial g(z_{ik})}{\partial z_{ik}} \cdot \frac{\partial z_{ik}}{\partial w_{kj}} \\
&=& - (y_i - f_\theta(x_i)) \cdot \beta_k \cdot g'(z_{ik}) \cdot x_{ij}.
\end{eqnarray*}

- Two-pass updates:
\begin{eqnarray*}
    & & \text{initialization} \to z_{ik} \to g(z_{ik}) \to \widehat{f}_{\theta}(x_i) \quad \quad \quad \text{(forward pass)}   \\
    &\to& y_i - f_\theta(x_i) \to \frac{\partial R_i(\theta)}{\partial \beta_k}, \frac{\partial R_i(\theta)}{\partial w_{kj}} \to \widehat{\beta}_{k} \text{ and } \widehat{w}_{kj} \quad \quad \text{(backward pass)}.
\end{eqnarray*}

- Advantages: each hidden unit passes and receives information only to and from units that share a connection; can be implemented efficiently on a parallel architecture computer.

- Tricks of the trade

    - **Slow learning**. Gradient descent is slow, and a small learning rate $\rho$ slows it even further. With **early stopping**, this is a form of regularization.

    - **Stochastic gradient descent**. Rather than compute the gradient using all the data, use a small **minibatch** drawn at random at each step. E.g. for `MNIST` data, with n = 60K, we use minibatches of 128 observations.

    - An **epoch** is a count of iterations and amounts to the number of minibatch updates such that $n$ samples in total have been processed; i.e. $60,000/128 \approx 469$ minibatches for `MNIST`.

    - **Regularization**. Ridge and lasso regularization can be used to shrink the weights at each layer. Two other popular forms of regularization are **dropout** and **augmentation**.

### Dropout learning

::: {#fig-dropout}

<p align="center">
![](ISL_fig_10_19.png){width=600px}
</p>

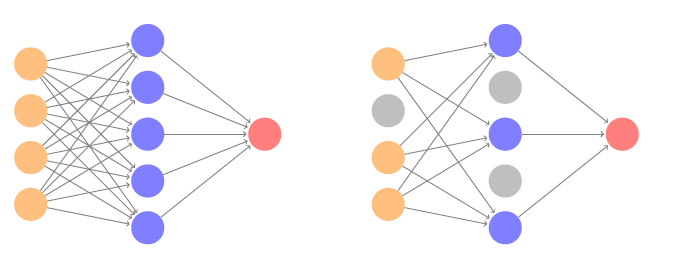

Dropout Learning. Left: a fully connected network. Right: network with dropout in the input and hidden layer. The nodes in grey are selected at random, and ignored in an instance of training.

:::

- At each SGD update, randomly remove units with probability $\phi$, and scale up the weights of those retained by $1/(1-\phi)$ to compensate.

- In simple scenarios like linear regression, a version of this process can be shown to be equivalent to ridge regularization.

- As in ridge, the other units **stand** in for those temporarily removed, and their weights are drawn closer together.

- Similar to randomly omitting variables when growing trees in random forests.

### Ridge and data augmentation

- Make many copies of each $(x_i, y_i)$ and add a small amount of Gaussian noise to the $x_i$, a little cloud around each
observation, but leave the copies of $y_i$ alone!

- This makes the fit robust to small perturbations in $x_i$, and is equivalent to ridge regularization in an OLS setting.

- Data augmentation is especially effective with SGD. Natural transformations are made of each training image when it is sampled by SGD, thus ultimately making a cloud of images around each original training image.

- The label is left unchanged, in each case still `tiger`.

- Improves performance of CNN and is similar to ridge.

<p align="center">
![](ISL_fig_10_9.jpg){width=600px}
</p>

## Double descent

- With neural networks, it seems better to have too many hidden units than too few.

- Likewise more hidden layers better than few.

- Running stochastic gradient descent till zero training error often gives good out-of-sample error.

- Increasing the number of units or layers and again training till zero error sometimes gives **even better** out-of-sample error.

- What happened to overfitting and the usual bias-variance trade-off?

Belkin, Hsu, Ma and Mandal (2018) _Reconciling Modern Machine Learning and the Bias-Variance Trade-off_. [arXiv](https://arxiv.org/abs/1812.11118)

### Simulation study

- Model:
$$
y= \sin(x) + \epsilon
$$
with $x \sim$ Uniform(-5, 5) and $\epsilon$ is Gaussian with sd=0.3.

- Training set $n=20$, test set very large (10K).

- We fit a natural spline to the data with $d$ degrees of freedom, i.e., a linear regression onto $d$ basis functions
$$
\hat y_i = \hat \beta_1 N_1(x_i) + \hat \beta_2 N_2(x_i) + \cdots + \hat \beta_d N_d(x_i).
$$

- When $d = 20$ we fit the training data exactly, and get all residuals equal to zero.

- When $d > 20$, we still fit the data exactly, but the solution is not unique. Among the zero-residual solutions, we pick the one with **minimum norm**, i.e. the zero-residual solution with smallest $\sum_{j=1}^d \hat \beta_j^2$.

::: {#fig-double-descent}

<p align="center">
![](ISL_fig_10_20.pdf){width=600px height=400px}
</p>

Double descent phenomenon, illustrated using error plots for a one-dimensional natural spline example. The horizontal axis refers to the number of spline basis functions on the log scale. The training error hits zero when the degrees of freedom coincides with the sample size $n = 20$, the "interpolation threshold", and remains zero thereafter. The test error increases dramatically at this threshold, but then descends again to a reasonable value before finally increasing again.

:::

- When $d \le 20$, model is OLS, and we see usual bias-variance trade-off.

- When $d > 20$, we revert to minimum-norm solution. As $d$ increases above 20, $\sum_{j=1}^d \hat \beta_j^2$ **decreases** since it is easier to achieve zero error, and hence less wiggly solutions.

::: {#fig-double-descent}

<p align="center">
![](ISL_fig_10_21.pdf){width=600px height=400px}
</p>

To achieve a zero-residual solution with $d = 20$ is a real stretch! Easier for larger $d$.

:::

- Some facts.

    - In a wide linear model ($p \gg n$) fit by least squares, SGD with a small step size leads to a **minimum norm** zero-residual solution.

    - Stochastic gradient  **flow**, i.e. the entire path of SGD solutions, is somewhat similar to ridge path.

    - By analogy, deep and wide neural networks fit by SGD down to zero training error often give good solutions that generalize well.

    - In particular cases with high **signal-to-noise ratio**, e.g., image recognition, are less prone to overfitting; the zero-error solution is mostly signal!
