## Notations

Consider maximizing log-likelihood function $L(\mathbf{\theta})$, $\theta \in \Theta \subset \mathbb{R}^p$.

* **Gradient** (or **score**) of $L$:
    $$
    \nabla L(\theta) = \begin{pmatrix}
    \frac{\partial L(\theta)}{\partial \theta_1} \\
    \vdots \\
    \frac{\partial L(\theta)}{\partial \theta_p}
    \end{pmatrix}
    $$

* **Hessian** of $L$:
    $$
    \nabla^2 L(\theta) = \begin{pmatrix}
    \frac{\partial^2 L(\theta)}{\partial \theta_1 \partial \theta_1} & \dots & \frac{\partial^2 L(\theta)}{\partial \theta_1 \partial \theta_p} \\
    \vdots & \ddots & \vdots \\
    \frac{\partial^2 L(\theta)}{\partial \theta_p \partial \theta_1} & \dots & \frac{\partial^2 L(\theta)}{\partial \theta_p \partial \theta_p}
    \end{pmatrix}
    $$

* **Observed information matrix** (negative Hessian):

$$
    - \nabla^2 L(\theta)
$$

* **Expected (Fisher) information matrix**:
$$
    \mathbf{E}[- \nabla^2 L(\theta)].
$$

## Newton's method

* Newton's method was originally developed for finding roots of nonlinear equations
$f(\mathbf{x}) = \mathbf{0}$ (KL 5.4).

* Newton's method, aka **Newton-Raphson method**, is considered the gold standard for its fast (quadratic) convergence
$$
	\frac{\|\mathbf{\theta}^{(t+1)} - \mathbf{\theta}^*\|}{\|\mathbf{\theta}^{(t)} - \mathbf{\theta}^*\|^2} \to \text{constant}.
$$

* Idea: iterative quadratic approximation.

* Taylor expansion around the current iterate $\mathbf{\theta}^{(t)}$
$$
	L(\mathbf{\theta}) \approx L(\mathbf{\theta}^{(t)}) + \nabla L(\mathbf{\theta}^{(t)})^T (\mathbf{\theta} - \mathbf{\theta}^{(t)}) + \frac 12 (\mathbf{\theta} - \mathbf{\theta}^{(t)})^T [\nabla^2L(\mathbf{\theta}^{(t)})] (\mathbf{\theta} - \mathbf{\theta}^{(t)})
$$
and then maximize the quadratic approximation.

* To maximize the quadratic function, we equate its gradient to zero
$$
	\nabla L(\theta^{(t)}) + [\nabla^2L(\theta^{(t)})] (\theta - \theta^{(t)}) = \mathbf{0}_p,
$$
which suggests the next iterate
$$
\begin{eqnarray*}
	\theta^{(t+1)} &=& \theta^{(t)} - [\nabla^2L(\theta^{(t)})]^{-1} \nabla L(\theta^{(t)}) \\
	&=& \theta^{(t)} + [-\nabla^2L(\theta^{(t)})]^{-1} \nabla L(\theta^{(t)}).
\end{eqnarray*}
$$
We call this **naive Newton's method**.

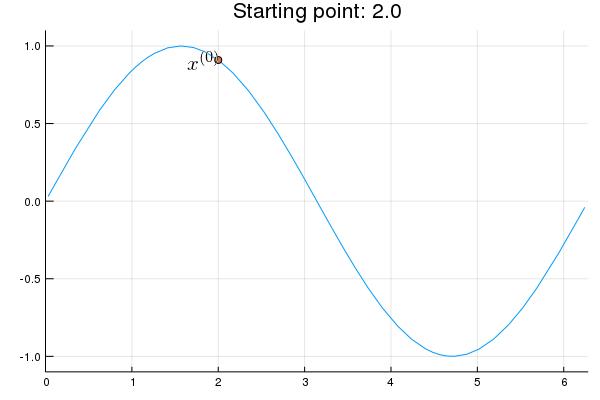

* **Stability issue**: naive Newton's iterate is **not** guaranteed to be an ascent algorithm. It's equally happy to head uphill or downhill. Following example shows that the Newton iterate converges to a local maximum, converges to a local minimum, or diverges depending on starting points.

```{julia}
#| code-eval: false
using Plots; gr()
using LaTeXStrings, ForwardDiff

f(x) = sin(x)
df  = x -> ForwardDiff.derivative(f, x) # gradient
d2f = x -> ForwardDiff.derivative(df, x) # hessian
x = 2.0 # start point: 2.0 (local maximum), 2.75 (diverge), 4.0 (local minimum)
titletext = "Starting point: $x"
anim = @animate for iter in 0:10
    iter > 0 && (global x = x - d2f(x) \ df(x))
    p = Plots.plot(f, 0, 2π, xlim=(0, 2π), ylim=(-1.1, 1.1), legend=nothing, title=titletext)
    Plots.plot!(p, [x], [f(x)], shape=:circle)
    Plots.annotate!(p, x, f(x), text(latexstring("x^{($iter)}"), :right))
end
gif(anim, "./tmp.gif", fps = 1);
```

![](./newton_demo_1.gif)
![](./newton_demo_2.gif)
![](./newton_demo_3.gif)

* Remedies for the instability issue:
    1. approximate $-\nabla^2L(\theta^{(t)})$ by a positive definite $\mathbf{A}$ (if it's not), **and**
    2. line search (backtracking).

* Why insist on a _positive definite_ approximation of Hessian? By first-order Taylor expansion,
$$
\begin{eqnarray*}
    & & L(\theta^{(t)} + s \Delta \theta^{(t)}) - L(\theta^{(t)}) \\
    &=& L(\theta^{(t)}) + s \cdot \nabla L(\theta^{(t)})^T \Delta \theta^{(t)} + o(s) - L(\theta^{(t)}) \\
    &=& s \cdot \nabla L(\theta^{(t)})^T \Delta \theta^{(t)} + o(s) \\
    &=& s \cdot \nabla L(\theta^{(t)})^T [\mathbf{A}^{(t)}]^{-1} \nabla L(\theta^{(t)}) + o(s).
\end{eqnarray*}
$$
For $s$ sufficiently small, right hand side is strictly positive when $\mathbf{A}^{(t)}$ is positive definite. The quantity $\{\nabla L(\theta^{(t)})^T [\mathbf{A}^{(t)}]^{-1} \nabla L(\theta^{(t)})\}^{1/2}$ is termed the **Newton decrement**.

* In summary, a **practical Newton-type algorithm** iterates according to
$$
	\boxed{ \theta^{(t+1)} = \theta^{(t)} + s [\mathbf{A}^{(t)}]^{-1} \nabla L(\theta^{(t)})
	= \theta^{(t)} + s \Delta \theta^{(t)} }
$$
where $\mathbf{A}^{(t)}$ is a pd approximation of $-\nabla^2L(\theta^{(t)})$ and $s$ is a step length.

* For strictly concave $L$, $-\nabla^2L(\theta^{(t)})$ is always positive definite. Line search is still needed to guarantee convergence.

* Line search strategy: step-halving ($s=1,1/2,\ldots$), golden section search, cubic interpolation, Amijo rule, ... Note the **Newton direction**
$$
\Delta \theta^{(t)} = [\mathbf{A}^{(t)}]^{-1} \nabla L(\theta^{(t)})
$$
only needs to be calculated once. Cost of line search mainly lies in objective function evaluation.

* How to approximate $-\nabla^2L(\theta)$? More of an art than science. Often requires problem specific analysis.

* Taking $\mathbf{A} = \mathbf{I}$ leads to the method of **steepest ascent**, aka  **gradient ascent**.

<img src="http://trond.hjorteland.com/thesis/img208.gif" width="400" align="center"/>

## Fisher's scoring method

* **Fisher's scoring method**: replace $- \nabla^2L(\theta)$ by the expected Fisher information matrix
$$
	\mathbf{FIM}(\theta) = \mathbf{E}[-\nabla^2L(\theta)] = \mathbf{E}[\nabla L(\theta) \nabla L(\theta)^T] \succeq \mathbf{0}_{p \times p},
$$
which is psd under exchangeability of expectation and differentiation.

    Therefore the Fisher's scoring algorithm iterates according to
$$
	\boxed{ \theta^{(t+1)} = \theta^{(t)} + s [\mathbf{FIM}(\theta^{(t)})]^{-1} \nabla L(\theta^{(t)})}.
$$

## Generalized linear model (GLM) (KL 14.7)

### Logistic regression

Let's consider a concrete example: logistic regression.

* The goal is to predict whether a credit card transaction is fraud ($y_i=1$) or not ($y_i=0$). Predictors ($\mathbf{x}_i$) include: time of transaction, last location, merchant, ...

* $y_i \in \{0,1\}$, $\mathbf{x}_i \in \mathbb{R}^{p}$. Model $y_i \sim $Bernoulli$(p_i)$.

* Logistic regression. Density
$$
\begin{eqnarray*}
	f(y_i|p_i) &=& p_i^{y_i} (1-p_i)^{1-y_i} \\
	&=& e^{y_i \ln p_i + (1-y_i) \ln (1-p_i)} \\
	&=& e^{y_i \ln \frac{p_i}{1-p_i} + \ln (1-p_i)},
\end{eqnarray*}
$$
where
$$
\begin{eqnarray*}
	\mathbf{E} (y_i) = p_i &=& \frac{e^{\eta_i}}{1+ e^{\eta_i}} \quad \text{(mean function, inverse link function)} \\
	\eta_i = \mathbf{x}_i^T \beta &=& \ln \left( \frac{p_i}{1-p_i} \right) \quad \text{(logit link function)}.
\end{eqnarray*}
$$

* Given data $(y_i,\mathbf{x}_i)$, $i=1,\ldots,n$,

$$
\begin{eqnarray*}
	L_n(\beta) &=& \sum_{i=1}^n \left[ y_i \ln p_i + (1-y_i) \ln (1-p_i) \right] \\
	&=& \sum_{i=1}^n \left[ y_i \mathbf{x}_i^T \beta - \ln (1 + e^{\mathbf{x}_i^T \beta}) \right] \\
	\nabla L_n(\beta) &=& \sum_{i=1}^n \left( y_i \mathbf{x}_i - \frac{e^{\mathbf{x}_i^T \beta}}{1+e^{\mathbf{x}_i^T \beta}} \mathbf{x}_i \right) \\
	&=& \sum_{i=1}^n (y_i - p_i) \mathbf{x}_i = \mathbf{X}^T (\mathbf{y} - \mathbf{p})	\\
	- \nabla^2L_n(\beta) &=& \sum_{i=1}^n p_i(1-p_i) \mathbf{x}_i \mathbf{x}_i^T = \mathbf{X}^T \mathbf{W} \mathbf{X}, \quad
	\text{where } \mathbf{W} &=& \text{diag}(w_1,\ldots,w_n), w_i = p_i (1-p_i) \\
	\mathbf{FIM}_n(\beta) &=& \mathbf{E} [- \nabla^2L_n(\beta)] = - \nabla^2L_n(\beta).
\end{eqnarray*}
$$

* Newton's method == Fisher's scoring iteration:
$$
\begin{eqnarray*}
	\beta^{(t+1)} &=& \beta^{(t)} + s[-\nabla^2 L(\beta^{(t)})]^{-1} \nabla L(\beta^{(t)})	\\
	&=& \beta^{(t)} + s(\mathbf{X}^T \mathbf{W}^{(t)} \mathbf{X})^{-1} \mathbf{X}^T (\mathbf{y} - \mathbf{p}^{(t)}) \\
	&=& (\mathbf{X}^T \mathbf{W}^{(t)} \mathbf{X})^{-1} \mathbf{X}^T \mathbf{W}^{(t)} \left[ \mathbf{X} \beta^{(t)} + s(\mathbf{W}^{(t)})^{-1} (\mathbf{y} - \mathbf{p}^{(t)}) \right] \\
	&=& (\mathbf{X}^T \mathbf{W}^{(t)} \mathbf{X})^{-1} \mathbf{X}^T \mathbf{W}^{(t)} \mathbf{z}^{(t)},
\end{eqnarray*}
$$
where
$$
	\mathbf{z}^{(t)} = \mathbf{X} \beta^{(t)} + s(\mathbf{W}^{(t)})^{-1} (\mathbf{y} - \mathbf{p}^{(t)})
$$
are the working responses. A Newton's iteration is equivalent to solving a weighed least squares problem $\sum_{i=1}^n w_i (z_i - \mathbf{x}_i^T \beta)^2$. Thus the name **IRWLS (iteratively re-weighted least squares)**.

### GLM

Let's consider the more general class of generalized linear models (GLM).


| Family           | Canonical Link                          | Variance Function |
|------------------|-------------------------------|-------------------|
| Normal           | $\eta=\mu$                    | 1                 |
| Poisson          | $\eta=\log \mu$               | $\mu$             |
| Binomial         | $\eta=\log \left( \frac{\mu}{1 - \mu} \right)$ | $\mu (1 - \mu)$   |
| Gamma            | $\eta = \mu^{-1}$             | $\mu^2$           |
| Inverse Gaussian | $\eta = \mu^{-2}$             | $\mu^3$           |

* $Y$ belongs to an exponential family with density
$$
	p(y|\theta,\phi) = \exp \left\{ \frac{y\theta - b(\theta)}{a(\phi)} + c(y,\phi) \right\}.
$$
    * $\theta$: natural parameter.
    * $\phi>0$: dispersion parameter.
GLM relates the mean $\mu = \mathbf{E}(Y|\mathbf{x})$ via a strictly increasing link function
$$
	g(\mu) = \eta = \mathbf{x}^T \beta, \quad \mu = g^{-1}(\eta)
$$

* Score, Hessian, information

\begin{eqnarray*}
 	\nabla L_n(\beta) &=& \sum_{i=1}^n \frac{(y_i-\mu_i) \mu_i'(\eta_i)}{\sigma_i^2} \mathbf{x}_i \\
    \,- \nabla^2 L_n(\boldsymbol{\beta}) &=& \sum_{i=1}^n \frac{[\mu_i'(\eta_i)]^2}{\sigma_i^2} \mathbf{x}_i \mathbf{x}_i^T - \sum_{i=1}^n \frac{(y_i - \mu_i) \mu_i''(\eta_i)}{\sigma_i^2} \mathbf{x}_i \mathbf{x}_i^T \\
  & & + \sum_{i=1}^n \frac{(y_i - \mu_i) [\mu_i'(\eta_i)]^2 (d \sigma_i^{2} / d\mu_i)}{\sigma_i^4} \mathbf{x}_i \mathbf{x}_i^T \\
	\mathbf{FIM}_n(\beta) &=& \mathbf{E} [- \nabla^2 L_n(\beta)] = \sum_{i=1}^n \frac{[\mu_i'(\eta_i)]^2}{\sigma_i^2} \mathbf{x}_i \mathbf{x}_i^T = \mathbf{X}^T \mathbf{W} \mathbf{X}.
\end{eqnarray*}

* Fisher scoring method
$$
 	\beta^{(t+1)} = \beta^{(t)} + s [\mathbf{FIM}(\beta^{(t)})]^{-1} \nabla L_n(\beta^{(t)})
$$
IRWLS with weights $w_i = [\mu_i(\eta_i)]^2/\sigma_i^2$ and some working responses $z_i$.

* For **canonical link**, $\theta = \eta$, the second term of Hessian vanishes and Hessian coincides with Fisher information matrix. Convex problem 😄
$$
	\text{Fisher's scoring == Newton's method}.
$$

* Non-canonical link, non-convex problem 😞
$$
	\text{Fisher's scoring algorithm} \ne \text{Newton's method}.
$$
Example: Probit regression (binary response with probit link).
$$
\begin{eqnarray*}
    y_i &\sim& \text{Bernoulli}(p_i) \\
    p_i &=& \Phi(\mathbf{x}_i^T \beta)  \\
    \eta_i &=& \mathbf{x}_i^T \beta = \Phi^{-1}(p_i).
\end{eqnarray*}
$$
where $\Phi(\cdot)$ is the cdf of a standard normal.

* Julia, R and Matlab implement the Fisher scoring method, aka IRWLS, for GLMs.
    * [GLM.jl](https://github.com/JuliaStats/GLM.jl) package.

## Nonlinear regression - Gauss-Newton method (KL 14.4-14.6)

* Now we finally get to the problem Gauss faced in 1800!
Relocate Ceres by fitting 41 observations to a 6-parameter (nonlinear) orbit.

* Nonlinear least squares (curve fitting):
$$
	\text{minimize} \,\, f(\beta) = \frac{1}{2} \sum_{i=1}^n [y_i - \mu_i(\mathbf{x}_i, \beta)]^2
$$
For example, $y_i =$ dry weight of onion and $x_i=$ growth time, and we want to fit a 3-parameter growth curve
$$
	\mu(x, \beta_1,\beta_2,\beta_3) = \frac{\beta_3}{1 + e^{-\beta_1 - \beta_2 x}}.
$$

<img src="https://cdn.xlstat.com/img/tutorials/nlin5.gif" width="300" align="center"/>

* "Score" and "information matrices"
$$
\begin{eqnarray*}
	\nabla f(\beta) &=& - \sum_{i=1}^n [y_i - \mu_i(\beta)] \nabla \mu_i(\beta) \\
	\nabla^2 f(\beta) &=& \sum_{i=1}^n \nabla \mu_i(\beta) \nabla \mu_i(\beta)^T - \sum_{i=1}^n [y_i - \mu_i(\beta)] \nabla^2 \mu_i(\beta) \\
	\mathbf{FIM}(\beta) &=& \sum_{i=1}^n \nabla \mu_i(\beta) \nabla \mu_i(\beta)^T = \mathbf{J}(\beta)^T \mathbf{J}(\beta),
\end{eqnarray*}
$$
where $\mathbf{J}(\beta)^T = [\nabla \mu_1(\beta), \ldots, \nabla \mu_n(\beta)] \in \mathbb{R}^{p \times n}$.

* **Gauss-Newton** (= "Fisher's scoring algorithm") uses $\mathbf{I}(\beta)$, which is always psd.
$$
	\boxed{ \beta^{(t+1)} = \beta^{(t)} + s [\mathbf{FIM} (\beta^{(t)})]^{-1} \nabla L(\beta^{(t)}) }
$$

* **Levenberg-Marquardt** method, aka **damped least squares algorithm (DLS)**, adds a ridge term to the approximate Hessian
$$
	\boxed{ \beta^{(t+1)} = \beta^{(t)} + s [\mathbf{FIM} (\beta^{(t)}) + \tau \mathbf{I}_p]^{-1} \nabla L(\beta^{(t)}) }
$$
bridging between Gauss-Newton and steepest descent.

* Other approximation to Hessians: nonlinear GLMs.
See KL 14.4 for examples.
