title: "CNN on the CIFAR100 Data"
subtitle: "Econ 425T / Biostat 203B"
author: "Dr. Hua Zhou @ UCLA"
date: "`r format(Sys.time(), '%d %B, %Y')`"
format:
  html:
    theme: cosmo
    number-sections: true
    toc: true
    toc-depth: 4
    toc-location: left
    code-fold: false
engine: knitr
knitr:
  opts_chunk:
    fig.align: 'center'
    # fig.width: 6
    # fig.height: 4
    message: FALSE
    cache: false
---

Display system information for reproducibility.

:::  {.panel-tabset}

#### Python

```{python}
import IPython
print(IPython.sys_info())
```

#### R

```{r}
sessionInfo()
```

:::


Load some libraries.

::: {.panel-tabset}

#### Python

```{python}
# Load the pandas library
import pandas as pd
# Load numpy for array manipulation
import numpy as np
# Load seaborn plotting library
import seaborn as sns
import matplotlib.pyplot as plt

# Set font sizes in plots
sns.set(font_scale = 1.2)
# Display all columns
pd.set_option('display.max_columns', None)

# Load Tensorflow and Keras
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers
```

#### R

```{r}
library(keras)
library(jpeg)
```

:::

In this example, we train a CNN (convolution neural network) on the [CIFAR100](https://www.cs.toronto.edu/~kriz/cifar.html) data set. Achieve testing accuracy 44.5% after 30 epochs. Random guess would have an accuracy of about 1%.

- The **CIFAR100** database is a large database of $32 \times 32$ color images that is commonly used for training and testing machine learning algorithms.

- 50,000 training images, 10,000 testing images.

## Prepare data

Acquire data:

::: {.panel-tabset}

#### Python

```{python}
# Load the data and split it between train and test sets
(x_train, y_train), (x_test, y_test) = keras.datasets.cifar100.load_data()
# Training set
x_train.shape
y_train.shape
# Test set
x_test.shape
y_test.shape
```


#### R

```{r}
cifar100 <- dataset_cifar100()
x_train <- cifar100$train$x
y_train <- cifar100$train$y
x_test <- cifar100$test$x
y_test <- cifar100$test$y
```

Training set:
```{r}
dim(x_train)
dim(y_train)
```


Testing set:
```{r}
dim(y_train)
dim(y_test)
```

:::

For CNN, we keep the $32 \times 32 \times 3$ tensor structure, instead of vectorizing into a long vector.

::: {.panel-tabset}

#### Python

```{python}
# Rescale
x_train = x_train / 255
x_test = x_test / 255
# Train
x_train.shape
# Test
x_test.shape
```

#### R

```{r}
# rescale
x_train <- x_train / 255
x_test <- x_test / 255
dim(x_train)
dim(x_test)
```

:::

Encode $y$ as binary class matrix:

::: {.panel-tabset}

#### Python

```{python}
y_train = keras.utils.to_categorical(y_train, 100)
y_test = keras.utils.to_categorical(y_test, 100)
# Train
y_train.shape
# Test
y_test.shape
# First train instance
y_train[0]
```

#### R

```{r}
y_train <- to_categorical(y_train, 100)
y_test <- to_categorical(y_test, 100)
dim(y_train)
dim(y_test)
# head(y_train)
```

:::

Show a few images:

::: {.panel-tabset}

#### Python

```{python}
import matplotlib.pyplot as plt

# Feature: 32x32 color image
for i in range(25):
  plt.figure()
  plt.imshow(x_train[i]);
  plt.show()
```

#### R

```{r}
par(mar = c(0, 0, 0, 0), mfrow = c(5, 5))
index <- sample(seq(50000), 25)
for (i in index) plot(as.raster(x_train[i,,, ]))
```

:::

## Define the model

Define a **sequential model** (a linear stack of layers) with 2 fully-connected hidden layers (256 and 128 neurons):

::: {.panel-tabset}

#### Python

```{python}
model = keras.Sequential(
  [
    keras.Input(shape = (32, 32, 3)),
    layers.Conv2D(
      filters = 32,
      kernel_size = (3, 3),
      padding = 'same',
      activation = 'relu',
      # input_shape = (32, 32, 3)
      ),
    layers.MaxPooling2D(pool_size = (2, 2)),
    layers.Conv2D(
      filters = 64,
      kernel_size = (3, 3),
      padding = 'same',
      activation = 'relu'
      ),
    layers.MaxPooling2D(pool_size = (2, 2)),
    layers.Conv2D(
      filters = 128,
      kernel_size = (3, 3),
      padding = 'same',
      activation = 'relu'
      ),
    layers.MaxPooling2D(pool_size = (2, 2)),
    layers.Conv2D(
      filters = 256,
      kernel_size = (3, 3),
      padding = 'same',
      activation = 'relu'
      ),
    layers.MaxPooling2D(pool_size = (2, 2)),
    layers.Flatten(),
    layers.Dropout(rate = 0.5),
    layers.Dense(units = 512, activation = 'relu'),
    layers.Dense(units = 100, activation = 'softmax')
]
)

model.summary()
```

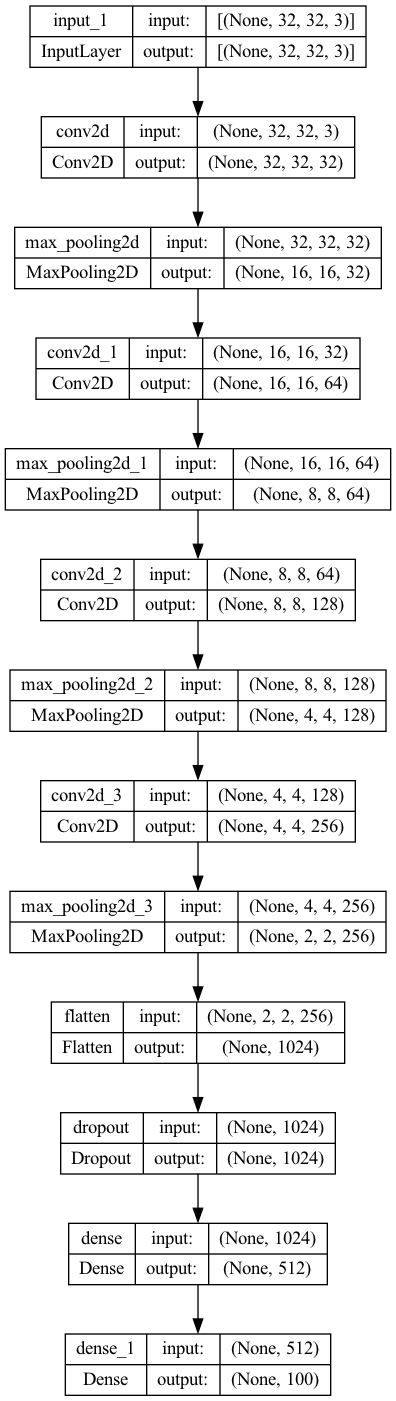

Plot the model:
```{python}
tf.keras.utils.plot_model(
    model,
    to_file = "model.png",
    show_shapes = True,
    show_dtype = False,
    show_layer_names = True,
    rankdir = "TB",
    expand_nested = False,
    dpi = 96,
    layer_range = None,
    show_layer_activations = False,
)
```

<p align="center">
![](./model.png){width=500px}
</p>

#### R

```{r}
model <- keras_model_sequential()  %>%
  layer_conv_2d(
    filters = 32,
    kernel_size = c(3, 3),
    padding = "same",
    activation = "relu",
    input_shape = c(32, 32, 3)
    ) %>%
  layer_max_pooling_2d(pool_size = c(2, 2)) %>%
  layer_conv_2d(
    filters = 64,
    kernel_size = c(3, 3),
    padding = "same",
    activation = "relu"
    ) %>%
  layer_max_pooling_2d(pool_size = c(2, 2)) %>%
  layer_conv_2d(
    filters = 128,
    kernel_size = c(3, 3),
    padding = "same",
    activation = "relu"
    ) %>%
  layer_max_pooling_2d(pool_size = c(2, 2)) %>%
  layer_conv_2d(
    filters = 256,
    kernel_size = c(3, 3),
    padding = "same",
    activation = "relu"
    ) %>%
  layer_max_pooling_2d(pool_size = c(2, 2)) %>%
  layer_flatten() %>%
  layer_dropout(rate = 0.5) %>%
  layer_dense(units = 512, activation = "relu") %>%
  layer_dense(units = 100, activation = "softmax")

summary(model)
```

:::

Compile the model with appropriate loss function, optimizer, and metrics:

::: {.panel-tabset}

#### Python

```{python}
model.compile(
  loss = "categorical_crossentropy",
  optimizer = "rmsprop",
  metrics = ["accuracy"]
)
```

#### R

```{r}
model %>% compile(
  loss = 'categorical_crossentropy',
  optimizer = optimizer_rmsprop(),
  metrics = c('accuracy')
)
```

:::

## Training and validation

80%/20% split for the train/validation set. On my laptop, each epoch takes about half minute.

::: {.panel-tabset}

#### Python

```{python}
#| output: false

batch_size = 128
epochs = 30

history = model.fit(
  x_train,
  y_train,
  batch_size = batch_size,
  epochs = epochs,
  validation_split = 0.2
)
```

Plot training history:
```{python}
#| code-fold: true
hist = pd.DataFrame(history.history)
hist['epoch'] = np.arange(1, epochs + 1)
hist = hist.melt(
  id_vars = ['epoch'],
  value_vars = ['loss', 'accuracy', 'val_loss', 'val_accuracy'],
  var_name = 'type',
  value_name = 'value'
)
hist['split'] = np.where(['val' in s for s in hist['type']], 'validation', 'train')
hist['metric'] = np.where(['loss' in s for s in hist['type']], 'loss', 'accuracy')

# Accuracy trace plot
plt.figure()
sns.relplot(
  data = hist[hist['metric'] == 'accuracy'],
  kind = 'scatter',
  x = 'epoch',
  y = 'value',
  hue = 'split'
).set(
  xlabel = 'Epoch',
  ylabel = 'Accuracy'
);
plt.show()

# Loss trace plot
plt.figure()
sns.relplot(
  data = hist[hist['metric'] == 'loss'],
  kind = 'scatter',
  x = 'epoch',
  y = 'value',
  hue = 'split'
).set(
  xlabel = 'Epoch',
  ylabel = 'Loss'
);
plt.show()
```

#### R

```{r}
system.time({
history <- model %>% fit(
  x_train, y_train,
  epochs = 30, batch_size = 128,
  validation_split = 0.2
)
})
plot(history)
```

:::

## Testing

Evaluate model performance on the test data:

::: {.panel-tabset}

#### Python

```{python}
score = model.evaluate(x_test, y_test, verbose = 0)
print("Test loss:", score[0])
print("Test accuracy:", score[1])
```

#### R

```{r}
model %>% evaluate(x_test, y_test)
```
Generate predictions on new data:
```{r}
model %>% predict(x_test) %>% k_argmax()
```

:::
