BlueLM-GUI: A Real-Device-Centric Flywheel
for Self-Improving Mobile GUI Agents
[](https://arxiv.org/abs/2609.12394)
[](https://huggingface.co/datasets/vivo-ai/MobileGUI-VBench)
[](LICENSE)
**vivo AI Lab**
BlueLM-GUI is a multimodal GUI agent developed by **vivo AI Lab**, capable of understanding natural language instructions and autonomously operating mobile device interfaces to complete complex real-world tasks.
## π° News
- **[2026.09]** We release the technical report, benchmark datasets, and evaluation framework, alongside BlueLM-GUI achieving 87.4% on MobileGUI-VBench and 84.9% on AndroidWorld.
## π Benchmark Results
BlueLM-GUI is a lightweight yet powerful multimodal GUI agent capable of autonomous mobile interface operation. On the AndroidWorld benchmark, BlueLM-GUI delivers SOTA-competitive performance (**84.9%**) with just 3B activated parameters β closely matching top-tier industry models while offering unprecedented computational efficiency. Furthermore, it achieves state-of-the-art results on our in-house MobileGUI-VBench.
| **Model** | **Params** | **MobileGUI-VBench** | **AndroidWorld** | **Access** |
| --- | --- | --- | --- | --- |
| **BlueLM-GUI (Ours)** | 35B-A3B | **87.4** | 84.9 | In-house |
| Seed2.1-Pro | - | 82.3 | 72.4 | Closed |
| Seed2.0-Pro | - | 80.8 | 71.5 | Closed |
| Seed2.0-Lite | - | 77.5 | 71.6 | Closed |
| Gemini3.7-Flash | - | 78.3 | 80.1 | Closed |
| Claude Opus 4.8 | - | 56.9 | 63.8 | Closed |
| GLM5.3-Flash | 320B-A18B | 66.4 | 78.4 | Open |
| Qwen3.8-Max | 2.4T-A95B | 64.2 | **85.3** | Open |
| Qwen3.8-Flash | 125B-A6B | 59.1 | 84.5 | Open |
| Qwen3.8-27B | 27B | 58.0 | 81.9 | Open |
| Qwen3.7-Plus | 397B-A17B | 49.6 | 81.0 | Closed |
| Qwen3.6-35B-A3B | 35B-A3B | 40.7 | 73.3 | Open |
| Qwen3.6-27B | 27B | 64.4 | 70.3 | Open |
| Qwen3.5-122B-A10B | 122B-A10B | 57.3 | 66.4 | Open |
| Qwen3.5-35B-A3B | 35B-A3B | 42.2 | 71.1 | Open |
| Qwen3.5-27B | 27B | 53.7 | 64.2 | Open |
| GUI-Owl-1.5-32B-Think | 32B | 47.1 | 71.6 | Open |
| UI-Venus-2.0-27B | 27B | - | 84.0 | Closed |
| UI-Venus-2.0-9B | 9B | 49.6 | 80.2 | Open |
| UI-Venus-1.5-30B-A3B | 30B-A3B | 24.1 | 77.6 | Open |
| PhoneBuddy | 4B | 39.0 | 83.2 | Open |
| UI-Tars-2.0 | 230B-A23B | - | 73.3 | Closed |
| MAI-UI-235B-A22B | 235B-A22B | - | 76.7 | Closed |
| Step-GUI | 8B | - | 80.2 | Closed |
> The same table is available at [`MobileGUI-VBench/MobileGUI-VBench_table.md`](MobileGUI-VBench/MobileGUI-VBench_table.md).
## π Benchmarks
This repository includes two benchmarks for evaluating mobile GUI agents:
### 1. MobileGUI-VBench (Ours)
**MobileGUI-VBench** is a comprehensive benchmark built by vivo AI Lab for evaluating mobile GUI agent capabilities. It covers **150 tasks** across **40 real-world mobile apps** and **8 scenario categories** (Social & Communication, Video Streaming, Shopping & Deals, Travel & Transit, Music & Radio, Navigation, Lifestyle Services, and News & Reading).
Key features:
- Single-app and cross-app tasks (140 single-app, 10 cross-app)
- Single-intent and multi-intent tasks with varying chain complexity (simple / medium / complex)
- Explicit, implicit, and ambiguous instruction types
- 77 distinct function points across 13 annotated dimensions
> π See [MobileGUI-VBench/](MobileGUI-VBench/) for the full dataset and [documentation](MobileGUI-VBench/MobileGUI-VBench-Doc.md).
### 2. AndroidWorld (Public)
**[AndroidWorld](https://github.com/google-research/android_world)** is a public benchmark from Google Research for evaluating autonomous agents in realistic Android environments. We report results on this benchmark using the same evaluation framework to demonstrate the generalization capability of BlueLM-GUI.
> π See [AndroidWorld/](AndroidWorld/) for our evaluation setup and scripts.
## π Repository Structure
```
BlueLM-GUI/
βββ BlueLM-GUI_technical_report.pdf # Technical report (arXiv)
βββ LICENSE # Apache 2.0
βββ README.md
βββ assets/

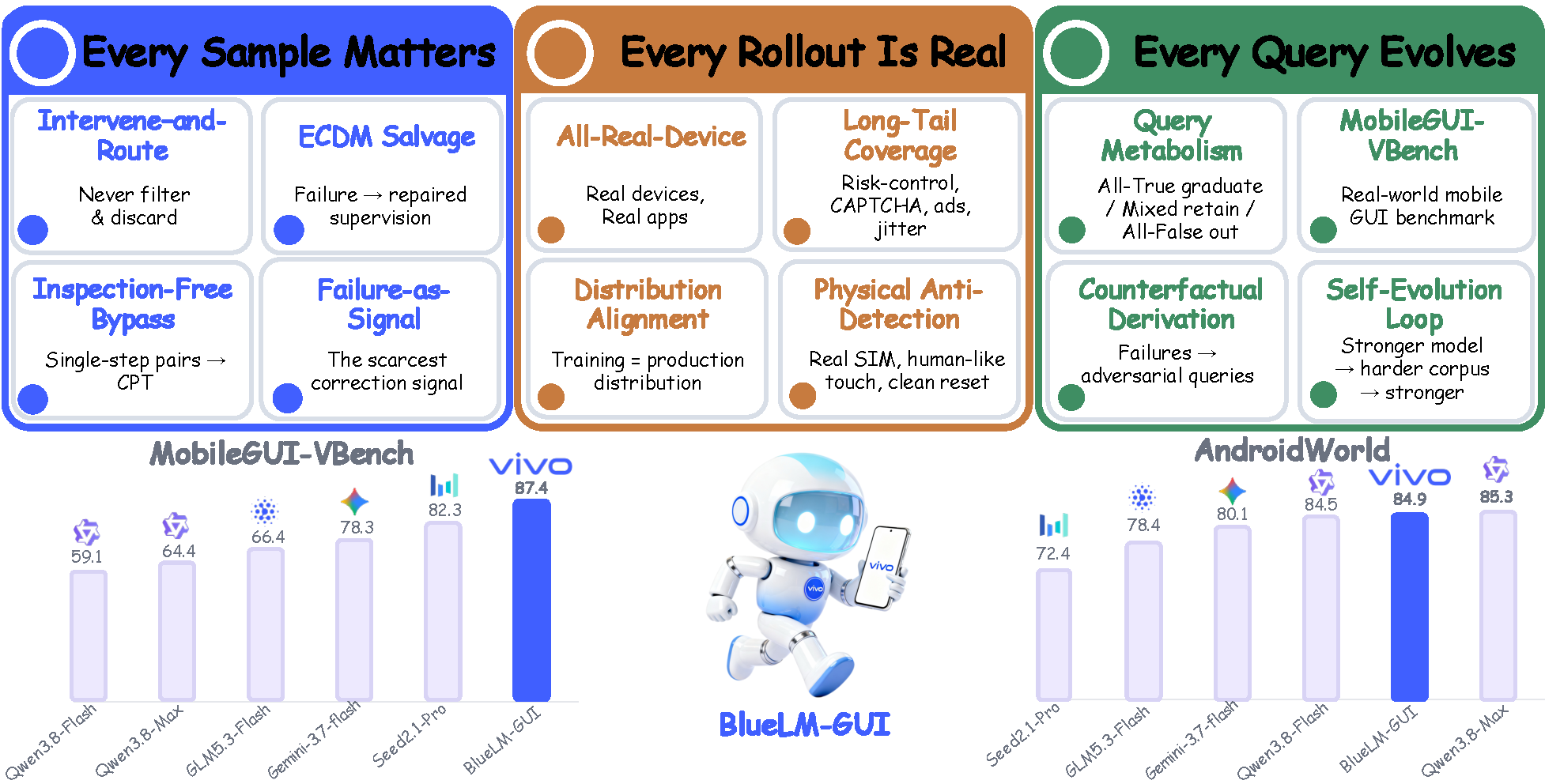

β βββ overview.png # Overview figure (rendered)
βββ MobileGUI-VBench/ # MobileGUI-VBench benchmark dataset
β βββ evaluation_framework.pdf # Evaluation framework report
β βββ MobileGUI-VBench_table.md # Full benchmark comparison table
β βββ MobileGUI-VBench.jsonl # Task data (JSONL format)
β βββ MobileGUI-VBench.xlsx # Task data (Excel format)
β βββ MobileGUI-VBench-Doc.html # Interactive documentation (English)
β βββ MobileGUI-VBench-θ―΄ζζζ‘£.html # Interactive documentation (δΈζ)
βββ AndroidWorld/ # AndroidWorld evaluation framework
βββ main.py # Evaluation entry point
βββ agent.py # Agent interaction logic
βββ config.yaml # Evaluation configuration
βββ vllm_client.py # vLLM API client
βββ emulator_client.py # Android emulator client
βββ data_client.py # Task data client
βββ test_ports.py # Emulator port checker
βββ gui.md # GUI action space prompt
βββ start_vllm.sh # vLLM launcher
βββ run_eval.sh # One-click evaluation script
βββ android_world/ # Upstream AndroidWorld source
```
## π Quick Start
### AndroidWorld Evaluation
```bash
# 1. Start vLLM service
cd AndroidWorld
bash start_vllm.sh
# 2. Run evaluation
bash run_eval.sh config.yaml
```
Prerequisites: Android emulators running on configured ports, task data API accessible, and vLLM serving the BlueLM-GUI model.
### MobileGUI-VBench
The MobileGUI-VBench dataset is available in JSONL and Excel formats under [`MobileGUI-VBench/`](MobileGUI-VBench/). Detailed documentation is provided in both [English](MobileGUI-VBench/MobileGUI-VBench-Doc.html) and [δΈζ](MobileGUI-VBench/MobileGUI-VBench-θ―΄ζζζ‘£.html), with interactive HTML versions also available.
## π Citation
If you find our work useful, please cite:
```bibtex
@article{bluelm-gui,
title = {BlueLM-GUI Technical Report: A Real-Device-Centric Flywheel for Self-Improving Mobile GUI Agents},
author = {vivo AI Lab},
journal = {arXiv preprint arXiv:2609.12394},
year = {2026},
url = {https://arxiv.org/abs/2609.12394}
}
```
## π§ Contact
For questions or collaboration inquiries, please contact the vivo AI Lab team.
---
