# Getting Started

## Introduction

<p align="center">
<img src="figures/flowgraph_rtlsdr_wbfm_mono.png" />
</p>

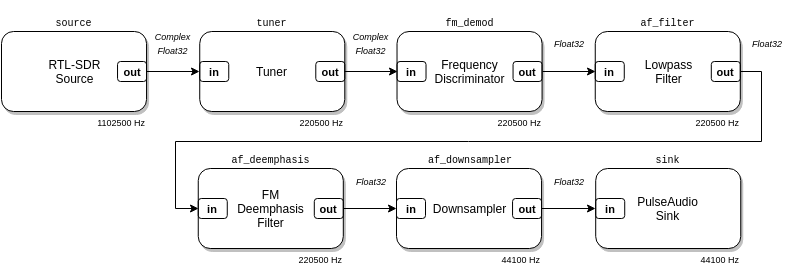

LuaRadio is a framework for building signal processing flow graphs.  A flow
graph is a directed graph of blocks that processes data samples. Samples in a
flow graph originate at source blocks, are manipulated through intermediate
processing blocks, and terminate at sink blocks.  This paradigm — also called
dataflow programming — is useful for software-defined radio, because it allows
you to model the architectures of conventional hardware radios.

In a software-defined radio flow graph, source and sink blocks tend to
implement some kind of I/O, like reading samples from an SDR dongle, or writing
samples to an IQ file, while processing blocks tend to be computational, like
filters and multipliers.

### Type Signatures

<p align="center">
<img src="figures/figure_type_signatures.png" />
</p>

LuaRadio blocks have data types associated with their input and output ports.
For example, a multiplier block may support complex-valued inputs named `in1`
and `in2`, with a complex-valued output named `out`.  It may also support
real-valued inputs named `in1` and `in2`, with a real-valued output named
`out`.  Each collection of data types associated with the input and output
ports is called a type signature.

<p align="center">
<img src="figures/figure_type_signatures_example.png" />
</p>

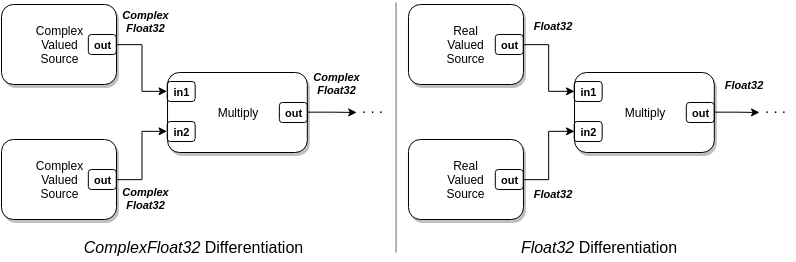

LuaRadio chooses the correct type signature for each block in a flow graph, so
that output and input types match in the connections between blocks.

### Sample Rate

<p align="center">
<img src="figures/figure_sample_rate_propagation.png" />
</p>

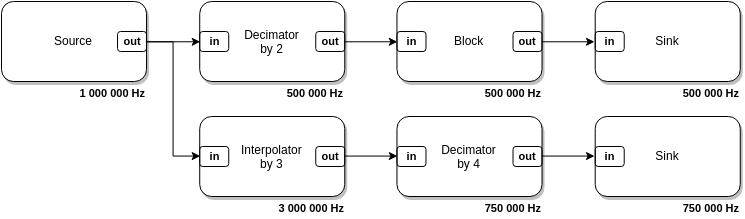

LuaRadio blocks have a sample rate associated with them. This is the rate at
which the discrete samples are spaced in time, relative to one another, but not
the rate that they are computationally produced, processed, or consumed by the
framework.  Source blocks define their sample rates, while downstream blocks
inherit — and possibly modify — the sample rate of their upstream block.  For
example, interpolator and decimator blocks will multiply and divide the sample
rate, respectively.

LuaRadio propagates sample rates between blocks for you, and ensures that
sample rates match across multiple inputs. Blocks can access their runtime
sample rate to perform sample rate dependent initialization and computations.

### Flow Graph Termination

<p align="center">
<img src="figures/figure_flowgraph_termination.png" />
</p>

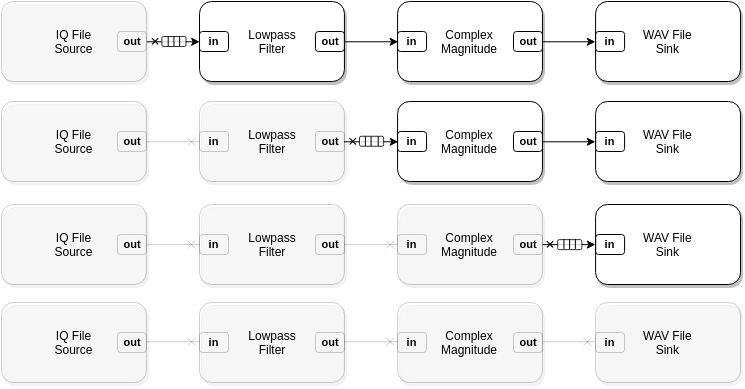

While some flow graphs may describe a continuously running system (e.g. a
Wideband FM broadcast radio receiver), LuaRadio flow graphs do not necessarily
run forever. If a source terminates, the framework will gracefully collapse the
flow graph as the final samples propagate their way though the graph. This
allows you to build utilities with LuaRadio that process files to completion,
or to use it as an engine for processing finite length data.

## Example

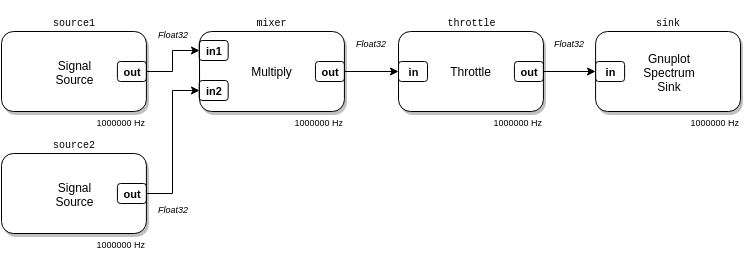

In this example, we will create a simple flow graph to mix two cosine signals.
It will demonstrate the basic mechanics of instantiating blocks, connecting
blocks, and running a flow graph.

<p align="center">
<img src="figures/flowgraph_mixer_example.png" />
</p>

``` lua
local radio = require('radio')

-- Blocks
local source1 = radio.SignalSource('cosine', 125e3, 1e6) -- 125 kHz cosine source, sampled at 1 MHz
local source2 = radio.SignalSource('cosine', 75e3, 1e6)  -- 75 kHz cosine source, sampled at 1 MHz
local mixer = radio.MultiplyBlock()                      -- Multiply block
local throttle = radio.ThrottleBlock()                   -- Throttle block
local sink = radio.GnuplotSpectrumSink()                 -- Spectrum plotting sink
local top = radio.CompositeBlock()                       -- Top-level block to contain the flow graph

-- Connections
top:connect(source1, 'out', mixer, 'in1')
top:connect(source2, 'out', mixer, 'in2')
top:connect(mixer, throttle, sink)

-- Run it
top:run()
```

Run the flow graph with the `luaradio` runner:

```
$ ./luaradio test.lua
```

The flow graph can be terminated with Ctrl-C or `SIGINT`.

This flow graph [mixes](https://en.wikipedia.org/wiki/Frequency_mixer) two
tones at 125 kHz and 75 kHz to create the sum and difference frequency tones at
200 kHz and 50 kHz, respectively.

The two sources produce real-valued sinusoids at 125 kHz and 75 kHz and are
connected to the inputs of the multiplier. The output of the multiplier is
connected to a throttle block, which artificially throttles processing to limit
CPU usage. The throttle block is connected to a gnuplot spectrum sink, which

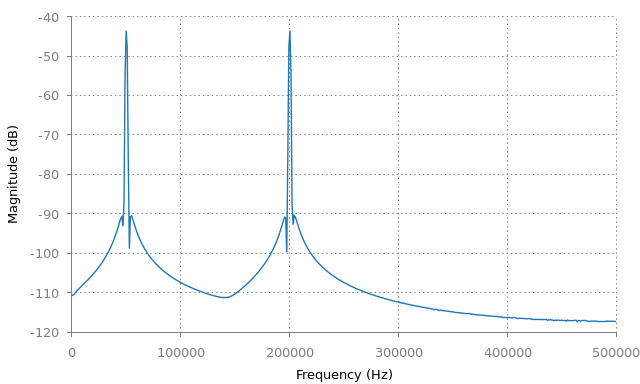

plots the frequency spectrum of the signal with gnuplot. This flow graph
produces the plot below:

<p align="center">
<img src="figures/plot_cosine_mixer_example.png" />
</p>

### Explanation

``` lua
local radio = require('radio')
```

The first line of the example imports the `radio` package under the local
variable `radio`. This package exposes all LuaRadio blocks, as well the
facilities to create custom blocks and types.

``` lua
-- Blocks
local source1 = radio.SignalSource('cosine', 125e3, 1e6) -- 125 kHz cosine source, sampled at 1 MHz
local source2 = radio.SignalSource('cosine', 75e3, 1e6)  -- 75 kHz cosine source, sampled at 1 MHz
local mixer = radio.MultiplyBlock()                      -- Multiply block
local throttle = radio.ThrottleBlock()                   -- Throttle block
local sink = radio.GnuplotSpectrumSink()                 -- Spectrum plotting sink
local top = radio.CompositeBlock()                       -- Top-level block to contain the flow graph
```

The blocks section lines instantiate each block of the flow graph. Note that
sample rate parameters are only required for the source blocks; all other
blocks inherit their sample rate through the connections in the flow graph.

The last line of the blocks section instantiates a special kind of block,
called the [`CompositeBlock`](0.reference-manual.md#compositeblock). A
composite block is a composition of blocks, created for one of two purposes:
either for a top-level block — a composition of blocks forming a complete flow
graph that can be run, or for a hierarchical block — a composition of blocks
abstracted into one block. In this example, we create a `CompositeBlock` to
serve as a top-level block that contains a complete flow graph.

``` lua
-- Connections
top:connect(source1, 'out', mixer, 'in1')
top:connect(source2, 'out', mixer, 'in2')
top:connect(mixer, throttle, sink)
```

The connections section lines specify the connections between blocks, inside
the top-level block, which form the complete flow graph.

The first two connections demonstrate the explicit connection syntax. For
instance, `top:connect(source1, 'out', mixer, 'in1')`, where `source1`'s output
port named `out` is explicitly connected the `mixer`'s input port named `in1`.
In this case, the mixer has two inputs, `in1` and `in2`, so we use the explicit
connection syntax to specify which input the source block output should connect
to.

The third connection demonstrates the linear block connection syntax. This
syntax will take any number of blocks, e.g.  `top:connect(b1, b2, b3, ...)`,
and connect the first output to the first input of each adjacent block. This
syntax is convenient for connecting chains of blocks that only have one input
and output, which is most blocks.

``` lua
-- Run it
top:run()
```

The last line of the example runs the flow graph. This line will block until
the flow graph terminates, either naturally by an exiting source, or forcibly
by a user's `SIGINT` signal. In this case, the cosine signal generator sources
will generate samples indefinitely, so this flow graph will only terminate by a
user's `SIGINT` signal.

## Blocks and Types

Building flow graphs with LuaRadio is a matter of choosing the right blocks and
connecting them.  The [LuaRadio Reference Manual](0.reference-manual.md)
documents all packaged blocks, including a description of their operation,
their arguments, and their input/output port names and data types. Creating
blocks is easy, too, and covered in the next guide, [Creating
Blocks](3.creating-blocks.md).

LuaRadio blocks may support multiple type signatures for their input and output
ports, but only blocks with compatible output and input types can be connected.
When LuaRadio initializes a flow graph, it differentiates each block based on
its input data types to the correct type signature.  LuaRadio will raise an
error if a block does not support a type signature that matches its input data
types.

LuaRadio comes with four basic data types:

* [`ComplexFloat32`](0.reference-manual.md#complexfloat32), compatible with the
  `float complex` C type
* [`Float32`](0.reference-manual.md#float32), compatible with the `float` C
  type
* [`Byte`](0.reference-manual.md#byte), compatible with the `uint8_t` C type
* [`Bit`](0.reference-manual.md#bit), compatible with the `uint8_t` C type,
  stored in the least significant bit

Under the hood, the framework moves vectors of contiguous samples between
blocks for processing. Since these vectors are simply dynamic arrays of C
types, LuaRadio blocks can leverage the [LuaJIT foreign function
interface](http://luajit.org/ext_ffi.html) (FFI) to call external libraries to
process them.

In addition, users may create custom data types based on C structures or Lua
objects that are serializable between processing blocks. See the [Custom
Types](3.creating-blocks.md#custom-types) section of the next guide.

## Caveats

The LuaRadio architecture has a few important caveats.

###### Flow graphs must be acyclic.

Feedback loops cannot be implemented by blocks connected in a cycle.  Instead,
operations that require feedback loops must be implemented entirely within a
block (for example, the [`PLLBlock`](0.reference-manual.md#pllblock)).

###### Blocks cannot be manipulated after a flow graph is running.

Blocks must get all of the settings they need before they are run in a flow
graph. This means that building flow graphs that require runtime modifications
to blocks — for example, programmatically retuning the frequency of an SDR
source to build a spectrum analyzer —  is not possible without creating a
custom block that accepts the runtime modifications via out-of-band messaging.

## Next Steps...

The next guide, [Creating Blocks](3.creating-blocks.md), describes the basic
concepts behind blocks, data types, and vectors, and demonstrates how to create
blocks and data types.
