Virtual City decomp
A playable decompilation of G5 Entertainment's Virtual City (2009), rebuilt from recovered C++ with
Visual C++ 2008 SP1 and matched function by function against the original executable with
reccmp.
## Showcase
 |
 |

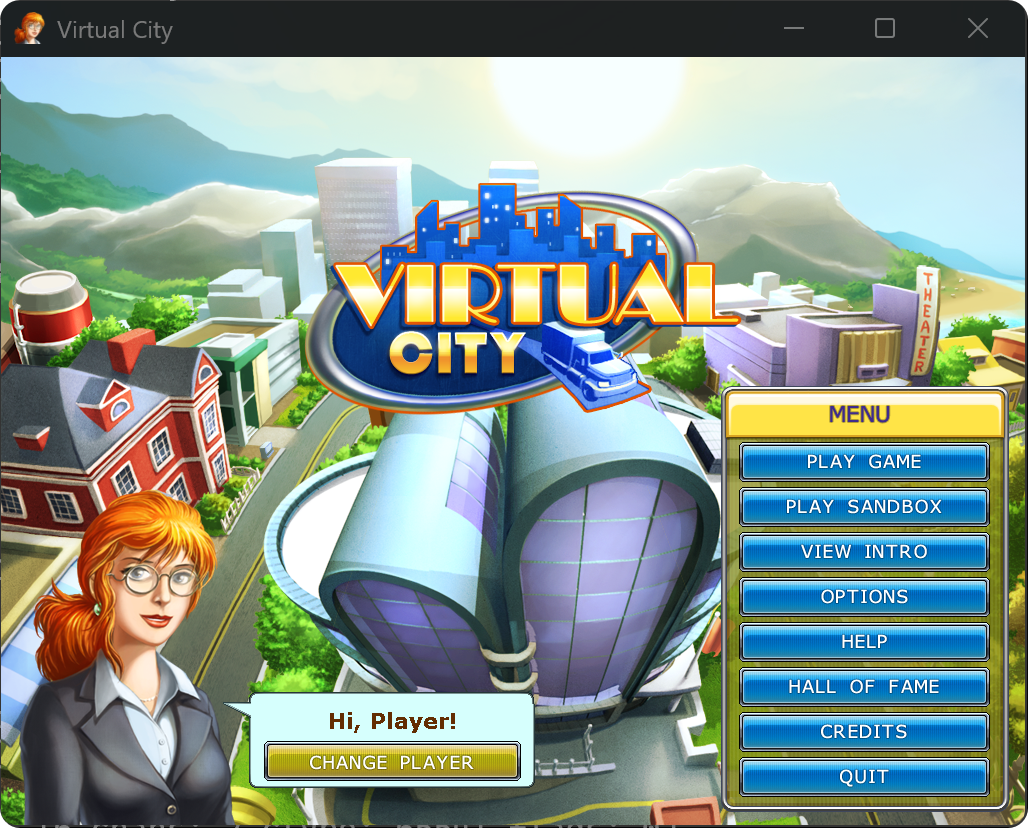

| Main menu, rendered by the recovered display and tile code |

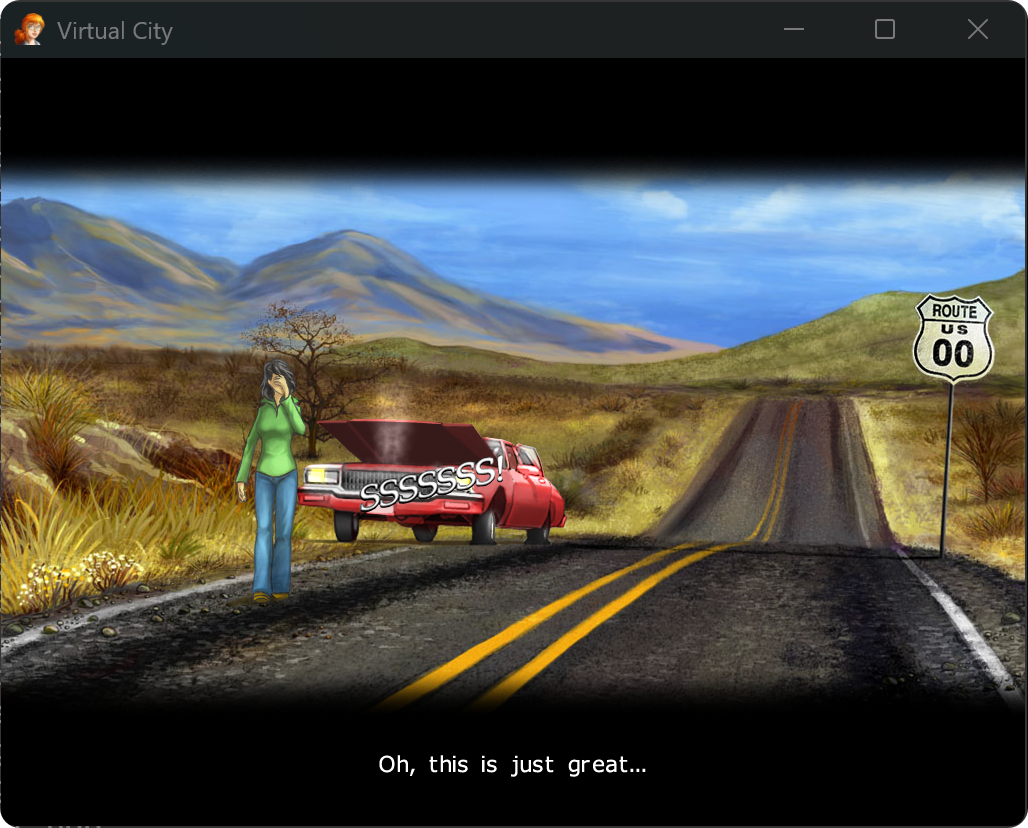

Intro comic: JPEG backgrounds and Pyro particles (the steam from the car) |
 |
 |

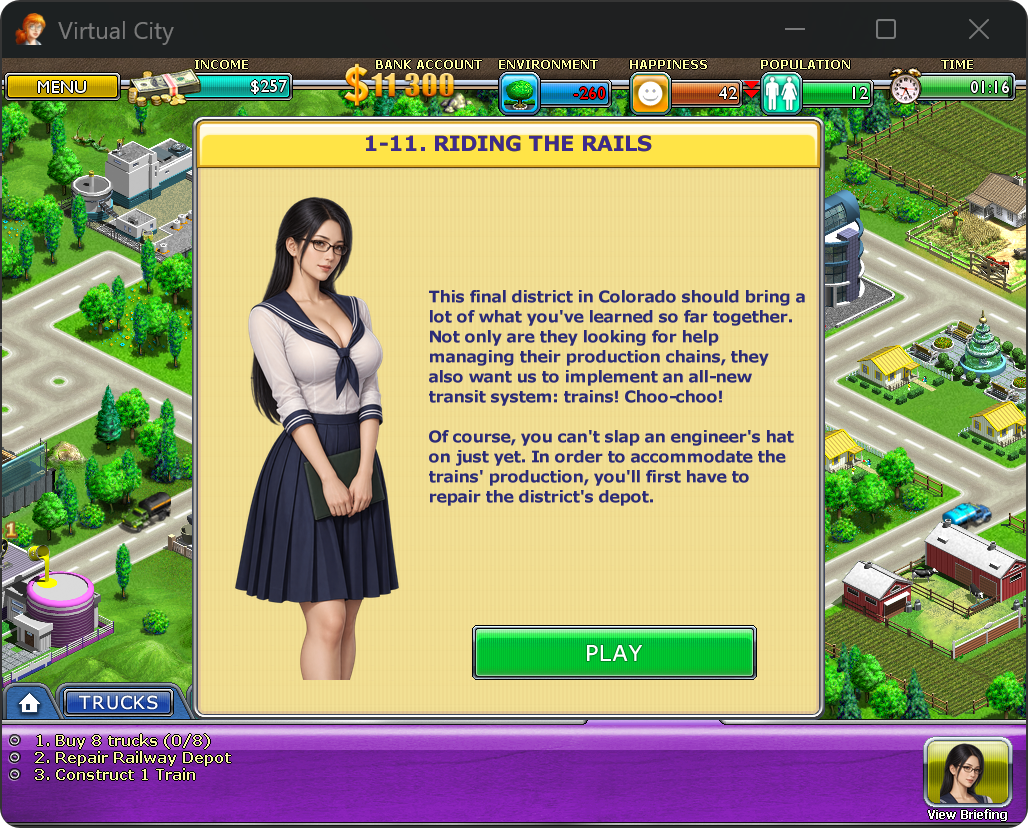

| In a level: the city, HUD, transports and the briefing for 1-11 |

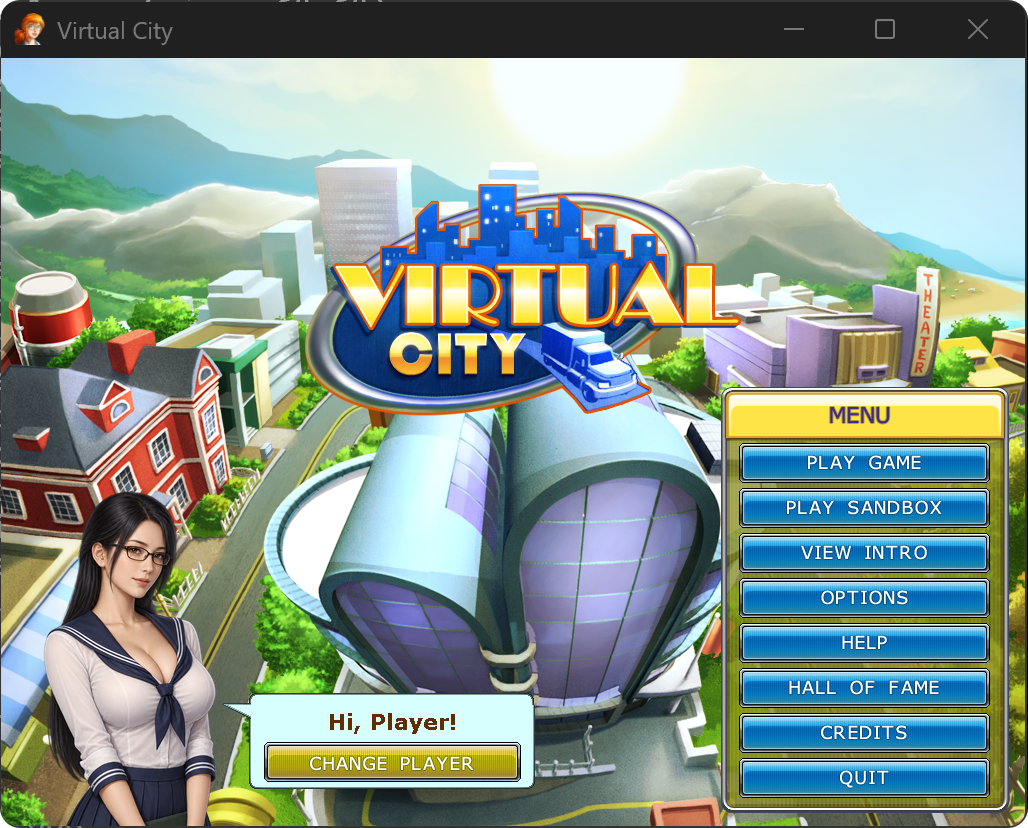

Texture mods: the advisor portrait replaced by a PNG mod |
## Status
- **Playable:** campaign and sandbox run from the recompiled executable, with graphics, particles, music and sound.
- **Matching:** 5342 of the original's 5348 functions are recovered in source, and 3149 of them compile to identical bytes. The average function is 90% similar (the badge's "accuracy"); weighted by size it is 77%, and 31% of the code bytes already match exactly. These are per-function assembly comparisons, not a measure of how much of the game works.
- **Two builds from one source tree:**
- The reference build uses the original toolchain and the real Windows DLLs, and is the one compared with reccmp.
- The SDL3 build reimplements those DLLs over SDL3 and SDL3_mixer, for modern compilers.
The original game is not included. You need your own copy, placed at `Virtual-City_Win_EN_Full/VirtualCity.Unwrapped.exe`, with SHA-256 `bdc3bc9f075a813d12078fd2eaaaa1131ba74616b11aa1444cdd5a5b83e08695`.
## Quick start
```powershell
git clone --recursive https://github.com/w43322/vc1.git
cd vc1
.\tools\setup-reccmp.ps1 # Python venv, reccmp, local config
.\tools\build-vc9.cmd # reference build (needs VC9 SP1)
.\tools\compare-reccmp.ps1 # match report in build\vc9\reports\
```
Play the recompiled game from the game data folder, or through the debug runner:
```powershell
.\.venv\Scripts\python.exe tools\run-debug.py --timeout 60 --keep
```
For the SDL3 build (Visual Studio 2017 or newer, Ninja; SDL is downloaded into `build\`):
```powershell
.\tools\build-sdl3.cmd # build\sdl3\bin\VirtualCity.SDL3.exe
```
## Requirements
- Visual Studio 2008 SP1 (VC9) x86 for the reference build; set `VC9_ROOT` if it isn't in the default location.
- Python 3.10+ and CMake 3.13+.
- For decompiling: Ghidra 12.x and, optionally, a ghidra-mcp checkout (the `bridge-mcp-ghidra` uv project) for agents. Set their paths once:
```powershell
setx VC1_GHIDRA_HOME "C:\tools\ghidra_12.1.2_PUBLIC"
setx VC1_GHIDRA_MCP_DIR "C:\tools\ghidra-mcp"
.\tools\setup-mcp.ps1 # writes the local .mcp.json
.\tools\init-ghidra.ps1 # first-time Ghidra project and analysis
```
## Working on the decomp
Each recovered function is written from Ghidra evidence and checked against the original with reccmp. The rules (markers, ABI, library patches, workflow) are in [AGENTS.md](AGENTS.md); the main tools are:
| Command | Purpose |
| --- | --- |
| `tools\compare-reccmp.ps1` | Full report; `-ResetBaseline` starts a round, `-UpdateStatus` refreshes `docs\status.svg` |
| `tools\diff-reccmp.ps1 0x00486b00` | Assembly diff of one function |
| `tools\stackcmp-reccmp.ps1 0x00486b00` | Stack-slot comparison |
| `tools\open-ghidra.ps1` / `close-ghidra.ps1` / `import-ghidra.ps1` | Ghidra session and name import |
| `tools\decompile-nut.ps1` | Readable copies of the game's compiled Squirrel scripts |
Third-party code is vendored under `third_party/`: Squirrel 2.2.3, SqPlus, libpng 1.0.2, zlib 1.1.3, jpgd 0.93b, libtga, the LZMA SDK 4.57, Boost 1.41 pool, pthreads-win32 2.8.0 and klibc's scanf. The decompiler and reccmp are submodules in `vendor/`.
## Mods
The SDL3 build can replace game artwork with PNGs. A mod is a folder in the git-ignored `mods/` directory with a `mod.json`:
```json
{"id":"advisor","version":"4.0","tiles":{"SCORING_FULL_GIRL_01":"textures/advisor.png"}}
```
`mods/enabled.txt` lists the active mods; `tools\mod-tiles.py NAME` prints a tile's size and position. Mods never modify the game's files.
## Legal
This project contains no game data. The only game artwork in the repository is the screenshots, which show the recompiled build running on the author's copy, and the game's icon in the status badge. *Virtual City* is © G5 Entertainment.
