WhatsMCP
Give your agent a real WhatsApp account.
A hosted Model Context Protocol server.
Link a number once, point any MCP client at one HTTPS endpoint — no SDK,
nothing to install, nothing to run locally.
Quick start ·
Connect your client ·
Tools ·
Polling ·
Webhooks ·
SIP trunk ·
Security
---
Your agent can read chats, reply, look people up in the address book, react to and edit
messages, manage groups, block and unblock contacts, fetch attachments and receive inbound
messages by webhook. The same linked number can also go on a **SIP trunk**, so its
WhatsApp calls ring a desk phone, a softphone or your PBX and your extensions call out on
WhatsApp as that number. See [Calling over SIP](#calling-over-sip).
There is nothing to install and nothing to run locally — it is a **remote MCP server over
Streamable HTTP**. Your client talks to `https://api.whatsmcp.com/mcp` and signs in with
OAuth, or presents an API key.
> **Not the WhatsApp Business API.** No templates, no 24-hour session window, no message
> approval, no per-conversation billing. You link a normal WhatsApp account by scanning a
> QR code from the phone — exactly like WhatsApp Web — and your agent uses it as a linked
> device.
---
## Contents
- [Quick start](#quick-start)
- [Register](#register)
- [Link a WhatsApp number](#link-a-whatsapp-number)
- [Create an API key](#create-an-api-key)
- [Connect your client](#connect-your-client)
- [Tools](#tools)
- [Contacts](#contacts)
- [Reading incoming messages](#reading-incoming-messages)
- [Webhooks](#webhooks)
- [Sending](#sending)
- [Groups and channels](#groups-and-channels)
- [Calling over SIP](#calling-over-sip)
- [Plans and limits](#plans-and-limits)
- [Refusals and error handling](#refusals-and-error-handling)
- [Security model](#security-model)
- [Status and licence](#status-and-licence)
- [Links](#links)
---
## Quick start
```
1. Create a workspace → https://console.whatsmcp.com/register
2. Link a WhatsApp number → Console → Pair device (scan the QR with your phone)
3. Give your client → https://api.whatsmcp.com/mcp
…and sign in when it asks. No key to paste.
```
For Claude Code that is two commands:
```sh
claude mcp add --transport http wamcp https://api.whatsmcp.com/mcp
claude mcp login wamcp
```
Then ask your agent: *“list my WhatsApp accounts and show me the last few messages.”*
Clients that cannot sign in — `curl`, CI, anything without OAuth — take a key in a header
instead: [mint one](#create-an-api-key), then see [Connect your
client](#connect-your-client).
---
## Register
Sign-up is self-serve and free — no card, no sales call.
| | |
|---|---|
| **Create an account** | |
| **Sign in** | |
| **Product site** | |
You give a name and an email address. We send a confirmation link; opening it is where you
choose a password. Confirming creates your **workspace** (tenant) on the free plan and drops
you into a short setup wizard that walks the three steps that turn a bare account into a
working integration: **link a number**, **mint a key**, and — optionally — **point a
webhook** at your endpoint. It is derived from what you have actually done rather than a
checklist you tick, so it disappears once you are set up and comes back if you unlink
everything.
Everything lives in the console:
| Console page | What it is for |
|---|---|
| [Fleet](https://console.whatsmcp.com/fleet) | Every linked number and whether it is connected |
| [Pair device](https://console.whatsmcp.com/pair) | Link a new WhatsApp number by QR |
| [API keys](https://console.whatsmcp.com/keys) | Mint and revoke keys; copy-paste connection examples |
| [Connections](https://console.whatsmcp.com/connections) | Clients you signed in with OAuth, and a revoke button per client |
| [Webhooks](https://console.whatsmcp.com/webhooks) | Inbound delivery endpoint and its recent attempts |
| [Usage](https://console.whatsmcp.com/usage) | Messages sent against your plan's caps |
| [SIP](https://console.whatsmcp.com/sip) | Put a number's calls on a hosted SIP line or your own PBX, per number |
| [Help](https://console.whatsmcp.com/help) | The connection details for *your* workspace, and which tools your plan includes |
Per-number pages (Messages, **Contacts**, Calls, **SIP**) hang off each account in the same
console.
---
## Link a WhatsApp number
WhatsMCP connects as a **linked device**, the same mechanism as WhatsApp Web. Your phone
stays the primary device and can stay in your pocket afterwards.

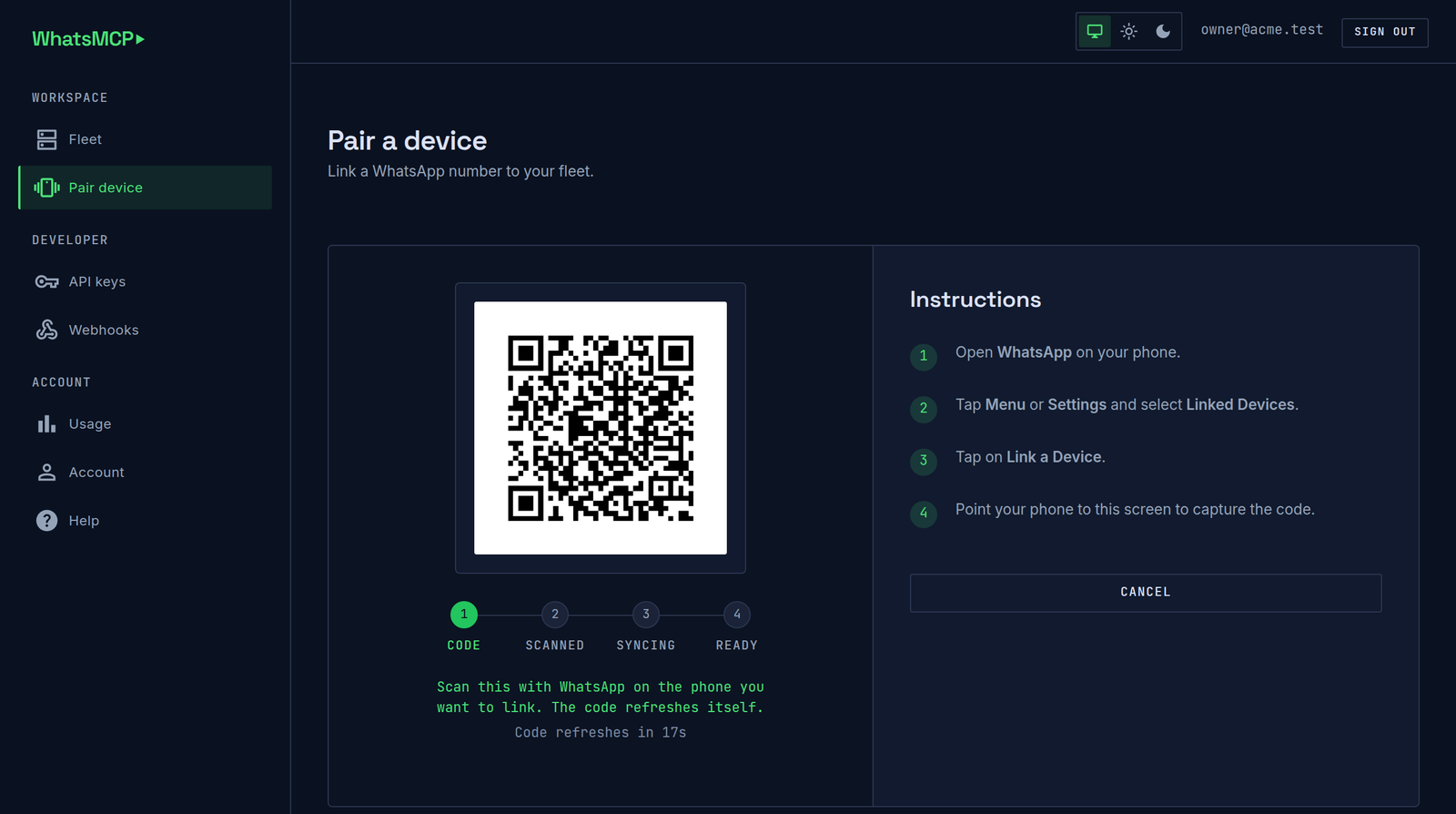

**From the console:** open [Pair device](https://console.whatsmcp.com/pair), then on the
handset go to **WhatsApp → Settings → Linked devices → Link a device** and scan the code.
The code rotates roughly every 20 seconds and the page refreshes itself, so a stale QR never
sits there failing to scan. The stepper underneath tracks the whole run: the handset accepts
the code (**scanned**), the device logs in and pulls its history (**syncing**), and only then
is the number **ready** to use.
**From the agent**, with the `wa_pair_account` tool:
```jsonc
// 1. start pairing — returns a QR as a base64 PNG for the user to scan
wa_pair_account()
→ { "pair_id": "…", "state": "qr", "qr_png_base64": "iVBORw0…", "instructions": "…" }
// 2. the code rotates about every 20 seconds — poll for the current one
wa_pair_status({ "pair_id": "…" })
→ { "state": "qr", "qr_png_base64": "…" } // show the new image
→ { "state": "paired", "instructions": "Linked. …" } // done
```
Once `state` is `paired` the number appears in `wa_list_accounts` and is ready to use.
`wa_unpair_account` disconnects it again.
---
## Create an API key
**Optional.** A client that can sign in with OAuth never needs one — skip to [Connect your
client](#connect-your-client). Keys are for `curl`, for CI, and for clients that cannot do
OAuth.
[Console → API keys](https://console.whatsmcp.com/keys) → **Create key**.
Keys look like `wamcp_live_XXXXXXXXXXXX_…` and are **shown exactly once** — we store only a
hash, so a lost key is replaced, never recovered. Mint one key per client or per environment
and revoke individually.
The key *is* the workspace. Every tool is scoped to it: there is no tenant argument to pass
and no way for one workspace to reach another's messages.
---
## Connect your client
Any MCP client that speaks **Streamable HTTP** will work. There is one endpoint:
| | |
|---|---|
| **Endpoint** | `https://api.whatsmcp.com/mcp` |
There are two ways to prove who you are against it.
**OAuth — recommended, and what every client below does by default.** The client reads the
server's own metadata, registers itself, and sends you to the console to approve it. Nothing
is pasted anywhere: no key is created, none is stored in a config file, and you can revoke
one client without touching the others from
[Console → Connections](https://console.whatsmcp.com/connections).
**An API key** — `Authorization: Bearer `, or `x-api-key: ` for clients
that reserve `Authorization` for a token they manage themselves. Use it for `curl`, for CI,
and for clients that cannot do OAuth. See [Create an API key](#create-an-api-key).
### Claude Code
```sh
claude mcp add --transport http wamcp https://api.whatsmcp.com/mcp
```
Then run `/mcp` inside Claude Code, pick **Authenticate**, and sign in in the browser window
it opens. `claude mcp login wamcp` does the same thing from the shell. `claude mcp list`
should then show `wamcp` connected.
With a key instead, and no sign-in step:
```sh
claude mcp add --transport http wamcp https://api.whatsmcp.com/mcp \
--header "Authorization: Bearer YOUR_KEY"
```
### Claude Desktop and claude.ai
Open **Settings → Connectors → Add custom connector**, put the endpoint in the URL field,
leave **Authentication** on **OAuth**, and sign in when Claude asks. The dialog discovers the
flow on its own.
> **The authentication type is fixed when the connector is added.** A connector created with
> a header or an API key never switches itself to OAuth later — delete it and add it again.
To use a key here instead, set **Authentication** to **None** and add one entry under
**Additional request headers**:
| | |
|---|---|
| **Header name** | `x-api-key` |
| **Value** | `YOUR_KEY` |
Paste the key on its own — no `Bearer ` in front of it. `Authorization` is not offered in
that dialog: it is kept for the OAuth token Claude manages itself. Header values are stored
once and never shown again, so if the connector will not connect, replace the header rather
than trying to read it back — a wrong key and a missing one look identical from the outside.
If you edit the configuration file instead of using the dialog, it has no such restriction:
```json
{
"mcpServers": {
"wamcp": {
"type": "http",
"url": "https://api.whatsmcp.com/mcp",
"headers": {
"Authorization": "Bearer YOUR_KEY"
}
}
}
}
```
### ChatGPT
Turn on **Developer mode** under **Settings → Security and login** (availability depends on
your ChatGPT plan), then go to **Plugins**, press **+**, and give it the endpoint.
**OAuth is the only way in here.** ChatGPT cannot present a custom API key to an MCP server,
so the key path in this page does not apply to it — there is no header field to put one in.
The sign-in flow is the whole configuration.
### Codex
```sh
codex mcp add wamcp --url https://api.whatsmcp.com/mcp
codex mcp login wamcp
```
Or write the same server into `~/.codex/config.toml` directly. `auth` defaults to `"oauth"`:
```toml
[mcp_servers.wamcp]
url = "https://api.whatsmcp.com/mcp"
auth = "oauth"
```
To use a key instead, keep it in the environment rather than in the file:
```toml
[mcp_servers.wamcp]
url = "https://api.whatsmcp.com/mcp"
bearer_token_env_var = "WHATSMCP_API_KEY"
```
```sh
export WHATSMCP_API_KEY=wamcp_live_…
```
Codex sends that as `Authorization: Bearer …`. If you would rather set headers yourself, use
`http_headers` for static values and `env_http_headers` to pull them from the environment.
### Every other client
Clients differ in where they keep configuration, but they all need the same thing: the
endpoint added as a **remote HTTP** (not stdio) server. A client that supports OAuth will
find the sign-in flow by itself once it has the URL. One that does not needs the key in
`Authorization`, or in `x-api-key` where it will not let you set `Authorization`.
If a client only offers "a command to run", it does not support remote servers — there is no
local process to point it at.
### How the OAuth flow works
Worth reading only if you are integrating a client of your own, or wondering what your agent
just agreed to. Everything here is standard OAuth 2.1 — no custom handshake.
The server publishes two metadata documents, which is how a client bootstraps with nothing
but the endpoint URL:
| | |
|---|---|
| [`/.well-known/oauth-protected-resource`](https://api.whatsmcp.com/.well-known/oauth-protected-resource) | RFC 9728 — names the resource and points at its authorization server |
| [`/.well-known/oauth-authorization-server`](https://app.whatsmcp.com/.well-known/oauth-authorization-server) | RFC 8414 — the endpoints, grants and scopes below |
A client registers itself either by **Dynamic Client Registration** (RFC 7591, at
`/oauth/register`) or by publishing a **Client ID Metadata Document** whose URL is its client
id — both are supported, and the vendors above use one or the other. Then it is an ordinary
authorization-code flow with **PKCE** (`S256` only): you land on the consent page at
`console.whatsmcp.com/oauth/authorize`, approve, and the code is exchanged at `/oauth/token`.
Authorization codes are single-use, refresh tokens rotate on every use, and a retired refresh
token being replayed revokes the whole grant rather than issuing another. Tokens are bound to
this resource (RFC 8707) and revocable at `/oauth/revoke` (RFC 7009).
Seven scopes are advertised and recorded on each grant:
| Scope | Covers |
|---|---|
| `wa:accounts` | Listing your numbers, plan and service version |
| `wa:read` | Messages, chats, contacts, profiles, groups, calls, media |
| `wa:send` | Sending, reacting, editing, group and blocklist changes |
| `wa:pair` | Linking and unlinking numbers |
| `wa:webhooks` | Registering and managing inbound delivery |
| `wa:egress:socks5`, `wa:egress:wireguard` | Per-account egress configuration |
> **Scope is recorded, not enforced at the tool layer.** Which tools a grant can actually
> reach is decided by your **plan**, exactly as it is for an API key. Treat the scope list as
> a description of what the connection is for, not as a sandbox.
Grants are listed and revocable at
[Console → Connections](https://console.whatsmcp.com/connections). Revoking one there
disconnects that client and nothing else.
### Check it by hand
```sh
curl -s https://api.whatsmcp.com/mcp \
-H "Authorization: Bearer YOUR_KEY" \
-H "Content-Type: application/json" \
-H "Accept: application/json, text/event-stream" \
-d '{"jsonrpc":"2.0","id":1,"method":"tools/list","params":{}}'
```
Two things catch people out when driving the endpoint directly:
- **The reply may be server-sent-event framed** — one `data: ` line per message.
- **A tool result is text that is itself JSON**, so it is parsed twice.
The endpoint is **stateless** (MCP 2026-07-28 removed protocol sessions), so it needs no
sticky routing and it is safe to call from anywhere. Called without a credential it answers
`401` with a `WWW-Authenticate` header pointing at the protected-resource metadata, which is
what lets an OAuth-capable client start the flow on its own.
---
## Tools
36 tools. Which ones appear in `tools/list` depends on your plan — a tool your plan does not
include is **absent**, not present-and-refusing. [Console →
Help](https://console.whatsmcp.com/help) lists the set *your* workspace gets, marked
against what your plan includes.
**Start with `wa_list_accounts`.** Every other tool takes an `account_id` from it, and an
account is usable only while its `state` is `connected`.
### Accounts, pairing and plan
| Tool | Does |
|---|---|
| `wa_list_accounts` | Lists your linked numbers: `account_id`, `phone`, `push_name`, `state` (`pairing`, `connected`, `disconnected`, `logged_out`, `locked`) |
| `wa_pair_account` | Starts linking a new number; returns a QR as a base64 PNG |
| `wa_pair_status` | Polls a pairing; returns a fresh code while one is waiting |
| `wa_unpair_account` | Disconnects a linked number |
| `wa_set_profile_photo` | Replaces or removes the profile photo of one of your numbers — the picture every contact sees |
| `wa_get_plan` | Your plan, its limits, and usage so far against the message and account caps — call it to see why a send was refused, or how much headroom is left |
### Messaging
| Tool | Does |
|---|---|
| `wa_send_message` | Sends text, an image, a document or audio from one of your numbers |
| `wa_list_messages` | Reads messages across accounts, oldest first, paged by cursor |
| `wa_get_chat` | Recent messages for one account, no cursor — a one-off catch-up |
| `wa_get_message` | Fetches one stored message by its WhatsApp id or cursor — the one a webhook just announced, say |
| `wa_get_media` | Downloads a received attachment by `message_id` (base64 + mime) |
### Message operations
Each of these acts on a message that already exists, so each one takes the `message_id` that
`wa_list_messages` gave you.
| Tool | Does |
|---|---|
| `wa_react` | Reacts with an emoji; an empty reaction removes one you sent |
| `wa_edit_message` | Edits a message you sent — WhatsApp accepts an edit for about 20 minutes |
| `wa_delete_message` | Deletes for everyone. WhatsApp has no true delete; this revokes the message, which every modern client honours |
| `wa_set_presence` | Announces typing (`composing`/`paused`) to a chat, or sets an account `available`/`unavailable`. Fire-and-forget — there is no delivery confirmation |
### Contacts and profiles
| Tool | Does |
|---|---|
| `wa_list_contacts` | The account's address book, paged — or, with a `query`, a search by name or number; optionally with profile pictures |
| `wa_get_profile` | Looks up who a number is on WhatsApp: whether it is registered, its public name, about text, picture, and a business's categories, contact details and hours |
Unlike `wa_list_contacts` above, `wa_get_profile` asks WhatsApp rather than reading the local store.
An empty about or picture means the peer has not shared it **with this account**, not that
they have none.
### Blocklist
| Tool | Does |
|---|---|
| `wa_block_contact` | Blocks a contact — they can no longer call or message this account — or, with `unblock: true`, unblocks one again |
| `wa_list_blocked` | Everyone this account has blocked |
Both report *who*, not just a number: each entry carries the number, the name this
account's address book has for them (absent for someone never saved on the phone) and the
country the number belongs to. WhatsApp does not record **when** a contact was blocked, so no
date is available.
### Groups and channels
| Tool | Does |
|---|---|
| `wa_list_groups` | Groups an account has joined — JID, name, member count |
| `wa_list_channels` | Channels an account follows — JID, name, subscriber count |
| `wa_join_group` | Joins a group from an invite link |
| `wa_follow_channel` | Follows a Channel from its link |
| `wa_leave_chat` | Leaves a group or unfollows a channel |
| `wa_list_group_members` | A group's members, each with JID, phone and admin flag |
| `wa_create_group` | Creates a group; returns its JID and invite link |
| `wa_delete_group` | Removes every other member, then leaves (WhatsApp has no true delete) |
### Group administration
Every one of these follows WhatsApp's own rules: a mutation that needs admin fails without
it, rather than silently doing nothing.
| Tool | Does |
|---|---|
| `wa_update_participants` | Adds members by phone number or JID, or promotes members to admin and demotes admins back — `action` is `add`, `promote` or `demote` |
| `wa_remove_participants` | Removes members from the group |
| `wa_update_group` | Changes the group's `name`, `description`, whether only admins may change settings (`locked`) and whether only admins may post (`announce`) — any of them in one call |
| `wa_get_group_invite_link` | Returns the invite link, or with `reset` revokes it and issues a new one |
### Calls
| Tool | Does |
|---|---|
| `wa_list_calls` | Call history, oldest first, paged — direction, peer, `answered`, `seconds`, `reason`, `codec` |
### Webhooks *(paid plans)*
| Tool | Does |
|---|---|
| `wa_set_webhook` | Registers an HTTPS endpoint for inbound messages; returns a signing secret shown **once** |
| `wa_get_webhook` | Shows the endpoint, whether it is enabled, when it last succeeded |
| `wa_enable_webhook` | Pauses or resumes delivery **without** changing the endpoint or its secret |
| `wa_delete_webhook` | Stops delivery; messages remain readable through the tools |
Reach for `wa_enable_webhook` rather than deleting and recreating when you only want
deliveries to stop for a while: deleting issues a new secret, and everything verifying the
old one breaks.
---
## Contacts
Your agent should not have to make you be the address book. `wa_list_contacts` reads the
contacts **synced from the phone the account is linked to**, so an agent can turn *“message
Alice”* into a number on its own.
It reads the account's **local** contact store. Nothing here talks to WhatsApp: no lookups
are performed against the network, and asking is free of any rate cost beyond your plan's
ordinary request throttling. (`wa_get_profile`, below, is the one that does reach WhatsApp.)
### `wa_list_contacts` — the whole address book
```jsonc
wa_list_contacts({ "account_id": "acct_…", "limit": 500 })
→ {
"contacts": [
{ "phone": "447700900111", "name": "Alice Perreira", "name_source": "saved",
"jid": "447700900111@s.whatsapp.net" },
{ "phone": "447700900222", "name": "Bakery", "name_source": "business", "jid": "…" },
{ "phone": "447700900333", "name": "dave", "name_source": "push", "jid": "…" }
],
"total": 482,
"next_cursor": "447700900333",
"has_more": true
}
```
| Field | Meaning |
|---|---|
| `phone` | International form, digits only — pass this straight to `wa_send_message`. Empty for a LID-form contact whose number this account has never been told |
| `name` | The best available display name |
| `name_source` | **`saved`** — what the account owner wrote in their own address book · **`business`** — a verified business name · **`push`** — what the contact calls *themselves*, vouched for by nobody |
| `jid` | WhatsApp's own identifier |
| `total` | How many contacts matched **before** the page limit, so a model can tell a page from the whole book |
| `next_cursor` / `has_more` | Page until `has_more` is false to read everything |
Paging is by cursor over a stable order (sorted by phone), so it never repeats or skips a
row. Default page 500, maximum 2000.
### Search with `query` — find one person
Pass a `query` and the same tool searches instead of listing:
```jsonc
wa_list_contacts({ "account_id": "acct_…", "query": "+44 7700 900111" })
```
Matching is case-insensitive and ignores punctuation in numbers, so `"+44 7700 900111"`
finds a contact stored as `447700900111`. It looks at saved names, business names, the name
the contact publishes for themselves, and the number. An empty result means no match — not
an error.
### Profile pictures with `include_pictures`
Set `include_pictures: true` and each contact carries a `picture_url`. This looks every
contact on the page up on WhatsApp rather than reading the local store, so the page is capped
at **10** and can take up to half a minute — leave it off for a fast listing. An empty
`picture_url` means the contact has no picture visible to this account, not that the lookup
failed.
### Things worth knowing
- **A newly linked account starts with an empty address book.** Contacts arrive from the
phone by app-state sync shortly after linking, so "no contacts" right after pairing is
usually "not synced yet". The tool says so in a `note` rather than letting an agent report
that a customer with 500 contacts has none.
- **Only numbers saved on the phone itself** are contacts. Someone you have chatted with but
never saved has no address-book entry — but they do appear as a `peer` in
`wa_list_messages`.
- **If the account is offline**, the read refuses with `account_not_connected` and a
retry-after, rather than returning an empty book that reads as "you know nobody".
- The console shows the same address book per number under **Contacts**, if you would rather
look with your eyes.
---
## Reading incoming messages
**The server never pushes to your agent.** Nothing can interrupt a model when a message
arrives, so your agent reads on its own schedule — and a **cursor** is what makes that
reliable.
`wa_list_messages` returns messages oldest-first, each with a `cursor`, plus a `next_cursor`
for the page and `has_more`. Pass a cursor back as `after_cursor` to get **only what has
arrived since** — no gaps, no duplicates, even for two messages in the same millisecond,
which a timestamp cannot promise.
```
after = 0
repeat:
r = wa_list_messages(after_cursor = after)
for m in r.messages:
if m.direction == "inbound":
handle(m) # e.g. reply with wa_send_message
after = r.next_cursor # advance — only newer rows next time
if not r.has_more:
sleep(a while) # caught up; poll again later
```
Each row says who and where:
| Field | Meaning |
|---|---|
| `direction` | `inbound` (received) or `outbound` (sent by you) |
| `peer` | The other party's number. **In a group or channel this is the individual sender**, not the conversation |
| `chat` | The conversation JID — `…@g.us` for a group, `…@newsletter` for a channel |
| `chat_kind` | `dm`, `group`, `channel` or `broadcast` |
| `kind` / `text` | The content kind and the body (only text carries a body — fetch the rest with `wa_get_media`) |
| `at`, `message_id` | RFC3339 timestamp, and WhatsApp's id |
To reply: in a **DM** send `to` the peer's number; in a **group or channel** send `to` the
`chat` JID — sending to the individual peer would start a private chat instead.
> **In Claude Code**, the `/loop` command automates exactly this: it polls on a cadence, acts
> when the message appears, and stops. See running loops with `/tasks`.
For a one-off catch-up on a single account rather than a poll, `wa_get_chat` returns recent
messages without a cursor.
---
## Webhooks
If you would rather not poll, `wa_set_webhook` delivers each inbound message to an HTTPS
endpoint as it arrives *(paid plans)*.
```json
{
"event": "message.inbound",
"delivery_id": "01JB…",
"tenant_id": "01JA…",
"account_id": "01J9…",
"account_phone": "447700900000",
"message_seq": 48210,
"message_id": "3EB0…",
"chat_jid": "447700900111@s.whatsapp.net",
"peer": "447700900111",
"kind": "text",
"body": "are you open on Sunday?",
"at": "2026-09-02T14:21:07Z"
}
```
`account_phone` is **your own** number that received the message — what a routing rule, a CRM
or a support queue is usually keyed on. `message_seq` is the same cursor `wa_list_messages`
uses, so a consumer that missed a delivery can reconcile instead of guessing.
Each request carries:
| Header | Value |
|---|---|
| `X-WAMCP-Signature` | `t=,v1=` |
| `X-WAMCP-Delivery` | The delivery id, for idempotency |
| `X-WAMCP-Event` | The event name, so you can route without parsing the body |
**Verify the signature** — recompute `HMAC-SHA256(secret, "" + "." + )` and
compare in constant time, rejecting a stale timestamp:
```python
import hashlib, hmac, time
def verify(secret: str, header: str, body: bytes, tolerance: int = 300) -> bool:
parts = dict(p.split("=", 1) for p in header.split(","))
ts, sig = parts["t"], parts["v1"]
if abs(time.time() - int(ts)) > tolerance:
return False
mac = hmac.new(secret.encode(), f"{ts}.".encode() + body, hashlib.sha256)
return hmac.compare_digest(mac.hexdigest(), sig)
```
Answer `2xx` to acknowledge. One attempt is bounded at 10 seconds; a failure is retried with
exponential backoff up to 8 attempts, and answering `410 Gone` stops delivery of that message
permanently — it is the endpoint saying it is never coming back. Recent attempts and their
outcomes are visible in [Console → Webhooks](https://console.whatsmcp.com/webhooks).
---
## Sending
```jsonc
wa_send_message({
"account_id": "acct_…",
"to": "447700900111", // international form, digits only — or a …@g.us / …@newsletter JID
"text": "on my way"
})
→ { "status": "sent", "message_id": "3EB0…", "request_id": "01JB…" }
```
Attachments ride the same tool. `text` becomes the caption where one applies:
| Argument | Limit | Notes |
|---|---|---|
| `image_base64` + `image_mime` | 5 MiB decoded | JPEG or PNG |
| `document_base64` + `document_mime` + `document_filename` | 20 MiB decoded | Any file; the filename is what the recipient sees |
| `audio_base64` + `audio_mime` (+ `audio_seconds`, `audio_ptt`) | 16 MiB decoded | `audio_ptt: true` sends a voice note. Audio has no caption |
**Check the returned `status`. The three values mean different things:**
| `status` | Meaning |
|---|---|
| `sent` | Delivered to WhatsApp; `message_id` is set |
| `queued` | Accepted but **not yet confirmed**. It may still arrive — **do not send it again.** Reconcile it later in `wa_list_messages` by its `request_id` |
| `refused` | Nothing was sent; `refusal.reason` says whether retrying helps |
An agent that treats `queued` as failure will send your customer the same message twice.
---
## Groups and channels
Listing groups and channels is part of the read surface. **Joining, leaving, messaging and
group management require the account to be opted into group and channel messaging on its
bridge** — ask us to switch it on for a number. Without it the account refuses these calls,
and the refusal says so verbatim rather than failing generically.
Group management (`wa_create_group`, `wa_update_participants`, `wa_remove_participants`,
`wa_update_group`, delete) follows WhatsApp's own rules: mutations that need admin fail without it.
`wa_delete_group` removes every other member and then leaves, because WhatsApp has no true
delete.
---
## Calling over SIP
*Beta.* WhatsMCP bridges **WhatsApp voice calls to SIP in both directions**. A WhatsApp call
to your linked number rings a SIP phone or your PBX as an ordinary `INVITE`; an extension
that dials a WhatsApp number in E.164 reaches that person on WhatsApp, and the call shows
**your number** as the caller. This is not the Meta Business Calling API — no business
verification and no per-minute billing.
It is set up per number in [Console → SIP](https://console.whatsmcp.com/sip), and there
are two ways to connect.
### A hosted SIP line — no PBX needed
We run the phone system: the number gets a SIP account on our server and you register any
SIP phone, softphone or browser to it. The console shows the server, username and password
(with **Show**, **Copy** and **New password**), and whether your phone and the WhatsApp
bridge are each registered right now.
Pick the **phone type** for the line — the two cannot share one endpoint:
| Phone type | For | Connect with | Media |
|---|---|---|---|
| **SIP phone** | Desk phones, softphones, PBXes | The SIP server over **TLS on port 5061** — plain UDP 5060 only for a phone that cannot do TLS | SRTP (SDES) — turn it on in your phone. Plain RTP if the phone does not offer it |
| **Browser (WebRTC)** | The dialer built into the console, or your own WebRTC client | The WebSocket URL the console shows (`wss`, port 8089) | DTLS-SRTP, which the browser does by itself |
With **Browser** selected the SIP page carries a **dialer**: sign the browser in to the line,
dial a WhatsApp number or wait for one to call, and talk through the microphone — no
hardware at all.
A hosted line holds **one registration** and **one call at a time**. A second device that
signs in to the same line takes the registration from the first, so run one phone per line.
**Connection history** on the line's page shows when your phone and the bridge registered,
and when either one dropped.
### Your own PBX or CRM phone system
The bridge **registers outbound** to your registrar as an ordinary SIP extension, so there is
no inbound firewall rule to open for signalling. You give it:
| Field | |
|---|---|
| **Registrar** | `host` or `host:port` — the port defaults to 5060 over UDP, 5061 over TLS |
| **Transport** | **UDP** (what most PBXes accept out of the box) or **TLS** for encrypted signalling — your PBX must then present a publicly-issued certificate for that host. Call audio to your PBX is plain RTP for now |
| **Username / password** | The extension or trunk account on your PBX. The password is stored encrypted and never shown again |
| **Extension to ring** | Where incoming WhatsApp calls go — `101` by default, or `caller` / `9:caller` to pass the caller's number into your dialplan |
The credentials are **checked against your registrar before they are saved**, and **Test
connection** dials it again on demand and tells you what answered. Extensions call out by
dialling the WhatsApp number in E.164 **without the leading `+`**.
### Codecs
WhatsApp chooses its own codec per call — **Opus**, or **MLow**, Meta's low-bitrate codec,
on a constrained network — and may switch mid-call. The bridge decodes it and re-encodes for
your side, so your PBX never has to know MLow exists:
| Your side | |
|---|---|
| **G.722** | Offered first — wideband (16 kHz), the same bandwidth WhatsApp carries |
| **G.711 µ-law (PCMU)** | The fallback every SIP phone and PBX speaks — narrowband (8 kHz) |
| **G.711 A-law (PCMA)** | Accepted when your side prefers it |
Allow `g722` on your trunk and calls stay wideband end to end; a phone that only speaks G.711
still works, at landline quality.
### Voice plans
SIP calling is a **voice plan**, billed per line and separate from your messaging plan. It
decides which directions a number may use — **incoming only**, or **incoming and
outgoing** — and the SIP page states what your plan allows. A call in a direction the plan
does not include is declined rather than half-connected. Prices are flat per line per month,
with no per-minute charges: see [whatsmcp.com/sip](https://whatsmcp.com/sip#voice-plans).
Every call, SIP or not, lands in the number's call history — direction, peer, whether it was
answered, duration, end reason and codec — in the console, and through the `wa_list_calls`
tool.
> **Hear it first.** The [SIP page](https://whatsmcp.com/sip) has a live demo number:
> message it on WhatsApp and it calls you back.
Need a dedicated number that lives only on the trunk (no handset), or many lines? [Talk to
us](https://whatsmcp.com/contact?inquiry=sip-trunk).
---
## Plans and limits
Every workspace starts on the **free plan**, which is enough to link a number and drive it
from an agent. Paid plans raise the caps and add capability:
| | What a plan decides |
|---|---|
| **Accounts** | How many WhatsApp numbers you can link at once |
| **Messages** | Send caps per hour and per 24 hours |
| **History** | How long stored message bodies are kept before they are purged — `wa_list_messages` reads back exactly as far as that window |
| **Webhooks** | Inbound delivery — a paid capability, and the gate on the four `wa_*_webhook` tools |
| **Egress** | Routing an account's bridge through your own WireGuard tunnel or SOCKS5 proxy |
| **Voice** | A separate per-line voice plan puts a number's calls on SIP — see [Calling over SIP](#calling-over-sip) |
A capability your plan does not include does not appear as a failing tool — the tool is
**absent from `tools/list` entirely**, so a model never proposes a call that was always going
to fail.
Ask the service rather than this page for the numbers: **`wa_get_plan`** returns your plan,
its limits and your usage so far, and [Console →
Usage](https://console.whatsmcp.com/usage) shows the same counters.
---
## Refusals and error handling
A tool that declines does **not** raise a protocol error — it returns a structured refusal,
so a model can read it and decide what to do:
```json
{
"refused": true,
"reason": "account_not_connected",
"message": "this account's bridge is not currently connected, so its contacts cannot be read; it reconnects on its own",
"retry_after_seconds": 30
}
```
| `reason` | Meaning |
|---|---|
| `invalid_request` | Bad or missing arguments, or an id that does not exist in your workspace |
| `account_not_connected` | The number is offline. It reconnects on its own — retry |
| `account_locked` | WhatsApp has locked this account; `message` carries the reason |
| `quota_exceeded` | Your plan's send cap for the window |
| `plan_required` | The capability is on a higher plan |
| `throttled` | Too many requests, or the account did not answer in time — retry |
`retry_after_seconds` absent or `0` means **retrying will not help**.
At the transport level: an invalid or revoked credential gets `401` (never `500`, so a client
does not retry a dead credential forever), and the endpoint is rate-limited per source
address.
---
## Security model
- **The credential is the identity.** An API key and an OAuth grant resolve to the same
thing: a workspace, decided at the edge before any tool runs. It travels on the request
context, never as a tool argument, so there is no field in which one workspace could name
another.
- **A foreign id reads as "no such account"**, not "forbidden" — probing reveals nothing.
- **Keys are stored hashed**, shown once at creation, and revocable individually.
- **OAuth grants are revocable per client** from
[Console → Connections](https://console.whatsmcp.com/connections). Authorization codes
are single-use and refresh tokens rotate; replaying a retired one revokes the grant rather
than issuing another.
- **Webhook bodies are signed** with HMAC-SHA256 over a timestamped payload.
- Your WhatsApp account remains yours: WhatsMCP is a linked device, and you can remove it at
any time from the handset (**Settings → Linked devices**) or with `wa_unpair_account`.
---
## Status and licence
WhatsMCP is **live and self-serve** — the service described here runs in production and you
can sign up for it today without talking to anyone.
This repository is the **public documentation** for that hosted service. The server's source
is not published, and no licence is granted over the contents of this repository: it is
public to read, not licensed for reuse or redistribution.
WhatsMCP is an unofficial integration. It is not affiliated with, authorised by, or endorsed
by Meta or WhatsApp.
---
## Links
| | |
|---|---|
| Product site | |
| Documentation | |
| Create an account | |
| Sign in | |
| Console | |
| Help (your workspace's own connection details) | |
| MCP endpoint | `https://api.whatsmcp.com/mcp` |
| SIP ↔ WhatsApp voice bridge | |
| SIP console | |
| Engineering blog | |
| Model Context Protocol | |
| Organisation on GitHub | |
| Privacy Policy | |
| Terms of Service | |
| Contact / support | |
Questions, a number that needs group messaging switched on, a SIP trunk to size, or a plan
that does not fit —
[open an issue](https://github.com/whatsmcp/mcp/issues), use the contact link above, or write
to us from the console.
WhatsMCP — one endpoint, one linked number, and your agent is on WhatsApp.
