# dsh-channels
Connect WeChat, QQ, DingTalk, Lark and Telegram to [DeepSeek Harness](https://github.com/deepseek-ai/deepseek-harness)
Multi-channel integration with unified configuration — chat with your Agent on every platform
Send and receive images and files, with PDF, DOCX, XLSX and text content readable by the Agent
[](https://github.com/wsz987/dsh-channels/actions/workflows/ci.yml)
[](https://www.npmjs.com/package/@wsz987/dsh-channels)
[](https://www.npmjs.com/package/@wsz987/dsh-channels)
[](https://github.com/wsz987/dsh-channels/stargazers)
[](LICENSE)
[](package.json)
English | [简体中文](README.md)
> This project adapts each platform's OpenClaw-oriented channel integration to DeepSeek Harness using the official SDKs / APIs. It does not depend on OpenClaw at runtime.
>
> Community project, not an official DeepSeek component.
## Preview

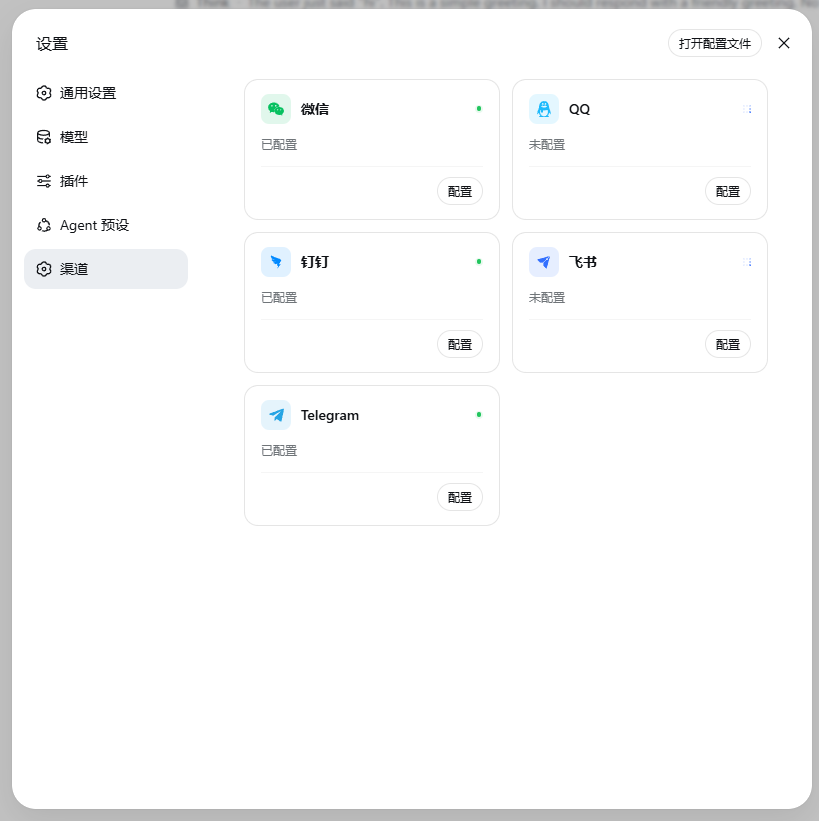

Once installed, configure and authorize channels via QR code in the Harness Web "Settings → Channels" panel, then chat with your Agent directly in each platform's conversation (screenshots from [docs/ScreenShot](./docs/ScreenShot)):

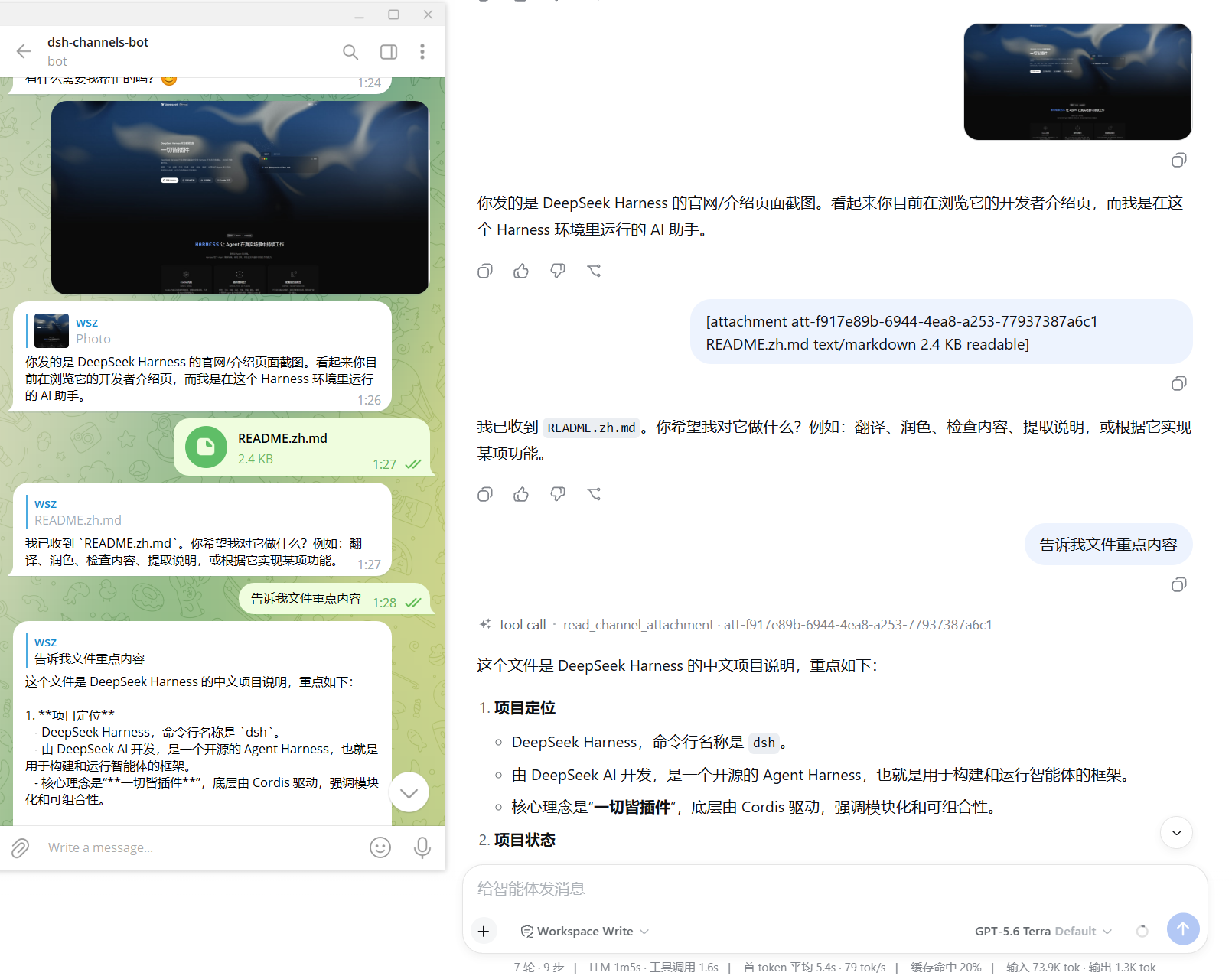

**Harness Web · Channels settings and Telegram integration example (image and file transfer, attachment reading)**

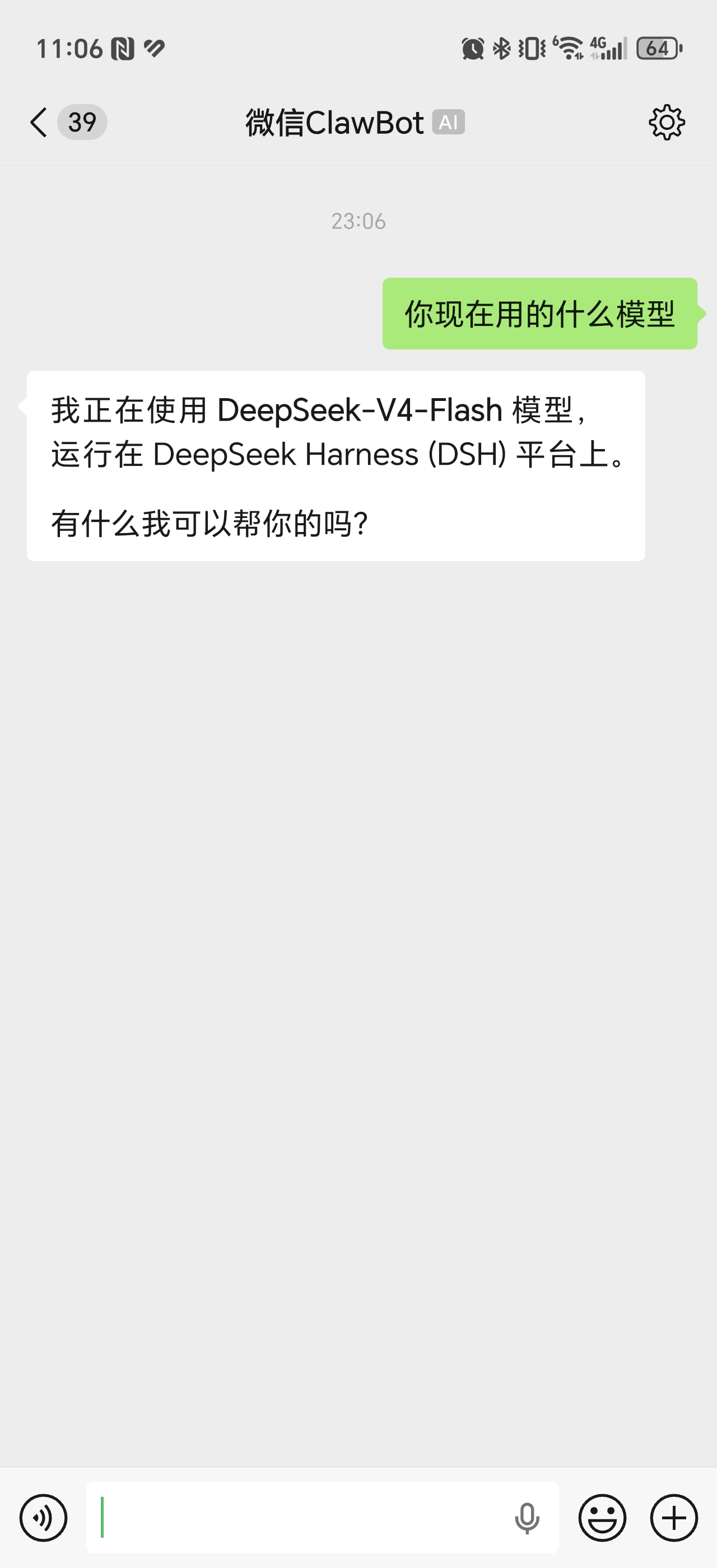

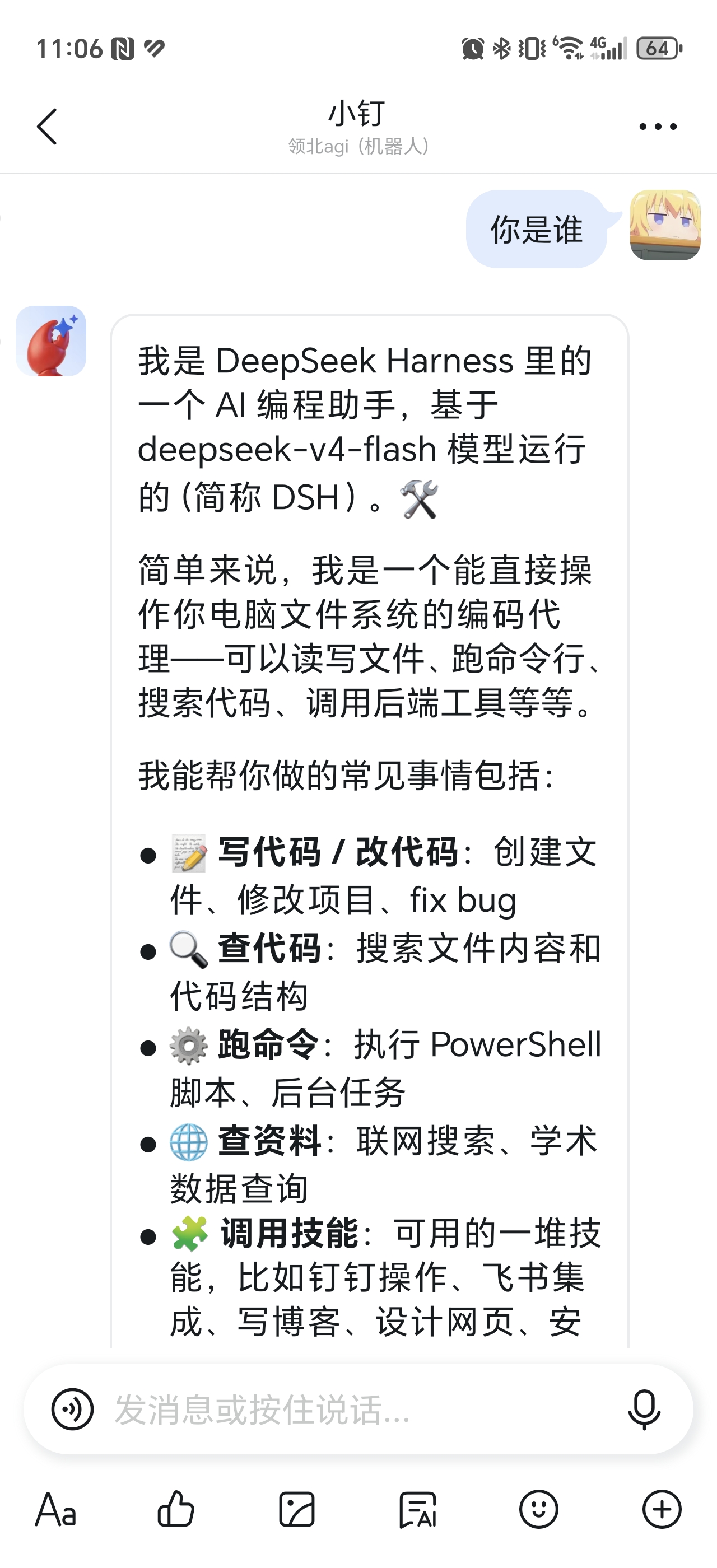

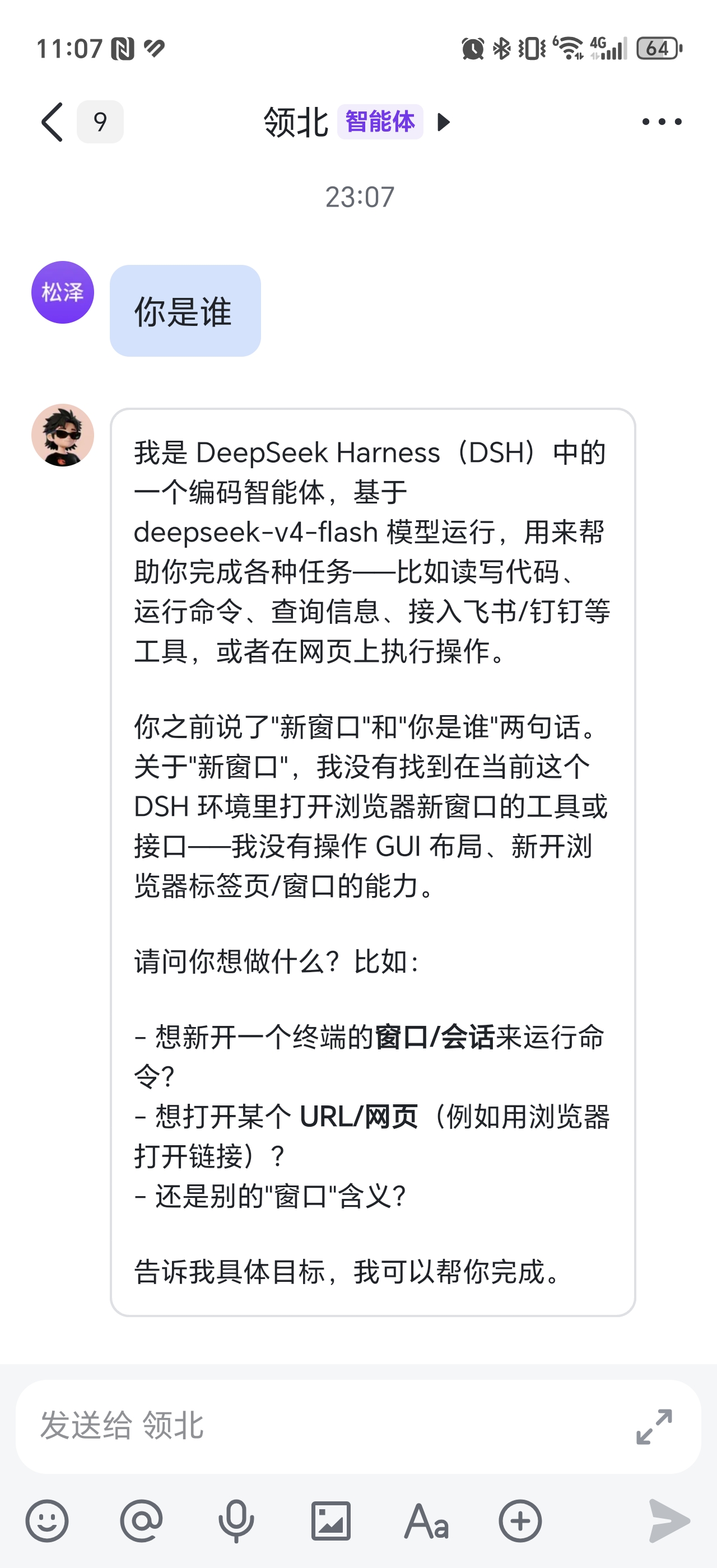

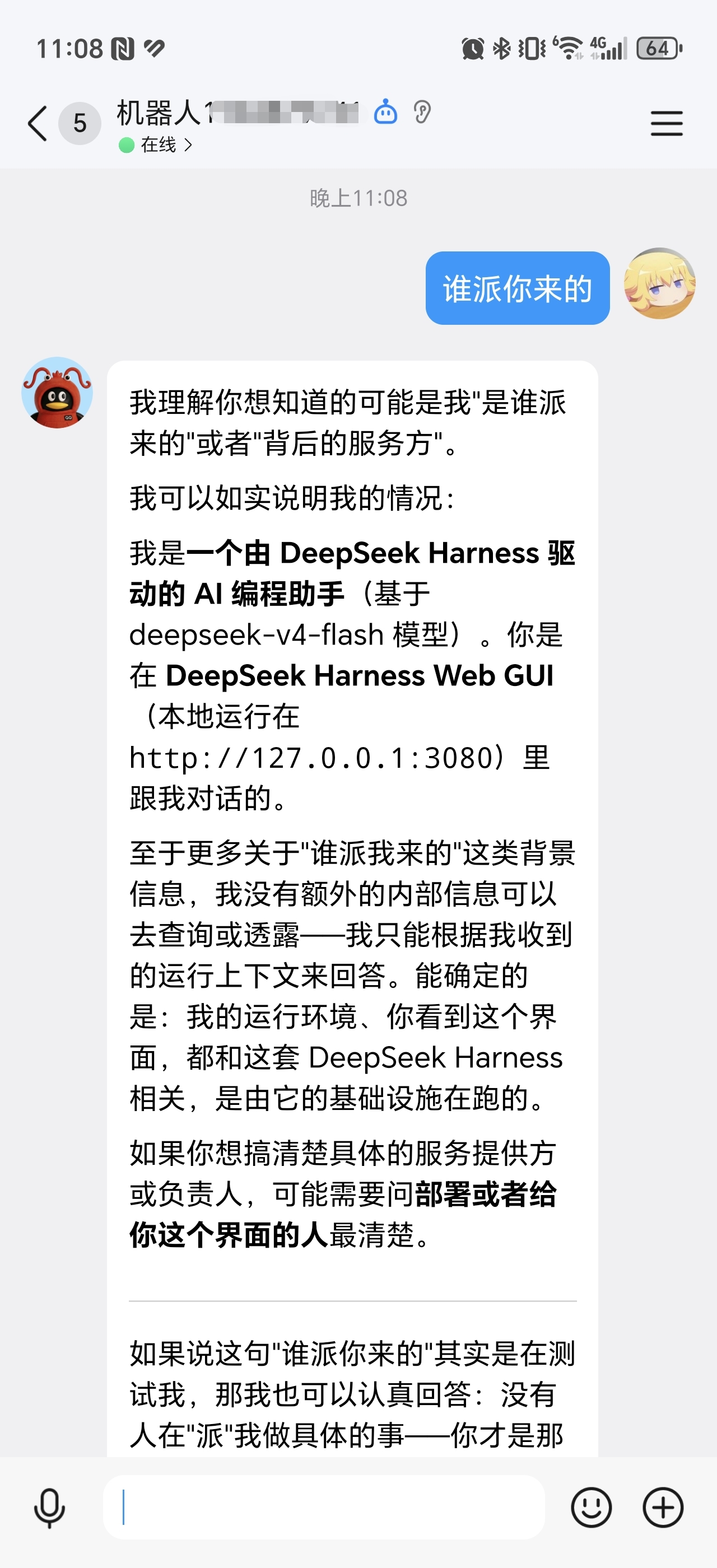

**Platform conversations**
## Capability matrix
| Channel | Text | Images | Files | Streaming | Status |
| --- | --- | --- | --- | --- | --- |
| WeChat | Yes | send/receive | inbound read | - | ✅ |
| QQ | Yes | send/receive | send/receive | Yes | ✅ |
| DingTalk | Yes | send/receive | send/receive | Yes | ✅ |
| Lark | Yes | send/receive | send/receive | Yes | ✅ |
| Telegram | Yes | send/receive | send/receive | Yes | ✅ |
- Vision-capable multimodal models can inspect images directly; PDF, DOCX, XLSX and text attachments can be extracted for the Agent to read (100 MiB inbound limit per file); audio and video are currently degraded.
## Before you start
- Confirm that `npx @deepseek-ai/dsh` runs and a normal Harness Web session can chat.
- Channel sessions normally use `Workspace Write`; enable `Full access` only when the task must access files outside the Workspace and you trust it.
- The project is evolving quickly; back up your data before upgrading.
## Installation
```bash
# Install the stable bundle
npx @deepseek-ai/dsh plugin --profile web add -w @wsz987/dsh-channels@latest
# Verify the bundle was merged into the profile
npx @deepseek-ai/dsh --profile web --dump-config
# Start Harness Web
npx @deepseek-ai/dsh web
```
After installation, configure or log in to the channels you need in Harness Web "Settings → Channels".
### Update and uninstall
Keep the `-w` flag when installing, updating and uninstalling.
```bash
# Update within the current package.json version range
npx @deepseek-ai/dsh plugin --profile web update -w @wsz987/dsh-channels
# Uninstall the bundle
npx @deepseek-ai/dsh plugin --profile web remove -w @wsz987/dsh-channels
```
## Configuration and login
| Channel | Required | Login |
| --- | --- | --- |
| WeChat | none | QR-code login; credentials auto-persist |
| QQ | AppID, AppSecret | Create a bot on the [QQ open platform](https://q.qq.com/qqbot/openclaw/) |
| DingTalk | clientId, clientSecret (optional) | Scan a QR code, or create an app on the [DingTalk open platform](https://open-dev.dingtalk.com/) |
| Lark | AppId, AppSecret | Create an app on the [Lark open platform](https://open.feishu.cn/app), or scan a QR code to create an agent |
| Telegram | Bot Token | Create a bot in [@BotFather](https://t.me/BotFather) and enter the token |
Harness manages secrets; put only references such as `appSecretRef` in `cordis.patch.yml`. See [minimal-profile](apps/example/minimal-profile/) for a complete example. A config patch replaces the whole `config`; it is not a deep merge.
## Common operations
### Channel commands
In any channel conversation you can send slash commands, parsed and executed by Harness's official command system:
| Command | Description |
| --- | --- |
| `/new` | Start a fresh session (try it if you hit a bug) |
Unregistered commands are intercepted ("unknown command") and never sent to the model. More channel commands will be added in later versions.
### Proactive send
Have the Agent call `send_channel_message` inside a channel session to proactively send text, images or supported files to the current channel. Plain sessions created directly in Harness Web have no channel binding and cannot send out of band.
### Workspace isolation
By default each channel / account pair gets an isolated Workspace at `/workspaces/channels//` — no extra configuration required.
To reuse the Harness launch directory or disable isolation, override `channels-harness` in the profile patch:
```yaml
- id: channels-harness
name: '@wsz987/dsh-channels/harness'
inject: [channels, agents, agentDefaultModel, llm, commands]
config:
workspace:
mode: channel-account # channel-account (default) | host-cwd | disabled
autoCreate: true
```
> A Harness patch replaces the whole target plugin config — it is not a merge; keep all required fields when overriding.
### Disable unused channels
Set the corresponding channel plugin's `enabled` to `false` in the profile patch, or delete the optional `channels-files` line to turn off the generic file extension.
## Known limitations
| Current limitation | Workaround | Planned direction |
| --- | --- | --- |
| Cannot stop a running session from a channel | Wait for the current turn to finish while the model is still reasoning or a tool call is in flight | Harness already provides `Agent.cancel()`; a `/stop` command is planned |
| Cannot switch models inside a channel session | Select a model in Harness Web first, then send `/new` to create a session with the new default model | Add a model-selection command |
| No permission-switching command in channels | Adjust the default permission for future sessions in Harness Web, or change the Access setting of the session | Improve in-channel session management |
These limitations mean the channel interaction layer has not yet wired up the corresponding capability — not that Harness lacks cancel or model selection. See the [Harness Reference](https://deepseek-harness.github.io/deepseek-harness/reference/) for the underlying upstream capabilities.
## Roadmap
- Add `/stop`, model-selection and other channel commands.
- Improve in-channel session management and error recovery.
- Support more IM channels (wishlist).
## Running from source
```bash
git clone https://github.com/wsz987/dsh-channels.git
cd dsh-channels
pnpm install
pnpm build
pnpm channels
pnpm web:debug
```
- `pnpm channels` can select channels, e.g. `pnpm channels weixin qq`.
- Rebuild and restart Harness after code changes; run `pnpm channels:clean` before switching back to the npm version.
Run the full gate before submitting:
```bash
pnpm ci:check
```
## 📚 Documentation
- [Architecture overview](docs/architecture.md)
- [Common/unified code design](docs/architecture/common-design.md)
- [Multi-channel planning](docs/architecture/channel-roadmap.md)
- [Architecture decision records (ADR)](docs/architecture/adr/)
- [Third-party adapter authoring guide](docs/adapter-authoring.md)
- [Release pipeline](docs/release.md)
- [Weixin live verification runbook](docs/weixin-live-verification-runbook.md)
- [Third-party notices](THIRD_PARTY_NOTICES.md)
- Per-package READMEs: `packages/*/README.md` (install / config / dev notes for each package)
---
## 🤝 Development guide
Follows the layering convention of mainstream open-source projects (Koishi / Wechaty style): **the adapter layer never touches core; core is unaware of platforms**.
### Repository structure
| Directory | Responsibility |
| --- | --- |
| `packages/channels` | Public bundle `@wsz987/dsh-channels` (aggregated patch) |
| `packages/channel-core` | **Channel Contract**: types + `ctx.channels` Service + `defineChannelAdapter` |
| `packages/channel-harness` | Channel ↔ Harness bridge; keeps only the optional `ChannelFileProvider` port |
| `packages/channel-files` | Optional generic-file extension: private storage, mature doc parsers, read tool |
| `packages/channel-control` | Control plane: config / credentials / QR auth / runtime lifecycle |
| `packages/channel-{weixin,qq,dingtalk,lark,telegram}` | The five built-in channel adapters |
| `packages/channel-{compat,testkit,verify,web}` | Contract verification / test tooling / Web visualization |
| `templates/channel-adapter` | Scaffold for new channels |
### Using the core package (channel-core)
An adapter only implements the `ChannelAdapter` contract; core handles registration / mounting / receipt / health checks automatically:
```ts
import { defineChannelAdapter } from '@wsz987/channel-core';
export default defineChannelAdapter({
id: 'my-channel',
capabilities: {
text: true, image: false, file: false,
audio: false, video: false, markdown: false,
cards: false, reactions: false, threads: false,
streaming: 'buffered', // native | edit | buffered
},
async start(ctx) { /* connect the platform, ctx.emit('message', ...) */ },
async stop() { /* idempotent cleanup */ },
async send(target, message) { /* send */ },
// optional: createReply streaming / beginAuth+pollAuth QR / getHealth
});
```
Three red lines (see [docs/adapter-authoring.md](docs/adapter-authoring.md)):
1. **Never special-case a channel in core** — channel differences are negotiated by core via `capabilities`
2. Adapters must **not** call Harness Agent APIs (`ctx.agents...`)
3. Raw platform payloads must be mapped to structured `MessagePart` — never fed to the model directly
If the contract cannot express a need, report a contract gap — never modify channel-core / channel-harness.
### Adding a channel in four steps
1. Copy `templates/channel-adapter` to `packages/channel-` and implement `defineChannelAdapter` (config / transport / mapper)
2. Add one line to `packages/channels/cordis.patch.yml` (`pnpm channels` auto-detects new channels)
3. `pnpm build && pnpm typecheck && pnpm test`
4. `pnpm verify packages/channel- --test` to run contract verification (fixtures + manifest + test suite)
### Adding channel commands
Commands live as factories in `packages/channel-harness/src/commands/`; adding them to the `commandFactories` array registers them with the Agent automatically (official `@deepseek-ai/dsh-commands` format, no bridge changes needed):
```ts
// packages/channel-harness/src/commands/reset.ts
export function createResetCommand(deps: ChannelCommandDependencies): CommandDefinition {
return {
name: 'reset',
description: 'Reset the current session',
async handler(invocation) {
if (invocation.rawInput.trim().length > 0) return { kind: 'error', text: 'Usage: /reset' };
if (invocation.agent.status !== 'idle') return { kind: 'error', text: 'The current session is still running, please try again later.' };
// ...call the bridge capability provided by deps
return { kind: 'success', text: 'Session reset.' };
},
};
}
```
- `commandFactories` is the single registration point: `['createNewCommand', createResetCommand]`
- When a new bridge capability is needed, add a method (platform-agnostic) to `ChannelCommandDependencies` and implement it on the bridge side
### Commit and release
- **Commit**: Conventional Commits (`feat(scope): ...` / `fix(scope): ...` / `docs: ...`), scope is the package name (e.g. `channel-qq`)
- **PR**: pass CI (build + typecheck + test + contract verification + pre-live-gate checks)
- **Release**: record changes with `pnpm changeset` → `pnpm release` after CI merge (Changesets auto-publishes, see [docs/release.md](docs/release.md))
## 🙏 Acknowledgements
This project builds on the following open-source projects:
- [deepseek-ai/deepseek-harness](https://github.com/deepseek-ai/deepseek-harness) — DeepSeek Harness (`@deepseek-ai/*`)
- [DingTalk-Real-AI/dingtalk-openclaw-connector](https://github.com/DingTalk-Real-AI/dingtalk-openclaw-connector) — DingTalk channel plugin (`@dingtalk-real-ai/dingtalk-connector`)
- [tencent-connect/openclaw-qqbot](https://github.com/tencent-connect/openclaw-qqbot) — QQ bot channel plugin (`@tencent-connect/openclaw-qqbot`)
- [larksuite/openclaw-lark](https://github.com/larksuite/openclaw-lark) — Lark channel plugin (`@larksuite/openclaw-lark`)
- [Tencent/openclaw-weixin](https://github.com/Tencent/openclaw-weixin) — WeChat channel plugin (`@tencent-weixin/openclaw-weixin`)
## License
[MIT](LICENSE) © 2026 [wsz987](https://github.com/wsz987)
