# agentpad13

A 13-key macropad for agentic work, designed from scratch: RP2040, USB-C, 12×1U + 1×2U hot-swap
keys, a clickable EC11 encoder, an analog tilt joystick, a capacitive-touch key, and 24 RGB LEDs
(per-key plus edge underglow) that an open Raw HID protocol drives to show what your agents are
doing — thinking, running, waiting, done, one key each.

## Build one

### → [Open the configurator](https://yuz207.github.io/agentpad13/configurator/site/)

Pick your options, turn the pad around in 3D, and get back an order sheet where every line links to
the exact file you upload to a fab or drop into a slicer. That is the way in. Prefer paper?
[`release/HOW-TO-ORDER.md`](release/HOW-TO-ORDER.md) is the same thing, static.

<p align="center">
  <img src="release/renders/v27_hero.png" alt="agentpad13 v5 board in the v2 case, from CAD" width="72%">
</p>

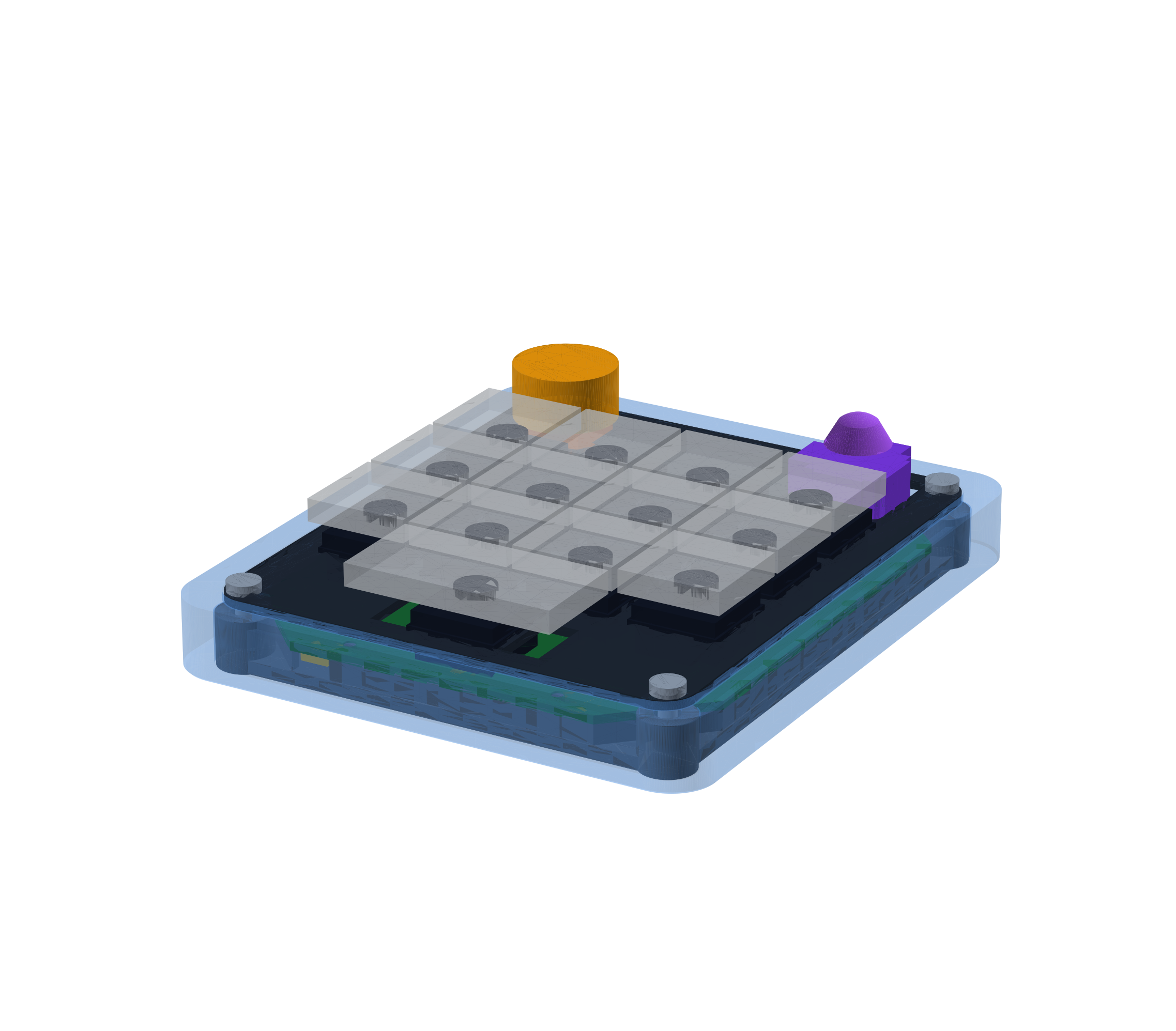

<p align="center"><sub>The shipping v5 board in the v2 case, straight from the CAD.</sub></p>

## What is where

```
release/            The bundle — everything you order, print or flash.
  HOW-TO-ORDER.md     The configurator's static form.
  RELEASE.md          What shipped and why, section by section.
  MANIFEST.md         Every file in the bundle with its md5 and byte count.
  hardware/           Board fab package, case, plate, bases, keycaps, toppers, gasket.
  firmware/           Flashable UF2s, BRING-UP.md, POLARITY-NOTE.md.
configurator/       The published site and its consumption assets; current outputs are copied from development.
firmware/           vial-qmk tree, simulations, conformance tests, BUILD.md.
docs/               The Raw HID protocol contract, and the design reviews.
```

Before you send anything to a fab, run `python3 manifest_selfverify.py` — it should print
**9/9 checks PASS**. Every listed file is present with the right hash, and nothing unlisted is
hiding in the bundle.

## Printed toppers already? Print them again

The v1 encoder knobs and stick caps are retired. The current release carries three Ø17.5 encoder
knob styles and three joystick toppers: a compact nub, restored TPU puck, and a conventional Ø12
topper paired with a TPU restrictor. Details are in [`release/RELEASE.md`](release/RELEASE.md) §(f).

## Status

- **PCB — complete.** v5_8, 84.2 × 100 mm, 2-layer, DRC clean, fab package ready to upload. It retains the v5.7 LED correction, adds the Ø4.0 TP5 solder landing, and factory-populates the encoder.
- **Case — complete.** v2.17: FR4 or printed plate, band in three sidewalls, printed tray.
- **Bases — complete.** Three optional printed bases; the case is finished without one.
- **Firmware — validated.** Emulator-booted and protocol-conformant. Flash `agentpad13.uf2`.
- **Configurator — live.** Static files: no build step, no network calls, no dependencies.

### AgentPad13 Direct OAI (experimental alternative)

The isolated `codex_oai` keymap is an experimental alternative for direct
Codex Desktop control. It is not Vial firmware and does not replace the normal,
recommended `release/firmware/prebuilt/agentpad13.uf2`. Codex Desktop talks to
this target directly—no helper, daemon, bridge, or Vial protocol—using the
locked `Codex Micro Lab OAI LED` identity (`303A:8360`, usage `FF00:61`, Report
ID 6, 64-byte reports).

The current unflashed candidate is
`release/firmware/prebuilt/agentpad13_codex_oai.uf2`, 93,696 bytes, SHA-256
`fcb50b2419419be43b7cf90b00a96b16063fcaf182bc24b9642d57e2e8adf54d`.
Start with the [keymap contract](firmware/loudest_micro/keymaps/codex_oai/README.md),
[source hand-off](firmware/CODEX-OAI-SOURCE.md), and
[Direct OAI build procedure](firmware/BUILD.md#agentpad13-direct-oai-experimental-alternative).
Run the complete host suite from the repository root:

```sh
python3 -m unittest discover -s firmware/tests/codex_oai -p 'test_*.py'
```

The checked-in [emulator capture](firmware/evidence/codex-oai-emulator.json)
and [current manifest](firmware/evidence/codex-oai-current-manifest.json) bind
that exact UF2 to the offline USB/protocol/LED checks. Physical validation is
still entirely PENDING; no install or flash occurred. Any future hardware
operation requires the literal authorization and observation record in the
[physical runbook](docs/codex-oai-physical-runbook.md).

## First power-on

Flash [`agentpad13.uf2`](release/firmware/prebuilt/agentpad13.uf2) — hold BOOTSEL and drag the file on. Then hold
SW14, the button in the back, for about a second and follow the 13 key LEDs: the board measures its
own joystick and stores the result. About 15 seconds, no host software, no reflash, once ever —
full procedure in [`release/firmware/BRING-UP.md`](release/firmware/BRING-UP.md). If an axis reads
backwards that is polarity, not calibration:
[`release/firmware/POLARITY-NOTE.md`](release/firmware/POLARITY-NOTE.md).

Firmware source is in [`firmware/loudest_micro/`](firmware/loudest_micro/); the exact Vial/QMK
build recipe and validation commands are in [`firmware/BUILD.md`](firmware/BUILD.md). The plain-QMK,
byte-reproducible build is [`agentpad13_reference.uf2`](release/firmware/prebuilt/agentpad13_reference.uf2).

## Licensing

- `release/hardware/` — **CERN-OHL-W-2.0** (PCB and case CAD).
- `firmware/` and `release/firmware/` — **GPL-2.0-or-later** (QMK/vial-qmk
  derivative), except `firmware/tests/conformance/protocol_oracle.py`, which is
  **MIT**. Corresponding source for the prebuilt UF2s = this tree built against
  [vial-qmk](https://github.com/vial-kb/vial-qmk) per `firmware/BUILD.md`.
