Test-Time Reinforcement Learning for GUI Grounding via Region Consistency

A Test-time reinforcement learning framework for GUI grounding

[Yong Du](mailto:diong666@csu.edu.cn)1,2,\*,   [Yuchen Yan](mailto:yanyuchen@zju.edu.cn)1,\*,   Fei Tang1,   Zhengxi Lu1,   Chang Zong3,
Weiming Lu1,   Shengpei Jiang4,   [Yongliang Shen](mailto:syl@zju.edu.cn)1,† 1Zhejiang University,   2Central South University,   3Zhejiang University of Science and Technology,   4SF Technology [![Paper](https://img.shields.io/badge/paper-A42C25?style=for-the-badge&logo=arxiv&logoColor=white)](https://arxiv.org/abs/2508.05615) [![alphaXiv](https://img.shields.io/badge/discussion-A42C25?style=for-the-badge&logo=arxiv&logoColor=white&color=blue)](https://www.alphaxiv.org/abs/2508.05615) [![Github](https://img.shields.io/badge/GUI_RCPO-000000?style=for-the-badge&logo=github&logoColor=white)](https://github.com/ZJU-REAL/GUI-RCPO)
---

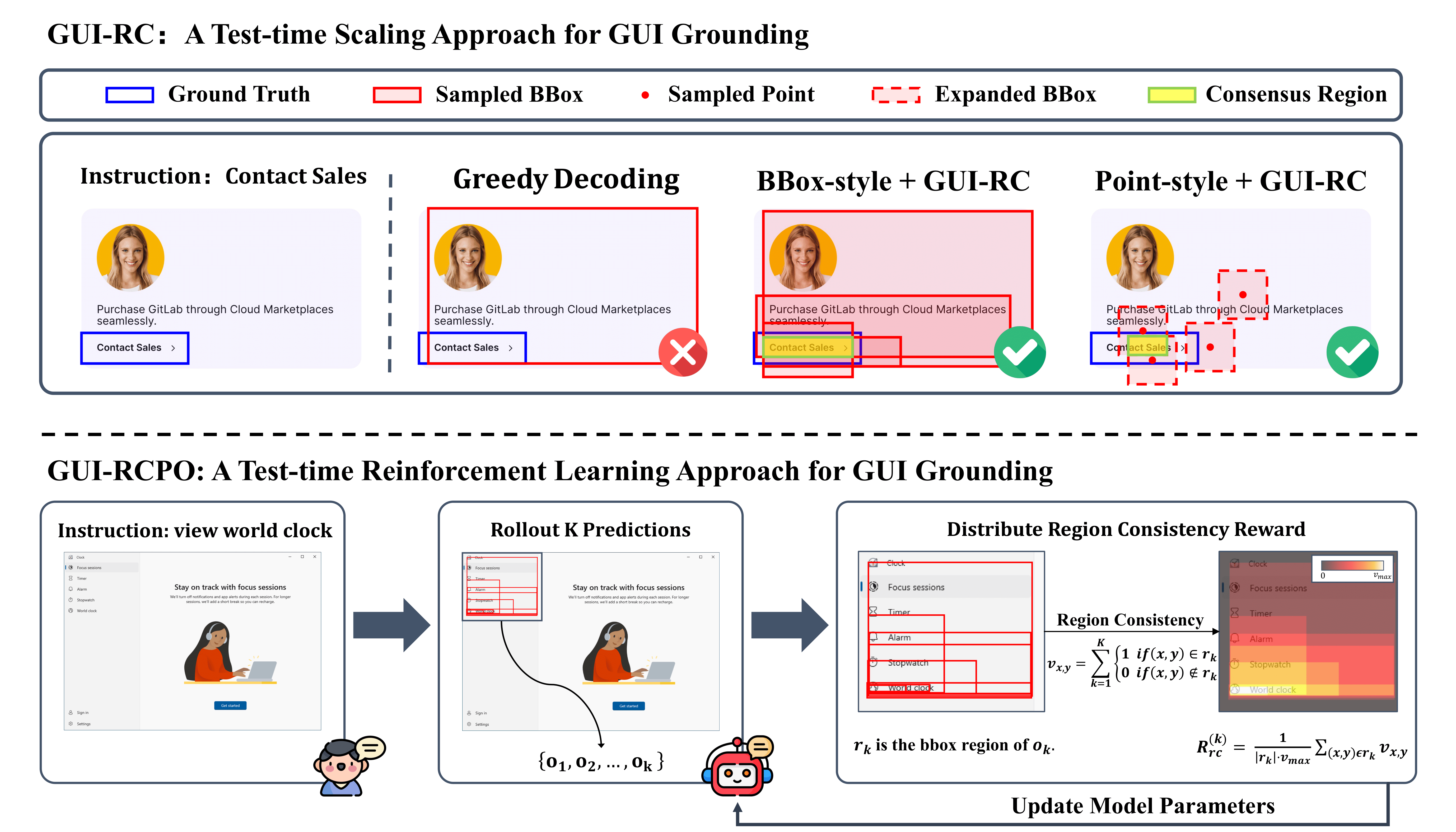

GUI-RCPO Framework

GUI-RC: identify the consensus region across sampling to enable more precise grounding.

GUI-RCPO: transform the region consistency into rewards, and enables models to self-improve on unlabeled data.

--- ## πŸ”₯ News * [2025-11-8] πŸŽ‰ This paper has been accepted by AAAI 2026. * [2025-8-9] We release our codes. * [2025-8-7] We release our paper: **Test-Time Reinforcement Learning for GUI Grounding via Region Consistency**. --- ## πŸ’‘ Motivation Current GUI grounding approaches rely heavily on large-scale pixel-level annotations and training-time optimization, which are expensive, inflexible, and difficult to scale to new domains. we observe that when GUI models generate multiple predictions, spatial overlaps across generations naturally reflect the model's localization confidence. This simple insight leads to a critical question: _**Can we leverage test-time computation to enhance GUI grounding performance without additional labeled data?**_ Motivated by this, we introduce GUI-RC and GUI-RCPO to unlock the untapped potential of region consistency, which enables models to self-improve without the need for labeled data. --- ## ✨ Highlights * **GUI-RC (Region Consistency Voting)**: Aggregates multiple sampled predictions via spatial voting to identify the consensus regionβ€”achieves **+2–3%** accuracy gains **without any training**. * **GUI-RCPO (Region Consistency Policy Optimization)**: Converts region consistency into self-supervised rewards for test-time reinforcement learningβ€”enables models to iteratively **improve on unlabeled data**, reaching **+4–5%** further gains. * **Self-Bootstrapping Capability**: Applying GUI-RC after GUI-RCPO leads to even higher accuracyβ€”demonstrating that our methods support **progressive self-improvement** without external supervision. * **Robust Across Models and Benchmarks**: GUI-RC and GUI-RCPO generalize across multiple models and benchmarks, showing consistent performance boosts. --- ## πŸš€ Quick Start ### Setup ```bash conda create -n ttrl4gui python=3.10 conda activate ttrl4gui bash setup.sh ``` ### Running GUI-RC ```bash cd TTRL4GUI/GUI-RC python evaluation.py ``` Modify the following configurations in `evaluation.py`: - `MODEL_PATH`: Model path - `QUESTION_TEMPLATE`: Prompt template for specific model (default for Qwen2.5-VL) - `TEMPERATURE`: Sampling temperature (default: 0.7) - `SAMPLE_NUM`: Number of samples (default: 64) - `POINT_EXPAND_SIZE`: Click region expansion size (default: 50) ### Training GUI-RCPO ```bash cd TTRL4GUI/VLM-R1 sh run_scripts/run_gui_rcpo_Qwen2.5-VL-3B.sh ``` Modify the following configurations in training scripts: ```bash data_paths="${PROJECT_ROOT}/data/your_dataset/your_data.jsonl" image_folders="${PROJECT_ROOT}/data/your_dataset/images" model_path="your_model_path" ``` Training data should follow the JSONL format demonstrated in: ``` TTRL4GUI/data/screenspot/example_training_data.jsonl ``` ## πŸ“Š Main Results We evaluate our methods on three mainstream GUI grounding benchmarks: SceeenSpot, SceeenSpot-v2 and SceeenSpot-Pro. ### GUI-RC | **Model** | **Mobile Text** | **Mobile Icon** | **Desktop Text** | **Desktop Icon** | **Web Text** | **Web Icon** | **SSv2.avg** | **SSv1.avg** | **SSPro.avg** | |-----------|----------------|----------------|-----------------|-----------------|--------------|--------------|--------------|--------------|---------------| | InternVL3-2B-Instruct | 89.92 | 76.44 | 38.89 | 26.19 | 46.43 | 25.32 | 52.75 | 51.02 | 1.03 | | w/ **GUI-RC** | 89.92 | 77.49↑ | 38.33 | 24.60 | 46.07 | 27.00↑ | 52.91 (+0.16) | 52.20 (+1.18) | 1.33 (+0.30) | | InternVL3-8B-Instruct | 94.19 | 79.58 | 79.44 | 53.17 | 91.07 | 71.73 | 80.97 | 79.72 | 13.28 | | w/ **GUI-RC** | 94.19 | 81.15↑ | 80.56↑ | 56.35↑ | 91.07 | 71.73 | 81.68 (+0.71) | 80.03 (+0.31) | 12.46 (-0.82) | | Qwen2.5-VL-3B-Instruct | 97.67 | 75.92 | 85.56 | 59.52 | 84.64 | 65.82 | 80.11 | 76.97 | 20.18 | | w/ **GUI-RC** | 98.84↑ | 77.49↑ | 90.00↑ | 64.29↑ | 87.14↑ | 67.93↑ | 82.63 (+2.52) | 78.46 (+1.49) | 23.59 (+3.41) | | Qwen2.5-VL-7B-Instruct | 98.84 | 84.29 | 86.67 | 73.81 | 88.57 | 78.90 | 86.48 | 84.20 | 19.80 | | w/ **GUI-RC** | 99.92↑ | 85.86↑ | 91.11↑ | 73.02 | 91.79↑ | 81.43↑ | 88.52 (+2.04) | 85.53 (+1.33) | 23.97 (+4.17) | | UGround-V1-7B | 96.51 | 82.72 | 96.11 | 82.54 | 92.50 | 83.12 | 89.62 | 87.11 | 31.50 | | w/ **GUI-RC** | 96.51 | 83.77↑ | 95.56 | 84.13↑ | 92.86↑ | 81.43 | 89.62 (+0.00) | 87.34 (+0.23) | 31.63 (+0.13) | | UI-TARS-1.5-7B | 96.51 | 86.39 | 95.00 | 87.30 | 88.21 | 86.50 | 90.17 | 87.74 | 40.92 | | w/ **GUI-RC** | 96.12 | 86.91↑ | 96.11↑ | 90.48↑ | 90.36↑ | 86.50 | 91.12 (+0.95) | 88.52 (+0.78) | 41.18 (+0.26) | | OS-Atlas-Base-7B | 91.47 | 72.25 | 88.33 | 64.29 | 86.43 | 72.57 | 80.82 | 79.80 | 18.41 | | w/ **GUI-RC** | 91.47 | 78.53↑ | 88.89↑ | 68.25↑ | 89.29↑ | 76.37↑ | 83.57 (+2.75) | 81.45 (+1.65) | 19.67 (+0.16) | ### GUI-RCPO | **Model** | **Mobile Text** | **Mobile Icon** | **Desktop Text** | **Desktop Icon** | **Web Text** | **Web Icon** | **SSv2.avg** | **SSv1.avg** | **SSPro.avg** | |-----------|----------------|----------------|-----------------|-----------------|--------------|--------------|--------------|--------------|---------------| | Qwen2.5-VL-3B-Instruct | 97.67 | 75.92 | 85.56 | 59.52 | 84.64 | 65.82 | 80.11 | 76.97 | 20.18 | | w/ **GUI-RCPO** | 98.06↑ | 81.68↑ | 91.11↑ | 65.08↑ | 90.71↑ | 73.42↑ | 85.14 (+5.03) | 82.47 (+5.50) | 24.67 (+4.49) | | Qwen2.5-VL-7B-Instruct | 98.84 | 84.29 | 86.67 | 73.81 | 88.57 | 78.90 | 86.48 | 84.20 | 19.80 | | w/ **GUI-RCPO** | 98.84 | 87.43↑ | 91.11↑ | 76.19↑ | 92.50↑ | 80.17↑ | 88.92 (+2.48) | 86.64 (+2.44) | 25.93 (+6.13) | | UI-TARS-1.5-7B | 96.51 | 86.39 | 95.00 | 87.30 | 88.21 | 86.50 | 90.17 | 87.74 | 40.92 | | w/ **GUI-RCPO** | 97.29↑ | 86.39 | 97.22↑ | 82.54 | 91.07↑ | 87.34↑ | 90.96 (+0.79) | 88.60 (+0.86) | 41.43 (+0.51) | --- ## Showcases ### 1. Mitigating misleading hallucinations The instruction asks _"check shoes under 50 dollars in 'shop deals in fashion' part"_, but under greedy decoding, the model mistakenly selects the region of "tops under 25 dollars". After applying GUI-RC, the consensus region successfully matches the ground-truth bounding box.

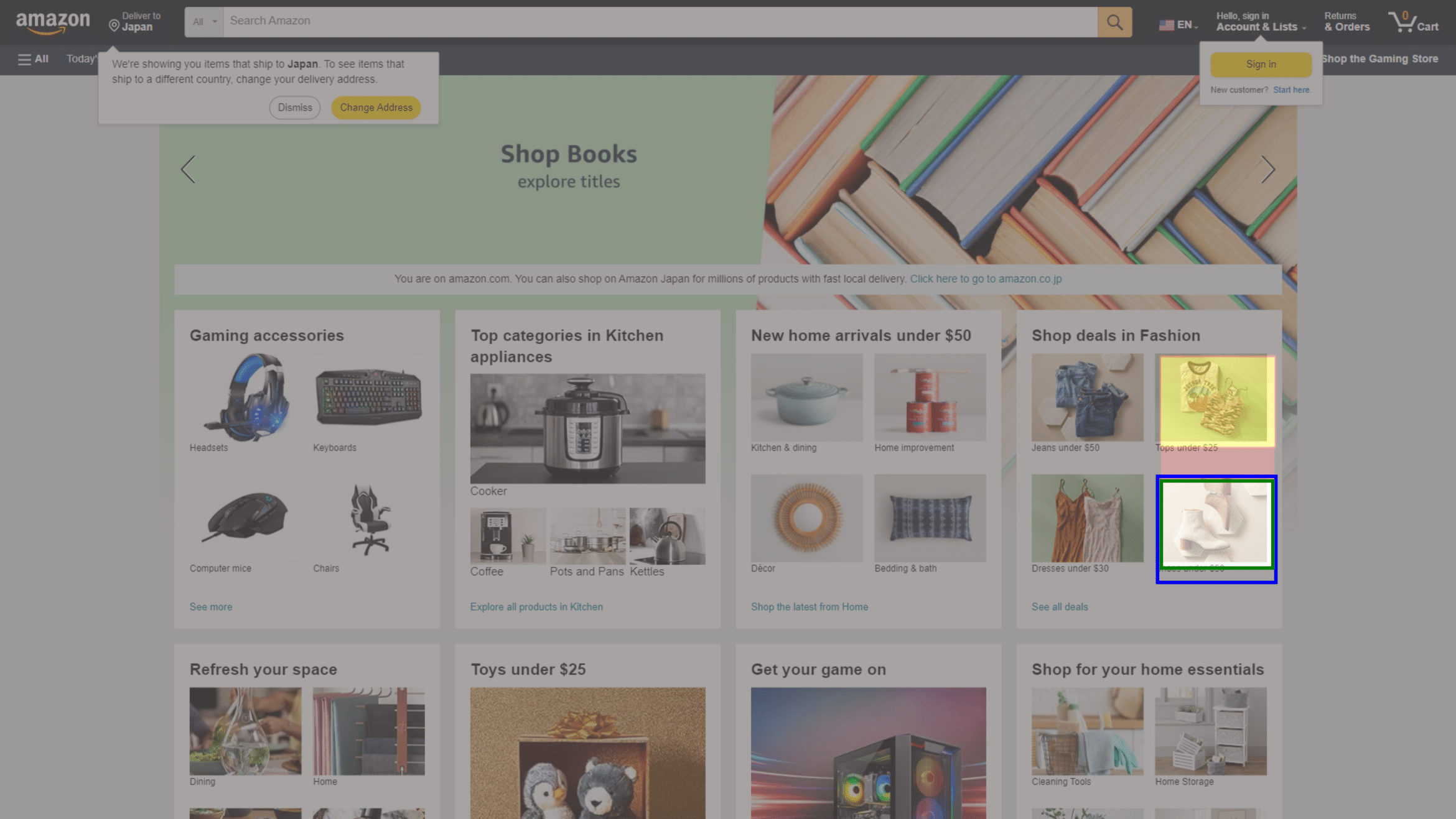

Greedy Decoding GUI-RC

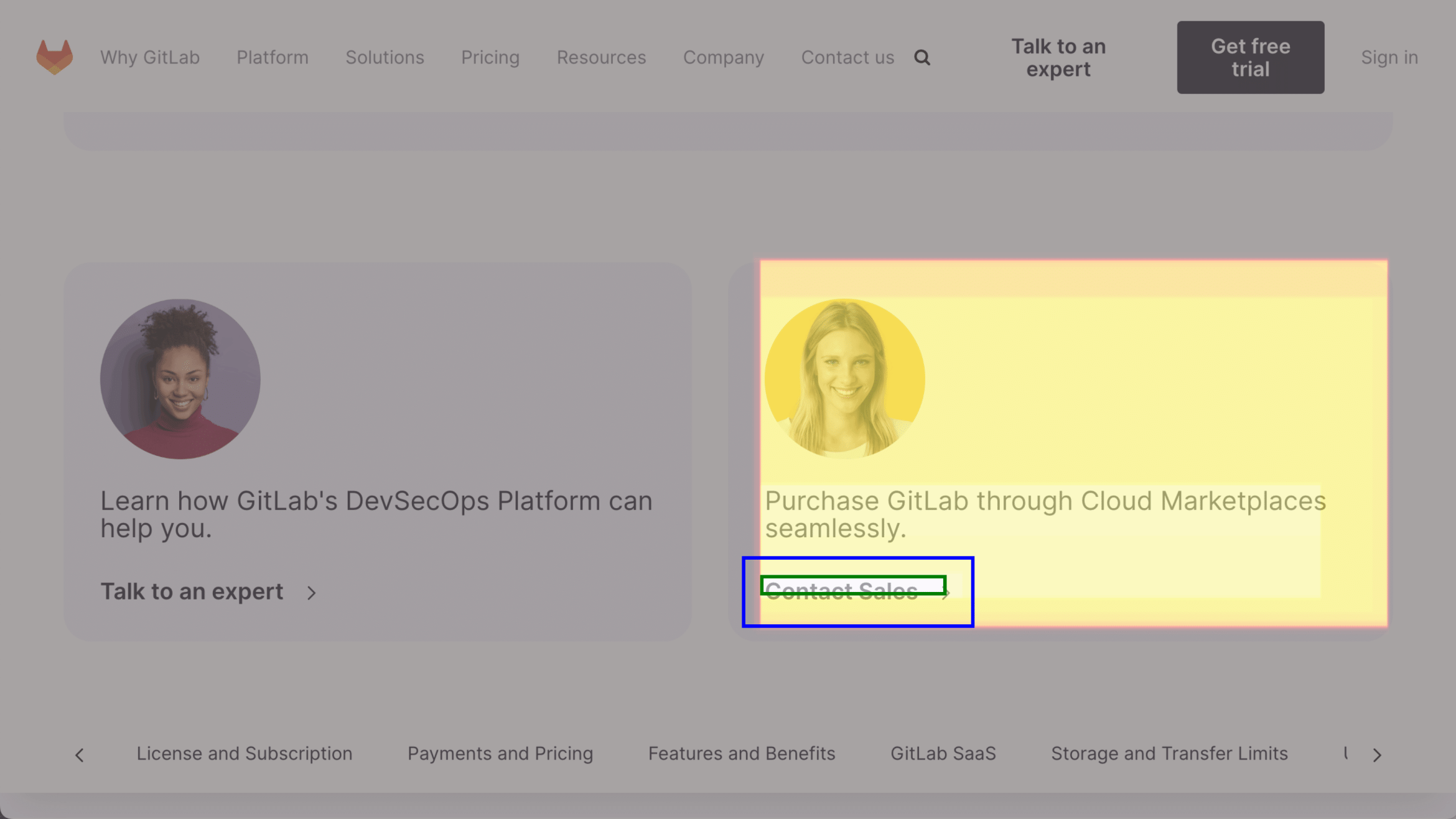

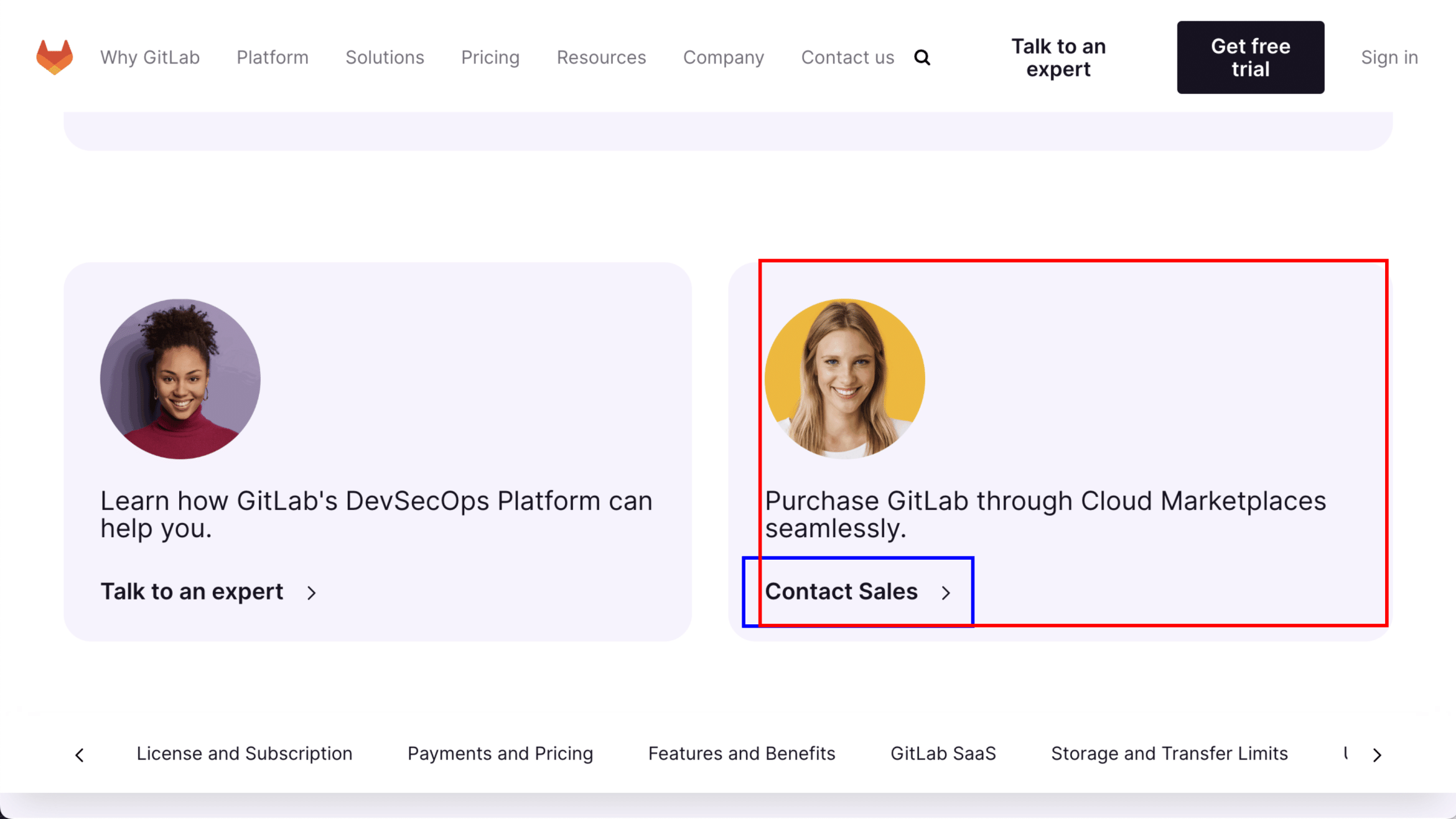

### 2. Mitigating biased hallucinations The instruction asks _"contact sales"_. Although the model understands the general target location, its direct prediction encompasses the entire contact card rather than precisely identifying the "Contact Sales" button. After applying GUI-RC, the consensus region precisely matches the location of the target element.
Greedy Decoding GUI-RC
--- ## πŸ™ Acknowledgement The GUI-RCPO Training code build from [VLM-R1 project](https://github.com/om-ai-lab/VLM-R1). --- ## πŸ“„ Citation Please consider citing our paper if our methods are useful: ```bib @misc{du2025testtimereinforcementlearninggui, title={Test-Time Reinforcement Learning for GUI Grounding via Region Consistency}, author={Yong Du and Yuchen Yan and Fei Tang and Zhengxi Lu and Chang Zong and Weiming Lu and Shengpei Jiang and Yongliang Shen}, year={2025}, eprint={2508.05615}, archivePrefix={arXiv}, primaryClass={cs.CV}, url={https://arxiv.org/abs/2508.05615}, } ```
