    "# Sleep Quality Assessment\n",
    "\n",
    "### Dominique Voso\n",
    "ES155 Final Project<br>\n",
    "May 9, 2016"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "## Introduction\n",
    "\n",
    "There are many different devices available today that claim to measure sleep quality.  From fitness trackers to iPhone apps, there are a wide variety of techniques in use to make these measurements.  However, there exists a difference between the data collected from an EEG compared to that collected from an iPhone microphone.  The question that arises is how accurate are the different methods of assessing sleep quality?  Can physiological signals and actigraphy collected from the Empatica E4 be used to create an algorithm to assess sleep quality? \n",
    "\n",
    "## Background\n",
    "\n",
    "Poor sleep quality can have broad impacts, with up to 40% of US adults having trouble falling asleep or experiencing daytime sleepiness, most likely due to disturbed sleep patterns (Roebuck et al., 2013). The most accurate standard for measuring physiological signals relevant to sleep quality is polysomnography, which measure brain, eye, muscle, and heart activity. However, this is expensive, can typically only be conducted in a sleep lab, and is not practical for long term sleep studies. This has prompted a demand for more accessible options to measure sleep quality.  From this, there have arisen low-cost systems that measure sleep quality, from home sleep recording systems, to fitness trackers like FitBit and Microsoft Band, to the Sleep Cycle iPhone app that tracks quality and sets a \"smart alarm\" to wake a person during the lightest sleep. While some of these systems closely monitor multiple physiological signals, such as heart rate, temperature, and motion, other systems use fewer metrics, such as sound or accelerometer data, with an algorithm to measure sleep quality. In order to have the best impact for people's health, it is important that these systems give an accurate representation of sleep quality. \n",
    "\n",
    "To calculate sleep quality, there first needs to be an understanding the stages of sleep and the physiological signals that are indicators of these.  A night's sleep can be classified into three sections: wakefulness, non-rapid eye movement (nREM) sleep, and rapid eye movement (REM) sleep.  These classifications are made based on EEG changes.  NREM and REM sleep occur in cycles of about 90-110 min, which equates to 4-6 cycles per night (Roebuck et al., 2013).  Though classifying the sleep portion of the night into NREM and REM sleep would be helpful in more accurately measuring sleep quality, it would add an additional degree of complexity to this project.  Going forward from this point, the focus will be on classifying the night into sleep versus wake.\n",
    "\n",
    "Previous research has shown how various physiological signals can be used to classify sleep and wakefulness.  These include, but are not limited to, movement, heart rate, temperature, and electrodermal activity.  Accelerometers have been used to assess movement and have shown that in sleep there are different types of movements, typically of a shorter duration, than those during wake (Lamprecht et al., 2014).  Analysis of variability in heart rate (Aktaruzzaman et al., 2014) and wrist electrodermal activity (Sano et al., 2014) have also been used to classify sleep.  Skin surface temperature has been shown to gradually increase during sleep, though its changes to identify periods of sleep and wake are not as definitive (Sano et al., 2014).  These previous studies give a good starting point for this project and a necessary foundation for the methods used to separate the night's sleep.  Once the night is classified into segments of sleep and wake, they can be used in an algorithm to estimate sleep quality.  Studies have shown that total sleep time, percentage of time sleeping while in bed, wakefulness and number of awakenings are the parameters with the greatest effect on sleep quality (Rospital et al., 2013).\n",
    "\n",
    "#### The goals of this project are as follows:\n",
    "1. Collect physiological data during sleep\n",
    "2. Classify the sleep into sleep vs. wake \n",
    "3. Create an algorithm to assess the sleep quality \n",
    "4. Compare to commerically available systems \n",
    "\n"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "## Data Collection\n",
    "\n",
    "The experimental set up includes the following equipment:\n",
    "- Microsoft Kinect\n",
    "- Empatica E4\n",
    "- Microsoft Band\n",
    "- Sleep Cycle app\n",
    "\n",
    "![](setup.png)\n",
    "\n",

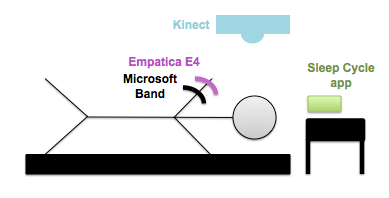

    "The figure above shows how the data was collected.  The Microsoft Kinect was used as a depth camera to record movements throughout the night.  The Empatica E4 was placed at the non-dominant wrist and used for accelerometer, blood volume pulse (BVP), temperature, and EDA measurements.  The Microsoft Band was also placed on the non-dominant wrist, and was used for its sleep quality assessments.  Lastly, an iPhone with the Sleep Cycle app was placed next to the bed, where it used microphone signals to identify movements and output a sleep quality assessment. \n",
    "\n",
    "This set up was used to record data over multiple nights.  Following a few setbacks in which devices malfunctioned, I was able to collect data for two full nights.  In the following sections, one of those nights will be analyzed."
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "## Microsoft Kinect \n",
    "\n",

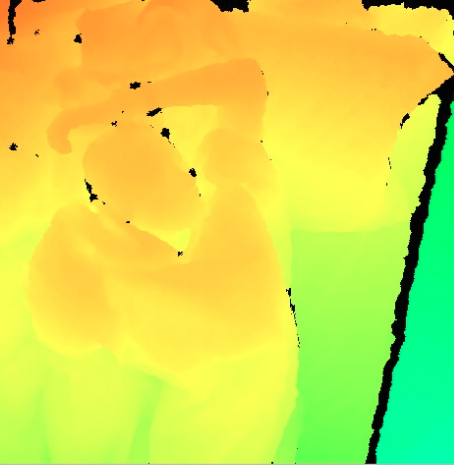

    "The video from the kinect depth sensor was recorded at a frame rate of 1 frame per second throughout the entire night.  An example frame from the camera is shown below, in which you can see the head with the arm placed above it. \n",
    "<br>\n",
    "![](kinect_pic.png)\n",
    "<br>\n",
    "Following the night of sleep, the video was manually analyzed and the type and duration of each movement was recorded.  This was used as a baseline for comparison for the accelerometer data.  The camera shows when the movement actually happened, and it is useful for verification that the accelerometer data also captures this.\n",
    "\n",
    "First, we'll have to import some useful packages, set some constants, and import the data."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 1,
   "metadata": {
    "collapsed": false
   },
   "outputs": [
    {
     "name": "stdout",
     "output_type": "stream",
     "text": [
      "Populating the interactive namespace from numpy and matplotlib\n"
     ]
    }
   ],
   "source": [
    "# Import some useful packages\n",
    "import numpy as np\n",
    "import scipy as sp\n",
    "from scipy import signal\n",
    "import pandas as pd\n",
    "import matplotlib\n",
    "import matplotlib.pyplot as plt  \n",
    "import sklearn\n",
    "import peakutils\n",
    "import csv \n",
    "%pylab inline\n",
    "%matplotlib inline \n",
    "\n",
    "fa = 32\n",
    "fb = 64\n",
    "ft = 4\n",
    "fe = 4\n",
    "m = 60 # seconds in a min\n",
    "hr = 3600 # seconds in an hour\n",
    "\n",
    "matplotlib.rcParams.update({'font.size': 14})"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 2,
   "metadata": {
    "collapsed": false
   },
   "outputs": [],
   "source": [
    "# import the empatica data\n",
    "acc = pd.read_csv('ACC67.csv',sep=',',dtype=float64,skiprows=(2+4*fa)).values\n",
    "bvp = pd.read_csv('BVP67.csv',sep=',',dtype=float64,skiprows=(2+4*fb)).values\n",
    "temp = pd.read_csv('TEMP67.csv',sep=',',dtype=float64,skiprows=(2+4*ft)).values\n",
    "eda = pd.read_csv('EDA67.csv',sep=',',dtype=float64,skiprows=(2+4*fe)).values\n",
    "\n",
    "accm = pylab.demean(np.sqrt(acc[:,0]**2+acc[:,1]**2+acc[:,2]**2))\n",
    "# time vectors in seconds \n",
    "timea = np.arange(np.size(accm))*float(1)/fa\n",
    "timeb = np.arange(len(bvp))*(float(1)/fb)\n",
    "timee = np.arange(len(eda))*(float(1)/fe)\n",
    "timet = np.arange(len(temp))*(float(1)/ft)"
   ]
  },
  {
   "cell_type": "markdown",
   "metadata": {},
   "source": [
    "#### Importing Kinect Data\n",
    "The movements identified in the kinect video are stored in a .csv file that specifies the hour, minute, and second that the movement began and the duration of the movement.  We can import them here and create a binary array that shows when movement happened, and identify each movement as short (< 6s), medium (6-10s), or long (> 10s).  Then, we can plot this binary array and compare it with the accelerometer data from the Empatica."
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 3,
   "metadata": {
    "collapsed": false
   },
   "outputs": [],
   "source": [
    "# import the kinect data\n",
    "kinect_moves = pd.read_csv('kinect_moves67.csv',sep=',',dtype=float64,skiprows=1).values\n",
    "\n",
    "kinect_binary = zeros(len(accm))\n",
    "lab = zeros(len(accm)) # label each movement as short, medium, or long\n",
    "\n",
    "for i in np.arange(np.size(kinect_moves,axis=0)):\n",
    "    tstart = fa*(hr*kinect_moves[i,0]+m*kinect_moves[i,1]+kinect_moves[i,2])\n",
    "    tend = tstart+fa*kinect_moves[i,3]\n",
    "    kinect_binary[tstart:tend] = 1\n",
    "    if kinect_moves[i,3] < 6:\n",
    "        lab[tstart:tend] = 1\n",
    "    elif kinect_moves[i,3] > 10:\n",
    "        lab[tstart:tend] = 3\n",
    "    else:\n",
    "        lab[tstart:tend] = 2\n"
   ]
  },
  {
   "cell_type": "code",
   "execution_count": 5,
   "metadata": {
    "collapsed": false
   },
   "outputs": [
    {
     "data": {
      "image/png": [
