Enterprise-grade self-hosted AI assistant
Feishu · WeChat iLink (WxClaw) · Built-in Web console · LiteLLM multi-model
---
## What it is
**OpenFox** runs on your own machine: it brings **LLM chat, scheduled jobs, Feishu bot, WeChat iLink (WxClaw) bot, browser tools, MCP, and local skills** together in one HTTP service. It ships with an **embedded Web UI** at `/web`, and you can chat from **Feishu** or **WeChat** when **WxClaw** is enabled.
| Path | Description |
|------|-------------|
| `~/.openfox/config.json` | Main JSON config (validated at load time); see **Configuration** below |
| `~/.openfox/storage.db` | **SQLite** storage for sessions and scheduling |
| `~/.openfox/skills` | Local **Skills** root (`SKILLS_PATH` in `openfox/utils/const.py`); on first run, if missing, copied from packaged `openfox/skills` (see `openfox/core/skills.py`) |
---
## Configuration (`~/.openfox/config.json`)
OpenFox reads a single JSON file at **`~/.openfox/config.json`**. Fields map to the `Config` model in `openfox/schemas/config.py` (unknown keys are ignored where applicable; invalid values fail at startup). **Do not commit real API keys or tokens**—treat this file like a secret.
| Key | Purpose |
|-----|---------|
| `agent_id` | Agent identifier shown in AgentOS / Web UI (default `OpenFox`). |
| `docs_enabled` | Whether FastAPI **OpenAPI** docs are exposed. |
| `os_security_key` | Shared secret for Web UI and protected HTTP APIs (Bearer token). |
| `cors_origin_list` | Allowed browser origins (e.g. embedded `/web`). Add your host/port if not using default `7777`. |
| `time_zone` | Default timezone string (e.g. `Asia/Shanghai`). |
| `search_knowledge` | When `true`, enables **RAG** (Chroma under `~/.openfox/chromadb`; path is not configured here). |
| `llm` | Chat model: `model_name`, `api_base`, `api_key` (LiteLLM-style id). |
| `knowledge` | RAG details when `search_knowledge` is true: `vector_db` (collection, `search_type`, `embedder`, `reranker`, …), `max_results`, `isolate_vector_search`. |
| `channels` | Integrations: `channels.feishu` (`activate`, `app_id`, `app_secret`, …) and `channels.wxclaw` (`activate`, optional `include_tools` / `exclude_tools` for **WxClawTools**). WxClaw uses QR login; tokens persist under `~/.openfox/channels/wxclaw/` (see `WxClawTools` / `OPENFOX_HOME_PATH`). |
| `mcps` | List of MCP server entries (`command`/`args`/`env` or `url`/`headers`). |
| `tools` | Per-toolkit switches and options (`mcp`, `scheduler`, `shell`, `websearch`, `arxiv`, …); each may include `activate`, `include_tools`, `exclude_tools`, and toolkit-specific fields. |
**Valid on-disk JSON**: `~/.openfox/config.json` must be **standard JSON** (double quotes, no `//` comments). The **`jsonc`** snippet below is **documentation only**—remove comments before saving, or paste the object into the Web **Config** editor.
### Full reference example (JSONC; documentation only)
The **key order, nesting, and non-secret values** match a full on-disk layout; secrets are **placeholders**. On disk the file must be **plain JSON** (no `//` comments).
```jsonc
{
// Agent identity
"agent_id": "OpenFox",
"docs_enabled": true,
"os_security_key": "",
// Browser / API origins (update if you change the listen port)
"cors_origin_list": [
"http://127.0.0.1:7777",
"http://localhost:7777"
],
"time_zone": "Asia/Shanghai",
// Enable RAG / knowledge search
"search_knowledge": true,
// Main chat model (LiteLLM)
"llm": {
"model_name": "deepseek/deepseek-chat",
"api_base": "https://api.deepseek.com",
"api_key": ""
},
// Channel integrations (Feishu + optional WeChat iLink)
"channels": {
"feishu": {
"activate": true,
"app_id": "",
"app_secret": ""
},
"wxclaw": {
"activate": false
}
},
// MCP servers: each entry is stdio (command+args) or HTTP (url+headers)
"mcps": [
{
// Display name
"name": "weibo",
// stdio: uvx --from Git runs the MCP without a prior install
"command": "uvx",
"args": [
"--from",
"git+https://github.com/InfernalAzazel/mcp-server-weibo.git",
"mcp-server-weibo"
],
"env": {},
// stdio: leave url empty
"url": "",
"headers": {},
"tool_timeout": 60
},
{
"name": "chrome-devtools",
// stdio: npx runs a published Node MCP package
"command": "npx",
"args": ["chrome-devtools-mcp@latest"],
"env": {},
"url": "",
"headers": {},
"tool_timeout": 60
}
],
// RAG: Chroma + embedder + reranker
"knowledge": {
"vector_db": {
"collection": "docs",
"name": "OpenFox Knowledge",
"description": "OpenFox Knowledge",
"id": null,
"distance": "cosine",
"persistent_client": true,
"search_type": "hybrid",
"hybrid_rrf_k": 60,
"batch_size": null,
"reranker_enabled": true,
"embedder": {
"id": "openai/text-embedding-v4",
"api_key": "",
"api_base": "https://dashscope.aliyuncs.com/compatible-mode/v1",
"request_params": {
"encoding_format": "float"
},
"enable_batch": false,
"batch_size": 20
},
"reranker": {
"model": "dashscope/qwen3-rerank",
"api_key": "",
"api_base": "https://dashscope.aliyuncs.com/compatible-api/v1/reranks",
"top_n": null,
"request_params": null
}
},
"max_results": 10,
"isolate_vector_search": false
},
// Toolkit toggles and options
"tools": {
"mcp": {
"include_tools": null,
"exclude_tools": null,
"activate": true
},
"scheduler": {
"include_tools": null,
"exclude_tools": null,
"activate": true
},
"shell": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"base_dir": null,
"enable_run_shell_command": true,
"all": false
},
"websearch": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"enable_search": true,
"enable_news": true,
"backend": "auto",
"modifier": null,
"fixed_max_results": null,
"proxy": null,
"timeout": 10,
"verify_ssl": true,
"timelimit": null,
"region": null
},
"arxiv": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"enable_search_arxiv": true,
"enable_read_arxiv_papers": true,
"download_dir": null
},
"hackernews": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"enable_get_top_stories": true,
"enable_get_user_details": true,
"all": false
},
"pubmed": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"email": "your_email@example.com",
"max_results": null,
"enable_search_pubmed": true,
"all": false
},
"wikipedia": {
"include_tools": null,
"exclude_tools": null,
"activate": true
},
"crawl4ai": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"max_length": 1000,
"timeout": 60,
"use_pruning": false,
"pruning_threshold": 0.48,
"bm25_threshold": 1.0,
"headless": true,
"wait_until": "domcontentloaded",
"enable_crawl": true,
"all": false
},
"calculator": {
"include_tools": null,
"exclude_tools": null,
"activate": true
},
"docker": {
"include_tools": null,
"exclude_tools": null,
"activate": false
},
"youtube": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"get_video_captions": true,
"get_video_data": true,
"languages": null,
"enable_get_video_captions": true,
"enable_get_video_data": true,
"enable_get_video_timestamps": true,
"all": false
},
"webbrowser": {
"include_tools": null,
"exclude_tools": null,
"activate": true,
"enable_open_page": true,
"all": false
}
}
}
```
If you use the **stdio** MCP entries above, the host running OpenFox needs **`uv` / `uvx`** and **Node.js (with `npx`)** installed, as applicable.
You can edit the live file in the Web **Config** page or via the **expand/config** HTTP API when authenticated. After manual edits on disk, restart `python -m openfox` if the process is already running.
---
## Features
| Capability | Description |
|------------|-------------|
| **Web console** | Chat, session list, usage metrics, **knowledge** (`/knowledge`), **memory** (`/memory`), **evaluations** (`/evals`), **run tracing** (`/traces`), skill upload/management, Cron scheduling, JSON config editor (login required; use `os_security_key` from config) |
| **Knowledge base** | **RAG** over your documents when `search_knowledge` is enabled: **Chroma** vector store under `~/.openfox/chromadb`, embedder/reranker via LiteLLM; manage content in the Web UI (`/knowledge`). |
| **Memory** | **Agent memory** persisted with sessions (e.g. `update_memory_on_run`); browse and manage via the Web UI (`/memory`, backed by `~/.openfox/storage.db`). |
| **Evaluations** | Built-in **evaluation** workflow in the Web UI: measure **performance**, **reliability**, and **accuracy** of your agent or team against datasets and criteria. |
| **Run tracing** | **Trace** each **agent run** end-to-end: inspect spans, sessions, and execution flow stored for observability (Web UI `/traces`). |
| **Feishu** | Event and message intake; DM and group chat (mention the bot) |
| **WxClaw (WeChat iLink)** | Long-poll **WeChat** messages; first-time **QR login** in the terminal; bot token and sync buffer under `~/.openfox/channels/wxclaw/`. Enable with `channels.wxclaw.activate`: `true`. |
| **Scheduled jobs** | Built-in scheduler; enable with `tools.scheduler` (**SchedulerConfig**). Agent toolkit **SchedulerTools** creates recurring tasks (cron → POST Agent run endpoint) |
| **Tools** | See “Built-in Agent tools” below; you can also attach **MCP** via `config.mcps`. JSON config editing in the Web console uses **ConfigTools** (not an Agent chat tool). |
| **Skills** | `SKILL.md` under `SKILLS_PATH` (`~/.openfox/skills`, LocalSkills); upload skill packs from the Web UI |
| **Models** | **LiteLLM** for OpenAI-compatible APIs (see “Models” below) |
---
## Built-in Agent tools
| Tool class | What it does |
|------------|----------------|
| **ShellTools** | Run shell commands on the host where OpenFox runs (Agno) |
| **SchedulerTools** | Registered when `tools.scheduler.activate` is true. Create / list / get / delete / disable jobs; cron expressions invoke this Agent's run endpoint |
| **FeiShuTools** | Feishu outbound messaging toolkit: `send_text_message`, `send_image_message`, `send_file_message`, `send_audio_message`, `send_media_message` |
| **WxClawTools** | WeChat iLink toolkit: `send_text`, `upload_file` (local file → CDN upload → send image/video/file). Use **only** for `@im.wechat` / `channel.type=wxclaw`; do not pass WeChat ids to Feishu tools. |
| **MCPConfigTools** | Add / remove / update MCP-related config in chat to extend tools dynamically |
| **WebSearchTools** | Search the web |
| **ArxivTools** | Search [arXiv](https://arxiv.org/) papers and metadata |
| **HackerNewsTools** | Read Hacker News stories and discussions |
| **PubmedTools** | Search [PubMed](https://pubmed.ncbi.nlm.nih.gov/) biomedical literature |
| **WikipediaTools** | Look up Wikipedia articles and summaries |
| **Crawl4aiTools** | Fetch and parse page content with Crawl4AI (suited to structured extraction) |
| **CalculatorTools** | Evaluate math expressions |
| **DockerTools** | Manage local Docker: containers, images, volumes, networks (Docker must be available) |
| **YouTubeTools** | YouTube: metadata, captions, timestamps, etc. (requires `youtube_transcript_api`) |
| **WebBrowserTools** | Open a URL in the **system default browser** on this machine (new tab or new window) |
---
## Quick start
**Environment**: Python **3.12+**. Install from PyPI:
```bash
pip install openfox
```
**First run**: If `~/.openfox/config.json` is missing, an interactive setup runs (API docs toggle, auth, `os_security_key`, timezone, LLM, Feishu, etc.), then the server starts. Set `channels.wxclaw.activate` to `true` (and optionally `channels.feishu.activate` to `false` if you only use WeChat) to enable **WxClaw**; restart after editing config.
```bash
python -m openfox
# Binds to 0.0.0.0:7777 by default
```
For custom `--host` / `--port`, run `python -m openfox --help` for CLI subcommands and flags.
- **Web UI**: Open `http://127.0.0.1:7777/web` (adjust port as needed).
- **Auth token**: The `os_security_key` value from config; enter it on the Web login page.
- **Non-7777 ports**: Default CORS includes `/web` on `:7777`. If you change the port, add e.g. `http://127.0.0.1:` and `http://localhost:` to `cors_origin_list`, or the frontend may fail API calls.
To re-run setup only, delete `~/.openfox/config.json` and run `python -m openfox` again. Existing config skips the wizard and starts directly.
---
## Feishu integration
Request path prefix is **`/feishu`**.
- Event / webhook example: `http:///feishu/event` (match whatever Feishu Open Platform expects and your routes).
Steps in brief:
1. Create an app on [Feishu Open Platform](https://open.feishu.cn/) and obtain **App ID** and **App Secret**.
2. Configure event subscription and message permissions; set the request URL to your service (public URL or tunnel); fill **Encrypt Key** and **Verification Token**.
3. Write these into `channels.feishu` in `~/.openfox/config.json`, then restart `python -m openfox`.
4. In Feishu DM or group chat, use the app (e.g. @ bot) to talk to OpenFox.
FeiShuTools methods (chat tools):
- `send_text_message`: send plain text or markdown card text.
- `send_image_message`: send by `image_key` or upload from URL/path.
- `send_file_message`: send by `file_key` or upload from URL/path.
- `send_audio_message`: upload/send OPUS audio.
- `send_media_message`: upload/send MP4 video, optional thumbnail.
---
## WxClaw (WeChat iLink)
**WxClaw** is OpenFox’s **WeChat** channel: long-poll inbound messages and reply with text or uploaded image/video/file.
### Prerequisites (WeChat on your phone)
1. Open **WeChat** on the phone → **Me** → **Settings** → **Plugins**.
2. Install **WeChat ClawBot** (微信 ClawBot).
3. On the machine running OpenFox, set **`channels.wxclaw.activate`** to **`true`** in `~/.openfox/config.json`, then start **`python -m openfox`** (restart after config edits).
4. When no bot token is saved yet, a **QR code** is printed in the **terminal** — scan it with **WeChat** to complete login. Tokens and the sync cursor are stored under **`~/.openfox/channels/wxclaw/`** (see `TOKEN_FILE` / `BUF_FILE` in `openfox/tools/wxclaw.py`).
---
## Models (LiteLLM)
OpenFox uses **LiteLLM**. For any provider in [LiteLLM’s supported list](https://docs.litellm.ai/docs/providers) that exposes an OpenAI-style Chat Completions API, you usually only need `llm.model_name`, `llm.api_base`, and `llm.api_key`.
Example model strings (see official docs for the full list):
```text
openai/gpt-4o-mini
deepseek/deepseek-chat
dashscope/qwen-max
ollama/llama3.1
...
```
---
## Screenshots

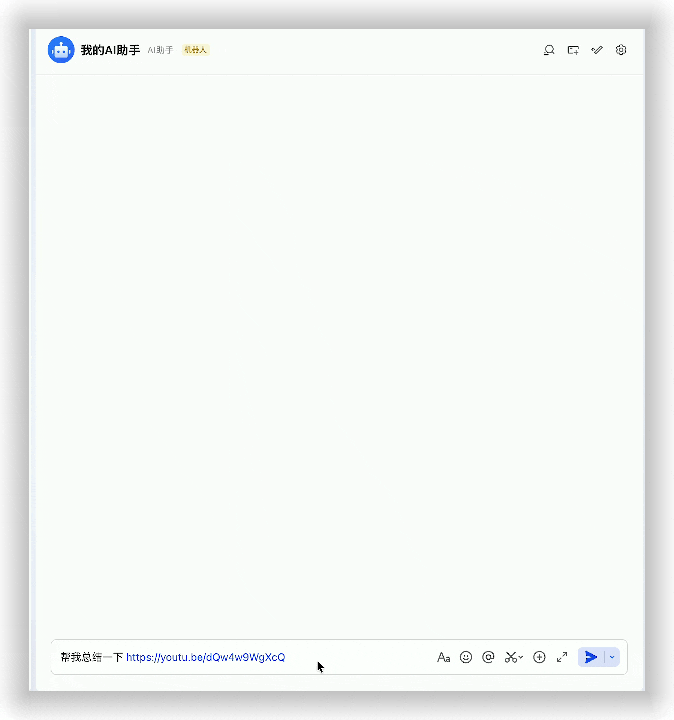

### Feishu
### Web UI

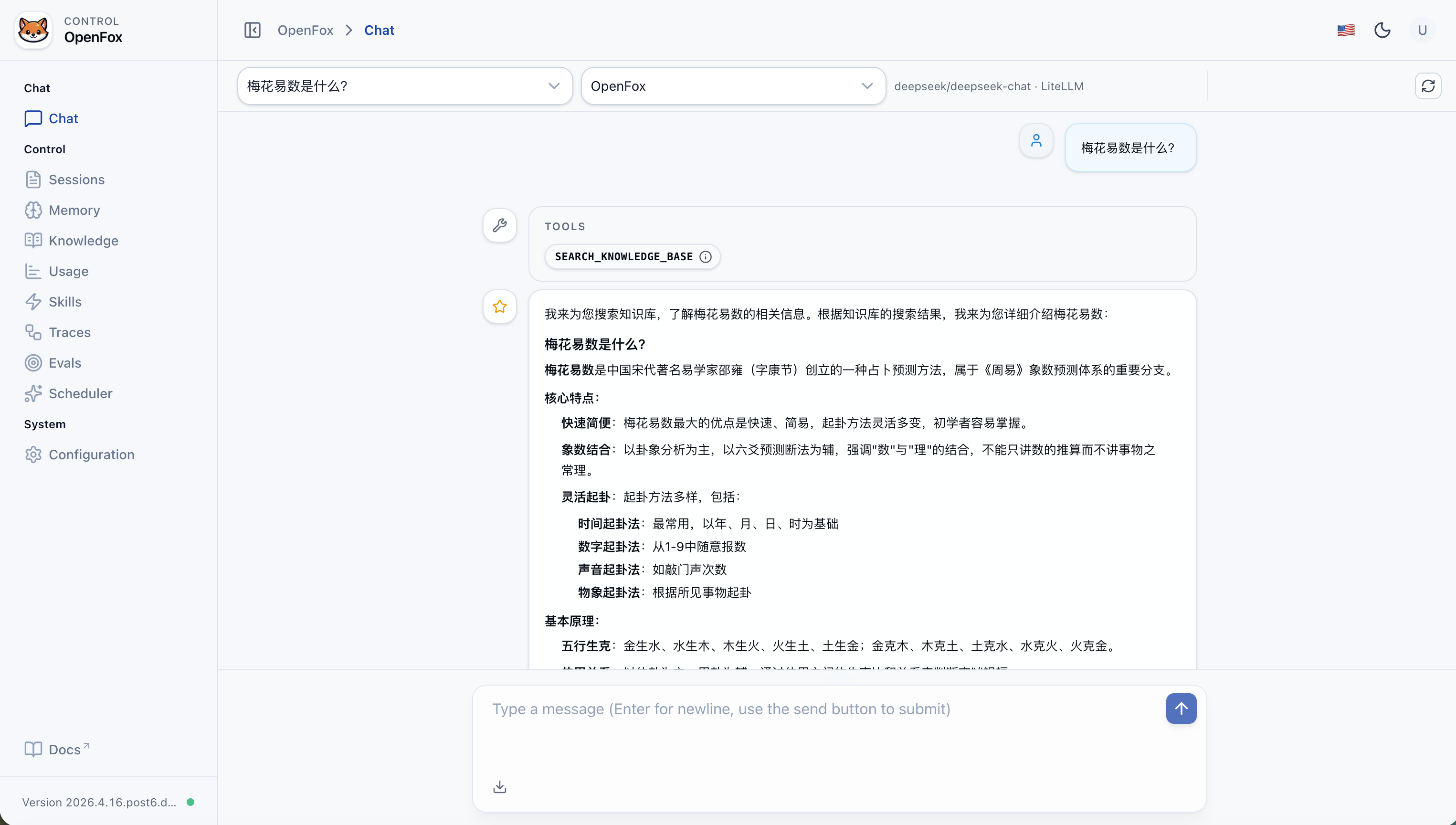

Chat

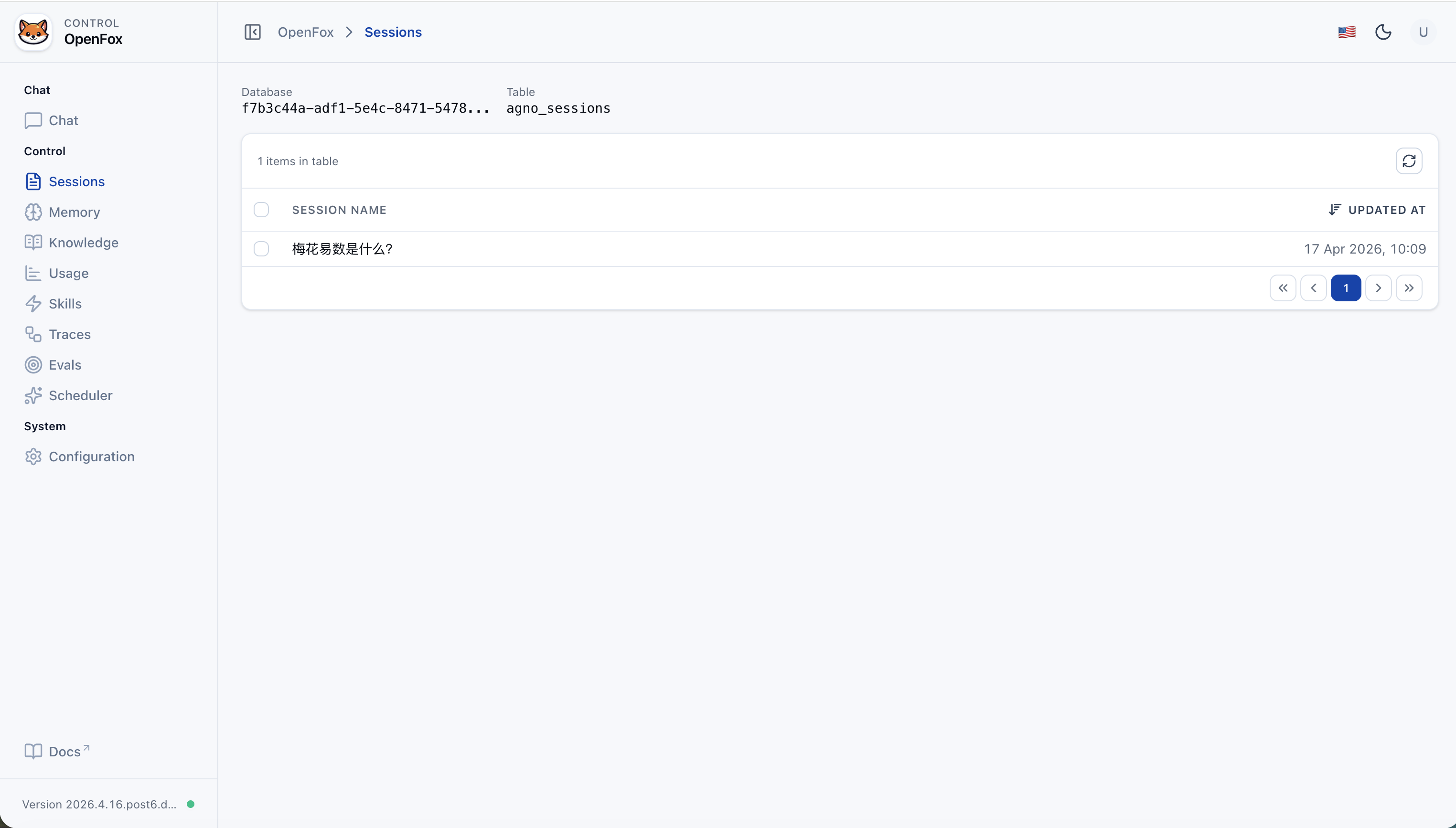

Sessions

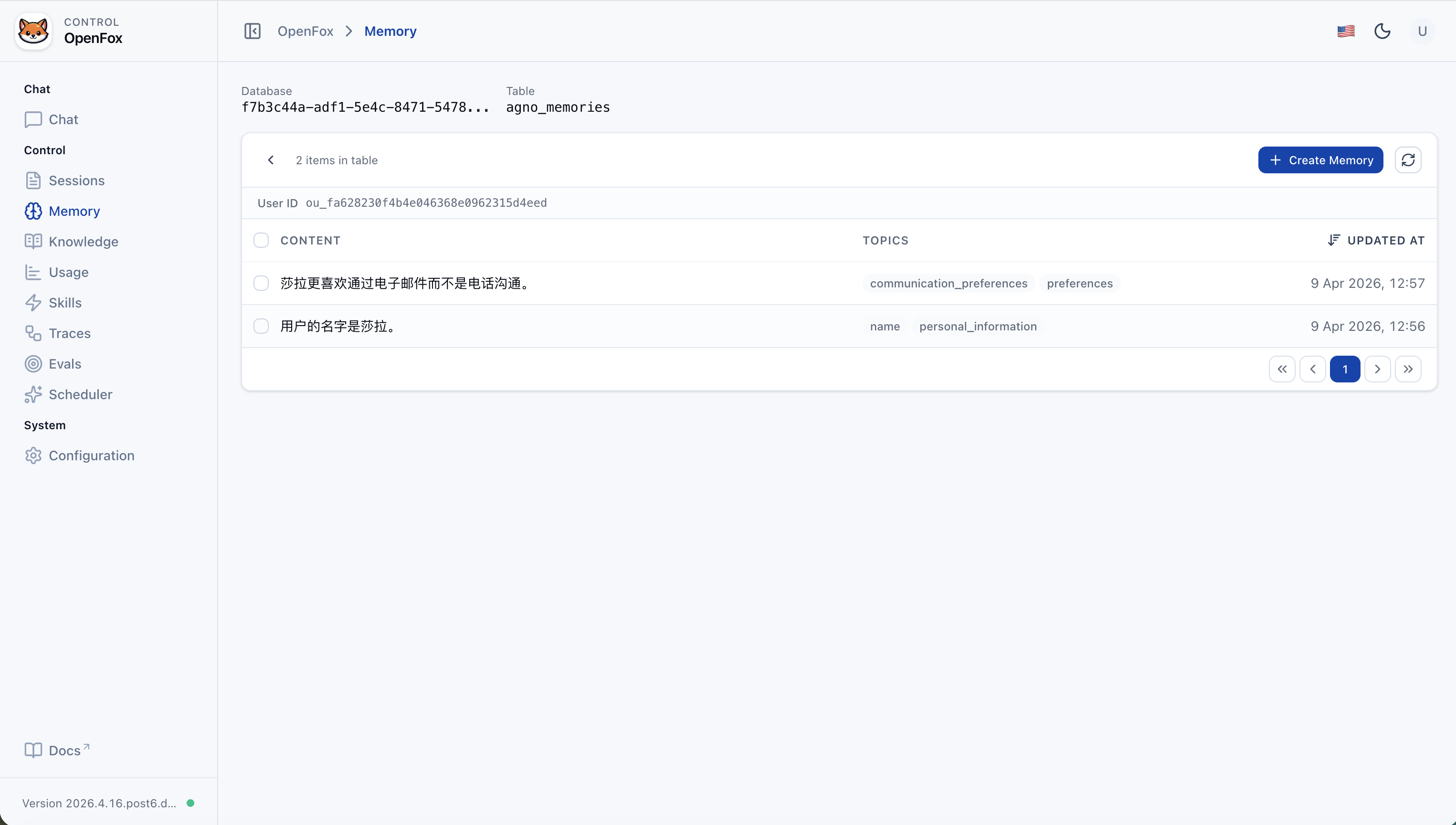

Memory

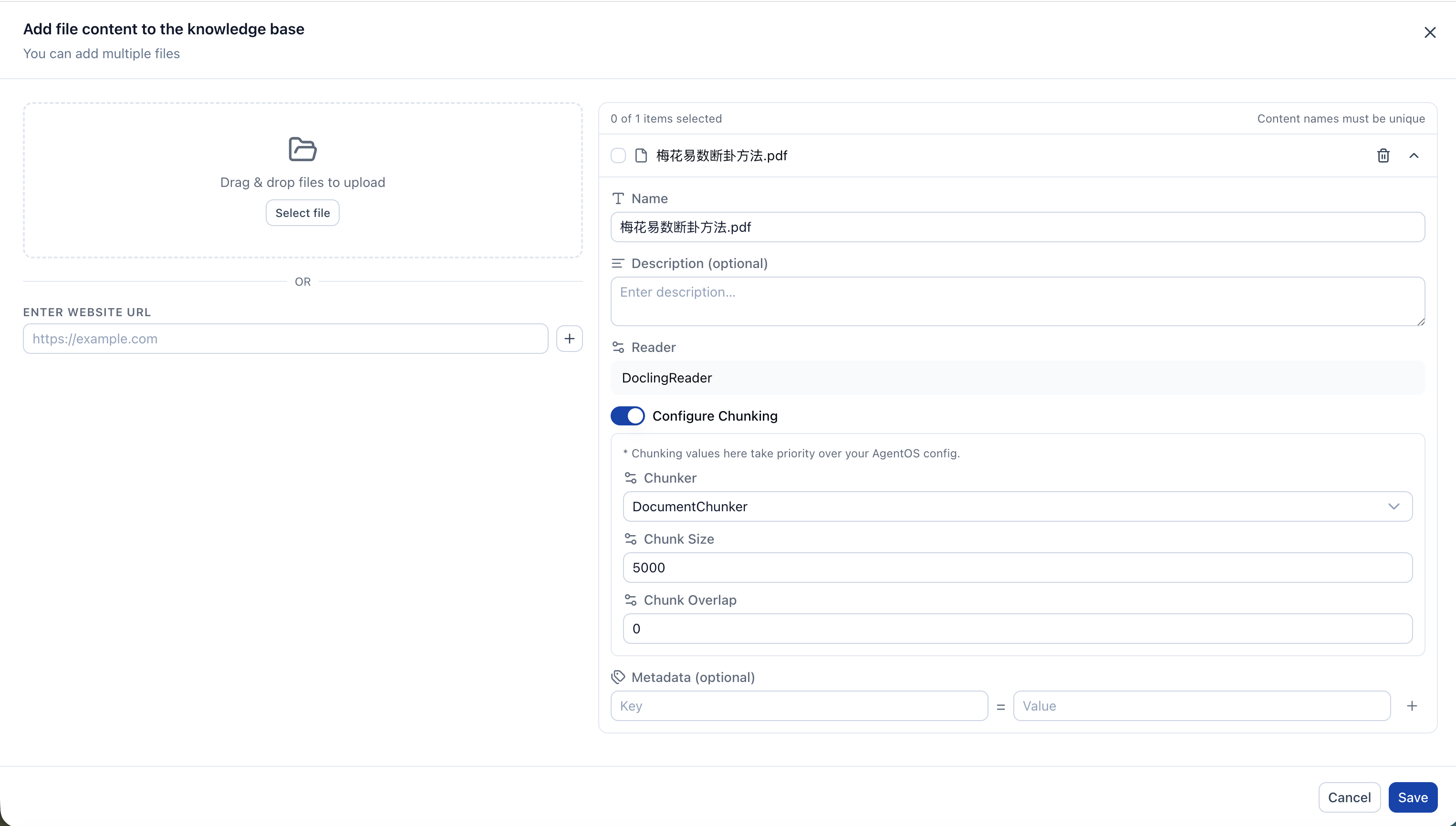

Knowledge (Add content)

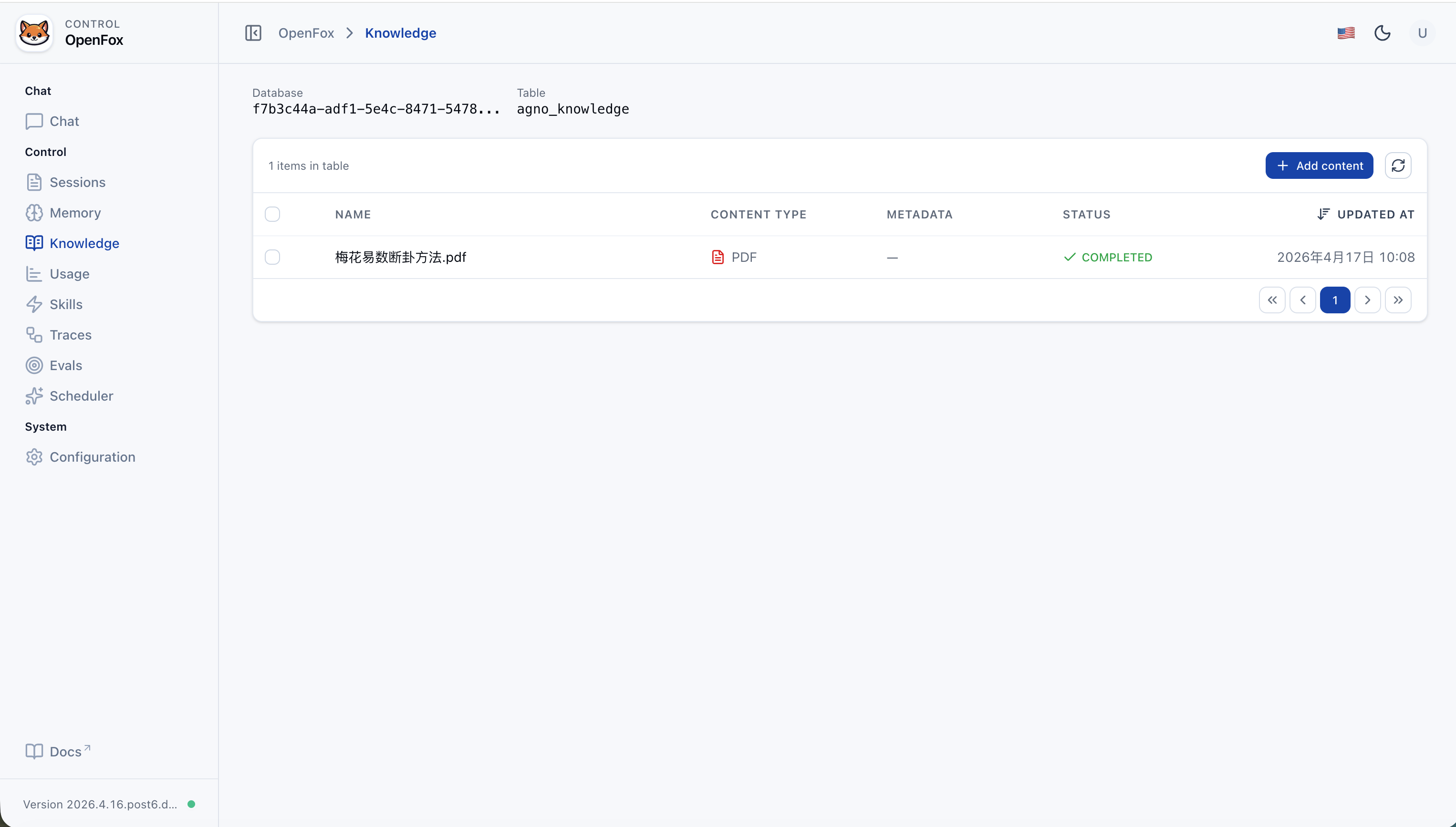

Knowledge (List)

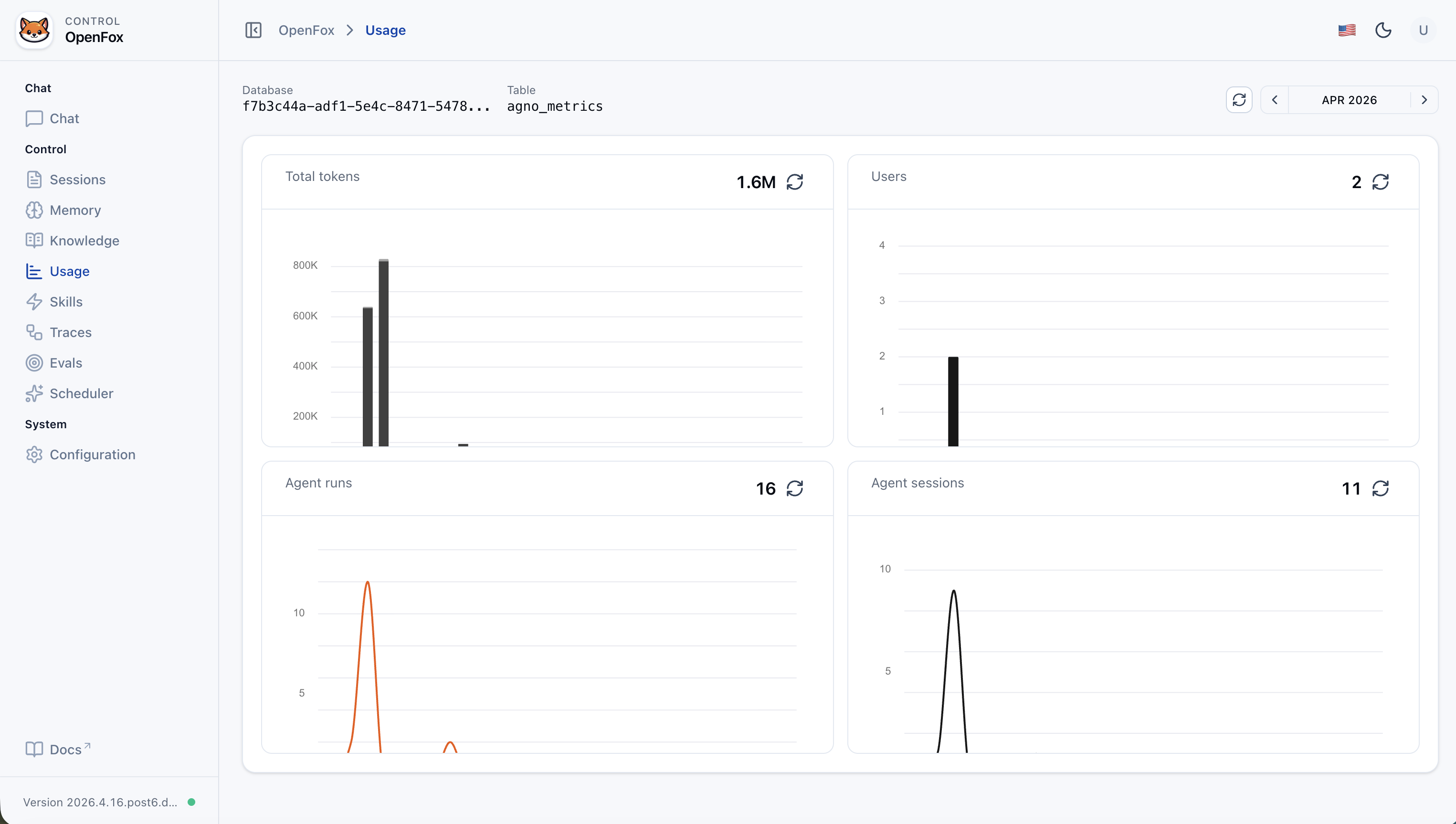

Usage

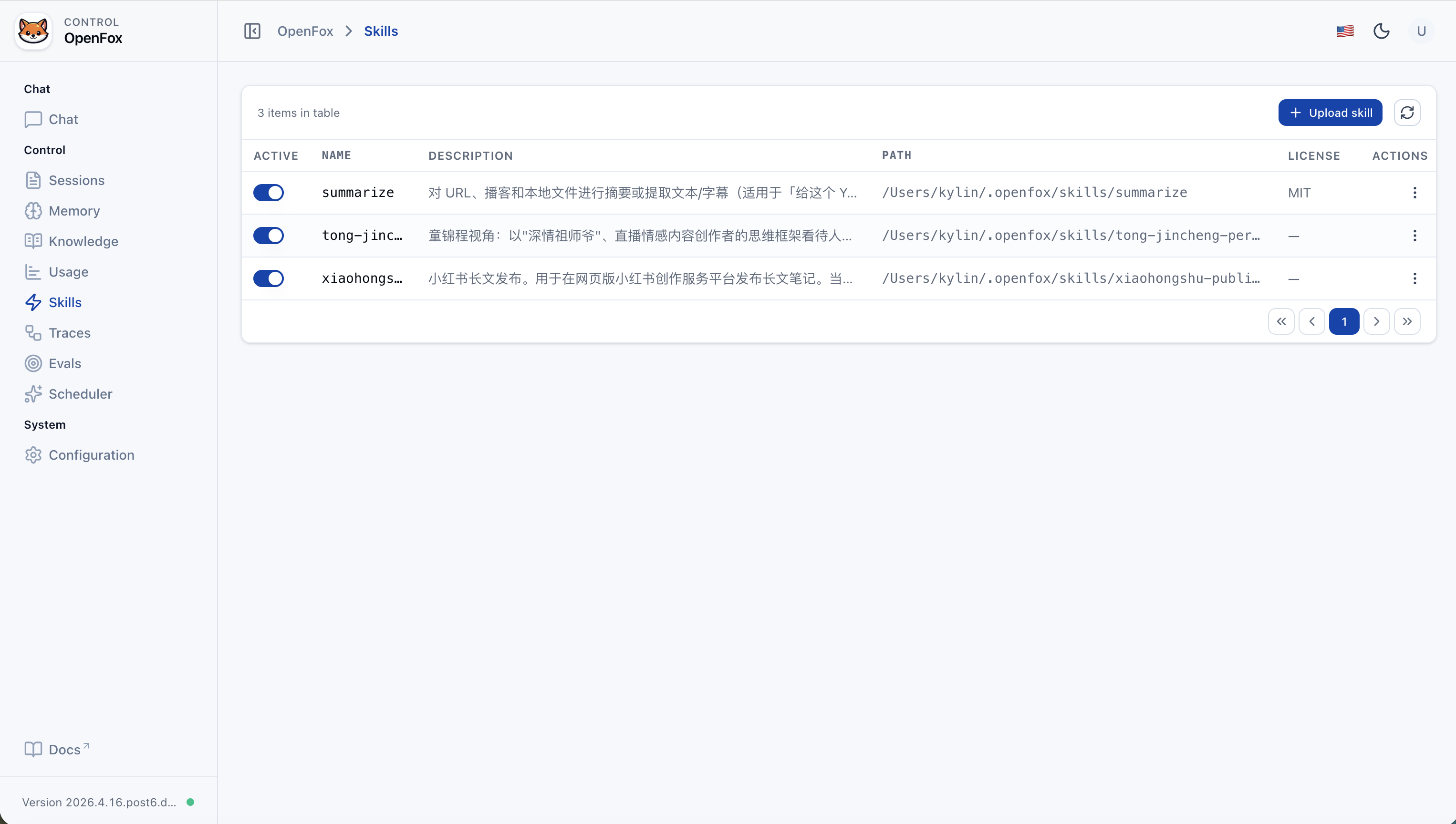

Skills

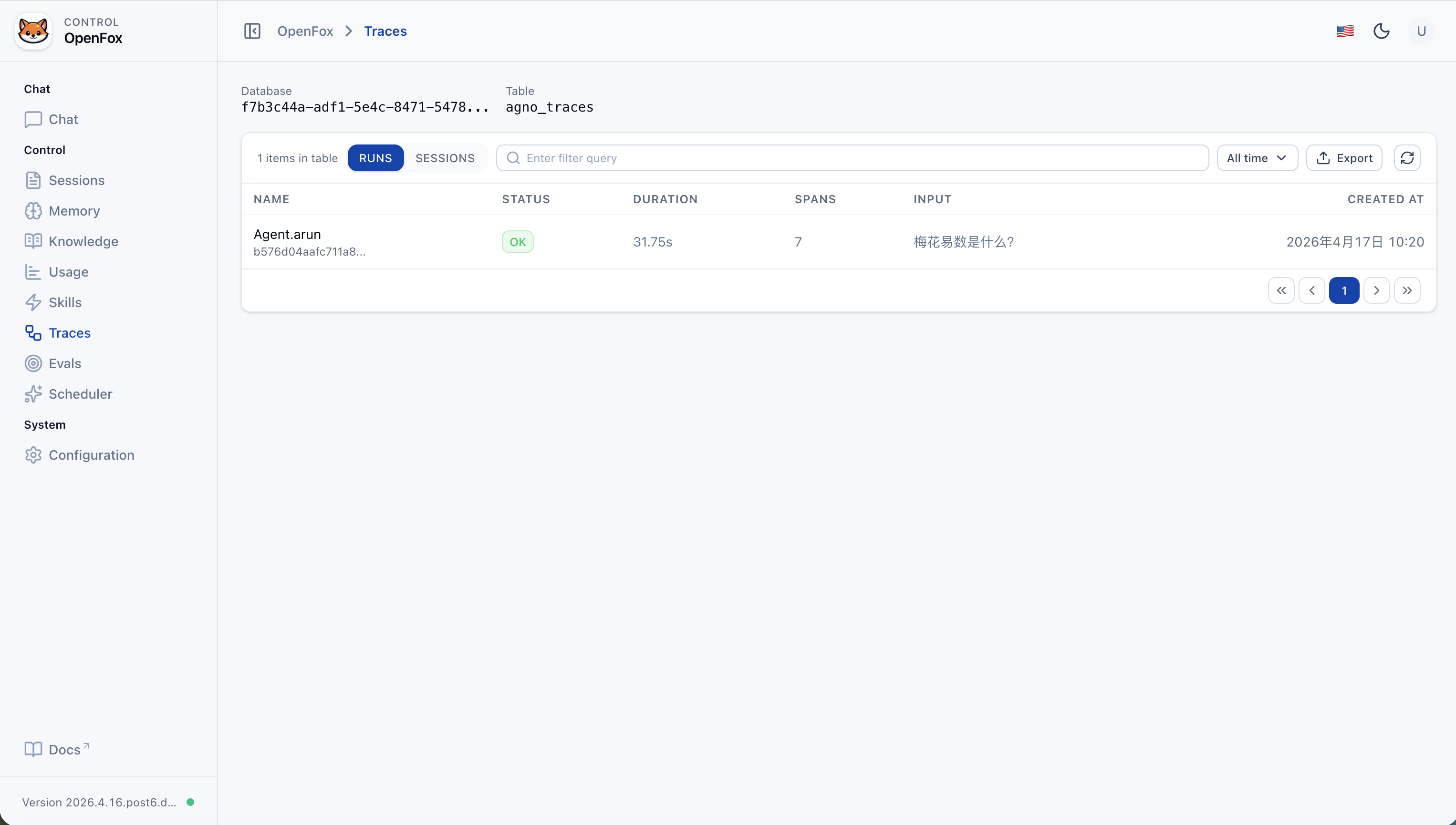

Traces (Runs)

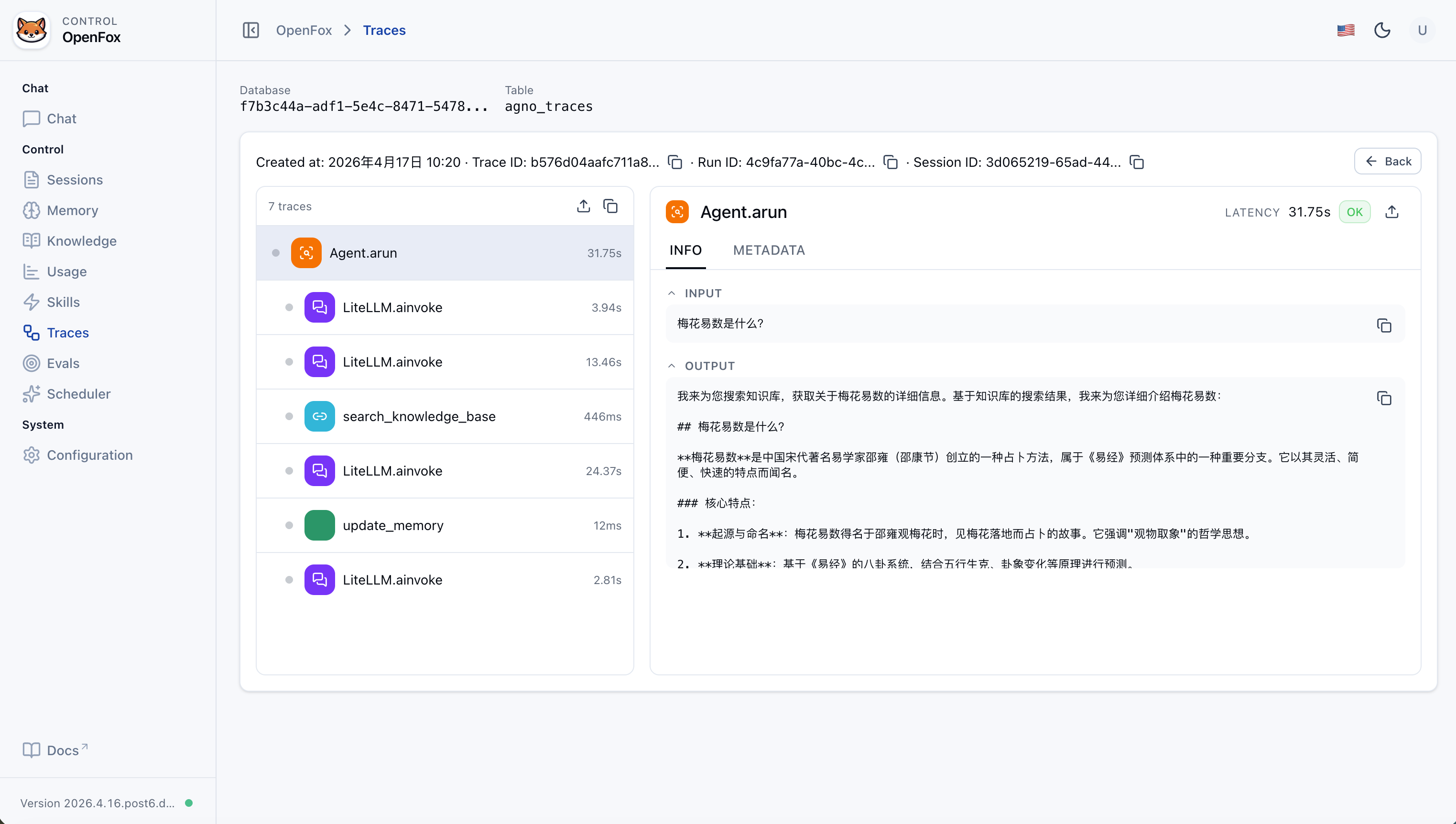

Trace Detail

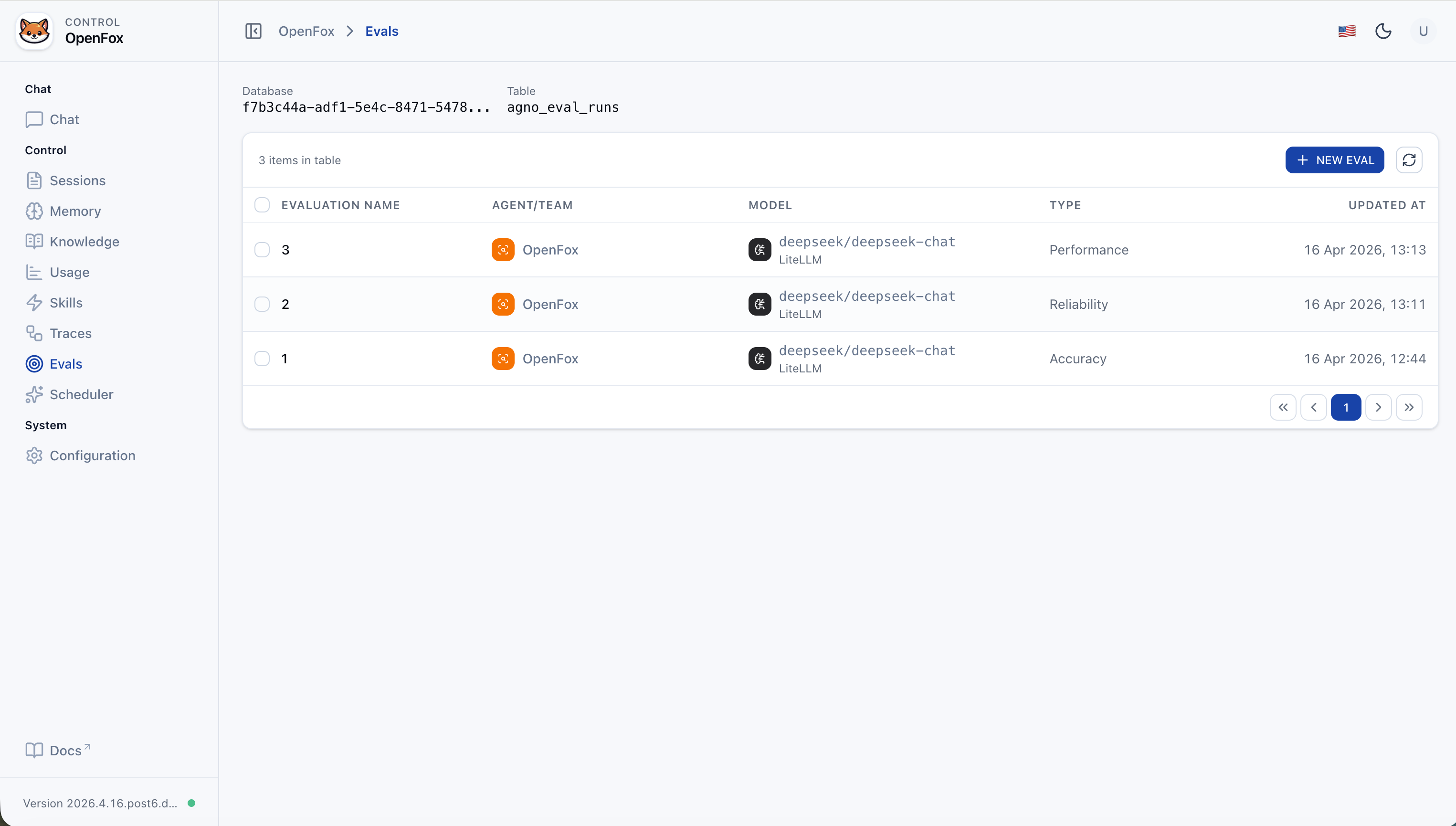

Evals (List)

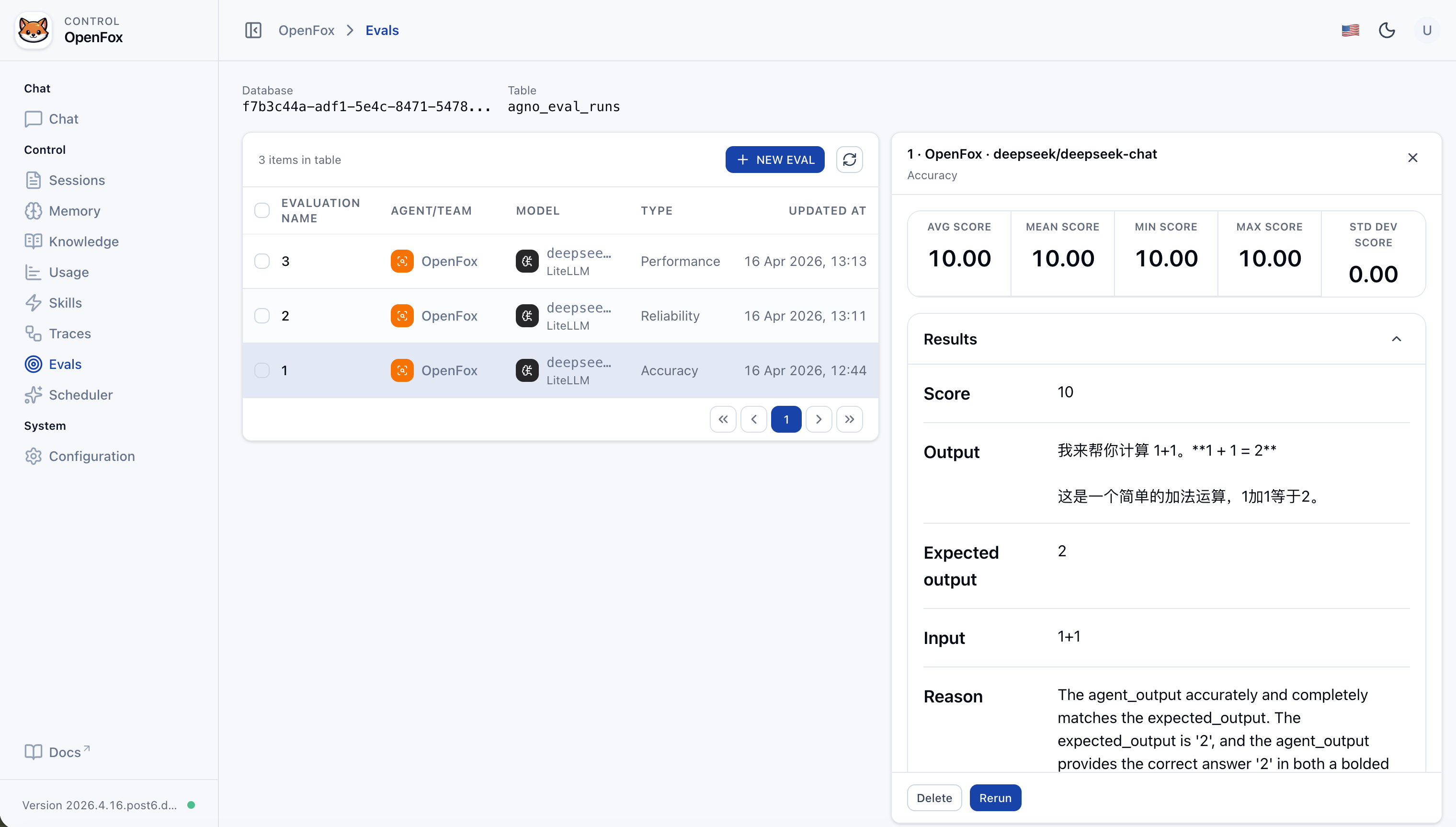

Eval Detail

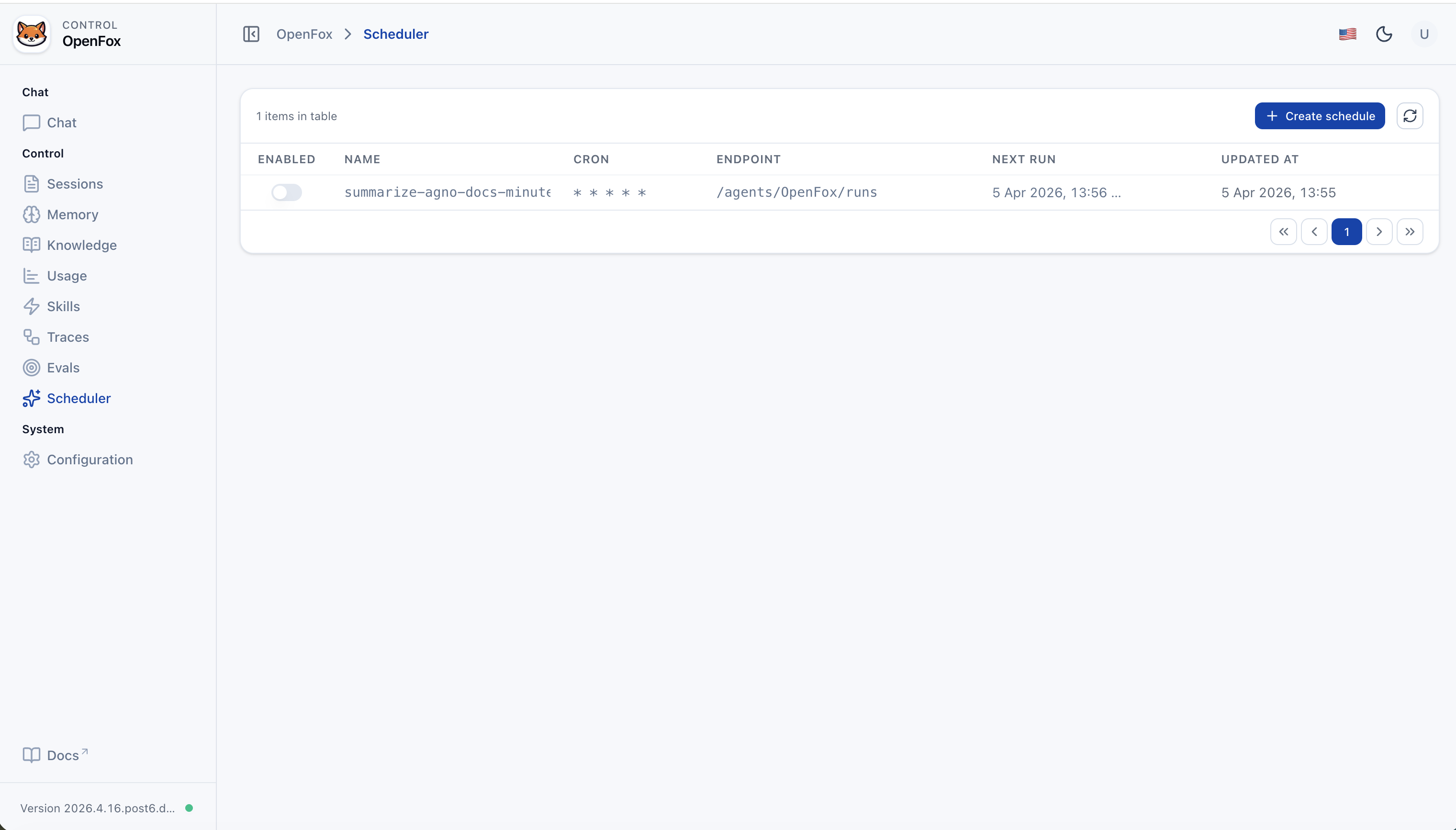

Scheduler (List)

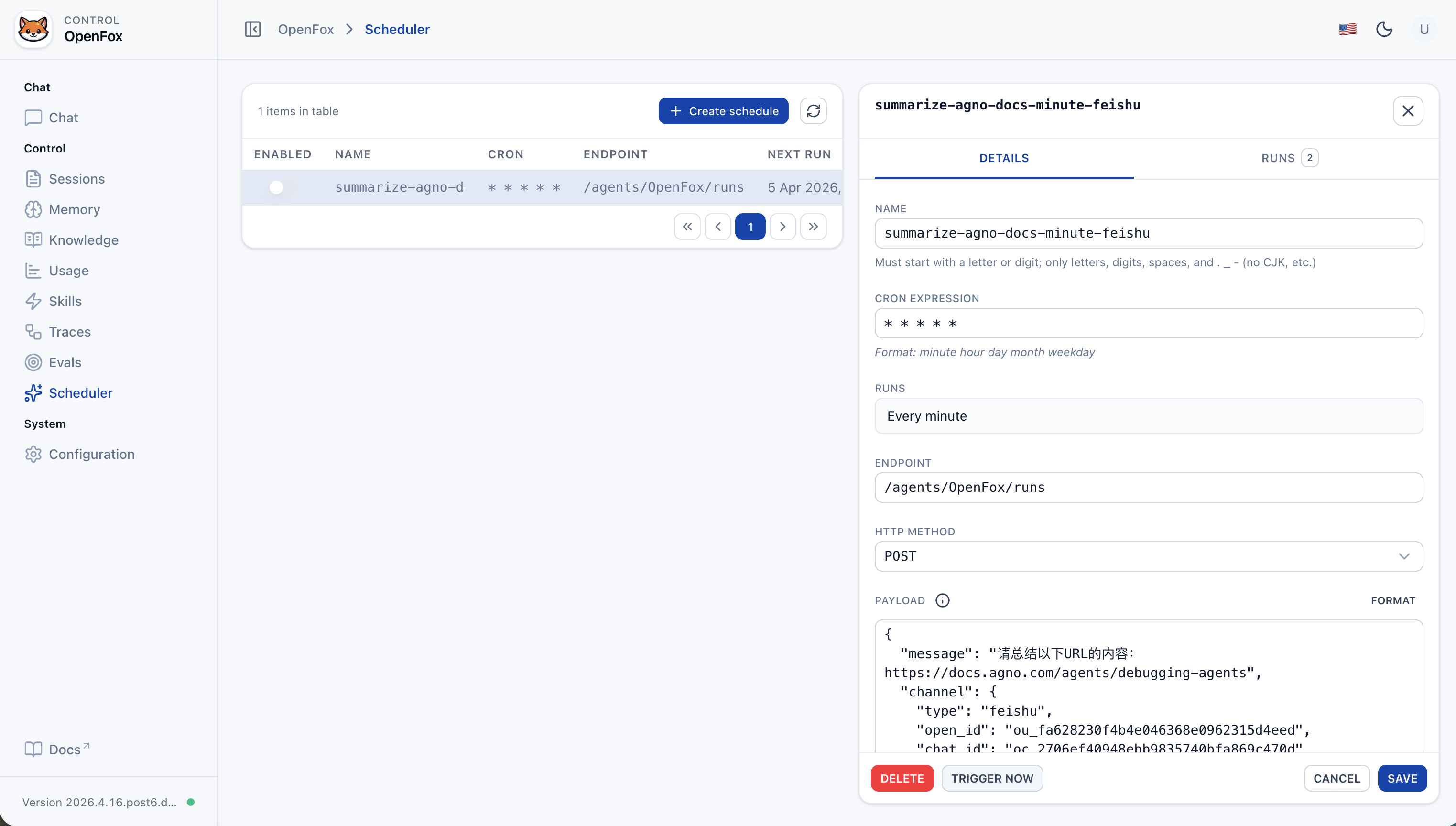

Scheduler (Details)

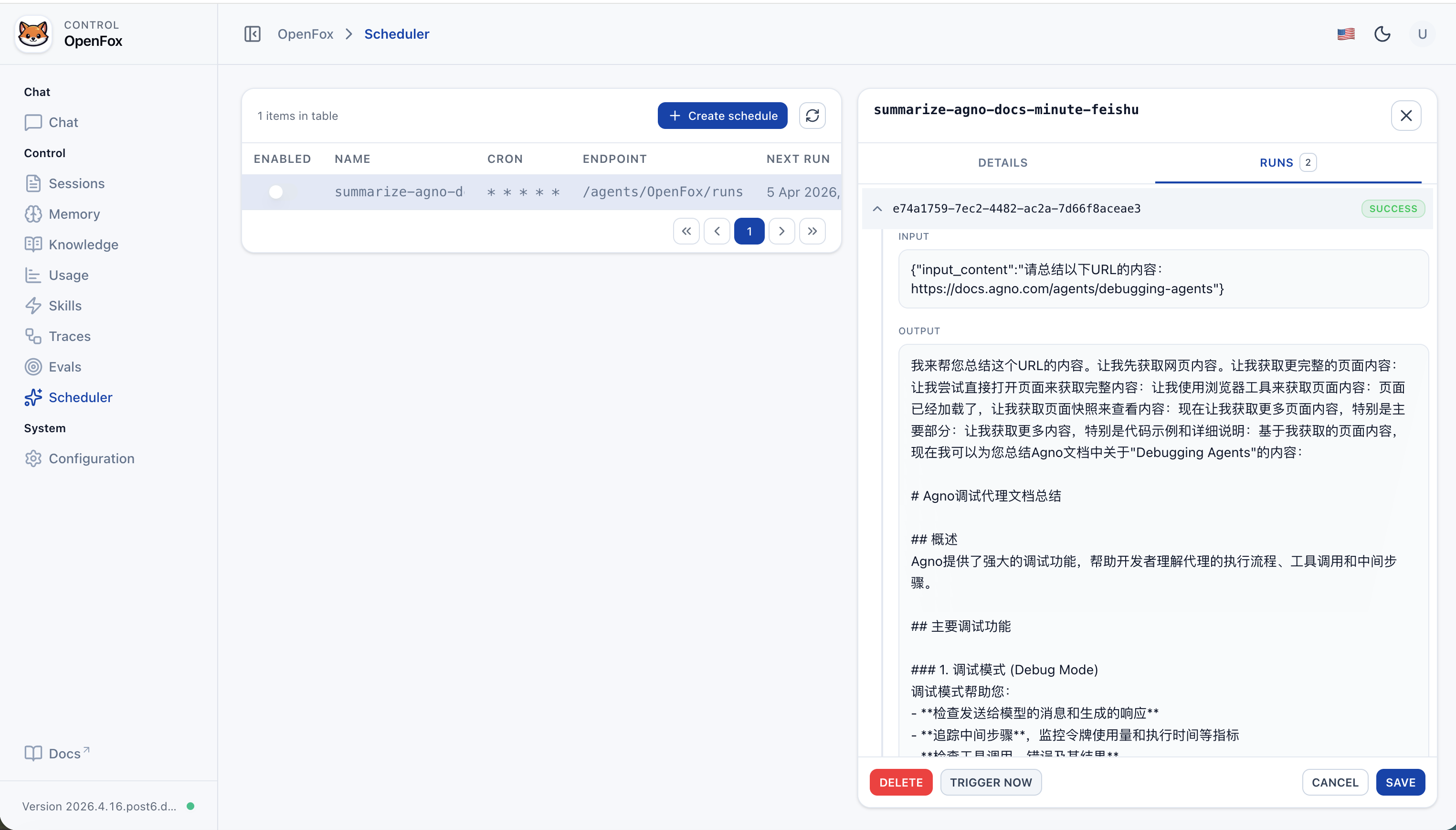

Scheduler (Run History)

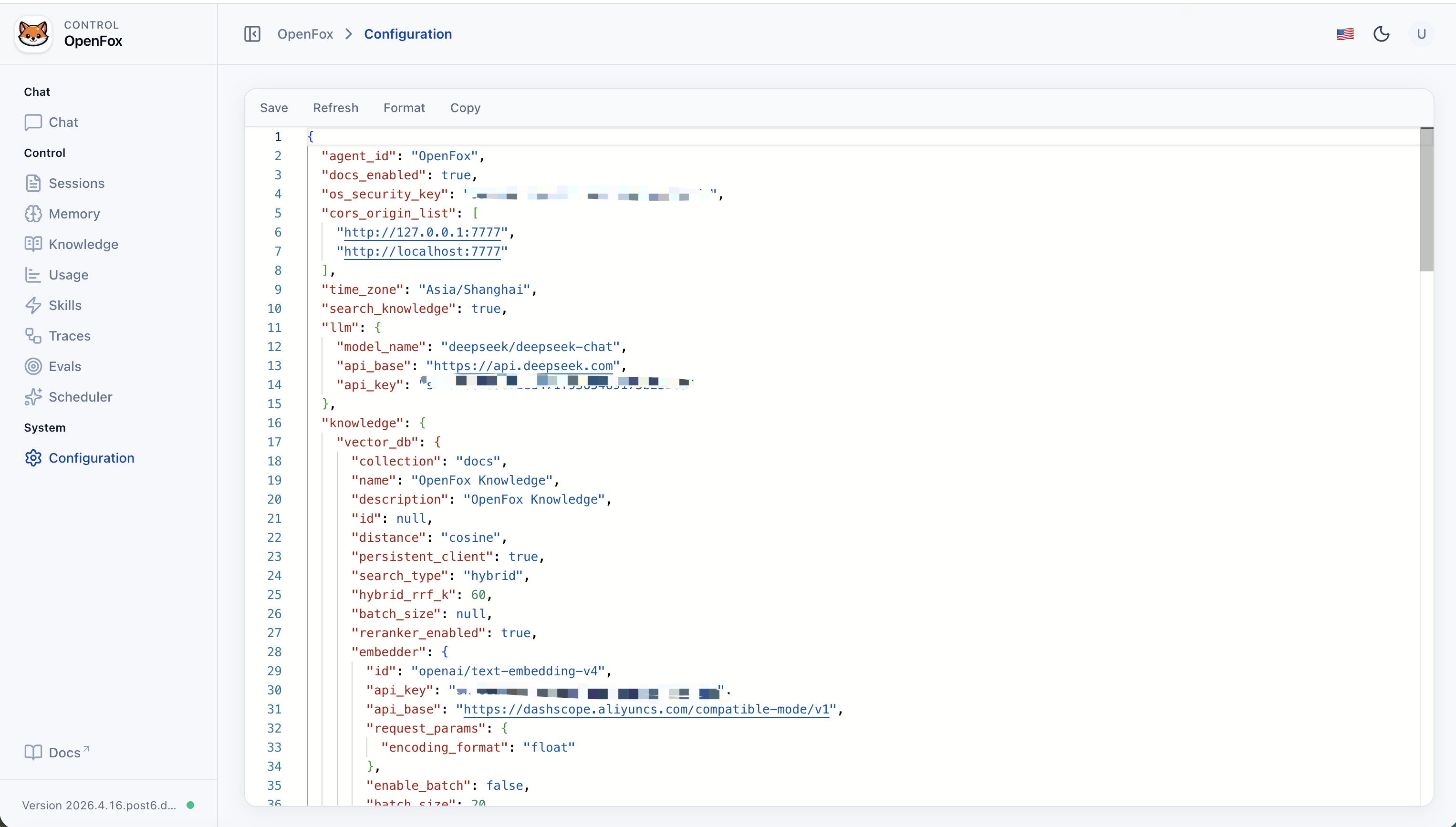

Configuration
---
## Brief comparison with OpenClaw
| Aspect | OpenClaw | OpenFox |
|--------|----------|---------|
| Stack | Node / TypeScript | Python, Agno, FastAPI |
| Channels | Many IM platforms | Feishu + optional **WeChat iLink (WxClaw)** |
| Extensions | Browser, Canvas, Cron, etc. | Cron, Shell, browser (Playwright), MCP, local Skills |
| Focus | Cross-platform personal assistant | Enterprise-grade self-hosted AI assistant, bilingual-friendly, with an integrated Web control plane |
---
