LocalVolTermStructure Class Reference

#include <ql/termstructures/volatility/equityfx/localvoltermstructure.hpp>

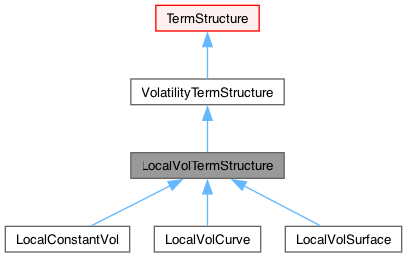

Inheritance diagram for LocalVolTermStructure:

Public Member Functions
Constructors
See the TermStructure documentation for issues regarding constructors.
	LocalVolTermStructure (BusinessDayConvention bdc=Following, const DayCounter &dc=DayCounter())
	default constructor
	LocalVolTermStructure (const Date &referenceDate, const Calendar &cal=Calendar(), BusinessDayConvention bdc=Following, const DayCounter &dc=DayCounter())
	initialize with a fixed reference date
	LocalVolTermStructure (Natural settlementDays, const Calendar &, BusinessDayConvention bdc=Following, const DayCounter &dc=DayCounter())
	calculate the reference date based on the global evaluation date
Local Volatility
Volatility	localVol (const Date &d, Real underlyingLevel, bool extrapolate=false) const
Volatility	localVol (Time t, Real underlyingLevel, bool extrapolate=false) const
Visitability
virtual void	accept (AcyclicVisitor &)
	VolatilityTermStructure (BusinessDayConvention bdc, const DayCounter &dc=DayCounter())
	VolatilityTermStructure (const Date &referenceDate, const Calendar &cal, BusinessDayConvention bdc, const DayCounter &dc=DayCounter())
	initialize with a fixed reference date
	VolatilityTermStructure (Natural settlementDays, const Calendar &cal, BusinessDayConvention bdc, const DayCounter &dc=DayCounter())
	calculate the reference date based on the global evaluation date
virtual BusinessDayConvention	businessDayConvention () const
	the business day convention used in tenor to date conversion
Date	optionDateFromTenor (const Period &) const
	period/date conversion
virtual Rate	minStrike () const =0
	the minimum strike for which the term structure can return vols
virtual Rate	maxStrike () const =0
	the maximum strike for which the term structure can return vols
Public Member Functions inherited from TermStructure
	TermStructure (DayCounter dc=DayCounter())
	default constructor
	TermStructure (const Date &referenceDate, Calendar calendar=Calendar(), DayCounter dc=DayCounter())
	initialize with a fixed reference date
	TermStructure (Natural settlementDays, Calendar, DayCounter dc=DayCounter())
	calculate the reference date based on the global evaluation date
virtual DayCounter	dayCounter () const
	the day counter used for date/time conversion
Time	timeFromReference (const Date &date) const
	date/time conversion
virtual Date	maxDate () const =0
	the latest date for which the curve can return values
virtual Time	maxTime () const
	the latest time for which the curve can return values
virtual const Date &	referenceDate () const
	the date at which discount = 1.0 and/or variance = 0.0
virtual Calendar	calendar () const
	the calendar used for reference and/or option date calculation
virtual Natural	settlementDays () const
	the settlementDays used for reference date calculation
void	update () override
Public Member Functions inherited from Observer
	Observer (const Observer &)
Observer &	operator= (const Observer &)
std::pair< iterator, bool >	registerWith (const ext::shared_ptr< Observable > &)
void	registerWithObservables (const ext::shared_ptr< Observer > &)
Size	unregisterWith (const ext::shared_ptr< Observable > &)
void	unregisterWithAll ()
virtual void	deepUpdate ()
Public Member Functions inherited from Observable
	Observable (const Observable &)
Observable &	operator= (const Observable &)
	Observable (Observable &&)=delete
Observable &	operator= (Observable &&)=delete
void	notifyObservers ()
Public Member Functions inherited from Extrapolator
void	enableExtrapolation (bool b=true)
	enable extrapolation in subsequent calls
void	disableExtrapolation (bool b=true)
	disable extrapolation in subsequent calls
bool	allowsExtrapolation () const
	tells whether extrapolation is enabled

Protected Member Functions
Calculations
These methods must be implemented in derived classes to perform the actual volatility calculations. When they are called, range check has already been performed; therefore, they must assume that extrapolation is required.
virtual Volatility	localVolImpl (Time t, Real strike) const =0
	local vol calculation
void	checkStrike (Rate strike, bool extrapolate) const
	strike-range check
void	checkRange (const Date &d, bool extrapolate) const
	date-range check
void	checkRange (Time t, bool extrapolate) const
	time-range check

Additional Inherited Members
Public Types inherited from Observer
typedef set_type::iterator	iterator
bool	moving_ = false
bool	updated_ = true
Calendar	calendar_

Detailed Description

This abstract class defines the interface of concrete local-volatility term structures which will be derived from this one.

Volatilities are assumed to be expressed on an annual basis.

Constructor & Destructor Documentation

LocalVolTermStructure()

LocalVolTermStructure	(	BusinessDayConvention	bdc = Following,
		const DayCounter &	dc = DayCounter() )

default constructor

Warning

term structures initialized by means of this constructor must manage their own reference date by overriding the referenceDate() method.

Member Function Documentation

localVolImpl()

virtual Volatility localVolImpl ( Time t, Real strike ) const

protectedpure virtual

local vol calculation

Implemented in LocalVolCurve, and LocalVolSurface.
