# Conventions

## General
### Robot Coordinate System

<img src="images/robot_coordinate_system.png" width="400"><br>*Robot Coordinate System Convention*

* all our robot coordinate systems are oriented as shown above
* Positive X Axis = Forward
* Positive Y Axis = Left
* Positive Z Axis = Upwards

### Leg Naming Convention

<img src="images/leg_naming_convention.png" width="400"><br>*Naming Convention Legs - Quadruped Robot*

* Front Right Leg = FR
* Front Left Leg = FL
* Hind Right Leg = HR
* Hind Left Leg = HL

### Degree of Freedom Naming Convention

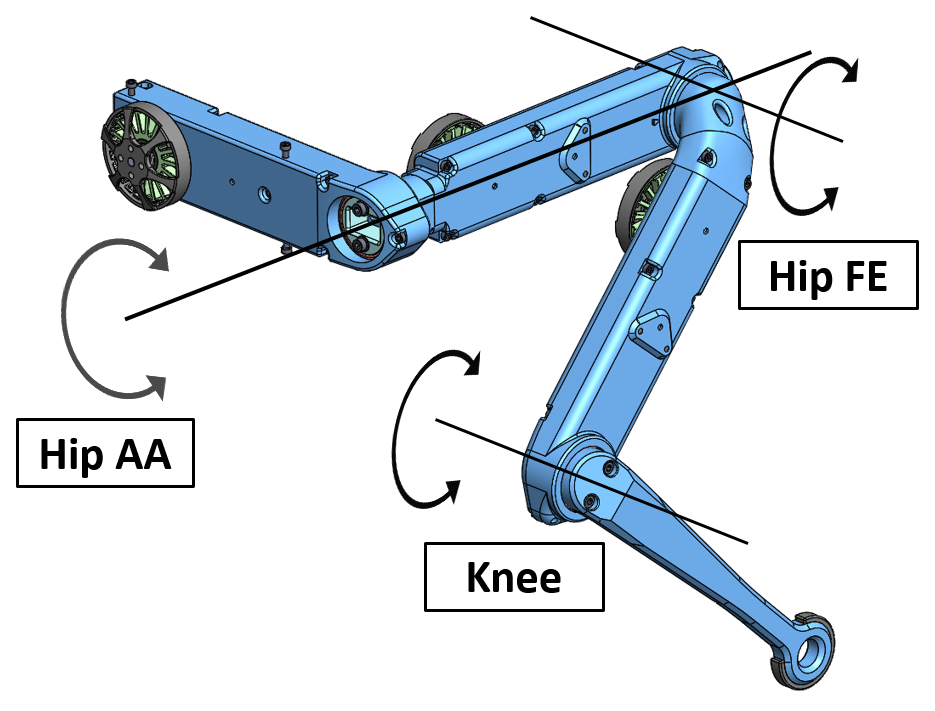

<img src="images/dof_naming_convention.png" width="400"><br>*Naming Convention Degrees of Freedom - 3dof leg*

* Hip Abduction Adduction = Hip AA
* Hip Flexion Extension = Hip FE
* Knee Flexion Extension = Knee
* we use the following abbreviations to label the degrees of freedom

|DOF Abbreviation |DOF Name|
|---|---|
|FRHAA|Front Right Hip Abduction Adduction|
|FRHFE|Front Right Hip Flexion Extension|
|FRK|Front Right Knee|
|FLHAA|Front Left Hip Abduction Adduction|
|FLHFE|Front Left Hip Flexion Extension|
|FLK|Front Left Knee|
|HRHAA|Hind Right Hip Abduction Adduction|
|HRHFE|Hind Right Hip Flexion Extension|
|HRK|Hind Right Knee|
|HLHAA|Hind Left Hip Abduction Adduction|
|HLHFE|Hind Left Hip Flexion Extension|
|HLK|Hind Left Knee|

### Direction of Rotation Motor
<img src="images/convention_motor_rotation.png" width="400"><br>*The positive direction of rotation is counterclockwise when looking at the motor from the top.*<br>

### Direction of Rotation Leg
<img src="images/convention_leg_rotation.png" width="250"><br>*The positive direction of rotation is clockwise when looking at the robot leg from the side.*<br>

### Neutral standing height

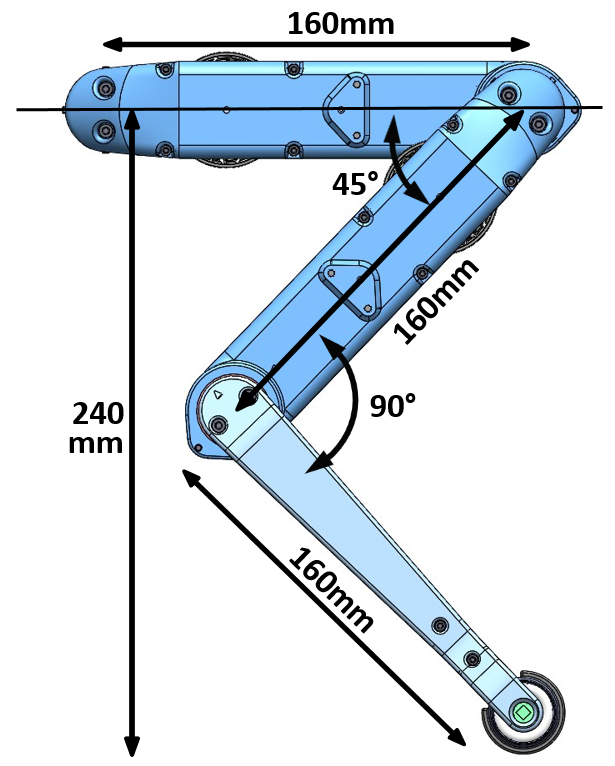

<img src="images/neutral_standing_height.png" width="300"><br>*Neutral standing height*<br>

We consider the leg to be at neutral standing height when the Hip FE angle is at 45 degrees and the knee angle is at 90 degrees.
Our quadrupeds have a segment length of 16cm and a neutral standing height of 24cm.

---
## Mechanics
### 3D Printing

<img src="images/printing_direction.png" width="450"><br>*The recommended printing direction is the positive z-axis-direction of the STL files.*<br>

### Mechanical Interface Actuator Modules

<img src="images/mechanical_interface_output.png" width="450"><br>*We use the same mechanical output interface for all the actuator modules.*<br>

<img src="images/mechanical_interface_segment.png" width="450"><br>*Mechanical interface for the segments.*<br>


---
## Electronics

### Wiring Conventions

<a href="../../electronics/details/details_wiring.md"><img src="../../electronics/images/encoder_wiring_micro_driver.png" width="400"></a><br>*Click on picture to view the wiring documentation page*


The wiring conventions for the actuator modules and the electronics are documented here: [Details Wiring](../../electronics/details/details_wiring.md)

---
