程式語言 - Java - Android - OpenGL ES - Use Texture

settings.gradle

pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}
dependencyResolutionManagement {
    repositories {
        google()
        mavenCentral()
    }
}
rootProject.name = "hello-android"
include(":app")

build.gradle

buildscript {
    repositories {
        google()
        mavenCentral()
    }
    dependencies {
        classpath "com.android.tools.build:gradle:8.2.2"
    }
}

執行如下命令：

$ gradle wrapper
$ ./gradlew
$ mkdir -p app/src/main/java/com/example/hello
$ mkdir -p app/src/main/res

app/build.gradle

plugins {
    id "com.android.application"
}

android {
    namespace "com.example.hello"
    compileSdk 34

    defaultConfig {
        applicationId "com.example.hello"
        minSdk 21
        targetSdk 34
        versionCode 1
        versionName "1.0"
    }
}

app/src/main/AndroidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <application
        android:label="HelloApp">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>
                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>
    </application>
</manifest>

app/src/main/java/com/example/hello/MainActivity.java

package com.example.hello;

import android.app.Activity;
import android.opengl.GLES20;
import android.opengl.GLSurfaceView;
import android.os.Bundle;

import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;
import java.nio.ShortBuffer;

import javax.microedition.khronos.egl.EGLConfig;
import javax.microedition.khronos.opengles.GL10;

public class MainActivity extends Activity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        GLSurfaceView glView = new GLSurfaceView(this);
        glView.setEGLContextClientVersion(2);
        glView.setRenderer(new Renderer());
        setContentView(glView);
    }

    static class Renderer implements GLSurfaceView.Renderer {
        private final float[] vVertices = {
            -1.0f,  1.0f, 0.0f, 0.0f, 0.0f,
            -1.0f, -1.0f, 0.0f, 0.0f, 1.0f,
             1.0f, -1.0f, 0.0f, 1.0f, 1.0f,
             1.0f,  1.0f, 0.0f, 1.0f, 0.0f
        };

        private final short[] indices = {
            0, 1, 2,
            0, 2, 3
        };

        private FloatBuffer vertexBuffer;
        private ShortBuffer indexBuffer;

        private int program;
        private int posHandle;
        private int texHandle;
        private int samplerHandle;
        private int textureId;

        private final String vertexShaderCode =
            "attribute vec4 aPosition;" +
            "attribute vec2 aTexCoord;" +
            "varying vec2 vTexCoord;" +
            "void main() {" +
            "    gl_Position = aPosition;" +
            "    vTexCoord = aTexCoord;" +
            "}";

        private final String fragmentShaderCode =
            "precision mediump float;" +
            "varying vec2 vTexCoord;" +
            "uniform sampler2D s_texture;" +
            "void main() {" +
            "    gl_FragColor = texture2D(s_texture, vTexCoord);" +
            "}";

        @Override
        public void onSurfaceCreated(GL10 gl, EGLConfig config) {
            GLES20.glClearColor(0.0f, 0.0f, 0.0f, 1.0f);

            ByteBuffer vb = ByteBuffer.allocateDirect(vVertices.length * 4);
            vb.order(ByteOrder.nativeOrder());
            vertexBuffer = vb.asFloatBuffer();
            vertexBuffer.put(vVertices);
            vertexBuffer.position(0);

            ByteBuffer ib = ByteBuffer.allocateDirect(indices.length * 2);
            ib.order(ByteOrder.nativeOrder());
            indexBuffer = ib.asShortBuffer();
            indexBuffer.put(indices);
            indexBuffer.position(0);

            int vs = loadShader(GLES20.GL_VERTEX_SHADER, vertexShaderCode);
            int fs = loadShader(GLES20.GL_FRAGMENT_SHADER, fragmentShaderCode);

            program = GLES20.glCreateProgram();
            GLES20.glAttachShader(program, vs);
            GLES20.glAttachShader(program, fs);
            GLES20.glLinkProgram(program);
            GLES20.glUseProgram(program);

            posHandle = GLES20.glGetAttribLocation(program, "aPosition");
            texHandle = GLES20.glGetAttribLocation(program, "aTexCoord");
            samplerHandle = GLES20.glGetUniformLocation(program, "s_texture");

            textureId = createTextureFromPixels();
        }

        @Override
        public void onSurfaceChanged(GL10 gl, int width, int height) {
            GLES20.glViewport(0, 0, width, height);
        }

        @Override
        public void onDrawFrame(GL10 gl) {
            int stride = 5 * 4;

            GLES20.glClear(GLES20.GL_COLOR_BUFFER_BIT);

            vertexBuffer.position(0);
            GLES20.glEnableVertexAttribArray(posHandle);
            GLES20.glVertexAttribPointer(posHandle, 3, GLES20.GL_FLOAT, false, stride, vertexBuffer);

            vertexBuffer.position(3);
            GLES20.glEnableVertexAttribArray(texHandle);
            GLES20.glVertexAttribPointer(texHandle, 2, GLES20.GL_FLOAT, false, stride, vertexBuffer);

            GLES20.glActiveTexture(GLES20.GL_TEXTURE0);
            GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, textureId);
            GLES20.glUniform1i(samplerHandle, 0);
            GLES20.glDrawElements(GLES20.GL_TRIANGLES, indices.length, GLES20.GL_UNSIGNED_SHORT, indexBuffer);

            GLES20.glDisableVertexAttribArray(posHandle);
            GLES20.glDisableVertexAttribArray(texHandle);
        }

        private int loadShader(int type, String code) {
            int shader = GLES20.glCreateShader(type);
            GLES20.glShaderSource(shader, code);
            GLES20.glCompileShader(shader);
            return shader;
        }

        private int createTextureFromPixels() {
            int width = 320;
            int height = 240;
            byte[] pixels = new byte[width * height * 3];

            for (int y = 0; y < height; y++) {
                for (int x = 0; x < width; x++) {
                    int i = (y * width + x) * 3;

                    switch (y / 80) {
                    case 0:
                        pixels[i + 0] = (byte)0xff;
                        pixels[i + 1] = 0;
                        pixels[i + 2] = 0;
                        break;
                    case 1:
                        pixels[i + 0] = 0;
                        pixels[i + 1] = (byte)0xff;
                        pixels[i + 2] = 0;
                        break;
                    case 2:
                        pixels[i + 0] = 0;
                        pixels[i + 1] = 0;
                        pixels[i + 2] = (byte)0xff;
                        break;
                    }
                }
            }

            ByteBuffer pixelBuffer = ByteBuffer.allocateDirect(pixels.length);
            pixelBuffer.put(pixels);
            pixelBuffer.position(0);

            int[] tex = new int[1];
            GLES20.glGenTextures(1, tex, 0);
            GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, tex[0]);
            GLES20.glPixelStorei(GLES20.GL_UNPACK_ALIGNMENT, 1);
            GLES20.glTexParameteri(GLES20.GL_TEXTURE_2D, GLES20.GL_TEXTURE_MIN_FILTER, GLES20.GL_LINEAR);
            GLES20.glTexParameteri(GLES20.GL_TEXTURE_2D, GLES20.GL_TEXTURE_MAG_FILTER, GLES20.GL_LINEAR);
            GLES20.glTexParameteri(GLES20.GL_TEXTURE_2D, GLES20.GL_TEXTURE_WRAP_S, GLES20.GL_CLAMP_TO_EDGE);
            GLES20.glTexParameteri(GLES20.GL_TEXTURE_2D, GLES20.GL_TEXTURE_WRAP_T, GLES20.GL_CLAMP_TO_EDGE);

            GLES20.glTexImage2D(
                GLES20.GL_TEXTURE_2D,
                0,
                GLES20.GL_RGB,
                width,
                height,
                0,
                GLES20.GL_RGB,
                GLES20.GL_UNSIGNED_BYTE,
                pixelBuffer
            );

            return tex[0];
        }
    }
}

編譯

$ ./gradlew assembleDebug
$ file app/build/outputs/apk/debug/app-debug.apk
    app/build/outputs/apk/debug/app-debug.apk: Android package (APK), with gradle app-metadata.properties, with APK Signing Block

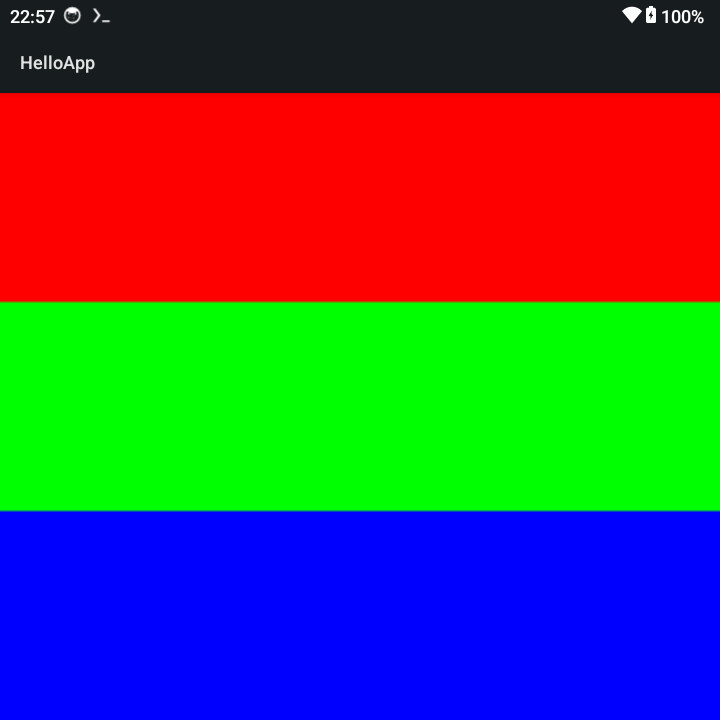

完成
