## Introduction


This tutorial introduces the usage of several software implementations of
embedding algorithms for high-dimensional gene expression data [@Duo2018-oo] that are often
used for single cell RNA-Seq (scRNA-Seq) data.  Many of them are available as R packages on CRAN,
Bioconductor and/or GitHub. Examples include PCA, MDS,
[SC3](http://bioconductor.org/packages/release/bioc/html/SC3.html)
[@Kiselev2017-ye],
[isomap](https://bioconductor.org/packages/release/bioc/html/RDRToolbox.html),
[t-SNE](https://cran.r-project.org/web/packages/Rtsne/)
[@donaldson2010package], [FIt-SNE](https://github.com/KlugerLab/FIt-SNE)
[@Linderman2019-qh], and
[UMAP](https://cran.r-project.org/web/packages/umap/index.html)
[@McInnes2018-tc]. In addition, some packages such as Bioconductor's
[scater](https://bioconductor.org/packages/release/bioc/vignettes/scater/inst/doc/overview.html)
package provide in a single environment access to a wide range of embedding methods that can be
conveniently and uniformly applied to Bioconductor's S4 object class called
[`SingleCellExperiment`](https://bioconductor.org/packages/3.12/bioc/html/SingleCellExperiment.html)
for handling scRNA-Seq data [@Senabouth2019-cr; @Amezquita2020-vu]. The
performance of the different embedding methods for scRNA-Seq data has been
intensively tested by several studies, including Sun et al. [-@Sun2019-po;
-@Sun2020-ct].

For illustration purposes, the following example code first applies four widely
used embedding methods to a bulk RNA-Seq data set [@Howard2013-fq], and then to a much more
complex scRNA-Seq data set [@Aztekin2019-sw] obtained from the
[`scRNAseq`](https://bioconductor.org/packages/release/data/experiment/html/scRNAseq.html)
package.

## Bulk RNA-Seq data

### Generate `SummarizedExperiment` and `SingleCellExperiment`

The following loads the bulk RNA-Seq data from Howard _et al._ [-@Howard2013-fq]
into `SummarizedExperiment` and `SingleCellExperiment` objects. This is done
by first creating a `SummarizedExperiment` object and then coercing it to a
`SingleCellExperiment` object, as well as intializing the `SingleCellExperiment`
directly.


#### Create `SummarizedExperiment` and coerce to `SingleCellExperiment`

The required `targetsPE.txt` and `countDFeByg.xls` files can be downloaded
from [here](https://github.com/tgirke/GEN242/tree/main/content/en/tutorials/scrnaseq/results).

```{r create_se_sce1a}
#| message: false
#| warning: false
library(SummarizedExperiment); library(SingleCellExperiment)
targetspath <- "results/targetsPE.txt"
countpath <- "results/countDFeByg.xls"
targets <- read.delim(targetspath, comment.char = "#")
rownames(targets) <- targets$SampleName
countDF <- read.delim(countpath, row.names=1, check.names=FALSE)
(se <- SummarizedExperiment(assays=list(counts=countDF), colData=targets))
(sce <- as(se, "SingleCellExperiment"))

```

#### Create `SingleCellExperiment` directly

```{r create_se_sce1b}
sce2 <- SingleCellExperiment(assays=list(counts=countDF), colData=targets)

```

### Prepare data for plotting with embedding methods

The data are preprocessed (_e.g._normalized) to plot them with the `run`
embedding functions from the
[`scran`](https://bioconductor.org/packages/3.12/bioc/vignettes/scran/inst/doc/scran.html)
and [`scater`](https://bioconductor.org/packages/release/bioc/vignettes/scater/inst/doc/overview.html) packages.

```{r preprocess1}
#| message: false
#| warning: false
library(scran); library(scater)
sce <- logNormCounts(sce)
colLabels(sce) <- factor(colData(sce)$Factor) # This uses replicate info from above targets file as pseudo-clusters

```

### Embed with different methods and plot results

Note, the embedding results are sequentially appended to the
SingleCellExperiment object, meaning one can use the plot function whenever
necessary.

#### (a) tSNE

```{r run_tsne1}
sce <- runTSNE(sce)
reducedDimNames(sce)
plotTSNE(sce, colour_by="label", text_by="label")

```

#### (b) MDS

```{r run_mds1}
sce <- runMDS(sce)
reducedDimNames(sce)
plotMDS(sce, colour_by="label", text_by="label")

```

#### (c) UMAP

```{r run_umap1}
sce <- runUMAP(sce)
reducedDimNames(sce)
plotUMAP(sce, colour_by="label", text_by="label")

```

#### (d) PCA

PCA plot for first two components.

```{r run_pca1a}
#| message: false
#| warning: false
sce <- runPCA(sce) # gives a warning due to small size of data set but it still works
reducedDimNames(sce)
plotPCA(sce, colour_by="label", text_by="label")

```

Multiple components can be plotted in a series of pairwise plots. When more
than two components are plotted, the diagonal boxes in the scatter plot matrix
show the density for each component.

```{r run_pca1b}
#| message: false
#| warning: false
sce <- runPCA(sce, ncomponents=20) # gives a warning due to small size of data set but it still works
reducedDimNames(sce)
plotPCA(sce, colour_by="label", text_by="label", ncomponents = 4)

```

## scRNA-Seq data

### Load scRNA-Seq data

The `scRNAseq` package is used to load the scRNA-Seq data set from Xenopus tail
directly into a SingleCellExperiment object [@Aztekin2019-sw].

```{r create_sce2}
#| eval: false
#| message: false
#| warning: false
library(scRNAseq)
sce <- AztekinTailData()

```

### Prepare data for plotting with embedding methods

Similarly as above, the data are preprocessed (_e.g._normalized) to plot them with the `run`
embedding functions from the
[`scran`](https://bioconductor.org/packages/3.12/bioc/vignettes/scran/inst/doc/scran.html)
package. In addition, the data is clustered with the `quickCluster` function.

```{r preprocess2}
#| eval: false
library(scran); library(scater)
sce <- logNormCounts(sce)
clusters <- quickCluster(sce)
# sce <- computeSumFactors(sce, clusters=clusters)
colLabels(sce) <- factor(clusters)
table(colLabels(sce))

```

To acclerate the testing performance of the following code, the size of the expression matrix
is reduced to cell types with values $\ge10^4$.

```{r filter2}
#| eval: false
filter <- colSums(assays(sce)$counts) >= 10^4
sce <- sce[, filter]

```

To color items in the downstream dot plots by cell type instead of the above clustering result,
one can use the cell type info under `colData()`. Note, this step is not evaluated here.

```{r collor_by_celltype2}
# colLabels(sce) <- colData(sce)$cluster

```

### Embed with different methods and plot results

As under the bulk RNA-Seq section, the embedding results are sequentially
appended to the `SingleCellExperiment` object, meaning one can use the plot
function whenever necessary.

#### (a) tSNE

```{r run_tsne2}
#| eval: false
sce <- runTSNE(sce)
reducedDimNames(sce)
plotTSNE(sce, colour_by="label", text_by="label")

```

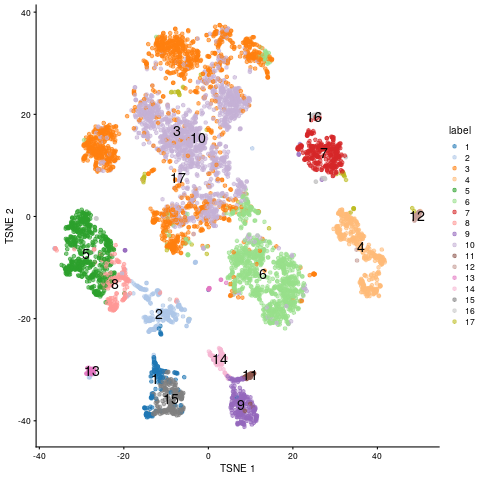

![tSNE embedding of scRNA-Seq data.](results/sctsne.png)

#### (b) MDS

```{r run_mds2}
#| eval: false
sce <- runMDS(sce)
reducedDimNames(sce)
plotMDS(sce, colour_by="label", text_by="label")

```

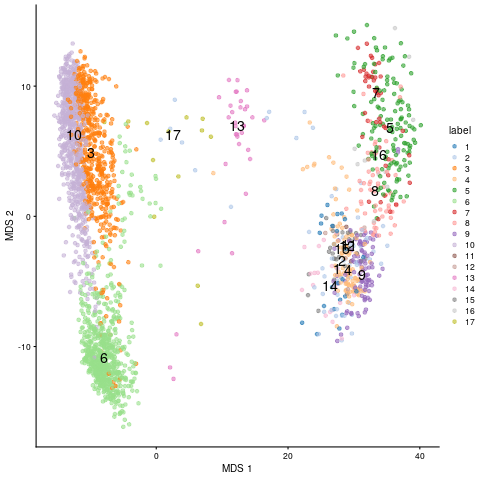

![MDS embedding of scRNA-Seq data.](results/scmds.png)

## (c) UMAP

```{r run_umap2}
#| eval: false
sce <- runUMAP(sce) # Note, the UMAP embedding is already stored in downloaded SingleCellExperiment object by authers. So one can just use this one or recompute it.
reducedDimNames(sce)
plotUMAP(sce, colour_by="label", text_by="label")

```

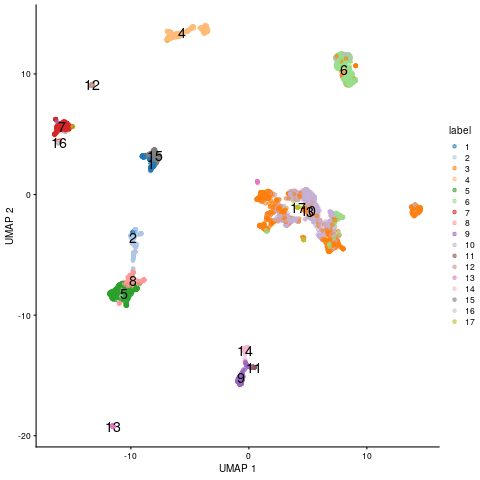

![UMAP embedding of scRNA-Seq data.](results/scumap.png)


## (d) PCA

PCA result plotted for first two components.

```{r run_pca2}
#| eval: false
sce <- runPCA(sce)
reducedDimNames(sce)
plotPCA(sce, colour_by="label", text_by="label")

```

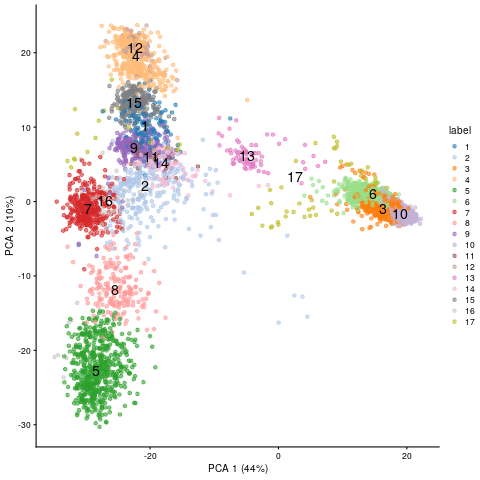

![PCA embedding of scRNA-Seq data.](results/scpca.png)

Multiple components can be plotted in a series of pairwise plots. When more
than two components are plotted, the diagonal boxes in the scatter plot matrix
show the density for each component.

```{r run_pca2b}
#| eval: false
#| message: false
#| warning: false
sce <- runPCA(sce, ncomponents=20)
reducedDimNames(sce)
plotPCA(sce, colour_by="label", text_by="label", ncomponents = 4)

```

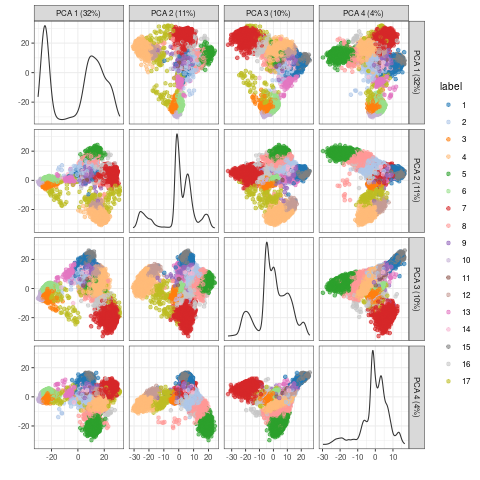

![PCA embedding of scRNA-Seq data for multiple components.](results/scpca_multi.png)
