# OpenBot Playground

OpenBot Playground is a drag and drop platform to support OpenBot application, where anyone can build instructions for the robot. ## Getting Started You can run this application directly from the [Link](https://www.playground.openbot.org/ "Link"). You can also run it locally via creating a local copy of the project. To achieve this, navigate into the `openBot/open-code` folder, [set firebase project](src/services/README.md) and run application. After [firebase setup](src/services/README.md) run following commands: If you're using npm ```bash npm install ``` In case of yarn ```bash yarn install ``` Run application ```bash npm start ``` ### Application Features 1. Sync your Google Drive with the OpenBot, and it will automatically save the data on it. 2. Store the data into local storage. 3. Scan the output QR directly from the OpenBot application to run the program. 4. In OpenBot mobile apps, after logging in, you can retrieve the saved files from Google Drive and load them with just one click. 5. Design the instructions for OpenBot with zero code. 6. Fully responsive design optimized for mobile and tablet browsing. 7. OpenBot Playground blocks to [explore](https://www.youtube.com/watch?v=8oPbCGZmwTU&list=PLXGqaCYqUFZDK6CWP1bP3J6upNOFDbvkA). ### Project Storage This project allows users to store their data both locally and on `Google Drive`. When the project is created, it is automatically stored in the `local storage` of the user's device. As changes are made to the project, the local storage is updated in real-time. Additionally, users can upload their project to Google Drive by clicking on the [upload button](#generate-Code). This allows users to access their project from any device with internet access, making it easier to work on the project from different locations. - #### Local Storage Local storage is a built-in web technology that allows web applications to store data locally within the user's browser. This means that the project is stored on the user's device and can be accessed without an internet connection. In this project, the local storage is used to store the project whenever changes are made to it. The project is stored in the browser's cache, which means that it will persist even if the user closes the tab or the browser. - #### Google Drive Storage Google Drive is a cloud-based storage service provided by Google. It allows users to store and share files online, as well as access them from any device with internet access. In this project, users can upload their project to Google Drive by clicking on the upload icon when they are signed in to the website. The project is then stored on the user's Google Drive account, which means that it can be accessed from any device with internet access. To access their project from Google Drive, users can simply log in to their Google account and navigate to [my projects](#project-section), where all their stored projects will be displayed. ## OpenBot Playground Screens ### Home Page The `OpenBot Playground` starts with homepage that contains following component: - [Header](#header) : Header contains the following two sections, change theme and sign-in user. - [Carousel](#Carousel): Carousel's Content Explains how the Playground works. - [Project Section](#project-section) :Project section contains List of Projects and Create new Project button. ### Playground Page The `Playground` page is a key feature of the `OpenBot Playground` platform that provides a variety of coding blocks for users to create different types of functionality, such as Control, Loops, Movement, Operators, Sensors, and many more. - [Header](#header) : Header contains project name, help centre, AutoSync ,change theme and signIn user section. - [Workspace](#workSpace): Space where users can drag and drop the coding blocks to generate their code, which can be converted into both JavaScript and Python. - [Playground Bottom Bar](#Playground-Bottom-Bar) : Bottom bar Contains buttons to generate code ,upload project in drive, zoom in and out blocks ,Add model ,undo and redo changes in workspace. ### Header The header of the `Openbot-Playground` website has its logo in the top left section. The right side of the header have two buttons. - #### Change theme Theme icon allows you to switch between light mode and dark mode, and vice versa.

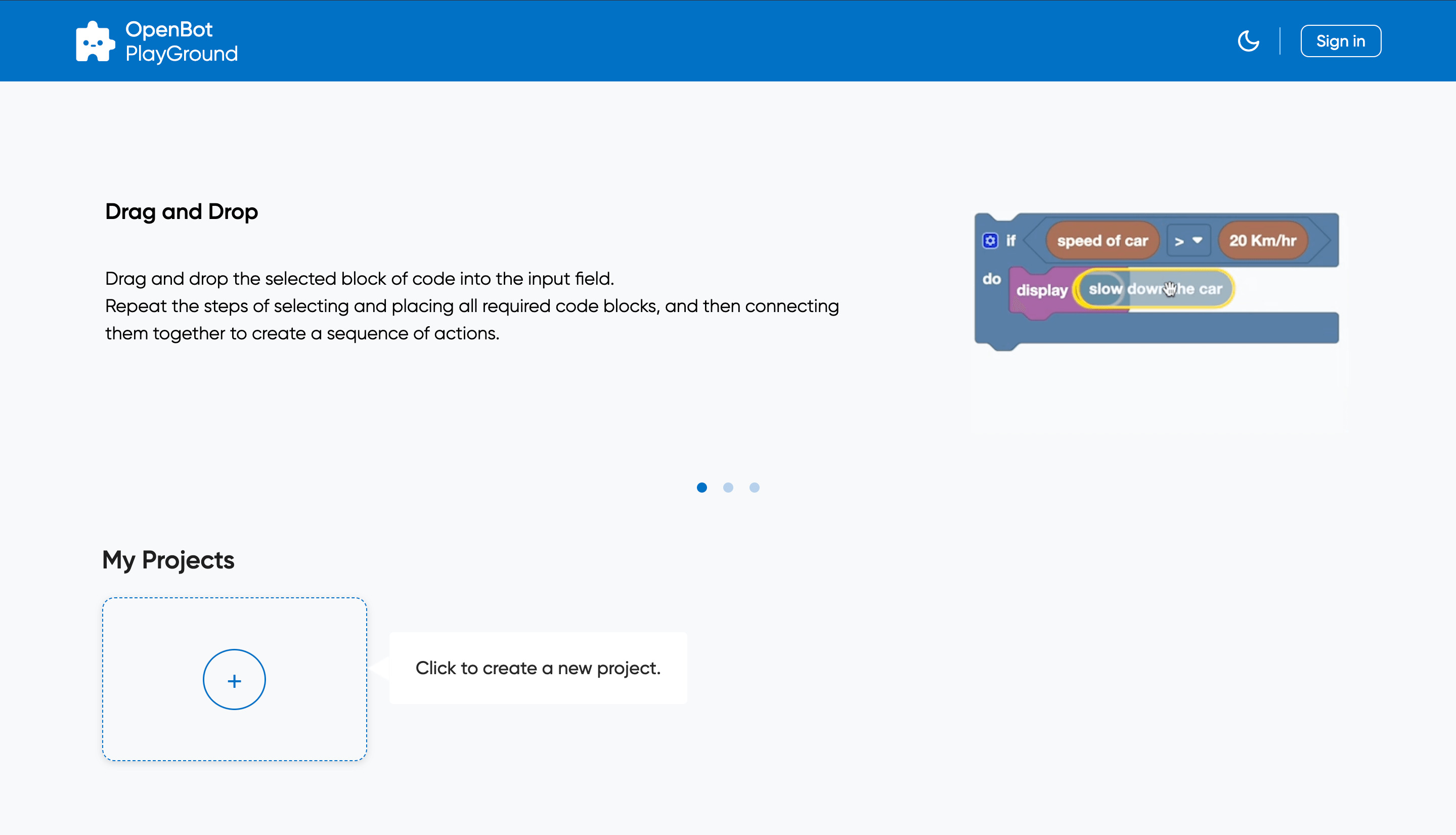

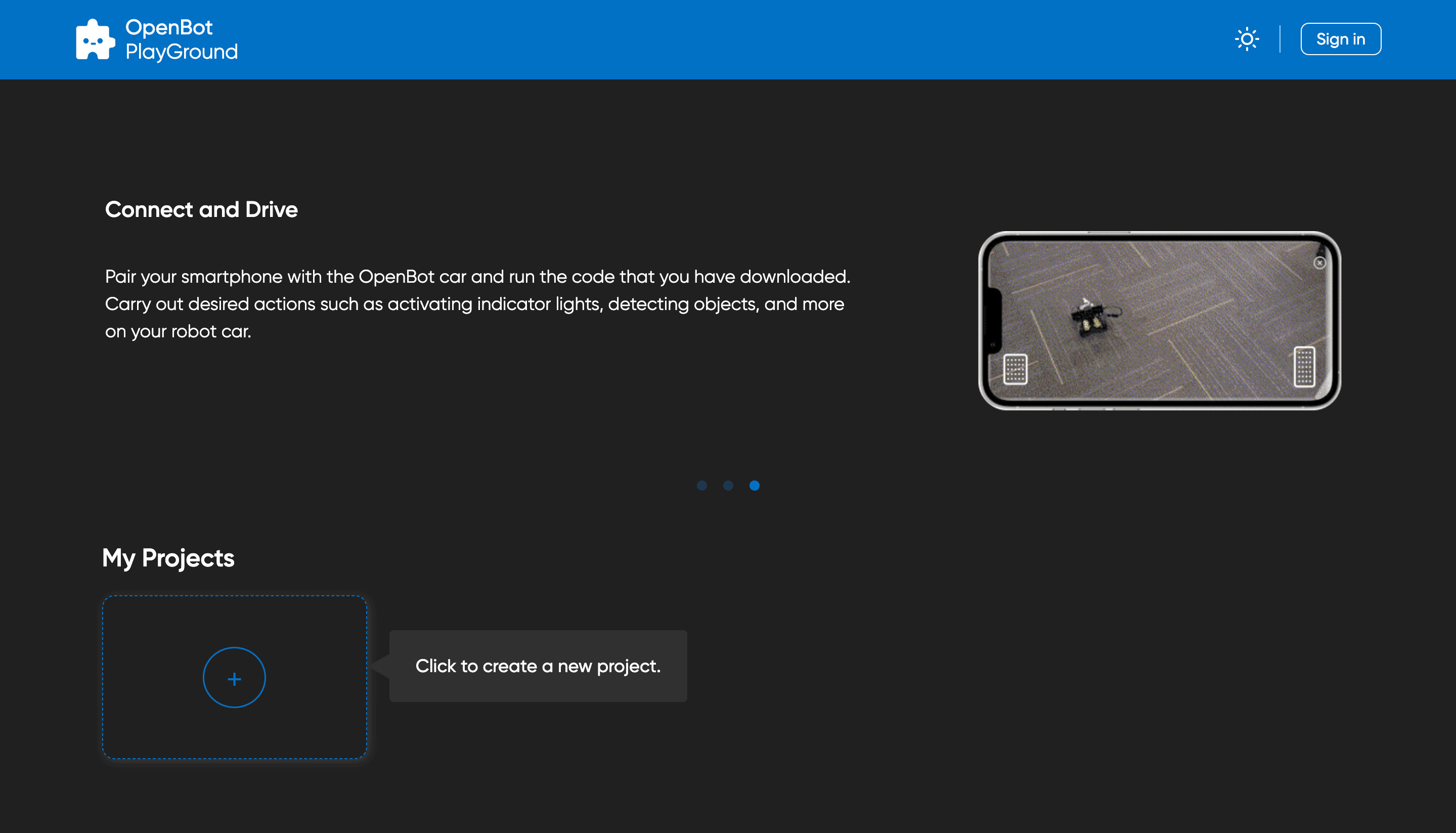

light theme screen dark theme screen

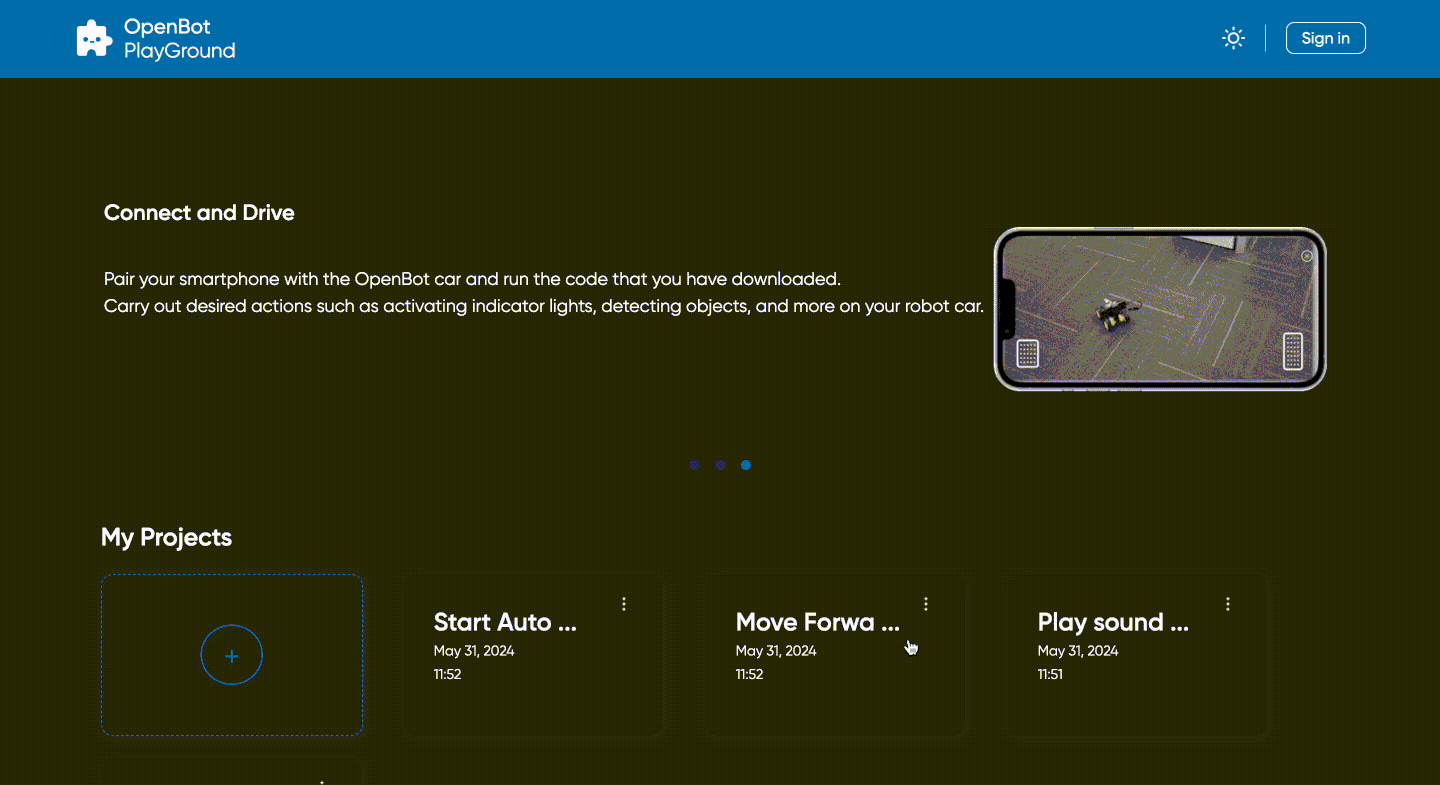

- #### Sign-in The "Sign-in" button opens a Google sign-in popup on the screen and prompts you to enter your email for login, with all necessary permissions granted, including modifying ***Google Drive***.

Playground Sign In

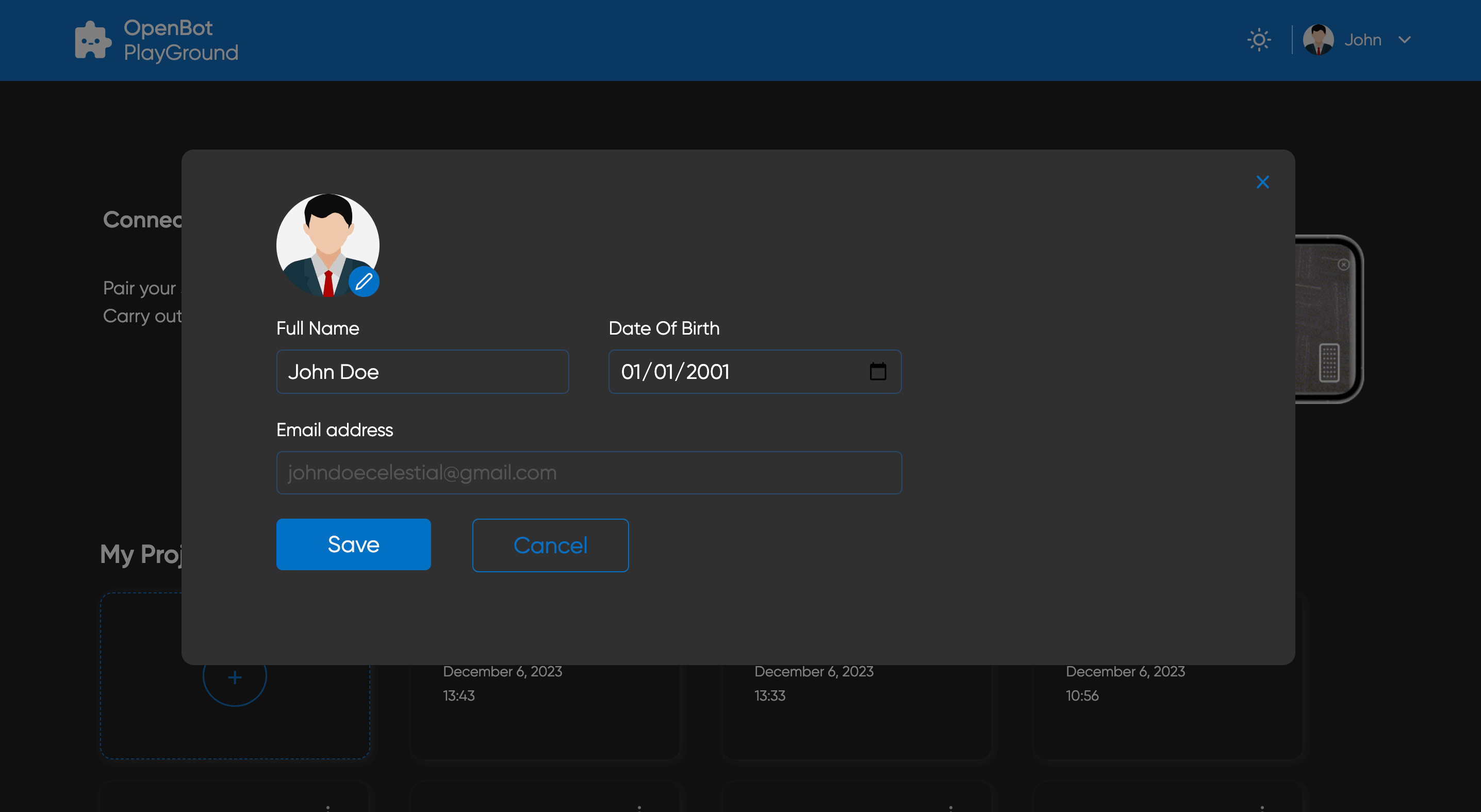

- #### Profile Options Upon successful sign-in, you will have options to edit your profile and log out. The "Edit Profile" button opens a popup where you can update your profile image, display name and date of birth.

Playground Sign In

- #### AutoSync: - AutoSync enables users to seamlessly synchronize all machine learning models (Tflite models), from the OpenBot robot app and conveniently display them in their respective ``Artificial Intelligence`` blocks. Additionally, users have the flexibility to select the desired AI model directly within the block interface while structuring the code. - #### How it works - The robot app uploads an updated config.json file to the user's Google Drive, including any newly added models. This file lists all the models along with their configurations in JSON format. - When the user clicks on ``Auto Sync`` all downloaded models, including those for detection, autopilot, and point goal navigation, are filtered and displayed in their respective AI blocks. - Following this process, the model will then appear within the OpenBot playground blocks. With the assistance of Google Drive, you can seamlessly select this model directly from the respective AI blocks. - #### Playground page additional - The Playground page header retains the same design as the homepage header, while incorporating additional functionalities. In the center, the project name is displayed with a downward arrow, providing options for renaming and deleting the project.

Playground Sign In

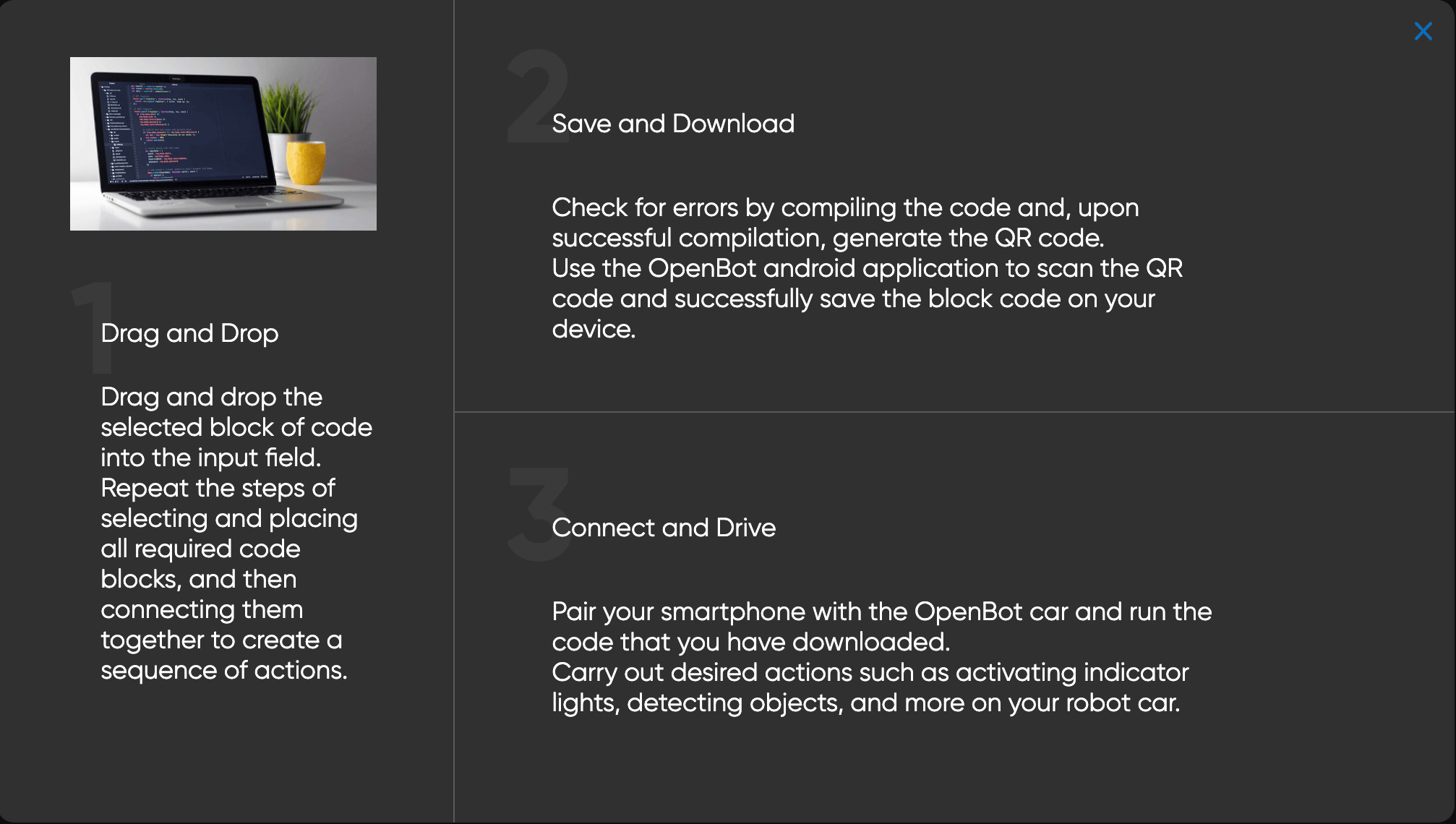

- On the right side, a help button has been added, featuring three sections that explain how to effectively drag and drop blocks, save and download project progress, and upload to drive for seamless collaboration.

Playground Help

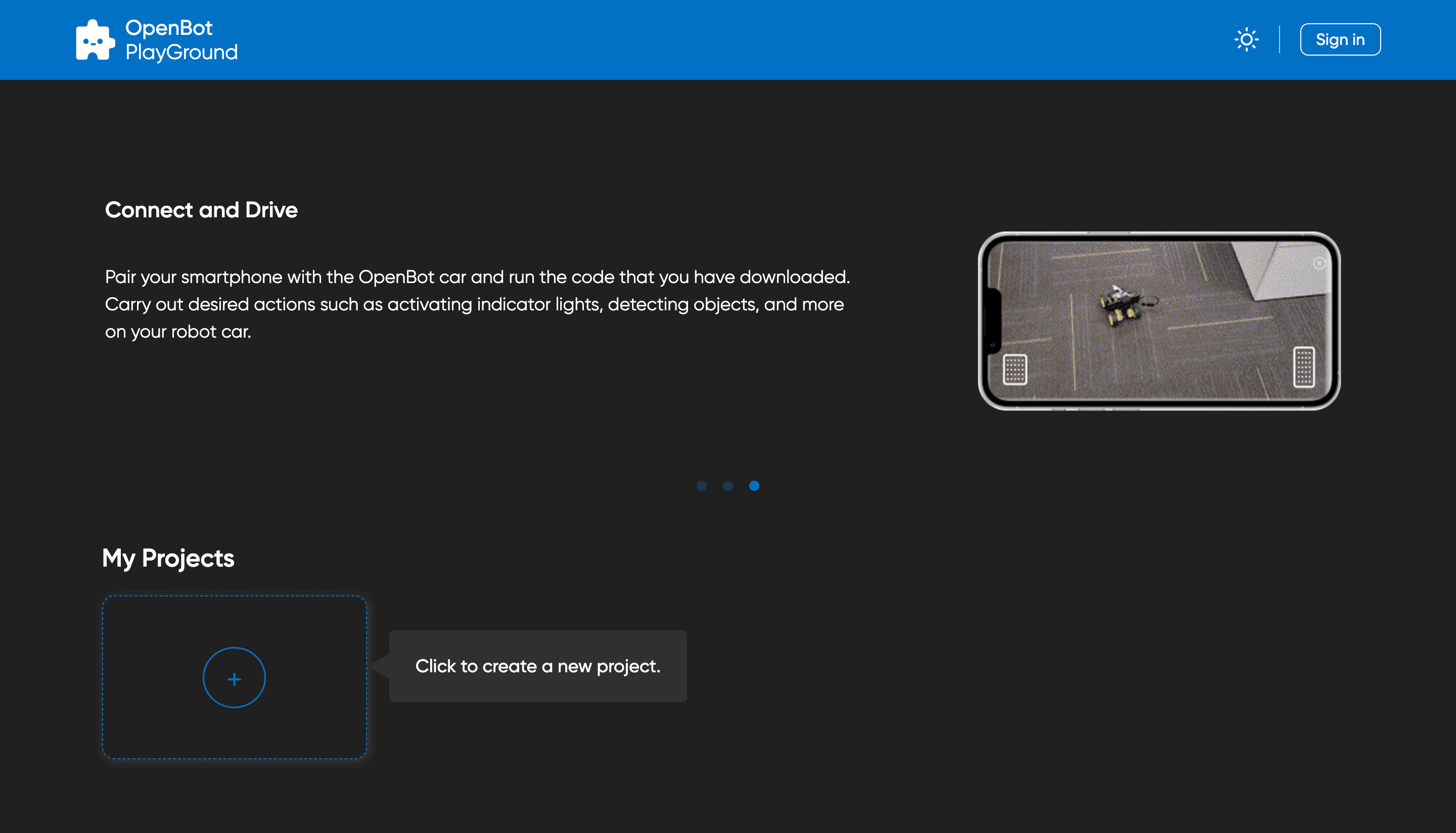

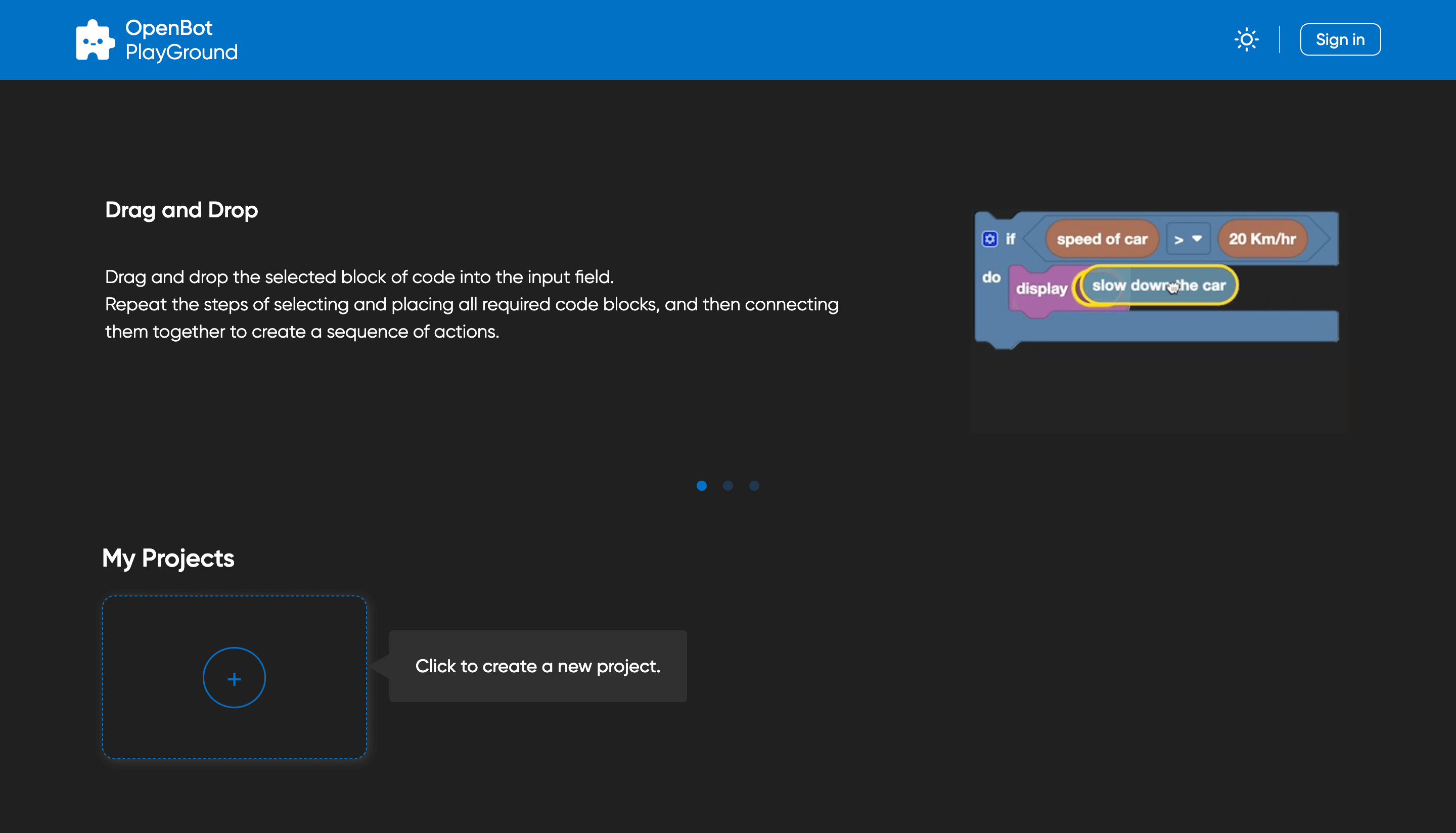

### Carousel Carousel's container explains how Application works.

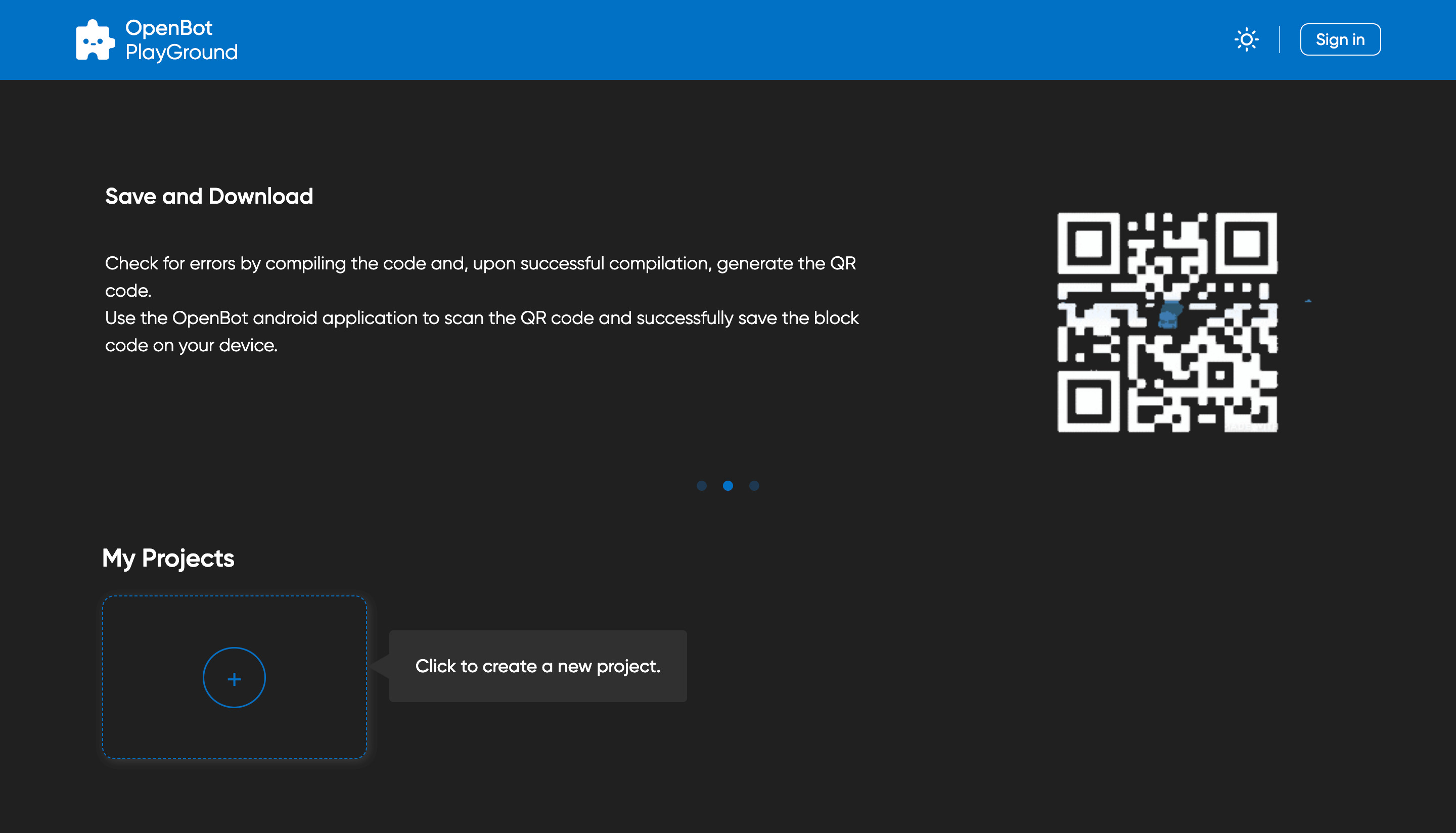

home_carousal1 home_carousal2 home_carousal3

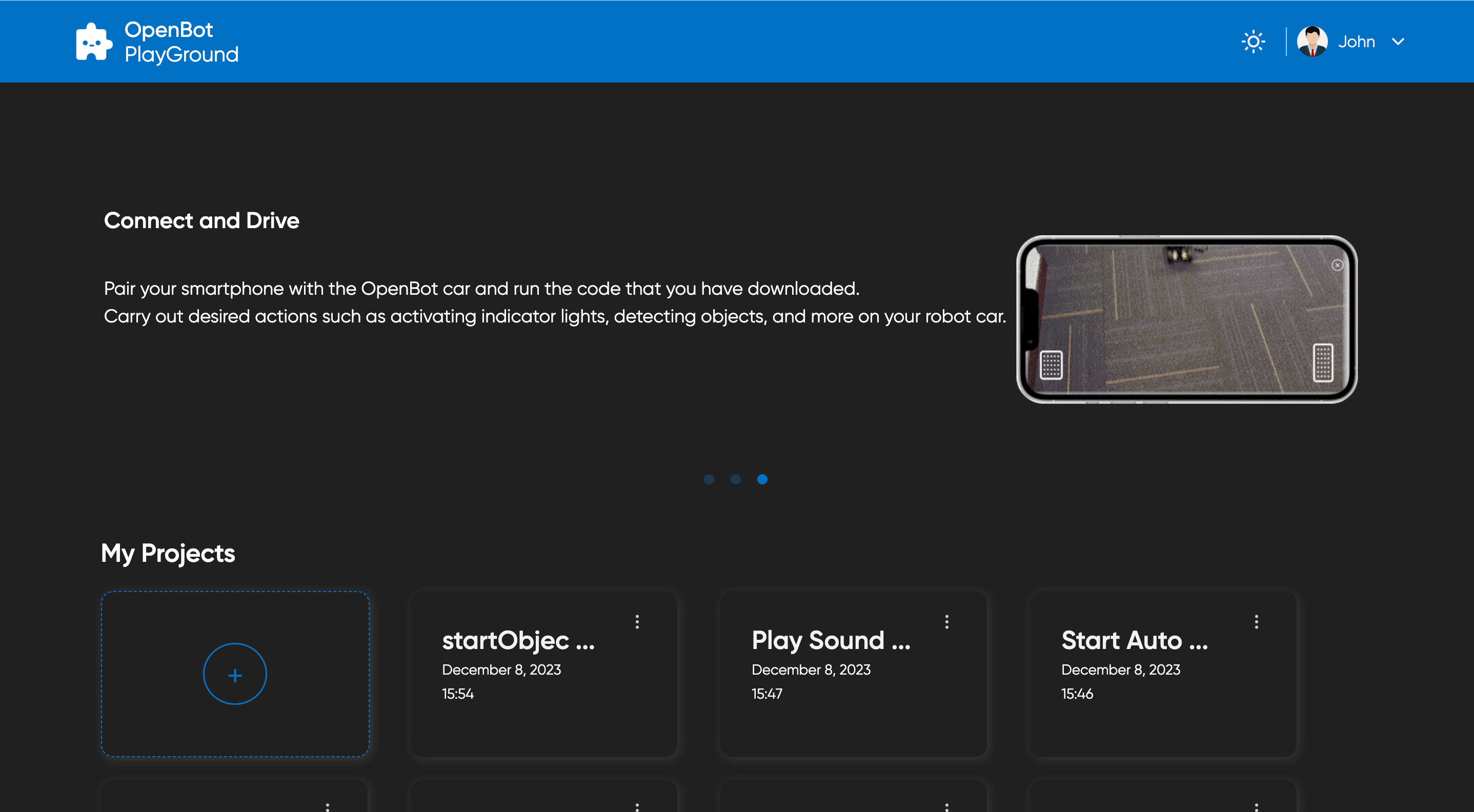

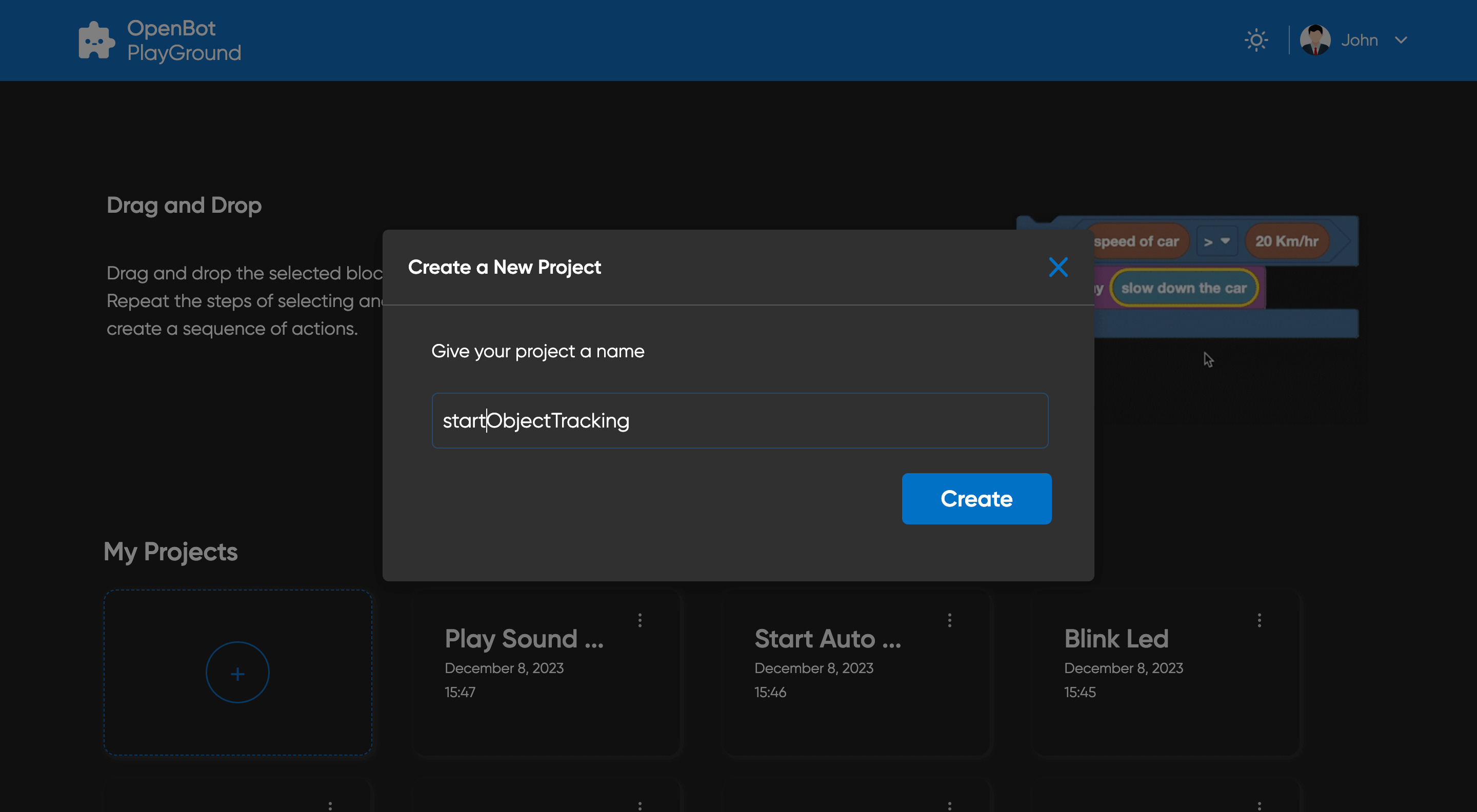

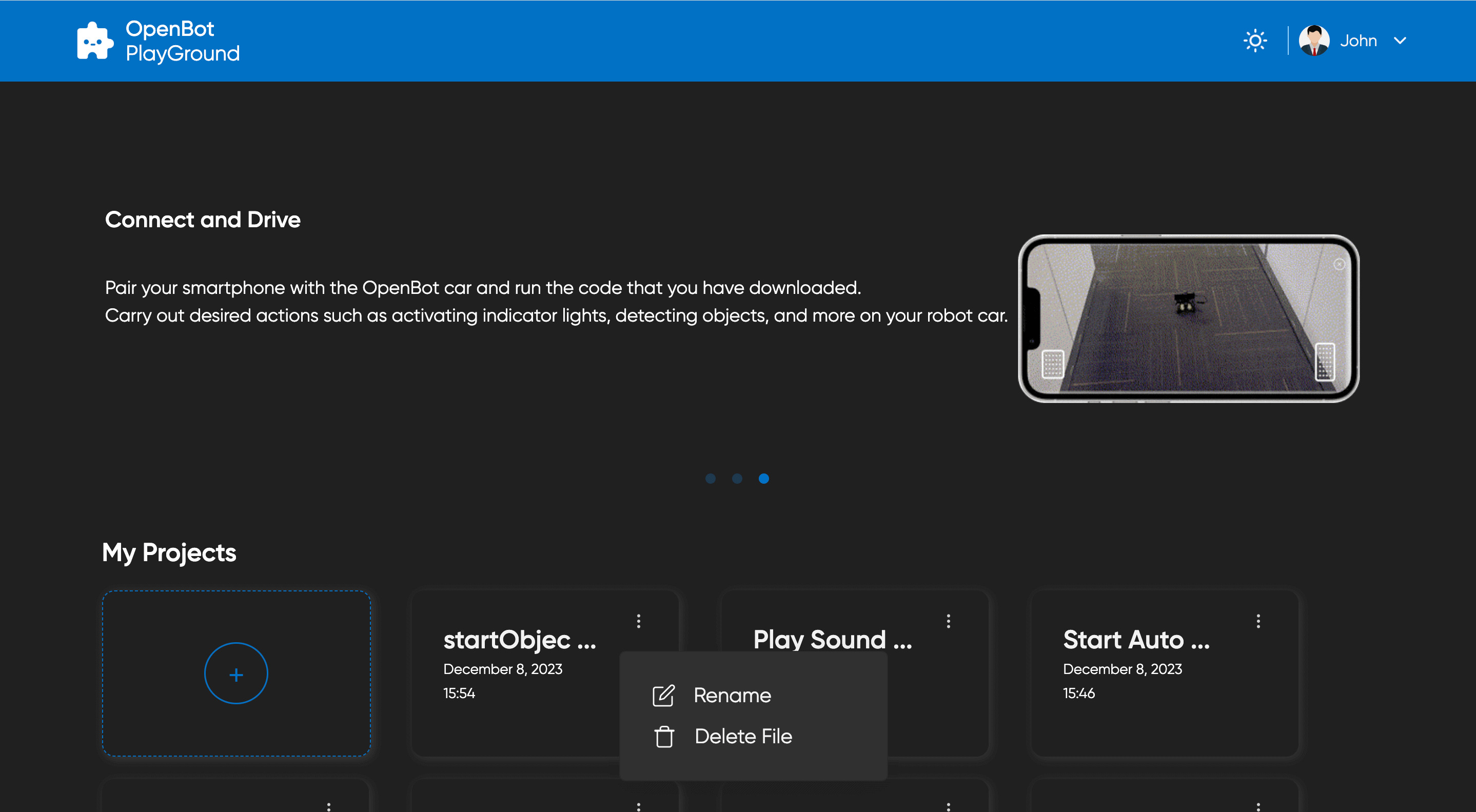

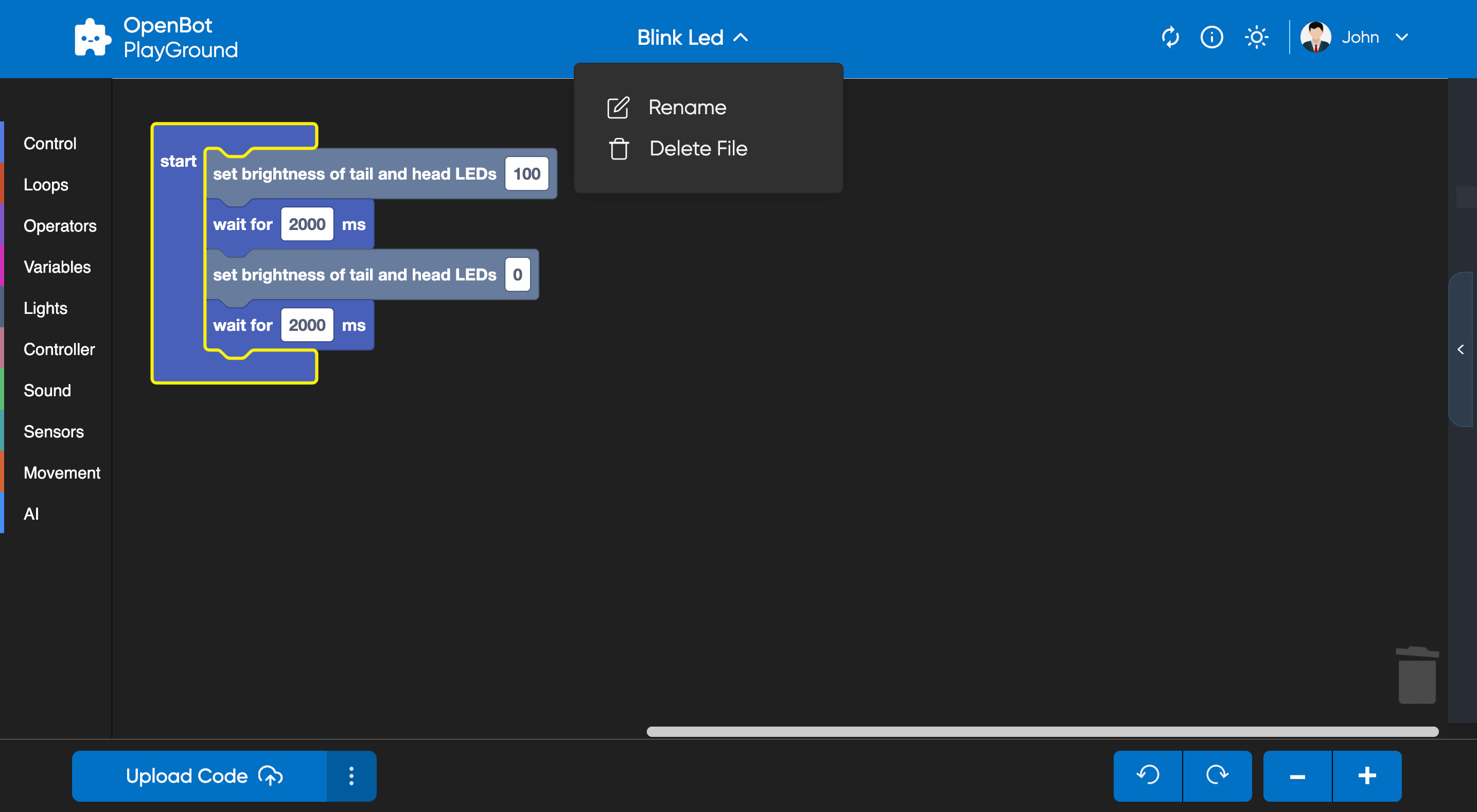

### Project Section The 'My Projects' section display the projects stored in local storage and Google Drive (if the user is signed in), with each project showing its name, creation/edit date, and previous block versions. Clicking on a project redirects the user to its playground page. To create a new project, simply click on the `create icon`. Clicking the 'Create' icon opens a 'Create New Project' popup with an input for the project name and a 'Create' button. Once a suitable name is entered and the 'Create' button or enter is pressed, the project's playground screen will open. If the user enters a name already assigned to another project, the system will automatically generate a unique name by appending an integer to the end of the name.

Create New Project my Project option

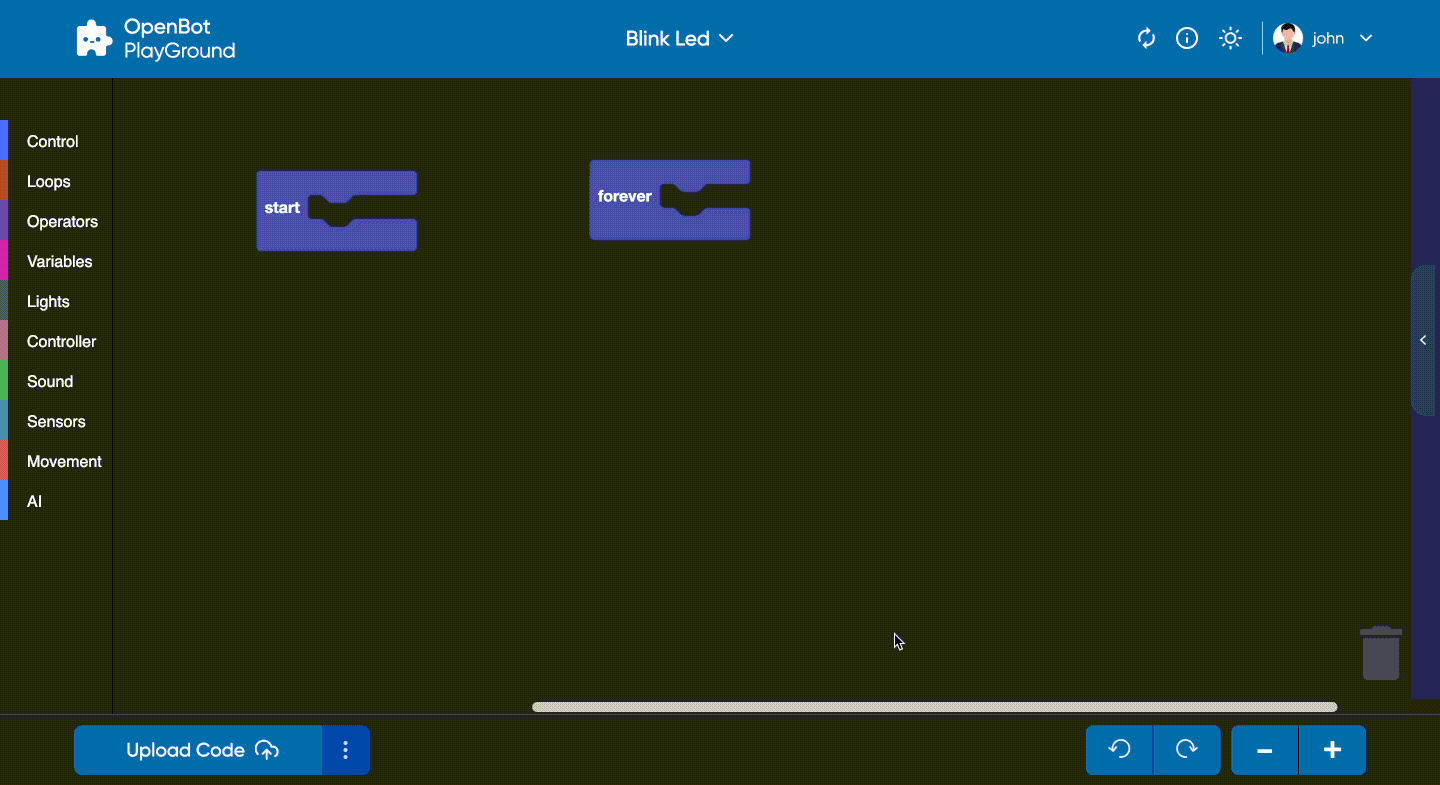

### WorkSpace To generate code, users can drag and drop coding blocks into the workspace. The code can be converted into both JavaScript and Python. - Blocks can be selected from the left section and dropped into the workspace as needed. - To delete a block, users can simply drag it to the trash icon located in the bottom right corner. - If a block does not fit into the "Start" or "Forever" block, it will be disabled to prevent errors in the generated code. - Users can restore a deleted block from the trash by clicking on it, which will display a list of deleted blocks. They can then drag and drop the desired block from the trash back into the workspace. - Know More About Blocks: [Blocks](src/components/blockly/README.md)

Create New Project

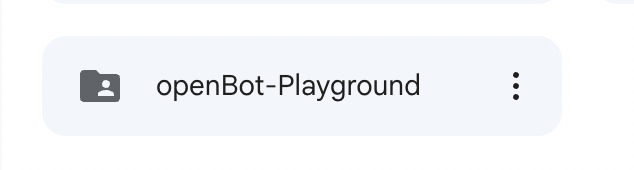

### Playground Bottom Bar - To ensure a successful web experience of the openBot-PlayGround using Google Drive, users should fulfill the following conditions: - User should not have any other folder in their Google Drive with the same name as the website generated openBot-PlayGround folder. - User should not create same name file in openBot-PlayGround folder.

Generate Code

- #### Generate Code Generate Code button on the Playground bottom bar serves three important functions. Firstly, it generates a QR code that represents the link of the JavaScript/Python file uploaded to the user's Google Drive as part of the project. This QR code is displayed in a side window for easy access and sharing. Secondly, the button uploads a JavaScript/Python file containing the code for the project to the user's Google Drive. And lastly, uploading an XML file which represents the current project's block configuration. This XML file contains the structure and arrangement of the blocks used in the project. - `Convenient Sharing` - The QR code generated by the button provides a public shareable link to the JavaScript/Python file on Google Drive. This link can be accessed by scanning the QR code using the OpenBot IOS/Android app. This allows users to run the car based on the code generated using the coding blocks directly from their mobile device. The ability to share the QR code and access the code on mobile devices adds another level of convenience and accessibility to the openBot playground. The integration with Google Drive allows you to have a comprehensive backup of their project. By including the XML file, the exact structure and logic of the blocks used in the project are preserved. This is beneficial for you to share, collaborate, and revisiting projects in the future.

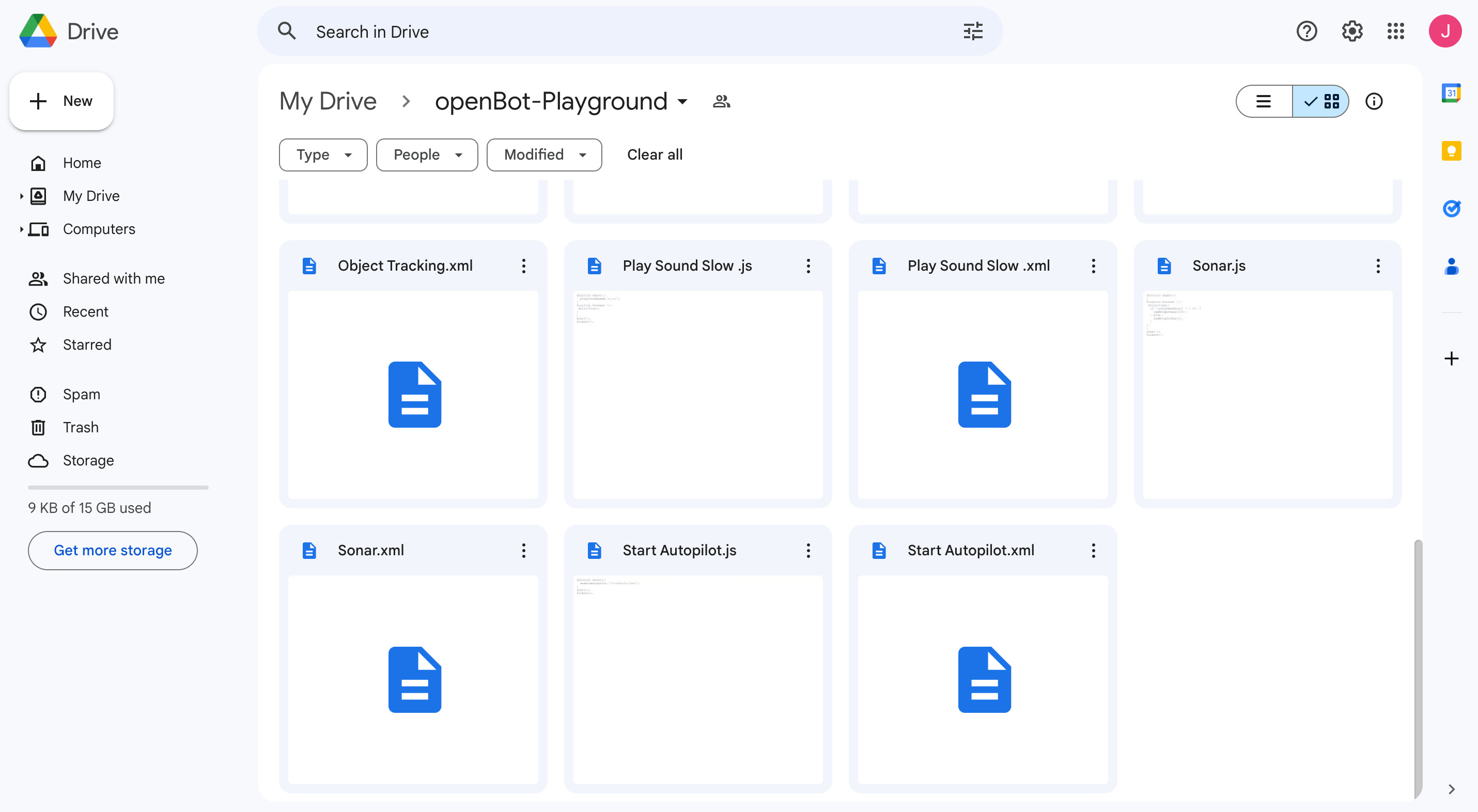

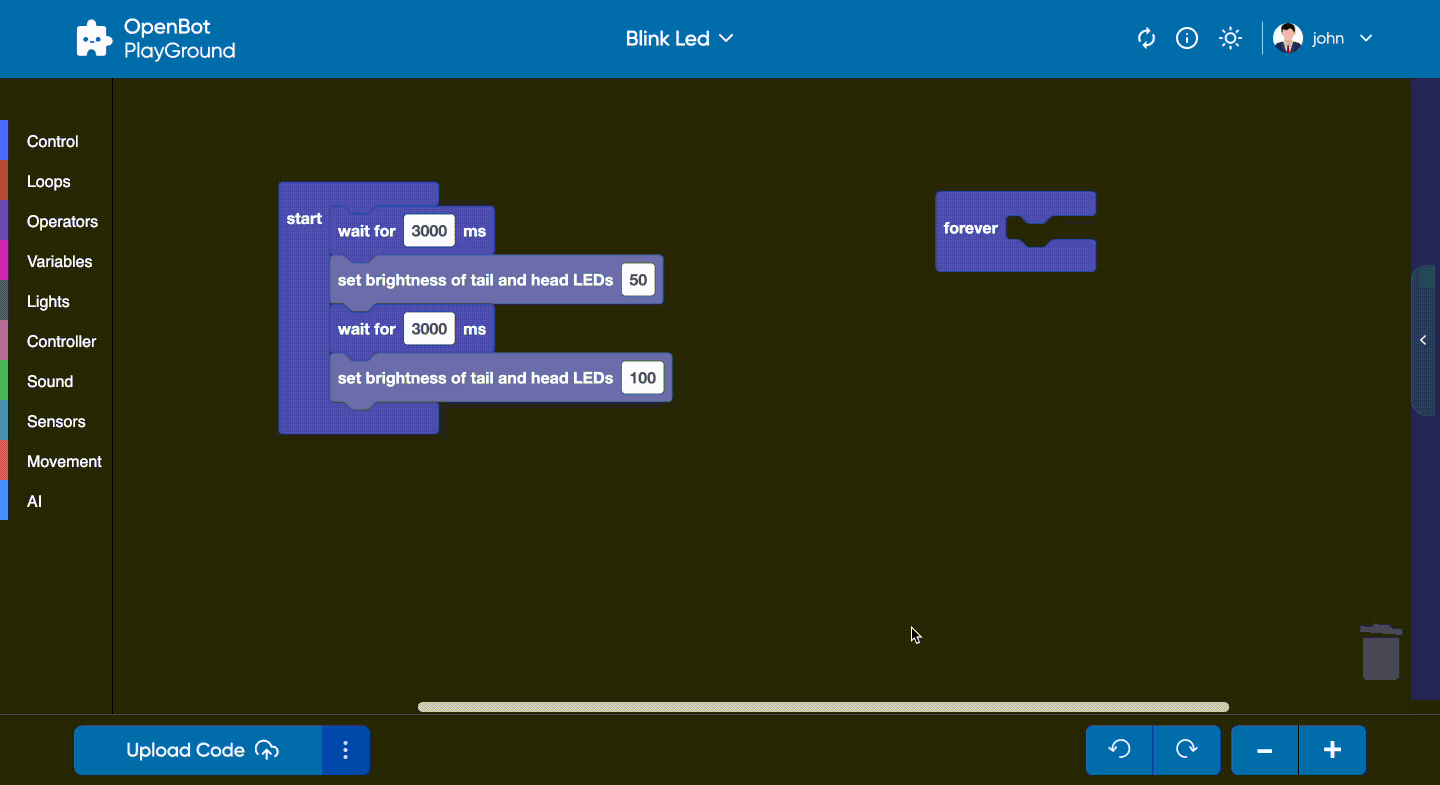

Here is an upload in Drive and generate Code Demo :

Generate Code

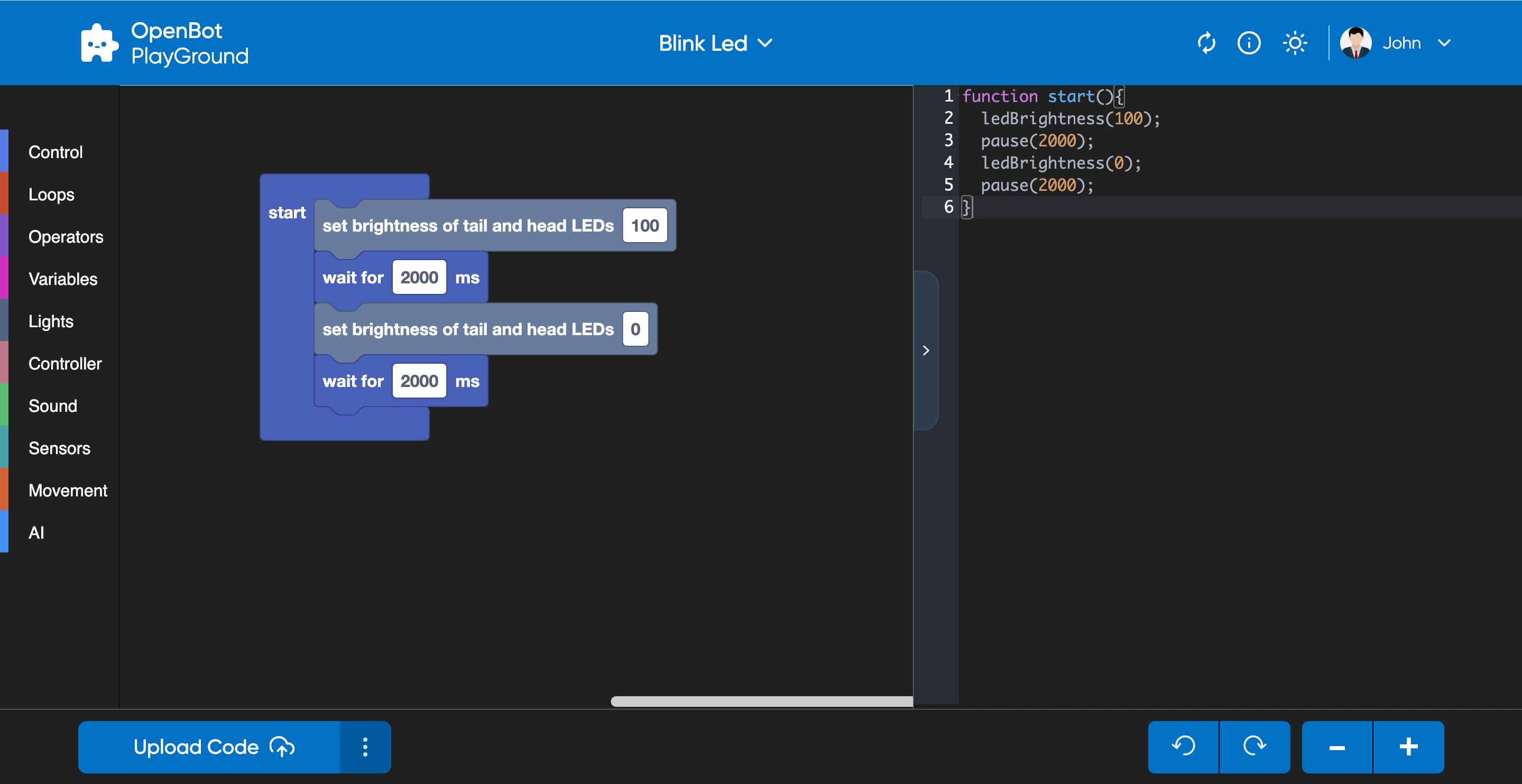

- #### Code Editor Code editor button on right side of generate QR button, opens a side window displaying block code in a scripting language. The button provides options to choose between two languages, either JavaScript or Python, and once selected, users can only view their code snippets in the side window. They can toggle between JavaScript and Python to see the corresponding code in the side window simultaneously. The options to choose a language enables you to examine and evaluate the correctness of the blocks.

Playground code editor

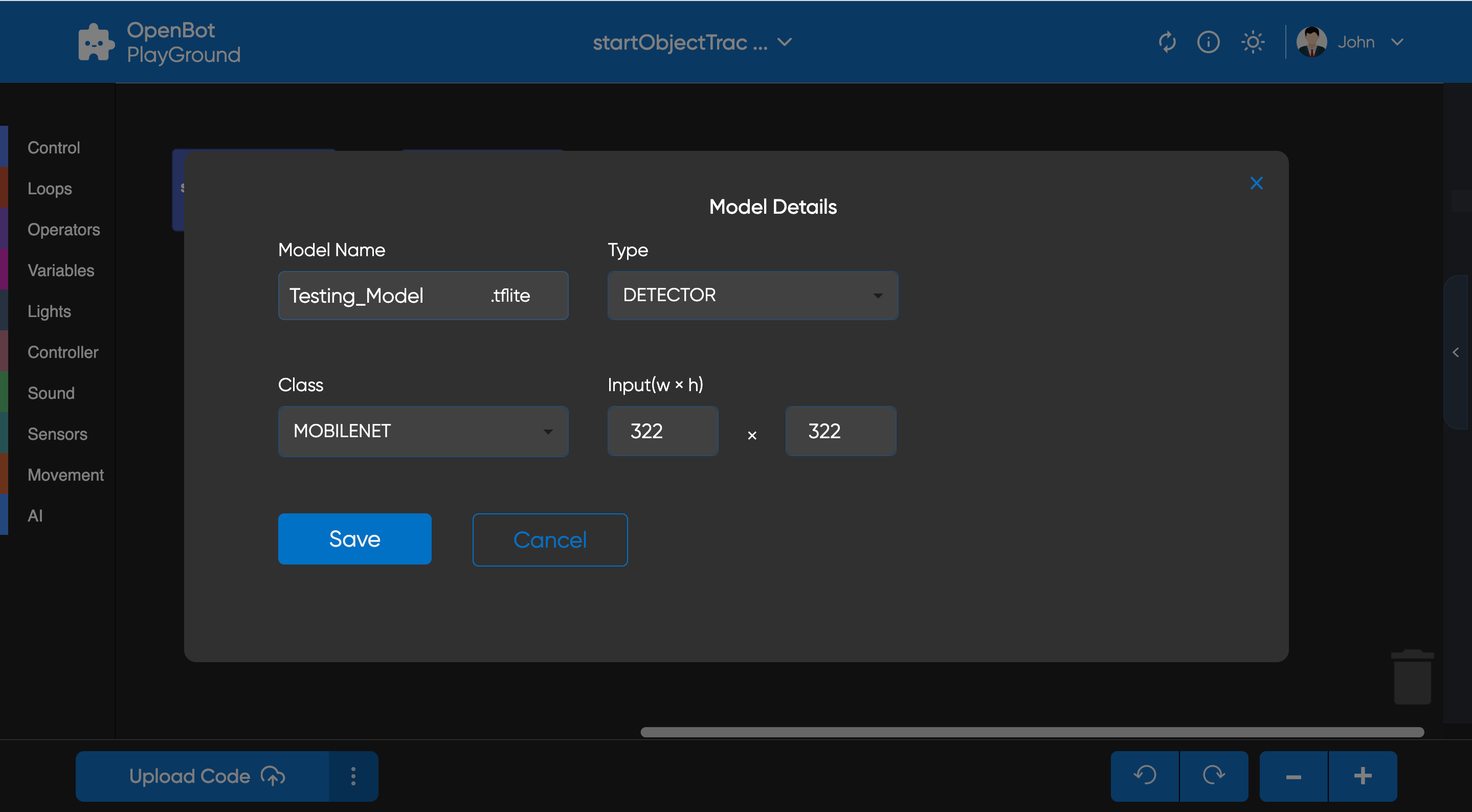

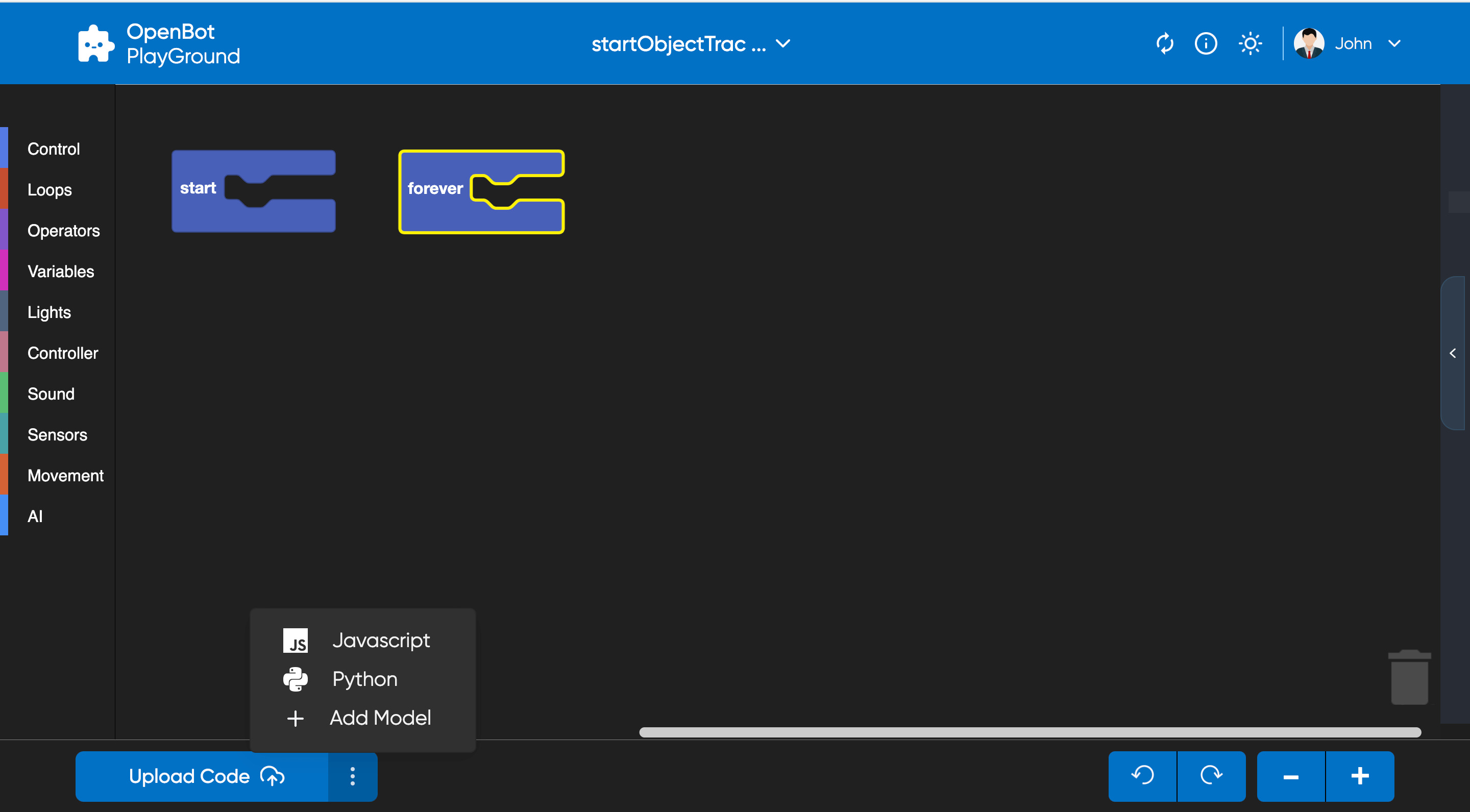

- #### Add Model The OpenBot playground provides a feature to externally add AI model (.tflite) to robot application. The model popup allows user to edit the configuration of our model, including its name, type, class, and input size. Note that the model will automatically saved in the user's Google Drive, along with the updated config.json file.

Playground code editor

- #### WorkSpace Controller The undo and redo button helps to do undo redo functionalities in the playground. The plus icon is for zoom-in and the minus icon is for zoom-out. ## Next(optional) Firebase Authentication troubleshooting [Firebase](src/services/README.md#troubleshooting)
