Chapter 9. The Database Layer

Table of Contents

9.1. Persistent Properties
9.1.1. Non-Persistent Properties
9.1.2. Built-In Properties
9.1.3. The Identifier Tag
9.2. Reading and Writing Entities
9.3. Mapping BigWorld Properties Into SQL
9.3.1. Entity Tables
9.3.2. The databaseID property
9.3.3. Simple Data Types
9.3.4. VECTOR Data Types
9.3.5. STRING, BLOB, and PYTHON Data Types
9.3.6. PATROL_PATH and UDO_REF Data Types
9.3.7. ARRAYs and TUPLEs
9.3.8. FIXED_DICTs
9.3.9. USER_TYPEs
9.4. Execute Arbitrary Commands on Database
9.4.1. Execute Commands on SQL Database
9.4.2. Execute Commands on XML Database

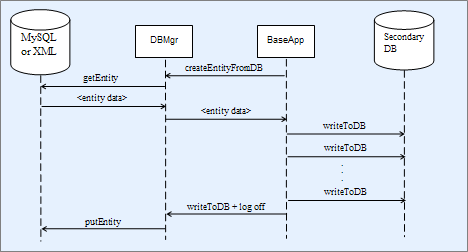

9.5. Secondary Databases
9.5.1. Data Consolidation
9.5.2. Database Snapshot

The database layer is BigWorld's persistent storehouse of entities. It allows writing specific entities into online storage (usually into a database table or disk file), and retrieving them back into the world again later.

The database layer is not intended to be accessed frequently by each entity, but instead only at entity creation and destruction times (and perhaps at critical trade points). You should not attempt to access the database in response to every action a character performs ‐ let the disaster recovery mechanisms handle game integrity.

This chapter provides details on how to store and retrieve entities from the database.

9.1. Persistent Properties

The first step to make an entity persistent is to edit its definition file (named <res>/scripts/entity_defs/<entity>.def) and specify the properties to be made persistent.

The persistent set of properties is often a small subset of the entity properties. For example, a role playing game typically has a set of core attributes (strength, dexterity, etc...), and a set of derived attributes that need to be modified transiently (maybe the character always gets full vitality when logging on, and so vitality points need not be persisted).

To mark an entity property as persistent, it needs the tag <Persistent> added to it, as illustrated below:

<root>
  ...
  <Properties>
    ...
    <somePersistentProperty>
      <Type>       TYPENAME </Type>
      <Flags>      FLAGS    </Flags>
      <Persistent> true     </Persistent>
    </somePersistentProperty>
    ...
  </Properties>
  ...
</root>

<res>/scripts/entity_defs/<entity>.def ‐ Marking a property as persistent

If the type is FIXED_DICT, then the <Persistent> tag can be specified for each property of the FIXED_DICT data type.

For example:

<root>
  ...
  <Properties>
    ...
    <someFixedDictProperty>
      <Type>    FIXED_DICT
        <Properties>
          <a> <Type> TYPENAME </Type> </a>
          <b>
            <Type> TYPENAME </Type>
            <Persistent> false </Persistent>
          </b>
        </Properties>
      </Type>
      <Flags>    FLAGS      </Flags>
      <Persistent>  true    </Persistent>
    </somePersistentProperty>
    ...
  </Properties>
  ...
</root>

In the above example, someFixedDictProperty.a is persistent, but someFixedDictProperty.b is not. If the <Persistent> tag at the <someFixedDictProperty> level is false, then neither a nor b will be persistent. By default, the <Persistent> tag at the FIXED_DICT field level is true, so it is not necessary to specify it, except for selectively turning off the persistence of some fields.

During startup, the database process (DBMgr) automatically allocates the tables, fields, or other storage required for persistent properties. Sometimes this behaviour is not desirable (for example in a production system), and it can be controlled with the <dbMgr/syncTablesToDefs> configuration option. For details on this option, see the document Server Operations Guide's section Software Configuration with bw.xml → DBMgr configuration options.

Other parameters can be set for persistent properties for the MySQL database engine. For more details, see Mapping BigWorld Properties Into SQL.

9.1.1. Non-Persistent Properties

Properties that are reset each time the entity is created should not be made persistent. For example, entity's A.I. and GUI states are usually non-persistent. Reducing the number of persistent properties will reduce the load on the database. If a property is not persistent, its value will be set to its default value when the entity is loaded from the database (see Reading and Writing Entities).

A MAILBOX property is always non-persistent.

9.1.2. Built-In Properties

The following built-in properties are persistent:

  • Base : databaseID .
  • Cell : position , direction and spaceID .

All other built-in properties are non-persistent.

Note

The entity's built-in id property is not persistent. It will change each time the entity is re-created. This includes the case where the entity is re-created automatically by the disaster recovery mechanism (see Disaster Recovery). Therefore, when storing entity IDs of other entities, they should be stored in non-persistent properties so that they will be automatically reset to the properties' default value when the entity is re-created by the disaster recovery mechanism. This avoids the possibility of storing invalid entity IDs.

The entity's id property is unchanged when the entity is restored by our fault tolerance mechanism (see Fault Tolerance).

Use the entity's database ID for a long term reference to the entity.

9.1.3. The Identifier Tag

The <Identifier> tag is an optional tag for persistent STRING or BLOB entity properties. It specifies a property to be the identifier for that entity type. Entities can be retrieved from the database by using their identifier instead of their database ID. For this reason, all entities of the same type must have unique identifiers. At most one property per entity can be tagged as an identifier.

For example, assuming the entity definition file below:

<root>
  ...
  <Properties>
    ...
    <playerNickname>
      <Type>       STRING </Type>
      <Flags>      Flags  </Flags>
      <Persistent> true   </Persistent>
      <Identifier> true   </Identifier>
    </playerNickname>

    <someProperty1>
      <Type>       UINT32 </Type>
    </someProperty1>

    <someProperty2>
      <Type>       STRING </Type>
      <Persistent> true   </Persistent>
    <someProperty2>
    ...

Example <res>/scripts/entity_defs/<entity>.def ‐ Setting the Identifier property

Then assuming that there are three instances of the above entity type, they could be represented like in the table below:

<title>Entity data with its <Identifier> property.</title>
playerNickname someProperty2
playerNickname1 "cfeh"
playerNickname2 "fwep"
playerNickname3 "fwep"

Note that <someProperty1> is not represented in the database because it is not specified as being persistent.

Entity types with an <Identifier> property can be searched by name, using methods such as BigWorld.lookUpBaseByName and BigWorld.createBaseFromDB. For details, see the BaseApp Python API documentation.

9.2. Reading and Writing Entities

The database provides the means of saving entities and bringing them back into the world at a later time. It also guarantees that each saved entity can have only one instance within the world. This assures that any writes to the database for the entity will be correctly carried out.

In order to use this functionality, you must first create a persistent entity. Such an entity must exist on a BaseApp, and could be of type BigWorld.Base or BigWorld.Proxy. You can create it with any of the normal techniques. For more details, see Entity Instantiation on the BaseApp.

The key for persisting an entity is its property databaseID, combined with its entity type. The property databaseID is a 64-bit integer that is unique among entities of the same type, and usually corresponds to an auto-increment field in a database table. When an entity is created with any of the usual techniques, its databaseID is set to 0, indicating that it has never been written to the database.

To add a newly created entity to the database, its method writeToDB has to be invoked (from either cell or base).

If invoked on the base entity, writeToDB receives an optional argument specifying the callback method. Upon completion, writeToDB will invoke the callback, passing a Boolean argument indicating if writing to the database succeeded or failed, and the base entity that invoked the method. A notification method is used, as the database write is an asynchronous operation.

The code fragments below illustrate the use of method writeToDB from the base.

  1. In someEntity's base script (<res>/scripts/base/someEntity.py), define callback method for writeToDB:

    import BigWorld

class someEntity( BigWorld.Base )
  ...
  def onWriteToDBComplete( successful, entity ):
    if successful:
      print "write %i OK. databaseID = %i" % (entity.id, databaseID)
    else:
      print "write %i was not successful" % entity.id
  ...

  2. Invoke methods to create base and add it to database:

    ent = BigWorld.createBase( "someEntity" )
ent.writeToDB( onWriteToDBComplete )

  3. The result displayed in BaseApp:

    write 92 OK. databaseID = 376182

Next time this entity is destroyed (by invoking method ent.destroy), it will be 'logged off' ‐ the database layer keeps track of whether the entity is in the world.

A destroyed entity can later be brought back to the world using the method BigWorld.createBaseFromDBID and the properties stored in the database, as illustrated below:

BigWorld.createBaseFromDBID( "someEntity", 376182, optionalCallbackMethod )

Since loading a destroyed entity from the database is also an asynchronous operation, if you wish to be notified of the completion of this process, you need to pass a callback function as the third argument of method BigWorld.createBaseFromDBID. The callback function receives the entity identifier as the only argument, which is the databaseID if entity was successfully loaded, or None, otherwise.

The code fragments below illustrate the request to reload entities from the database:

  1. In someEntity's base script (<res>/scripts/base/someEntity.py), define callback method for createBaseFromDBID:

    import BigWorld

def onComplete( entity ):
  if entity is not None:
    print "entity successfully created"
  else:
    print "entity was not created"

  2. Call createBaseFromDBID with a valid databaseID:

    BigWorld.createBaseFromDBID( "someEntity", 376182, onComplete )

  3. The result displayed in BaseApp:

    entity successfully created

  4. Call createBaseFromDBID with an invalid databaseID:

    BigWorld.createBaseFromDBID( "someEntity", 10000000000, onComplete )

  5. The result displayed in BaseApp:

    entity was not created

9.3. Mapping BigWorld Properties Into SQL

When designing persistent properties, it is useful to understand how the mapping from BigWorld types to SQL types is performed by the database layer. This information can be used for performance tuning, or in manually modifying the database.

9.3.1. Entity Tables

Each entity type will have a main entity table, and zero or more sub-tables in the database.

An entity type's main table is named tbl_<entity_type_name>. Data for the majority of BigWorld types will be stored in the columns of the main table. Types like ARRAY and TUPLE, however, require the use of additional tables, referred to as sub-tables in this document.

Except for ARRAY and TUPLE properties, data for each entity is stored as a single row in the entity type's main table.

9.3.2. The databaseID property

The databaseID property of an entity is stored in the id column in the main table ‐ this is why entities without persistent properties still have a main entity table.

9.3.3. Simple Data Types

A property with a simple data type is mapped to a single SQL column (named sm_<property_name>) with a type that accommodates.

The table below describes each BigWorld simple data type, and which MySQL type it is mapped to:

<title>Mapping of simple BigWorld data types to SQL.</title>
BigWorld data type Mapped to MySQL type (column sm_<property_type>)
INT8 TINYINT
UINT8 TINYINT UNSIGNED
INT16 SMALLINT
UINT16 SMALLINT UNSIGNED
INT32 INT
UINT32 INT UNSIGNED
INT64 BIGINT
UINT64 BIGINT UNSIGNED
FLOAT32 FLOAT
FLOAT64 DOUBLE

9.3.4. VECTOR Data Types

Properties with vector types are mapped to the appropriate number of columns of MySQL type FLOAT ‐ named vm_<index>_<property_name>, where <index> is a number from 0 to the size of the vector minus 1.

The list below describes each BigWorld VECTOR data type, and which MySQL type it is mapped to:

<title>Mapping of BigWorld VECTOR data types to MySQL.</title>
BigWorld data type # of columns Mapped to MySQL type (column vm_<index>_<property_name>)
VECTOR2 2 FLOAT
VECTOR3 3 FLOAT
VECTOR4 4 FLOAT

9.3.5. STRING, BLOB, and PYTHON Data Types

Properties of types STRING, BLOB, and PYTHON will be mapped to column sm_<property_name>, with the type being dependent on the <DatabaseLength> attribute of the property specified in the entity definition file (for details, see The Entity Definition File, and Properties), as it determines the width of the column when the type is mapped to SQL.

The list below summarises the mapping of STRING, BLOB, and PYTHON data types:

  • PYTHON

    • DatabaseLength < 256 ‐ TINYBLOB

    • DatabaseLength >= 256 and < 65536 ‐ BLOB

    • DatabaseLength >= 65536 and < 16777215 ‐ MEDIUMBLOB

  • STRING

    • DatabaseLength < 256 ‐ VARCHAR

    • DatabaseLength >= 256 and < 65536 ‐ TEXT

    • DatabaseLength >= 65536 and < 16777215 ‐ MEDIUMTEXT

The definition of <DatabaseLength> is illustrated below:

<root>
  ...
  <Properties>
    ...
    <someProperty>
      <Type>            STRING  </Type>
      <DatabaseLength>  16      </DatabaseLength>
    </someProperty>
    ...

<res>/scripts/entity_defs/<entity>.def ‐ Defining property's mapped SQL type

9.3.6. PATROL_PATH and UDO_REF Data Types

The PATROL_PATH type has been deprecated in favor of the use of User Data Objects and should be avoided as they will be removed in a future release. The <PatrolNode> User Data Object replaces the station nodes of the old system.

Properties with UDO_REF type are mapped to a column of type BINARY, named sm_<property_name>. The column width is 16 bytes, which corresponds to the 128-bit GUID that identifies a Patrol Path or User Data Object type.

The 128-bit GUID is stored in the column as four groups of 32-bit unsigned integers. Each integer is in little endian order. For example, if the GUID is 00112233.44556677.8899AABB.CCDDEEFF, then the byte values in the column will be 3322110077665544BBAA9988FFEEDDCC.

9.3.7. ARRAYs and TUPLEs

Each ARRAY or TUPLE property is mapped to an SQL table, referred to as sub-tables of the entity's main table, and named <parent_table_name>_<property_name>.

<parent_table_name> is the name of the entity type's main table, unless the ARRAY or TUPLE is nested in another ARRAY or TUPLE property, in which case <parent_table_name> is the name of the parent ARRAY's or TUPLE's table.

Note

Although BigWorld does not impose a limit on nesting ARRAY or TUPLE types, MySQL has a limit of 64 characters on table names.

As sub-table names are always prefixed with their parent table name, this effectively limits the nesting depth.

ARRAY or TUPLE sub-tables have a parentID column that stores the id of the row in the parent table associated with the data. The sub-table will also have an id column to maintain the order of the elements, as well as to provide a row identifier in case there are sub-tables of this sub-table.

The other columns of the sub-table will be determined by the ARRAY's or TUPLE's element type (e.g., an ARRAY <of> INT8 </of> will result in one additional column of type TINYINT). Most BigWorld types only require one additional column, which will be called sm_value. For details on how an ARRAY or TUPLE of FIXED_DICT is mapped into the database, see FIXED_DICTs.

9.3.7.1. The <DatabaseLength> Attribute

The <DatabaseLength> attribute of an ARRAY or TUPLE property is applied to the element type of the array if the element type is STRING, BLOB or PYTHON.

Other types either disregard the <DatabaseLength> modifier or, as in the case of FIXED_DICT, have their own method of specifying the <DatabaseLength>.

9.3.8. FIXED_DICTs

If an entity type contains a FIXED_DICT property, then that property's fields are mapped to the database as though they where properties of the entity.

FIXED_DICT columns have more elaborate names than non-FIXED_DICT columns:

  • sm_<property_name>_<field_name>

If the FIXED_DICT property contains an ARRAY or TUPLE field then the name of the sub-table is correspondingly more elaborate:

  • <parent_table_name>_<property_name>_<field_name>.

If a FIXED_DICT type is used as an element of an ARRAY or TUPLE, then the fields are mapped into the columns of the ARRAY's or TUPLE's sub-table. The columns will be named sm_<field name>.

If the FIXED_DICT property has the <AllowNone> attribute set to true, then an additional column called fm_<property_name> will be added to the table. This column will have the value 0 when the property's value is None, or 1 otherwise.

The <DatabaseLength> attribute should be specified at the field level of a FIXED_DICT property ‐ the one specified at the property level is ignored.

9.3.9. USER_TYPEs

If you have a USER_TYPE data type, then you can specify how it should be mapped to SQL. For more details on custom data types, see Implementing Custom Property Data Types.

In order to provide this mapping, a method called bindSectionToDB needs to be implemented in the USER_TYPE implementation. This method receives an object as its argument to be used to declare the data binding. For example, for a USER_TYPE implemented by an instance of the type TestUserType:

...
  class TestUserType:
    ...
    def addToStream( self, obj ):
      ...

    def bindSectionToDB( self, binder ):
      ...

instance = TestUserType()

Defining USER_TYPE database mapping method.

The object received by bindSectionToDB to perform the type mapping (binder in the preceding example) provides the following methods:

  • bind( property, type, databaseLength )

    Binds a property (based on name) from the data section to a field (or fields) in the current SQL table, and creates a column called sm_<property_name>.

    The parameter type is a string that corresponds to the <Type> field of the XML definition of the property. For example:

    <title>Examples of type mapped to string.</title>
    Data type XML type
    Simple <Type> INT </Type> INT
    ARRAY <Type> ARRAY <of> INT</of> </Type> ARRAY <of> INT</of>
    Custom <Type> USER_TYPE <implementedBy> module.instance </implementedBy> </Type> USER_TYPE <implementedBy> module.instance </implementedBy>

    The parameter databaseLength is optional (defaulting to 255), and determines the size and data type of STRING mapped. For more details, see STRING, BLOB, and PYTHON Data Types.

  • beginTable( property )

    Starts the specification of a new SQL table (called <current_table_name>_<property_name>) for binding Python compound objects e.g. lists, tuples, dictionaries. Any calls to the method bind following a beginTable call will bind to fields in the new table until endTable is called.

    Typically, beginTable is only used for binding Python compound objects that contains a variable number of compound objects e.g. list of tuples. For simple lists and tuples, it is sufficient to call bind with 'ARRAY <of><simple_type></of>' as the type. For compound objects that contain a fixed number of items, it is more efficient to bind each item as a separate field in parent table instead of creating a new table.

    All tables created by beginTable will have an additional field called parentID used in associating rows in the new table with the parent table.

  • endTable()

    Finishes the specification of new SQL table started by method beginTable.

    Upon completion, specification of the parent table is resumed.

The implementation of the method bindSectionToDB must match the implementation of the method addToStream. The order and the parameter type of calls to bind must match the order in which the properties are serialised.

The table below shows the addToStream implementation followed by the corresponding bindSectionToDB implementation:

<title>Implementation of method addToStream and corresponding bindSectionToDB.</title>
addToStream implementation Corresponding bindSectionToDB implementation
stream += struct.pack ( "b", obj.intValue ) binder.bind( "intValue", "INT8" )
stream += struct.pack ( "B", obj.intValue ) binder.bind( "intValue", "UINT8" )
stream += struct.pack ( "h", obj.intValue ) binder.bind( "intValue", "INT16" )
stream += struct.pack ( "H", obj.intValue ) binder.bind( "intValue", "UINT16" )
stream += struct.pack ( "i", obj.intValue ) binder.bind( "intValue", "INT32" )
stream += struct.pack ( "I", obj.intValue ) binder.bind( "intValue", "UINT32" )
stream += struct.pack ( "q", obj.intValue ) binder.bind( "intValue", "INT64" )
stream += struct.pack ( "Q", obj.intValue ) binder.bind( "intValue", "UINT64" )
stream += struct.pack ( "f", obj.floatValue ) binder.bind( "floatValue", "FLOAT32")
stream += struct.pack ( "b", len(obj.stringValue) ) + stringValue binder.bind( "stringValue", "STRING", 50)
stream += struct.pack ( "i", len(obj.listValue) ) for item in obj.listValue stream += struct.pack ( "f", item )

binder.beginTable( "listValue" ) binder.bind( "value", "FLOAT32" )

binder.endTable()

or

binder.bind( "listValue", "ARRAY <of> FLOAT32 </of>" )

9.3.9.1. Examples

  • Mapping a simple user-defined data type

    The example below illustrates a simple user data type that represents a UTF-8 string.

    It maps the Python type unicode to a BigWorld data type. The method bindSectionToDB binds the property to a 50-byte SQL string column. Since this type requires only one column, there is no need to give it a name, thus the property argument can be an empty string.

    class UTF8String():
  "
  UTF8(unicode) string
  "
  def addToStream( self, obj ):
    # obj is a Python Unicode object.
    string = obj.encode( "utf-8" )
    return struct.pack( "b", len(string) ) + string

  def addToSection( self, object, section ):
    # Since UTF-8 is compatible to C strings(no NULL characters)
    # it is safe to store a Unicode string as C string.
    # The asString setter/getter method stores the value in the
    # root of DataSection 'section'.
    section.asString = obj.encode( "utf-8" )

  def createFromStream( self, stream ):
    # Return a Python Unicode object.
    (length,) = struct.unpack( "b", stream[0] )
    string = stream[ 1 : length+1 ]
    return string.decode( "utf-8" )

  def createFromSection( self, section ):
    # The asString method returns the value of section root
    # as a simple C string.
    # Return a Python Unicode object.
    return section.asString.decode( "utf-8" )

  def bindSectionToDB( self, binder ):
    # The empty string represents the root of DataSection.
    # The value in the DataSection root will be stored in
    # SQL database as a column of STRING type
    binder.bind( "", "STRING", 50 )

  def defaultValue( self ):
    # Return an empty Python Unicode object.
    return u""

instance = UTF8String()

    <res>/scripts/common/UTF8String.py

  • Mapping a complex user-defined type

    The example below implements the class Test, and the class TestDataType, which accesses the values on Test.

    Test contains three member variables:

    • An integer.
    • A string.
    • A dictionary.

    TestDataType's method addToSection will represent the attributes of Test objects like the following <DataSection>:

    <testData>

  <intValue>    100        </intValue>

  <stringValue> opposites  </stringValue>

  <dictValue>
    <value>
      <key>    good     </key>
      <value>  bad      </value>
    </value>
     <value>
      <key>    old      </key>
      <value>  new      </value>
    </value>
    <value>
      <key>    big      </key>
      <value>  small    </value>
    </value>
  </dictValue>

</testData>

    Test object's DataSection

    TestDataType's method createFromSection will create Test objects from DataSections like the one above.

    TestDataType's method bindSectionToDB will bind the Test object's integer and string variables to two columns, and add a child table for the dictionary member, as illustrated below:

    Representation of Test entity data in the MySQL database

    The classes Test and TestDataType are defined as below:

    import struct

class Test:
  def __init__( self, intValue, stringValue, dictValue ):
    self.intValue = intValue
    self.stringValue = stringValue
    self.dictValue = dictValue

  def writePascalString( string ):
    return struct.pack( "b", len(string) ) + string

  def readPascalString( stream ):
    (length,) = struct.unpack( "b", stream[0] )
    string = stream[1:length+1]
    stream = stream[length+1:]
    return (string, stream)

class TestDataType:
  def addToStream( self, obj ):
    if not obj: obj = self.defaultValue()
    stream = struct.pack( "i", obj.intValue )
    stream += writePascalString( obj.stringValue )
    for key in obj.dictValue.keys():
      stream += writePascalString( key )
      stream += writePascalString( obj.dictValue[key] )
    return stream

  def createFromStream( self, stream ):
    (intValue,) = struct.unpack( "i", stream[:4] )
    stream = stream[4:]
    stringValue, stream = readPascalString( stream )
    dictValue = {}
    while len(stream):
      key, stream = readPascalString( stream )
      value, stream = readPascalString( stream )
      dictValue[key] = value
    return Test( intValue, stringValue, dictValue )

  def addToSection( self, obj, section ):
    if not obj: obj = self.defaultValue()
    section.writeInt( "intValue", obj.intValue )
    section.writeString( "stringValue", obj.stringValue )
    s = section.createSection( "dictValue" )
    for key in obj.dictValue.keys():
      v = s.createSection( "value" )
      print key, obj.dictValue[key]
      v.writeString( "key", key )
      v.writeString( "value", obj.dictValue[key] )


  def createFromSection( self, section ): 1
    intValue = section.readInt( "intValue" )
    if intValue is None:
      return self.defaultValue()
    stringValue = section.readString( "stringValue" )
    dictValue = {}
    for value in section["dictValue"].values():
      dictValue[value["key"].asString] = value["value"].asString
    return Test( intValue, stringValue, dictValue )

  def fromStreamToSection( self, stream, section ):
    o = self.createFromStream( stream )
    self.addToSection( o, section )

  def fromSectionToStream( self, section ):
    o = self.createFromSection( section )
    return self.addToStream( o )

  def bindSectionToDB( self, binder ):
    binder.bind( "intValue", "INT32" )
    binder.bind( "stringValue", "STRING", 50 )
    binder.beginTable( "dictValue" )
    binder.bind( "key", "STRING", 50 )
    binder.bind( "value", "STRING", 50 )
    binder.endTable()

  def defaultValue( self ):
    return Test(100, "opposites", {"happy":"sad", "big":"small", "good":"bad"})

instance = TestDataType()

    <res>/scripts/common/TestDataType.py

    For details on methods supported for DataSection objects, see the BaseApp Python API documentation, CellApp Python API documentation, and Client Python API documentation's entry Class list → DataSection.

    1

    Note

    This script function does not process the input command and its corresponding output ‐ the input command is handled by the database management system.

    It is the user's responsibility to ensure that the command is compatible with the underlying database. The command's output should be processed by the callback function provided by the user.

9.4. Execute Arbitrary Commands on Database

BigWorld provides a facility for developers to execute arbitrary commands on the underlying database. By using the method BigWorld.executeRawDatabaseCommand you can execute custom statements or commands, and access data that do not conform to the standard BigWorld database schema.

Each database interface can interpret the data (command) and convert it to the expected format. For example, the MySQL interface expects an SQL statement, and the XML interface expects a Python statement.

9.4.1. Execute Commands on SQL Database

When executing a command on a SQL database, the method BigWorld.executeRawDatabaseCommand has the following signature:

BigWorld.executeRawDatabaseCommand( sql_statement, sqlResultCallback )

It has the following parameters:

  • sql_statement

    The SQL statement to execute. For example: 'select * from tbl_Avatar'.

  • sqlResultCallback

    The Python callback to be invoked with the result from SQL.

The callback will be invoked with the following parameters:

  • resultSet (List of list of strings)

    For SQL statements that return a result set (such as SELECT), this is a list of rows, with each row being a list of strings.

    For SQL statements that do not return a result set (such as DELETE), this is None.

  • affectedRows (Integer)

    For SQL statements that return a result set (such as SELECT), this is None.

    For SQL statements that do not return a result set (such as DELETE),this is the number of affected rows

  • error (String)

    If there was an error in executing the SQL statement, this is the error message. Otherwise, this is None.

9.4.2. Execute Commands on XML Database

When executing a command on a XML database, the method BigWorld.executeRawDatabaseCommand has the following signature:

BigWorld.executeRawDatabaseCommand( python_statement, pythonResultCallback )

It has the following parameters:

  • python_statement

    The Python expression to execute

  • pythonResultCallback

    The Python callback to be invoked with the result from the Python expression.

The XML database is stored in a global data section named BigWorld.dbRoot. The structure of the data section is defined by the entity definition files (<res>/scripts/entity_defs/<entity>.def).

The callback is called with three parameters:

  • resultSet (List of list of strings)

    Output of the Python expression, as a string.

    The string is embedded inside two levels of lists, so resultSet[0][0] retrieves the string.

  • affectedRows (Integer)

    This parameter will always be None.

  • error (String)

    If there was an error in executing the Python expression, this is the error message. Otherwise, this is None.

The code fragments below execute a command on the XML database:

  1. Request the health level of an avatar called 'Fred':

    BigWorld.executeRawDatabaseCommand(
    "[a[1]['health'].asInt for a in BigWorld.dbRoot.items() if a[0]=='Avatar' and a[1]['playerName'].asString == 'Fred']", healthCallback )

  2. Implement the Python callback:

    def healthCallback( result, dummy, error ):
    if (error):
         print "Error:", error
         return
    print "Health:", result[0][0]

  3. If the avatar's health level is 87, then the output will be:

    Health: [87]

9.5. Secondary Databases

Secondary databases are an optional feature that can be used to help reduce load on the primary database by distributing database writes onto machines with BaseApp processes. After an entity has been loaded from the primary database onto a BaseApp they are considered active and store any property modifications into a secondary database stored on the same machine as their associated BaseApp. Secondary databases will write back their contents to the primary database after an active entity is destroyed, becoming inactive.

Flow of persistent entity data when secondary databases are enabled

Each BaseApp has its own secondary database, including machines which may host more than one BaseApp. A secondary database is an SQLite database file on the BaseApp machine's local disk. Secondary databases can be enabled or disabled using the <baseApp/secondaryDB/enable> configuration option. For details on this option, see the document ????'s section ???? → ???? .

Entities are currently stored in raw binary form inside secondary databases and should only be manipulated using BigWorld tools like the data consolidation tool consolidate_dbs.

9.5.1. Data Consolidation

In case of a complete system failure, active entities may not have the opportunity to flush their data to the primary database. The data consolidation tool is run to transfer the active entity data from secondary databases to the primary database.

The data consolidation process is automatically run during system shutdown to transfer the persistent data of entities that were active when the system was shutdown.

The data consolidation tool is automatically run during start-up if the system was not shutdown successfully.

Unlike the BigWorld server, which uses UDP for interprocess communications, the data consolidation tool uses TCP connections to transfer the secondary databases from the BaseApp machines to the DBMgr machine. If there is a firewall on the DBMgr machine, it needs to be configured to allow TCP connections from BaseApp machines.

For more details on the data consolidation tool, see the document ????'s section ????.

9.5.2. Database Snapshot

Due to the existence of secondary databases, the data in the primary database may be quite stale. A backup made of the primary database may be considered too stale for functional use. As a solution to this issue, a secondary database snapshot tool is provided to make more up-to-date backups by backing up data from secondary databases as well. For details, see the document ????'s section ????.

Note

Despite the name of the tool, it does not generate a true snapshot of the system. The tool does not ensure that all active entities have flushed their data to the secondary databases before taking a copy of the secondary database. It makes a best effort at copying the primary and all the secondary databases at close to the same time.

Prev  Up  Next
Chapter 8. Entity Instantiation and Destruction  Home  Chapter 10. Proxies and Players
Copyright 1999-2008 BigWorld Pty. Ltd. All rights reserved. Proprietary commercial in confidence.
