# Details Machined Parts

<img src="../images/machined_parts_1.jpg" width="400"> <br >*Machined parts - motor shaft, motor pulley and center pulley.*<br>

There are 3 parts in the actuator module that have to be machined from metal - there is more information below.

Alternatively you can order the ODRI Encoder Kit that includes all the machined parts. More information can be found in the [Actuator Module Core v1.1 Documentation](../actuator_module_v1.1.md#brushless-actuator-module-core-v11).

## Timing Belt Pulleys

### Description:

For best performance the tooth profile of the pulleys has to be very precise.
You can order a custom form cutter with the right cutting profile geometry and machine the parts on a milling machine.
(Option A below)
Alternatively you can use Wire EDM (Wire Electrical Discharge) machining to generate the 2d tooth profile.
(Option B below)
The remaining machining steps can be done on a lathe.

**Caution: Don't use standard AT3 timing belt pulley dimensions or tools.
We modified the original AT3 tooth profile in order to reduce backlash.**

### Option A - Form Cutter

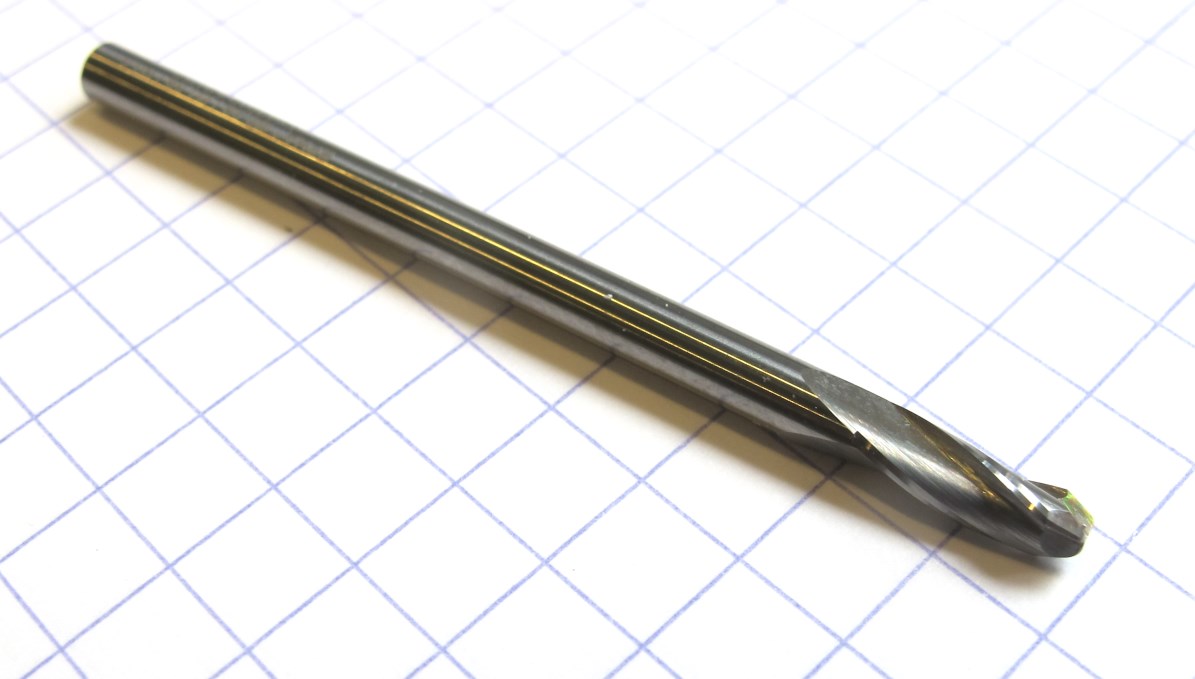

<img src="../images/at3_form_cutter.jpg" width="400"> <br >*Custom Form Cutter with AT3 tooth profile*

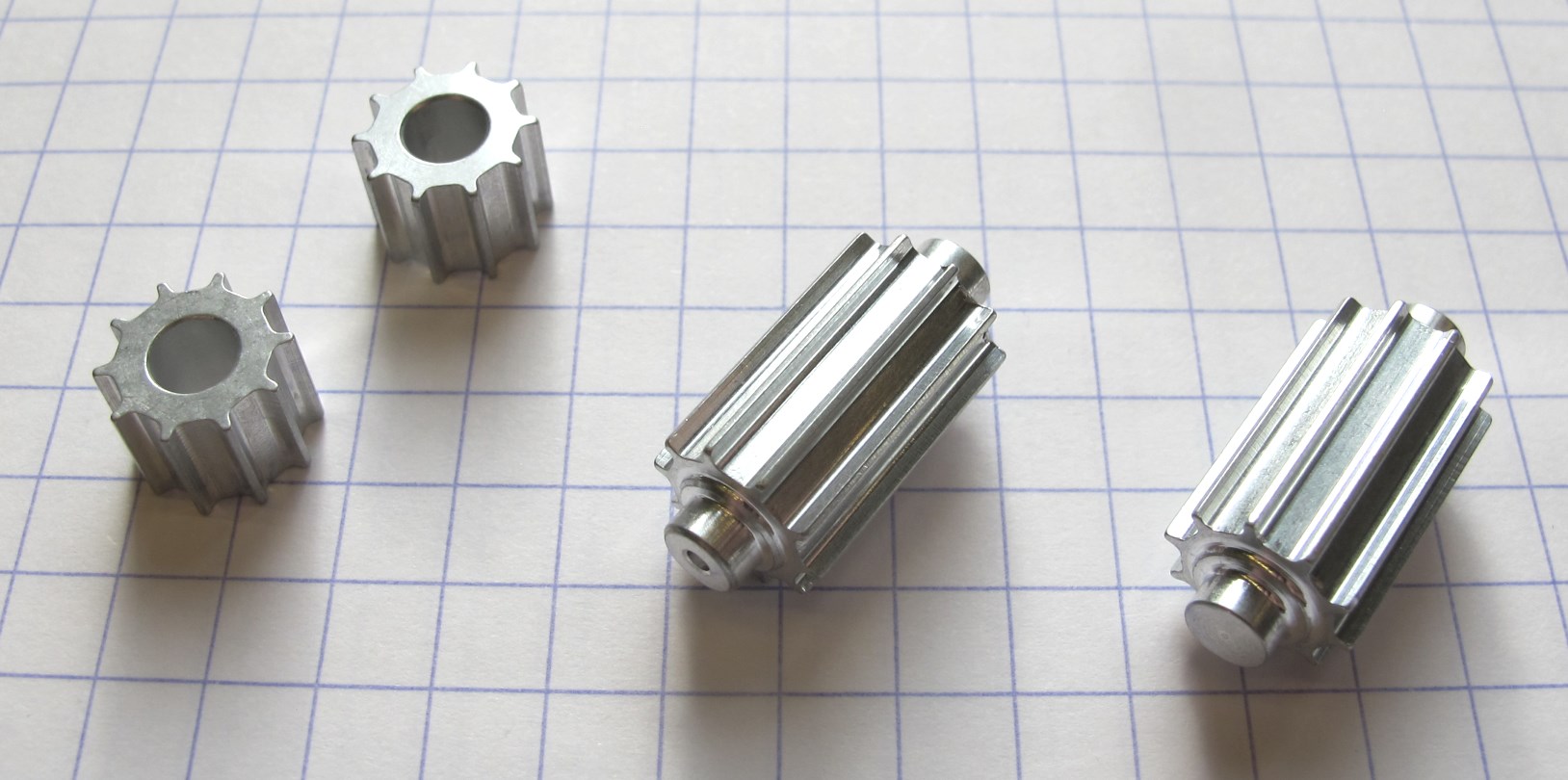

<img src="../images/pulleys_form_cutter_1.jpg" width="400"> <br>*Aluminum AT3 pulleys machined with Custom Form Cutter*

#### Instructions
* Find a company that offers custom tooling and that can produce custom form cutters.
* Send them this [PDF Drawing](../drawings/pulley_at3_t10_form_cutter.PDF) and ask them to quote a custom form cutter that will create the specified profile.
* You should mention that the tool will be used to machine 7075 aluminum.
* We use a 3mm shaft form cutter with 3 teeth at a helix angle of 20 degrees.
* When you have received your custom form cutter send the tool and the drawings below to a machine shop of your choice and have the parts machined.
* [Drawing Motor Pulley](../drawings/motor_pulley_at3_t10.PDF)
* [Drawing Center Pulley](../drawings/center_pulley_at3_t10.PDF)

---

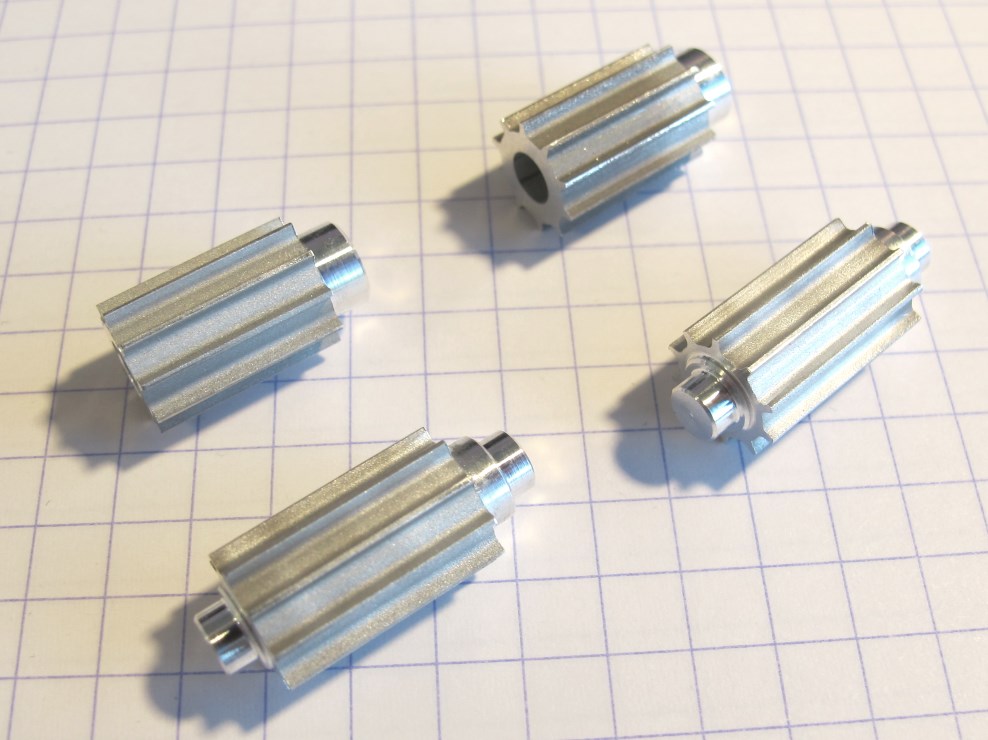

### Option B - Wire EDM Cutting

<img src="../images/pulleys_wire_edm.jpg" width="400"> <br>

#### Instructions

* alternatively the tooth profile can be generated with a wire edm machine
* we did some initial tests to evaluate this option
* in terms of cost it doesn't seem to be an advantage and we're not sure how the much rougher surface will affect the life span of the timing belts
* we are therefore not pursuing this option any longer
* [PDF Drawing Wire EDM Geometry](../drawings/pulley_at3_t10_wire_edm.PDF)
* [DXF File Wire EDM Geometry](../drawings/pulley_at3_t10_wire_edm.zip)

---

## Motor Shafts

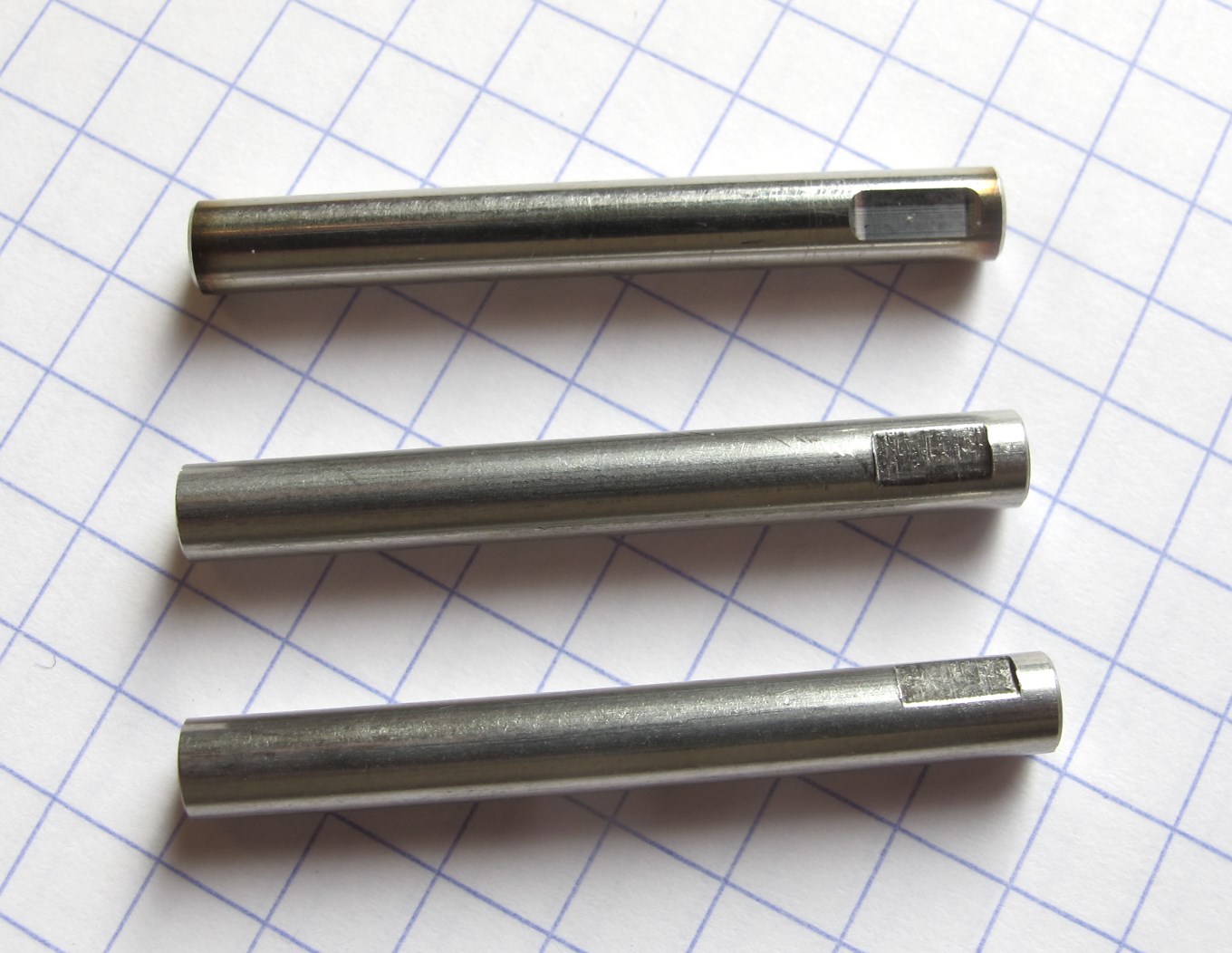

<img src="../images/motor_shaft_1.jpg" width="400"> <br>

* for the machining the motor shafts we order 4mm h9 precision ground stainless steel stock material
* the stock material diameter is between 3,99mm and 3,97mm
* the stock material fits the motor bearings without additional adjustments
* we order the stock material from [Weinmann Aach](https://weinmann-aach.de/) in Germany
* Precision Ground Stainless Steel Rod 1.4301 EN10278 h9 4,0mm (erd4)
* machine the motor shafts according to this drawing: [PDF Drawing Motor Shaft](../drawings/motor_shaft.PDF)

---
